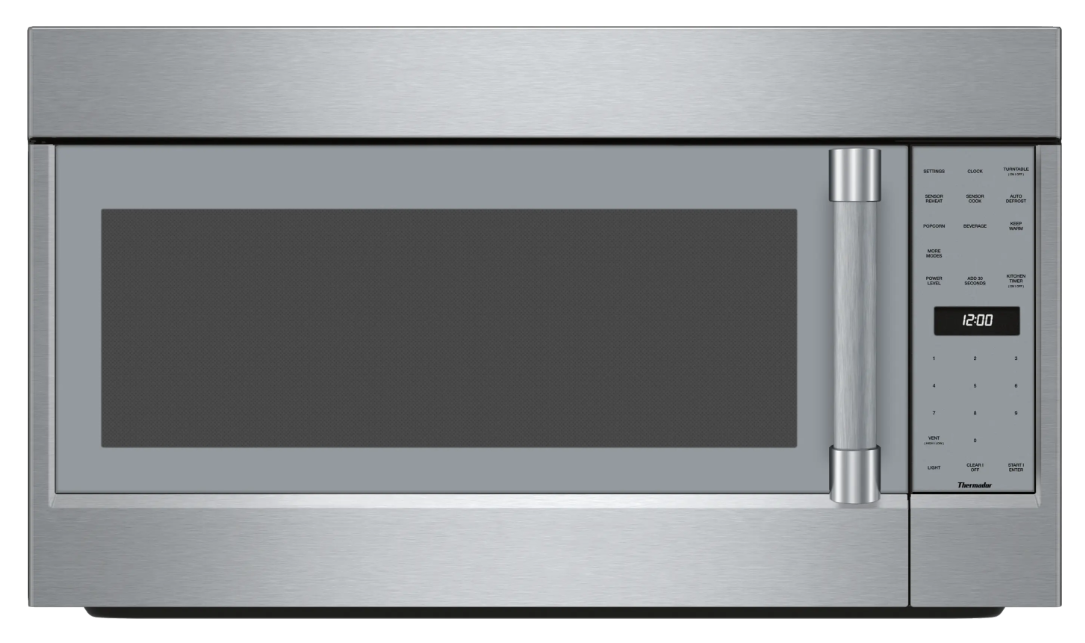

Thermador Over-The-Range Microwave 30'' Left Side Opening Door, Stainless Steel
OVER-THE-RANGE MICROWAVE 30'' LEFT SIDE OPENING DOOR, STAINLESS STEEL
OVER-THE-RANGE MICROWAVE 30'' LEFT SIDE OPENING DOOR, STAINLESS STEEL
MU30WSU
INFORMATION
COLLECTION
Over-The-Range
BRAND
Thermador
PRODUCT TYPE
Microwave
CAVITY COLOR
Grey
MAX. MICROWAVE POWER (W)
1.100 W
MAX. EXTRACTION RATE (CFM)
385 CFM
ADA COMPLIANT (WHEN INSTALLED TO ADA REQUIREMENTS)
No

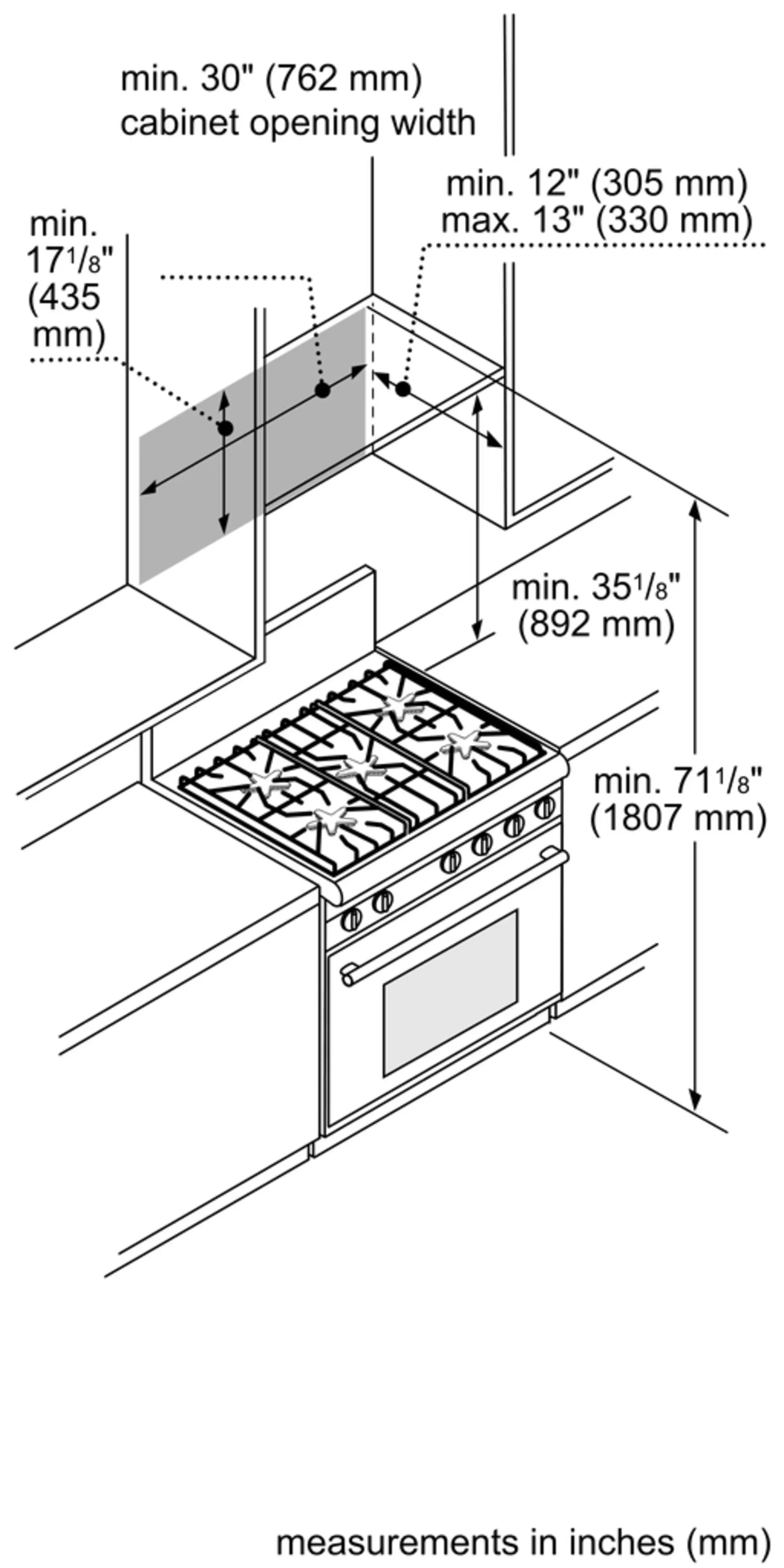

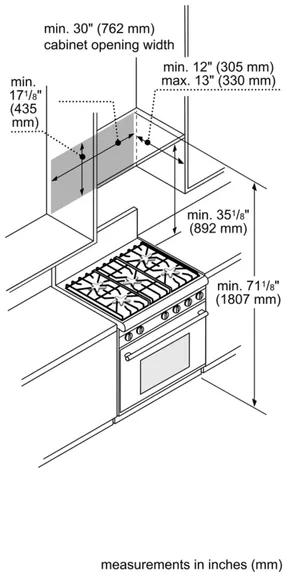

REQUIRED CUTOUT SIZE
- Height : 30''
- Width : 30''
- Depth : 12"-12 7/8''

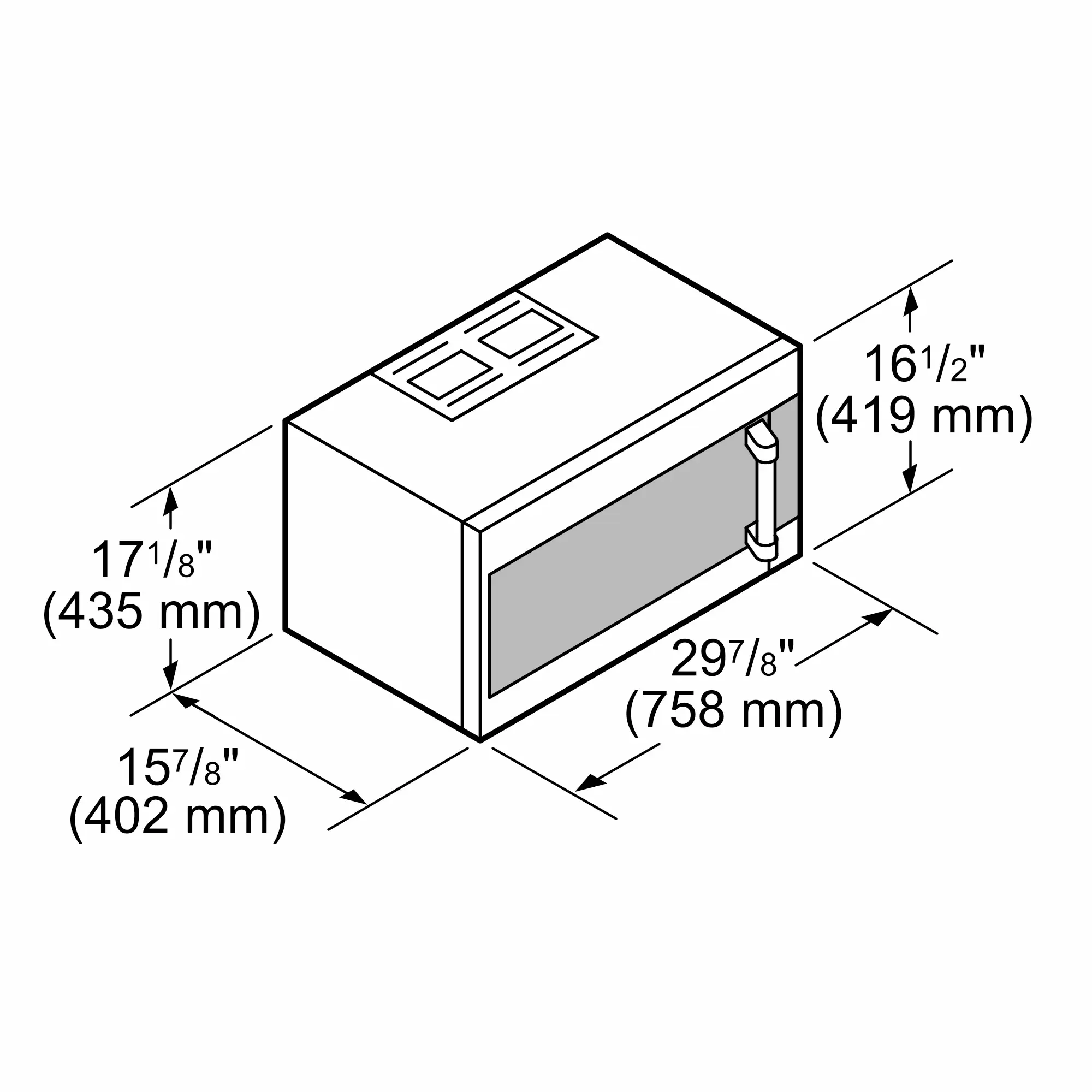

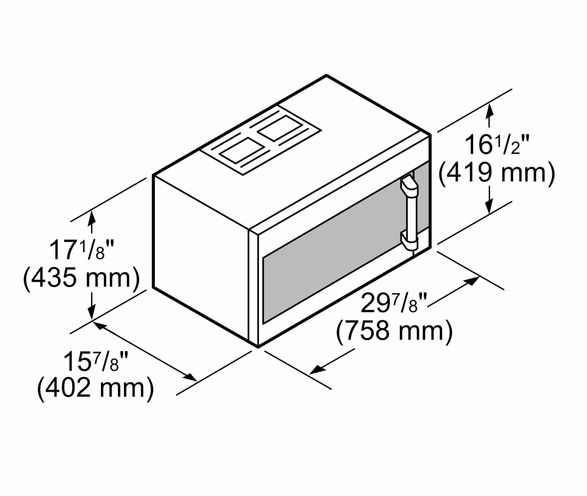

OVERALL APPLIANCE DIMENSIONS
- Height : 17 1/8"
- Width : 29 7/8''
- Depth : 15 7/8"
NET WEIGHT (LBS)
63 lbs
Cavity Capacity (cu. ft.)
2.1 cu. ft.
PACKAGING DIMENSIONS
- Height : 20.07
- Width : 33.26
- Depth : 19.29

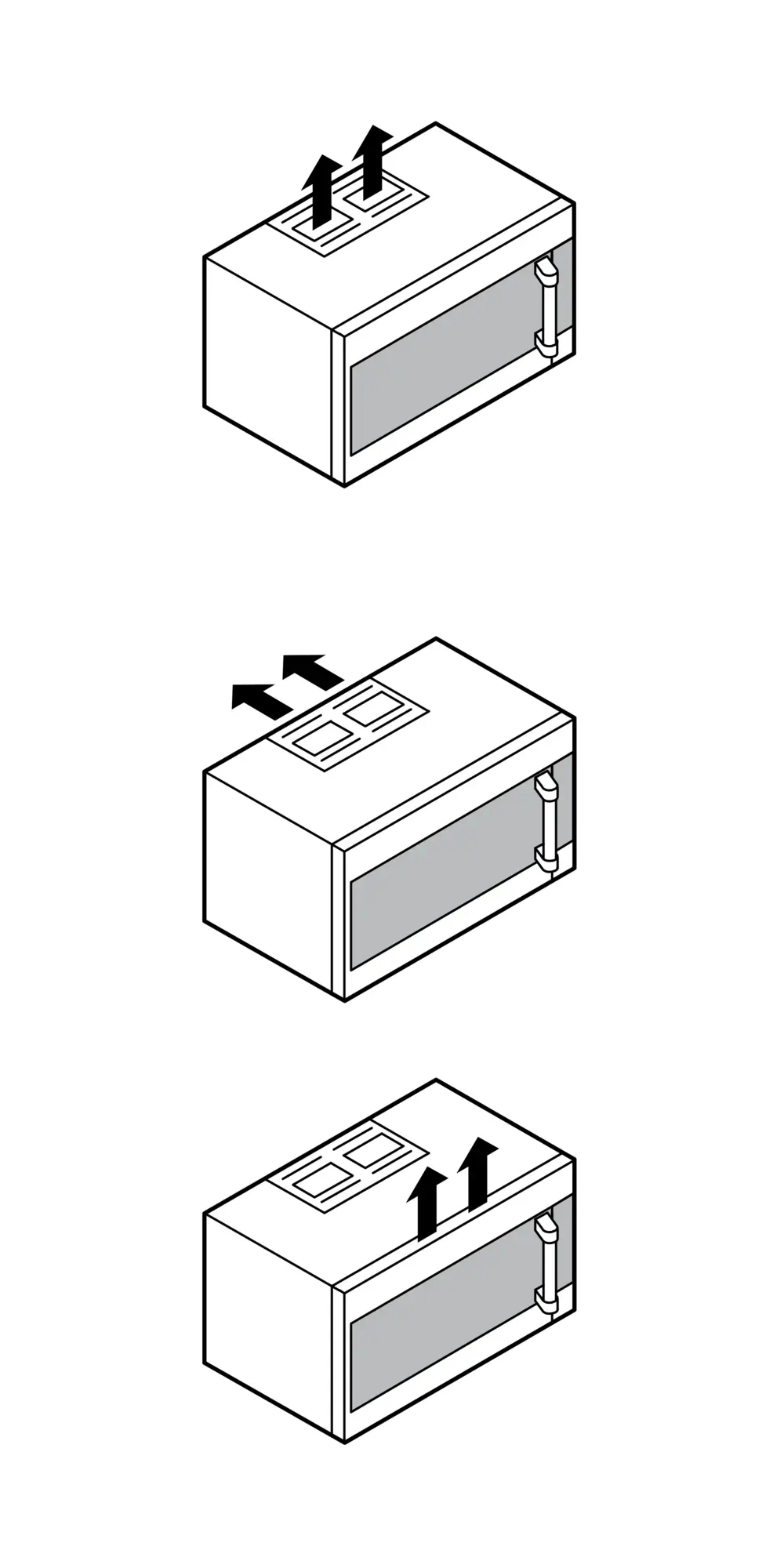

VENTILATION
Four-speed, 385 CFM ventilation system efficiently captures smoke, steam, grease and odors from the range or cooktop below
DUCTED
Yes
DUCTLESS SIZE
Yes
DUCT SIZE
3 1/4" x 10"
WATTS (W)
1,550 W
BENIFIT
Our innovated Triple Distribution Turntable Disk provides improved distribution of microwave energy for more even cooking
AUTOMATIC
Sensor Cooking allows you to cook foods without selecting cooking times and power levels. The microwave oven automatically determines the required cooking time for each food item.
HOME CONNECT® WIFI-ENABLED
No
CIRCUIT BREAKER (A)
15 A
VOLTS (V)
120 V
TURNTABLE DIAMETER (IN.)
14 3/16"
COOKING MODES THAT COMBINE WITH MICROWAVE FUNCTION
Not Applicable
COOKING MODES
Microwave
NUMBER OF POWER LEVELS
10
COLOR
Stainless Steel
DOOR OPENING
Handle
DOOR COLOR MATERIAL
- Black
- Stainless Steel
PERFORMANCE
1,100-Watts of Power offers exceptional cooking speed and heating performance
CAPACITY
2.1 cu. ft. oven capacity, 14 3/16" turntable and two level cooking rack accommodates large, oblong dishes
POWER CORD LENGTH
40"
AMPS
15 A

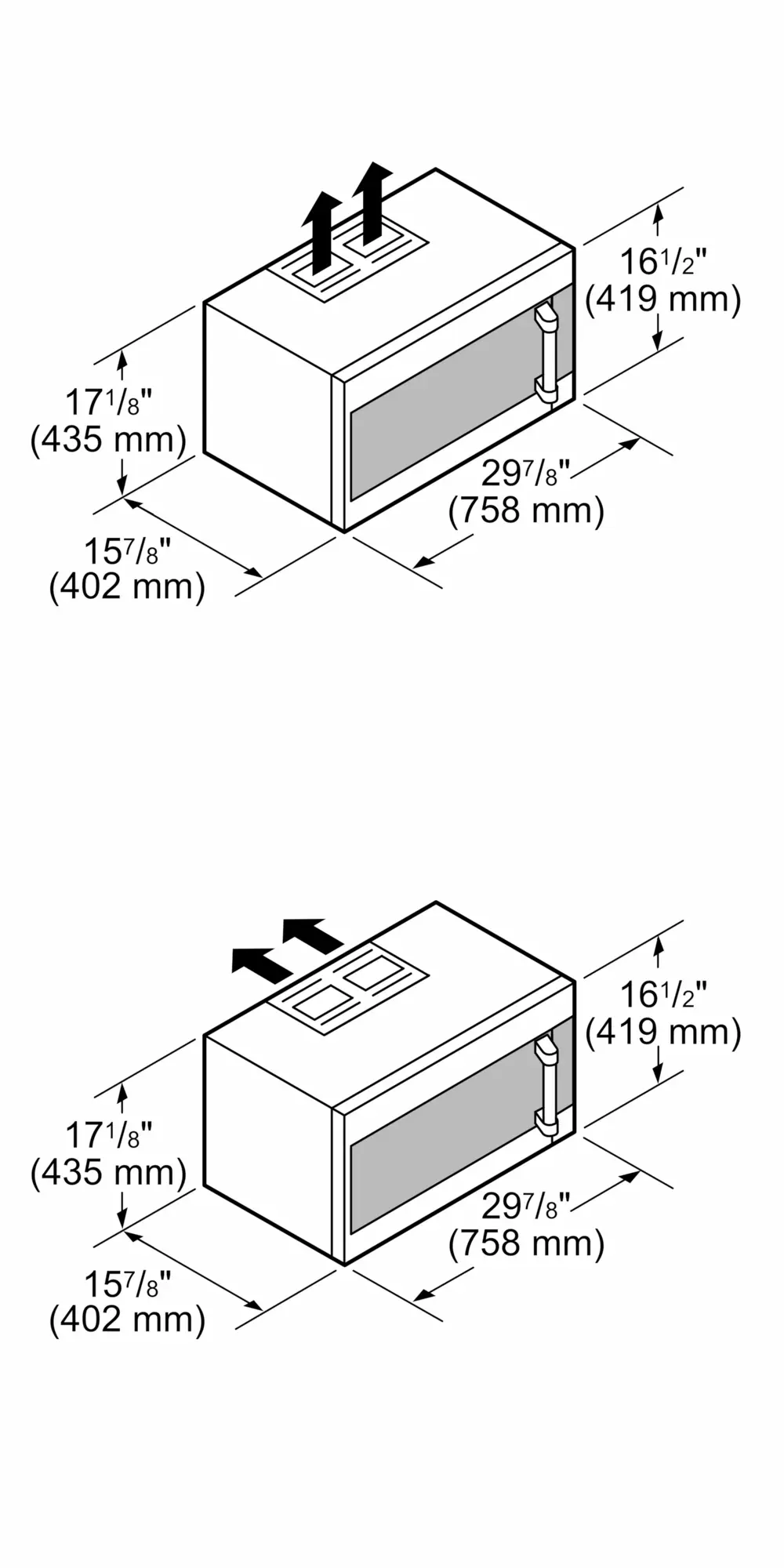

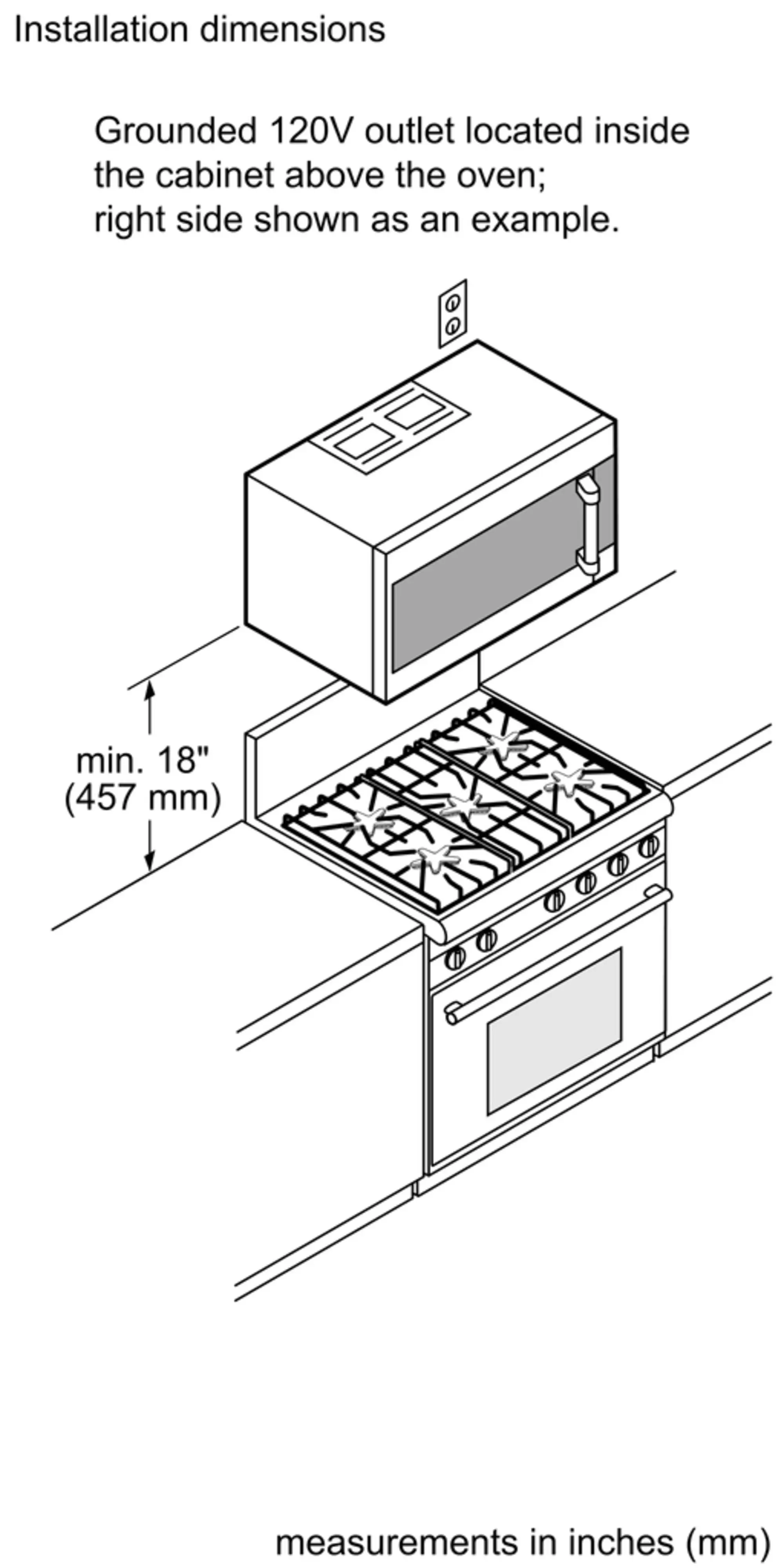

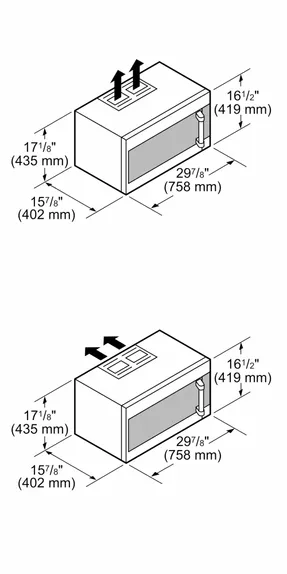

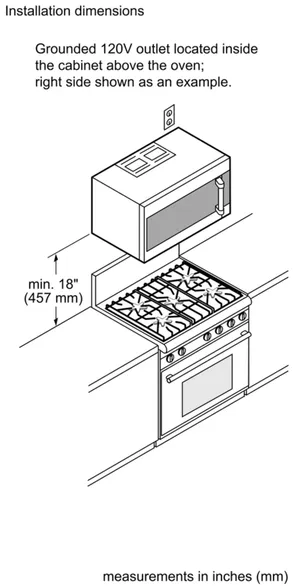

TECHNICAL DRAWINGS
TECHNICAL DRAWINGS
HIGHLIGHTS
10 MICROWAVE PROGRAMS FROM MELTING BUTTER TO SOFTENING ICE CREAM
Microwave Programs include Auto Defrost, Popcorn, Beverage, Keep Warm and more modes. With 10 Power Levels to meet you needs from boiling water, reheating food to softening butter.
LARGE 2.1 CU. FT. CAPACITY
Large Capacity featuring a 2.1 cu. ft.capacity with a 14-3/16" turntable and two level cooking rack to accommodate large, oblong dishes
TRIPLE DISTRIBUTION TURNTABLE DISK
Triple distribution turntable disk provides improved distribution of microwave energy for more even cooking.

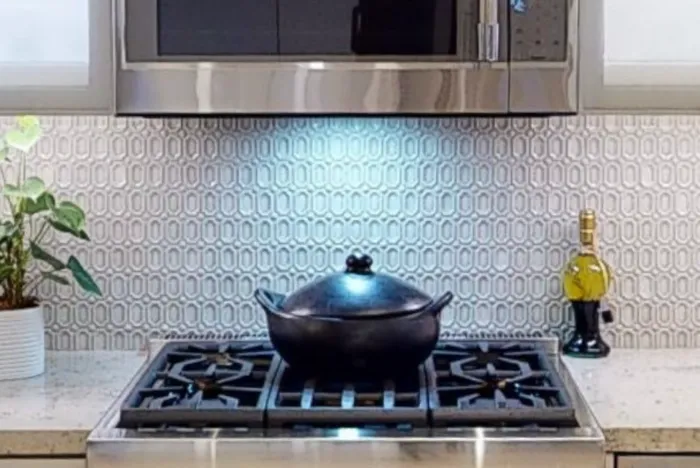

BUILT-IN VENTILATION SYSTEM
Ventilation system is built-in and captures smoke, steam, grease and odors from the range or cooktop below with a 385 CFM ventilation system.
SENSOR COOK AUTOMATICALLY DETERMINES COOKING TIME & POWER
With the Sensor Cook mode the microwave automatically determines cooking time and power levels. Sensor cook programs include Baked Potato, Sweet Potato, Fresh Vegetables, Frozen Vegetables, Ground Meat, Fish/Seafood, Brown Rice, White Rice and Frozen Entrées. Sensor Reheat mode allows you to reheat dinner plates or casseroles for your convenience.
