Galvamet Perfecto 60-80 Glossy Black Venting Hob
PERFECTO 60-80 GLOSSY BLACK VENTING HOB
PERFECTO 60-80 GLOSSY BLACK VENTING HOB
Perfection from every point of view

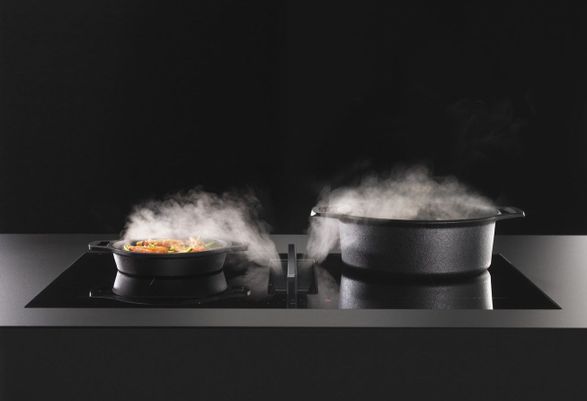

Powerful, silent, compact. The most advanced venting induction hob.
INFORMATION
BRAND
Galvamet
PRODUCT TYPE
Induction Hob
FINISHING
Glossy black ceramic glass
COLLECTION
Perfecto
MAX AIRFLOW
700 m3/h
DIMENSIONS
- Width : 60/80 cm
- Depth : 52 cm
SPEED NUMBER
9+Booster
TOTAL ABSORPTION
220 W
USE
Cooking
BRIDGE ZONES
2
TOTAL ABSORPTION
7.4 kW max with variable power limiter from 1.4 kW to 7.4 kW
DOWNLOADS
↓ Instructions
↓ Energy label

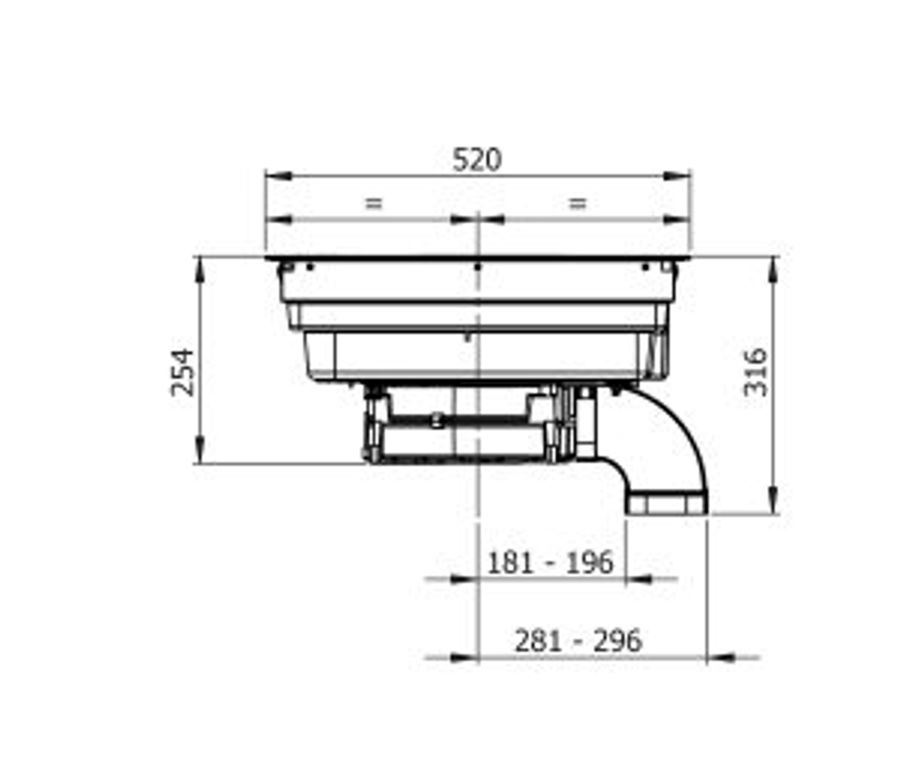

TECHNICAL DRAWINGS
ACCESSORIES
- Code 005PRC010400 – Kit of 4 anti-odor ceramic filters 150x60mm
- Code 005PRC030204 – Plasma filter kit
- Code 005PRC050001 – Kit of pipes for recirculation installation with plinth h6cm
- Code 005PRC050002 – Kit of pipes for recirculation installation with plinth h10cm
- Code 005PRC054000 – Rear air exhaust kit for recirculation installation with ceramic filters

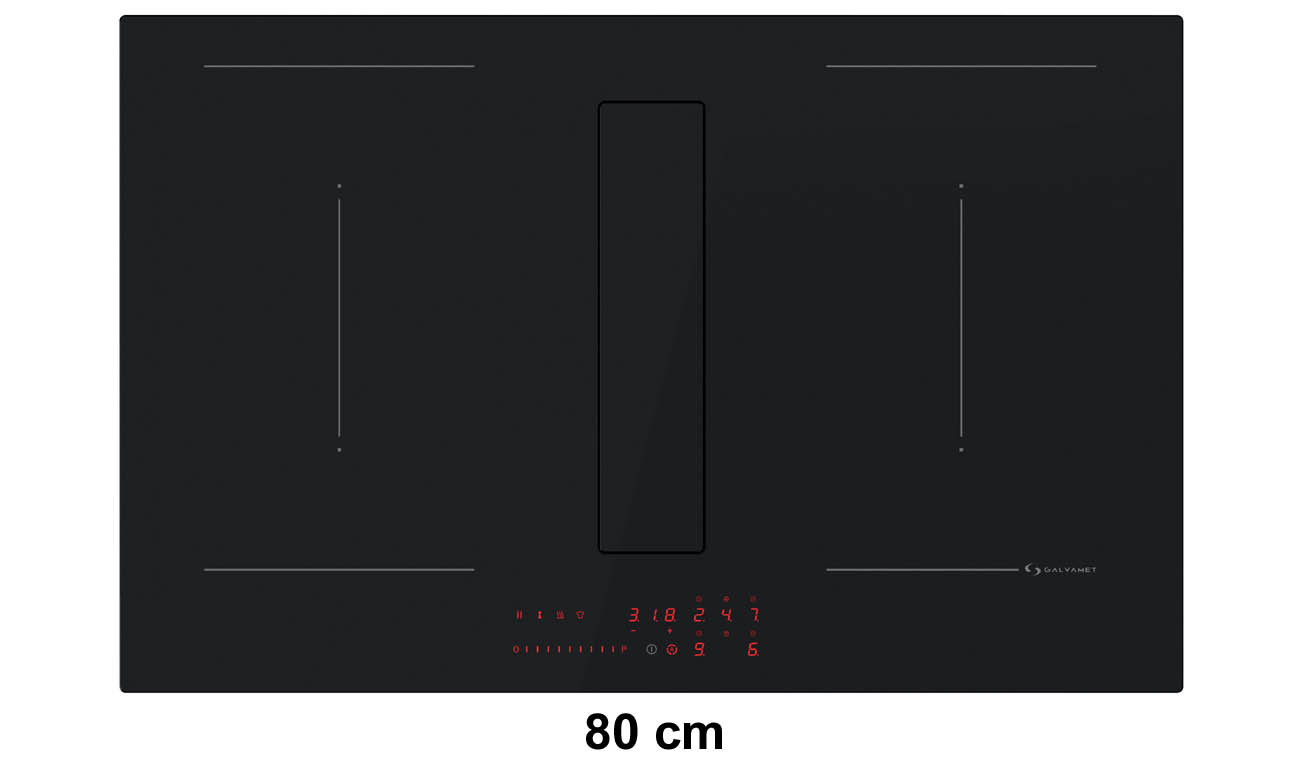

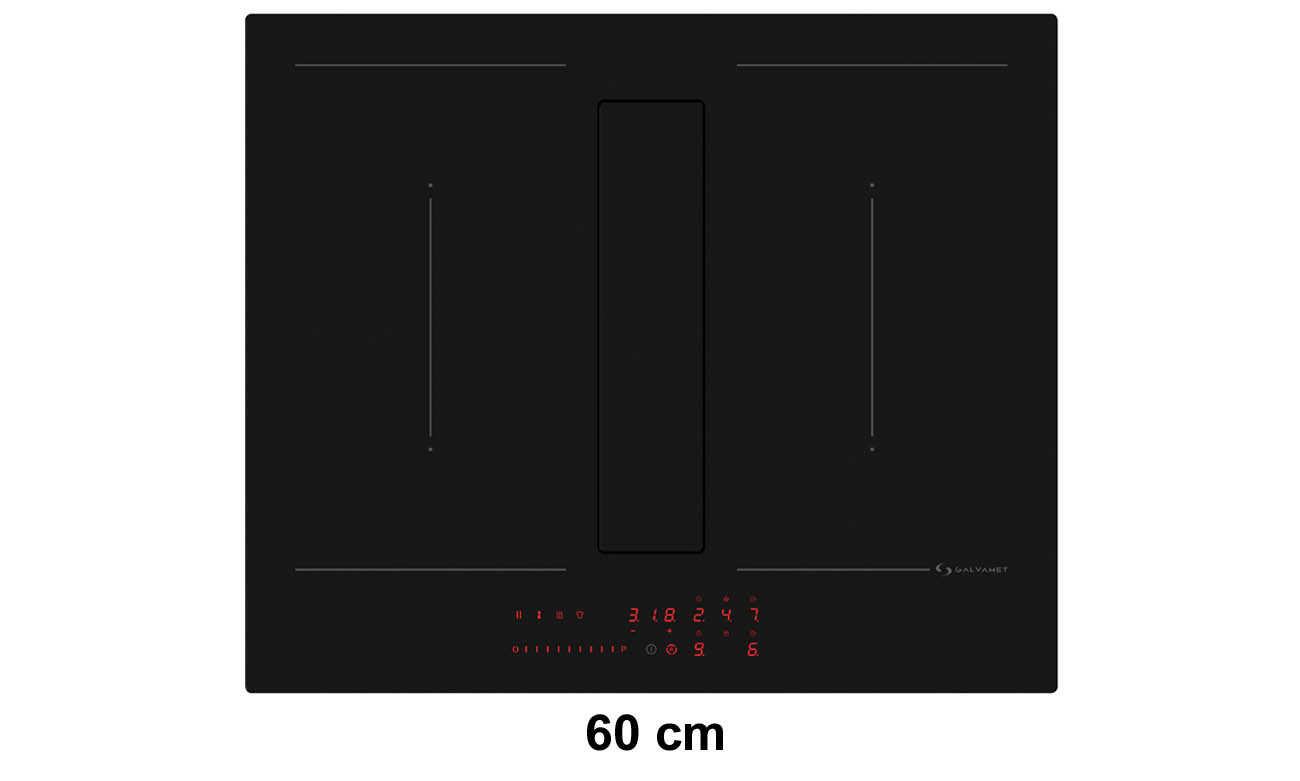

AVAILABLE SIZES
COOKING ZONES
- Zone 1 : 210x190mm – 2,1/3,0 kW
- Zone 2 : 210x190mm – 2,1/3,0 kW
- Zone 3 : 210x190mm – 2,1/3,0 kW
- Zone 4 : 210x190mm – 2,1/3,0 kW
SOUND POWER
62 dB(A) at maximum speed
ENERGY CLASS
A++

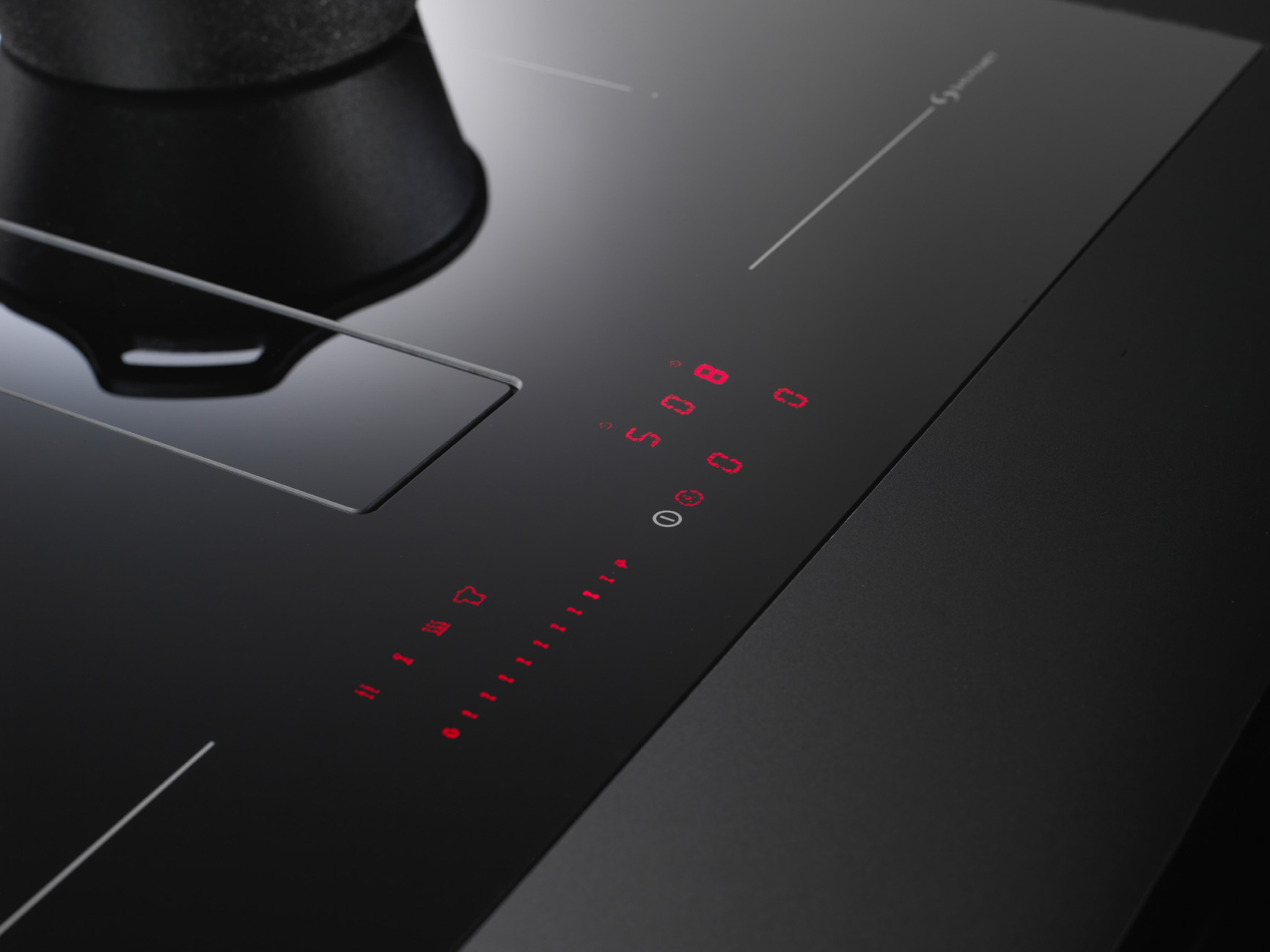

CONTROLS
Slider
FUNCTIONS

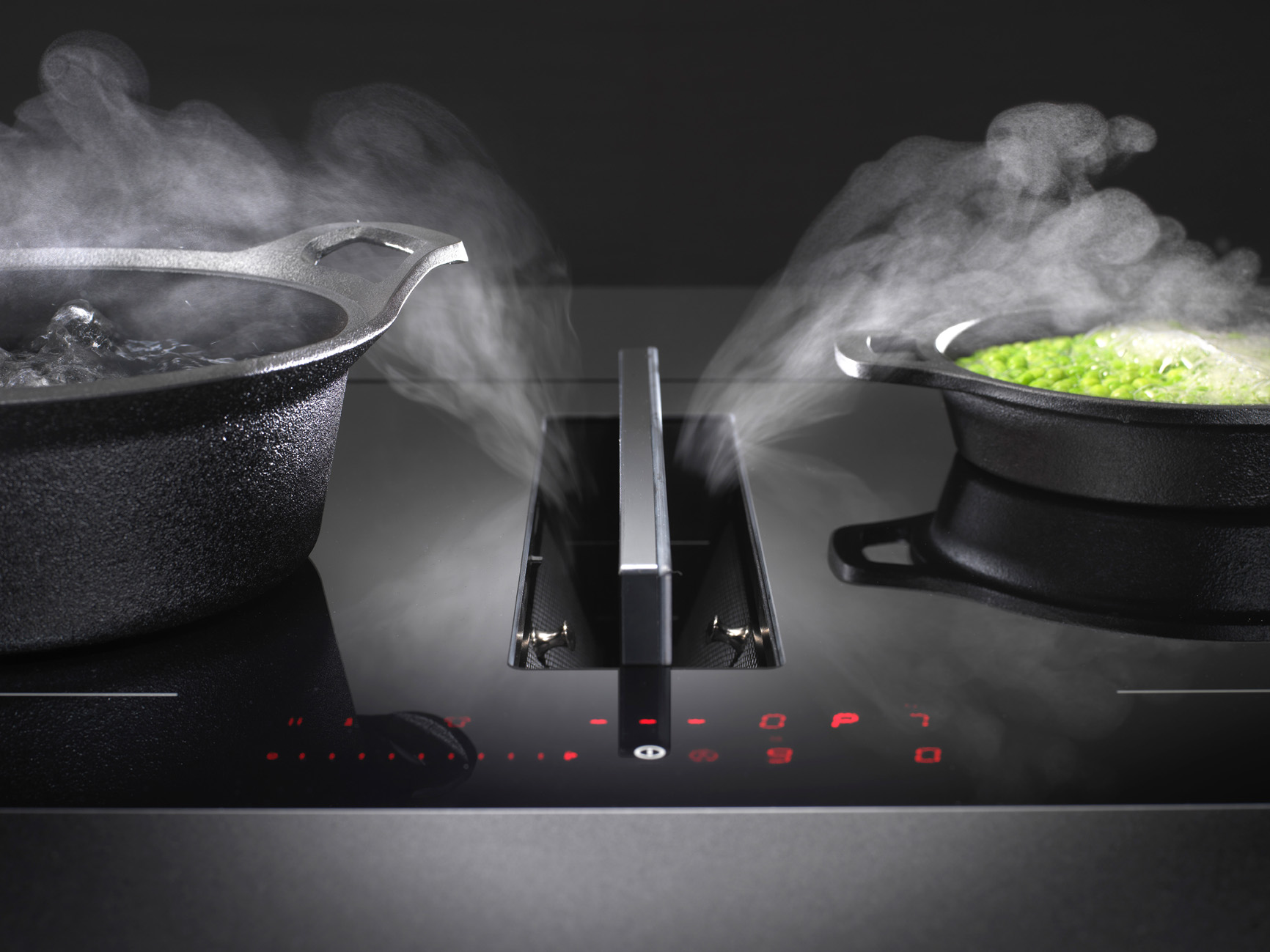

GLASS OPENING FLAP
Thanks to a sensor, it automatically switches off the suction when it is closed. It is easily removable for internal cleaning.
WATERPROOF MOTOR
The new patented water resistant motor avoids any breakage even in case of contact with it.
AUTOMATIC OPERATION
With this function, the hood will switch on at the most suitable speed, adapting the suction capacity to the maximum cooking level used in the cooking zones. When the cooking zones are switched off, the hood adapts its suction speed, progressively decreasing it, eliminating odors and residual vapors.
GREASE FILTER MAINTENANCE WARNING
Automatic warning to the user of the need to clean the metal filter that captures the grease. Correct cleaning of these filters guarantees the protection of the internal components of the hood and prevents the spread of bad odors generated by the fats captured over time..
THE METAL ANTI-GREASE FILTER AND THE GREASE DRIP TRAY
Can be easily removed and reinserted from above after having removed the glass flap. They can be washed in the dishwasher.

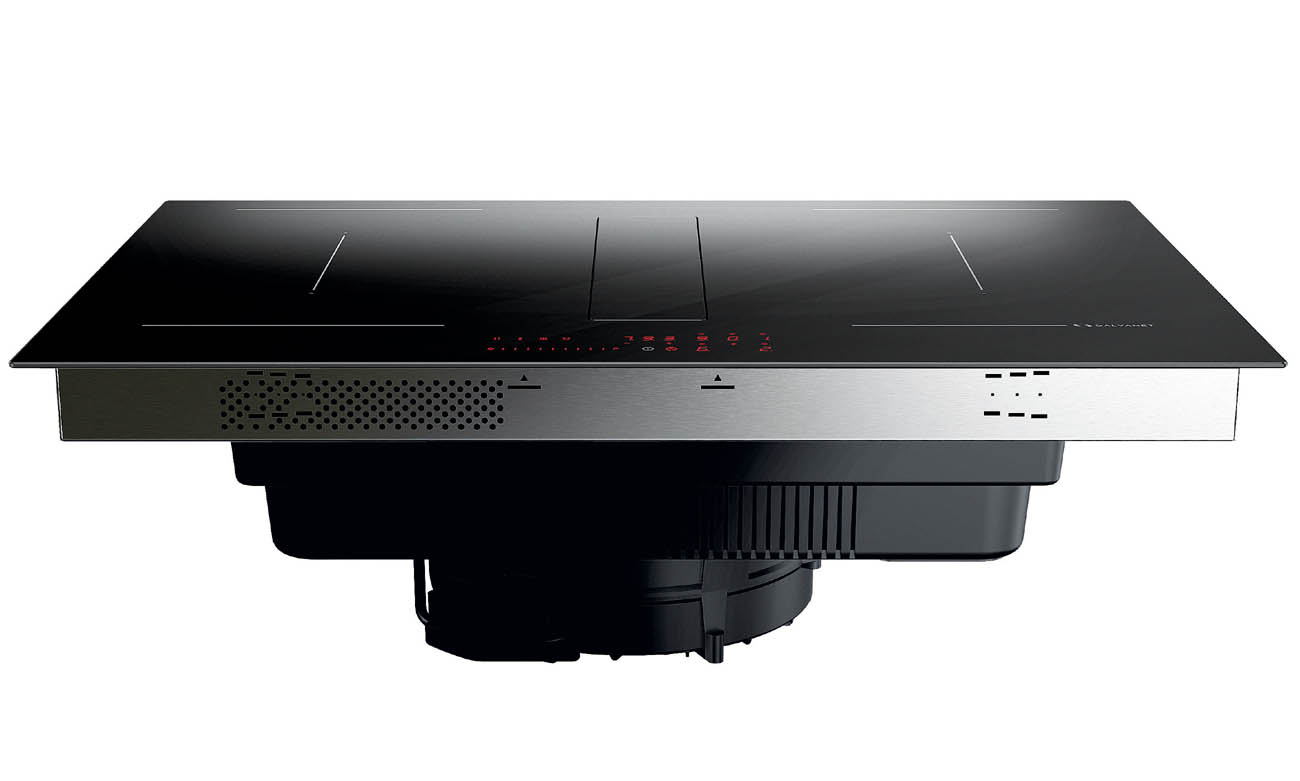

STRATEGIC POSITION OF THE MOTOR
The motor positioned directly under the glass ensures rapid installation and complete preservation of space in the base for the drawers.
INSTALLATION
It is possible to install the induction hob non-flush or flush uninterrupted on the top (filotop).
DUC OUT/RECYCLING
With a simple filtering kit (optional) the hood can be transformed from duct out (with pipes) to recycling (without pipes). The kit features Long Life technology (regenerable in the oven) and guarantees approximately 80% odor elimination. A filtering kit with Plasma technology is also available (optional) to ensure maximum elimination of odors (up to 95%), viruses spores bacteria (up to 99,9%) from the air.
ADJUSTABLE AND DELAYED SELF-SWITCHING OFF
This function allows you to programme delayed cooker hood shutdown which, in the shortest time possible, provides the right level of air purity in your kitchen.
WHEN THE SUCTION IS NOT IN OPERATION
The closed flap prevents the accidental fall of food and other objects. It also prevents the release of unpleasant odors due to the deposit of grease retained by the filter over time.
ADAPTABILITY AND DESIGN FREEDOM
The system can be adapted to any type of space thanks to the possibility of air outlet towards the floor or towards the wall.
LUMINOUS WARNING FOR THE REGENERATION OF THE LONG LIFE CERAMIC ANTI-ODOUR FILTER
The Long Life anti-odour filter, thanks to its 80% efficiency, captures all the odors present in the cooking fumes, guaranteeing pure air in your kitchen. It does not have to be replaced as frequently as a normal activated carbon filter, it can in fact be regenerated every 2-3 months, and in any case based on the frequency of use of the hood. To thermally regenerate the ceramic anti-odour filters, they must be placed in a domestic oven at 100°C for 2/3 hours.
Correct regeneration ensures constant filtering efficiency for 5 years. The 4 cartridges containing the anti-odour filter can be easily removed from above after removing the flap.
INDUCTION HOB FEATURES
RESIDUAL HEAT INDICATOR
A safety system that signals the presence of heat on the surface after use. The “H” symbol warns that the area is still hot, helping to prevent accidental contact and ensuring total peace of mind in the kitchen.
CHILD LOCK
A safety function that temporarily disables the controls, preventing accidental changes and ensuring maximum peace of mind during everyday use.
PAUSE AND RESUME FUNCTION
Allows you to temporarily pause cooking and later resume with the same settings. A practical solution that offers maximum freedom and control, even during the most dynamic cooking phases.
RAPID AUTOMATIC HEATING
Quickly brings the cooking zone to the desired temperature, speeding up preparation times without compromising precision and control.
KEEP WARM FUNCTION
keeps dishes at the ideal serving temperature without continuing the cooking process, preserving taste and texture until it’s time to serve.
AUTOMATIC SWITCH-OFF TIMER
Each cooking zone is monitored by an automatic system that stops heat delivery after a maximum operating time, guaranteeing safety and protection even in case of forgetfulness.
PAN DETECTION
The technology automatically recognizes the presence and size of the pan, activating the cooking zone only when necessary. An intelligent system that optimizes efficiency and ensures maximum safety.
TIMER
Allows precise setting of the cooking duration for each zone. When the selected time ends, the zone automatically switches off, ensuring perfect results without the need for constant supervision.
OVERHEAT PROTECTION
an intelligent safety system that constantly monitors the temperature and automatically intervenes in case of overheating, ensuring reliability and long-lasting performance of the cooktop.
CHEF FUNCTION
Lets you cook like a professional by setting different power levels on adjacent zones. Simply move the pan, and cooking continues at the ideal temperature — for perfect control and a true chef experience.
