Fosterspa Cooker Hob Modular Induction
COOKER HOB MODULAR INDUCTION
COOKER HOB MODULAR INDUCTION
Modular system with free positioning on the work surface.
INFORMATION
SUPPLY
- 50.60 Hz
- Two-phase : 400 V
- Single-phase : 230 V
BRAND
Foster
PRODUCT TYPE
Induction Hob
CODE PRODUCT
7366020
COLOR
Black
FULL DESCRIPTION
Modular Induction composition - 2 ranges - black
EDGE/INSTALLATION TYPE
- Flush-mount
- Top-mount
MATERIAL
Ceramic glass
HEATING ELEMENT
Two zones
TOTAL POWER
4.400 W
POWER SETTINGS
9 power settings per zone + Powerboost
LEFT
2.300 (3.000)* W
RIGHT
1.100 (1.400)* W
TIMER
Indipendent timer from the end-of-cooking function.
TYPE OF COMMANDS
Touch Control
BOOST
Powerboost
USE
Indoor
EQUIPMENT
- 1 x Serie Modular Induction 7361 270
- 1 x Modular Induction 7369 020
- 1 x Piastra Modular Induction 7363 350
- 1 x Touch Control Modular Induction 7368 020

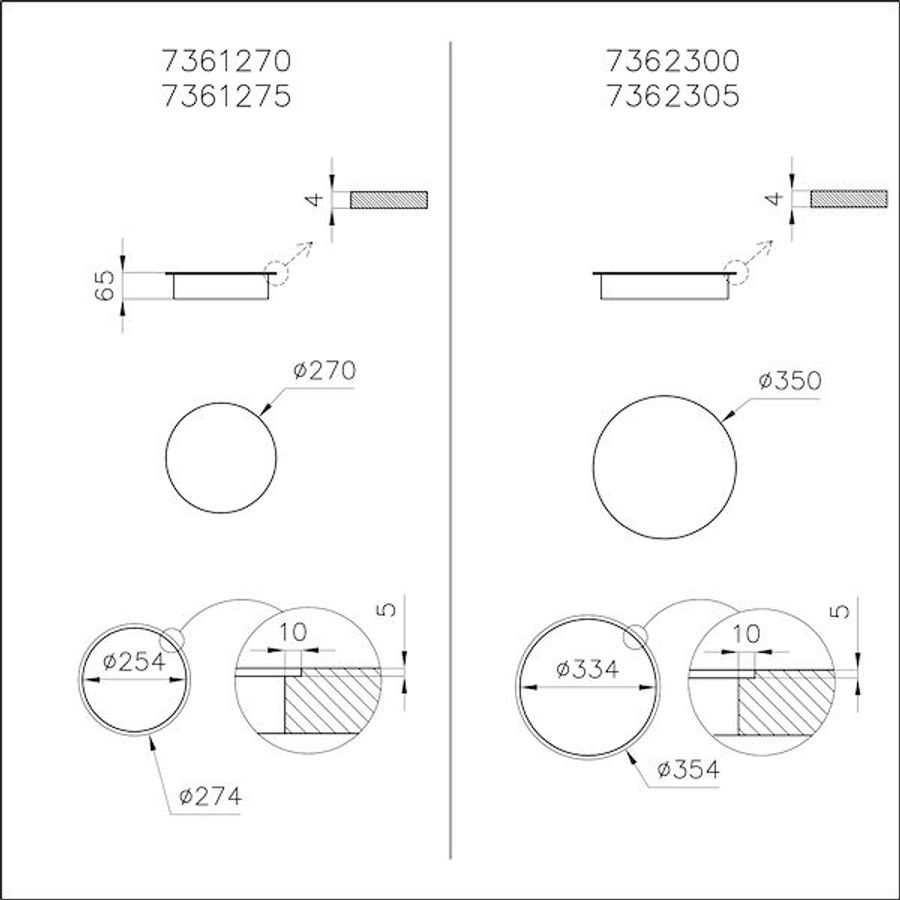

TECHNICAL DRAWING
CONSTRAINTS
The arrangement of the elements is subject to constraints dictated by the lengths of the connection cables. Refer to the individual component specifications.
SAFETY
Safety equipment
COLLECTION
Cooker
DETAIL
The system presented here is one of the possible compositions of the Modular System. Other compositions, as specified by the Touch Control element.
FEATURES
PAUSE
Useful function that allows you to distract your attention from cooking, interrupting and restoring the settings immediately.
HEAT MAINTENANCE
Function that allows the food to be kept warm gently (70° C), without reaching boiling temperatures or risking to burn the sauce.
RECALL
This feature allows you to call back the last settings selected in the previous cooking.
GO&STOP FUNCTION
This device initially turns on the plates at maximum power until the selected temperature has been reached.
SMART FAN SYSTEM
Correct ventilation is essential for the induction hob to function in the best possible way. The Foster system automatically regulates the amount of ventilation to suit the temperatures reached.
CAN DETECTOR
All induction cooker hobs detect the pot resting on them, but they also calculate the area they cover. This system allows the energy to be used even more efficiently. Moreover, the plates switch off automatically when the pot is removed.
SLIDER COMMANDS
The Slider control allows for extremely quick temperature setting: with a light touch of the finger you may select the desired power level on the TOUCH display.
END-OF-COOKING PROGRAMMING
All operations are programmed by means of the touch-control on the glass itself. Each cooking plate is capable of independent programming, and thus the possibility to set different cooking times.
POWERBOOST
Booster function provides increased power to the selected plate. In particular, when the Booster is activated, the plate works for ten minutes at a very high power that allows to heat quickly large quantities of water.
SAFETY
All electric cooker hobs feature the most modern and sophisticated safety protections: Centralised power-off function; Child-proof safety lock; Residual heat warning lights.
Induction models feature the following functions: Safety System that turn off the hob in the absence of the pot; Overflowdetector that automatically turns off the plate in case of liquid overflow; Automatic deactivation to prevent accidents caused by forgetfulness.
