POWER 2400 AMPLIFIER
POWER 2400 AMPLIFIER
The power2400 mono block power amplifier offers outstanding audio performance with dependability.

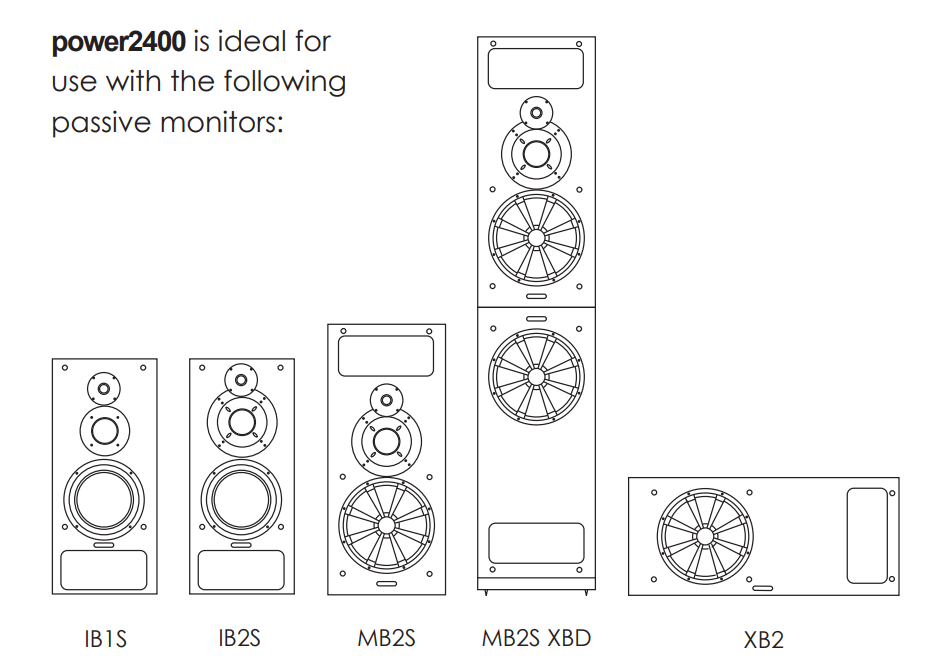

Its transparency and astounding levels of resolution make it ideal for critical monitoring applications especially in partnership with any one of the PMC three-way passive monitors.
INFORMATION
BRAND
Pmc
PRODUCT TYPE
Amplifier
RATED OUTPUT POWER, 230V MAINS
1200W into 8Ω 2400W into 4Ω
THD (RATED OUTPUT POWER INTO 8OHMS)
0.008% at 1kHz, 10W, into 8Ω
HEAT DISSIPATION
368BTU per hour at 1/8th rated power into 8Ω
DIMENSIONS
- Depth : 470 mm
- Width : 482 mm
- Height : 133 mm
DYNAMIC RANGE
119dB relative to rated output power into 8Ω
MAINS CONNECTION
IEC C20 3 pole - 115v or 230-240v (switchable)
WEIGHT
14.5 kg
USE
Entertainment
LOW OUTPUT IMPEDANCE TECHNOLOGY
Its intelligent single feedback loop circuit senses the loudspeaker’s load and adjusts the response accordingly and creates an extremely low output impedance.
With this in mind you are not only guaranteed a highly accurate balance but also remarkable dynamics and control over all the monitor’s drivers.
SENSITIVITY
1.95Vrms for rated output power
PRODUCTION
Made in United Kingdom
POWER CONSUMPTION
60W - idle
FREQUENCY RESPONSE
10Hz - 50kHz -3dB
DAMPING FACTOR
160 (20Hz - 20kHz) ref 8Ω
VIEW
3D
GALN
34dB
HIGH-POWER RACK MOUNT AMPLIFIER
This British, hand built, 3U rack mount amplifier produces a commanding 1200W into 8 ohms with a flat frequency curve under all loads.
EFFICIENCY
Both power supply and amplifier are highly efficient with the amplifier delivering 84% efficiency reducing current usage and both exhibit extremely low radiated and conducted EMI - perfect for low noise environments.
DOWNLOAD
↓ Brochure
INPUT IMPEDANCE
100kΩ
WORLDWIDE VOLTAGE COMPATIBILITY

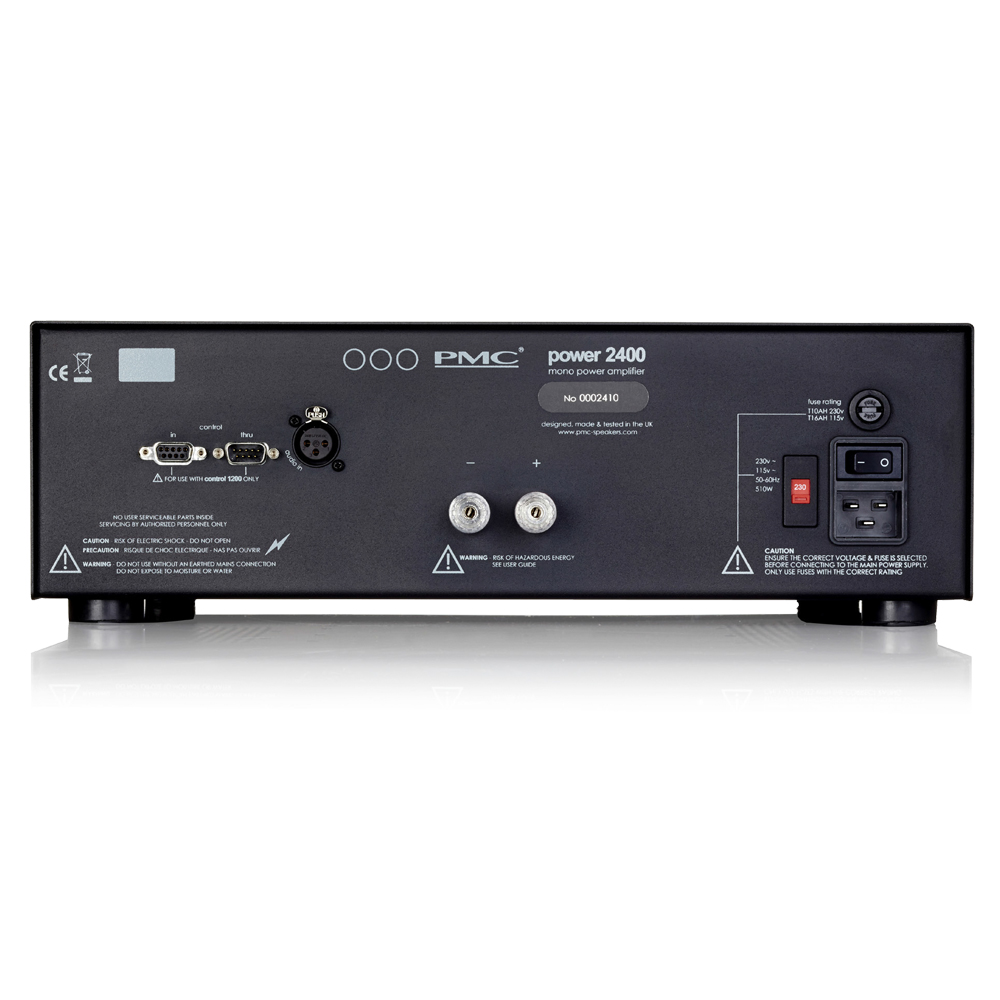

Globetrotting presents no problem as the mains input is switchable from 115V or 230V-240V with the output connections via substantial binding posts and audio input is via a high quality Neutrik, XLR socket.
