Dometic zamp solar obsidian® series 45 watt portable solar charging kit
ZAMP SOLAR OBSIDIAN® SERIES 45 WATT PORTABLE SOLAR CHARGING KIT
ZAMP SOLAR OBSIDIAN® SERIES 45 WATT PORTABLE SOLAR CHARGING KIT
Portable Solar Charging Kit with 45-Watt Panel
Charge your Dometic PLB40 portable lithium battery on-the-go with the OBSIDIAN® SERIES Portable Kit.
INFORMATION
DESIGN
Includes a slim, deploy-anywhere solar panel with foldable design, and adaptor to charge your PLB40 battery for flexible, mobile off-grid power
BRAND
Dometic
PRODUCT TYPE
Solar Charging Kit
TRADITIONAL PANEL
Ultra-low-profile, 12.5-lb panel is 50 percent slimmer than a traditional panel
SKU
9620001049
MODEL
OL45P
PRODUCTION
Made in USA in Bend
OUTPUT
Generates 2.37 amps
PADDED BALLISTIC
Padded ballistic nylon storage pocket protects and organizes all cables and accessories
MOUNTING SYSTEM
Omni-Rail mounting system for easy vehicle attachment with mounting feet (sold separately)
RESISTANT
Weatherproof and impact-resistant panel
WARRANTY
Oregon with 25-year output warranty
STORAGE
Military grade carry and storage case doubles as an adjustable quick-deploy stand and lays flat for storage in tight spaces
DIMENSIONS - LOGISTICS
- Height : 88.90 mm
- Width : 406.40 mm
- Depth : 863.60 mm
SUITABLE
All-weather ATP Series™ Interconnect plugs for customizable and scalable integration
NET WEIGHT
5.67 kg (12.50 lbs)
PARCEL WEIGHT
5.90 kg (13.01 lbs)
CHARGING TIME
- ATP to Dometic PLB40 adaptor for easy charging of PLB40 portable lithium battery. PLB40 sold separately
- PLB40 Charging Time: requires 16 hours of sunlight exposure to generate sufficient energy
DIMENSIONS (UNFOLDED)
- Tall : 12”
- Wide : 15.5”
- Long : 32”
DIMENSIONS (FOLDED)
- Tall : 32”
- Wide : 15.5”
- Thin : 2”
WATTAGE
45-Watt Power Output
ADAPTOR LENGTH
6in ATP-Anderson SB50
USE
Outdoor
DESIGN
Foldable Design
OPEN CIRCUIT VOLTAGE (VOC)
24.35 volts
EXTENSION CABLE LENGTH
15ft 12-gauge Extension Cable
POWER POINT
Maximum Power Point Voltage (Vmpp): 18 volts
HIGHLIGHTS
ALL-WEATHER PLUGS
ATP Series™ Interconnect Plugs (IP67) with 15-foot ATP-ATP extension cable

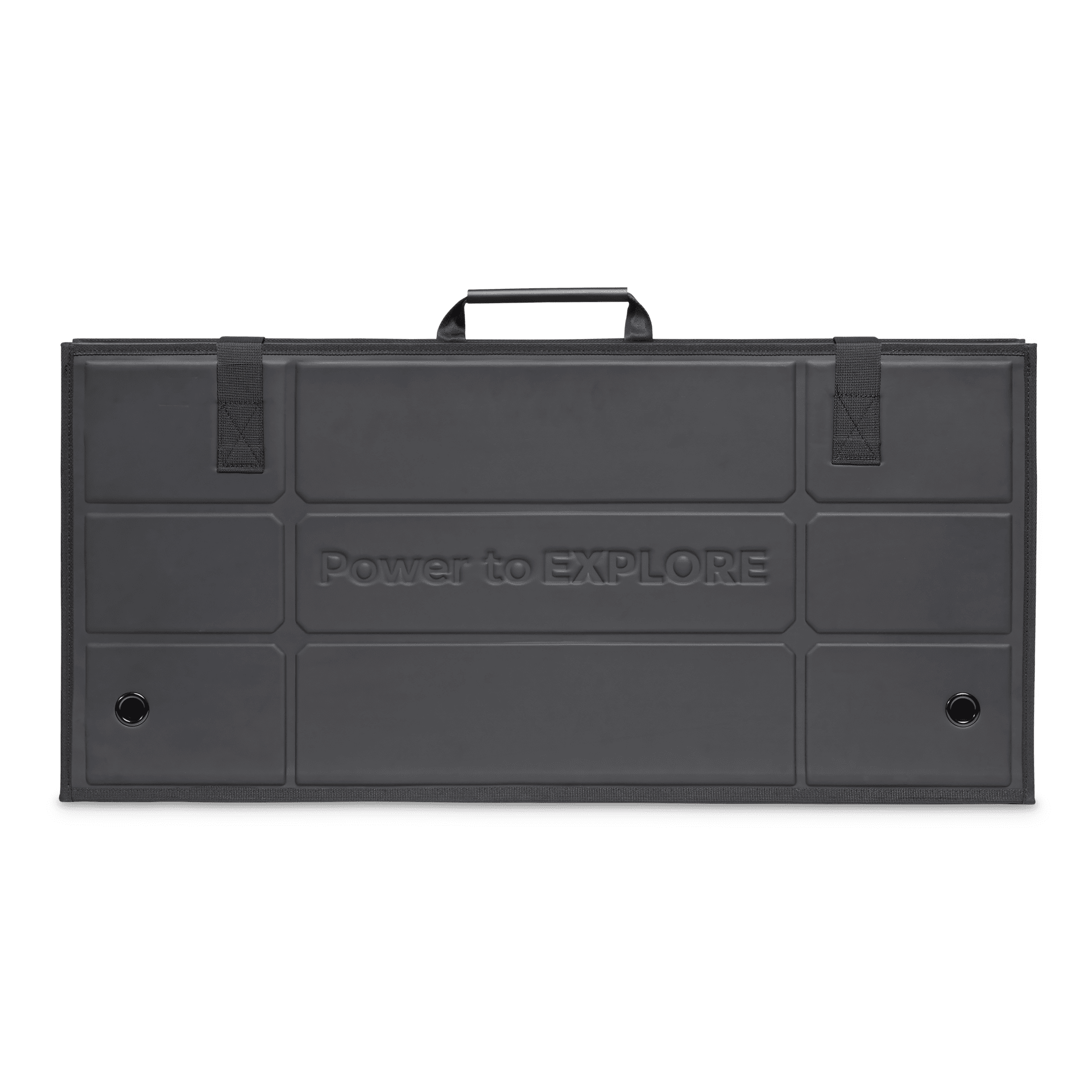

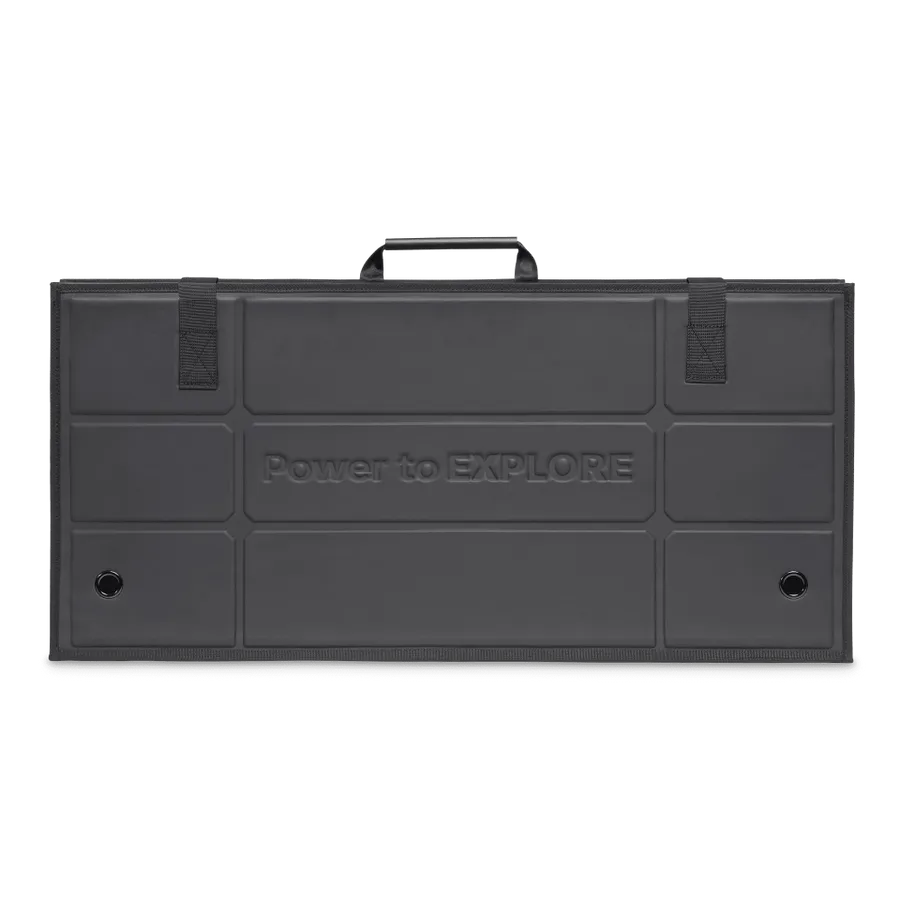

REINFORCED STORAGE CASE
A padded ballistic-nylon pocket protects and stores cables and accessories
QUICK-DEPLOY STAND
Carry and storage case doubles as stand with adjustable molded block feet

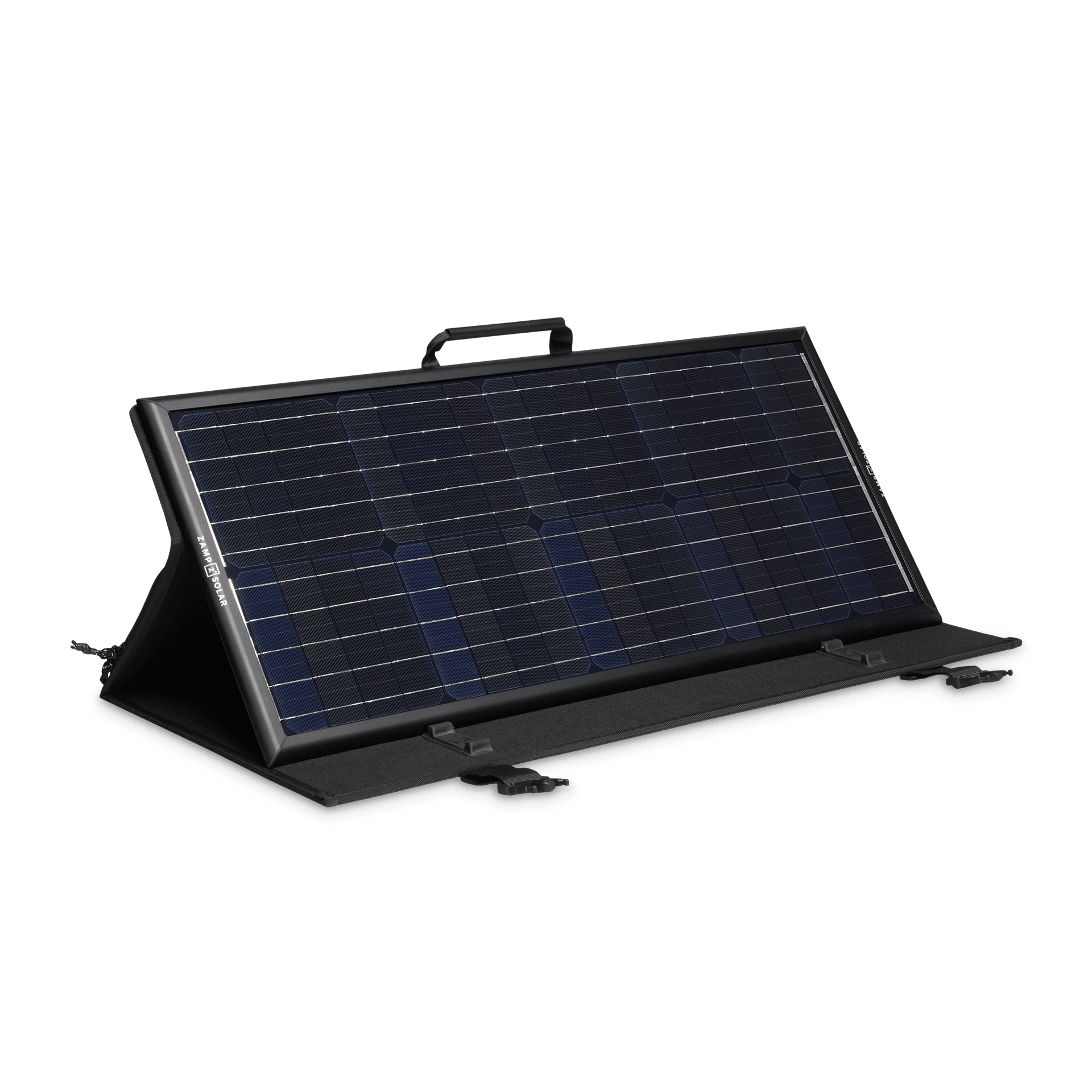

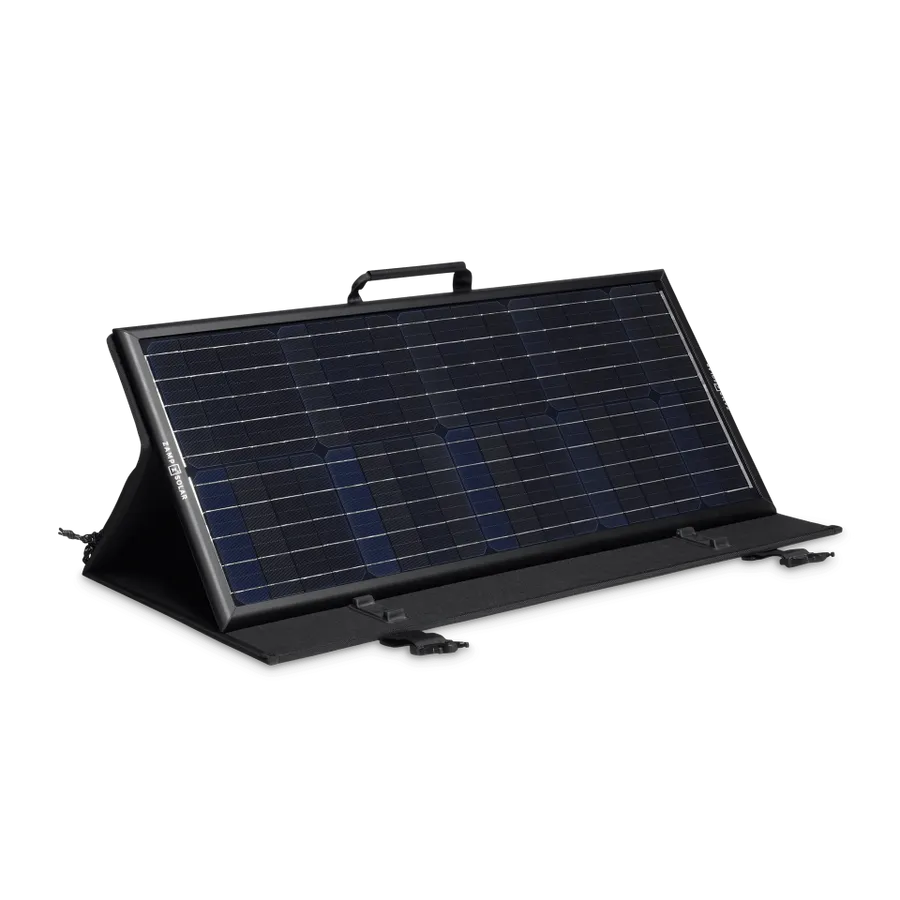

ULTRA-LOW PROFILE SOLAR PANEL
50 percent slimmer than a traditional panel without compromising efficiency
SIMPLE OFF-GRID CHARGING
Charges Dometic PLB40 battery with included ATP to PLB40 Adaptor
PORTABLE SOLAR
Designed to be portable. The padded ballistic-nylon carry case for easy transport, storage to cables and accessories, and protection to the panel
