Bowerswilkins AM-1 Outdoor Loudspeaker
AM-1 OUTDOOR LOUDSPEAKER
AM-1 OUTDOOR LOUDSPEAKER

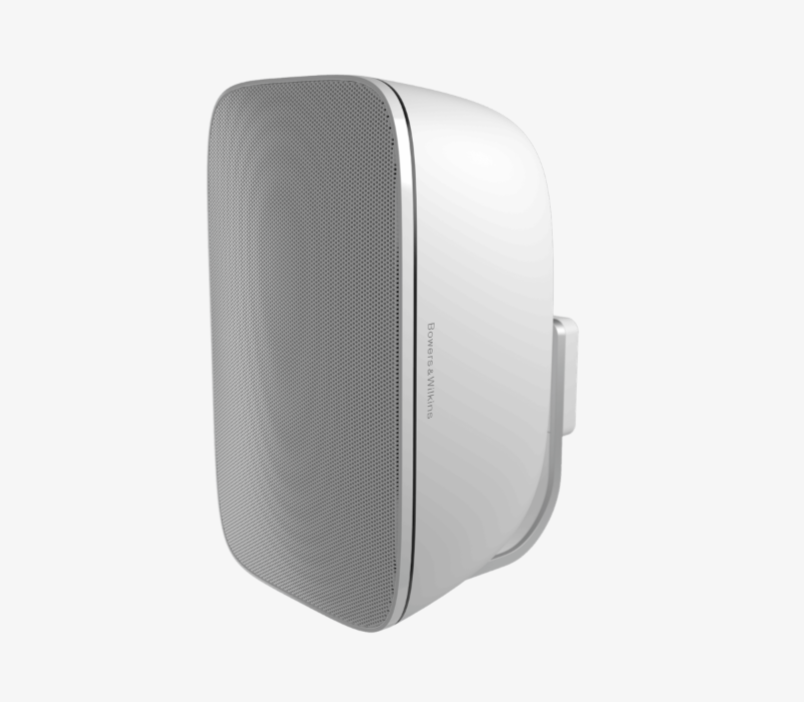

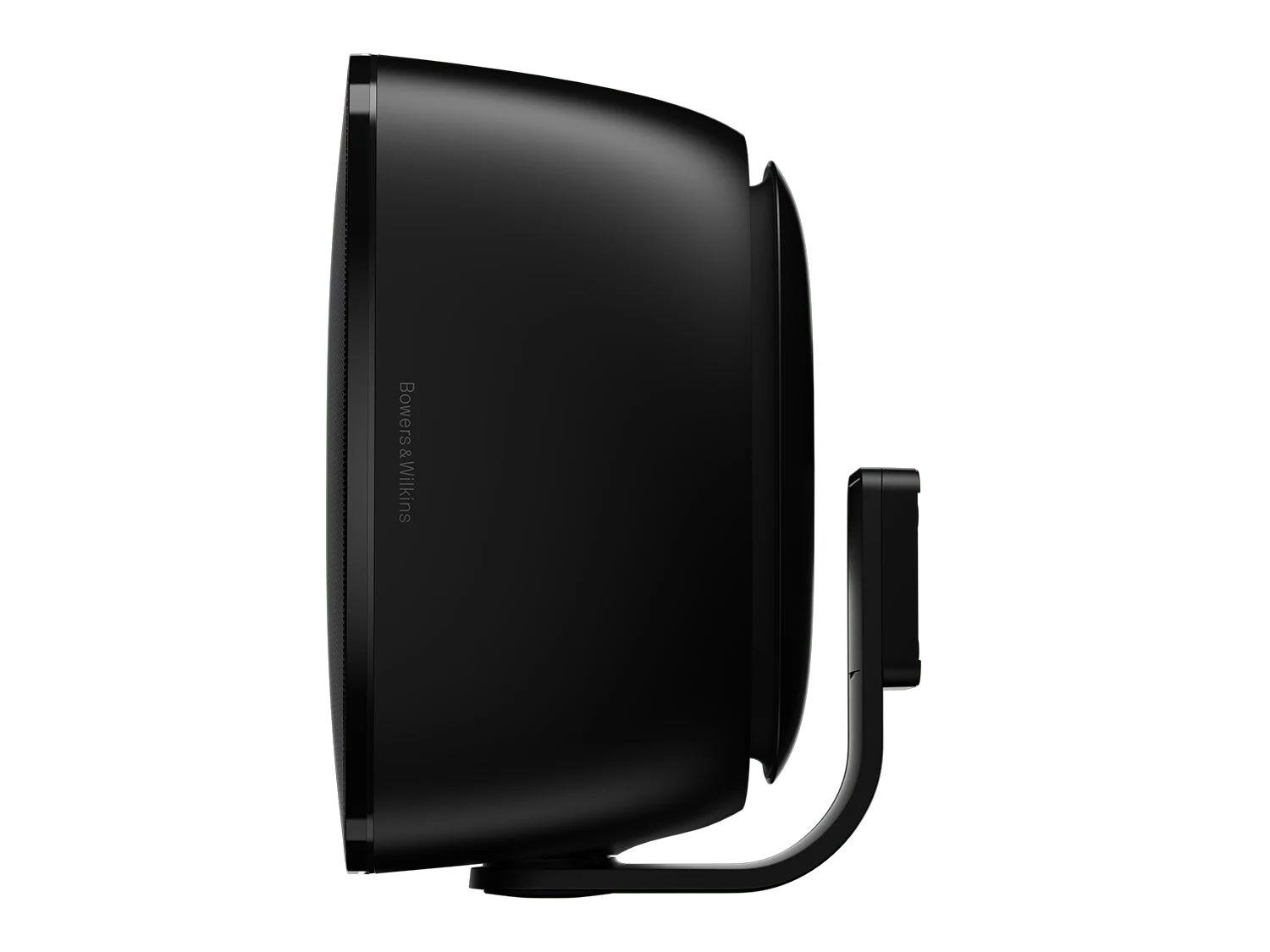

Position vertically or horizontally thanks to the elegant aluminum wall-bracket. Resistant to dust, moisture, and UV, the AM-1 is far tougher than it looks.
FEATURES
PERFORMANCE THAT ENDURES

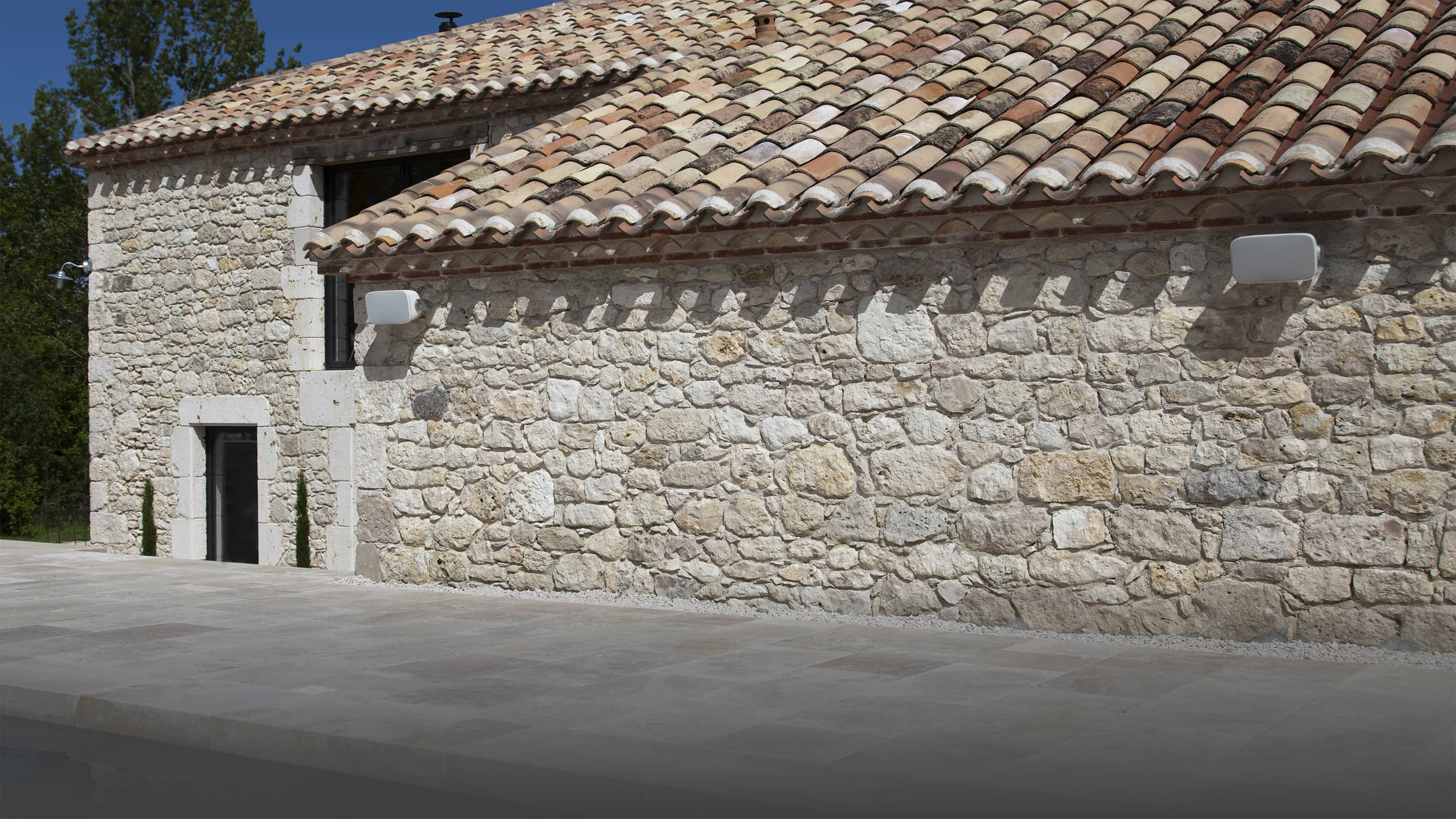

AM-1 is entirely sealed, in order to keep the elements at bay. It’s tough and hard-wearing too, and its clever one-piece mounting system with 220-degree rotation means it’s ready to perform wherever you want it to, come rain or shine.
EASY TO INSTALL, GREAT TO LISTEN TO
A one-plug, simple-to-install mounting system means AM-1 is happy vertically or horizontally. Plus, smart engineering means AM-1 sounds great whichever way you choose to mount it.
SPECIFIED AND BUILT WITHOUT COMPROMISE

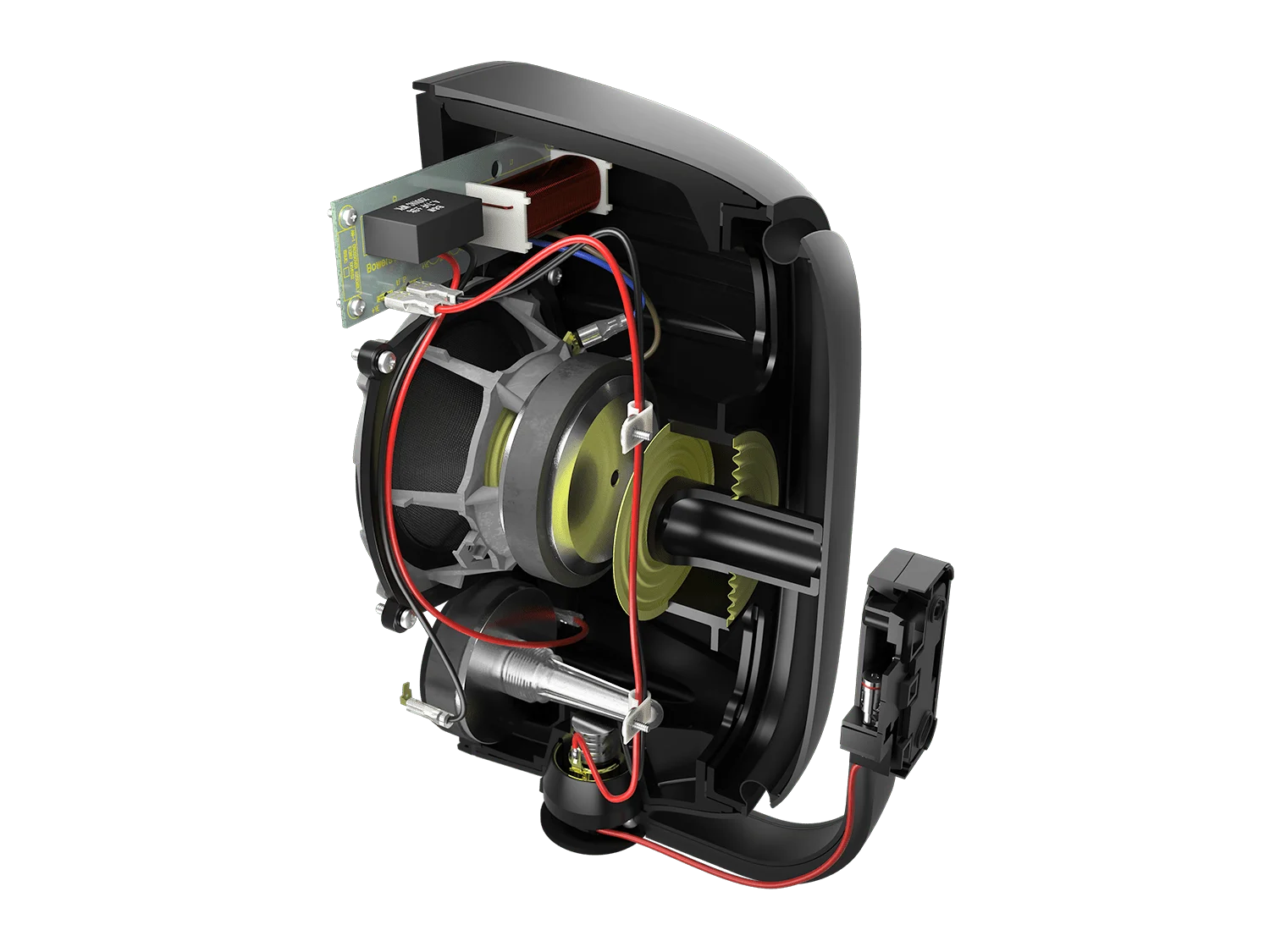

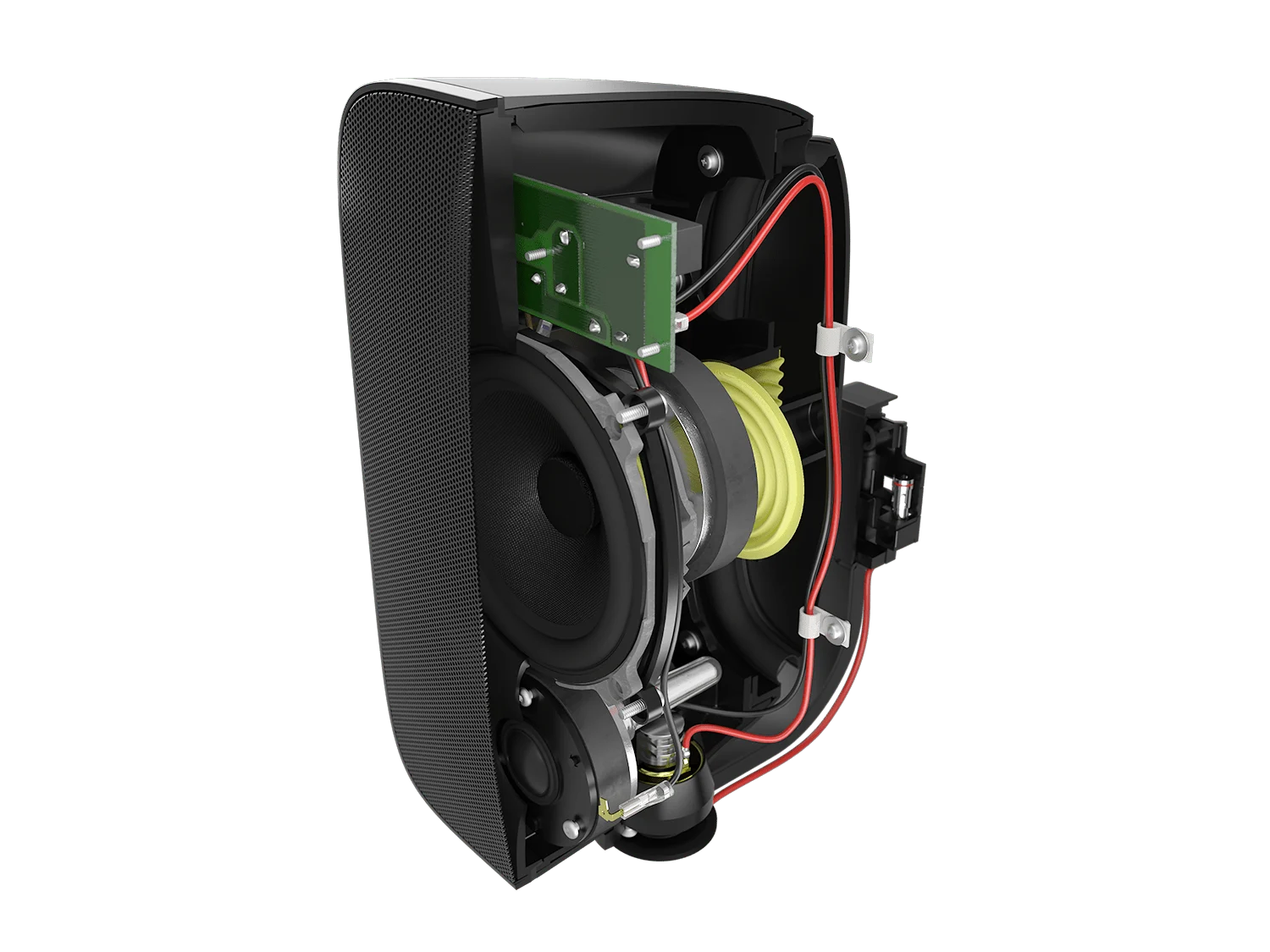

With our trademark Nautilus tube-loaded 25mm aluminium dome tweeter and 130mm glassfibre mid/bass driver supplemented by an auxiliary bass radiator for solid, powerful bass response, AM-1 has sound and scale way beyond its compact dimensions.
INFORMATION
BRAND
Bowers & Wilkins
CATEGORY
Loudspeaker
FINISHES

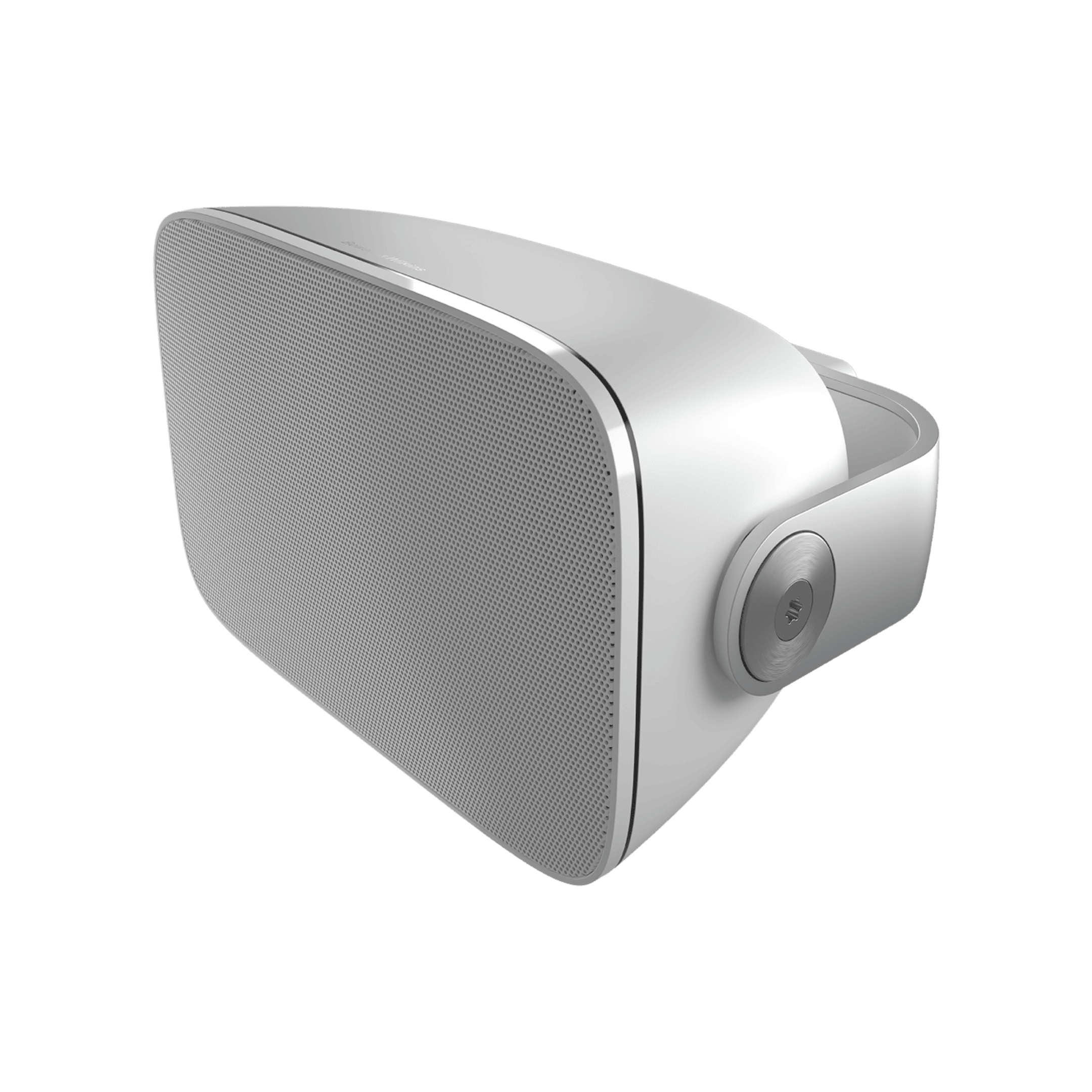

- Matte white

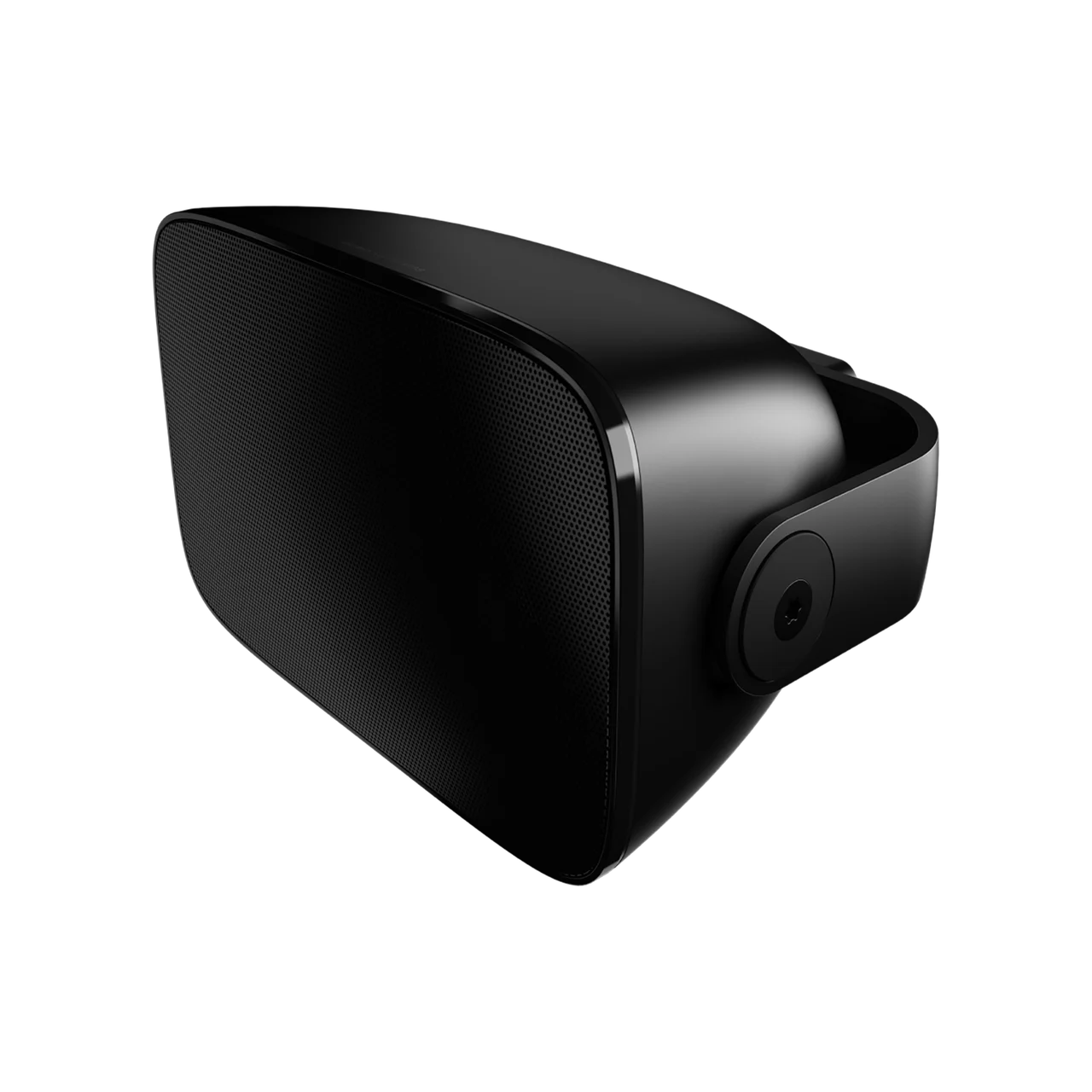

- Matte black
DESCRIPTION
2-way system with Auxiliary Bass Radiator (ABR)
DIMENSIONS
- Height: 310mm (12 1/4in)
- Width: 180mm (7in)
- Depth: 210mm (8 1/4in)
RECOMMENDED AMPLIFIER POWER
20W - 100W into 8Ω on unclipped program
INSTALLATION
Indoor & Outdoor
FREQUENCY RANGE
-6dB at 46Hz and 50kHz
FREQUENCY RESPONSE
51Hz - 22kHz on reference axis
NET WEIGHT
4kg (8.8lb)
MOUNTING
Wall
HARMONIC DISTORTION
<1% 200Hz - 20kHz (86dB, 1m)
SENSITIVITY
86dB (2.83V, 1m)
NOMINAL IMPEDANCE
8Ω (5.2 Ω min)
RETURN
30 Days
DELIEVERY
Free
RECOMMENDED AMPLIFIER POWER
20W - 100W into 8Ω on unclipped program
DOWNLOADS
↓ Guide
↓ Brochure
DRIVE UNITS
- 1x ø25mm (1in) aluminum dome high-frequency
- 1x ø130mm (5in) glassfiber cone bass/midrange
TECHNICAL FEATURES
- Nautilus™ tube loaded aluminum dome tweeter
- Glassfiber cone bass/midrange
- Auxiliary Bass Radiator (ABR)
FINISHES
- Black
- White
