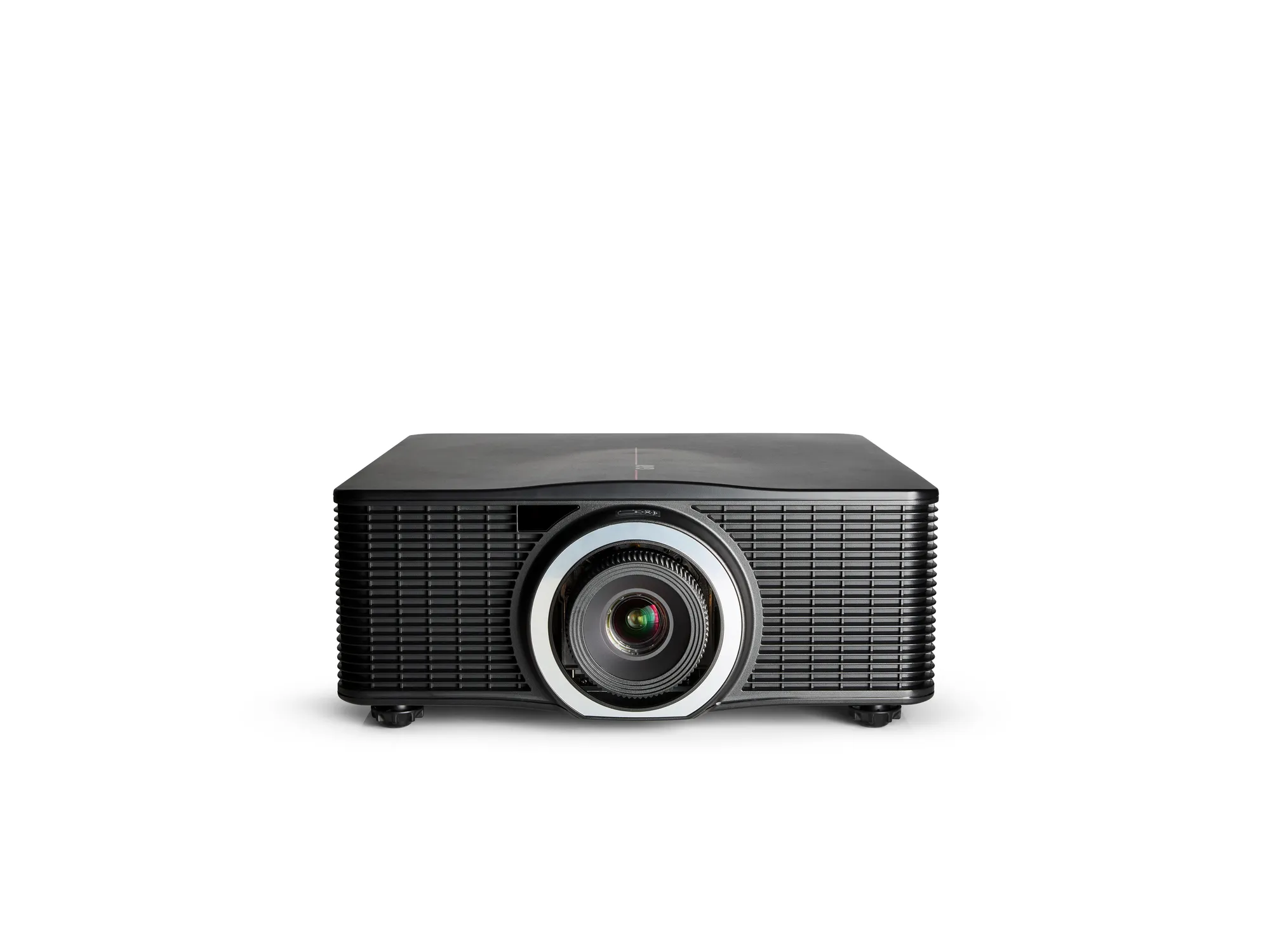

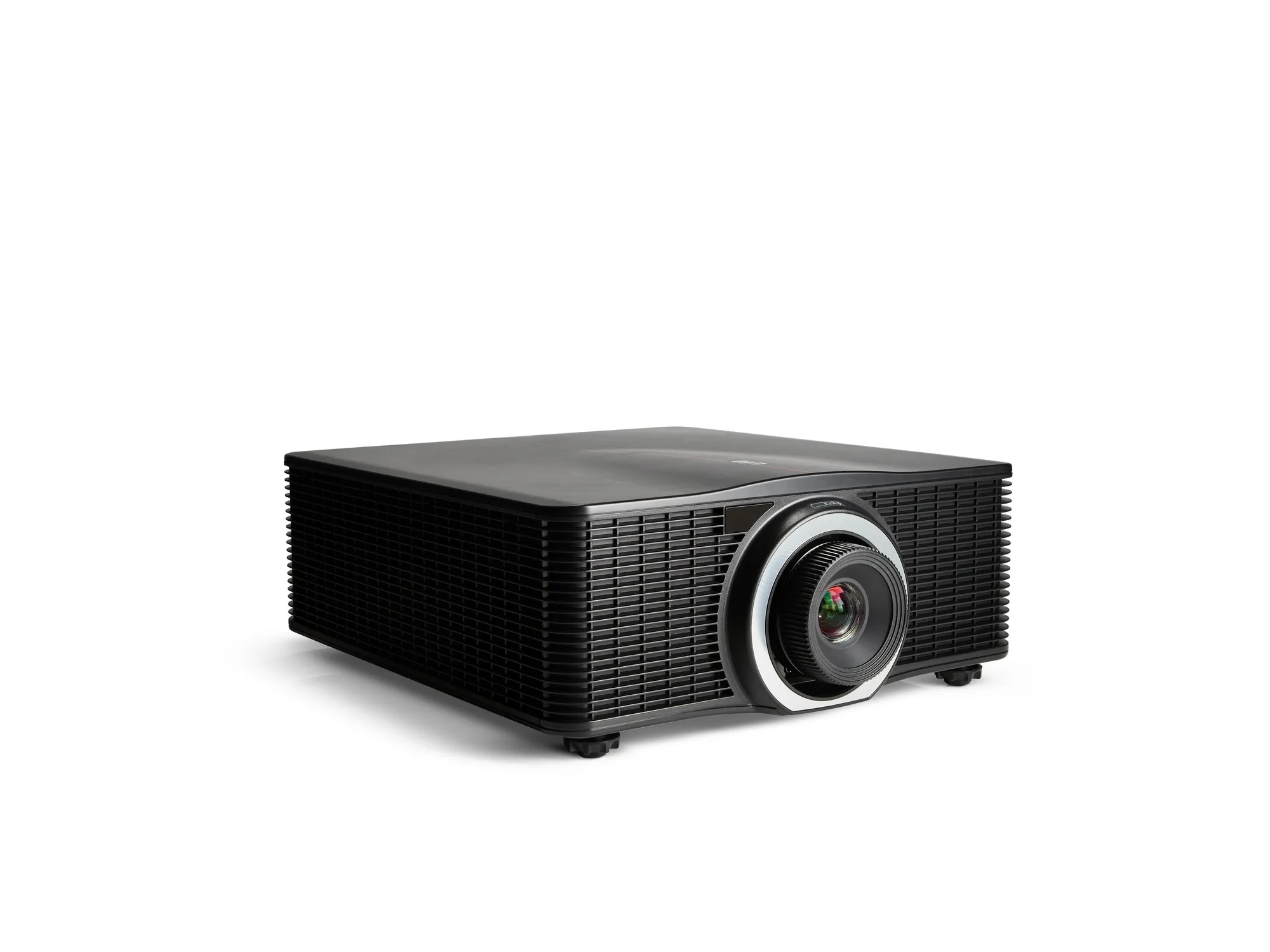

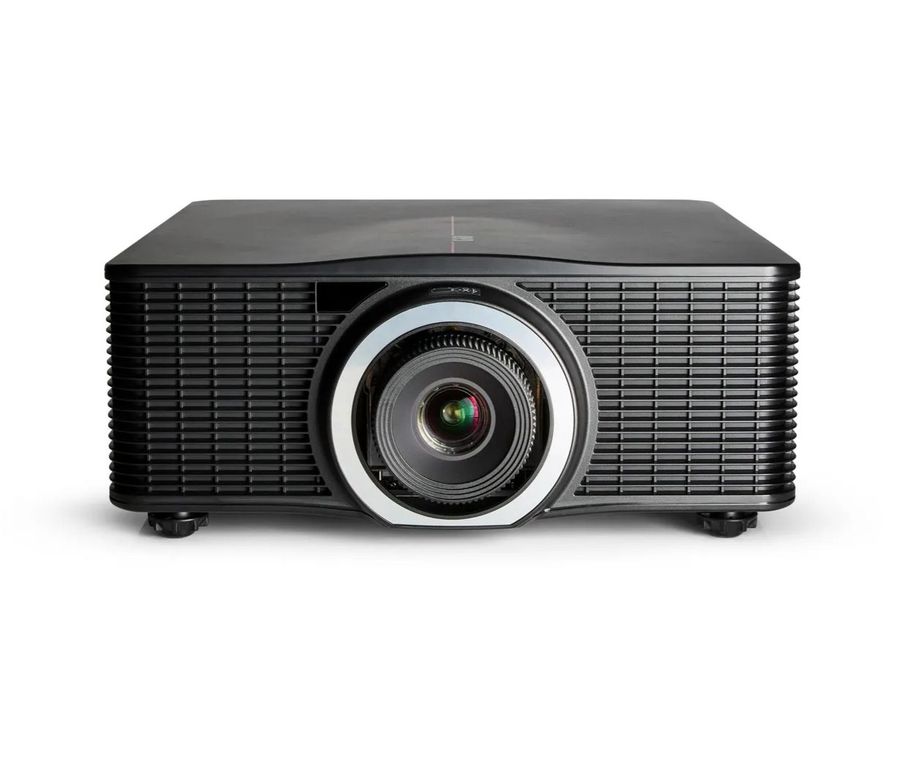

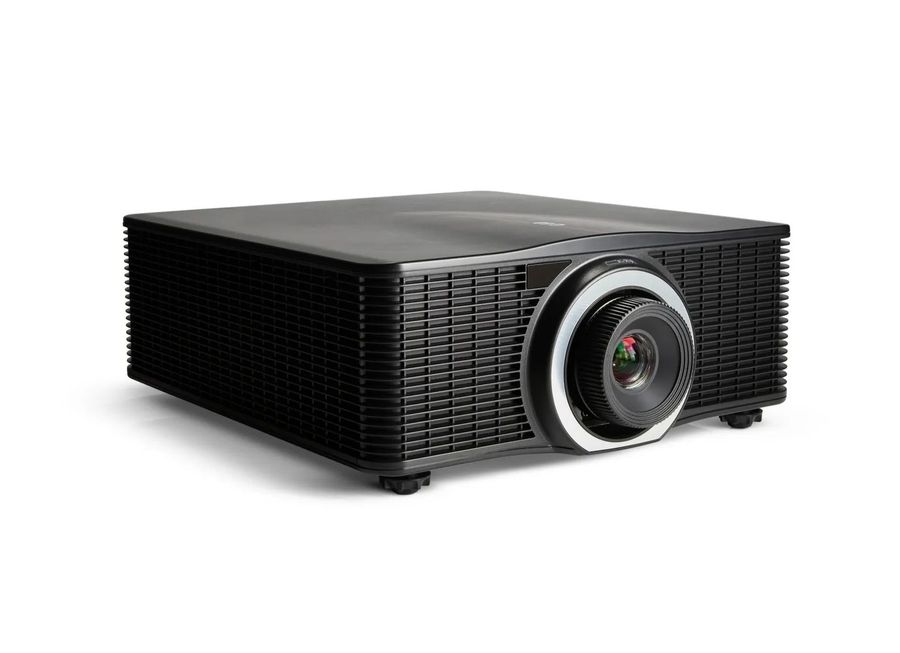

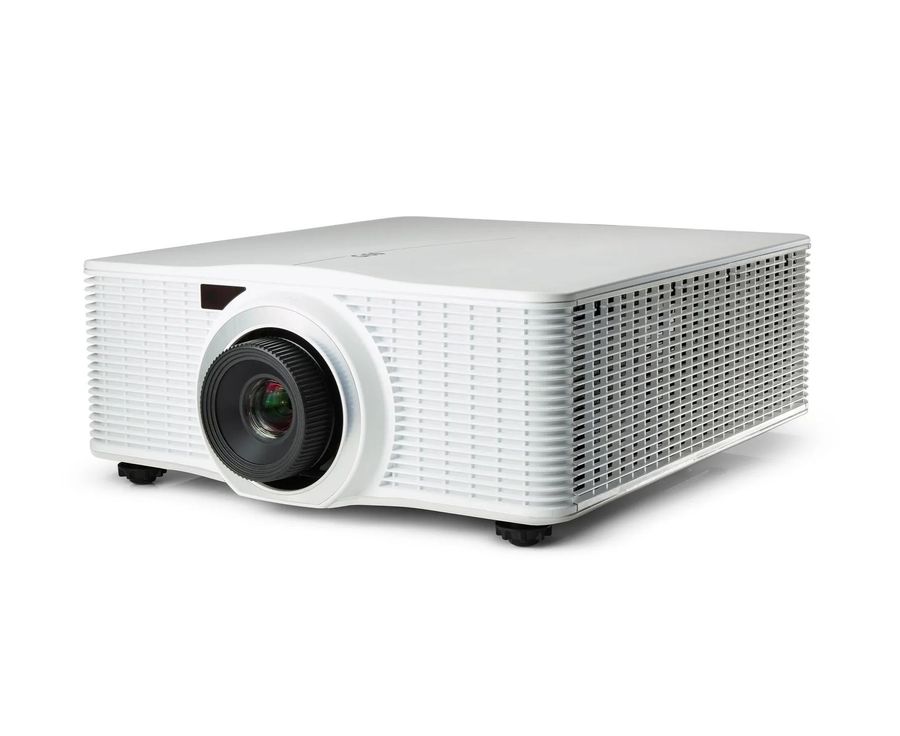

Barco G62‑W9 Projector
G62‑W9 PROJECTOR
G62‑W9 PROJECTOR
9.000 lumens, WUXGA, DLP laser phosphor projector
The G62-W9 expand the single-chip offering with a quality WUXGA projector of 9.000 lumens. It opens up the possibilities to a wider range of applications while still relying on the valued Barco service and support.
INFORMATION
BRAND
Barco
PRODUCTION
Made in India
PROJECTOR TYPE
Single chip DLP laser phosphor projector
TECHNOLOGY
0.67"
RESOLUTION
1.920 x 1.200 (WUXGA)
CONTROL
1x RS232, 3.5mm phone jack for wired remote
SEALED DLP™ CORE
Yes
COLOR CORRECTION
Yes
STANDARD ACCESSORIES
- Power Cord
- Wireless Remote Control
LIGHT SOURCE
Laser Phosphor
ORIENTATION
- 360° Rotation
- No Restrictions
IMAGE PROCESSING
Embedded warp & blend possible via Ptoolset
POWER CONSUMPTION
- Nominal : 625W
- Maximum : 750W
LIGHT SOURCE LIFETIME
Up to 20.000hrs
BRIGHTNESS UNIFORMITY
90%
BTU PER HOUR
- Nominal : 2.133 BTU/h
- Maximum : 2.252 BTU/h
ASPECT RATIO
16:10
COLORS
White & Black
OPTICAL LENS SHIFT
- Motorized lens shift
- Motorized zoom and focus
- Vertical up to 100%, depending on lens
- Horizontal up to 30%, depending on lens
NETWORK CONNECTION
10/100 Ethernet, RJ45
DOWNLOAD
↓ Data Sheet
LENS TYPE : G-LENSES
- 0.36:1
- 0.37-0.4:1
- 0.65-0.75:1
- 0.75-0.95:1
- 0.95-1.22:1
- 1.22-1.53:1
- 1.52-2.92:1
- 2.90-5.50:1
LASER PHOSPHOR TECHNOLOGY
The laser phosphor light source ensures great image quality, on the one hand, but also lower maintenance compared to most lamp-based projectors on the market. Thanks to Barco's Projector Toolset software, installing and managing your projector(s) can be done from the comfort of your own computer.
STORAGE HUMIDITY
5 - 90% RH, non-condensing
OPERATING HUMIDITY
10- 85% RH, non-condensing
POWER REQUIREMENTS
100-240V / 50-60Hz
CLO (CONSTANT LIGHT OUTPUT)
Yes
DIMENSIONS WITH STAND
- Width : 484 mm (19.1 inch)
- Length : 529 mm (20.8 inch)
- Height : 206 mm (8.1 inch)
DIMENSIONS WITHOUT STAND
- Width : 484 mm (19.1 inch)
- Length : 529 mm (20.8 inch)
- Height : 4195 mm (7.7 inch)

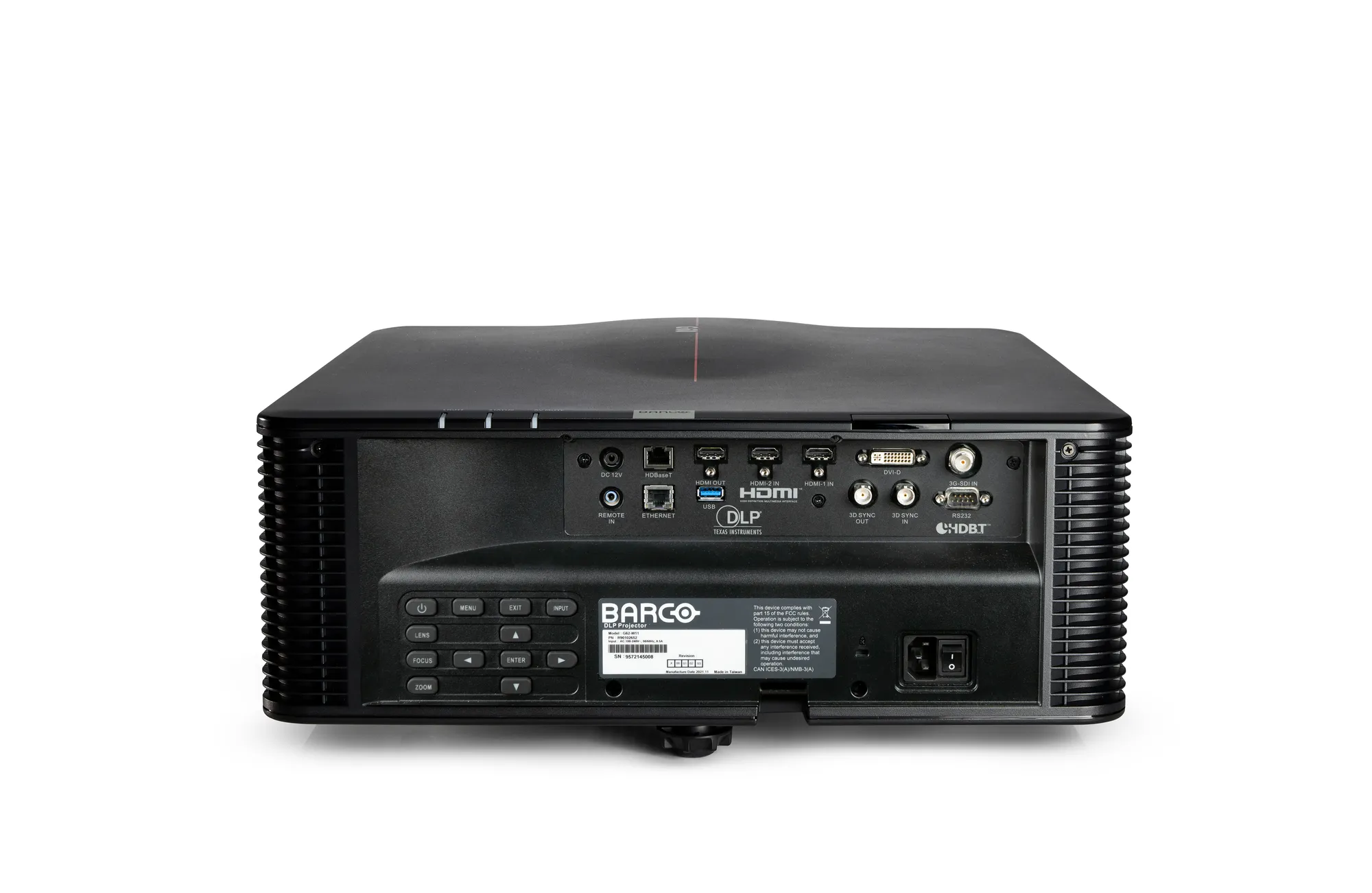

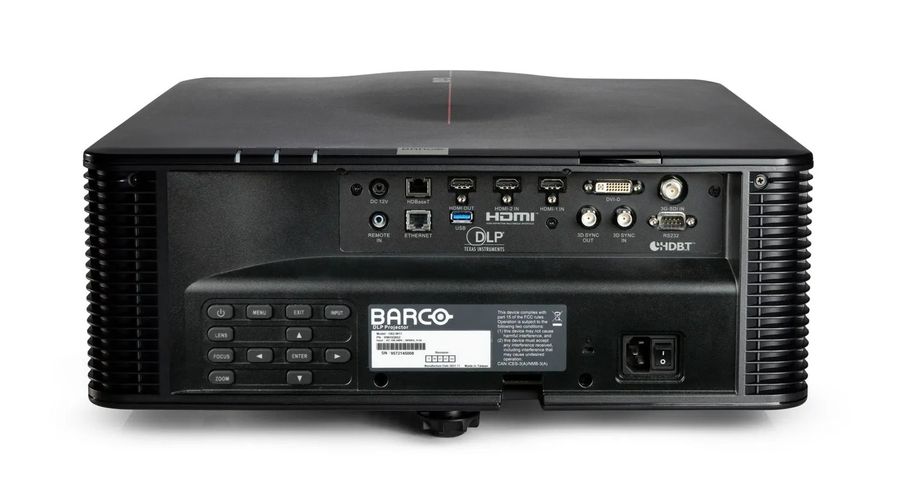

INPUTS
- 1x HDBaseT
- 1x 3D SYNC In
- 1x 3G-SDI
- 2x HDMI™ In (version 2.0) (with locking screw)
- 1x DVI-D (only support digital signal)
WARRANTY
3 Years
TAA COMPLIANCY
Optional
FLEXIBLE INSTALLATION OPTIONS

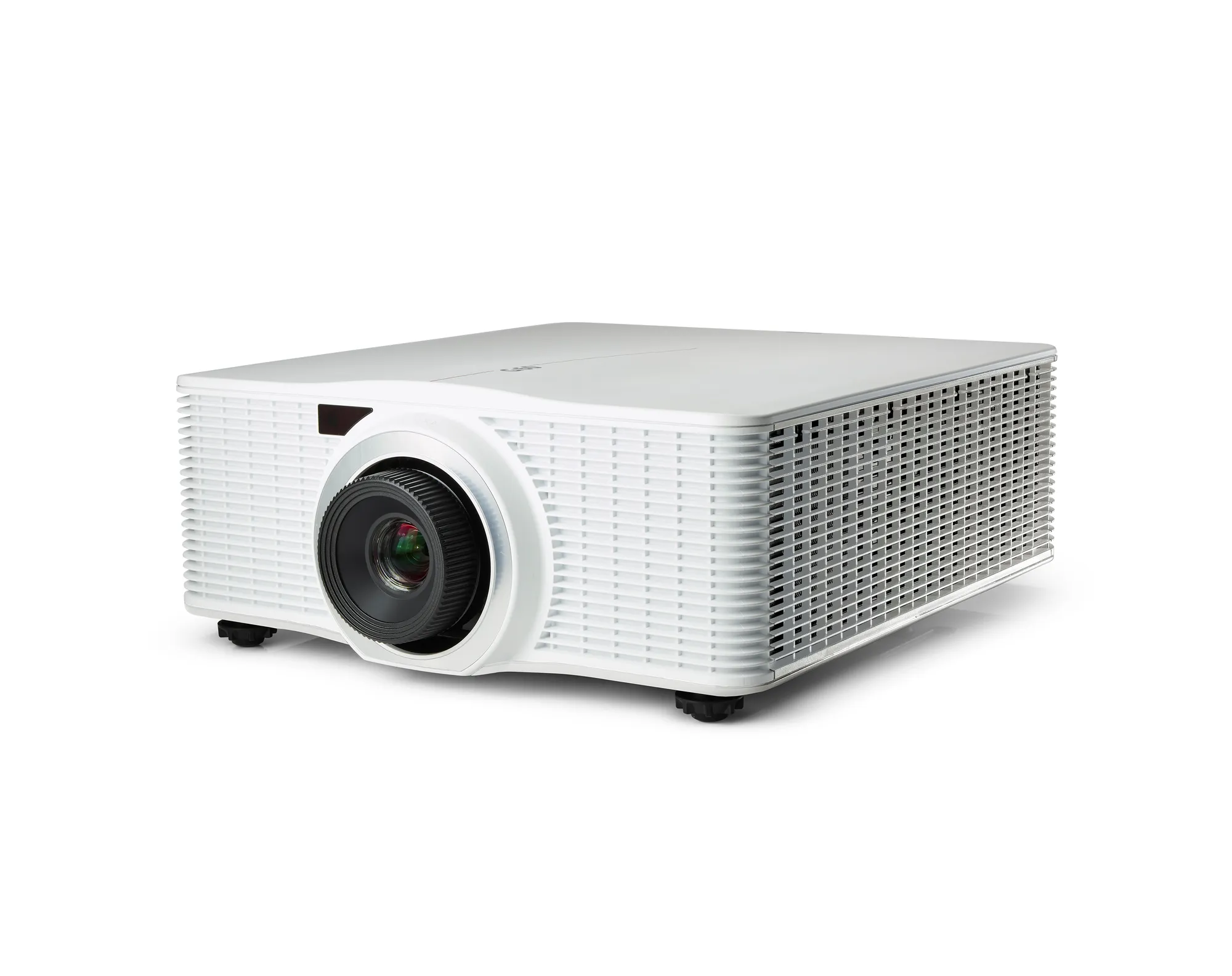

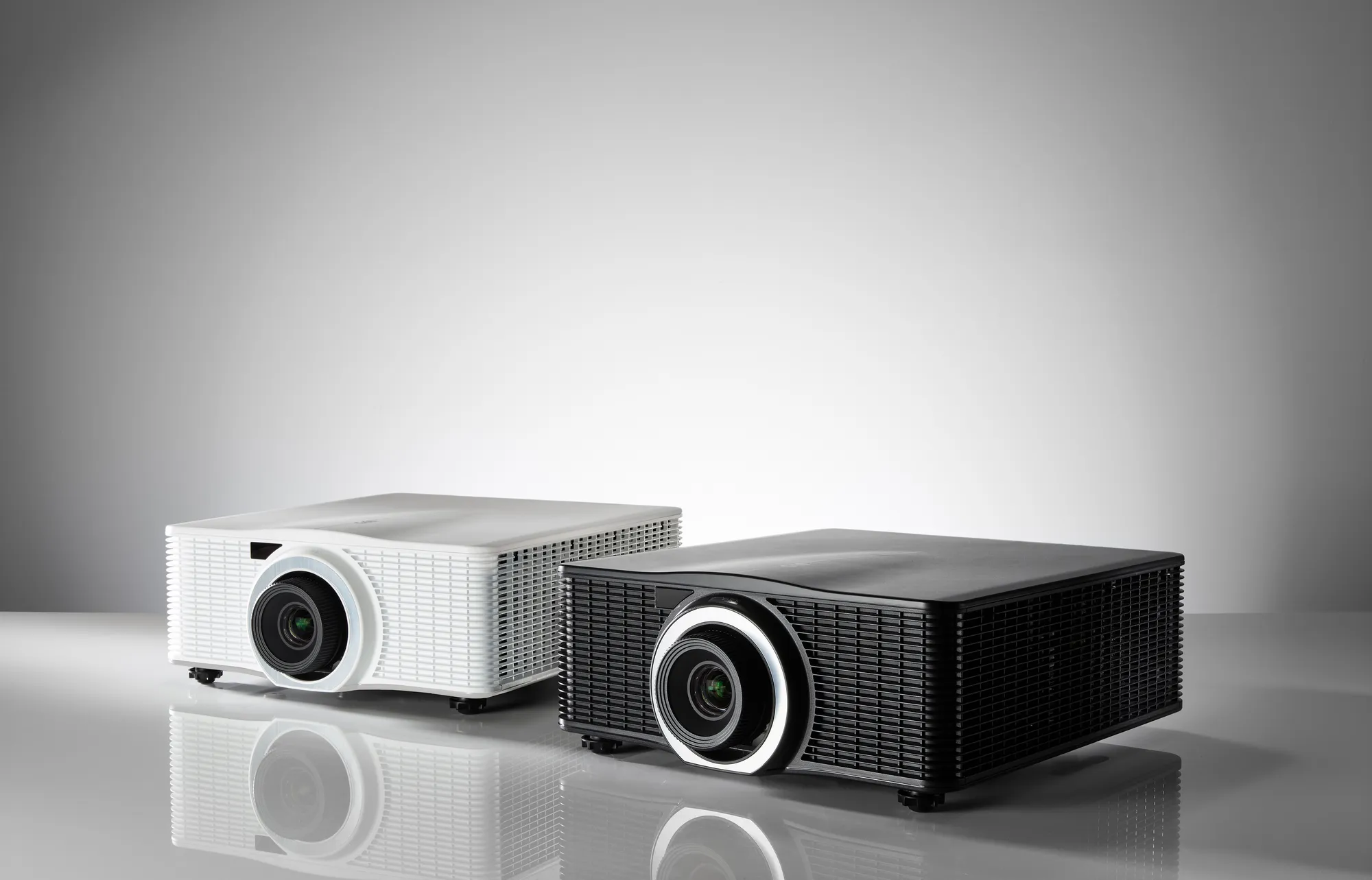

The projectors are available in black and fully white chassis, allowing you to choose the perfect fit for your specific environment. Their uniform compact size, the compatibility with other Barco products and the wide lens shift range enlarge the projectors flexibility.
OPERATING TEMPERATURE
0 ~ 40 °C (sea level)
STORAGE TEMPERATURE
-10 ~ 60 °C
PROJECTOR FEATURES
3D
Active stereoscopic 3D
SOFTWARE TOOLS
Projector Toolset
WEIGHT WITHOUT LENS
17.4 kg (38.4 lbs)
STANDBY POWER
Less than 0.5W
NOISE LEVEL (TYPICAL AT 25°C/77°F)
36dB(A) - 40dB(A) depending on the used mode
CONTRAST RATIO
- 1.200 : 1 Sequential
- 6.000 : 1 dynamic
- Extreme black : 750.000:1
BRIGHTNESS
- 8.000 ANSI lumens
- 8.900 center lumens
- 9.500 ISO lumens
4K & 3D COMPATIBILITY
The G62 models enable HDMI™ 2.0 input capabilities and higher bandwidth than its predecessors, which makes them 4K compatible and 3D capable to visualize your high-quality content at its best.
INPUT RESOLUTIONS
- Up to 4K @60Hz
- 4K input signals will be scaled to the projector’s output resolution
- Refresh rates: 24Hz to 60Hz for WUXGA and 4K/4KUHD (4096 x 2160 / 3840 x 2160)
CERTIFICATIONS
- CE
- BIS
- CCC
- EAC
- KCC
- RCM
- BSMI
- CTUVUS
- FCC Class A
