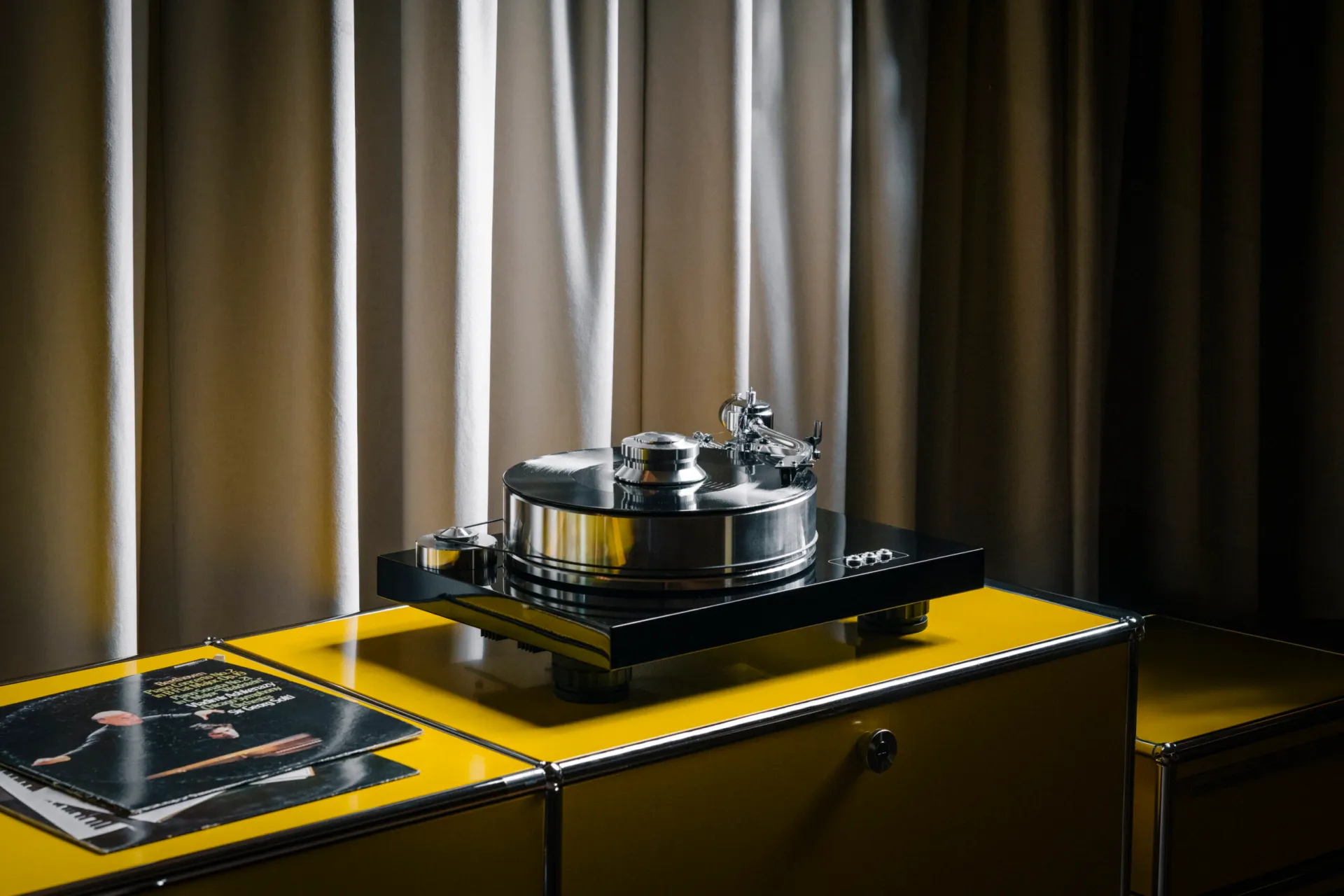

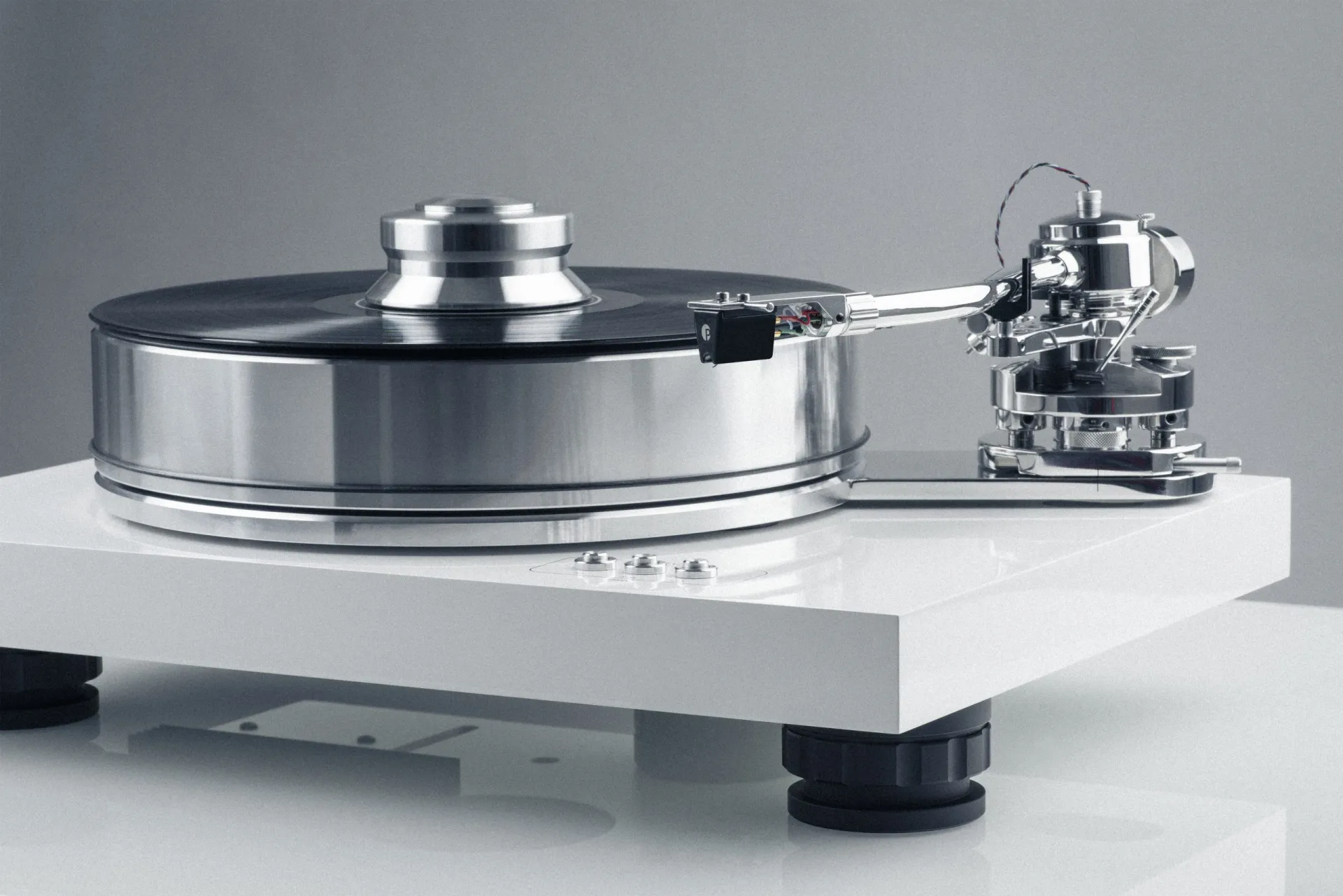

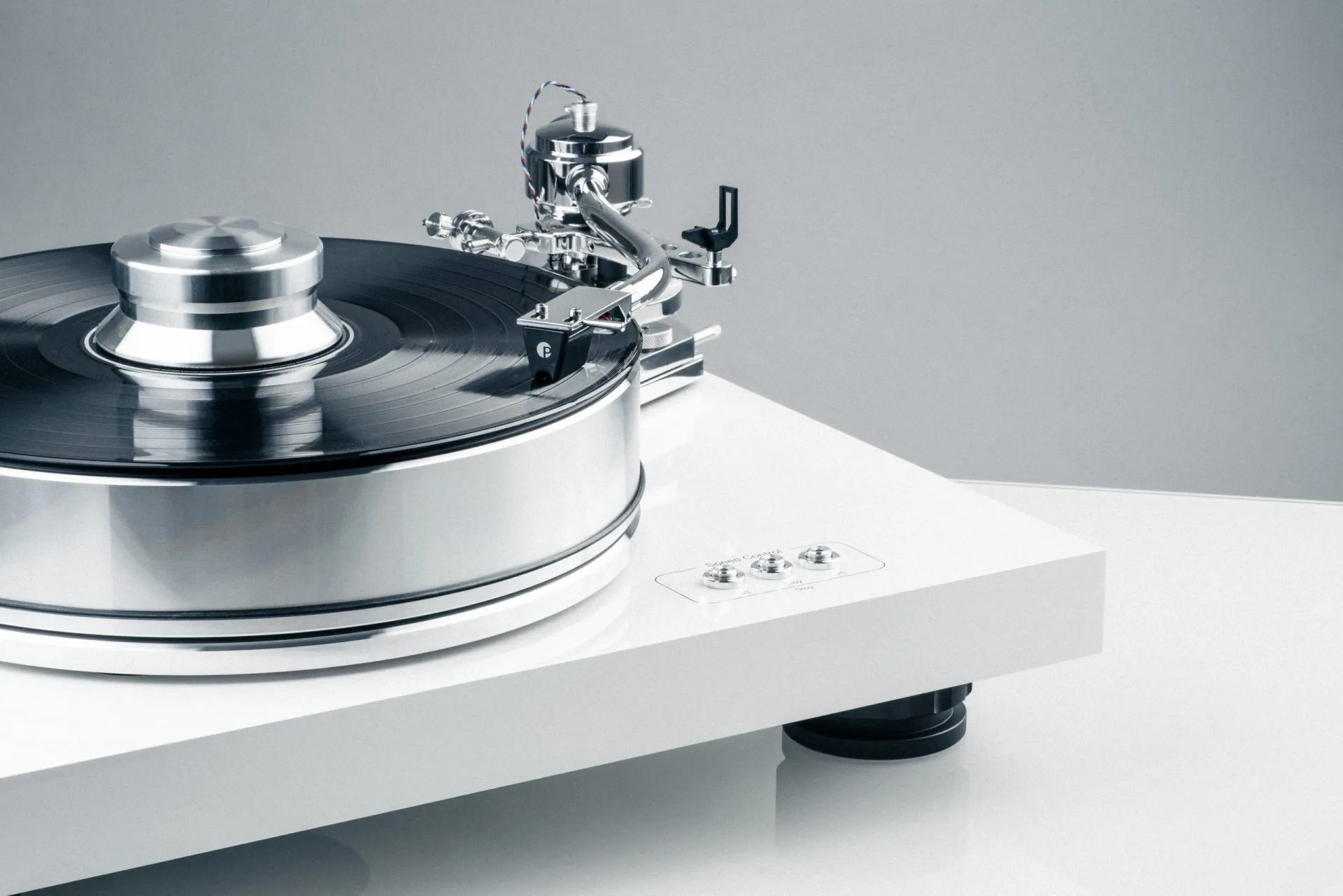

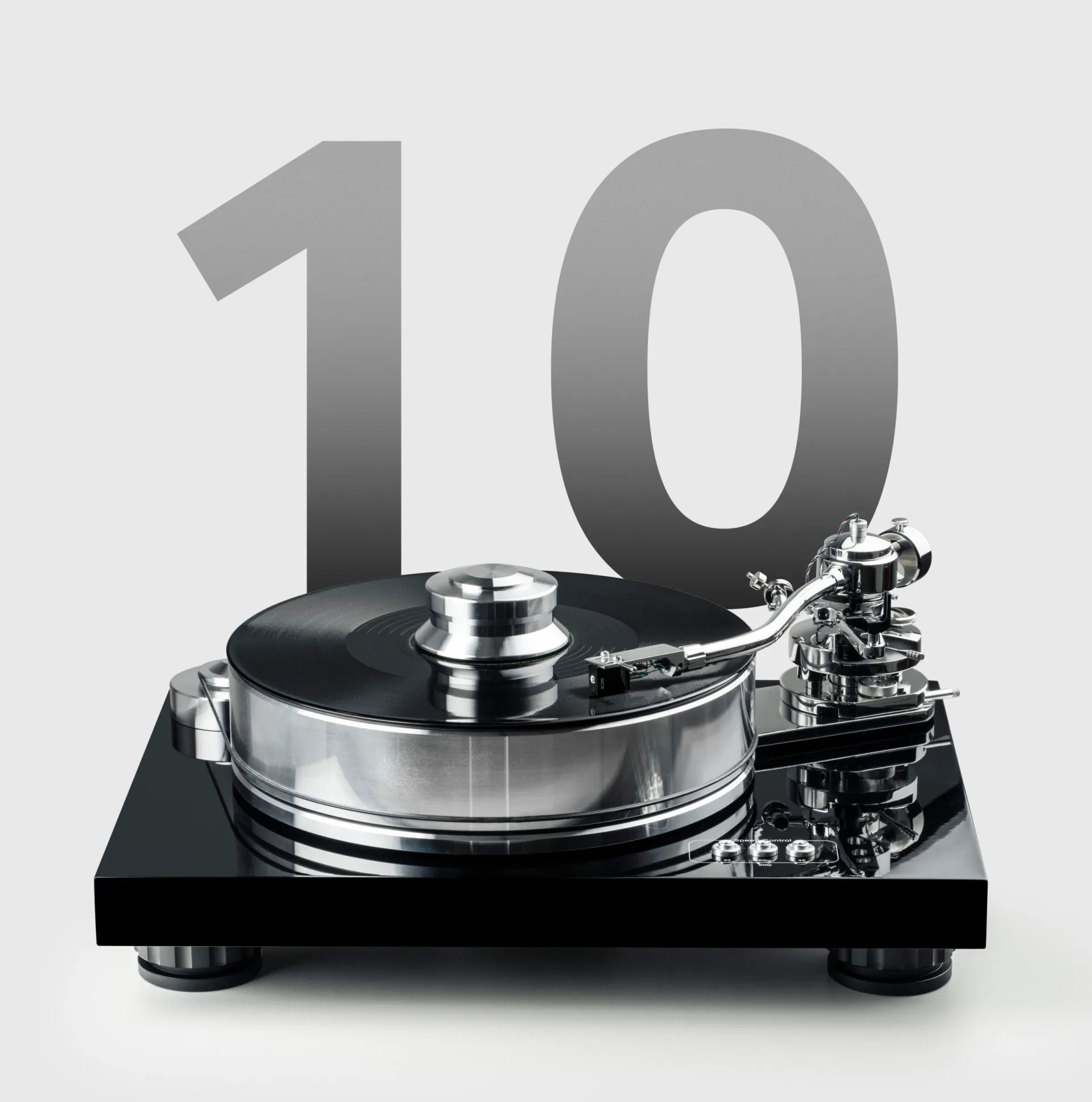

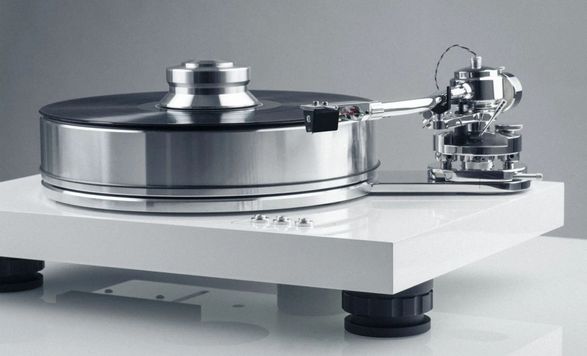

Pro-Ject Signature 10 Vinyl Player
SIGNATURE 10 VINYL PLAYER
SIGNATURE 10 VINYL PLAYER
An uncompromising high-end turntable combining mass-loading with magnetically-floating turntable principles.
FEaTURES
10'' TONEARM
Single-pivot with SME headshell
This high-end S-shape aluminium tonearm features a non magnetic low resonance construction with minimised bearing friction.
10 KG PLATTER
Mass loaded aluminium
The 10 kg aluminium platter is TPE damped and sits on an inverted bearing which is magnetically decoupled. The vinyl layer on top is the perfect surface for your record.
DECOUPLED FEET
Magnetically decoupled
Magnetic fields in the feet ensure effective mechanical decoupling of the entire player from interference.
33/45 RPM
Electronic speed change
Easily change the speed with the push of only a single button. The precision generator ensures the perfect playback speed with the utmost precision.
INFORMATION
BRAND
Pro - Ject
PRODUCT TYPE
Vinyl Player
SPEED
33.45 (electronic speed change)
MOTOR CONTROL SYSTEM
Precision Generator
COLLECTION
Signature
PRODUCTION
Made in Austria
NET WEIGHT
23 kg
POWER SUPPLY
15 Volts DC/1600 mA included
USE
Entertainment
MATERIAL
Aluminium
STANDBY POWER CONSUMPTION
< 1 Watt
PLATTER PUCK
405 g
OVERHANG
16 mm
MAIN BEARING
- Ceramic (Ball/Plate)
- Magnetically Decoupled
DIMENSIONS
- Height : 195 mm
- Weidth : 475 mm
- Depth : 354 mm
EFFECTIVE ARM LENGTH
254.8 mm
EFFECTIVE ARM MASS
18.5 g
DOWNLOADS
↓ Manual
↓ Product Information
PRECISION ALUMINIUM PLATTER
The wonderfully resonance-free, mass-loaded and TPE damped platter is precision diamond-cut out of a single piece of aluminium. It runs ultra-silently on an inverted ceramic ball bearing with magnetic suspension.
TONEARM
- 10” single-pivot
- Alu with SME headshell
SUITABLE CARTRIDGE MASS
- 4 - 10 g
- Several counterweights included
PLATTER
10.4 kg, TPE damped
TONEARM CABLE INCLUDED
Pro-Ject Connect it 5P
ADVANCED TONEARM DESIGN
The new 10” single-pivot tonearm with SME headshell is a genuine Pro-Ject design and allows stepless, “on-the-fly” VTA and mounting distance settings. With its wide range of adjustment possibilities and the number of included counterweights, maximum performance can be extracted out of any cartridge.
INCLUDED ACCESSORIES
SAFE TRANSPORT
Wooden Box with everything you need
Your Signature 10 comes safe and secure in a big wooden box with everything you need to set it up correctly.
HIGH-END CABLE
Connect it 5P-CC
Interconnect cable with earthing wire, 2x RCA phono plugs to 1x 5-pole standard tonearm socket.
RECORD PUCK
405g weight
The sound can be significantly improved, when unwanted resonances between record and platter can be reduced.
ADDITIONAL TOOLS
Perfectly equipped & ready for use
Adapter for 7'' singles, allen key, spirit level and gloves are also included for a quick & easy setup.
FINISHES
HIGH GLOSS
REAL WOOD
- Real Wood Walnut
- Real Wood Palisander
- Real Wood Mahogany
