CONI CONNECTION PANELS
CONI CONNECTION PANELS
Coni brings flexibility to the work surface as it enables free, individual access to power. Coni's minimal mounting depth provides sufficient space, even if installed near the edge. A wide range of standard surfaces also ensures design freedom.

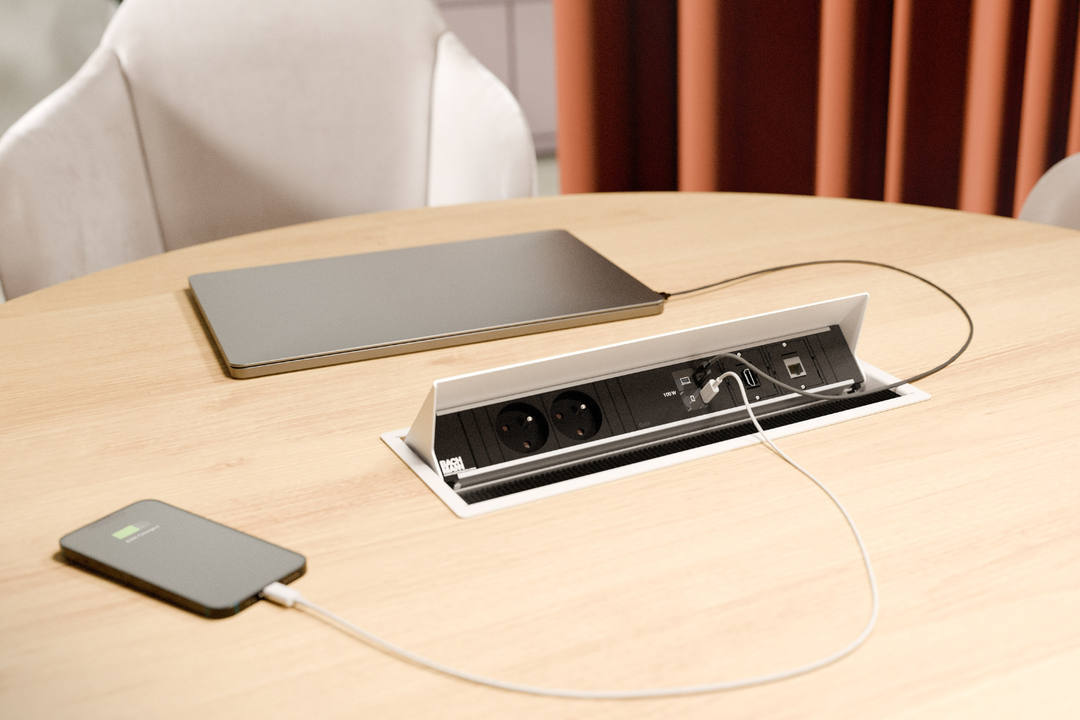

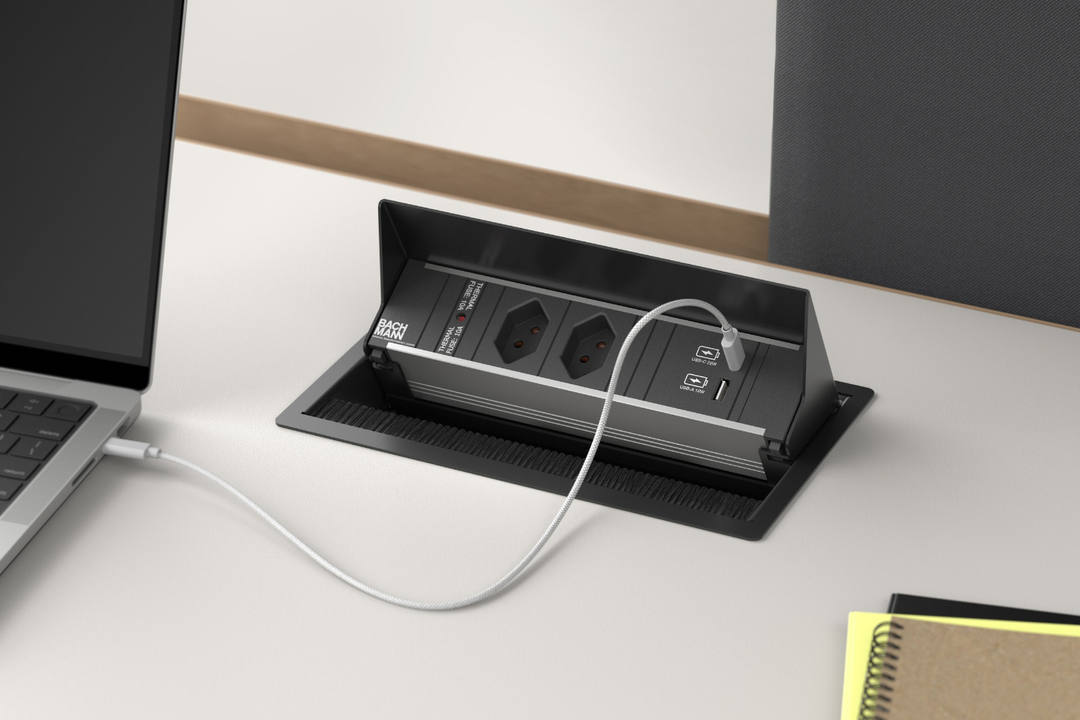

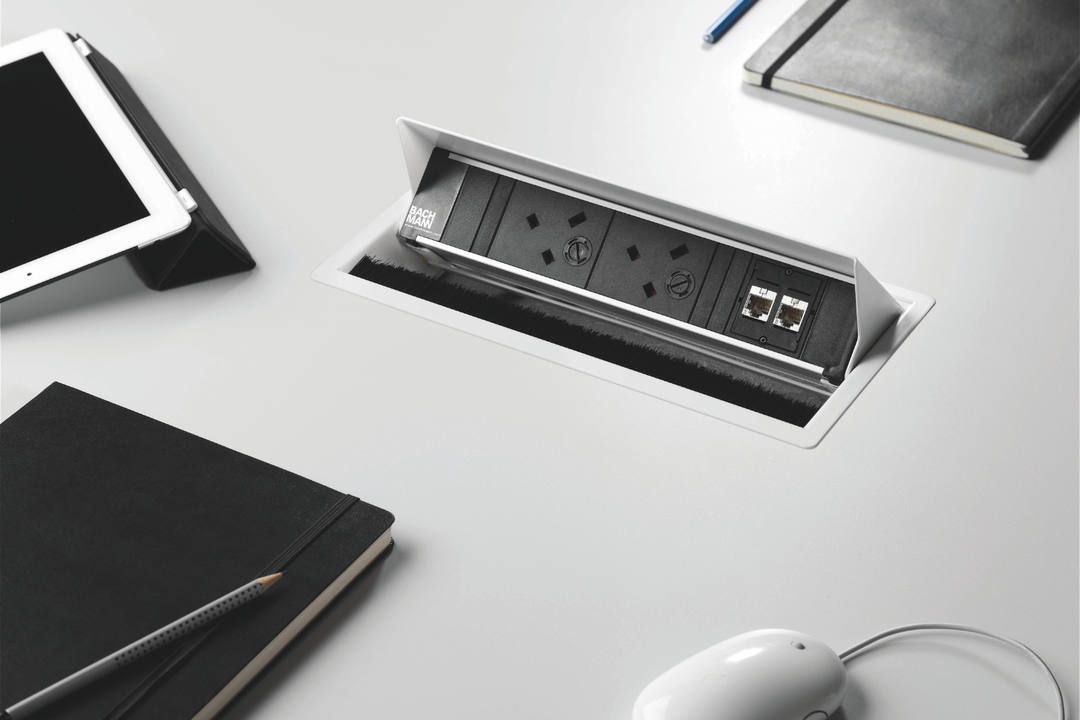

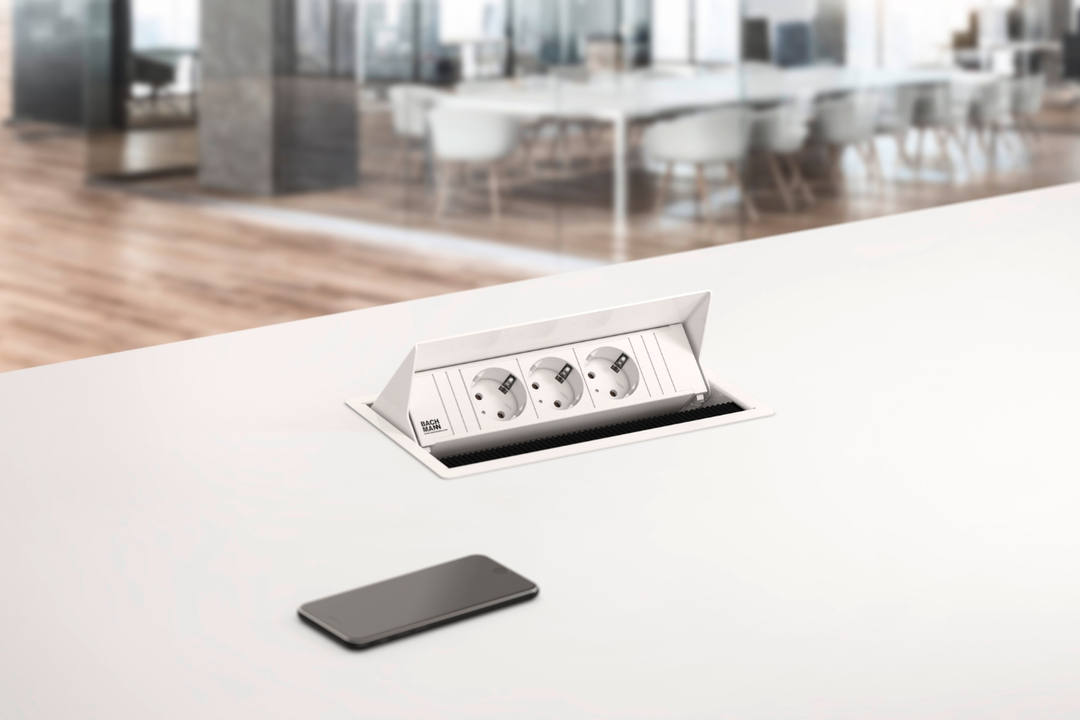

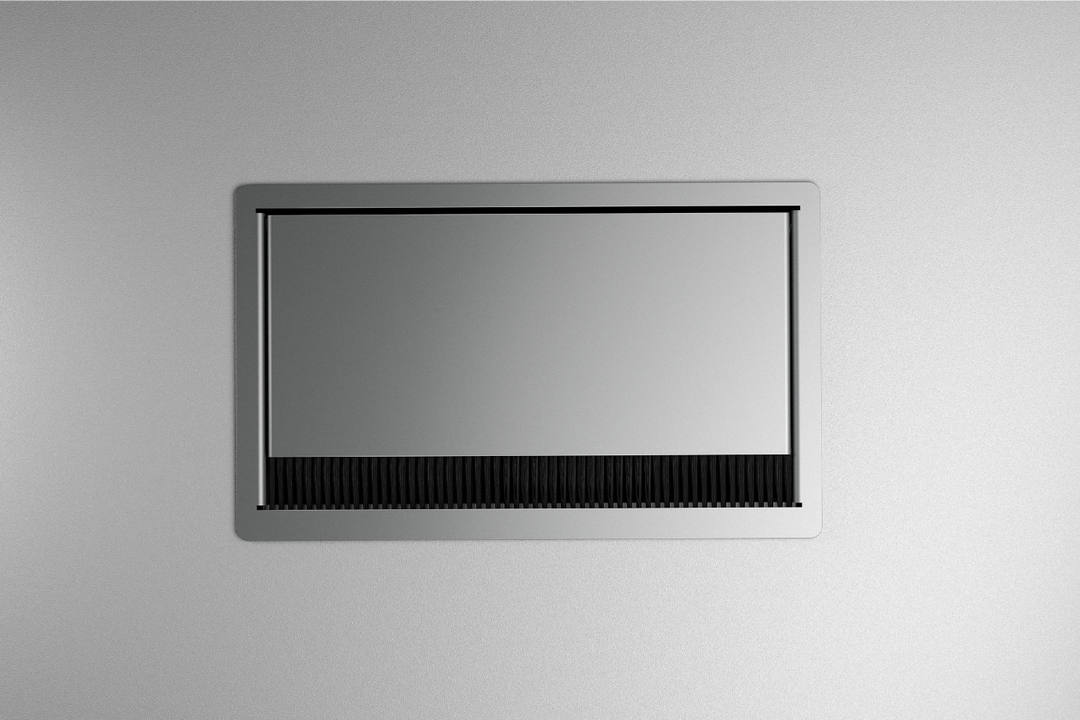

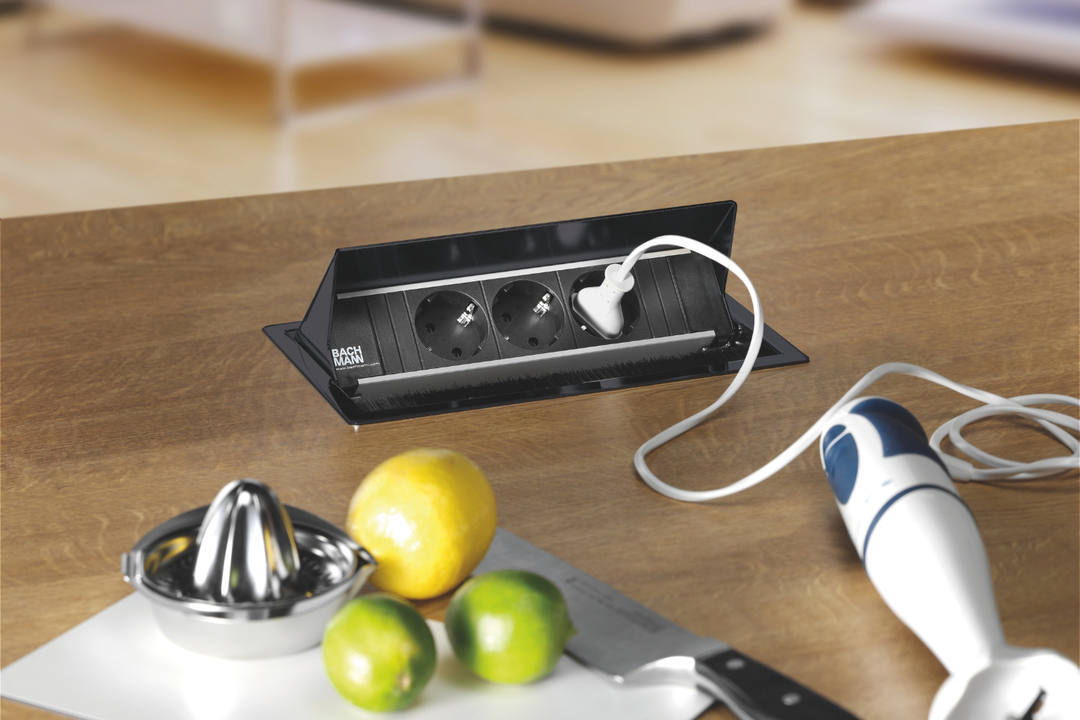

When closed, the surface of the furniture and coni produce an even surface. If power or data connections are needed, coni can be opened, the desired plugs plugged in and coni is then closed again. The integrated brush insert prevents the cables from jamming.
INFORMATION
BRAND
Bachmann
COLLECTION
Coni
PRODUCT TYPE
Connection Panels
PRODUCTION
Made in Germany
AVAILABLE COLORS
5
MATERIAL
- Mounting Frame : Sheet Steel
- Socket : Plastic, Aluminium
DIMENSIONS 1 - SMALL SOCKET
- Length : 248 mm
- Width : 151 mm
- Height : 59 mm
DIMENSIONS 2 - LARGE SOCKET
- Length : 387 mm
- Width : 151 mm
- Height : 59 mm
CONI HOLDER
- Allows excess lengths of cable to be stowed when plugged in
- Material/surface: Black steel sheet (powder-coated, similar to RAL9005)
- For optional mounting on coni mounting frame (small and large version)
- Easy to fit by inserting into mounting frame (already fitted) using plastic rivets supplied
- Small extra mounting depth of approx. 20 mm in addition to depth of mounting frame
MOUNTING DEPTH
Frame (without mounting clips) : 56 mm
POWER STRIP
Power strip can be changed quickly
SMALL SOCKET COLOR CODE
- 911.004 : Stainless steel (ground)
- 911.002 : Black (powder-coated, similar to RAL9005)
- 911.000 : White (powder-coated, similar to RAL9010)
- 338.0204 : Anthracite (powder-coated, similar to RAL7040)
- 338.0203 : White aluminium (powder-coated, similar to RAL9006)
LARGE SOCKET COLOR CODE
- 911.005 : Stainless steel (ground)
- 911.001 : White (powder-coated, similar to RAL9010)
- 911.003 : Black (powder-coated, similar to RAL9005)
- 338.0206 : Anthracite (powder-coated, similar to RAL7016)
- 338.0205 : White aluminium (powder-coated, similar to RAL9006)
TABLETOP THICKNESS
10 – 35 mm
DOWNLOAD
↓ Mounting instructions
FLEXIBLE SOCKET CONFIGURATION
With coni, you are free to decide how the sockets are configured because the power strip can be quickly replaced without any tools. Integrated functionality and flexibility not just for today, but also for the developments of tomorrow.
SOCKETS TYPES
SOCKETS TYPES
-Italy / Socket Outlet With Earthing Contact -Socket Outlet With Earthing Contact -UK Socket (3,15 A) -UTE Socket -Custom Module -USB Charger -Swiss Socket (10 A)
