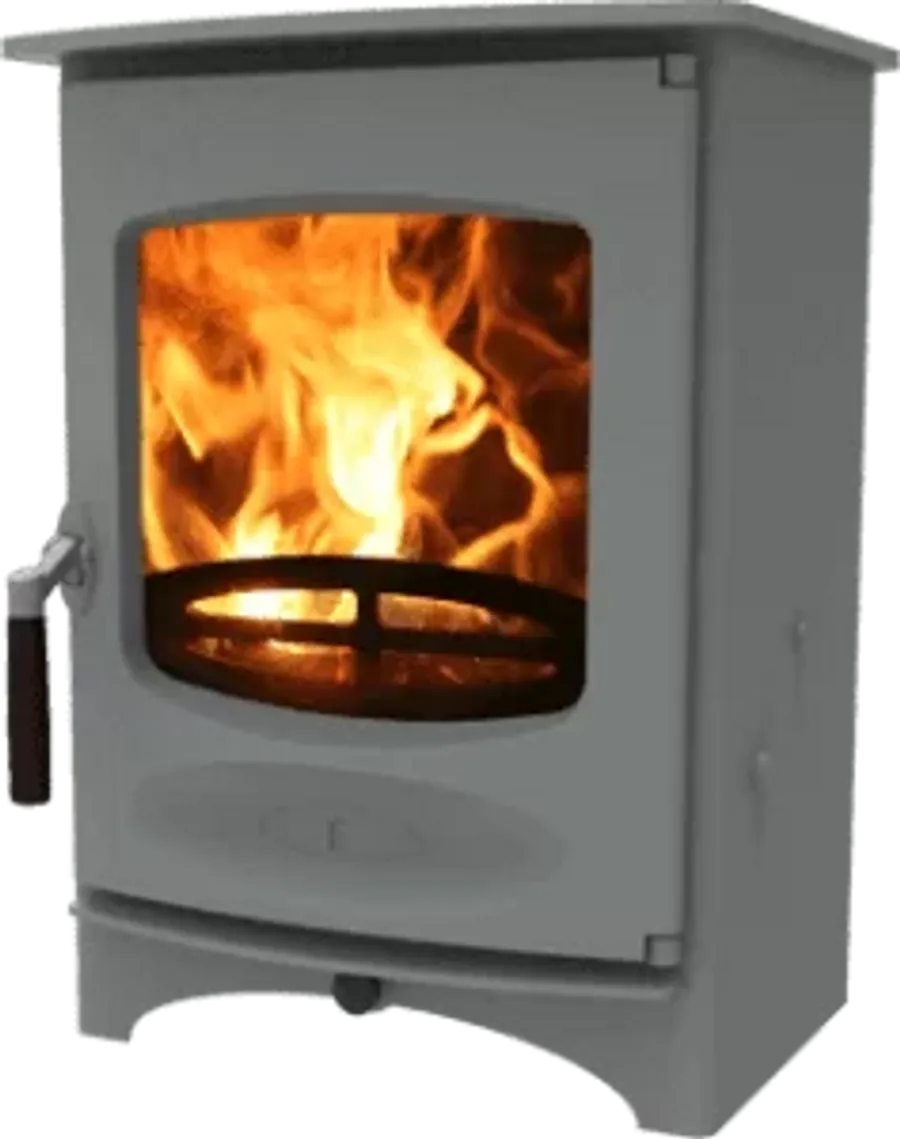

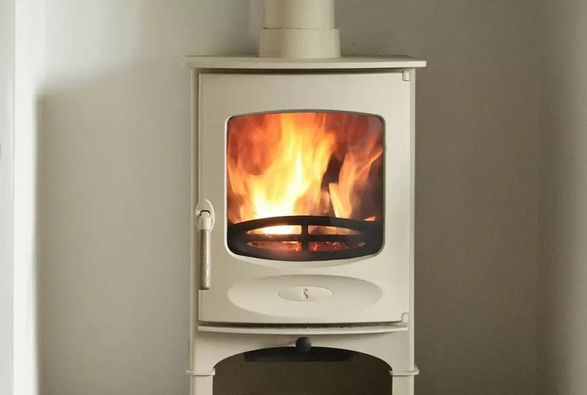

Charnwood C-Four Duo Stove
C-FOUR DUO STOVE
C-FOUR DUO STOVE
A multi-fuel version of our C-Four. Fitted with a fixed grate the stove burns wood and mineral fuels equally well with high efficiency and low emissions.
INFORMATION
BRAND
Charnwood
PRODUCT TYPE
Stove
COLLECTION
C - Four
PRODUCTION
Made in UK
MIN DISTANCE TO COMBUSTIBLES
- Side : 550 mm
- Rear : 500 mm
- Side : 450 mm (With heatshield)
- Rear : 200 mm (With heatshield)
USE
Heating
ENVIRONMENT
Indoor
FLUE OUTLET
Top or Rear 125mm (5”) dia
DETAIL
The c-series is one of charnwood’s latest innovations. A range of classically styled wood burning stoves that feature one single air control and an integrated inlet for ducting external air to improve performance and efficiency.There are two stoves within the c-series duo – the c-four duo and c-five duo if you prefer a pure wood burner, the charnwood c-four keeps things simple and efficient.
AVAILABLE COLORS
8
RATED OUTPUT
4.8kW to room (range 2-5.5kW)
MAX LOG LENGTH
282mm (11”)
NET EFFICIENCY
83.5% Wood, 78.4% Solid Fuel
SMOKE PARTICLE EMISSION
28mg/m3 Wood, 36mg/m3 Solid Fuel
CUSTOMIZATION OPTIONS
- Flue boiler
- Rear heatshield
- Choice of eight colours
- Vertical rear flue adaptor
- Store stand and high legs
MATERIAL
- Cast Iron
- Fire Brick
- Plate Steel
- Ceramic Glass
CO EMISSION
0.08% Wood, 0.10% Solid Fuel
OUTPUT
5kW (range 2-5.5kW)
FEATURES
- Cleanburn airwash technology
- Fixed grate for burning solid fuel
- Sliding ashpan for clean and easy ash removal
- Defra Exempt For Burning Wood In Smoke Control Areas
- Drop down throat plate enabling the chimney to be swept through the stove

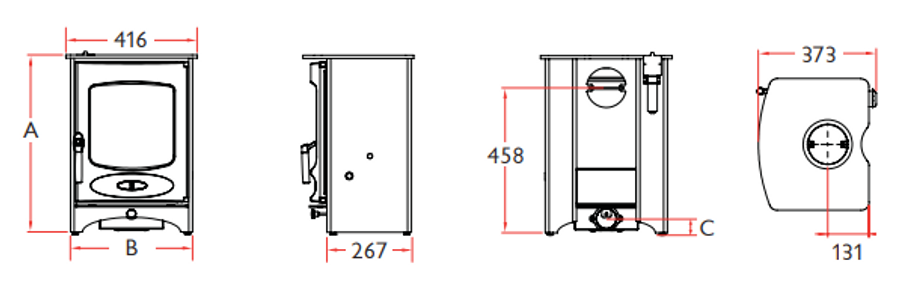

TECHNICAL DRAWINGS & DIMENSIONS
TECHNICAL DRAWINGS
DIMENSIONS
| LEGS & STAND | A | B | C | WEIGHT |
|---|---|---|---|---|
| Low Legs | 560 | 386 | 45 | 83 kg |

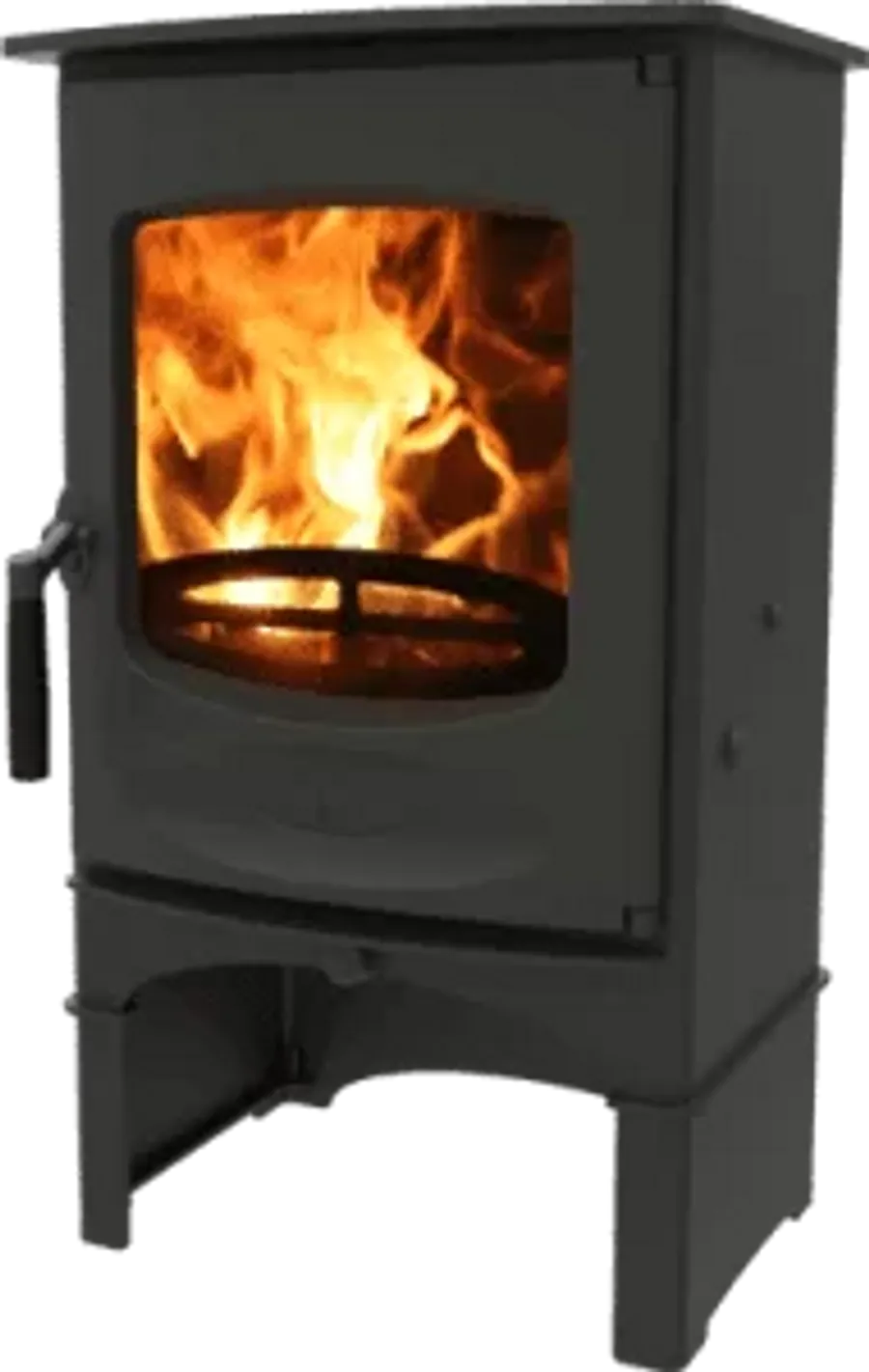

| Store Stand | 710 | 386 | 195 | 89 kg |

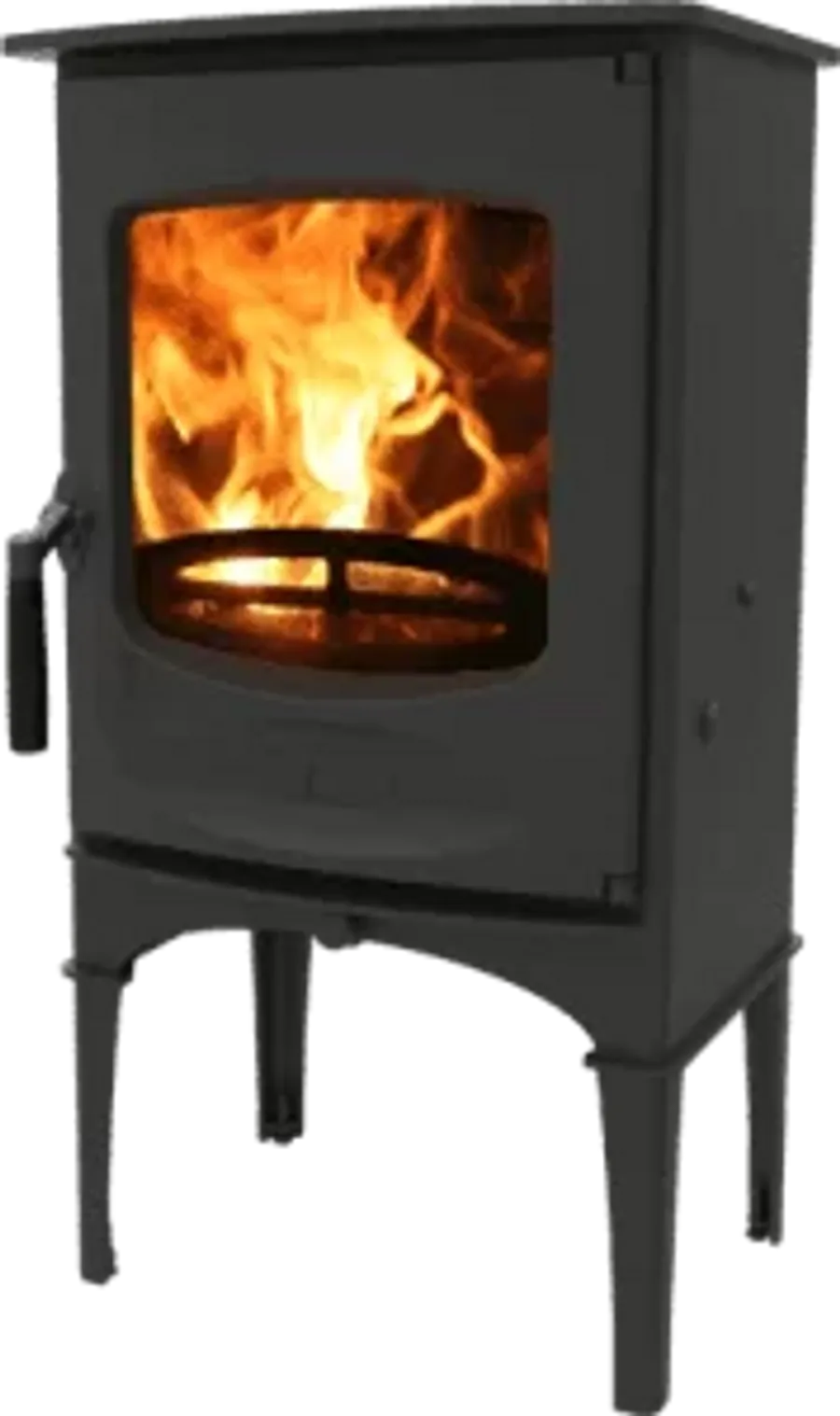

| High Legs | 765 | 400 | 247 | 85.5 kg |
FINISHES
FINISHES

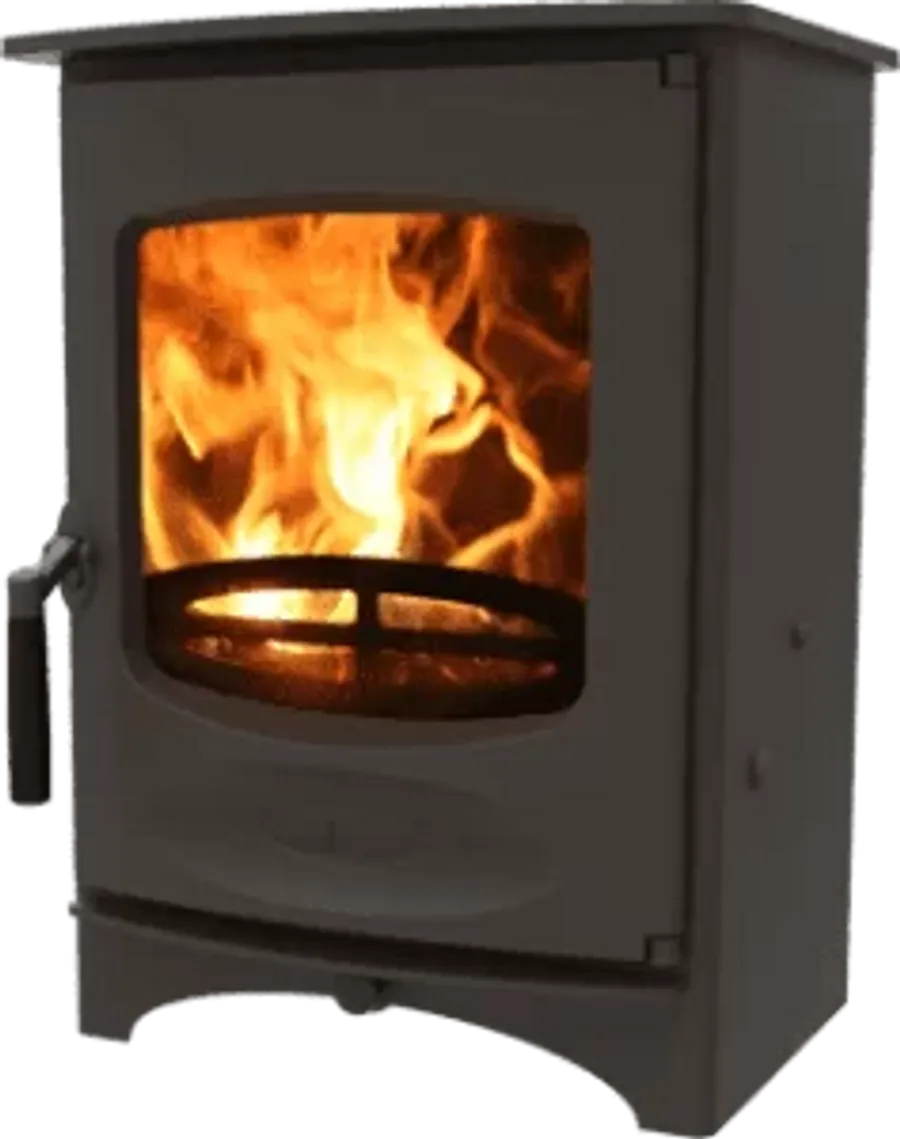

- Blue

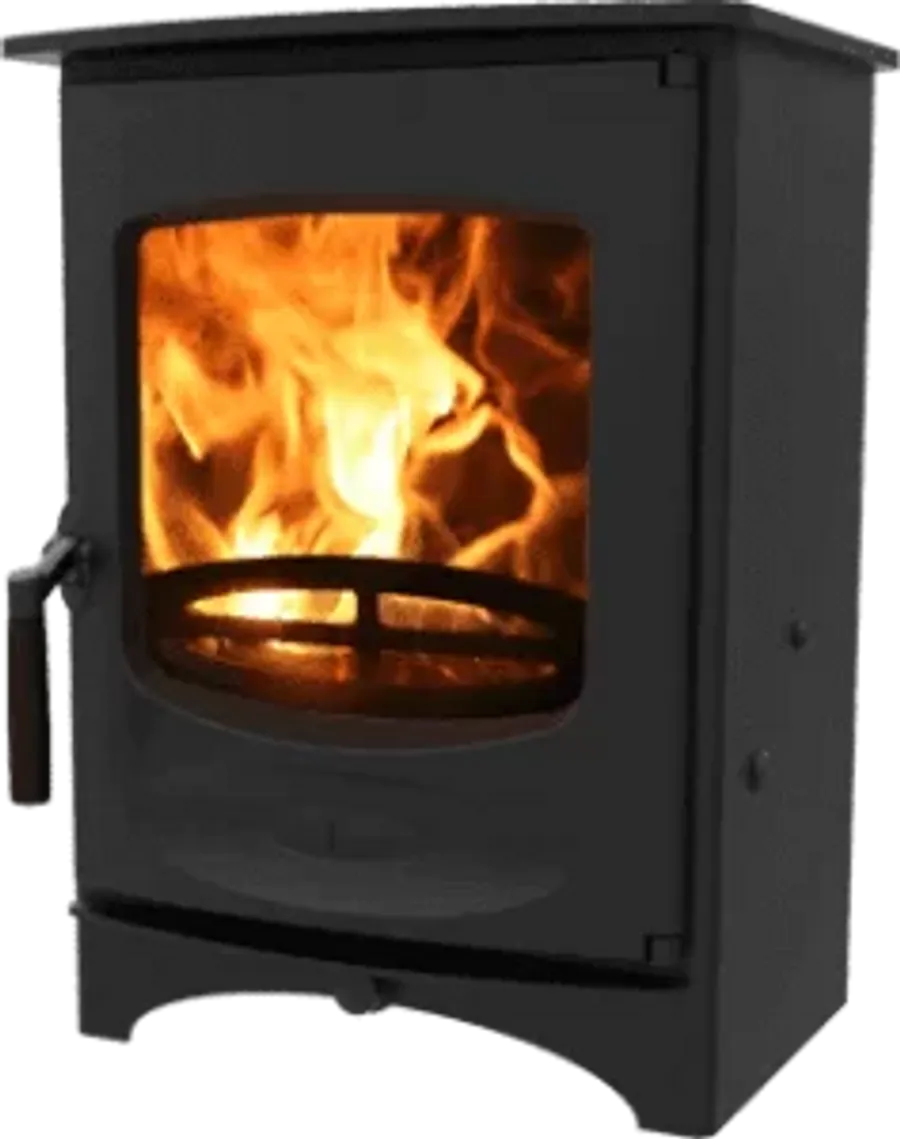

- Black

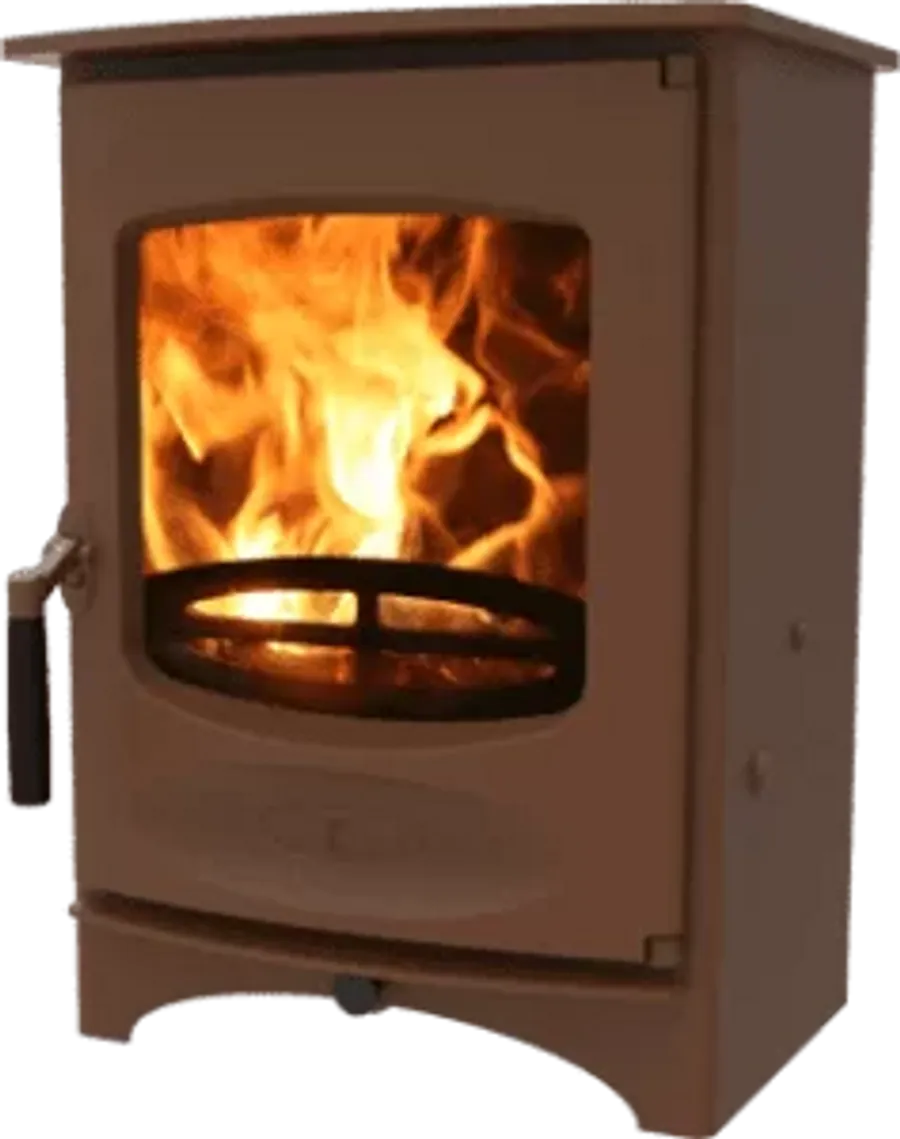

- Brown
- Bronze

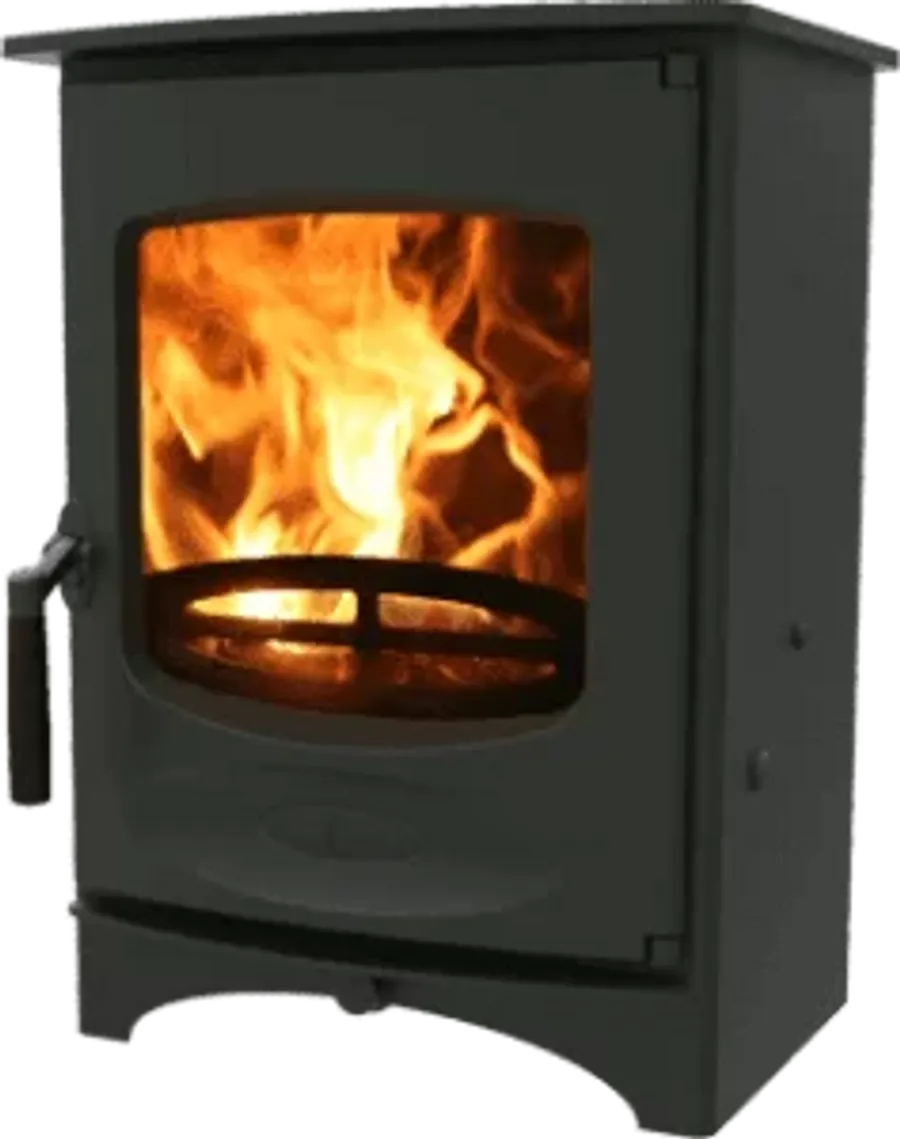

- Green
- Pewter

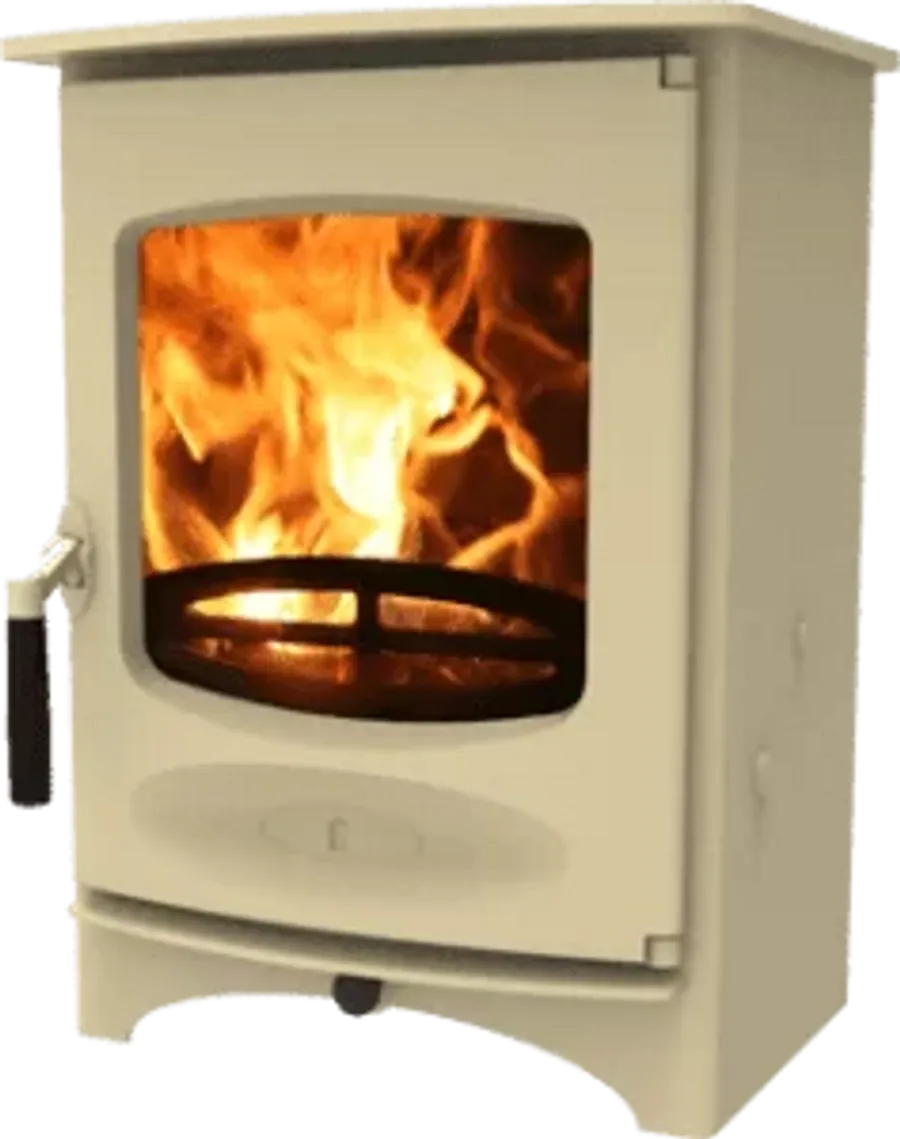

- Almond
- Gunmetal
