THE CLASSIC REFERENCE VINYL PLAYER
THE CLASSIC REFERENCE VINYL PLAYER
The reference in audio reproduction
The new The Classic Reference combines technical finesse and luxury design like no other turntable.It is based on the The Classic EVO and the experience we gained designing our iconic turntable for the Vienna Philharmonic Orchestra.
FEaTURES
33/45/78 RPM
Precision motor control
The motor is powered by a DC-driven AC generator which creates a completely clean sine wave to ensure highest speed stability.
MAIN PLATTER
A throne for your records
The platter is precisely machined out of a special aluminium alloy with a TPE ring on the inside, which offers special damping abilities.

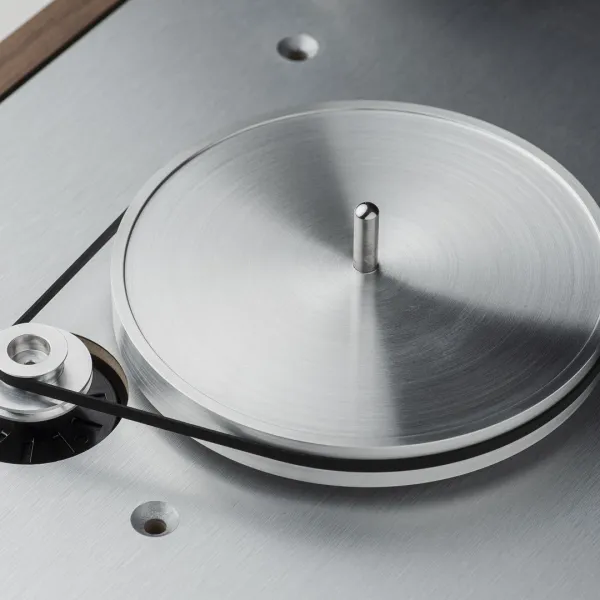

ALU SUB PLATTER
Best speed accuracy
The diamond cut aluminium sub-platter can be machined to much improved and lower tolerances compared to standard plastic sub-platters. It adds more mass to the entire platter and drive system, resulting in additional damping of noise and unwanted resonances.

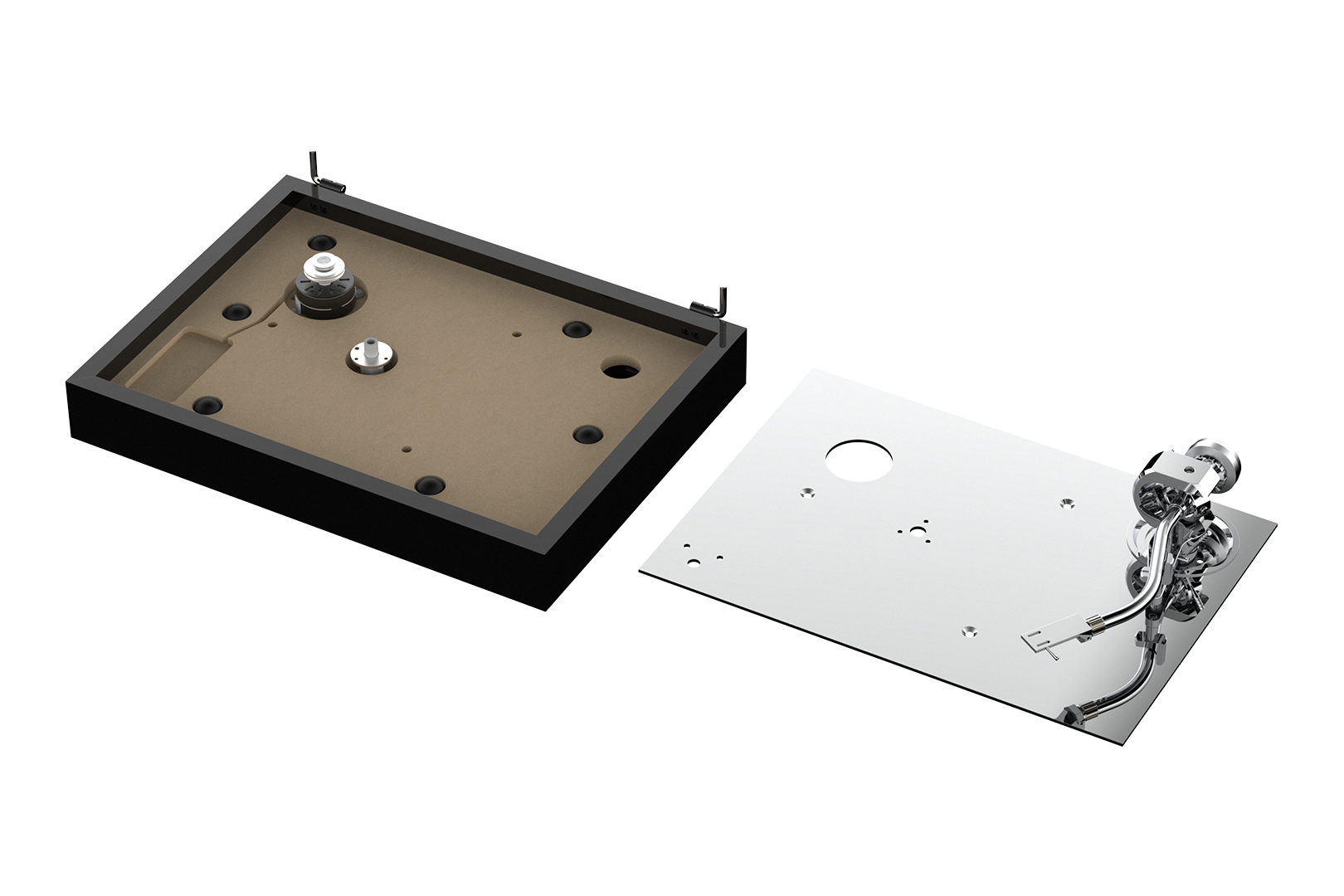

SUB CHASSIS CONSTRUCTION
The sub chassis isolates the platter and tonearm from the resonances of the motor and main plinth. The floating aluminium chassis sits on decoupling TPE damping balls.

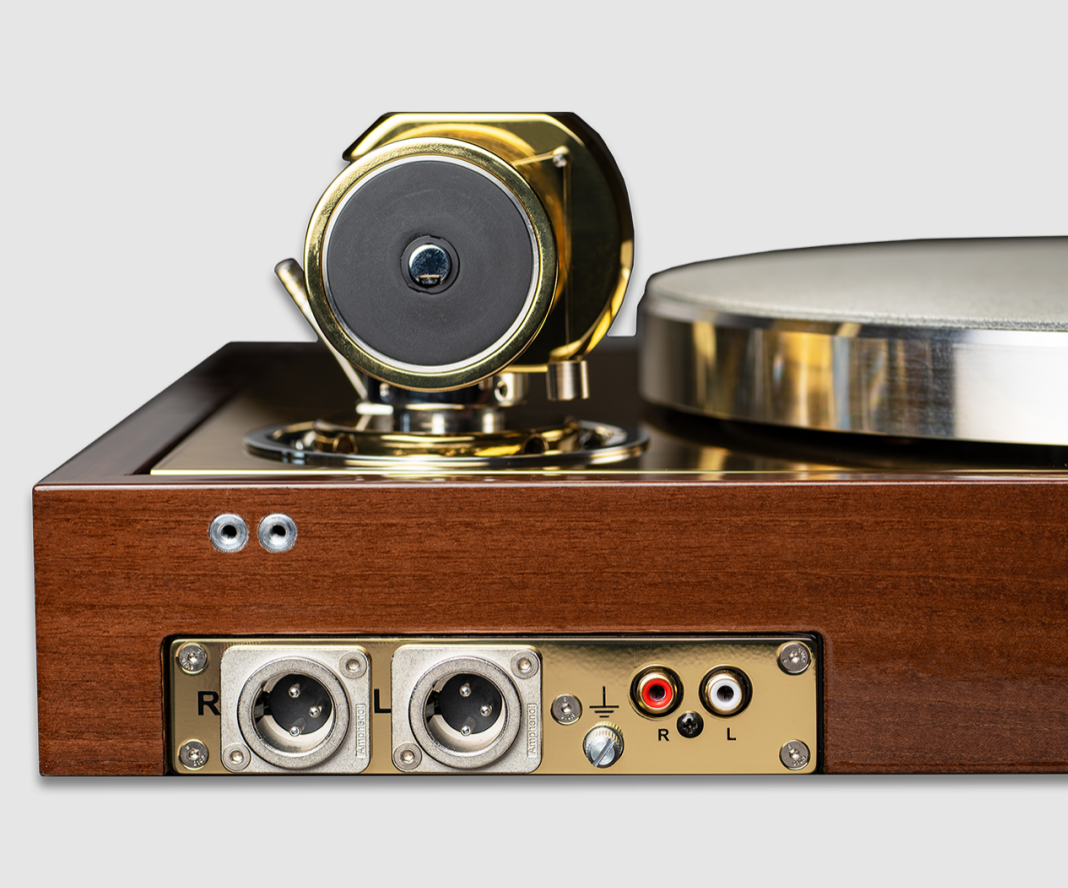

TRUE BALANCED XLR OUTPUT
The new The Classic Reference offers classic RCA and additional balanced XLR output sockets. The big advantage of a balanced connection is its ability to remove picked up noise and interferences.
INFORMATION
INCLUDED ACCESSORIES
- Dust Cover
- Leather It
- Clamp It
- 15 Volts DC / 0.8 A Power Supply
BRAND
Pro - Ject
PRODUCT TYPE
Vinyl Player
PRODUCTION
Made in Austria
SPEED
33, 45 (78) RPM (electronic speed change)
DRIVE PRINCIPLE
Belt drive
MAINS BEARING
Stainless steel
PLATTER
300 mm aluminium with TPE damping ring
SIGNAL TO NOISE
73dB
TONEARM
EVO 9 AS HG
OVERHANG
18 mm
WOW & FLUTTER
- 33 : ±0.03 %
- 45 : ±0.04 %
EFFECTIVE ARM LENGTH
230 mm
EFFECTIVE ARM MASS
24.2 g
SPEED VARIANCE
- 33 : ±0.08 %
- 45 : ±0.10 %
FINISH
- Acacia Brass Version
- Piano Silver Version
POWER CONNECTION
110/120 or 230/240 Volt - 50 or 60 Hz
POWER CONSUMPTION
5 Watt max / < 0.5 Watt standby
DIMENSIONS
- Height : 131 mm
- Weidth : 460 mm
- Depth : 351 mm
DOWNLOADS
↓ Manual
↓ Product Information

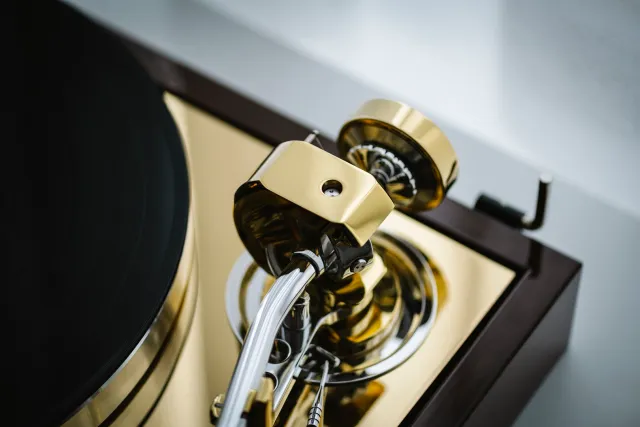

HIGH END TONEARM
The Classic Reference is equipped with our high end precision EVO 9 AS HG tonearm. It uses an inverted cardanic Swiss ABEC 7 quality bearing with 4 stainless steel tips. The bearing sits in a heavyweight aluminium housing, which provides the needed stability.
The massive outer ring is open to avoid resonances. For the EVO AS tonearms, we use a special aluminium s-shape tube with the highest internal damping, paired with a SME-type headshell. The inner wiring is made of flexible high-purity copper which is an optimum conductor for the small phono signal.
IN THE BOX
CLAMP IT
Premium record clamp
This accessory will not only please your ears, its beautifully machined diamond-cut edges will also look extremely cool on any turntable!
LEATHER IT
Special surface for your records
This leather turntable mat adds a very special sound character and eliminates noise caused by static and dust.
DUSTCOVER
Protect your turntable
A beautiful acrylic dustcover is included with the turntable. It holds in every opening position & can be removed easily for playback.
PREMIUM CABLE
Connect it Phono E RCA
We focused on quality core materials like a copper conductor for a signal transmission without losses.
