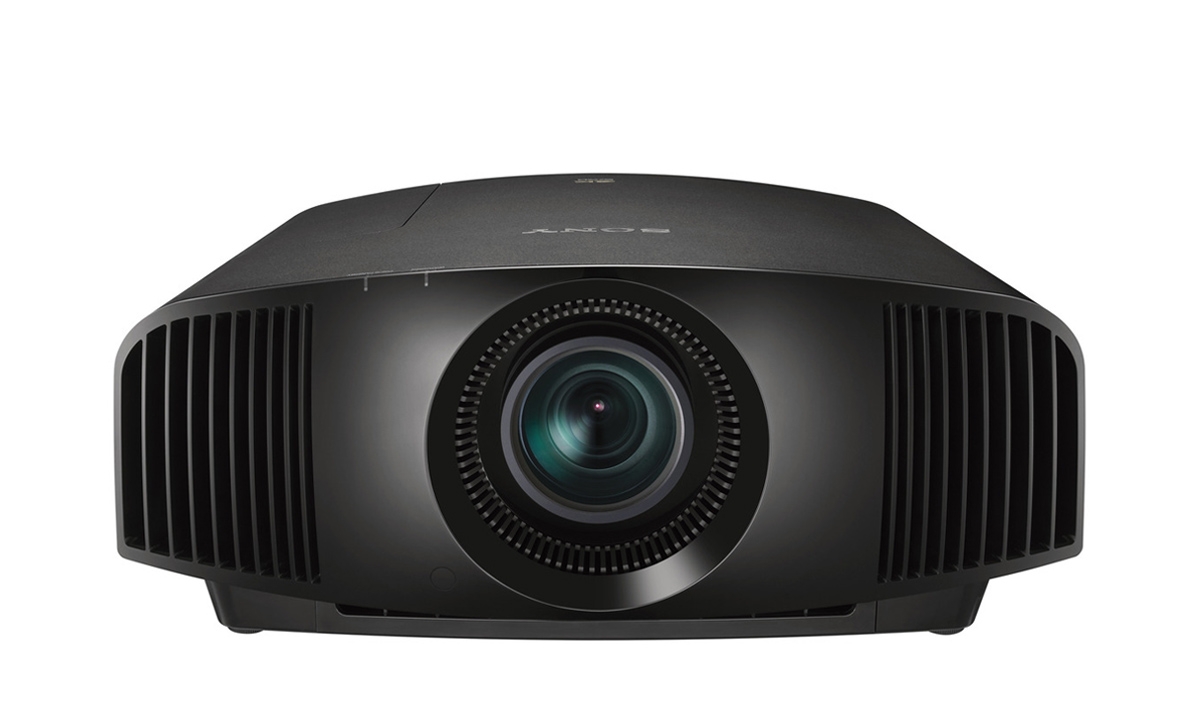

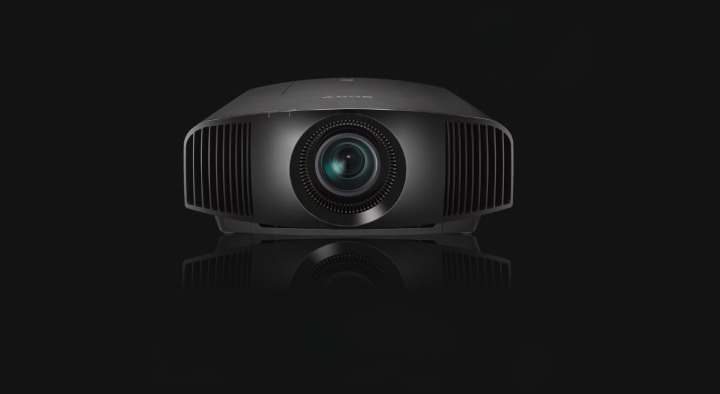

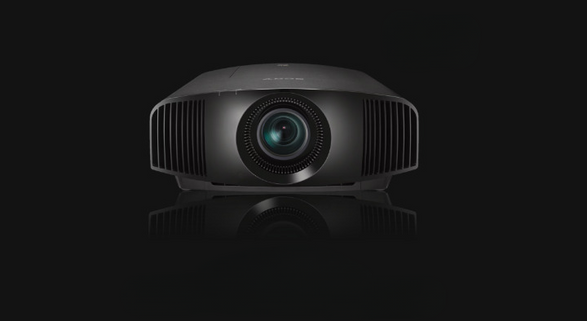

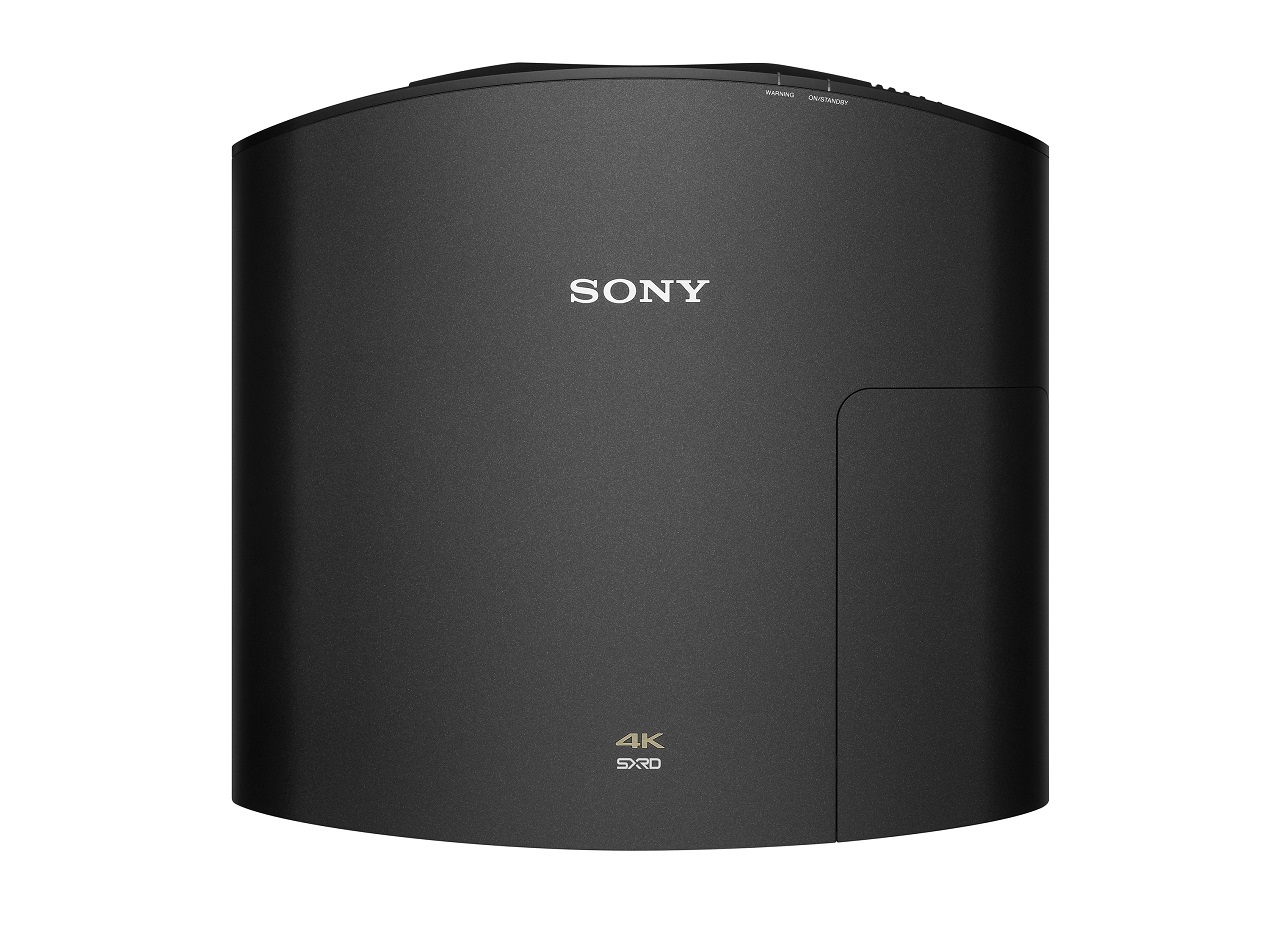

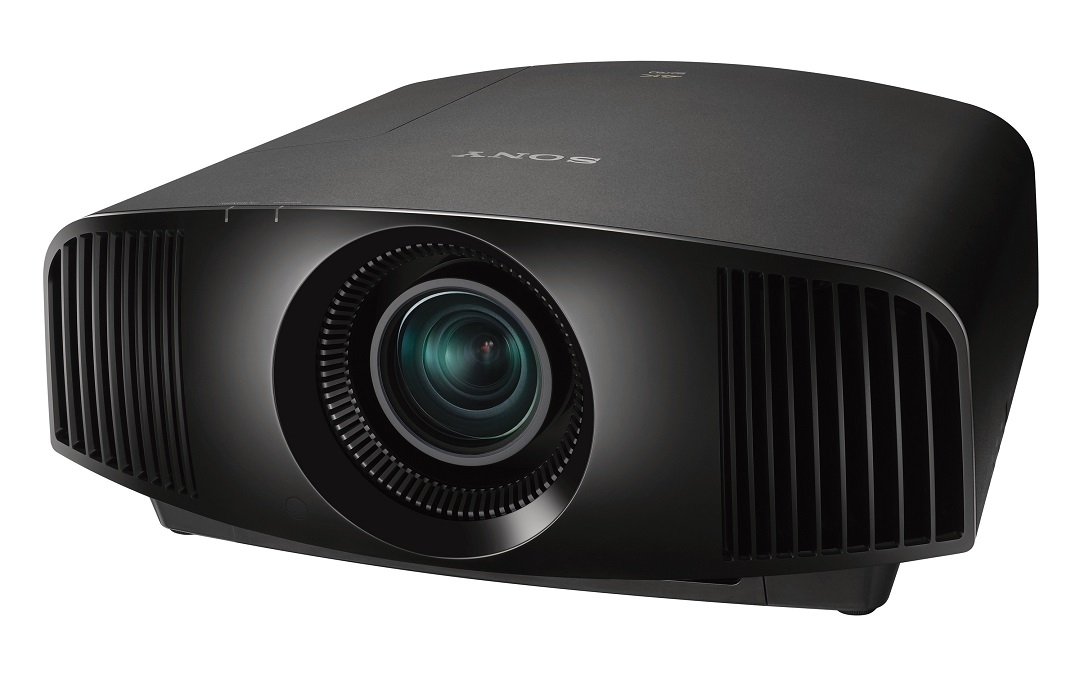

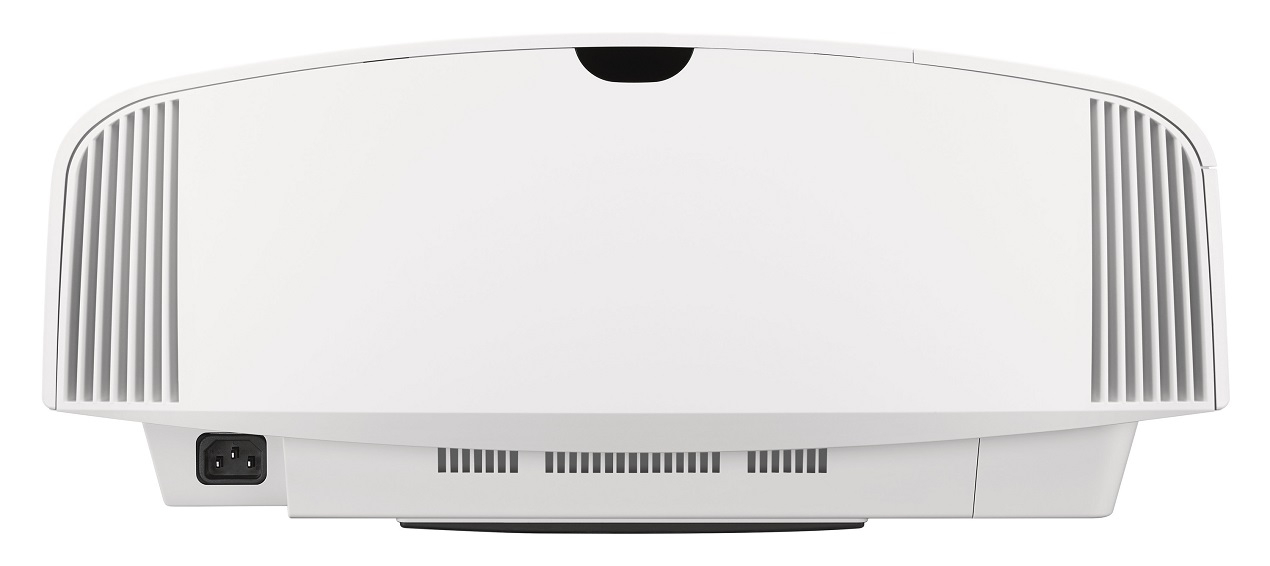

Sony VPL-VW290ES Projector
VPL-VW290ES PROJECTOR
VPL-VW290ES PROJECTOR
See the big picture with true 4K HDR
FEATURES
X1™ FOR PROJECTOR
Our X1™ for projector technology takes our acclaimed BRAVIA TV video processing technology and optimises it for projection. The processor combines innovative technologies for high-precision frame analysis, with features like Dynamic HDR Enhancer and Super Resolution for high-quality images.
DYNAMIC HDR ENHANCER
Our Dynamic HDR Enhancer processes HDR content frame by frame to deliver stunning contrast, which makes bright scenes brighter and dark scenes darker, for the ultimate HDR experience.
SXRD™ FOR UNCOMPROMISING PICTURE QUALITY
Our advanced SXRD panel technology offers rich, inky blacks and clear cinematic motion and image smoothness. High heat and light resistance also ensures spectacularly high and stable brightness.
INFORMATION
MASS
Approx. 14 kg / 31 lb
PRODUCT TYPE
Projector
PRODUCTION
Made in United Kingdom
POWER REQUIREMENTS
- AC 100-240 V
- 50/60 Hz
USE
Display Image
SIZE OF EFFECTIVE DISPLAY AREA
0.74” x 3
LIGHT SOURCE
High-pressure mercury lamp, 225 W type
FOCUS
Powered
DISPLAY SYSTEM
4K SXRD panel, projection system
DIMENSIONS (WITHOUT PROTRUSIONS)
- Width : 496 mm
- Height 205 mm
- Depth : 464 mm
ZOOM
Powered (Approx. x 2.06)
NUMBER OF PIXELS
26,542,080 (4096 x 2160 x 3) pixels
LENS SHIFT
Powered
- Vertical : +85%
- 80% Horizontal : +/-31%
THROW RATIO*1
1.38 : 1 to 2.83 : 1
LIGHT OUTPUT
1,500 lm (Lamp mode: High)
ACCEPTED DIGITAL SIGNALS
- 720x576/50p
- 720x480/60p
- 1280x720/50p
- 1280x720/60p
- 1920x1080/50i
- 1920x1080/60i
- 1920x1080/24p
- 1920x1080/50p
- 3840 x 2160/24p
- 3840 x 2160/25p
- 3840 x 2160/30p
- 3840x2160/50p
- 3840x2160/60p
- 4096 x 2160/24p
- 4096 x 2160/25p
- 4096 x 2160/30p
COLOUR LIGHT OUTPUT
1,500 lm (Lamp mode: High)
RECOMMENDED LAMP REPLACEMENT TIME*2
6,000 H (Lamp mode: Low)
PICTURE PROCESSOR
X1 for projector
SCREEN SIZE
60” to 300” (1,524 mm to 7,620 mm)
POWER CONSUMPTION
390 W
STANDBY
0.4 W (when "Remote Start" is set to "Off")
4K MOTIONFLOW™
Our Motionflow technology adds frames to reduce blur while maintaining brightness, creating smooth and clear motion even in 4K – ideal for sport
STANDBY MODE / NETWORKED STANDBY MODE ACTIVATED
After about 10 Minutes
3D CAPABILITY
Yes
3D EMITTER
Built-in RD emitter
OPTIONAL ACCESSORIES
LMP-H220 (Lamp)
USB
x 1 (Type A, DC 5 V, Max. 500 mA)
SUPER RESOLUTION REALITY CREATION
The VPL-VW290ES analyses every pixel of every image and then employs pattern-matching algorithms developed over years of movie production to enhance crispness without increasing digital picture noise.
SUPPLIED ACCESSORIES
- Lens Cap (1)
- Batteries (2)
- AC Power Cord (1)
- Size AA (R6) Manganese
- Quick Reference Manual (1)
- Safety Regulations (1)
- RM-PJ28 Remote Commander (1)
EXPERIENCE THE BEAUTY OF TRUE 4K HDR IMAGES AT HOME
Brings entertainment to life with 4K HDR picture quality in any living space. The VPL-VW290ES lets you take full advantage of the latest content with impressive sharpness and vivid colour, whether you’re watching sports, enjoying movies, or playing games.
ACOUSTIC NOISE*4
26 dB
DOWNLOAD
↓ Data Sheet
OPERATING TEMPERATURE / OPERATING HUMIDITY
5°C to 35°C (41°F to 95°F) / 35% to 85% (no condensation)
STORAGE TEMPERATURE / STORAGE HUMIDITY
-20°C to +60°C (-4°F to +140°F) / 10% to 90% (no condensation)
NETWORKED STANDBY
1.0 W (LAN) (when "Remote Start" is set to "On") When a LAN terminal is not connected, it becomes a low power consumption mode (0.5 W)
ENVIRONMENTAL NOTICE FOR CUSTOMERS IN THE USA
Lamp in this product contains mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information
INPUT OUTPUT
-HDMI*3 : x 2 (HDCP2.2)
-Trigger : x 1 (Mini jack, DC 12 V, Max. 100 mA)
-RS-232C : x1 (D-sub 9-pin (male))
-LAN : x1 (RJ-45, 10BASE-T/100BASE-TX)
-IR IN / OUT : IN: x 1 (Mini jack)
NOTES
-Display size : 16:9
-HDMI Input2 is compatible with HDCP 2.2.
-Depends on the projector setting condition and usage environment.
-The figures are expected maintenance time and not guaranteed. They will depend on the environment or how the projector is used.
