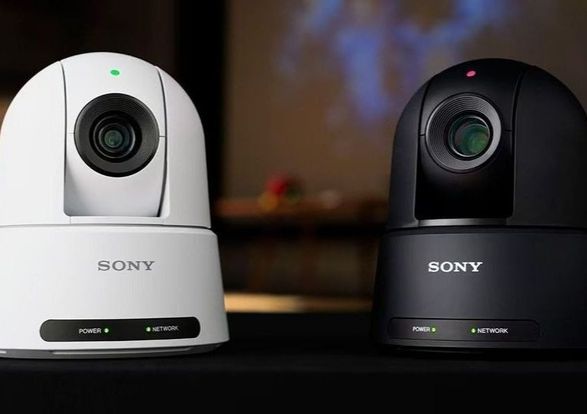

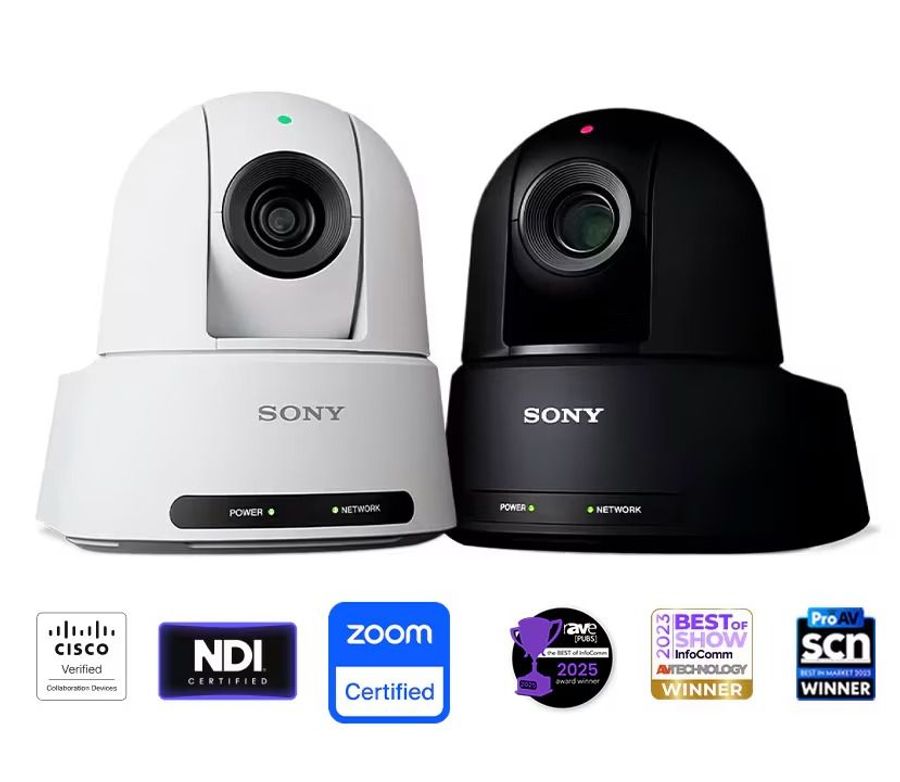

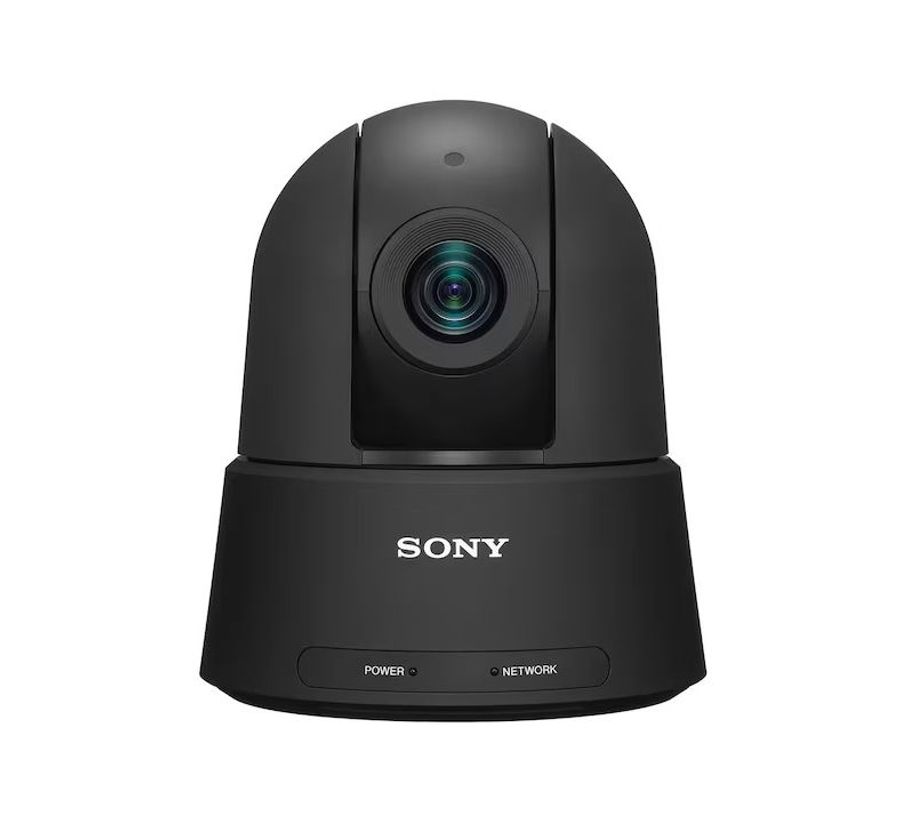

Sony SRG-A40/ SRG-A12 with PTZ Auto Framing Camera
SRG-A40/ SRG-A12 WITH PTZ AUTO FRAMING CAMERA
SRG-A40/ SRG-A12 WITH PTZ AUTO FRAMING CAMERA
Revolutionary PTZ Auto Framing technology powered by built-in AI analytics ensures high quality composed shots without operator.
INFORMATION
BRAND
Sony
PRODUCT TYPE
Camera
POWER REQUIREMENTS (POE)
PoE++ (IEEE 802.3bt Type 4 Class 8 compliant)
POWER REQUIREMENTS (DC IN)
DC 19.5 V
MASS
Approx. 2.0 kg/4 lb 6.5 oz
DIMENSIONS
- Width : 156.7 mm
- Height : 184.0mm
- Depth : 200.0 mm
POWER CONSUMPTION (DC IN)
≦80 W (DC 19.5 V)
POWER CONSUMPTION (POE)
≦71.3 W (PoE++)
OPERATING TEMPERATURE
0 °C to 40 °C (32 °F to 104 °F)
STORAGE TEMPERATURE
-20 °C to +60 °C (-4 °F to +140 °F)
IMAGING DEVICE (TYPE)
1/2.5 ExmorR CMOS sensor
NUMBER OF PIXELS
Approx. 8.5 megapixels
QUIETNESS *B
NC30 or less

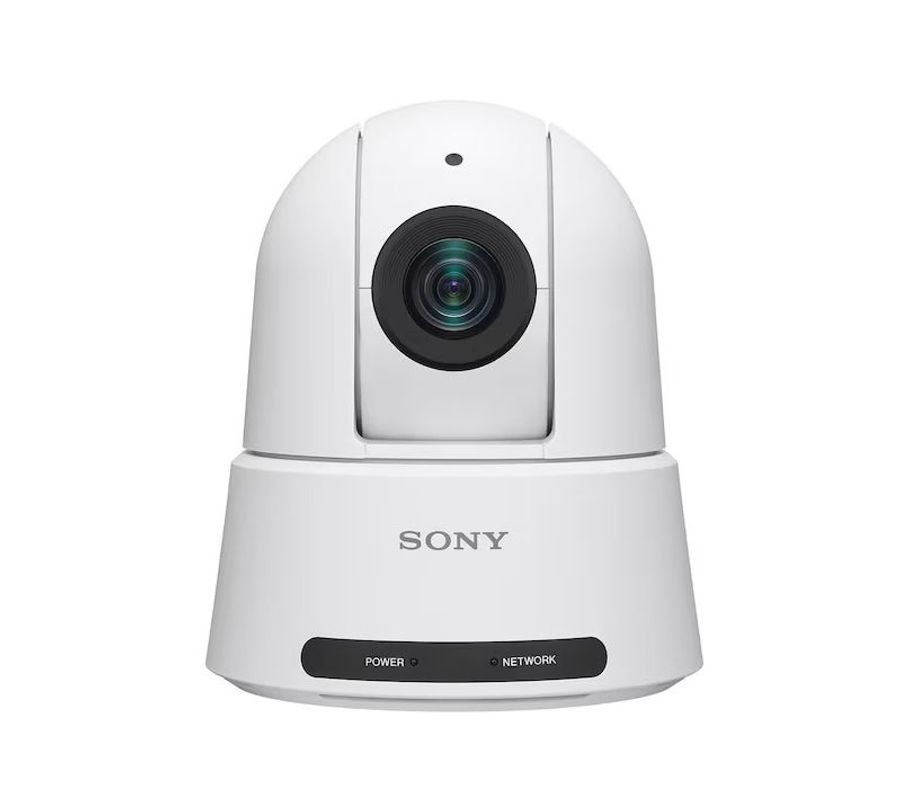

BODY COLOR
Black / White

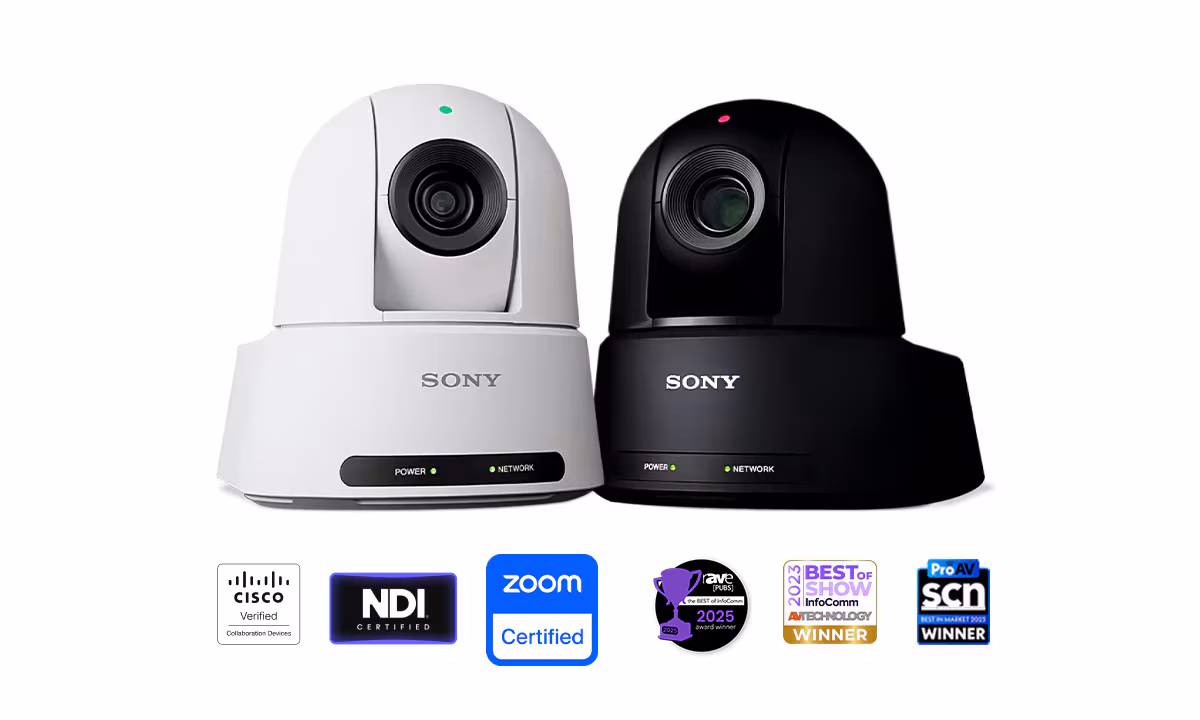

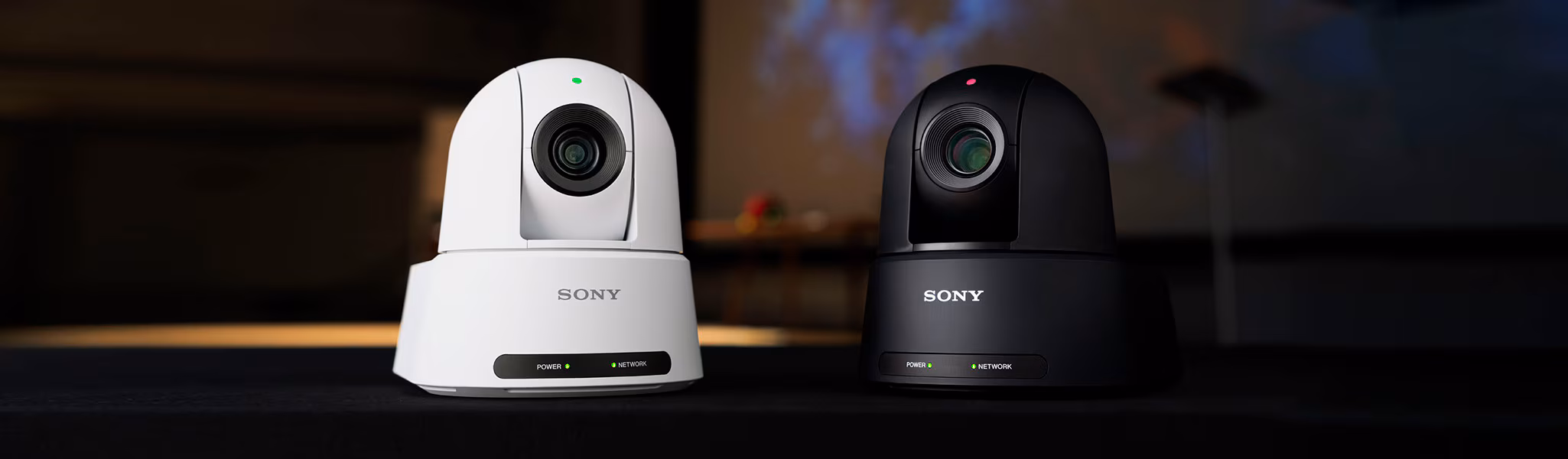

CHOICE OF COLOUR FINISHES
The camera is available in a choice of black or while colour finishes, to suit the needs of any application.
F-NUMBER (MAXIMUM APERTURE)
F2.0 to F3.7
FOCUS RANGE (FROM THE FRONT OF THE LENS)
Approx. 80 mm to infinity
FOCAL LENGTH (35MM FORMAT EQUIVALENT)
26.8 to 322.8 mm
FOCAL LENGTH
f = 4.4 to 52.8 mm
HORIZONTAL VIEWING ANGLE
Approx. 70.0 deg.
OPTICAL ZOOM
12x
TELE CONVERT MODE *C
Yes (2.0x)
FOCUSING SYSTEM
Auto / Manual
SHUTTER SPEED
1/1 to 1/10000 sec
SUPPLIED ACCESSORIES
- Wire rope (x1)
- Screw (M3x8) (x9)
- AC power code (x1)
- QR code sticker (x1)
- Ceiling bracket B (x1)
- Ceiling bracket A (x1)
- Warranty booklet (x1)
- Safety regulation (*d)
- AC power adaptor (x1)
- Screw (M2.6x6 Black) (x1)
- Download site information (x1)
- Remote commander (RMT-RC2) (x1)
CEILING MOUNT
Yes (with Ceiling Bracket)
MOUNTABLE ANGLE
≦ ±15°
PAN ANGLE
-170 deg. to 170 deg.
PAN SPEED
0.5 deg./sec to 300 deg./sec
TILT ANGLE
-20 deg. to 90 deg.
TILT SPEED
0.5 deg./sec to 126 deg./sec
AVAILABLE FEATURES IN CAMERA
- Day/Night
- Image Flip
- Visibility Enhancer
- Picture Setting File
- Image Stabilizer
- Auto ICR (Auto mode of IR Cut filter Removal)
AVAILABLE FEATURES IN PTZ AUTO FARMING
- Tracking Range
- Lead Room Effect
- Face Registration
- Fixed Angle Position
- Multi-person Framing
- Frame / Area Indicator
- Framing mode | Ball Sports (Basketball)
UNAVAILABLE FEATURES IN INTERFACE
- Optical Output
- UVC Output
- Output Format SFP+
- Genlock Input
- TC Input / TC Output
- Option
UNAVAILABLE FEATURES IN CAMERA
- Clear Image Zoom
- Digital Zoom
- Soft Skin Effect
- Built-in ND filter
- Night Shot
- Base Look
DETECTION PART
Head
PTZ AUTO FRAMING FILE
Load / Save *f
PRESET FRAMING
Composition
RECORDING FUNCTION
No
TALLY RAMP
Center (x1), Red / Green
IR REMOTE CONTROL
Yes

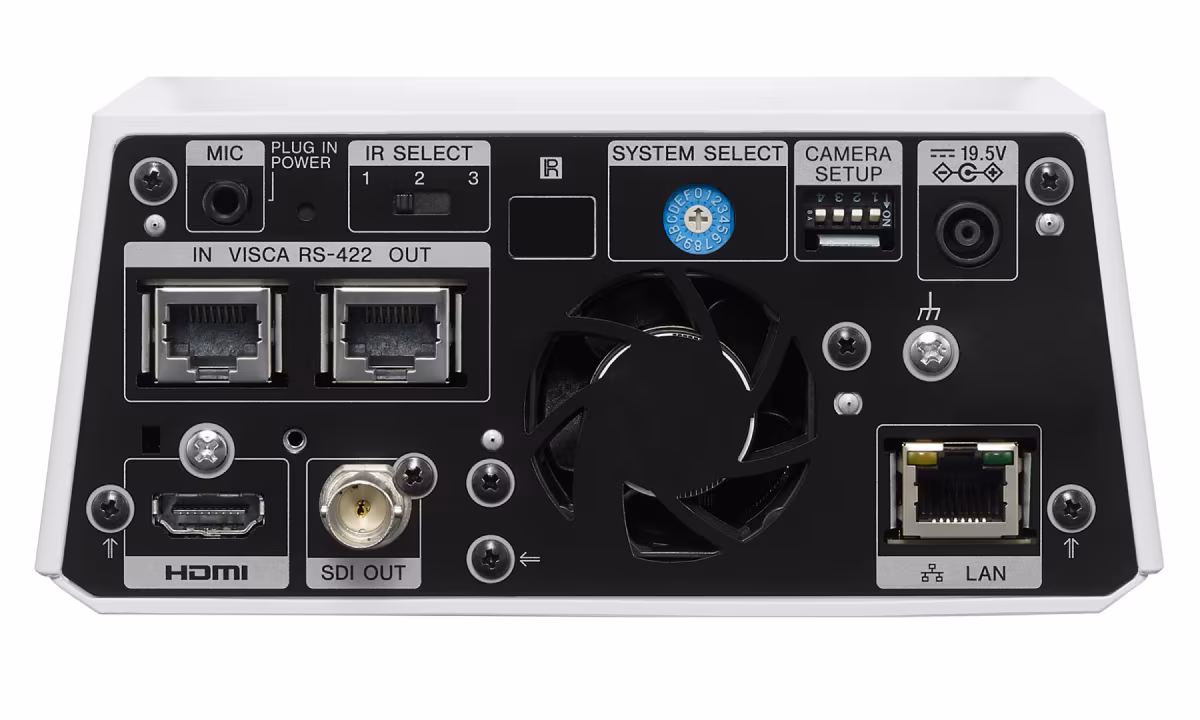

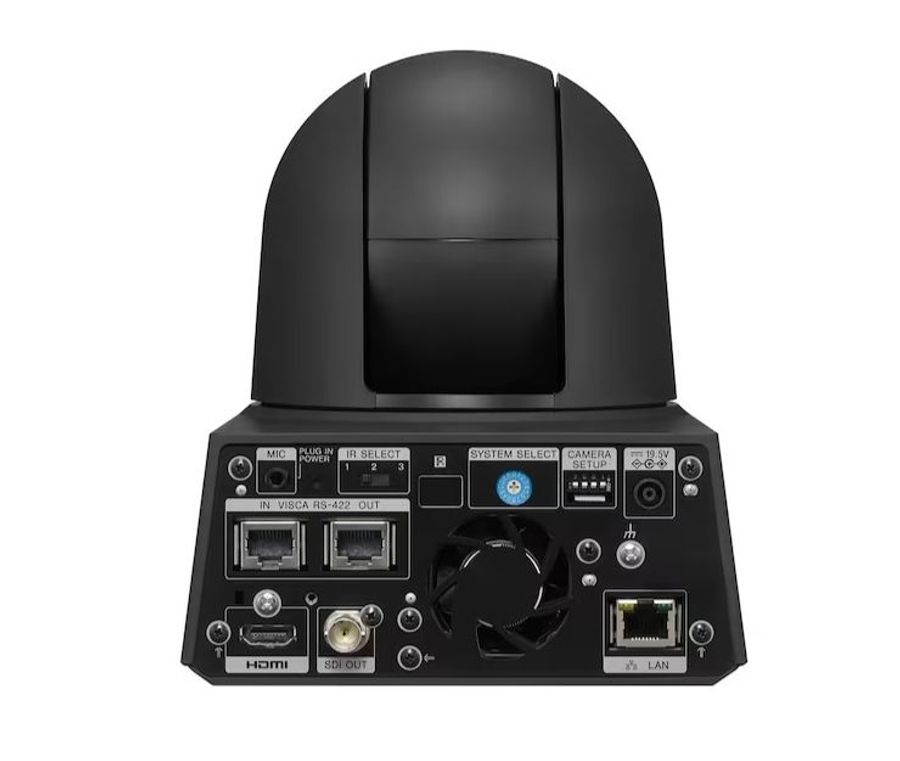

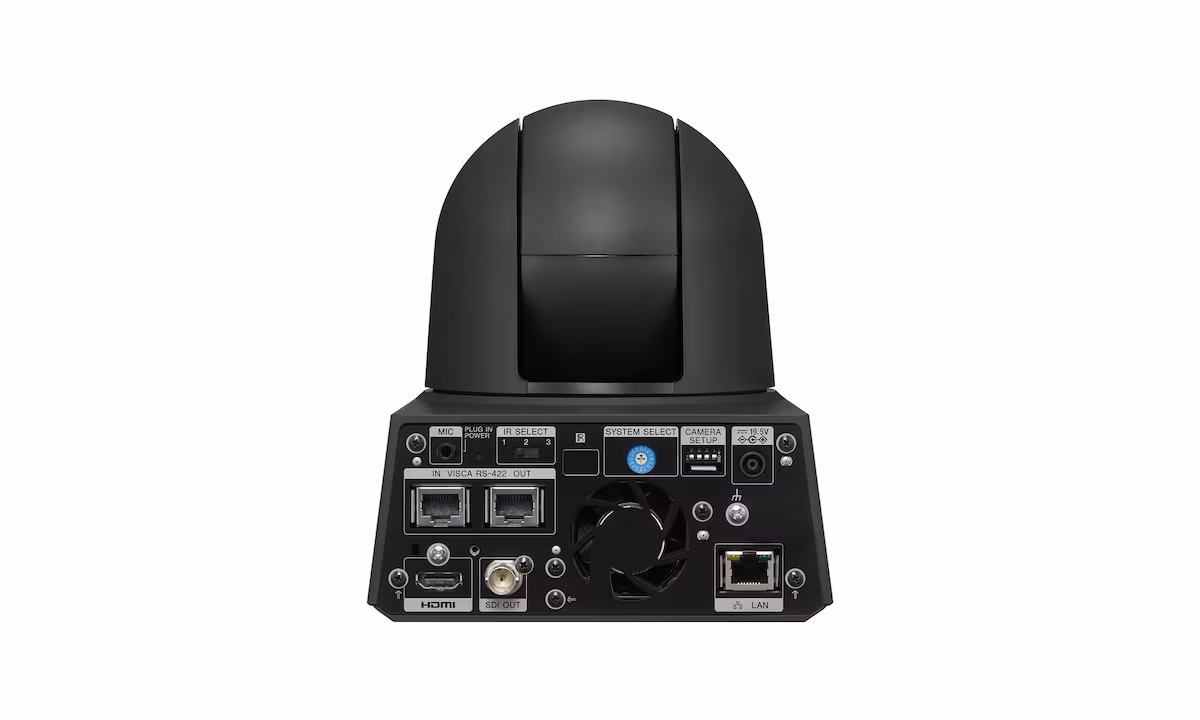

AUDIO INPUT
3.5 mm Stereo Minijack x1 (Mic / Line Selectable)
VISCA IN / OUT
- RJ-45 (VISCA IN) (x1)
- RJ-45 (VISCA OUT) (x1)
HDMI OUTPUT
Type-A connector (x1)
RAMP CURVE
1 steps
PRESET SPEED UNIT
Speed
PRESET POSITION
256 (CGI) / 100 (VISCA)
SYNC. SYSTEM
Internal
NETWORK
RJ-45 (LAN) (x1), 1000BASE-T
GAIN
Auto / Manual
0 dB to + 48 dB (high-sensitivity ON)
WHITE BALANCE
Auto1 / Auto2 / One Push WB / Indoor / Outdoor /Manual
IP STREAM COMPRESSION FORMAT
- H.264: High / Main / Baseline Profile
- H.265: Main Profile
IP STREAM VIDEO RESOLUTION
- 3840 x 2160
- 1920 x 1080
- 1280 x 720
- 640 x 360
APPLICATION PROTOCOLS FOR IPV4
DHCP, DNS, mDNS, NTP
APPLICATION PROTOCOLS FOR IPV6
DHCPv6, DNS, mDNS, NTP
NOTES
- Without projecting object
- Sony measurement conditions
- 1920 x 1080 only
- Varies by country of sale
- Version 3.0 or later is required.
- Version 4.0 or later is required.
NETWORK / TRANSMISSION PROTOCOLS FOR IPV6
ICMPv6, MLD, TCP, UDP
NETWORK / TRANSMISSION PROTOCOLS FOR IPV4
ARP, ICMP, IGMP, TCP, UDP
NDI|HX CAPABILITY
Yes *e
CAMERA TRACKING DATA
No
CONTROL PROTOCOLS
- HTTP / HTTPS
- VISCA over IP
STREAMING PROTOCOLS
- RTP / RTCP
- RTSP, RTMP / RTMPS
- SRT
- NDI|HX
IP STREAM MAXIMUM FRAME RATE
- H.264: 60 fps
- H.265: 60 fps
IP STREAM BITRATE CONTROL MODE
CBR / VBR
DC INPUT
IEC60130-10 (JEITA standard RC-5320A) Type5 (x1)
SCREW HOLES FOR EXTERNAL DEVICES
No
IP STREAM RANGE OF BITRATE SETTING
512 Kbps to 50 Mbps
SDI OUTPUT
- SDI OUT: BNC (x1),
- 3G-SDI (Level A / B), HD-SDI
EXPOSURE CONTROL
Auto / Manual / Priority AE (Shutter, Iris)
OUTPUT FORMAT SDI OUT (INTERFACE)
- 1920 x 1080 / 59.94p
- 50p, 59.94i, 50i
- 29.97p, 25p
- 23.98p
- 1280 x 720 / 59.94p
- 50p
OUTPUT FORMAT HDMI OUT (INTERFACE)
- 3840 x 2160 / 29.97p, 25p, 23.98p,
- 1920 x 1080 / 59.94p, 50p,
- 59.94i, 50i, 29.97p, 25p, 23.98p
- 1280 x 720 / 59.94p, 50p
- 720 x 480 / 59.94p
- 720 x 576 / 50p
PICTURE FREEZE PRESET
Yes
PTZ MOTION SYNC
Yes
PTZ TRACE
No
DOWNLOADS
BROCHURE & DIAGRAMS
↓ A&E documents
↓ SRG-A40_SRG-A12 Outline Views
↓ SRG-A40 & SRG-A12 CAD Data
FEATURES
PTZ MOTION SYNC
Pan, tilt and zoom movements transition smoothly between preset camera positions.
HIGH SPEED PAN AND TILT
Speedy, precise Pan and tilt operation ensures that the camera can accurately keep track of the presenter’s movements.
WIDE ANGLE ZOOM LENS
As well as powerful close-ups, the camera can capture broad shots of the presenter or audience with a wide field of view.
POWERFUL ZOOM, WIDE ANGLE
Integrated high-resolution lens offers zoom capability up to 40x (FHD) or 30x (4K) with Clear Image Zoom for SRG-A40 and 12x for SRG-A12, with an expansive approx. 70° wide angle coverage to capture every point of view.
PTZ AUTO FRAMING
Automatically track a person with pan, tilt and zoom movement regardless of posture, movement and what one is wearing, while frame the subject naturally for comfortable viewing.
PRESET CAMERA POSITIONS
Store and instantly recall up to 256 preset camera positions.
PICTURE FREEZE PRESET
The camera can output high-quality still images simultaneously while streaming 4K video.
AF, AE AND AWB
Auto Focus, Auto Exposure and Auto White Balance ensure professional-looking results without manual exposure adjustments.
IP STREAMING
Stream 4K 30p video from the camera with support for popular IP protocols – ideal for live events and webcasts.
SINGLE NETWORK CABLE
Power supply (POE++), image/audio output, and camera control all enabled by a single network cable which allows simple integration.
HDMI/SDI OUTPUTS
As well as live streaming over IP, the camera can simultaneously output video via HDMI and SDI for conventional production.
PICTURE SETTING FILE
Easily copy picture settings across multiple cameras for quick, convenient set-up in multi-camera shooting environments.
DETAILS
A CAMERA THAT AUTOMATICALLY AND NATURALLY SHOOTS VIDEO FOR YOU
With the advanced PTZ Auto Framing feature, the camera automatically track the person in a comfortable viewing with smooth pan, tilt and zoom movement regardless of posture, movement and what one is wearing. Since the camera does most of the work automatically, the operator can spend its time efficiently.
AUTOMATICALLY AND RELIABLY SHOOTS VIDEO FOR YOU

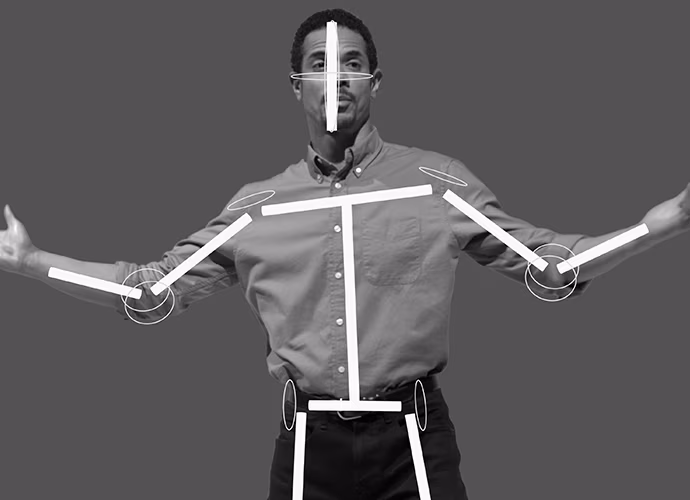

With Sony’s newly developed AI analytics algorithm, it detects the person’s skeleton and head position and matches the person’s detail features even when there are several people in the frame. It achieves accurate framing and consistent tracking.

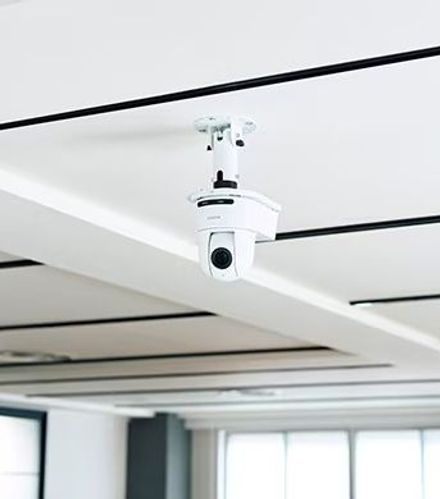

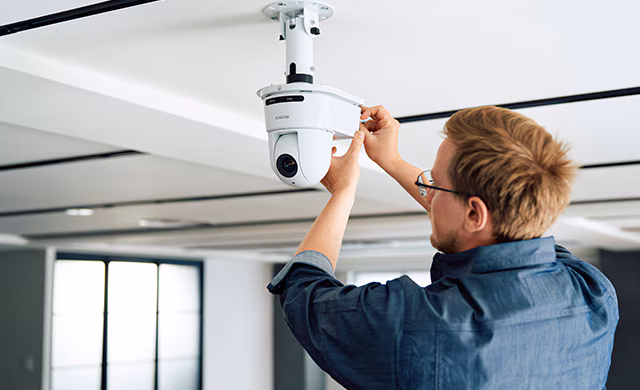

EASY CEILING MOUNTING
The camera comes supplied with a mounting plate for convenient ceiling installation if required.
KEEP THE INTENDED ANGLE OF VIEW WITH FIXED ANGLE POSITION
When a subject enters the predefined area*, PTZ Auto Framing will pause and the angle of view will automatically move and hold the predefined area. PTZ Auto Framing will resume when the subject exits the area. The predefined area can be displayed as an overlay on the Web UI live view.**

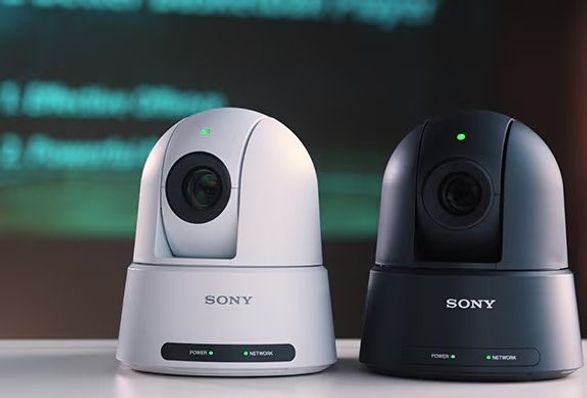

LIGHT, COMPACT DESIGN
The camera’s stylish, compact body fits unobtrusively into any environment.
VERSATILE FUNCTIONS FOR REMOTE OPERATION

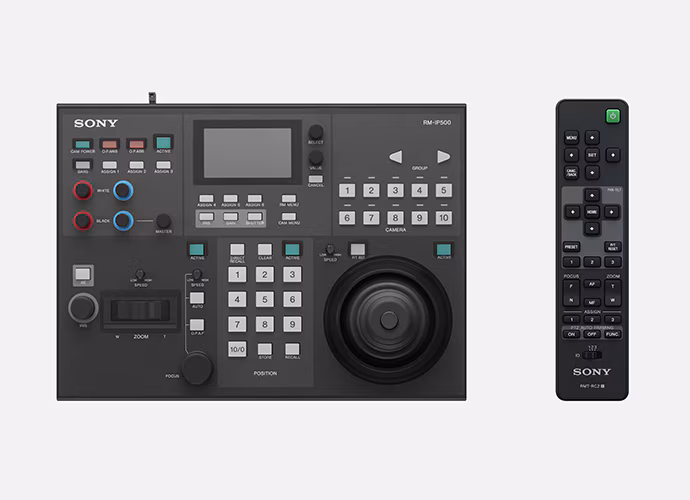

Remote control of PTZ operation
Pan, tilt and zoom camera movements and other functions can all be precisely controlled using the supplied IR remote commander, allowing convenient wireless operation of PTZ functions without needing additional equipment. The SRG-A40 and SRG-A12 can also be controlled using the optional additional RM-IP500 remote controller, just like professional broadcast cameras.
In addition to ON/OFF control of PTZ Auto Framing, it’s easy to toggle between single-person and Multi-person Framing* using the supplied IR remote commander – simplifying system set-up, especially in solo operation.
ACHIEVE NATURAL COMPOSITION WITH LEAD ROOM EFFECT
When using PTZ Auto Framing to track a person, the composition is automatically adjusted to provide space in the direction of the subject’s gaze, depending on the orientation of the subject’s face. This enables tracking in a natural composition that is close to professional camera work. Additionally, the size of the margin that can be set with the Lead Room Effect can be adjusted in three levels.
PRIORITISE PRESENTERS WITH FACE REGISTRATION*
The SRG-A40 and SRG-A12 can register the primary subject, tracking them reliably based on pre-registered face data and tracking priority. External Face Data Import (JPEG)* is available for faster on-site setup and off-site preparation. Automatic start/return is also enhanced, using registered face information to quickly re-acquire the subject after lost tracking or mis-tracking.
CUSTOMIZE THE AREA TO TRACK WITH TRACKING RANGE
PTZ Auto Framing is performed only within the predefined area*. When a subject goes out of the predefined area, PTZ Auto Framing stops and returns to search for the subject within the predefined area. The predefined area can be displayed as an overlay on the Web UI live view.** Simultaneously, this function allows you to exclude subjects that you do not want to frame.
SHOOT WITH THE INTENDED ANGLE OF VIEW
Camera functions can also be controlled remotely using web app software on a networked PC. This allows easy and optimal adjustment of the composition (size and position) of the subject with intuitive drag operations.
SRG-A40/A12 offers a wide range of picture composition options, with 30 subject sizes from full body to Closer Closeup*, and detailed left/right and up/down settings. Scene composition can also be changed at any time, even when PTZ Auto Framing is active
KEEP EVERYONE IN THE PICTURE WITH MULTI-PERSON FRAMING*
The SRG-A40 and SRG-A12 can automatically track a group of up to eight people, with a primary subject and secondary subjects. The primary subject can be specified via the camera’s Face Registration function*, or on the web app screen.
The secondary subjects are automatically selected according to their proximity to the primary subject. The camera’s pan, tilt and zoom function ensures that the selected people are included in the image, with natural looking framing. Multi-person Framing is ideal for various applications such as corporate conferences, panel discussions, weddings and other ceremonies.
PTZ AUTO FRAMING WITH BUILT-IN AI ANALYTICS
This camera harnesses powerful AI-powered video analytics that can automatically detect and track the position of a presenter within the camera frame. As the presenter moves, the camera’s pan, tilt and zoom mechanism ensures that the presenter is always framed naturally, without the need for a human camera operator to manually follow their movements.
ENHANCED PRODUCTION EFFICIENCY WITH BALL SPORTS (BASKETBALL) MODE*
Ideal for capturing basketball games, the SRG-A40 and SRG-A12 tracks both the ball and players, automatically framing the scene from an overview angle to clearly capture the flow of the game. Unlike conventional subject tracking, it employs advanced tracking technology to account for the fast and irregular movements of the ball.
*Available from firmware version 4.0. This feature is designed exclusively for indoor 5v5 format basketball games. It is designed for an overview angle of players and the ball but does not track specific individuals holding the ball. Please note that the Person Framing Mode and Ball Sports Framing Mode cannot be used simultaneously. This unit must be installed at the center of the court along the sideline. An official ball is required.
INTEGRATED TALLY LAMP
The SRG-A40 and SRG-A12 feature a built-in tally lamp, just like you’d find on professional studio cameras. The lamp illuminates to give presenters visual confirmation of shooting status, or to show that PTZ Auto Framing mode is active. The lamp colour will change from Red (On Air) to Green (PTZ Auto Framing ON).
