Codelocks Cl410 & Cl415 Tubular Latch
CL410 & CL415 TUBULAR LATCH
CL410 & CL415 TUBULAR LATCH

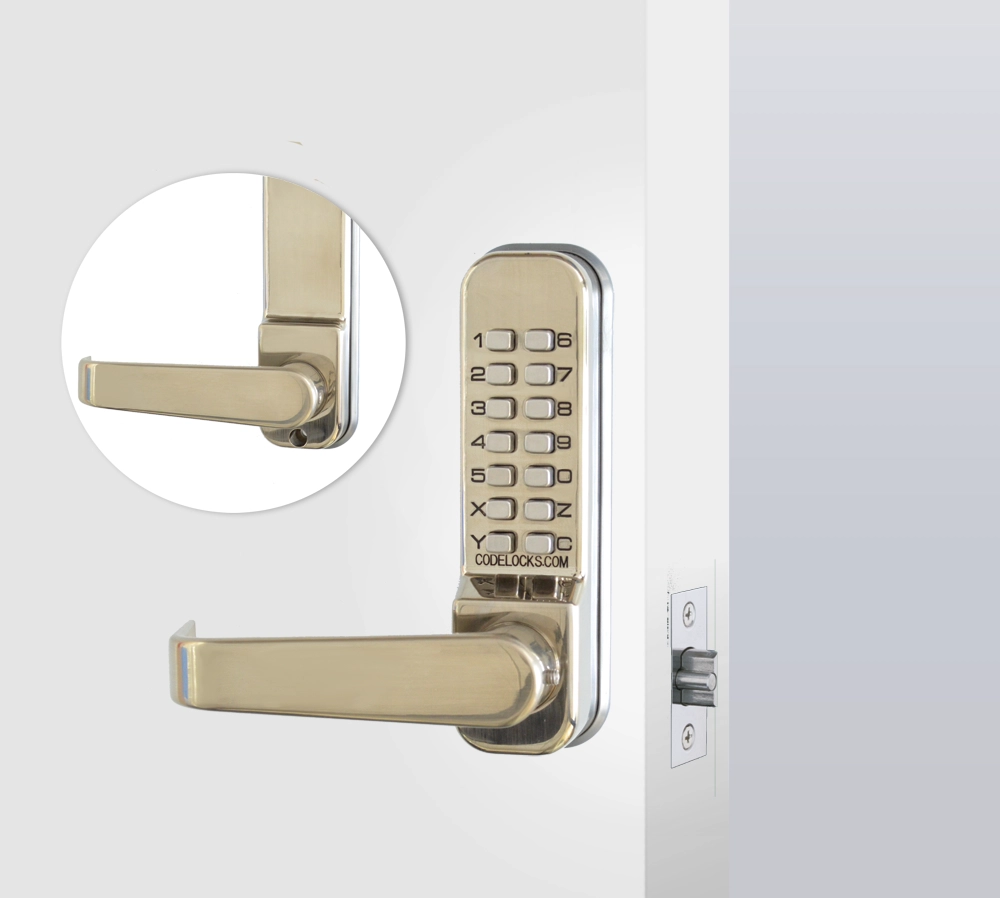

Medium duty mechanical locks with full size lever handles. Ideal for use in environments where a knob operated lock would be unsuitable. Tubular latch with ‘anti-shim’ plunger.
Latch retracts by turning inside handle freely, or the outside handle after code input. The CL415 model provides a Code Free option.
INFORMATION
BRAND
Codelocks
PRODUCT TYPE
Door Lock
COLLECTION
Tubular latch
PRODUCTION
Made in UK
CODE CHANGE METHOD
Tumblers (Off Door)
BUTTONS
2 x 7
CODE FREE OPTION
Yes
DOOR THICKNESS
35mm - 60mm (1 3⁄8" - 2 3⁄8")
LOCK MATERIAL
Zinc Alloy
KEYPAD
14 stainless steel buttons
SUITABLE FOR
- Internal
- External
FINISH
- Stainless Steel
- Polished Brass
ORIENTATION
Vertical
DOWNLOAD
↓ Cl400 Brochure
SPINDLE
Two part 5⁄16" (8mm) spring loaded spindle
LATCH TYPE
- 60mm Mortice Latch
- 70mm Mortice Latch
HANDED
Non Handed - Locks will fit doors hung on the left or right
USER TYPES
Code
APPLICATION LEAD TIME
3 to 5 Working Days
CLEANING
Clean by Codelocks is an optional finish which can be applied to any of our Codelocks products. Clean by Codelocks features an ISO certified* photocatalytic coating which, when applied to our locks, offers enhanced protection against viruses, bacteria, germs and other environmental toxins.
The coating utilises a process called photocatalytic oxidation, which means that the coating converts harmful bacteria and germs into a non-toxic compound, resulting in a clean and hygienic surface. The clear coating combats SARS-CoV-2 coronavirus (COVID-19) and can reduce bacterial growth by 99.96%*, providing an additional measure of protection over sanitisation.
DETAIL
This model features a black dot on the ‘Y’ button. When the ‘Y’ button is pressed along with a correct code input, the lever will retract the latch freely until disabled.
FEATURES
-Full size lever handles with return to door -Code Free access option -Suitable for internal and external use -Tumbler alignment for easy code change -Available in stainless steel or polished brass finish -Neoprene seals included -Suitable for wooden doors between 13⁄8" and 23⁄8" thick.
CODES
Single code storage - 8,191 non sequential combinations available
