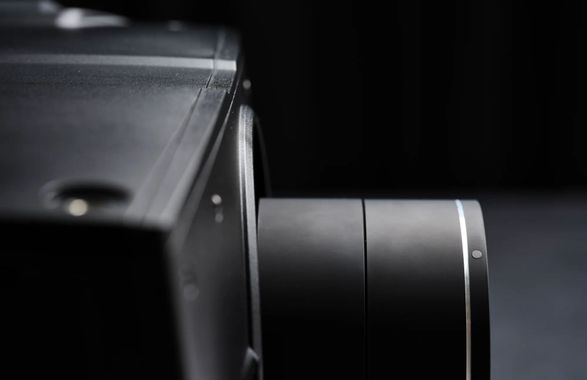

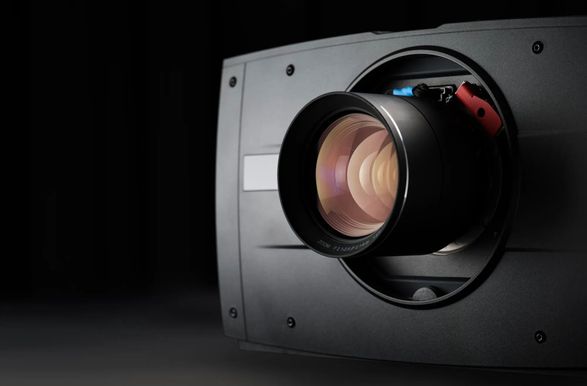

Barco F400‑N4K Projector
F400‑N4K PROJECTOR
F400‑N4K PROJECTOR
The F400-N4K is a true solid-state static laser-phosphor projector designed for the simulation and training market. A native 4K resolution up to 240Hz processing speed projector, the F400-N4K combines extreme detail and very high speed, suitable for any simulation environment.
The F400-N4K was designed specifically for the demands of the training and simulation customer, and breathes the needed sense of realism into every simulation system.
INFORMATION
BRAND
Barco
PRODUCT TYPE
Projector
POWER REQUIREMENTS
100-240V/50-60Hz
POWER CONSUMPTION
- 815W typical
- 1200W maximum rated
CONTROL
- IR
- RJ45 & Cabled Remote Control
IR FOR NVG
No
CONTRAST RATIO
2,000 – 10,000:1 sequential
STANDARD ACCESSORIES
- Power cord
- wireless remote control
CLO (CONSTANT LIGHT OUTPUT)
Yes
PROJECTOR TYPE
1-chip DLP laser phosphor
BRIGHTNESS UNIFORMITY
90%
ASPECT RATIO
1.88:1
STANDBY POWER
< 0.5W
STORAGE TEMPERATURE
-20 to 60 °C
WARRANTY
Limited 5 years parts and labor, extendable.
BRIGHTNESS
- 5,000 typical ANSI lumens
- 5,300 typical center lumens
3D
Active stereoscopic 3D
ORIENTATION
360° rotation, no restrictions
RESOLUTION
- 4,096 x 2,176 (4K native)
- 6,144 x 3,264 (6K)
- 8K pixel shift
LIGHT SOURCE LIFETIME
Minimum 25,000 hours @ full power Up to 50,000 hours, depending on mode of operation
ULTRA-HIGH RESOLUTION
Dynamic resolution up to 8K and frame rate up to 240Hz for incredible image performance
LENS TYPE
FLD+ / FLDX / FLC
COLOR CORRECTION
P7 RealColor™
COLOR SPACE
REC709
WEIGHT
31,0 kg/68 lbs
DIMENSIONS
- Width : 472 mm (18.6 inch)
- Length : 562 mm (22.1 inch)
- Height : 293 mm (11.5 inch)
CERTIFICATIONS
- CE
- FCC Class A
- CSGSus
- KCC
- CCC
TAA COMPLIANCY
Yes
24/7 OPERATION
Yes
NOISE LEVEL (TYPICAL AT 25°C/77°F)
34 db(A)
INPUT RESOLUTIONS
Including and up to:
- 4,096 x 2,176 @ 60Hz
- 4,096 x 2,176 @ 120Hz
- 4,096 x 2,176 @ 240Hz
- 6,144 x 3,264 @ 60Hz
OPTICAL LENS SHIFT
- Vertical up to 134% depending on iris
- Horizontal up to 50% depending on lens
- Motorized zoom & Focus + Lens memory (FLDX)
- Motorized lens shift (all lenses)
NETWORK CONNECTION
10/100/1000 Mbit
KEYSTONE CORRECTION
Yes
ORIENTATION
- 360° rotation
- No restrictions
OPERATING HUMIDITY
20-80% RH
STORAGE HUMIDITY
10-90% RH
BTU PER HOUR
2781 BTU/h typical 4095 BTU/h maximum
SEALED DLP™ CORE
Yes
CLO (CONSTANT LIGHT OUTPUT)
Yes
SOLID-STATE RELIABILITY
Rock-solid and true solid-state, fully rated for shock and vibration
LASER-PHOSPHOR TECHNOLOGY
Revolutionary static laser-phosphor for speckle-free, outstanding image quality
INPUT COLOR DEPTH
Up to 12-bit, depending on configuration
IMAGE PROCESSING
Embedded warp & blend engine
DOWNLOAD
↓ Specification Sheet
INPUTS
- 1 x DP 1.4 (HDCP 2.2)
- 1 x HDMITM 2.1 (HDCP 2.2)
- 4 x DP 1.2
FEATURES
HIGH RESOLUTION AND EXTREME SPEED
The F400-N4K is Barco's first single-chip DLP native 4K (4,096 x 2,176) projector. Using built-in or external pixel-shift, the dynamic resolution can be raised beyond 4K, up to 8K. In this way, you can project larger screens without losing any detail, further expanding the freedom of the simulation system designers.
With its processing speeds of up to 240 Hz at native 4K (up to 8K) resolution, the F400-N4K brings all details to life in even the fastest moving scenarios. This extreme performance never comes at a cost of the image quality, which follows the high-speed scenario perfectly, with very low latency. This makes the projector a brilliant match for even the most demanding applications, including fast jet or racing simulators.
DESIGNED TO PERFORM - IN ALL CIRCUMSTANCES
The F400-N4K also benefits from the next generation proprietary Barco Pulse electronics, the powerful and flexible software architecture that ensures advanced low-latency processing operations, like pixel-shifting, warping, and blending, to take place in one single step. This is a huge advantage in the real-time processing environment of most simulator systems today. What's more, our Barco Pulse API enables partners to integrate custom management tools and value-added features to complement the projector’s software.
Motion platforms, with their rapid sudden movements, are challenging environments for projectors. The F400-N4K is a true solid-state product, which means no moving parts like color or phosphor wheels and is fully rated for shock and vibration. With the electronics, hardware and software built around a unique H-beam shaped aluminum core, the F400-N4K has an optimized strength-to-weight ratio providing a sturdy platform as well as easy access if servicing is required. Optional accessories to support the lens on motion-based simulators are also available, contributing to even higher image robustness.
