Codelock Kl1200 Netcode® Electronic Kitlock
KL1200 NETCODE® ELECTRONIC KITLOCK
KL1200 NETCODE® ELECTRONIC KITLOCK
For more challenging locker environments, the KitLock by Codelocks KL1200 NetCode® electronic locker lock1 includes all the benefits of standard KitLocks but is tougher and more robust.
The KL1200 NetCode® locker lock includes the standard KL1200 features; additional programming, stainless steel buttons, dual fixing points, increased battery life but now with improved updated features.
INFORMATION
NEW FEATURE! CODELOCKS NETCODE® TECHNOLOGY
NetCode® technology allows for flexible, temporary access. Generate access codes with restricted use, specifying a start date and time, and setting a fixed duration after which the code will no longer be accepted. Create NetCodes via the Codelocks Connect Portal and API.2
BRAND
KitLock by Codelocks
PRODUCT TYPE
Door Lock
BATTERY OVERRIDE
A 9 volt PP3 battery can be placed against external contacts
BUTTONS
2 x 5 + Programming
CODE CHANGE METHOD
Keypad (On Door)
ADD UP TO 20 USER CODES
In Private Function it is now possible to support 20 individual users, each with their own code. This is ideal for multi-person applications such as shared equipment lockers.
HANDED
Non Handed
FUNCTION
NetCode®
DOOR THICKNESS
Ready to fit doors up to 25mm (1")
IP RATING
IP54 when fitted with gasket
DUAL AUTHORIZATION
This new feature requires two valid User Codes or two valid NetCodes to be entered for access to be granted. This adds an additional level of access control!
AUTO-OPEN
In Public Function the updated KL1200 NetCode® locker lock can be programmed to automatically unlock at a specific time enabling the lockers to be cleaned for next day use.

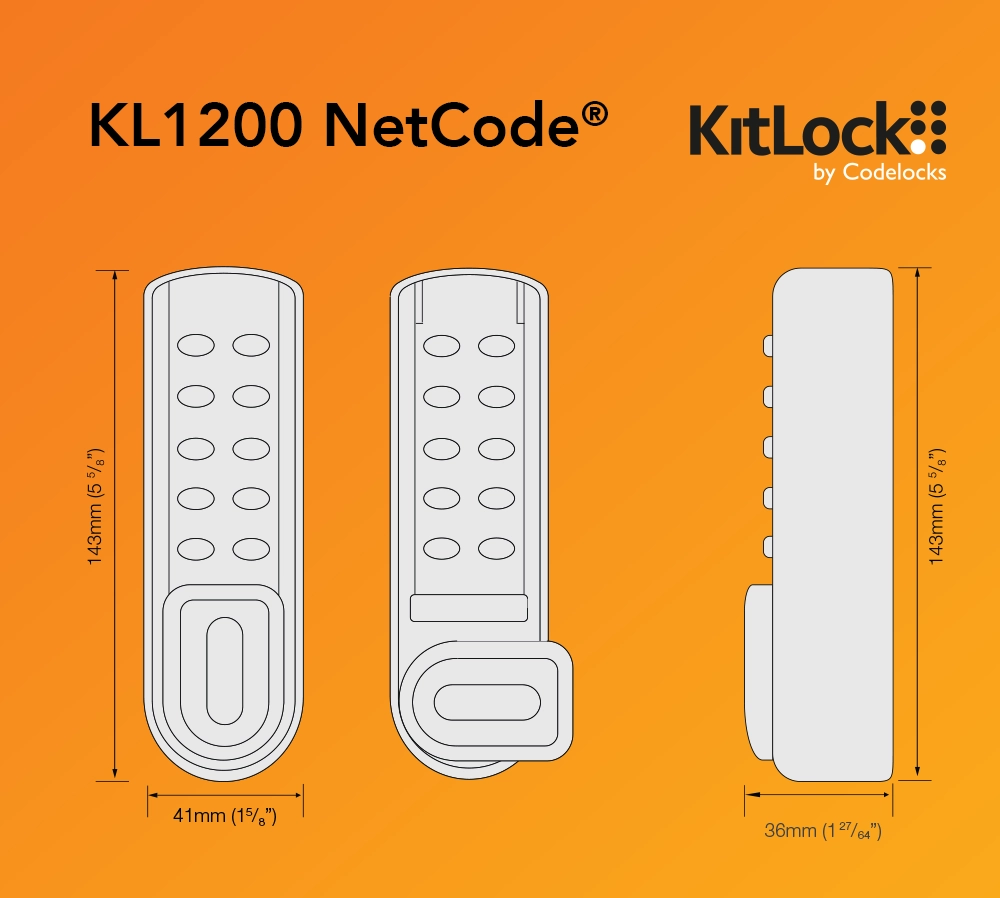

DIMENSIONS
- Height : 143 mm
- Width : 41 mm
- Depth : 37 mm
LOCK MATERIAL
Zinc Alloy
SUITABLE FOR
- Internal
- External
KEYPAD
11 individual round buttons
LATCH TYPE
Cam
ORIENTATION
Vertical
POWER
2x AAA
LOW BATTERY WARNING
Red LED will flash on opening to indicate low battery
USER LEVELS
- Master
- Sub Master
- Technician
- Standard User
THREE MODES OF OPERATION
The KL1200 NetCode® retains the standard Public and Private Functions.
USER TYPES
Code
MODEL
KL1200

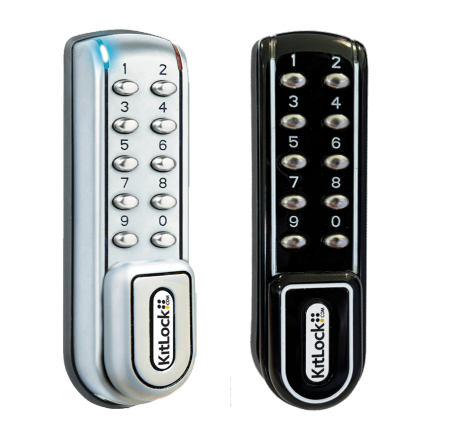

FINISH
- Silver Grey
- Black
RESTRICTED OPERATION TIME
Control access between set hours. This feature is ideal for locker rental outside the normal office hours, and repeats every day automatically.
OPERATIONS
Up to 50,000 opening per 2 x 1.5 AAA batteries
MEMORY
Non-volatile memory will be retained
PRIVATE FUNCTION
This is the default function and is already pre-programmed in new locks. This function is used where the same code will be repeatedly used, e.g. an employee with the same locker/drawer in the workplace.
KEY FEATURES
- 11 button keypad
- Audible keypad
- 4 digit User Code
- All parts / fixings / templates included
- 8 digit Master and Sub-Master Code
- Supports 20 User Codes in Private Function
- Up to 50,000 operations from 2 x AAA batteries (supplied)
- Battery override
- Auto unlock feature
- 6 digit Technician Code
- Slam latch accessory available
- IP54 rated when fitted with gasket
DETAIL
PUBLIC FUNCTION
In this function the KitLock operates with a single User Code. The user enters a personal four digit code, this locks the lock. The same code is entered once only to open the lock before automatically being erased and ready for the next user. This function is used for short term, multiple occupancy applications, e.g. hot desking in an office or a locker in a sports club.
NETCODE
This function allows temporary access. Create date and time-sensitive codes via the Codelocks Connect Portal or your own application with our simple API (application programming interface).
ENABLING NETCODE®
To enable NetCode® function, the lock requires initialization via the Codelocks Connect Portal. Visit codelocksconnect.net and complete the following steps:
- Sign in or create a Codelocks Connect Portal account
- Add your lock and follow the initialization steps
- With NetCode® function enabled, generate your first NetCode®, see full CL1200 NetCode® Programming and Operating Instructions at codelockssupport.com.
WHAT IS CODELOCKS NETCODE® TECHNOLOGY?
Since it's launch in 2014, Codelocks NetCode® Technology has grown rapidly in functionality and versatility, developing a global reputation for bringing control and convenience to many applications. Working in harmony with our Codelocks and KitLock locking solutions, using NetCodes for flexible, temporary access enables business owners to reduce overhead costs and facilitate consumer self-service whilst simultaneoustly increasing staff productivity and profits.
CLEAN
- Clean by Codelocks is an optional finish which can be applied to any of our Codelocks products. Clean by Codelocks features an ISO certified* photocatalytic coating which, when applied to our locks, offers enhanced protection against viruses, bacteria, germs and other environmental toxins.
- The coating utilizes a process called photocatalytic oxidation, which means that the coating converts harmful bacteria and germs into a non-toxic compound, resulting in a clean and hygienic surface. The clear coating combats SARS-CoV-2 coronavirus (COVID-19) and can reduce bacterial growth by 99.96%*, providing an additional measure of protection over sanitization.
