Franke Smart Fsm 804 I B Bk
SMART FSM 804 I B BK
SMART FSM 804 I B BK
Article Number : 108.0606.110
Smart Induction Hob FSM 804 I B BK, Black, 77cm wide. Features include: cooking zones, Frameless design, User interface: 7 segments, direct touch. 9 power levels + booster, Red digital display, Flush or standard installation.
INFORMATION
BRAND
Franke
PRODUCT TYPE
Hood
PRODUCTION
Made in Switzerland
POWER CORD LENGTH
1200 mm
NUMBER OF BOOSTER
4
USER INTERFACE
Direct touch multiple buttons
SUPPLY CORD
Yes
SAFETY LOCK
Yes
TECHNOLOGY
Induction Vitroceramic
FINISH
Glass
DIGIT COLOR
Red
TYPE
Electric
COLOR
Black
EAN/UPC
7612985785280
ARTICLE NUMBER
108.0606.110
POWER LEVEL
9 + booster
PACKING DIMENSIONS
- Packaging Depth : 600 mm
- Packaging Width : 855 mm
TIMER
Yes
DUAL ZONE
No
DIMENSIONS
- Width overall : 770 mm
- Cutout Depth : 490 mm
- Cutout width : 750 mm

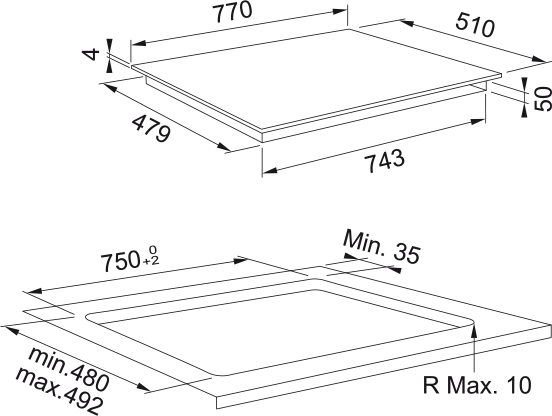

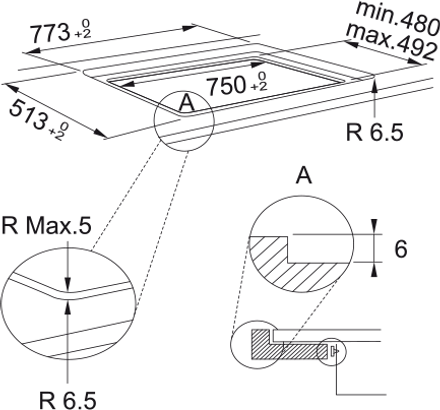

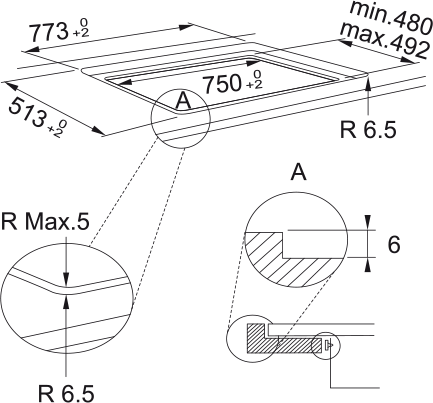

TECHNICAL DRAWINGS
POWER LIMITATION
Yes
TECHNICAL UI TYPE
Touch Control
ENVIRONMENT
Indoor
COMMERCIAL DIMENSION
- Length : 75 cm
- Width : 50 cm
OVAL ZONE
No
FLEXPRO ZONE
No
GLASS DIMENSION
- Length : 770 cm
- Width : 510 cm
MAX BOOSTER NOMINAL POWER (W)
3000 W
COOKASSIST
- Boiling
- Keep warm
- Melting & Simmering
FREQUENCY (HZ)
50-60
MODEL RANGE
Smart
TOTAL POWER (KW)
7.2
VOLTAGE
220-240 V
DOWNLOADS
↓ Fact Sheet
↓ Product fiche
↓ Exploded Drawing
↓ Wiring Diagram
↓ Instruction Manual 1
↓ Instruction Manual 2
NUMBER OF HEATING ZONE
4
BRIDGE ZONE
Yes
FLEXI ZONE
No
INSTALLATION TYPE HOB
Standard&flush
PROPERTIES ZONE
- Type of heat. zone front left : Rounded
- Type of heating zone rear left : Rounded
- Type of heating zone rear righ : Rounded
- Type of heat. zone front right : Rounded
FRAME SHAPE
Frameless
COLLECTION
Smart FSM
PRODUCT ZONE
- Diam. of h.zone front left(mm) : 180
- B.power of h.zone rear left(W) : 2100
- Diam. of h.zone rear left(mm) : 180
- Power of h.zone rear left (W) : 1800
- B.power of h.zone rear right(W) : 3000
- Diam. of h.zone rear right(mm) : 210
- Power of h.zone rear right (W) : 2100
- B.power of h.zone front left(W) : 2100
- Power of h.zone front left (W) : 1800
- B.pow. of h.zone front right(W) : 1600
- Diam. of h.zone front right(mm) : 145
- Power of h.zone front right (W) : 1200
