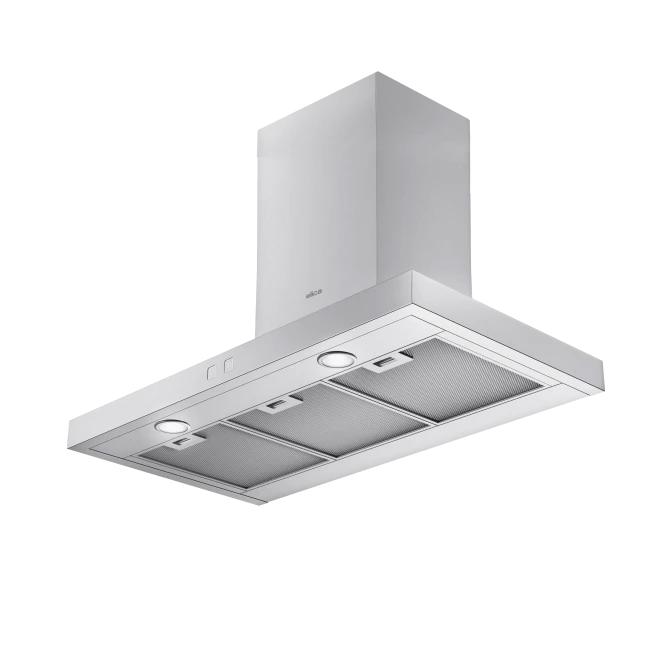

Elica Toblino Hood
TOBLINO HOOD
TOBLINO HOOD
Elica Design Center
Toblino, with a super sleek design that's only 2" high is the perfect complement for modern kitchen designs that feature futuristic sharp architectural lines.
INFORMATION
BRAND
Elica
PRODUCT TYPE
Hood
LED LIGHT
Illuminate your culinary journey with LED brilliance. An expected lifetime of over 20,000 hours represents the most remarkable advantage of LED light bulbs.
CFM REDUCTION SYSTEM
Customize CFM with ease.
Enables users to reduce directly the maximum blower CFM to meet local code requirements.
MODELS
- ETB430S3
- ETB436S3
COLLECTION
Toblino
DUCT TRANSITION
Round 6"
WEIGHT
- ETB430S3(30”) : 37,52lb
- ETB436S3 (36”) : 40,57lb
ELECTRICAL
120V-60Hz,265W
ILLUMINATION
2 LED, 2.1W, 3000K
UPGRADE FILTER KIT
GF04YB (Contains 1 filter)

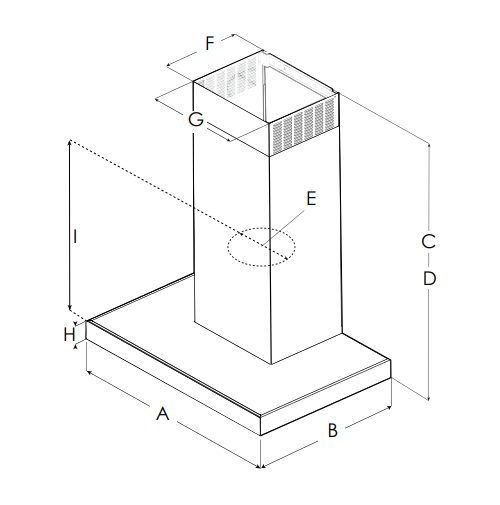

DIMENSIONS
- A : 30” (76.2 cm), 36” (91.4 cm)
- B : 19 5/₈” (50cm)
- C : Min:21 7/₁₆” (54.5 cm) Max:35 13/₁₆” (90.8 cm)
- D : Min:21 7/₁₆” (54.5 cm) Max:31 15/₁₆” (81 cm)
- E : 6” (15.24 cm)
- F : 10 3/₄” (27 cm)
- G : 13” (33 cm)
- H : 1 5/₈” (4 cm)
- I : 15 5/₁₆” (38.9 cm)
FILTERS
- Dishwasher-Safe,
- Anodized Aluminum Mesh Filter
LIGHTING
LED 2 x 2.1 ww 3000 KK
VENTING TYPE
Convertible with Kit
INSTALLATION TYPE
Ducted or recirculating with kit (sold separately)
BLOWER TYPE
400 CFM (4-speed)
FINISHING
Stainless Steel
3X LAYER MESH
Elevate your kitchen with superior filtration Aluminum mesh filters are steps above competition, featuring triple-layered, anodized aluminum that is woven into a highly dense mesh.
NOISE
0.4-5.9 Sones
DUCT TRANSITION
Round 6"
WARRANTY
Two (2) Years Parts & In-Home Labor. Earn an additional One (1) Year of Parts & In-Home Labor by registering on elica.com
AIRFLOW
400CFM
SERIES
Comfort
DETAILS
Available in 30” or 36” widths, Toblino features multiple backlight color touch controls that illuminate in elegant white, green, blue, or red and operate the LED lights and 4-speed blower. Multiple clicking sound options are also available. Designed for standard ducted installation, Toblino can also be installed as a recirculating system using the kit available as an accessory.
