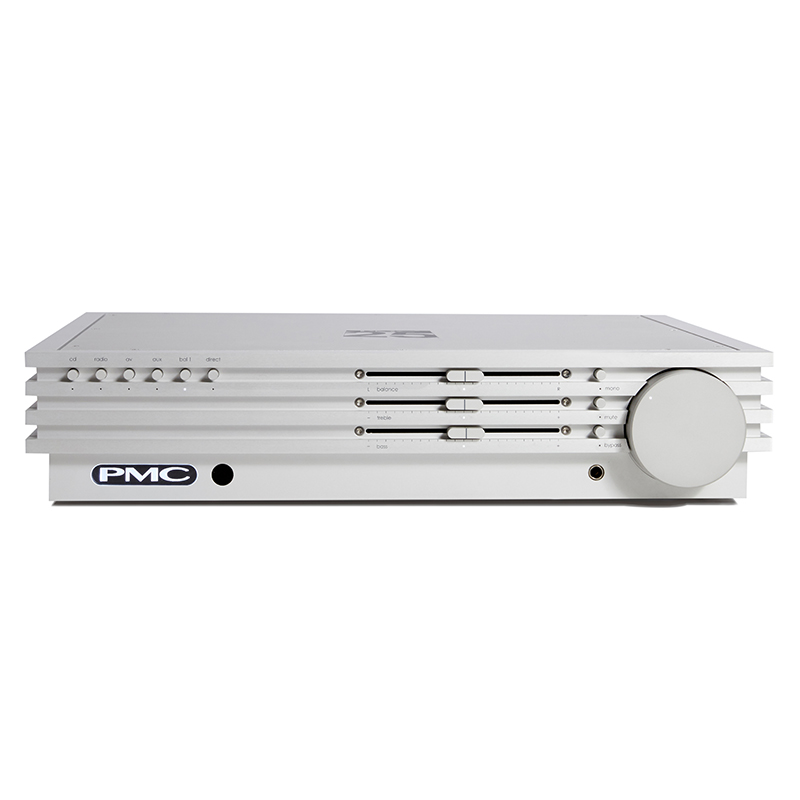

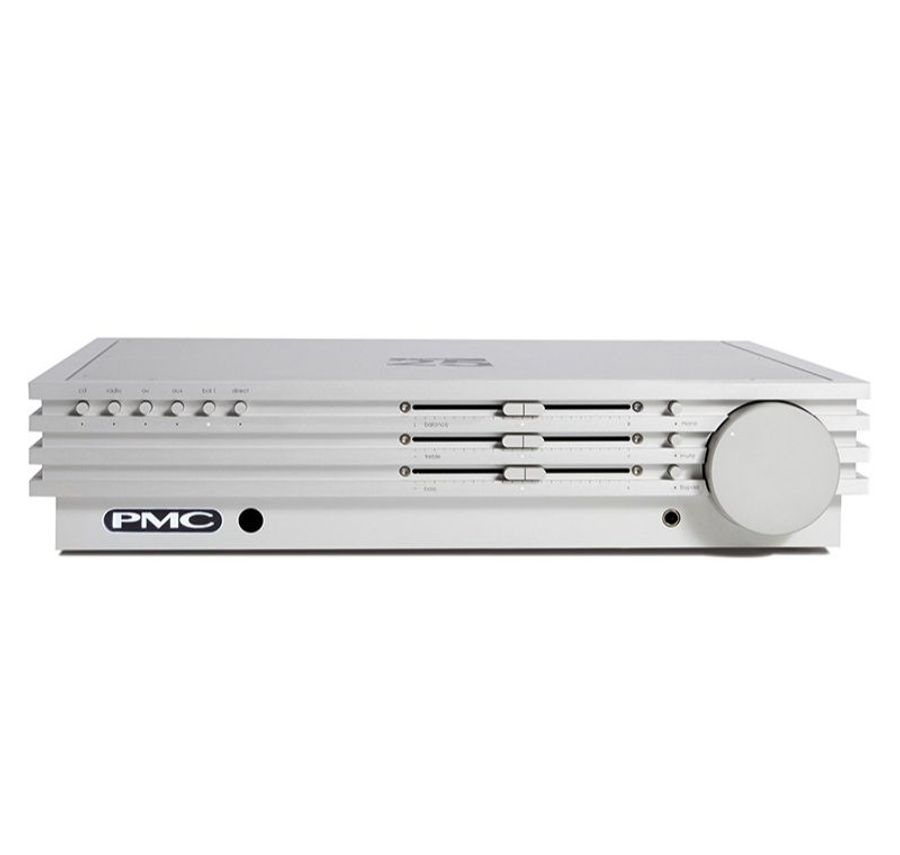

COR AMPLIFIER
COR AMPLIFIER
The cor integrated is an amplifier that adds no sonic character of its own to the music.
It follows exactly the same design ethos for high resolution playback as used in the creation of all PMC’s loudspeakers, namely musicality, transparency and neutrality, where nothing is added and nothing is taken away.
The role of the amplifier, like the company’s speakers, is to reproduce the music exactly as it is meant to be heard.
INFORMATION
BRAND
Pmc
PRODUCT TYPE
Amplifier
INPUTS
1 x balanced, 4 x single-ended, direct in
OUTPUTS
4mm binding posts, preamp out
DIMENSIONS
- Width : 432mm
- Height : 87.5mm
- Depth : 401mm (inc. feet)
COLLECTION
Cor
WEIGHT
112 kg
TONE CONTROLS
+/- 10dB
MAXIMUM GAIN
15dB
OUTPUT IMPEDANCE
- <0.05Ohms
- 20Hz - 20kHz
INPUT IMPEDANCE
- 25kOhms
- Balanced
- Unbalanced >14kOhms
FREQUENCY RESPONSE
20Hz - 20kHz +0/-0.2dB 5Hz - 80kHz +0/-1dB
MAXIMUM INPUT
5.5Vrms
MAXIMUM OUTPUT
10Vrms
DAMPING FACTOR
- 20Hz - 20kHz
- >160 into 8Ohms
RATED OUTPUT POWER, 230V MAINS
- 95W into 8Ohms
- 140W into 4Ohms
PRODUCTION
Made in United Kingdom
SENSITIVITY
1V = 100W into 8Ohms
GALN
28.9dB
USE
Entertainment
THD
- 20Hz - 20kHz
- 0.001% at 1kHz <0.005%
- 80kHz measurement bandwidth
THD (RATED OUTPUT POWER INTO 8OHMS)
- 20Hz - 20kHz
- 0.001% at 1kHz <0.01%
- 80kHz measurement bandwidth
ANALOGUE INTEGRATED AMPLIFIER
Designed and hand-built by PMC in the UK, the cor - the dictionary definition of which is: (anatomy) heart; (figuratively) soul, mind - is an integrated amplifier that works entirely in the analogue domain.
NOISE - PRE AMPLIFIER
<0.001% SMPTE
NOISE - POWER AMPLIFIER
-101dB A-weighted re. rated output
PURE ANALOGUE SOUND

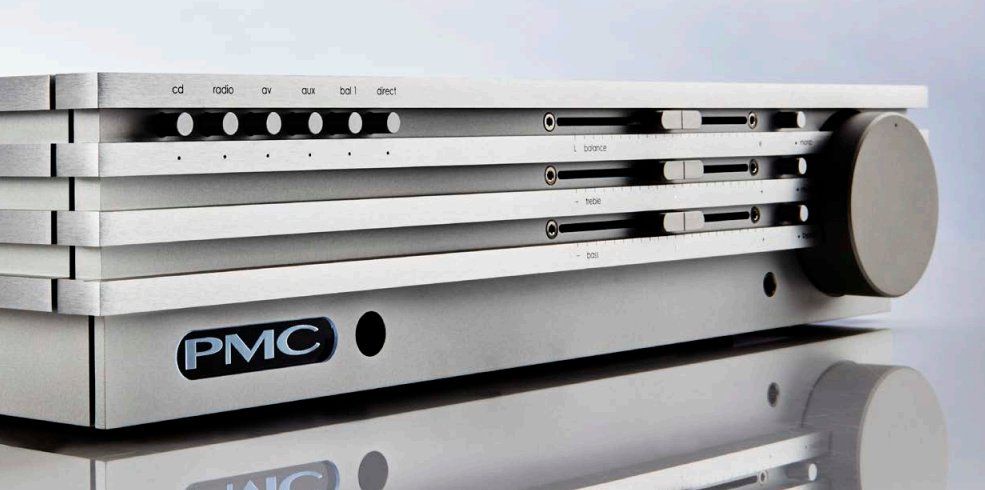

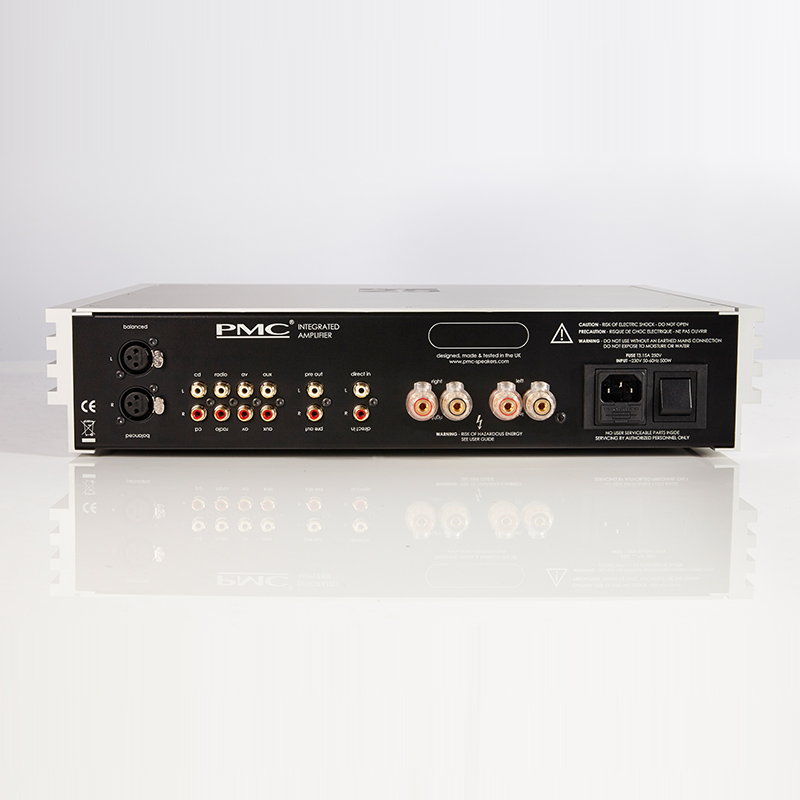

Every element of the cor has been developed with purity of sound at the top of the criteria list. The four unbalanced RCA analogue inputs are joined by one pair of balanced XLR inputs and a set of direct inputs that connect straight to the power amplifier. The cor integrated does not feature any digital inputs and is unashamedly an analogue amplifier for the purist.

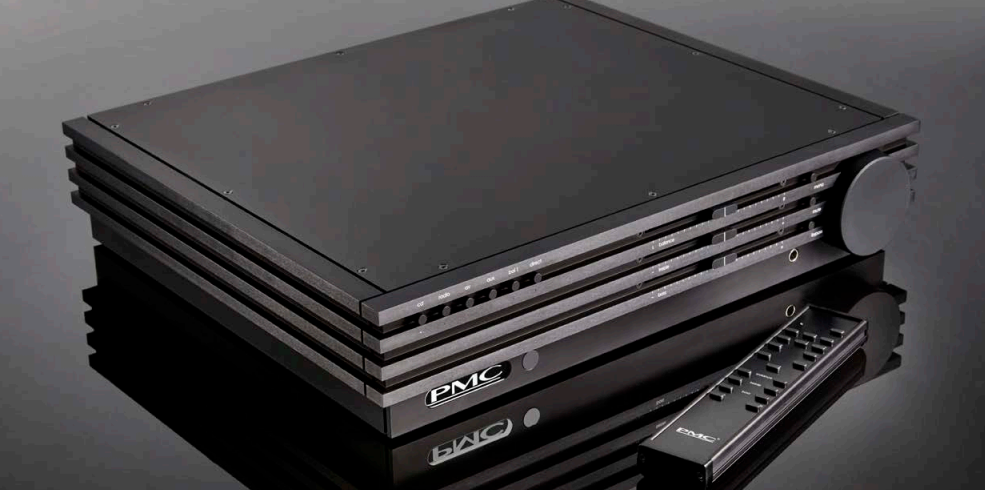

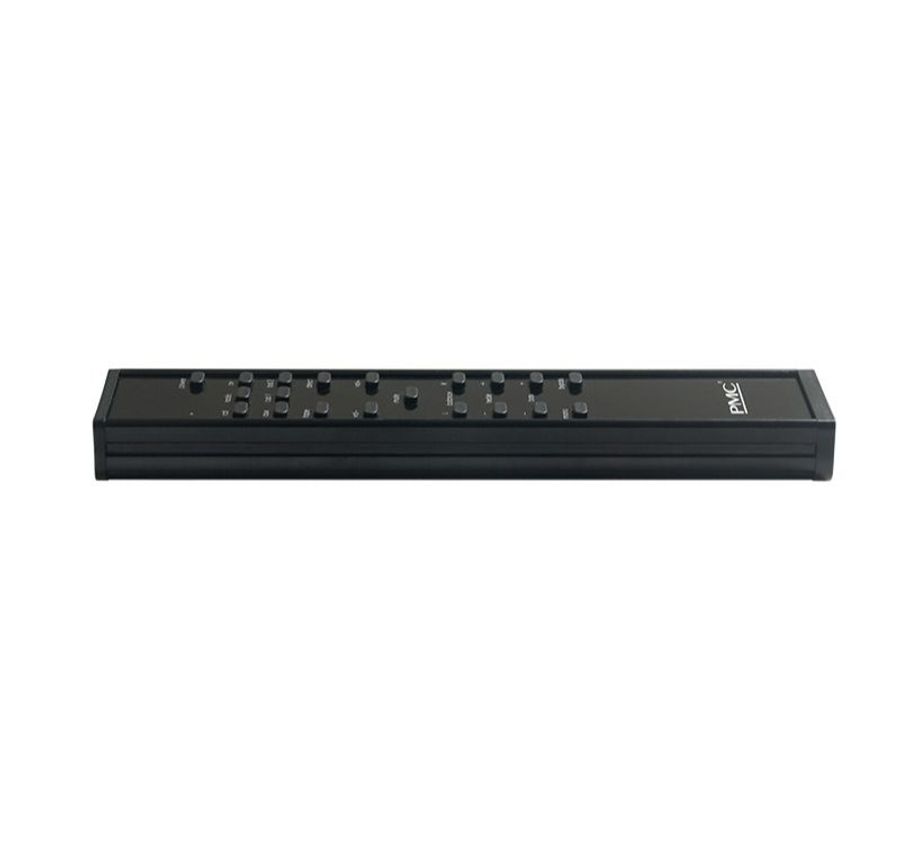

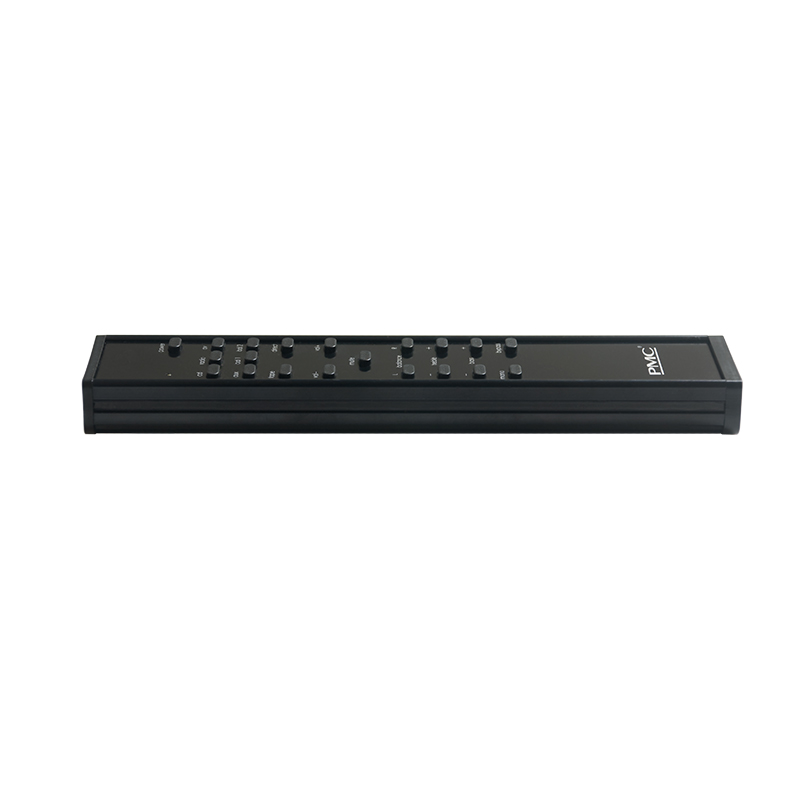

PRECISION ENGINEERING & REMOTE CONTROL

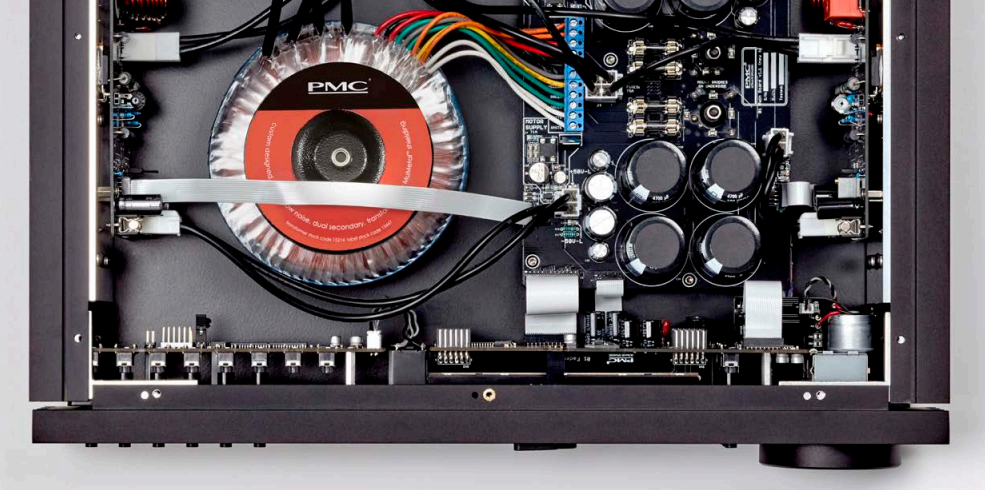

All the components were specified without compromise after extensive listening tests, including the black PCBs and the volume control, which, together with the tone and balance faders, are motorised using the finest technology from professional mixing consoles, and are remote controllable. This provides flexibility to achieve the perfect sound on every track, without moving from your armchair. Hear all the magic of music, with the cor integrated amplifier.
