Bowers & wilkins 802 D5 Reference Tower Loudspeaker
802 D5 REFERENCE TOWER LOUDSPEAKER
802 D5 REFERENCE TOWER LOUDSPEAKER
The 802 D5 is engineered for reference-grade stereo listening and breathtaking home theatre experiences.
Delivering much of the quality of the flagship 801 D5 in a more affordable design, 802 D5 uses the same Diamond dome tweeter housed in a Solid Body Tweeter-on-Top, as well as the decoupled Turbine Head for its Continuum cone FST™ midrange driver.
FEATURES
ULTIMATE DRIVE UNIT TECHNOLOGY
Pairing our most advanced and innovative drive unit technology, the 802 D5 delivers our purest sound ever. The Diamond dome tweeter pushes break-up frequency to 70kHz, delivering exceptional clarity, precision and openness, and the Continuum™ cone delivers voices and instruments with lifelike detail.
OPTIMISED FOR PURE PERFORMANCE

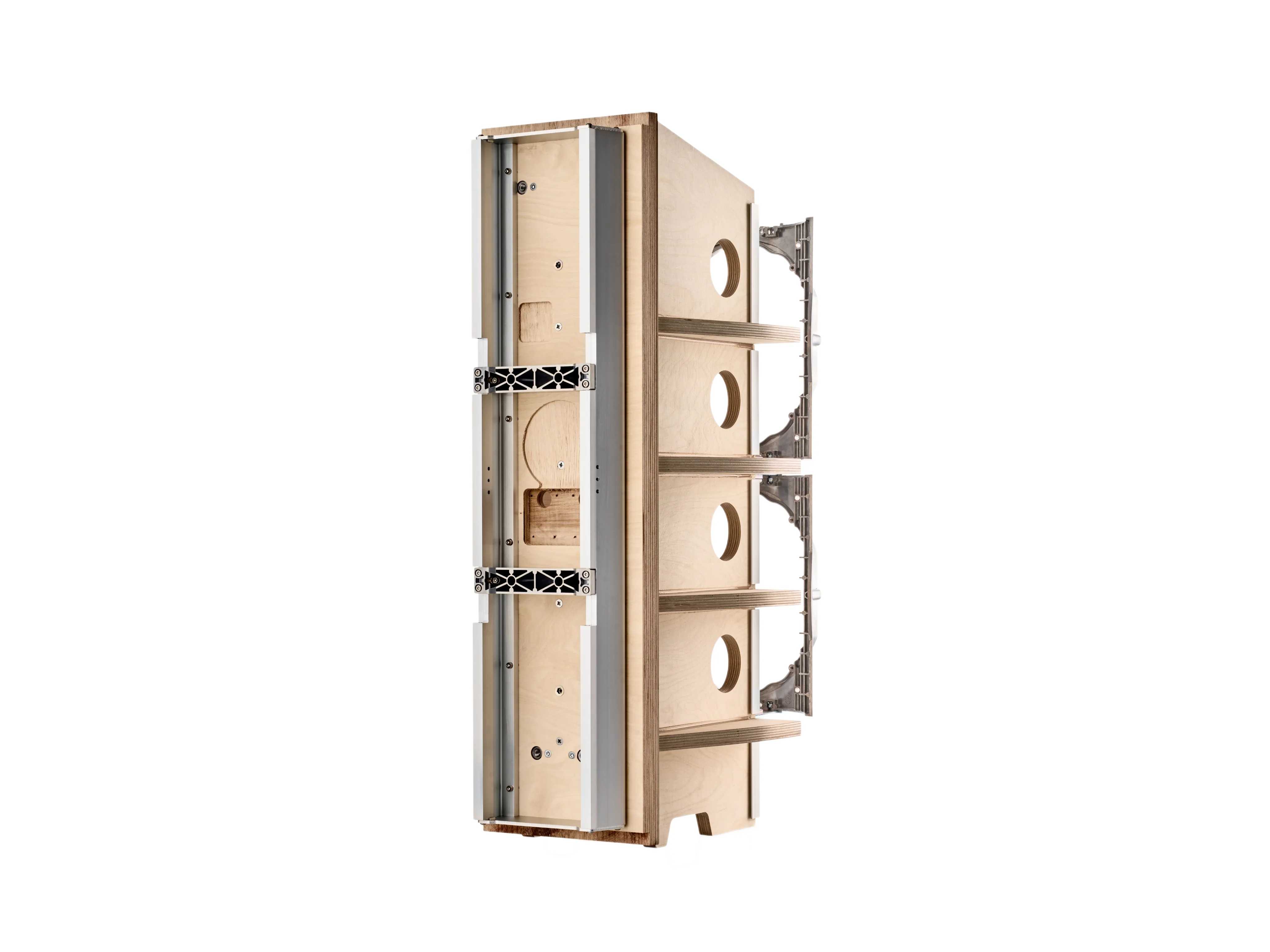

Every model in the new 800 Series Diamond range benefits from enhanced technology. An upgraded Matrix™ design reduces resonance and creates a more believable soundstage, while aluminium Space Frame Bracing and an all-new aluminium top section within the cabinet help deliver an even more spacious and immersive sound.
CRAFTED TO BE BETTER BY DESIGN

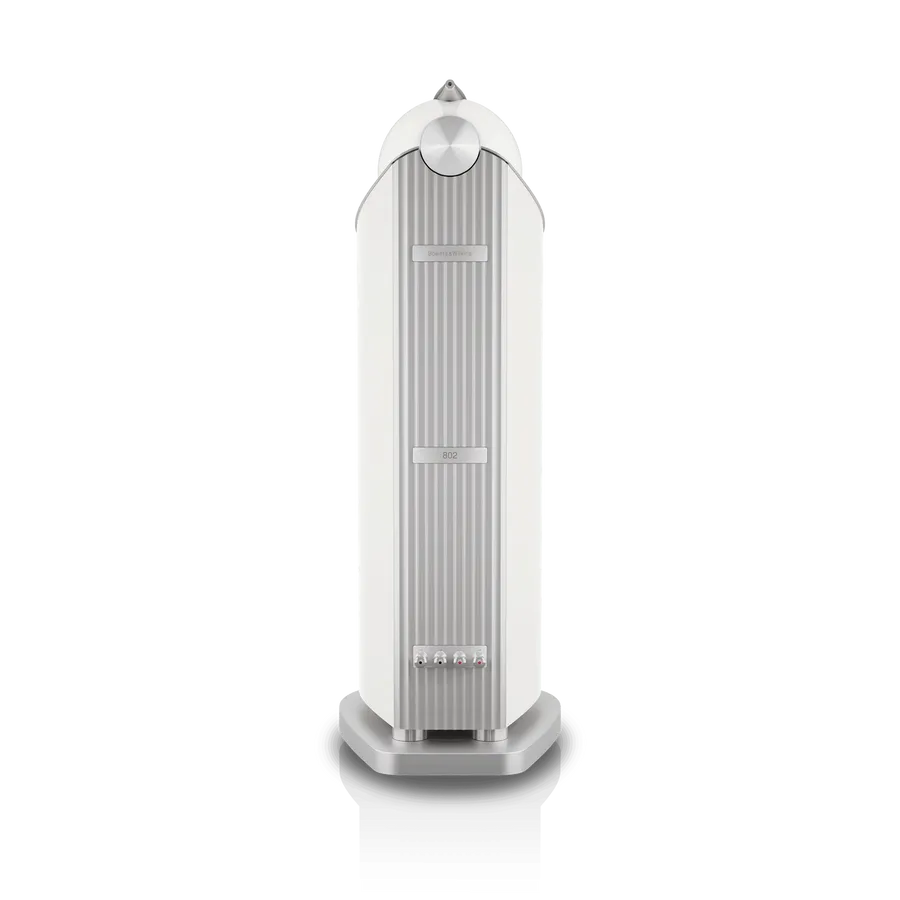

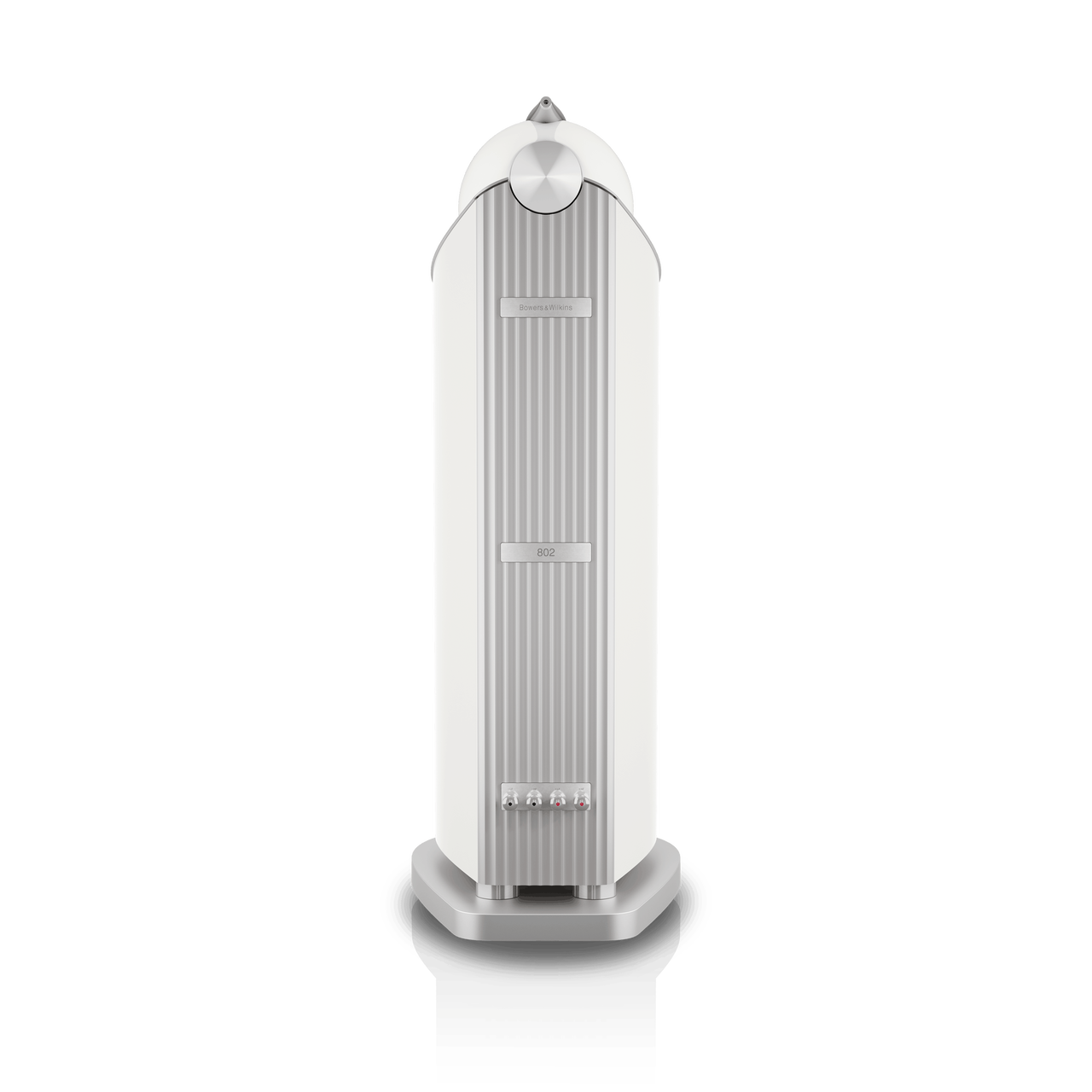

The 800 Series Diamond looks this way for a reason. Its shape is dictated by the science of sound. Our cabinets are formed from a single continuous curve, locked in place by a solid aluminium spine, so cabinet reflections are reduced. Complemented by the Tweeter-on-Top and Turbine Head, musical performance is always as precise as possible.
INFORMATION
BRAND
Bowers & Wilkins
PRODUCT TYPE
Loudspeaker
COLLECTION
Reference
PRODUCTION
Made in United states
DIMENSIONS
- Height : 1218 mm (48.0 in)
- Width : 345 mm (13.6 in)
- Depth : 556 mm (21.9in)
NET WEIGHT
91.4kg (201.4lbs)
DESCRIPTION
3-way vented-box system
SENSITIVITY
90dB
NOMINAL IMPEDANCE
8Ω (minimum 3.3Ω)
RECOMMENDED AMPLIFIER POWER
50W – 1000W into 8Ω on unclipped programme
HARMONIC DISTORTION
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 70Hz – 20kHz
<0.3% 100Hz – 8kHz
TECHNICAL FEATURES
- Matrix™
- Flowport™
- Turbine Head
- Anti-Resonance plug
- Biomimetic Suspension
- Aerofoil™ base cones
- Diamond dome tweeter

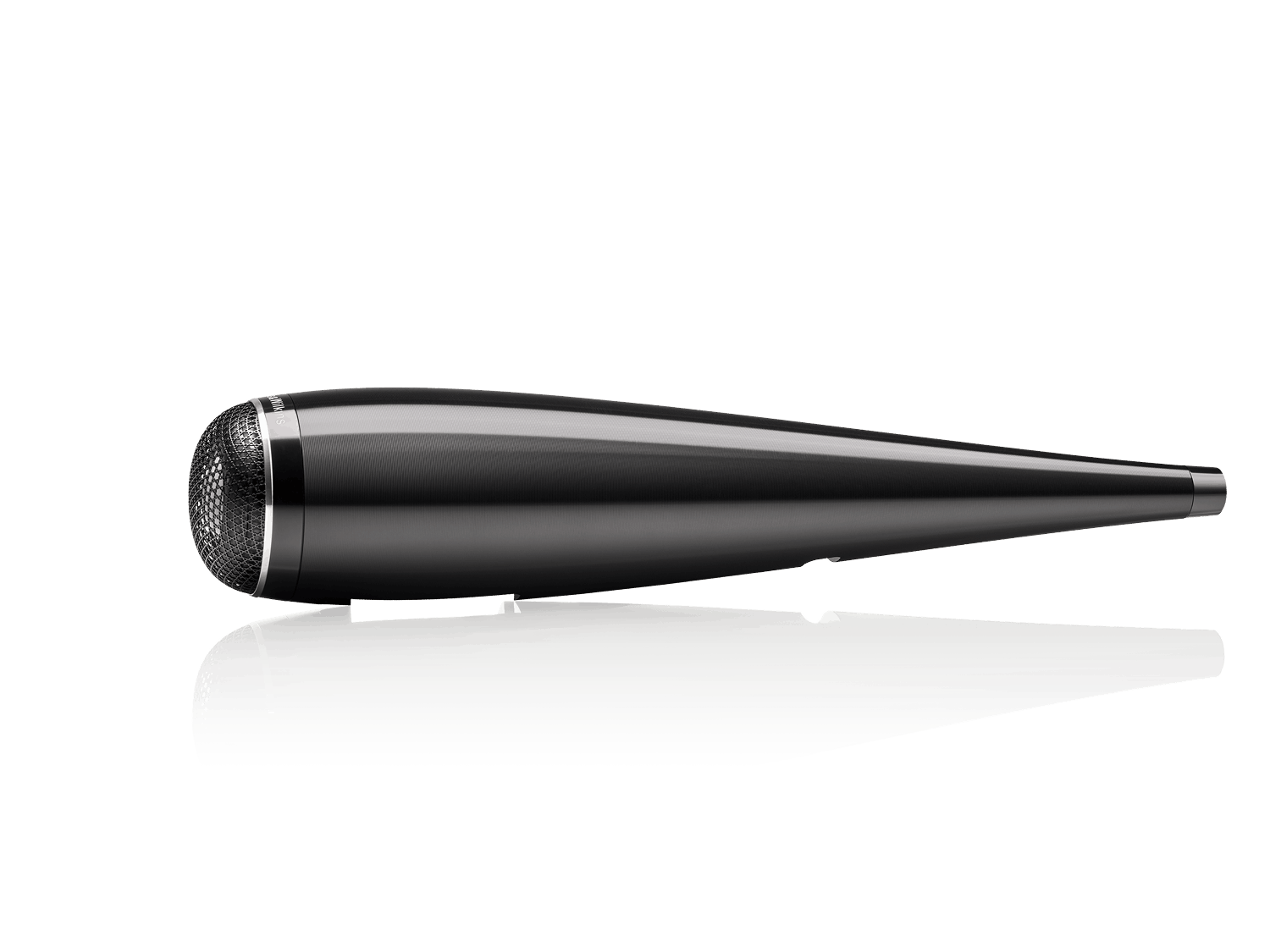

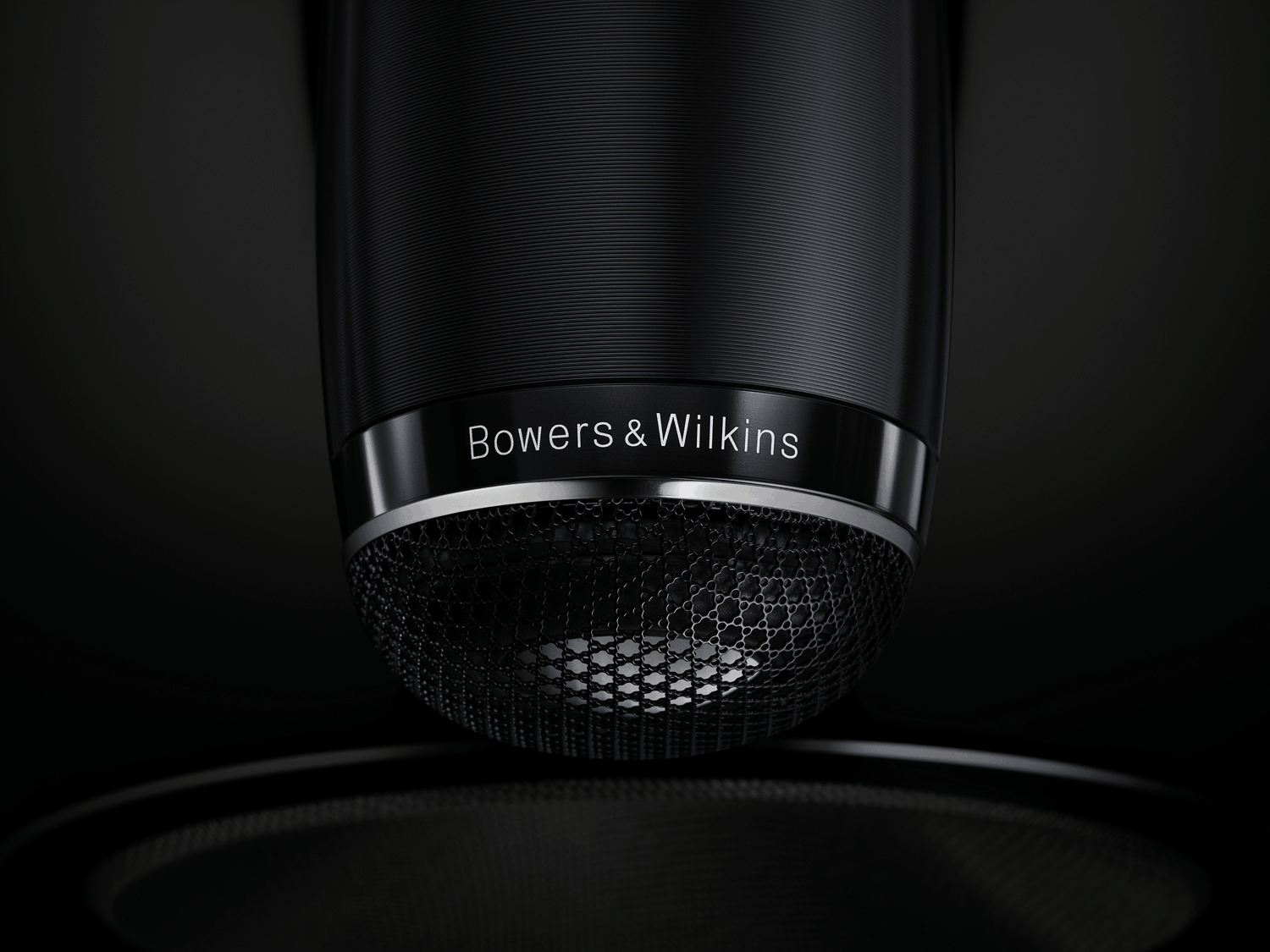

- Solid body Tweeter-on-Top
- Continuum™ cone FST midrange
USE
Entertainment
AVAILABLE COLORS
4
DOWNLOAD
↓ Info Sheet
MAX RECOMMENDED CABLE IMPEDANCE
0.1Ω
DETAIL
Dual 8-inch bass drivers are rigidly mounted in its reverse-wrap cabinet, ensuring controlled and precise low-frequency performance. Available in Stealth Black, Warm White, Light Walnut, or Dark Walnut, with matching Leather by Connolly trim, the 802 D5 provides you with sound you wouldn’t believe possible.
CABINET FINISHES
- Stealth Black

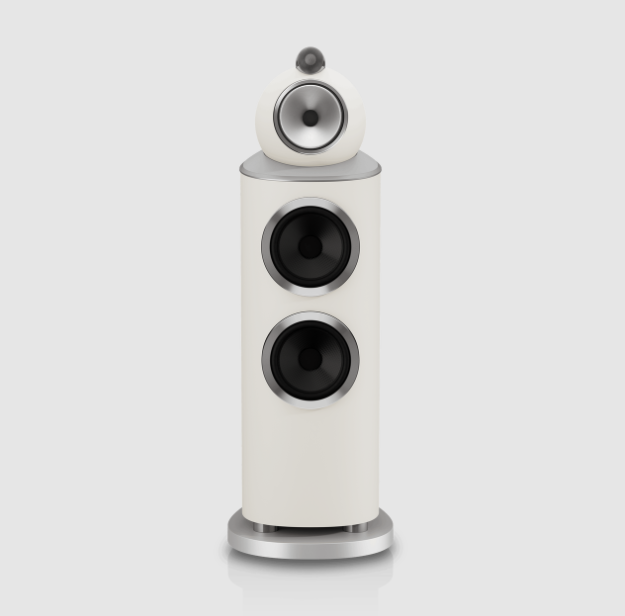

- Warm White

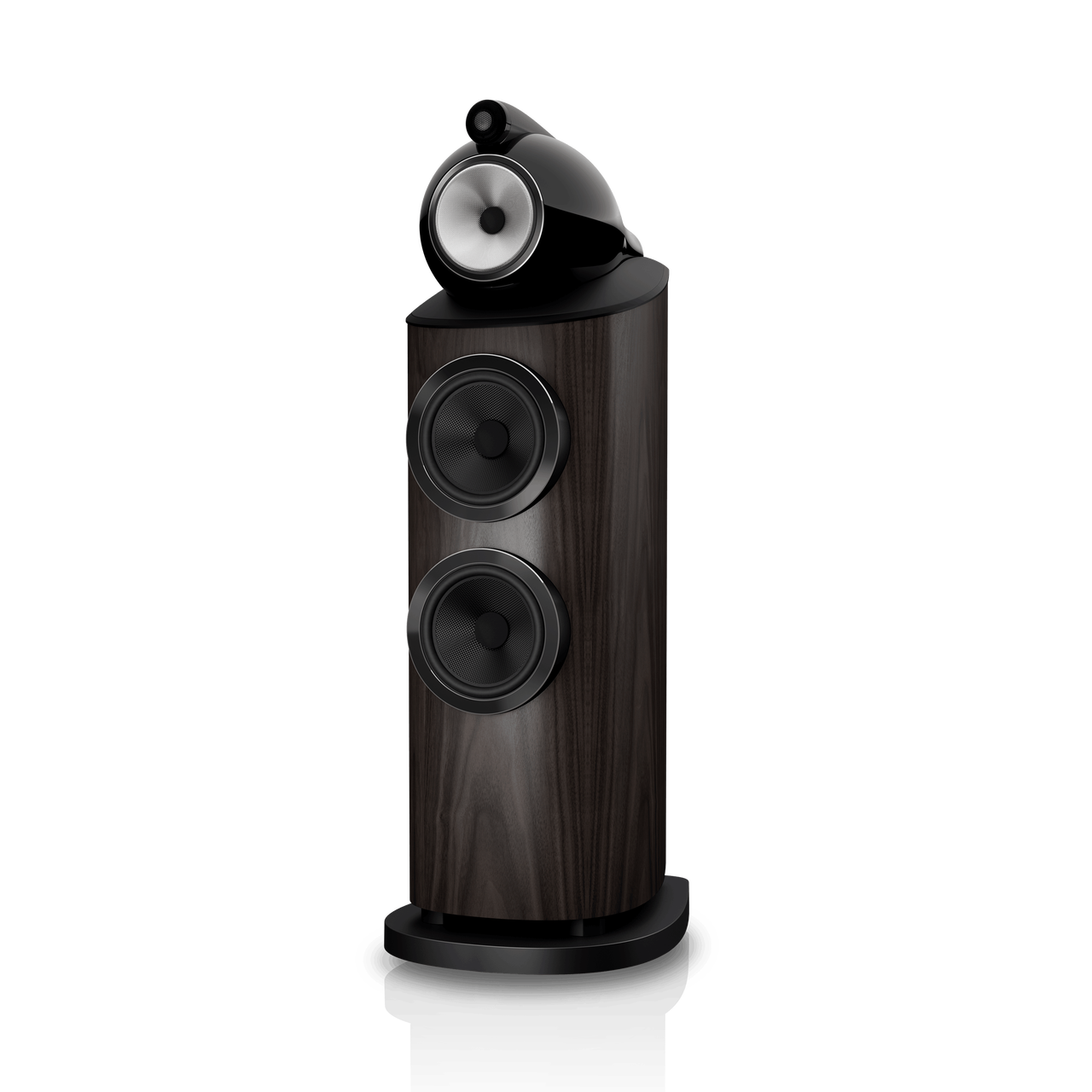

- Dark Walnut

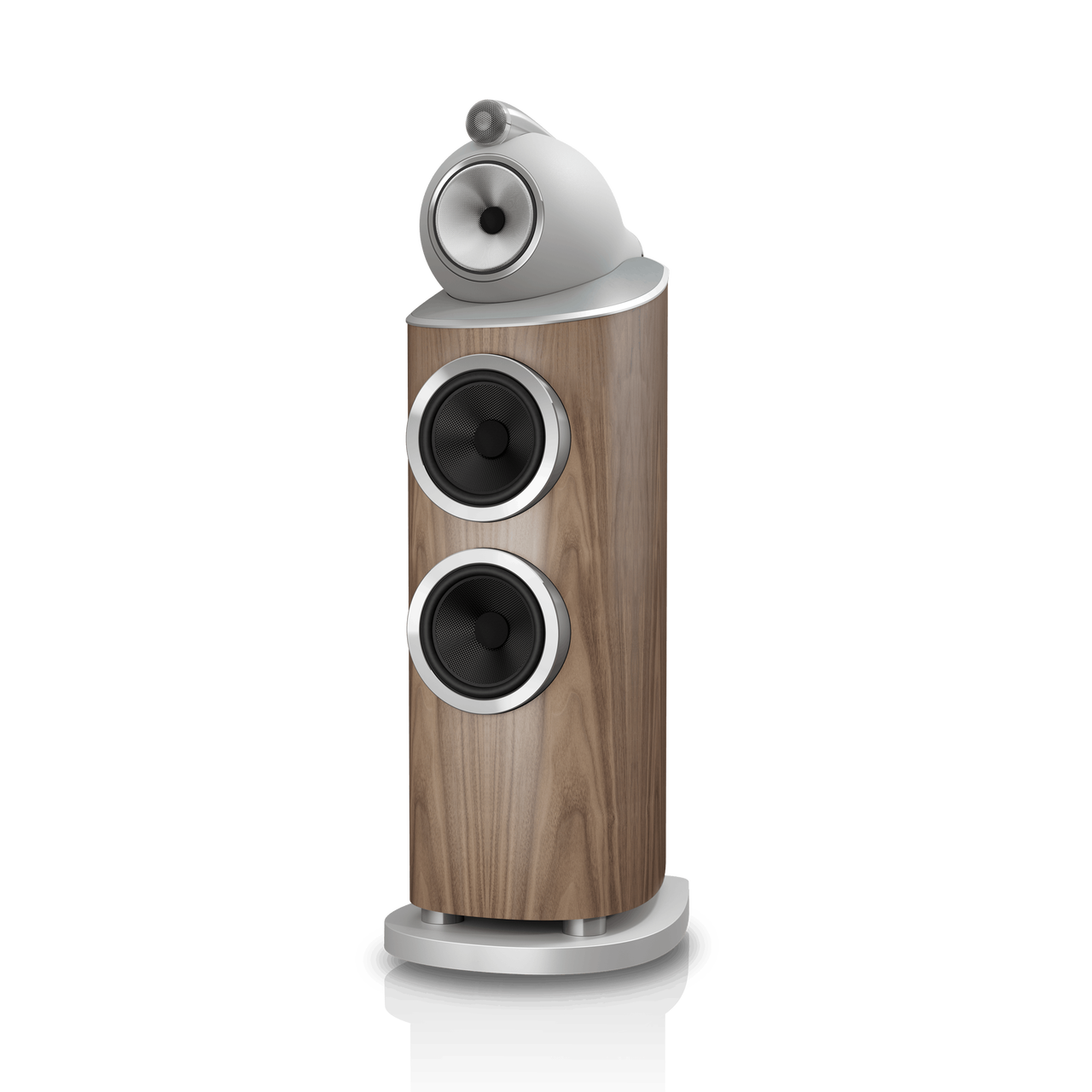

- Light Walnut
GRILLE FINISHES
- Black (Stealth Black and Dark Walnut)

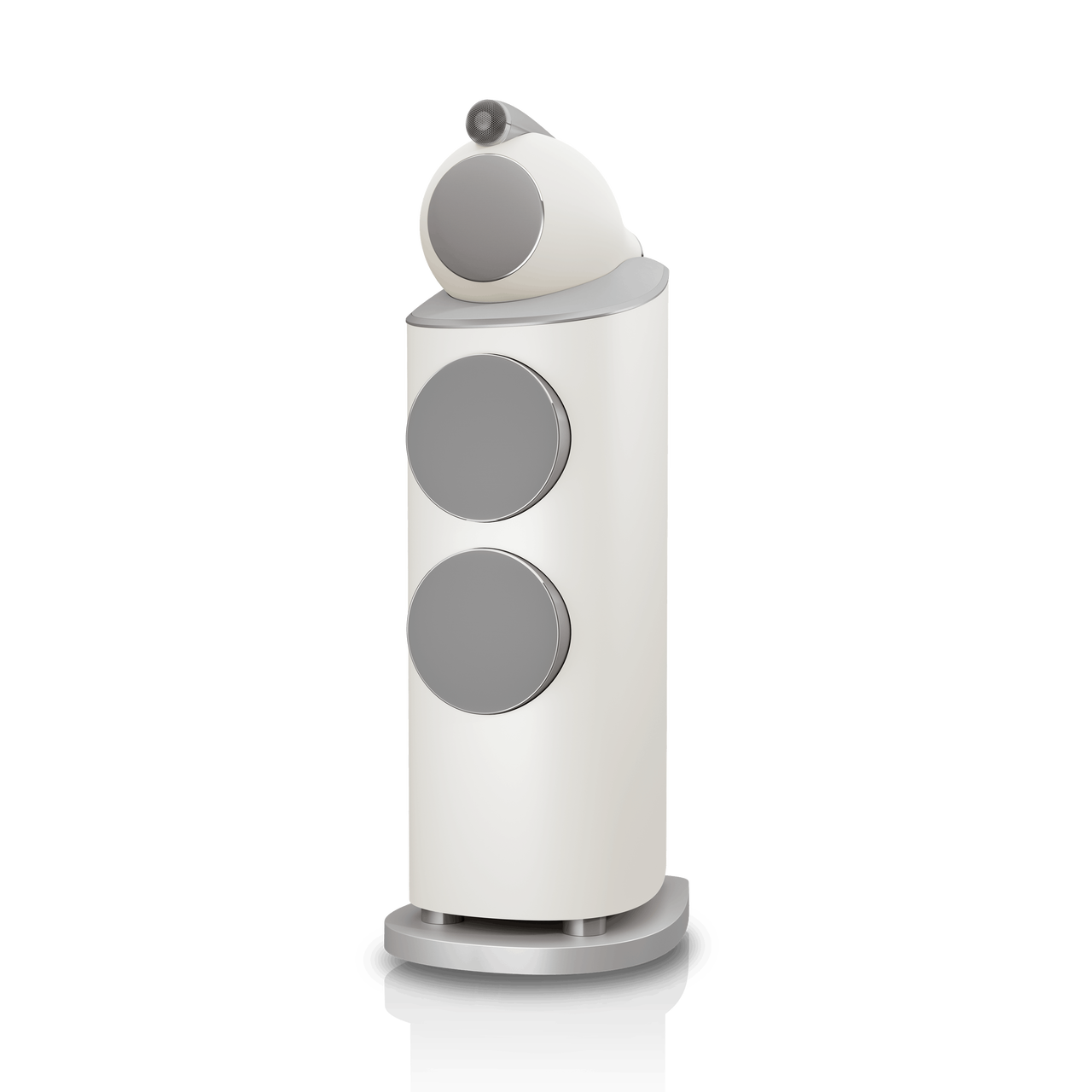

- Grey (Warm White and Light Walnut)
FREQUENCY RESPONSE
17Hz to 28kHz (+/-3dB)
FREQUENCY RANGE
-6dB 14Hz to 35kHz
DRIVE UNITS
- 2x ø200mm (8in) Aerofoil™ bass
- 1x ø25mm (1in) Diamond dome high-frequency
- 1x ø150mm (6in) Continuum cone FST midrange
FINISHES
-Warm White -Stealth Black -Light Walnut -Dark Walnut

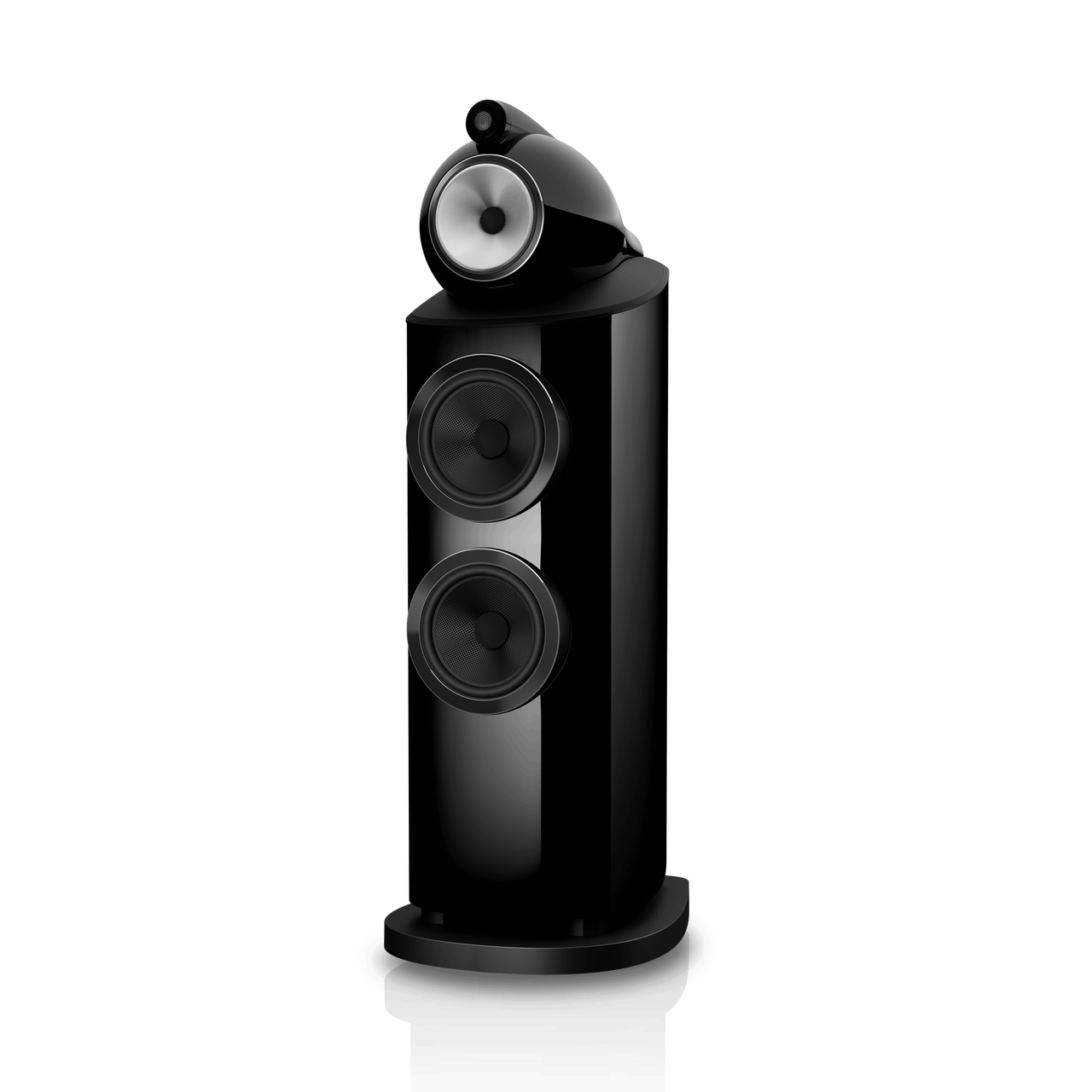

Stealth Black
