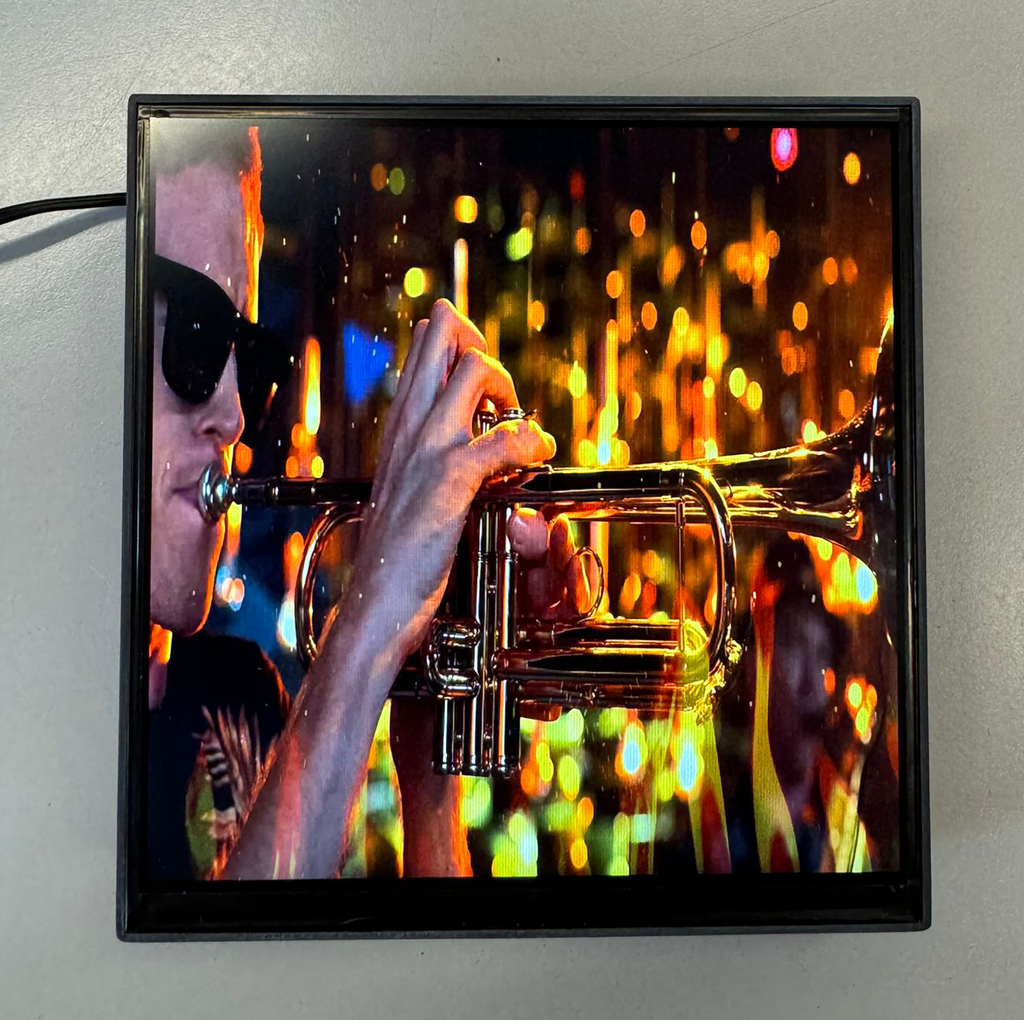

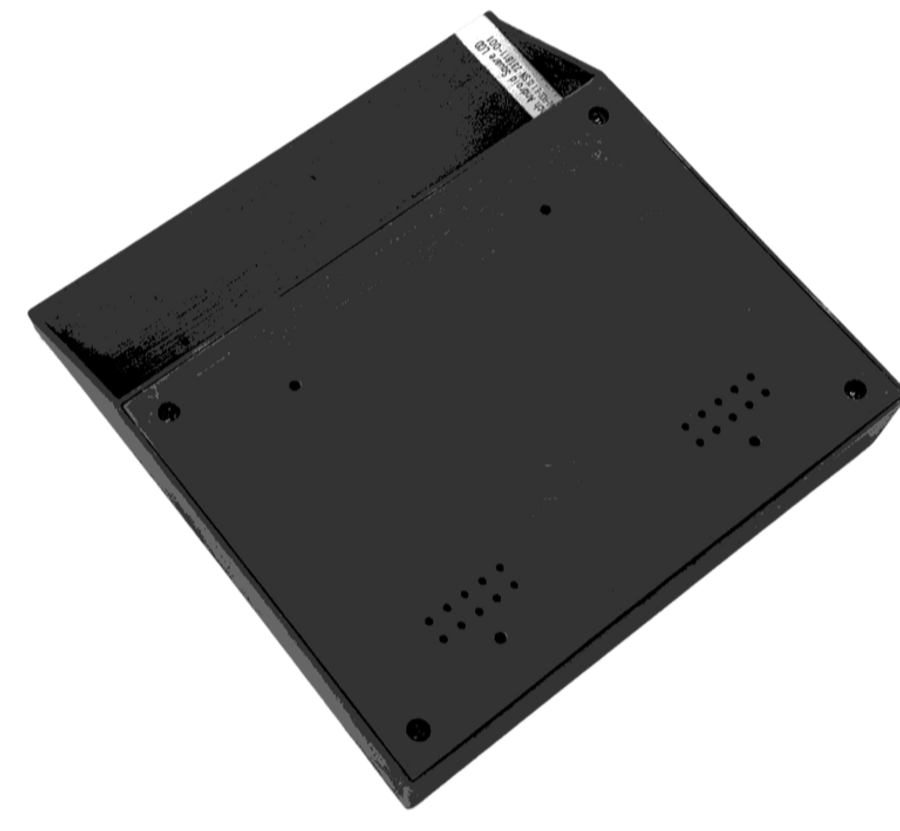

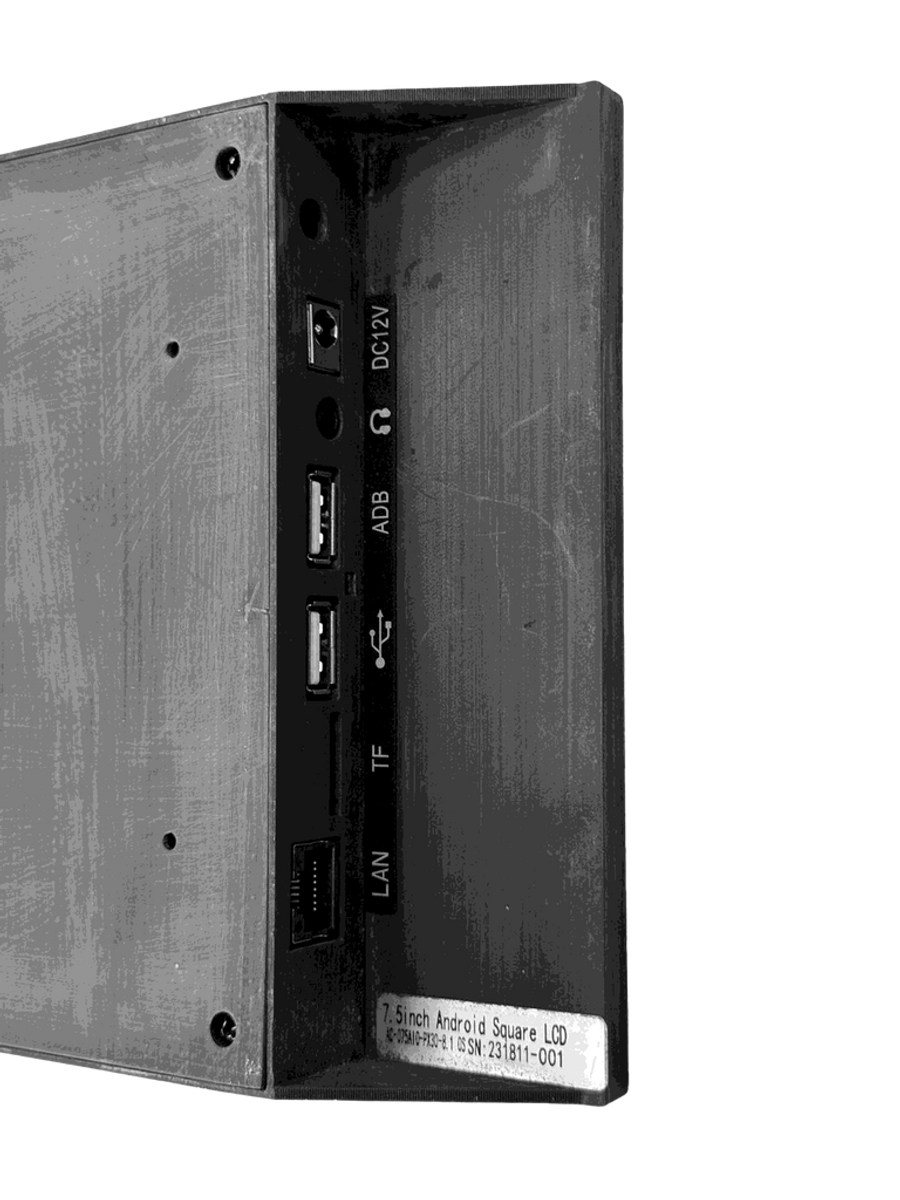

Jamiepro 7.5inch Android Square LCD Monitor Screen
7.5INCH ANDROID SQUARE LCD MONITOR SCREEN
7.5INCH ANDROID SQUARE LCD MONITOR SCREEN
7.5inch Square Tile LCD, for Instragram promotion, Art Screen, Product promotion, Deskbooking etcetera.

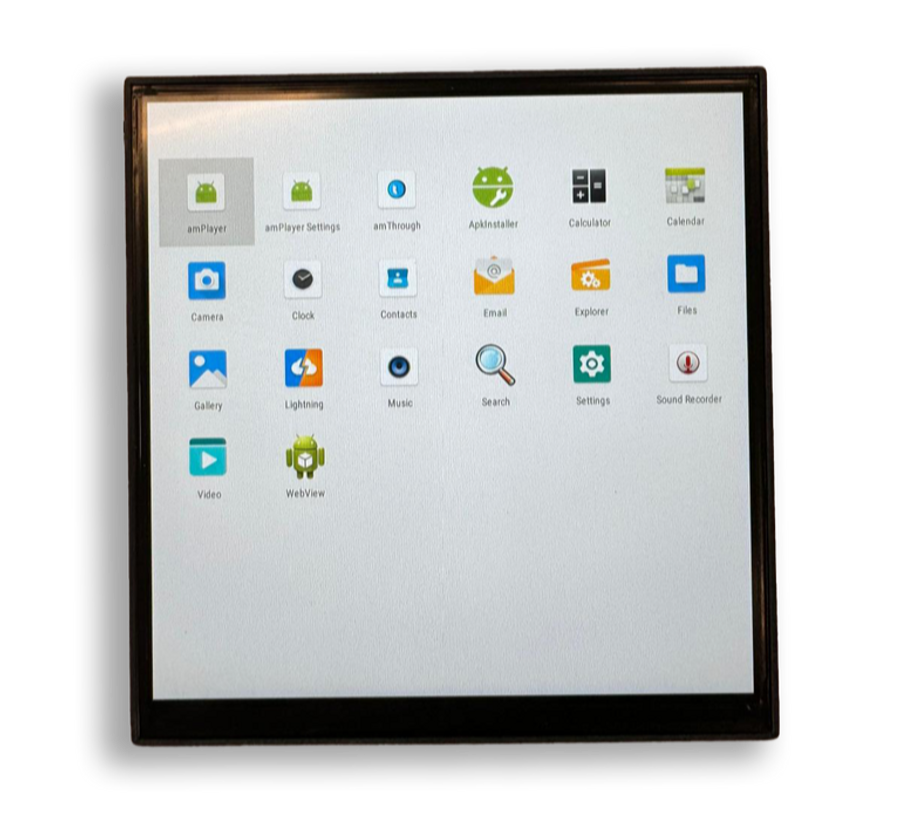

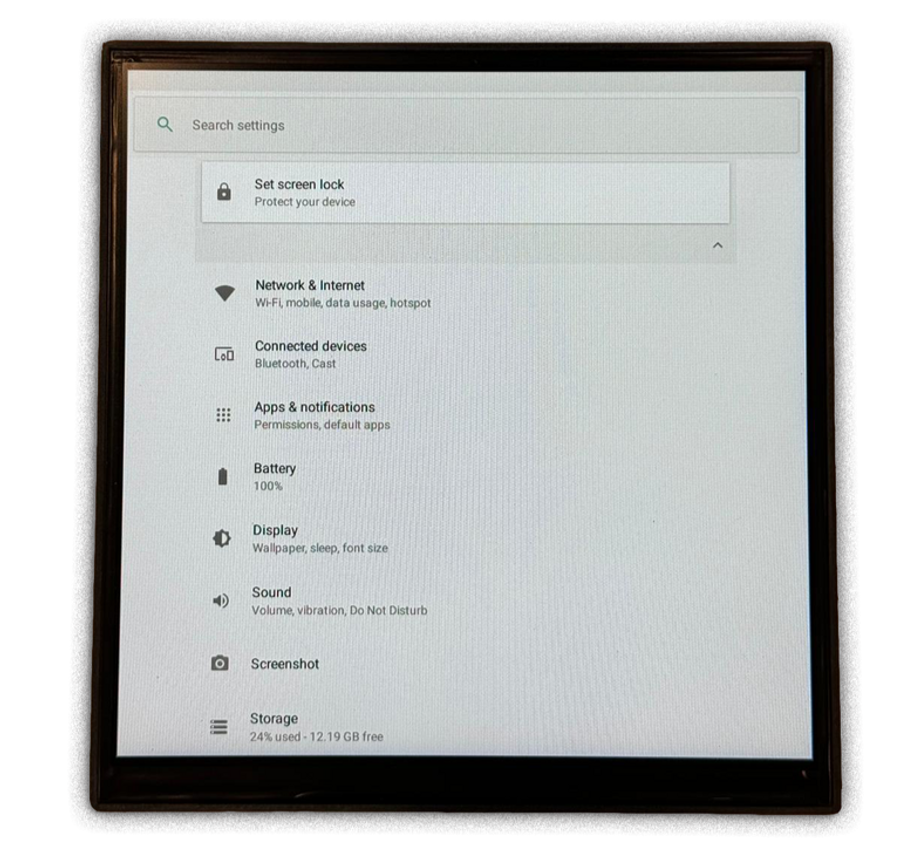

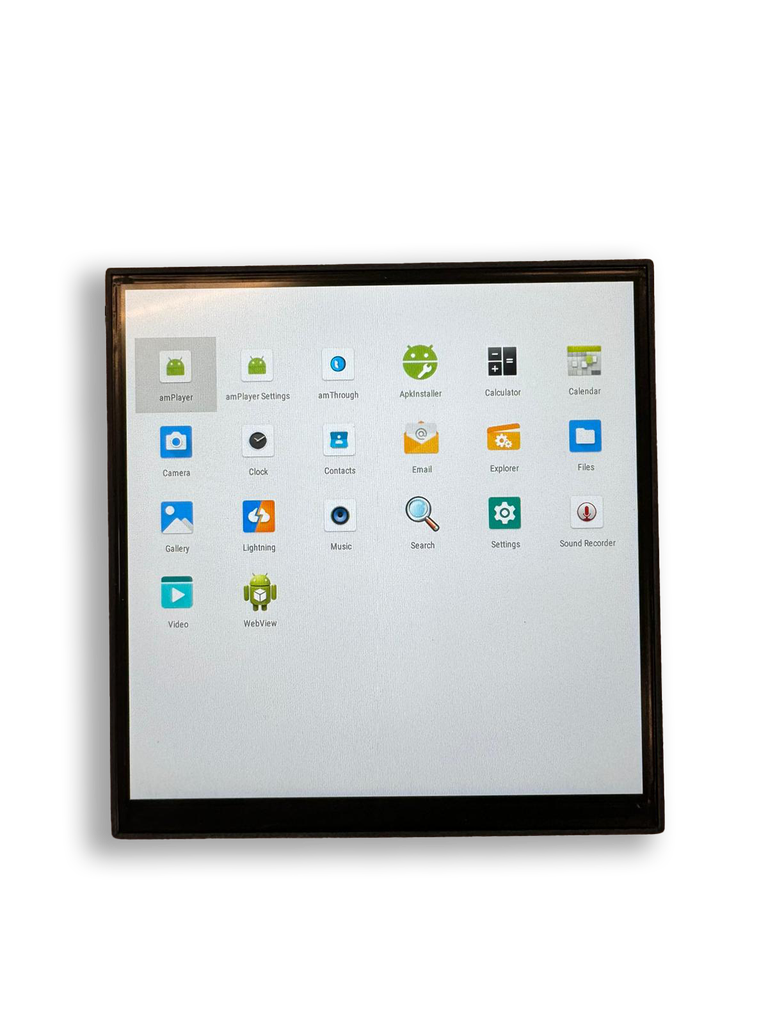

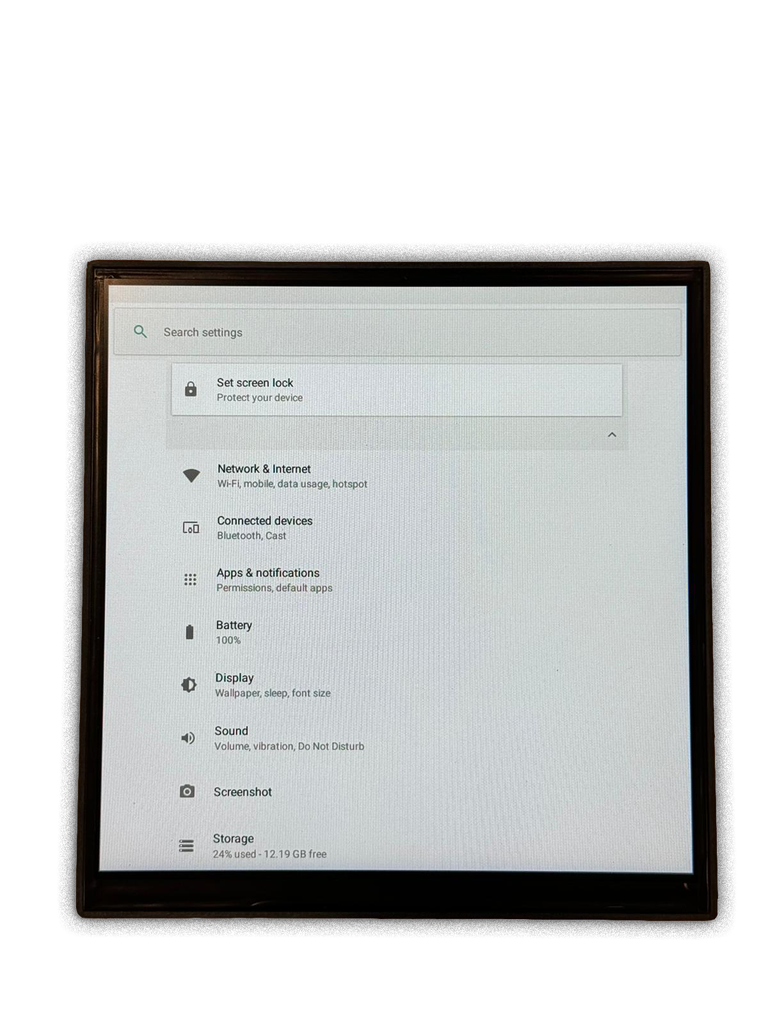

This is an Android Screen, with an AutoStart and Play function to watch your content automatically. You can also install your own software app and show your content.
It has an high resolution IPS panel 800x800 resolution, Square shape with 1:1 ratio. It has also Internet connection via LAN cable or WiFi. Optional it can have PoE for powering this device via LAN cable.
INFORMATION
BRAND
Jamiepro
PRODUCT TYPE
Monitor Screen
LAN CONNECTION
RJ45 Ethernet Input
AUDIO CONNECTION
3.5 mm Jack
ASPECT RATIO
1:1
CONTRAST RATIO
1000:1
DIMENSIONS
- Height : 152.2 mm
- Width : 146.52 mm
PRODUCT CODE
AC-075AIO-PX30-8.1OS
OPERATING SYSTEM
Android 8.1
LCD PANEL RESOLUTION
800 × 800 pixels
VIEWING ANGLE
85°
POWER INPUT
DC 12V / 2A
MEMORY
1 GB RAM + 16 GB Storage
DOWNLOADS
↓ Data Sheet
↓ Technical Drawing
BRIGHTNESS
1000 nits
PROCESSOR
PX30 Chip
MEMORY CARD
TF Card Reader

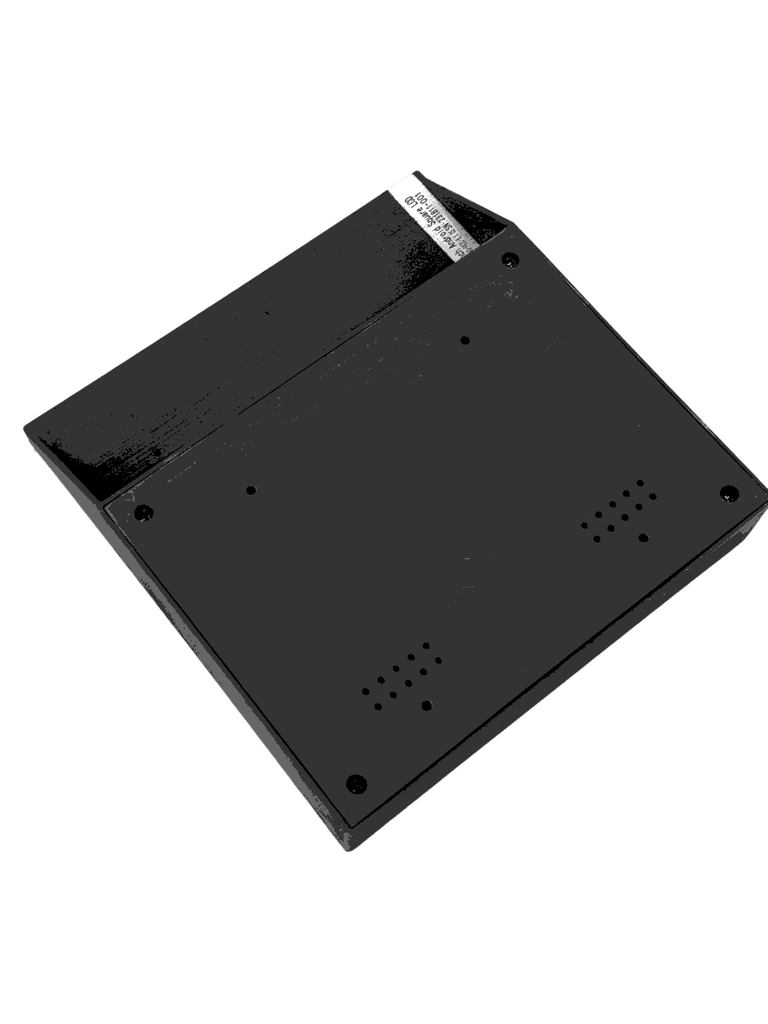

HOUSING
Closed Plastic Housing
USB
USB Port
WI-FI
Wi-Fi Antenna
PRODUCTION
Made in The Netherlands

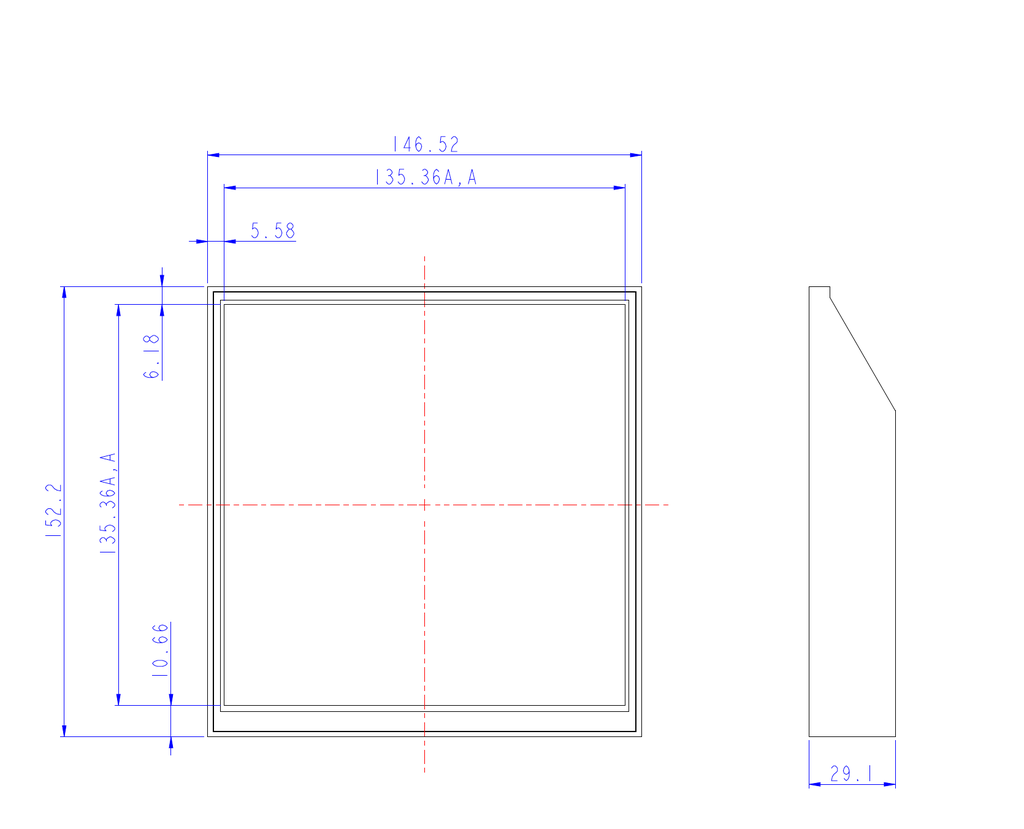

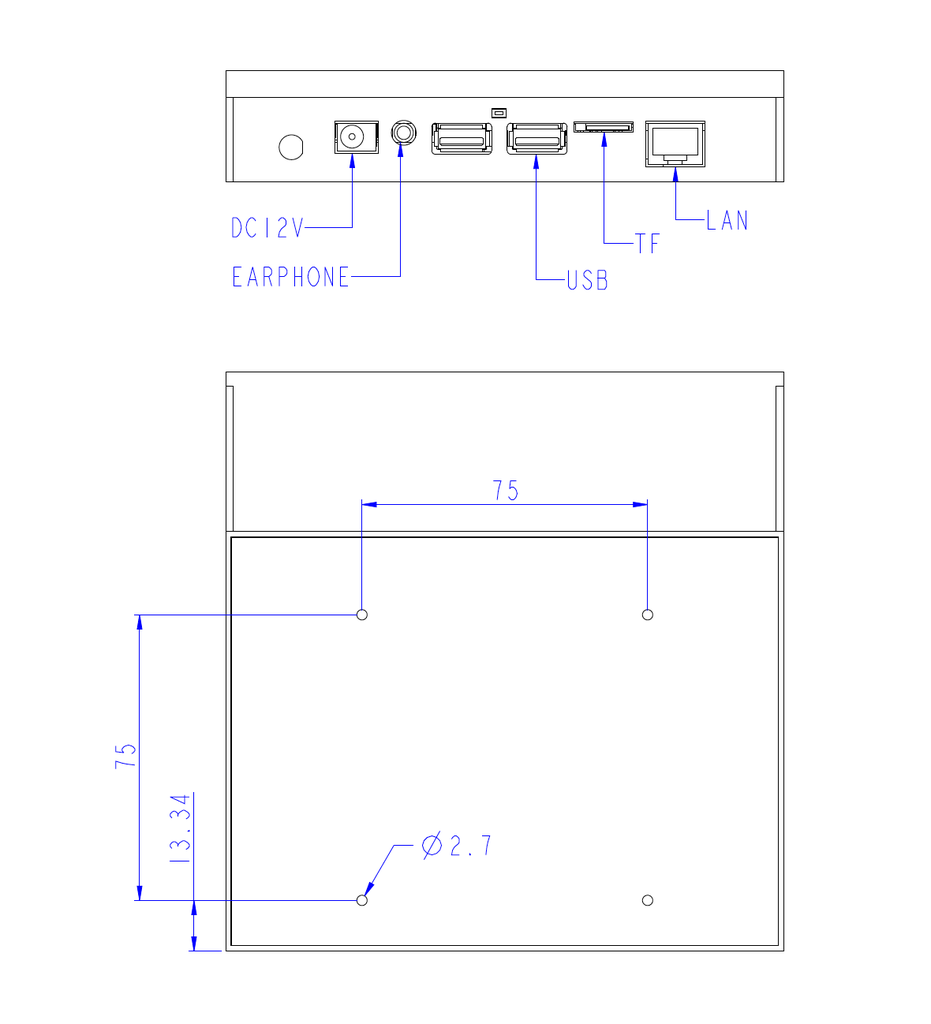

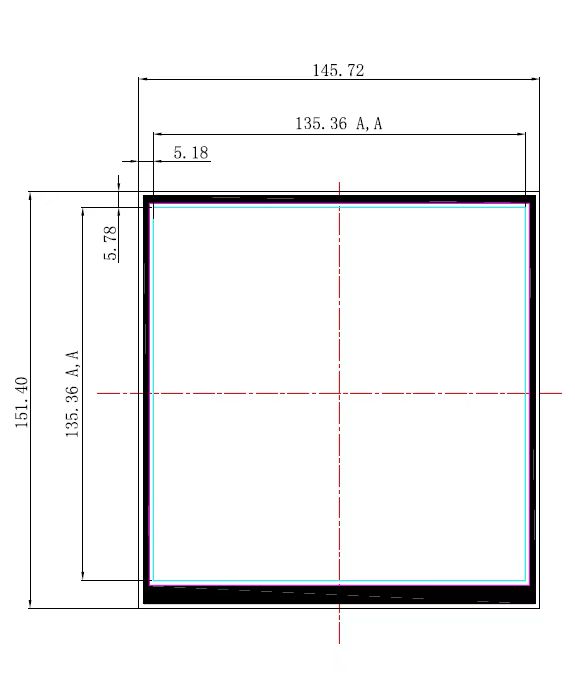

TECHNICAL DRAWINGS

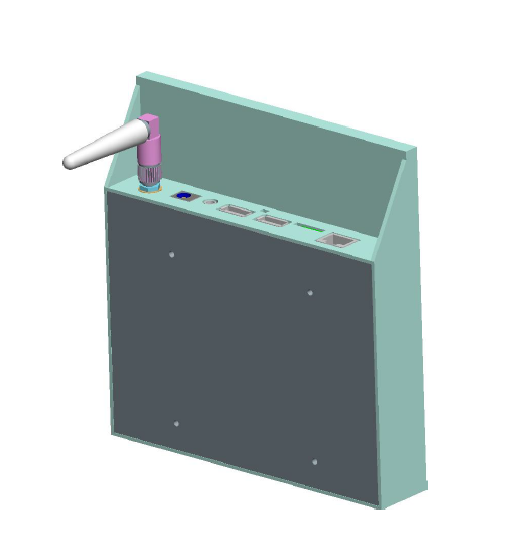

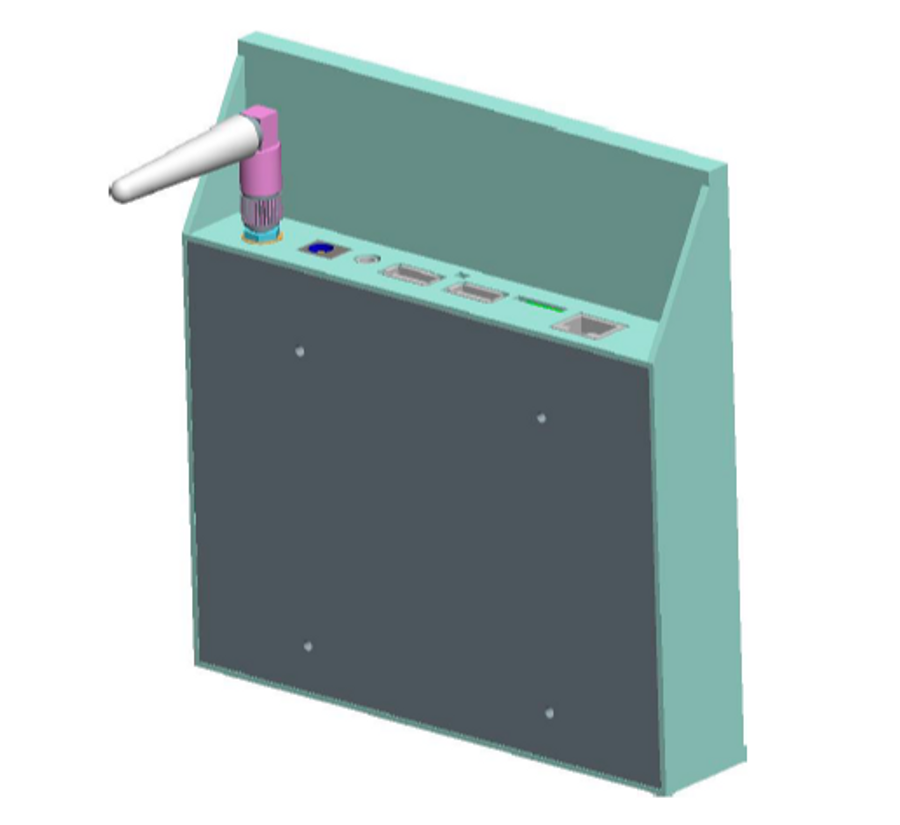

ONLINE MODELS
ONLINE MODELS
Often used in retail displays and built-in ShopDisplays or in Public environments.
TOUCH & PANEL
-NON touch -Solution Panel 800x800 pixels -Optional : Touch panel (please ask for info fi rst) -7.5” High Resolution Panel 800x800 pixels
ANDROID CHIP & OS VERSIONS
-PX30 with Android OS8.1 -RK3288 with Android OS 8 or 10 -RK3399 with Android OS 9, 10 and 12 -RK3366 / RK3368 with Android OS 11
ADDITIONAL FEATURES
-NFC & RFID (optional) -LED light: external lightstrips -Triggering: pushbuttons, senso -PoE : Power over Ethernet (8 to 21.5inch)
DETAIL

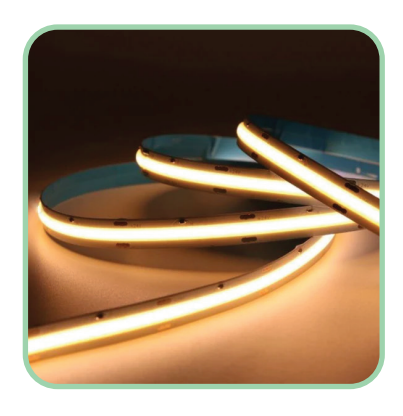

OPTIONAL : ADD (INTERACTIVE) LED LIGHT STRIPS AND PANELS
Customized Android displays to connect LED lightning:
- Different colors available
- Light up a brand logo in a retail display
- Light up a product during an activated video
- LED strips or LED Panel Light up your product
OPTIONAL : ADD EXTERNAL TRIGGERS & SENSORS FOR VIDEO ACTIVATION
Customized Android displays to connect triggers for video & volume activatio:
- Motion detection sensors
- Light Sensors detection area
- RFID sensors for “Lift and learn”
- Metal or plastic pushbuttons with lightring and symbol
- RFID Sensors for scanning a product with RFID sticker

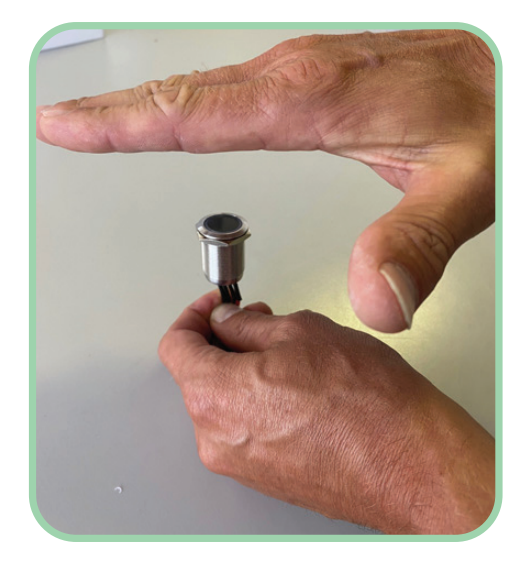

- Touchless sensor buttons (wave your hand above the sensor)
