TANGENT SPECTRUM II X4 SPEAKER
TANGENT SPECTRUM II X4 SPEAKER
Precise sound. Timeless elegance.
Compact and elegant, the Spectrum II X4 combines performance and modern design.
With its 1" dome tweeter and 4" cellulose mid-woofer, it offers a precise frequency response of 65 Hz - 20 kHz and sensitivity of 87 dB.
INFORMATION
BRAND
Tangent
COLLECTION
Tangent
PRODUCT TYPE
Stereo Preamplifier
SPEAKER USAGE
Bookshelf
PAIR OF COMPACT BOOKSHELF SPEAKERS

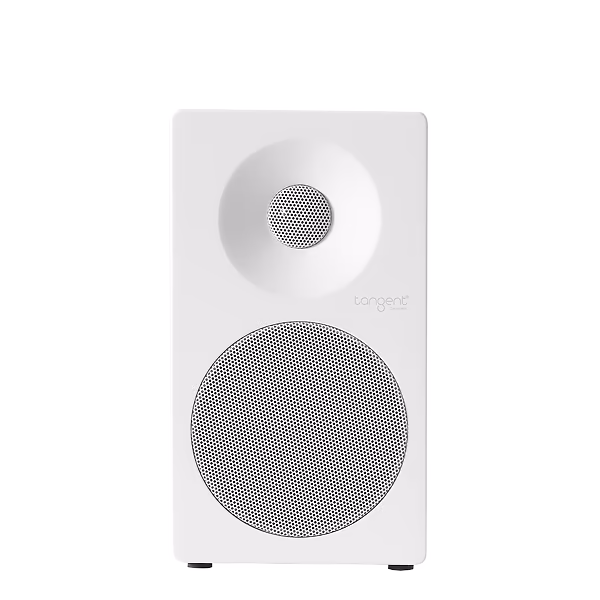

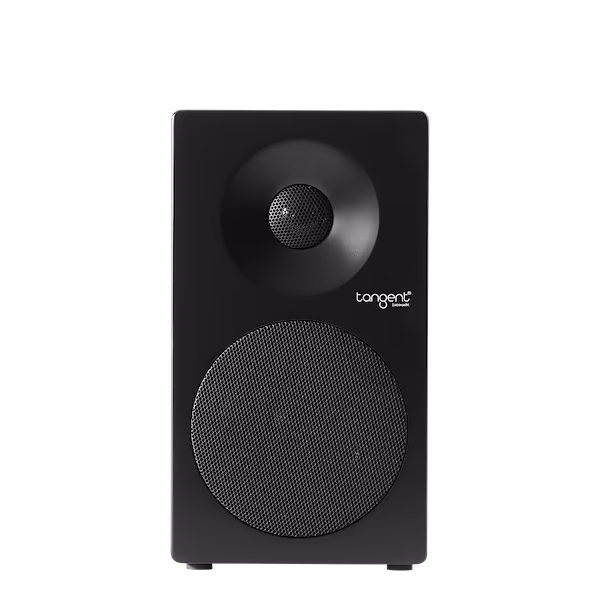

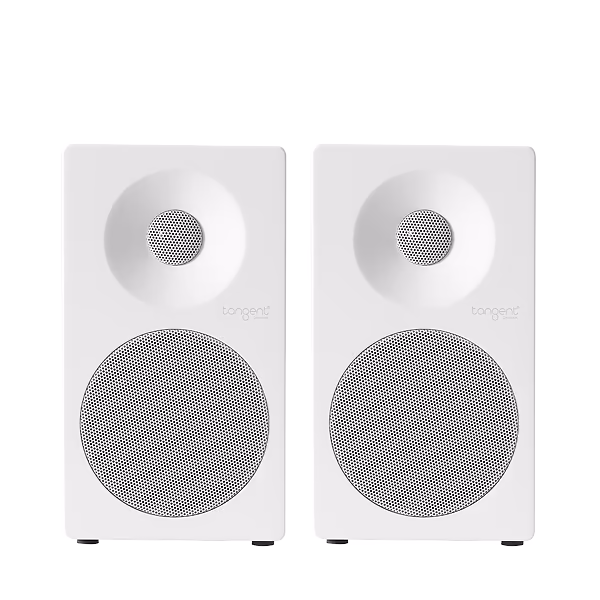

Spectrum II X4 is delivered as a pair of compact bookshelf speakers in satin black or white. With their elegant appearance and slim form, they blend naturally into any modern home interior – either placed freely in the room or mounted on the wall using Tangent’s dedicated wall bracket.
WEIGHT (NET)
3.5 kg per speaker
TWEETER
1” dome
SPEAKER TYPE
Passive
FREQUENCY RANGE
65 Hz – 20 kHz (±3 dB)
SENSITIVITY
87 dB (1W/1m)
MID-WOOFER
4” cellulose pulp
THE OPTIMIZED BASS-REFLEX CONSTRUCTION
Behind the sleek exterior lies advanced acoustic engineering: a 1” dome tweeter and a 4” cellulose-pulp mid-woofer working together to deliver a precise and balanced sound. The optimized bass-reflex construction and 6-ohm impedance make the speakers easy to drive, ensuring dynamic performance whether you are listening to music or watching movies.
PRODUCT CODES
- Black : 5703959232021
- White : 5703959232014
RECOMMENDED AMPLIFIER
20 – 70 W
POWER
50 W RMS / 80 W Peak
DIMENSIONS
- Width : 145 mm
- Height : 256 mm
- Depth : 198 mm
CROSSOVER
2800 Hz – 12 dB/oct.
NOMINAL IMPEDANCE
6 Ω
DETAIL
A pair of compact bookshelf speakers in satin black or white. Delivers big sound in a small format and can be wall-mounted with an optional bracket.
WIRELESS AND WIRED CONNECTIONS
Spectrum II X4 may be small in size, but they are big on sound – perfect as bookshelf speakers, in a compact stereo setup, or as part of a larger surround system.
TWS STEREO
- Bass reflex
- 2-way bookshelf speaker
AVAILABLE COLORS
2
CENTER
Central loudspeaker
DOWNLOADS
↓ Tech Sheet
↓ Manual
COLORS
- Stain Black
- Stain White
USE
CHOICE OF AMPLIFIER
Your setup type (stereo or home-cinema) will determine the choice of the appropriate amplifier. Your dealer will be able to advise you on the most suitable amplifier for your system.
PREPARATION
- Sticking the rubber pads : If your floor is of the hard type : parquet, tiles, etc., we recommend you use the pads to protect the loudspeaker’s base while limiting vibrations.

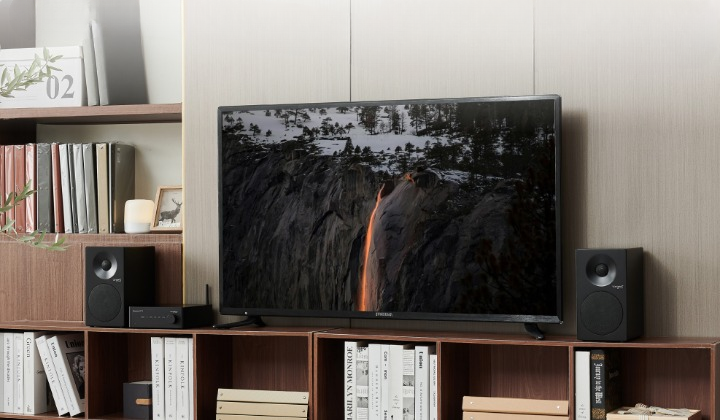

- Positioning the xlcr loudspeaker with a permanent screen or TV screen : Place the loudspeakers as close as possible to the screen. The mounting brackets allow you to install the loudspeaker horizontally or vertically.
CLEANING INSTRUCTIONS
To improve the lifetime of your loudspeakers, we recommend regular cleaning. A soft cloth will be enough for dusting. If the loudspeaker is stained, we recommend simply using a damp cloth with some mild soap if necessary. The front panel can be cleaned with a soft cloth and standard glass cleaning product. Never use solvents, detergents, alcohol-based or corrosive products, scrapers or scourers to avoid any damage on the loudspeaker surface. Keep the loudspeakers away from sources of heat
BURN-IN PERIOD
When you take them out of the packaging, the Spectrums II loudspeakers are not yet able to reproduce with the same efficiency all the sound frequencies they are supposed to play. The Spectrum II range loudspeakers are complex mechanical assemblies which need a period of adaptation (“burn-in”) to operate at their best and become acclimatised to the temperature and humidity conditions of your environment.
This burn-in period may last for some weeks, but you can quicken it by operating the loudspeakers between 50 and 100 hours consecutively, on a moderate volume and broadcasting a radio station. We advise increasing this period to 150 hours for the X6 loorstanding loudspeakers, and the XSW8
