Smeg Partially-integrated Built-in Dishwasher
PARTIALLY-INTEGRATED BUILT-IN DISHWASHER
PARTIALLY-INTEGRATED BUILT-IN DISHWASHER
Partially integrated built-in dishwasher with a visible control panel, designed for quick access and intuitive use. It guarantees efficient and spotless cleaning and provides the ideal versatility to adapt to various kitchen configurations
INFORMATION
BRAND
Smeg
PRODUCT TYPE
Dishwasher
EAN CODE
8017709307097
FRONT PANEL COLOUR
Finger friendly stainless steel
COLOUR
Stainless steel
FINISHING
Fingerproof
BUTTONS COLOUR
Silver (oropal grey)

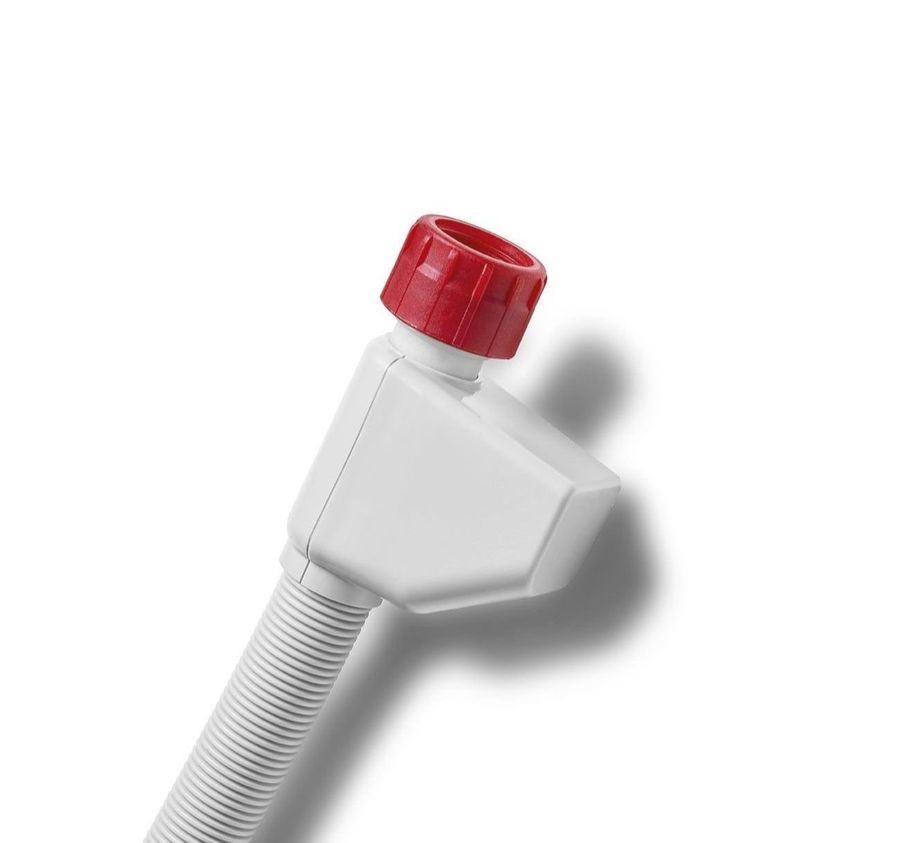

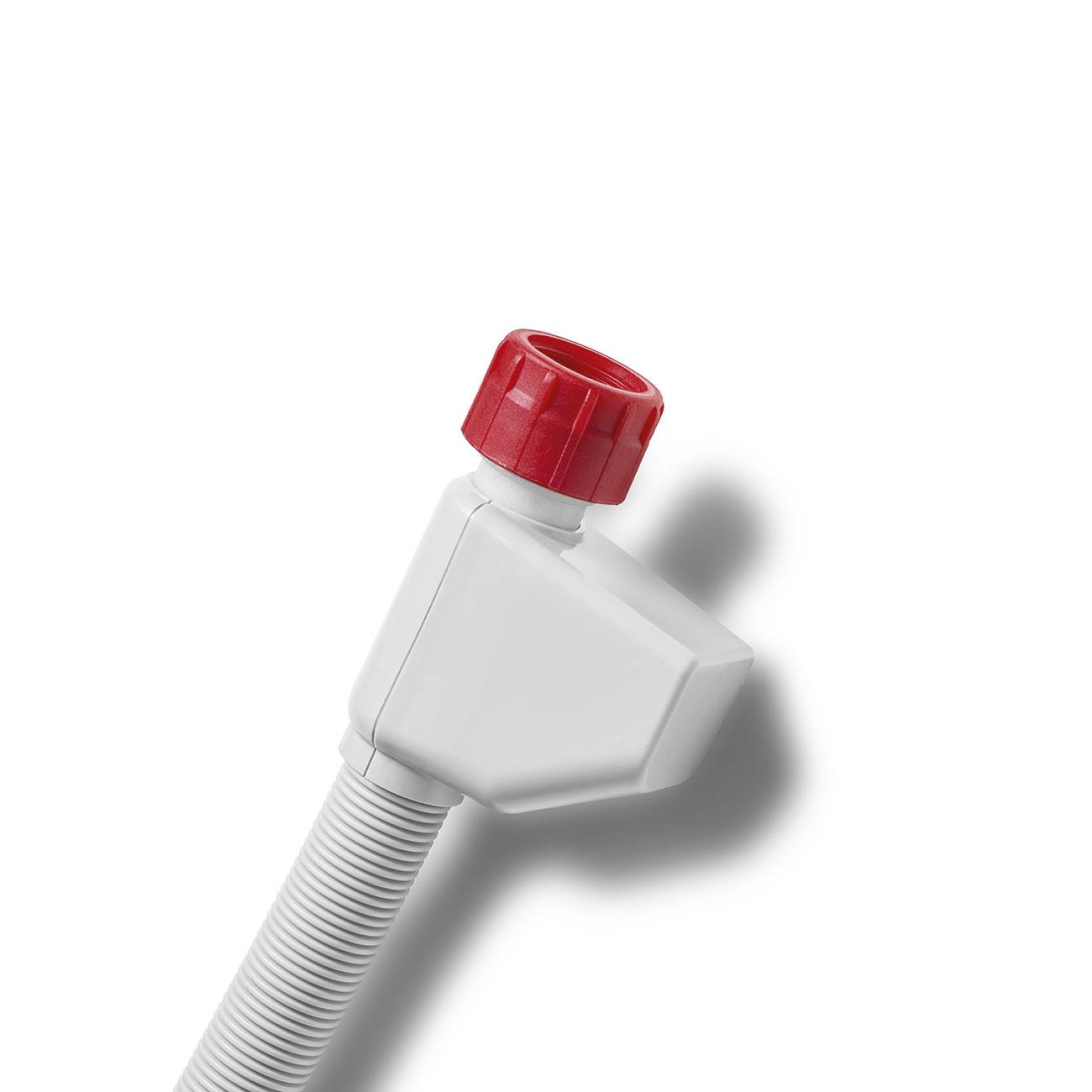

ADVANCED LEAK PROTECTION WITH TOTAL AQUA STOP
Enhanced protection and peace of mind with Total Aqua Stop, an advanced leak detection system that automatically shuts off the water supply if a leak is detected beneath the drum or within the water intake hose.
DOOR TYPE
Without frame
LED/DISPLAY COLOUR
White
AESTHETIC
Universale
KITCHEN PANEL
Not supplied
INSTALLATION
Partially-integrated built-in
NUMBER OF PLACE SETTINGS
13

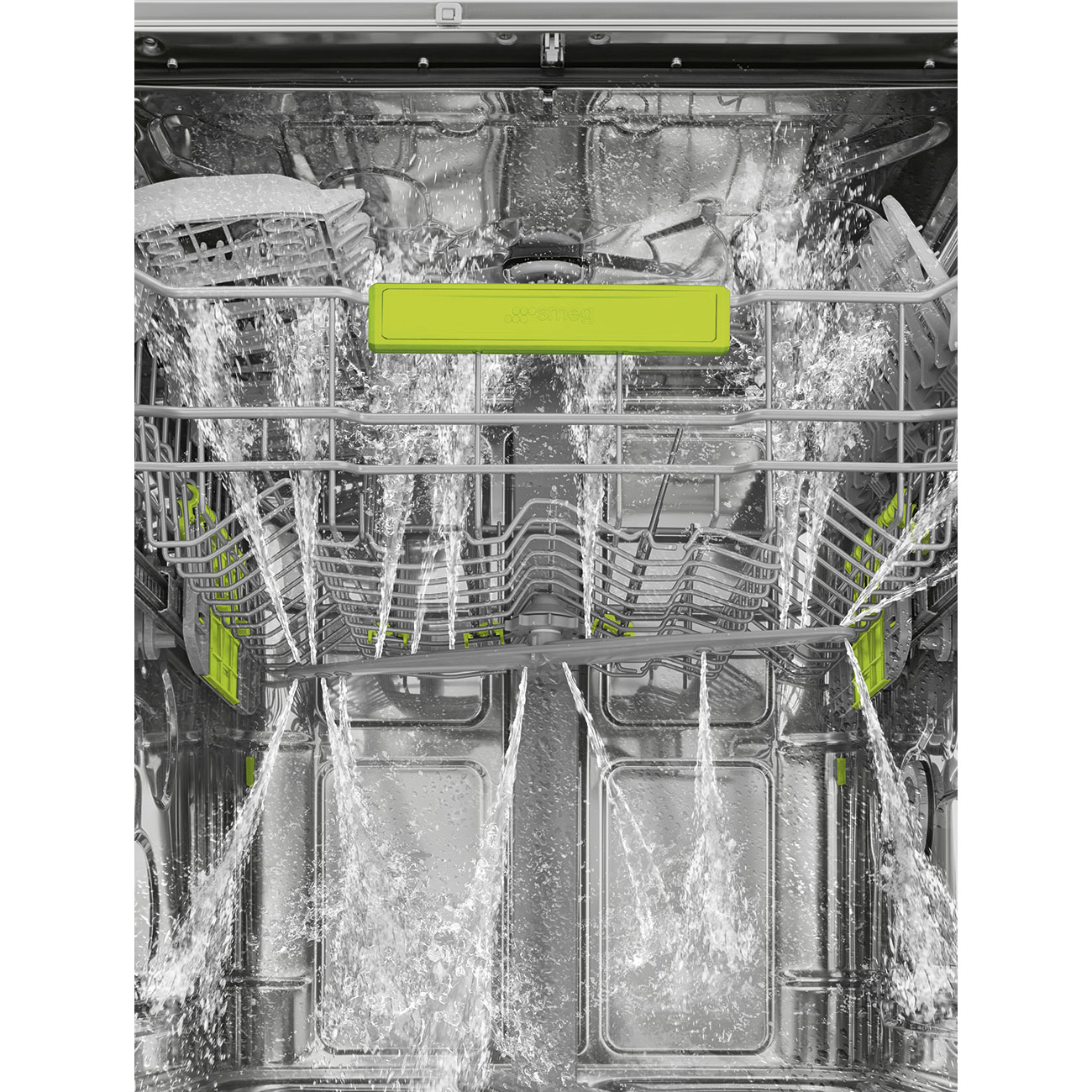

WASHING SYSTEM
Standard
CONTROLS
Electronic
MOTOR
Inverter 2.0
ON/OFF INDICATOR
Yes
DIFFERENT SPACES FOR DIFFERENT CULINARY NEEDS

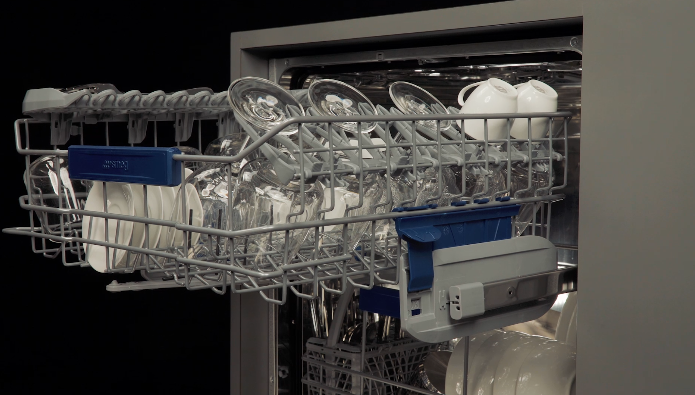

The flexibility of upper basket offers three adjustable height options. This adaptability ensures that every type of dish, from tall glasses to oversized pots and delicate stemware, receives optimal cleaning and hygiene.
TECHNICAL FEATURES
- Auto switch-off
- Door opening system
- Concealed heating element
PROGRAMS
- Soak
- ECO
- Mix
- Intense
- 1/2 load
SALT LIGHT INDICATOR
Light
RINSE AID INDICATOR
Light
WATER SOFTENER
With electronic setting
NOISE LEVEL
>= 48 db(A)
N. OF PROGRAMMES
5
WASHING TEMPERATURES
50, 65, 70 °C
HINGES
Self balancing with fixed hinges
MIN. AND MAX PLINTH HEIGHT
100 - 215 mm
WASHING SYSTEM
Standard
THIRD SPRAY ARM
Single
NET WEIGHT
42.000 kg
GROSS WEIGHT
44.000 kg
DIMENSIONS
- Height : 818 mm
- Width : 598 mm
- Depth : 570 mm
DIMENSIONS - PACKED
- Height : 890 mm
- Width : 650 mm
- Depth : 670 mm
PACKAGING COMPOSITION - POLYSTYRENE
0.582 kg
PACKAGING COMPOSITION - WOOD
0.205 kg
TYPE OF PACKAGING
Shrinkwrap
OTHER ACCESSORIES
Salt funel
CONNECTED POWER
1800 W
CURRENT
10 A
VOLTAGE
220-240 V
TYPE OF CONNECTION
Single-phase
FLOOD PROTECTION SYSTEM
Total Acquastop
POWER SUPPLY CABLE LENGTH
140 cm
PLUG
(F;E) Schuko
FREQUENCY (HZ)
50 Hz
ENERGY CONSUMPTION [PER 100 CYCLES, BASED ON THE ECO PROGRAMME]
84 kWh
DELAY TIMER OPTION
3-6-9 hours
EXTRA DRY OPTION
Yes
ENERGY EFFICIENCY CLASS
D
RATED CAPACITY (PS)
13
AIRBORNE ACOUSTICAL NOISE EMISSION CLASS
C
AIRBORNE ACOUSTICAL NOISE EMISSIONS
49 dB(A) re 1 pW
WATER SUPPLY
Single; cold/hot water max. 60°C - energysave with hot water up to 35%
MAX WATER HARDNESS
100°fH;58°dH
STEAM PROTECTION
In plastic

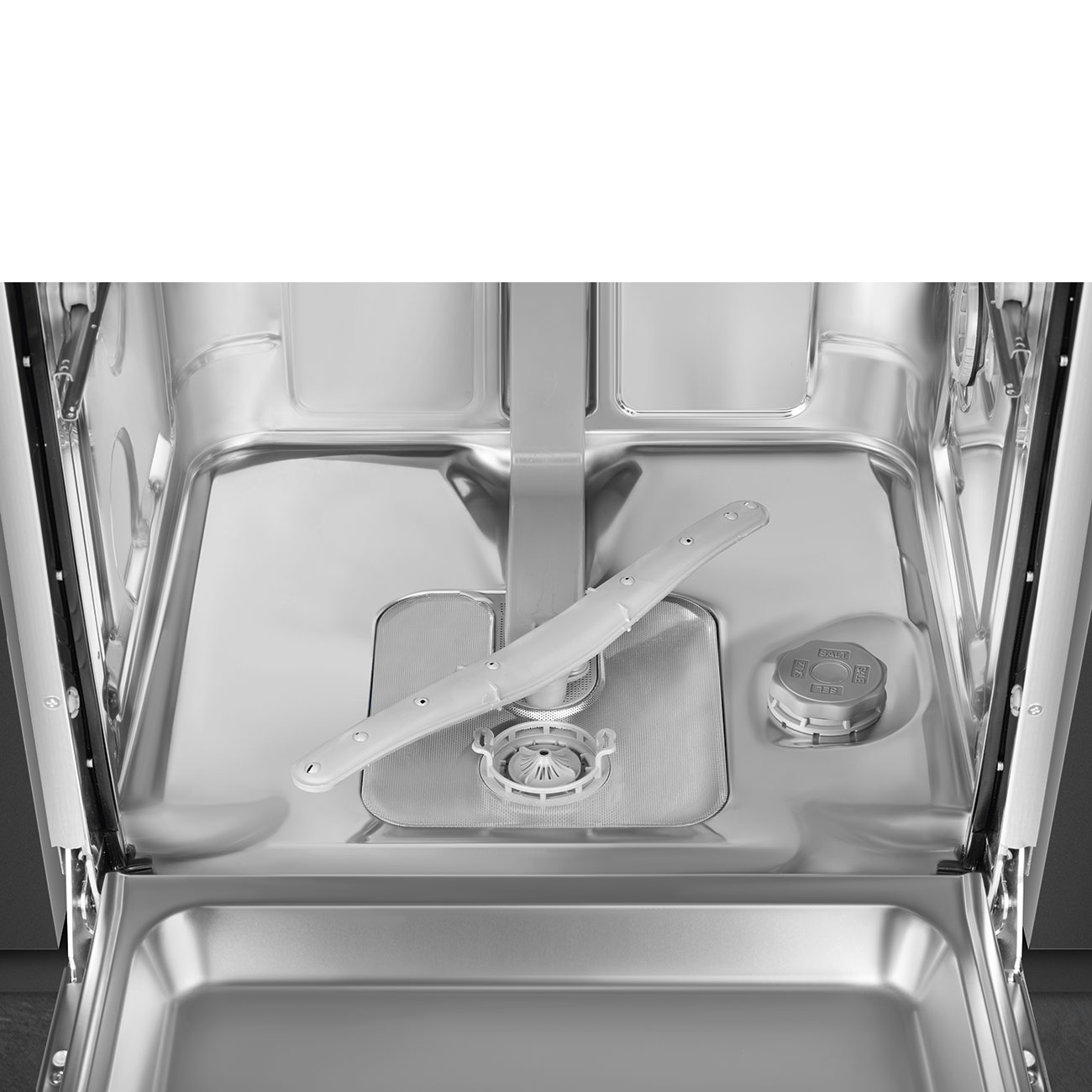

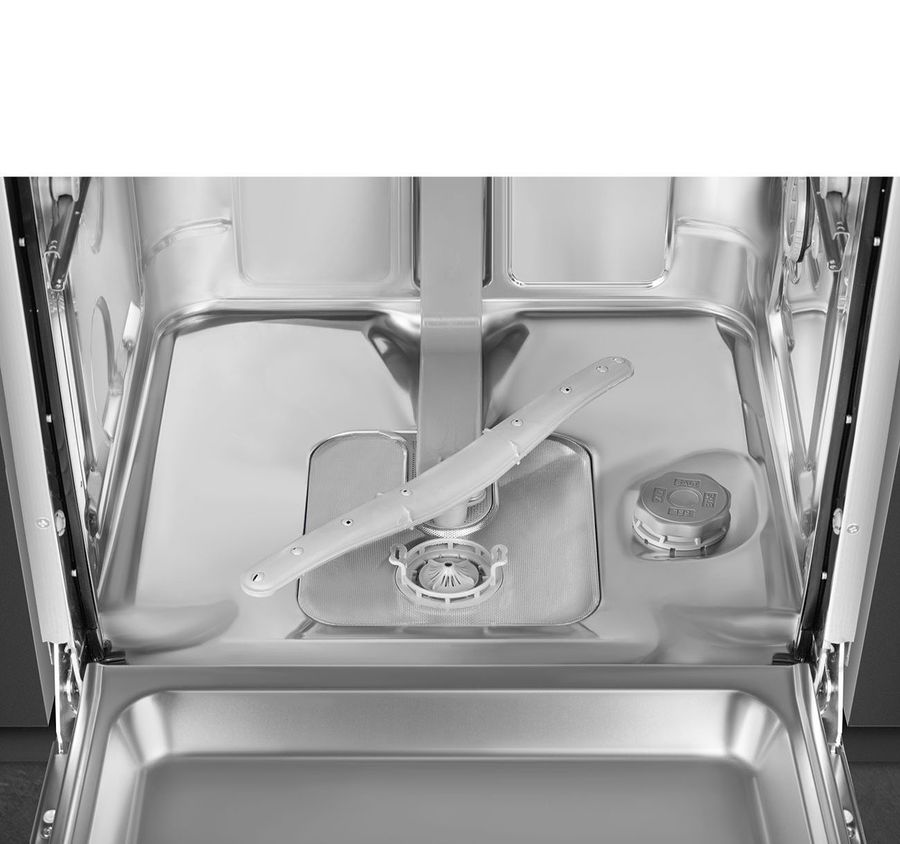

TUB MATERIAL
Stainless steel
FILTER
Stainless steel
DRYING SYSTEM
Natural condenser drying, with Dry Assist + automatic door opening system at the end of the cycle
NOT A SINGLE DROP WASTED

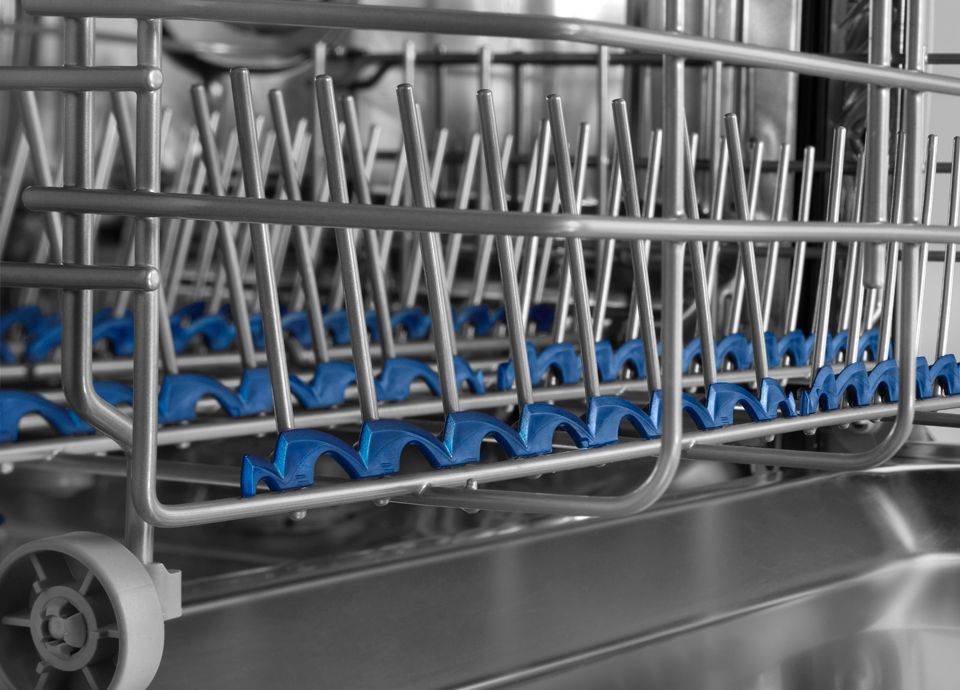

Blue anti-drip inserts are installed in the lower basket of Smeg's new generation dishwashers. This addition improves drying results and cuts down drips between dish and basket.
PROGRAMME DURATION
4:10 h:min
ENERGY EFFICIENCY INDEX
49.9
COMMERCIAL HEIGHT
82 cm
COMMERCIAL WIDTH
60 cm
WATER CONSUMPTION [PER CYCLE]
12.0 litres
DOWNLOADS

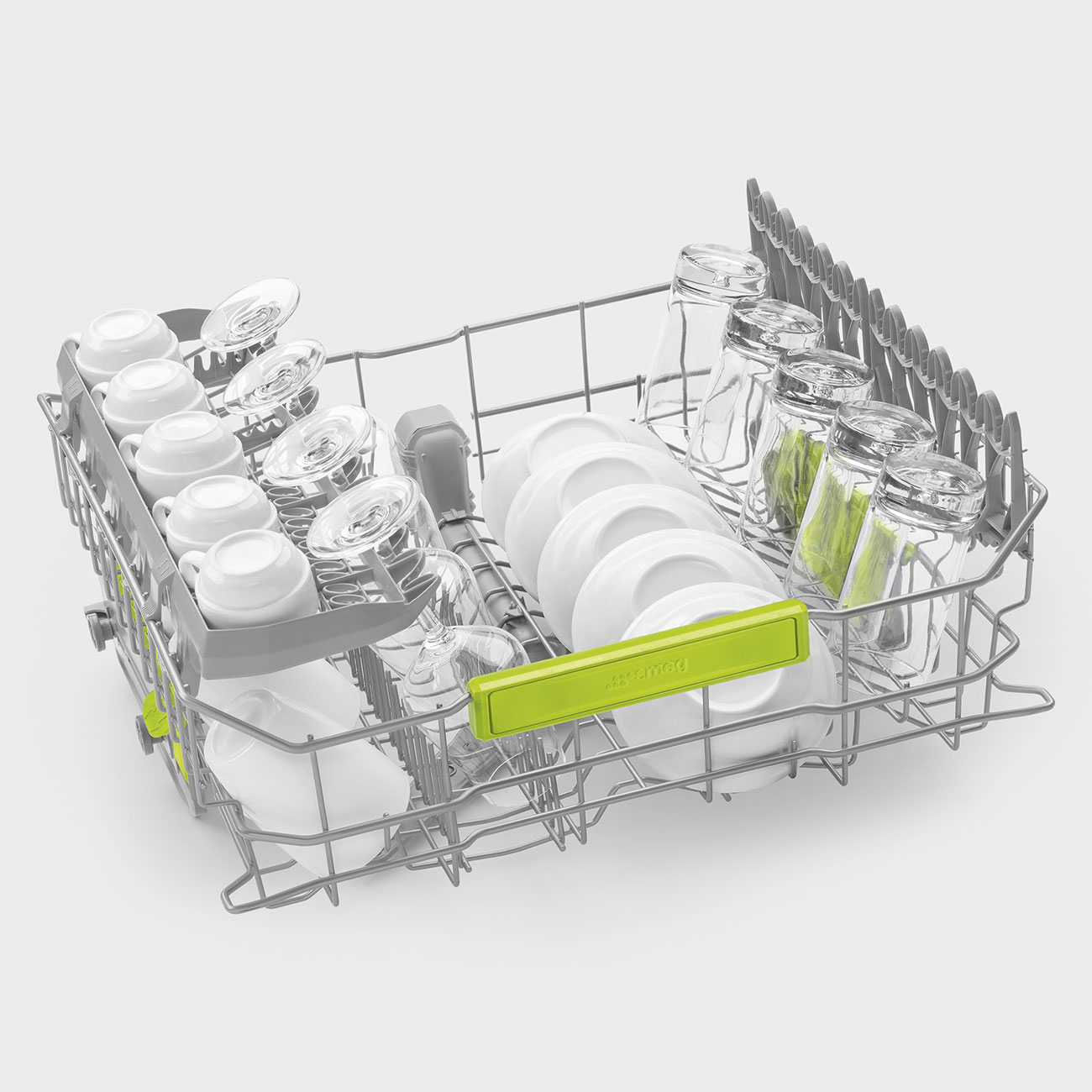

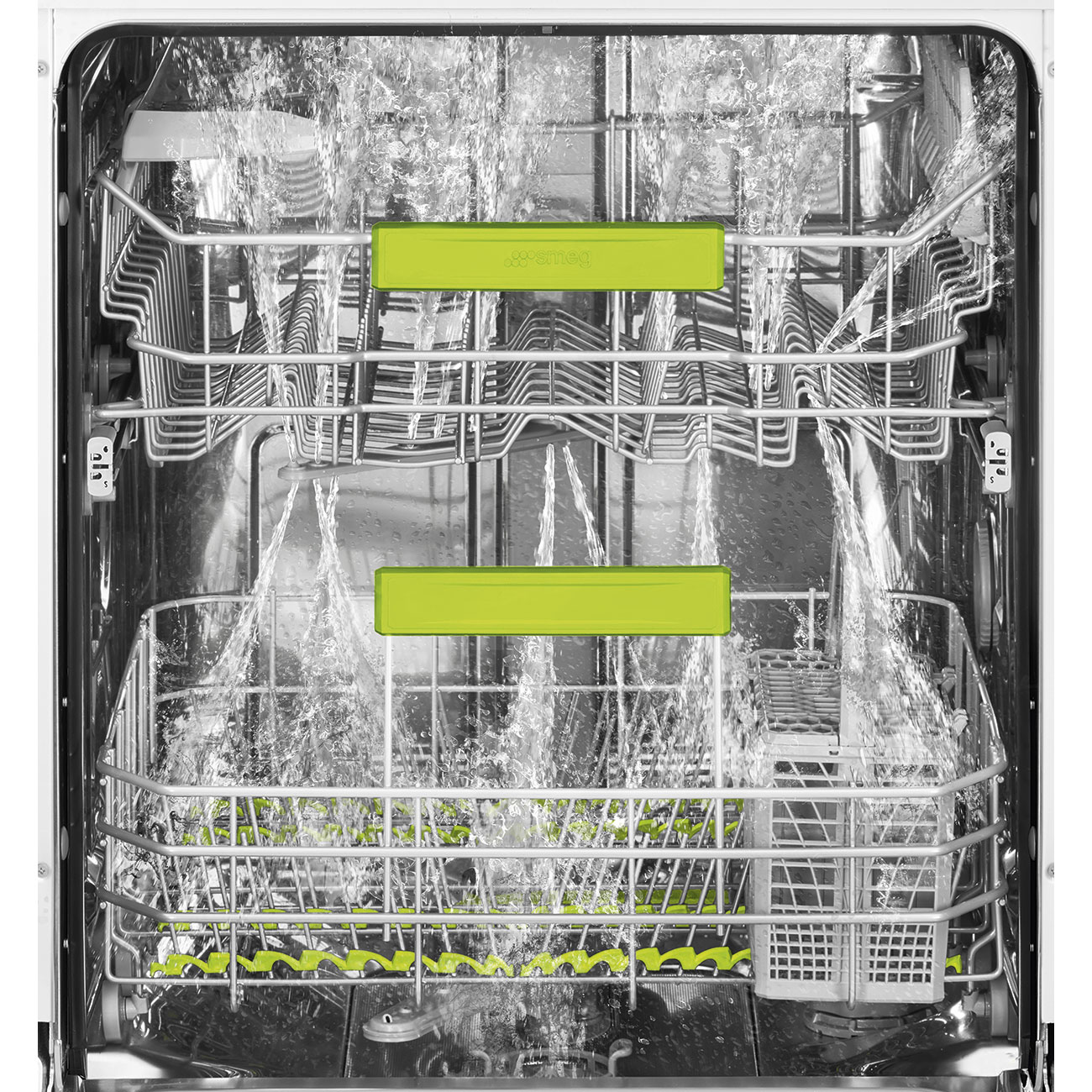

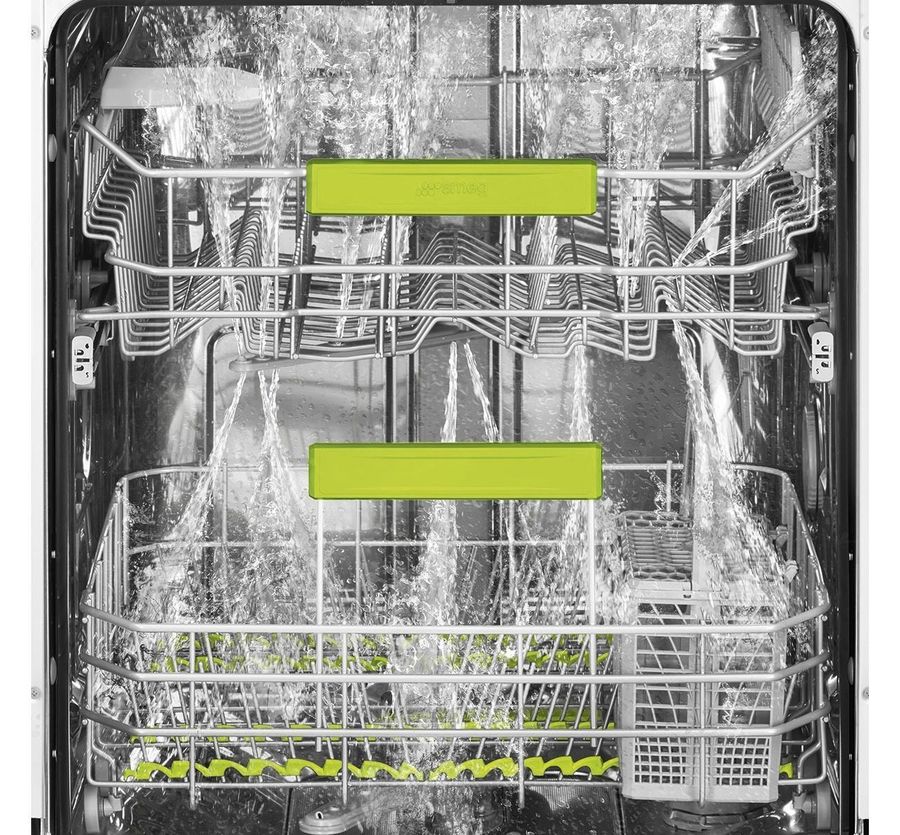

BASKETS
- N° baskets : 2
- Glass holder : Yes
- Basket colour : Grey

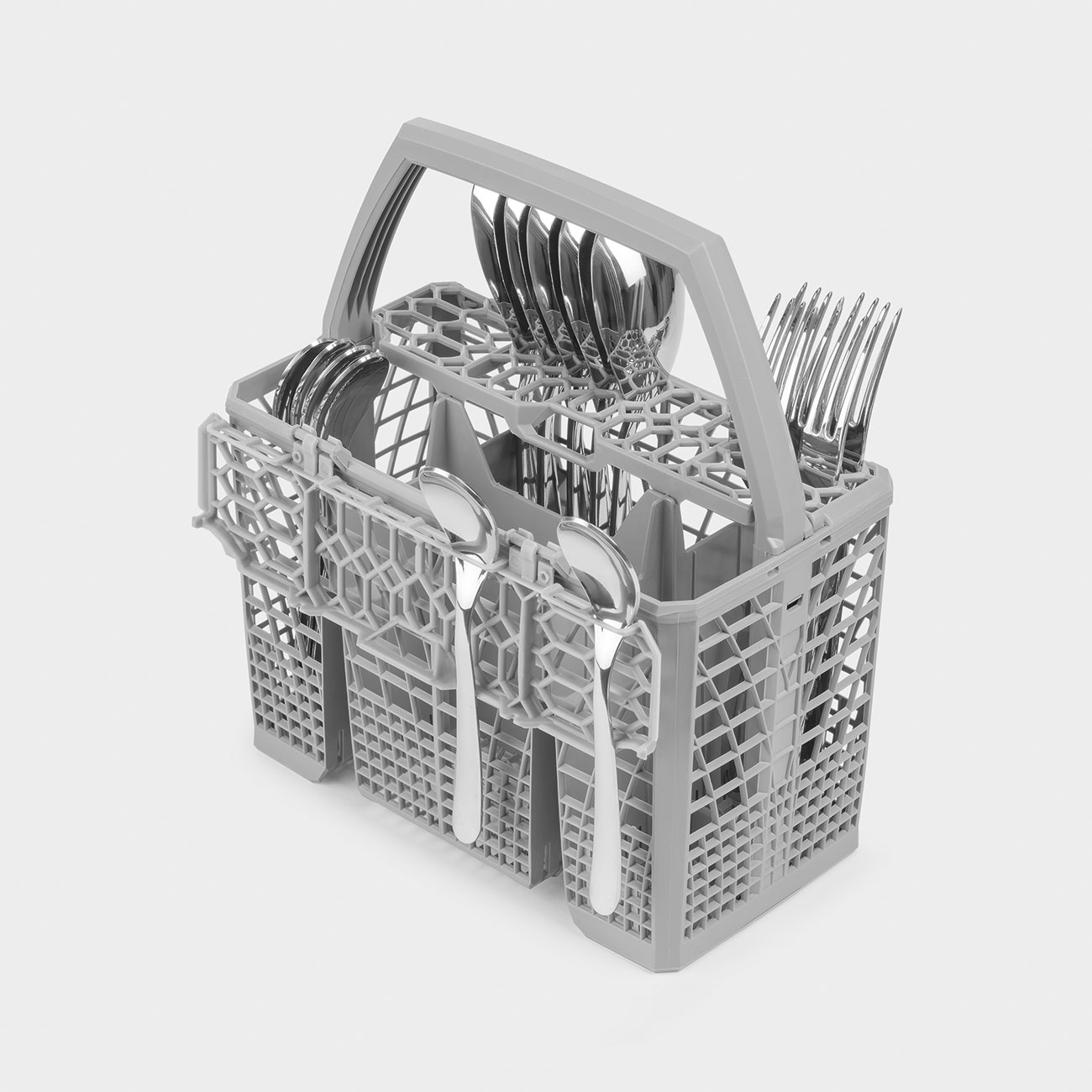

- Cutlery basket : Yes
- Basket components colour : Grey

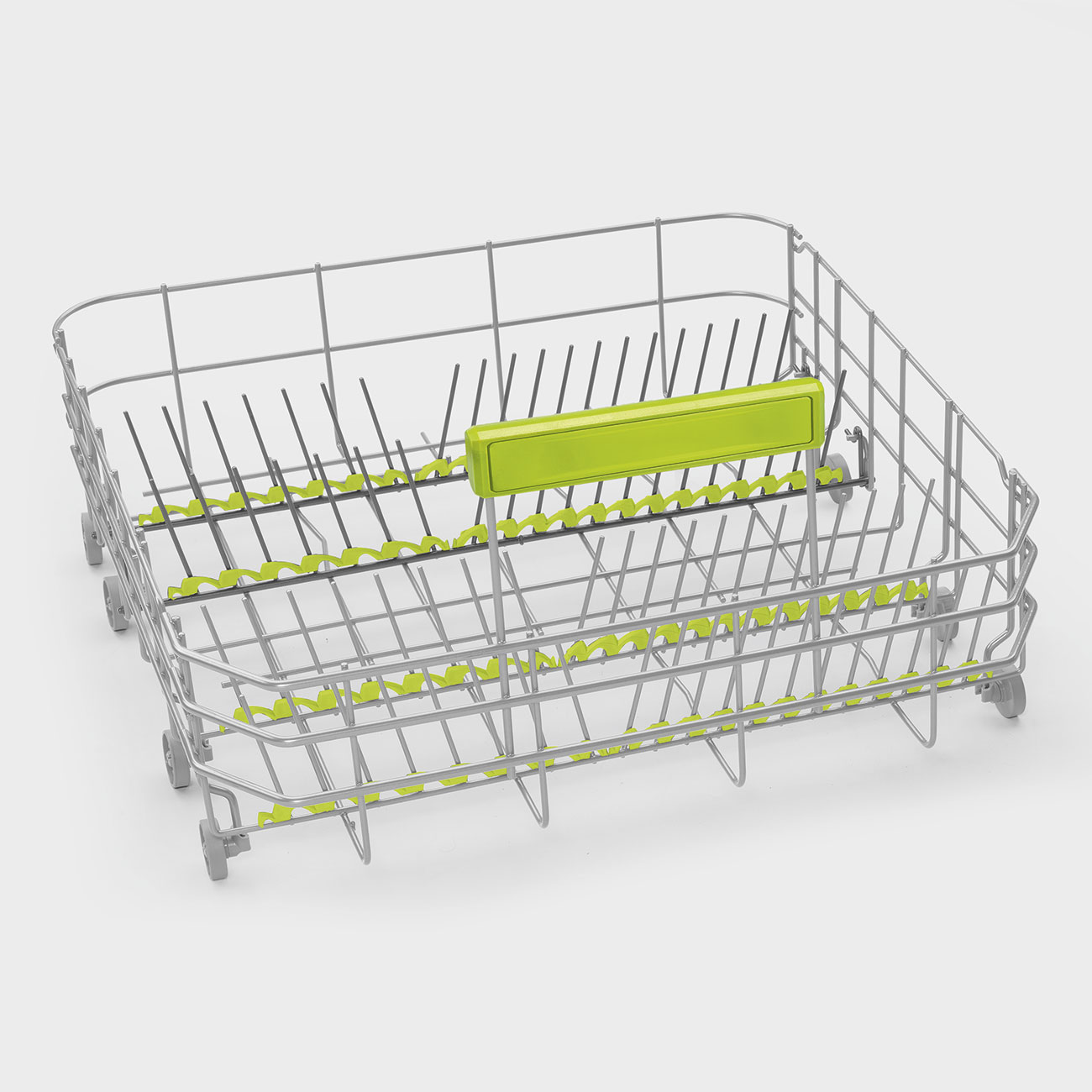

- Lower Basket : With 2 foldable racks
- Upper Basket : With central fixed racks
- Handle:In plastic on upper and lower basket
- Largest loadable dish in upper basket : 25,0 cm
- Lower basket with anti-drip inserts : Yes
- Largest loadable dish in lower basket : 30,0 cm
- Colour Inner Components : Green
- Height adjustment of the upper basket : On three levels (5 cm)

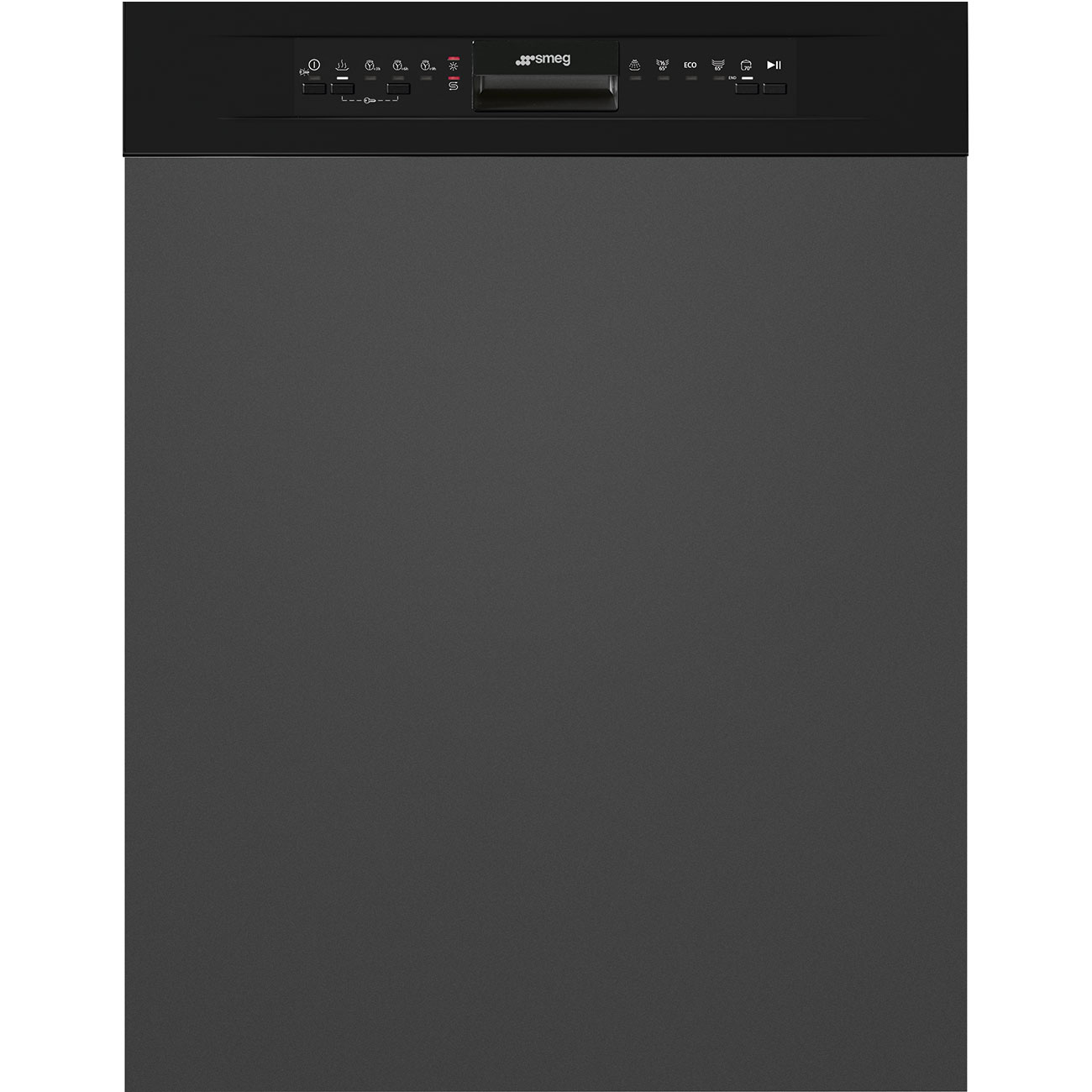

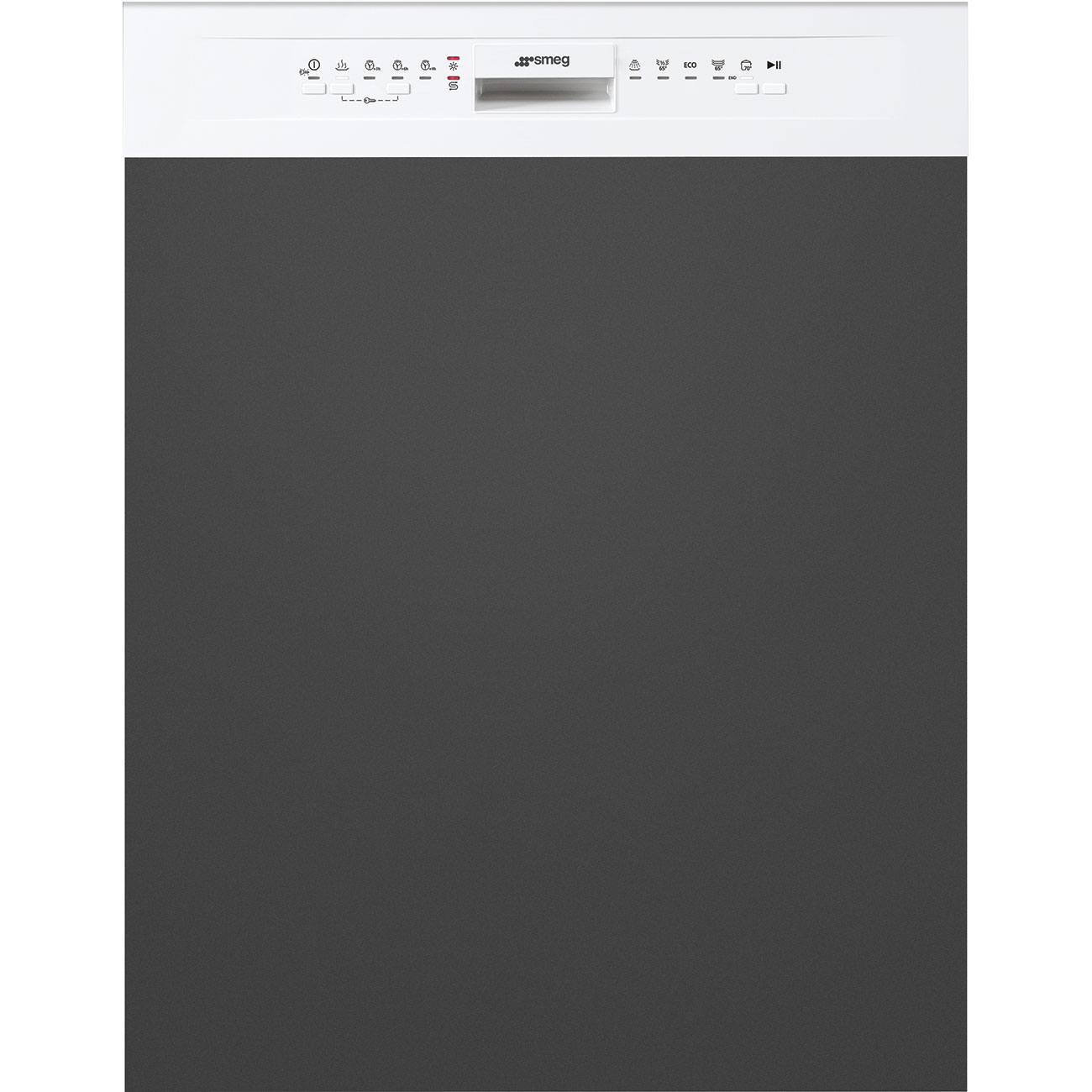

AVAILABLE COLORS
- Grey
- Black
