Codelocks KL1200 Kitlock Locker Lock
KL1200 KITLOCK LOCKER LOCK
KL1200 KITLOCK LOCKER LOCK
Robust keyless access. For more challenging environments, the KL1200 includes all the benefits of the KL1000 Classic but is tougher and more robust.
INFORMATION
BRAND
Codelocks
PRODUCT TYPE
Locker Lock
MEMORY
Non-volatile memory will be retained
DOOR THICKNESS
Ready to fit doors up to 25mm (1")
LOW BATTERY WARNING
Red LED will flash on opening to indicate low battery
FIXING
Dual Fixing Points
AVAILABLE FINISHES
2
BUTTONS
2 x 5 + Programming
CODE CHANGE METHOD
Keypad (On Door)
ENHANCED KEYLESS ACCESS CONTROL
With additional programming features, stainless steel buttons, dual fixing points and increased battery life, the KL1200 provides enhanced benefits to facilities managers looking to simplify access control without the need for keys. Quick, tough and cost effective.

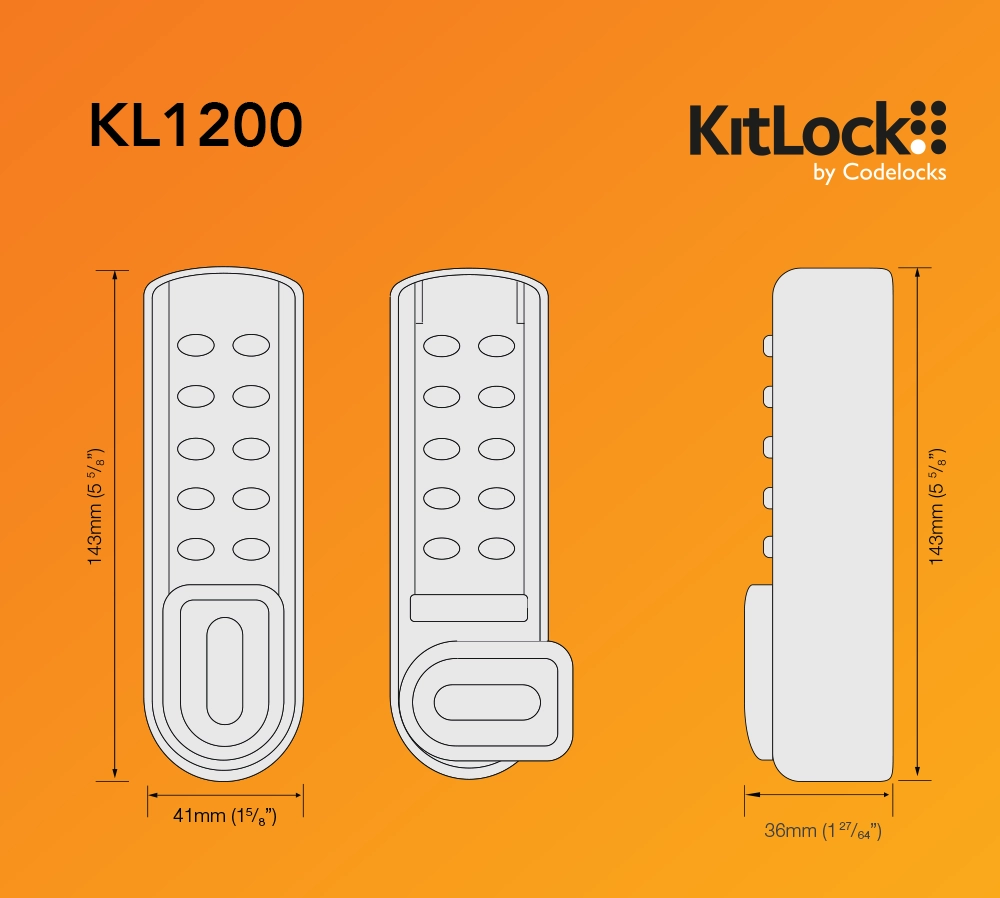

LOCK DIMENSIONS
- Height : 5 5⁄8"
- Width : 1 5⁄8"
- Depth : 1 7⁄16"
POWER
2x AAA
USER TYPES
Codes
BATTERY OVERRIDE
A 9 volt PP3 battery can be placed against external contacts
SUITABLE FOR
Internal & External
PRODUCTION
Made in United Kingdom
DUAL AUTHORIZATION
This new feature requires two valid User Codes to be entered for access to be granted. This adds an additional level of access control!
RESTRICTED OPERATION TIME
Control access between set hours. This feature is ideal for locker rental outside the normal office hours, and repeats every day automatically.

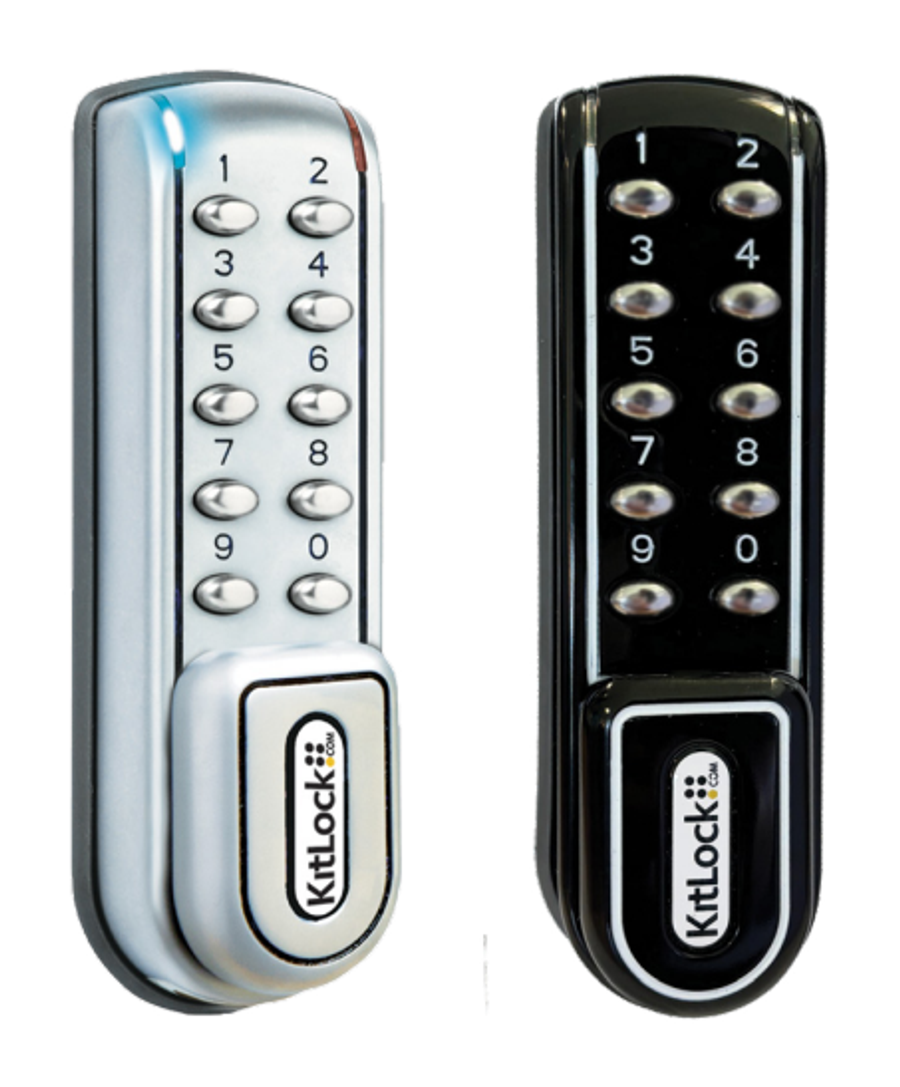

FINISHES
- Black
- Silver Gray
AUTO-OPEN
In Public Function the updated KL1200® locker lock can be programmed to automatically unlock at a specific time enabling the lockers to be cleaned for next day use.
ADD UP TO 20 USER CODES
In Private Function it is now possible to support 20 individual users, each with their own code. This is ideal for multi-person applications such as shared equipment lockers.
HANDED
Non Handed
LOCK MATERIAL
Zinc Alloy
USER LEVELS
- Master
- Sub Master
- Technician
- Standard User
KEYPAD
11 Individual Round Buttons
IP RATING
IP54 when fitted with gasket
ORIENTATION
- Vertical
- Right Handed
KEY FEATURES
- Battery override
- Audible keypad
- 11 button keypad
- 4 digit User Code
- 6 digit Technician Code

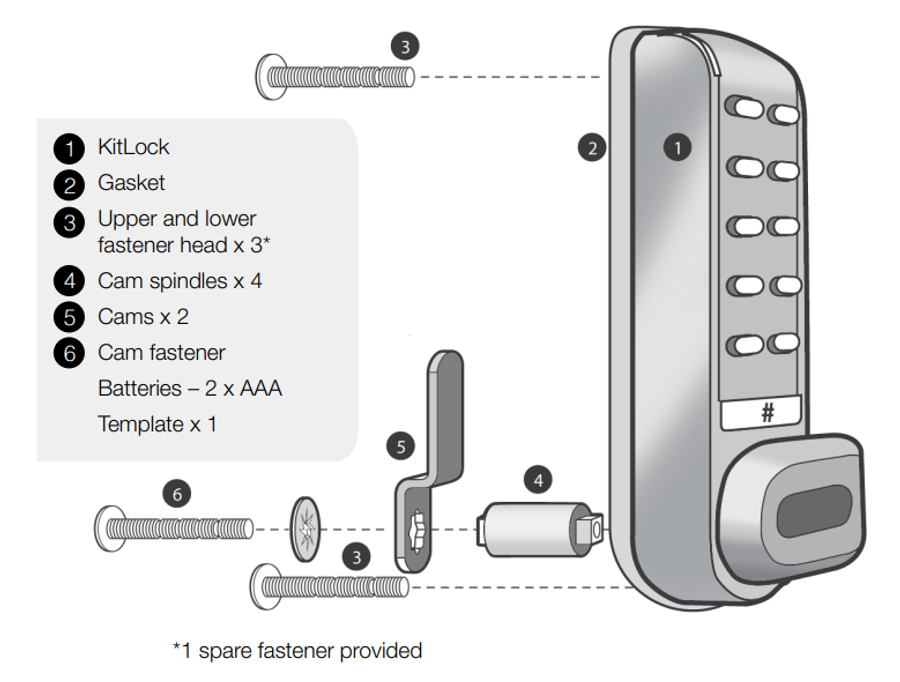

- All parts / fixings / templates included
- Auto unlock feature
- Right hand version available
- Slam latch accessory available
- IP54 rated when fitted with gasket
- 8 digit Master and Sub-Master Code
- Up to 50,000 operations from 2 x AAA batteries (supplied)
USE
Security
LATCH TYPE
Cam
PUBLIC FUNCTION
In this function the KitLock operates with a single User Code. The user enters a personal four digit code, this locks the lock. The same code is entered once only to open the lock before automatically being erased and ready for the next user. This function is used for short term, multiple occupancy applications, e.g. hot desking in an office or a locker in a sports club.
PRIVATE FUNCTION
This is the default function and is already pre-programmed in new locks. This function is used where the same code will be repeatedly used, e.g. an employee with the same locker/drawer in the workplace.
DOWNLOADS
↓ Data Sheet
↓ Locker Sticker
↓ Getting Started Guide
↓ KL1200 Documentation
↓ Vertical installation Instructions
↓ Vertical Programming & Operating Instructions
GUARANTEE
2 Years
OPERATIONS
Up to 50,000 opening per 2 x 1.5 AAA batteries
