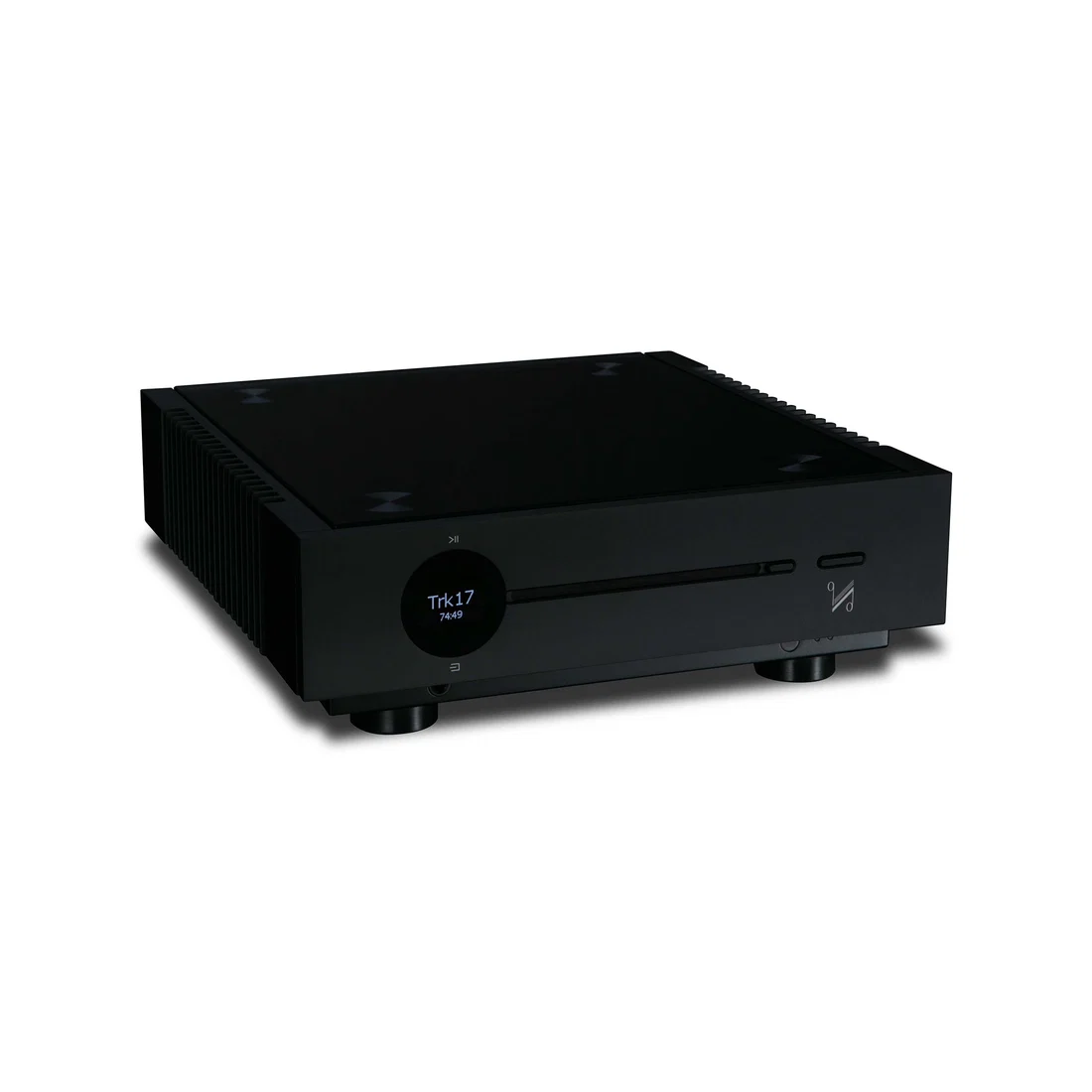

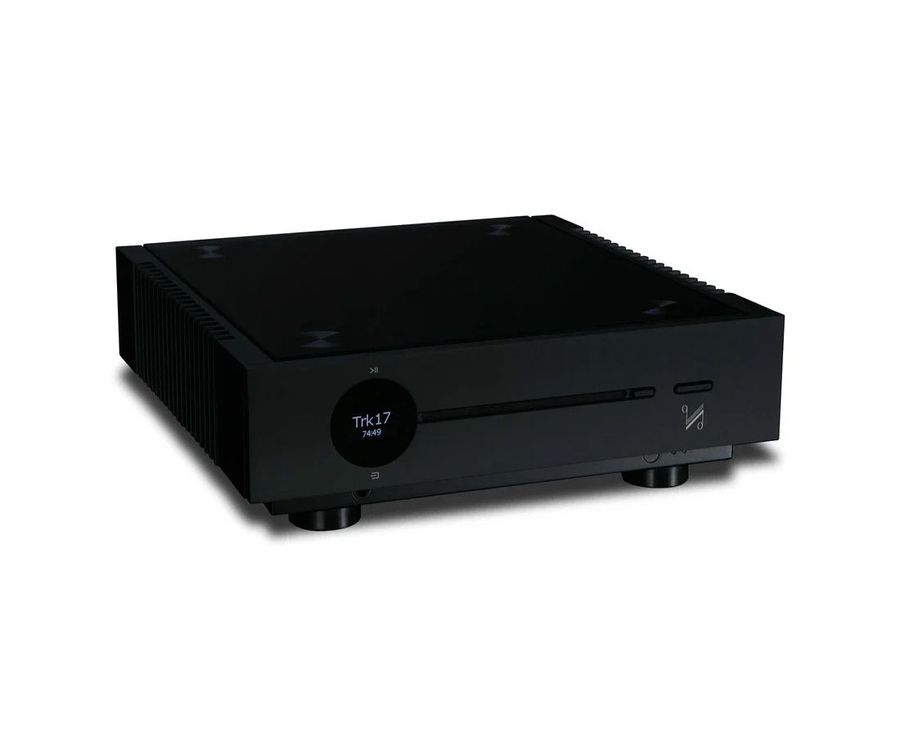

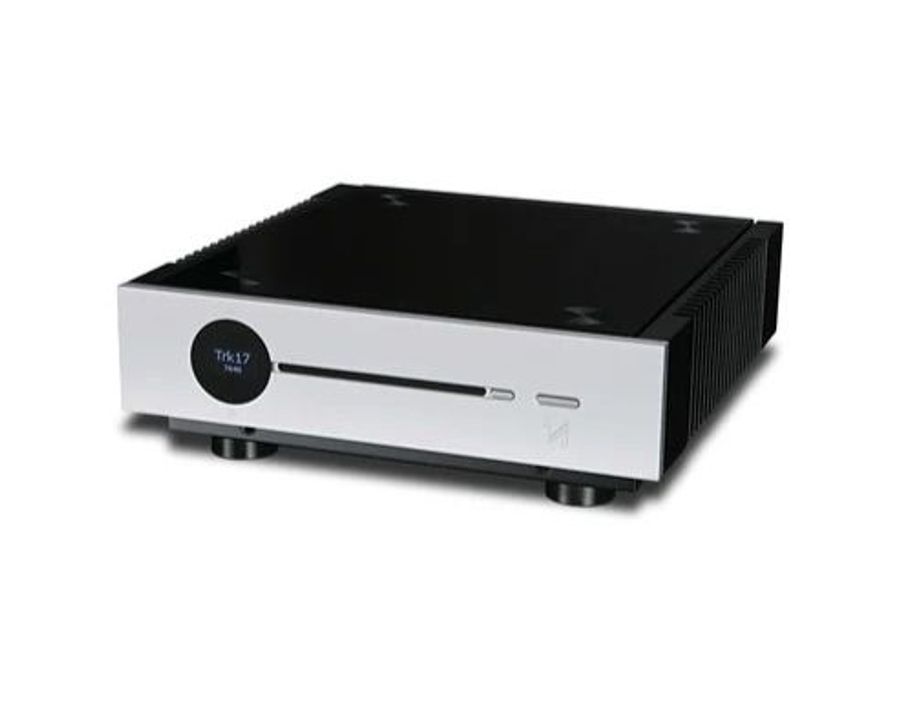

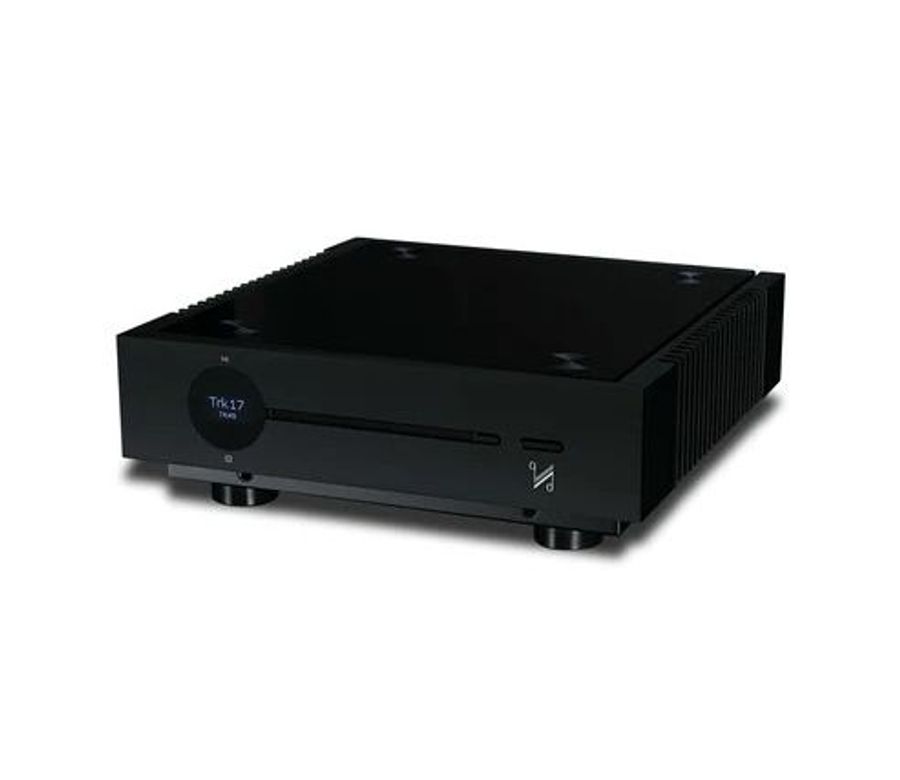

quad Artera Solus CD Player
ARTERA SOLUS CD PLAYER
ARTERA SOLUS CD PLAYER
CD, DAC, Pre-amp with integrated amplifier
The artera solus – a multi-tasking hi-fi system packed into a single sleek and sophisticated box, combining a CD transport, dac, pre-amplifier, and power amplifier in a single compact chassis, with extensive connectivity options including bluetooth connectivity.
INFORMATION
BRAND
Quad
PRODUCT TYPE
CD Player
PRODUCTION
Made in United Kingdom
RATED POWER OUTPUT
75Wpc (8ohms)
PRODUCT DIMENSIONS
- Width : 320 mm
- Height : 105 mm
- Depth : 320 mm
WEIGHT
11.84kg
MODEL
Artera Solus
SIGNAL TO NOISE RATIO (S/N)
>104dB A-weighted (ref: 1V , Volume=Max.)
KEY TECHNOLOGY & FEATURES
DSD (up to DSD256 Compatible) BIuetooth (aptX)
CHANNEL SEPARATION
> 1 00dB (1 kHz)
TOTAL HARMONIC DISTORTION
<0.002% (20Hz-20kHz)
USB INPUT
USB B (PC / MAC)
STANDBY POWER CONSUMPTION
<0.5W
DETAIL
CD player, dac, pre-amp, integrated amplifier and bluetooth connectivity
DIGITAL AUDIO OUTPUTS
1 x Optical TOSI ink
1 x RCA (DIG)
FREQUENCY RESPONSE
- 20Hz-20kHz
- 1 kHz (± 0.2dB)
D/A CONVERTER
ESS ES9018 32bit DAC
ANALOGUE INPUTS
2 x RCA (AUX1, AUX2)
AUDIO FILE FORMATS
- ALAC
- WAV
- FLAC
- AIFF
- WMA
- MP3
- AAC
- AAC+
- DSD64
- DSD128
- DSD256
- AAC_HE
ANALOGUE OUTPUTS
- 2 x RCA
- 2 x Balanced XLR
- 6.3mm Headphone Jack
DYNAMIC RANGE A-WTD
98dB
SPEAKER OUTPUTS
Stereo Pair Binding Posts
OUTPUT LEVEL (1 KHZ) VARIABLE OUTPUT
- 0 - 4 Vrms (Pre Outputs)
- 0 - 8 Vrms (Balanced Outputs)
COLORS
- Aluminium Black
- Aluminium Silver
DIGITAL AUDIO INPUTS
- 2 x Optical TOSI ink
- 2 x RCA(DIG1, DIG2)
TOTAL HARMONIC DISTORTION
<0.009% (1 OW 20Hz-20kHz)
FREQUENCY RESPONSE
± 0.5dB (20Hz-20kHz, 1 kHz)
MAX. SAMPLE RATES
- 384kHz (USB)
- 192kHz (S/PDIF)
SIGNAL TO NOISE RATIO (S/N)
>110dB A-weighted (ref: 75W)
CHANNEL SEPARATION
>82dB A-weighted (ref: 1W)
SAMPLE RATE (DIGITAL INPUTS / OUTPUTS)
44.1 -192kHz
