BULLERJAN FREEFLOW FF17 TYP 02 STOVE

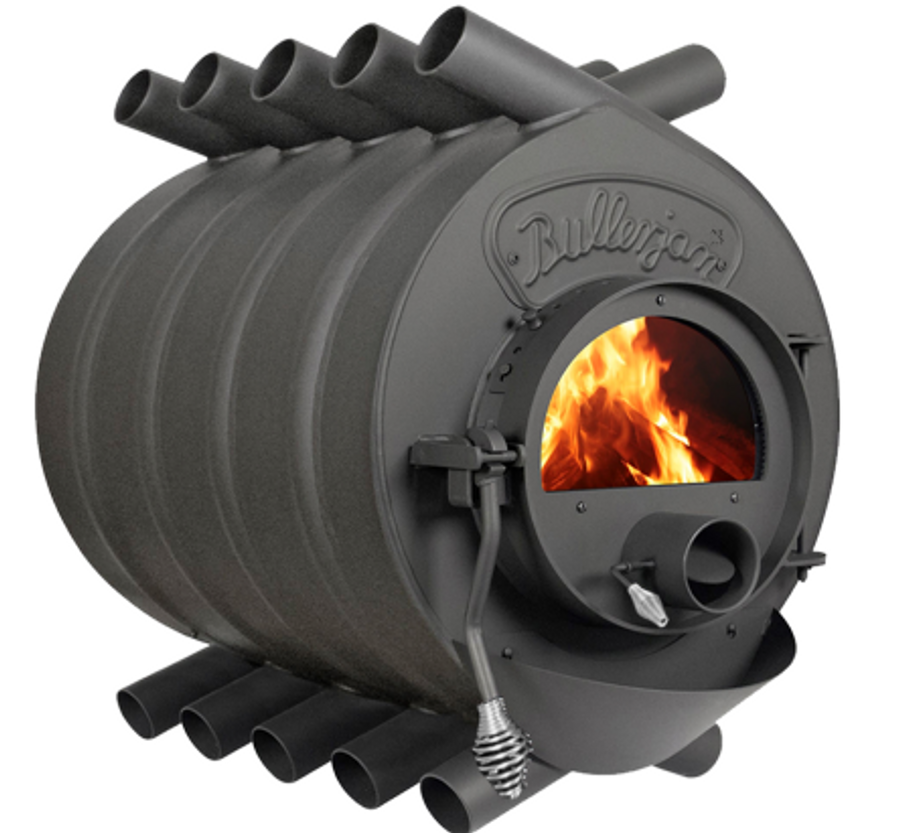

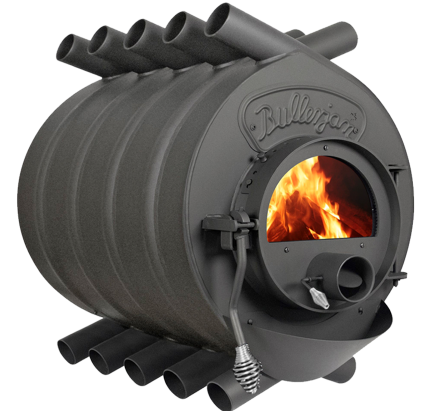

BULLERJAN FREEFLOW FF17 TYP 02 (14,2 KW) STOVE
The Bullerjan classic! Proven quality - Made in Germany. The FreeFlow is a highly effective, reliable, safe and durable heater, which can even be used as a stand-alone heater due to its warm air function.
INFORMATION
TESTED NOMINAL HEAT OUTPUT (NWL/NHO)
14.2 kW
BRAND
Bullerjan
PRODUCT TYPE
Stove
WEIGHT
150 kg
PRODUCTION
Made in Germany
NOX (13% O2)
95 mg/m3
DUST (13% O2)
22 mg/m3

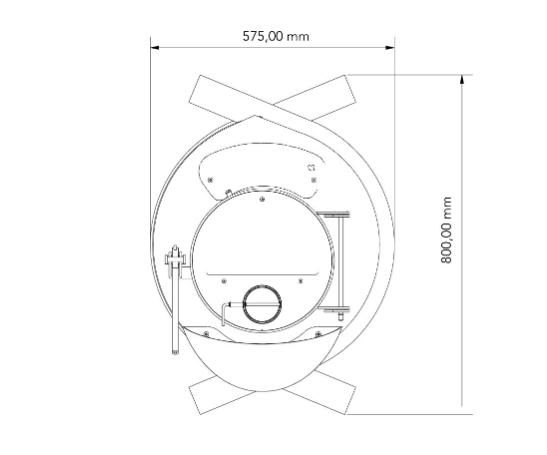

DIMENSIONS
- Height : 80 cm
- Width : 65 cm
- Depth : 86.5 cm
WEIGHT BASIC WITHOUT ANY COVER
140 kg
EXHAUST GAS MASS FLOW RATE AT NWL/NHO
11 g/s
HEIGHT CENTRE EXHAUST GAS NOZZLE
Approx. 60 cm
HEIGHT CENTRE AIR SUPPLY NOZZLE BACK
Approx. 20.8 cm
CO CONTENT (13% O2)
1250 mg/m3
CO CONTENT (13% O2)
0.10 Vol.-%
DISTANCE TO SIDES FOR MODEL BASIC WITHOUT ANY COVER
70 cm
EXHAUST GAS NOZZLE Ø
15 cm
D OF COMBUSTION CHAMBER
60.5 cm
DISTANCE FROM COMBUSTIBLE MATERIALS
- Sides : 45 cm
- Bottom : 7 cm
- Front : 100 cm
MEAN EXHAUST GAS TEMPERATURE
289 °C
WIDTH BASIC WITHOUT ANY COVER
56 cm
AIR SUPPLY NOZZLE Ø
10 cm
ENERGY EFFICIENCY CLASS
A
EFFICIENCY
80%
DELIVERY PRESSURE
12 Pa
DISTANCE BACKWARDS FROM REAR WALL
55 cm
EEI ( ENERGY EFFICIENCY INDEX)
106
DISTANCE BACKWARDS FROM THE PIPE
40 cm
DOWNLOADS
↓ Data Sheet
↓ General catalogue Bullerjan
↓ Assembly instructions
↓ Declaration of performance
↓ Technical documentation
↓ Declaration of conformity
FEATURES
FUNCTION AND QUALITY - MADE IN GERMANY
- Extremely robust combustion chamber made of bent steel tubes

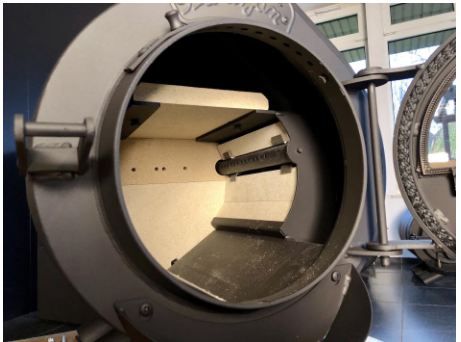

- Firing chamber lined with high-quality vermiculite
- Effective window washing system
- Easy control of the flame pattern by precisely adjusted air supply regulation
- Warranty extension (5 years in total) on the stove body upon product registration
- If required, comprehensive service offer by the Bullerjan specialized trade or the Bullerjan after-sales service
MAIN FEATURES AND DESIGN
- Very high efficiencies of up to 81 percent
- Tested nominal heat capacity: 14,2 kW (type 02)
- Handle variants made of steel (chrome-plated or brass-plated) or wood

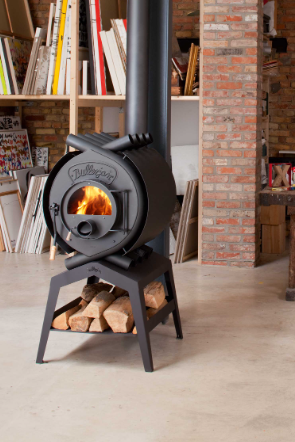

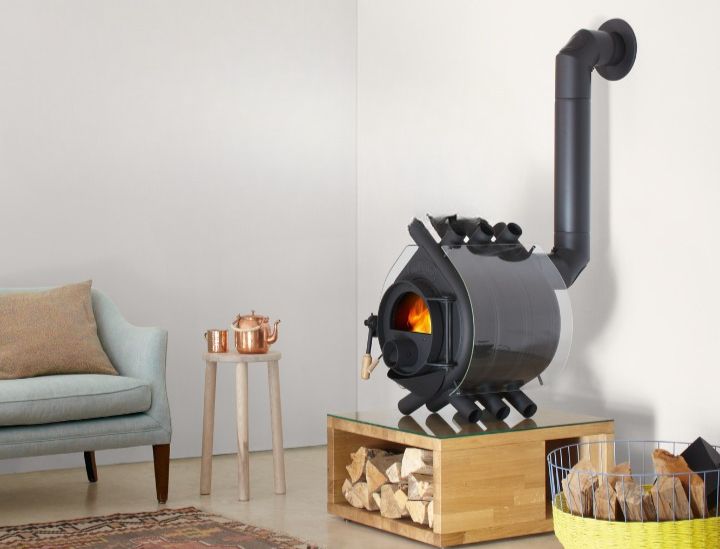

- Various pedestals allow different design variants and installation heights
- For 40 years the epitome of a high-performance hot air/convection stove

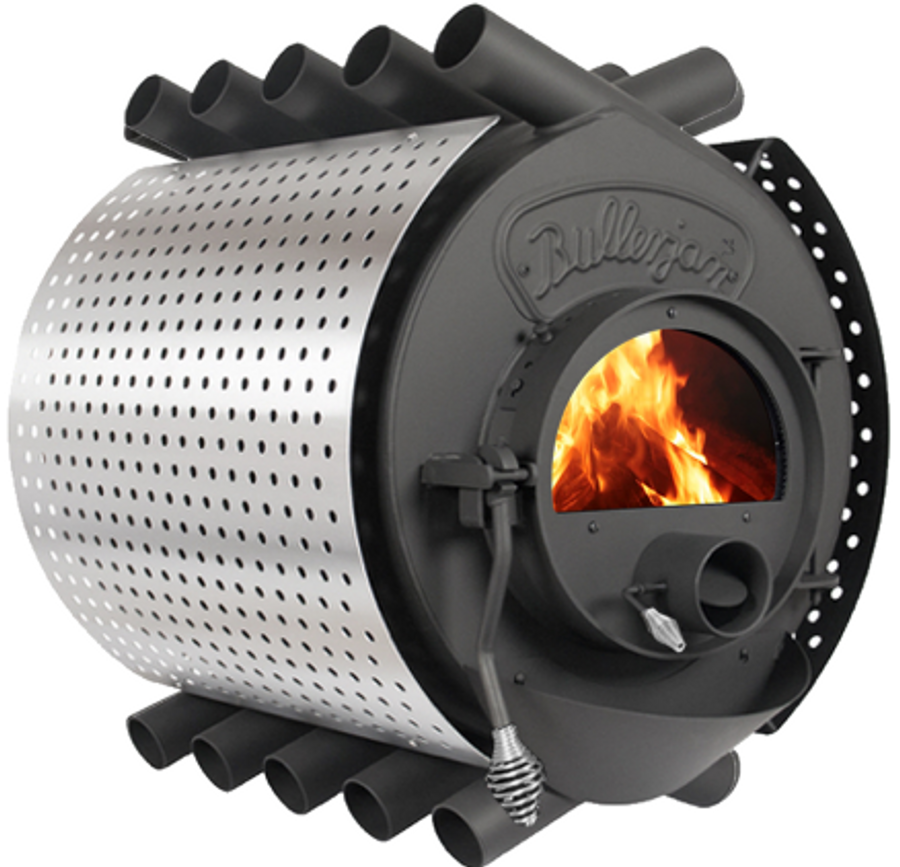

- Choice of various heat-protective covers made of steel, stainless steel and glass
- Height adjustors in the pedestals (except Carré) allow the stove to be aligned on uneven floors
BULLERJAN FREEFLOW FF17 TYPE 02
The new model FreeFlow FF17 looks purely visually unchanged - as it has for 40 years. And it remains the same. However, the combustion chamber has changed and with this model, thanks to the partial lining with high-quality vermiculite, it enables modern, contemporary clean combustion even without a catalytic converter.
You get to the furnace a round arch and a connecting pipe as part of the furnace.Various linings and platforms make the FreeFlow not only a reliable, but also a visually appealing device. The FreeFlow is also available with all types in the "Basic" version. In this version, the furnace comes completely without heat-protective covers. When installing it is only necessary to observe a side distance of 70 cm.
heat covers & HandlE
HANDLE VARIATIONS
-Brass -Chrome -Wood Classic -Wood Ball -Wood Stick
-Wood Drop
THERMAL HEAT COVERS
-Basic -Classic 1 -Classic 2 -Flame -Stainless Steel
-Stainless Steel With Flames
