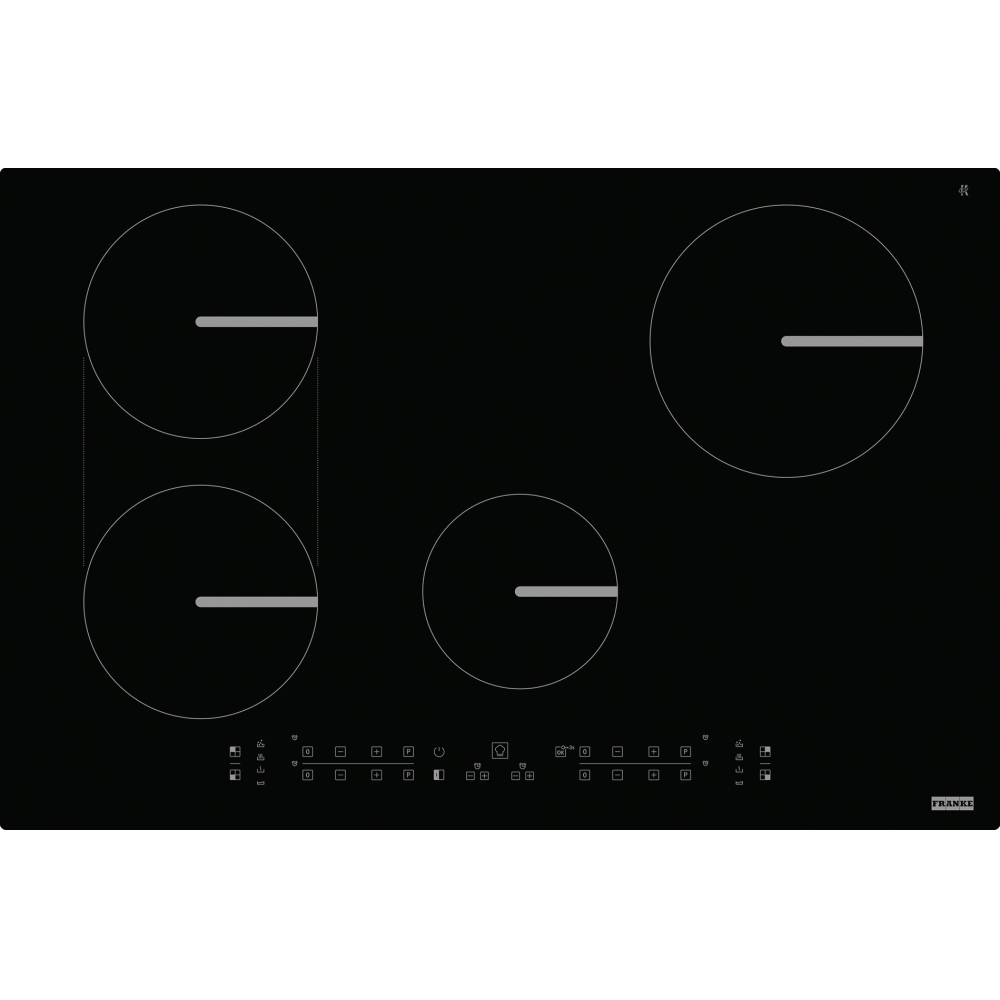

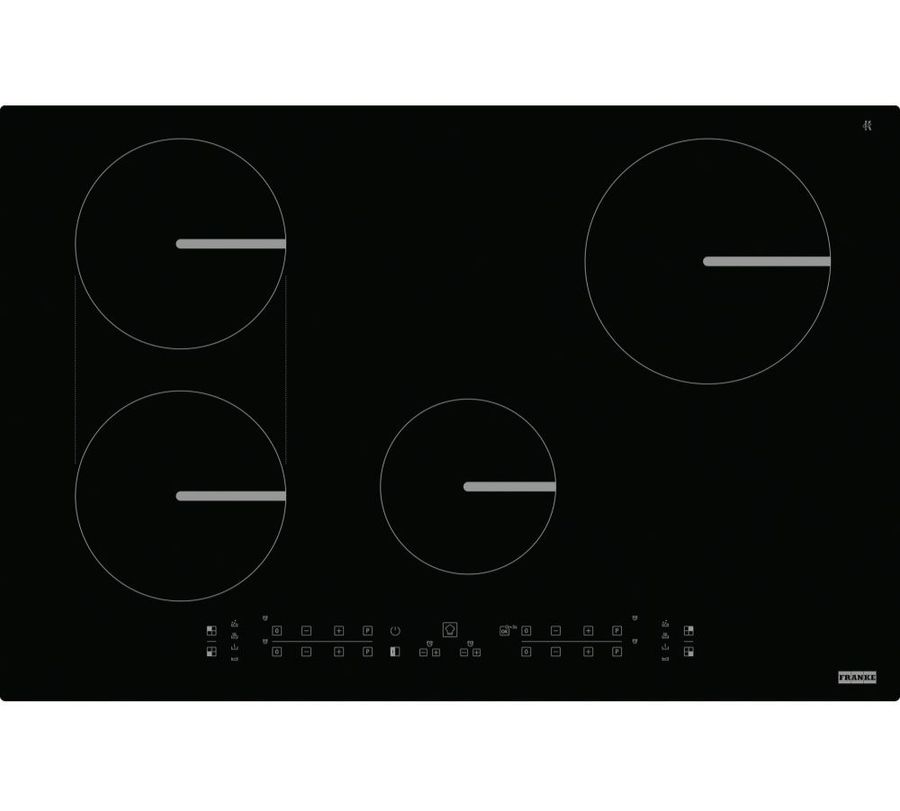

Franke Smart FSM 804 I B BK Induction Hob
SMART FSM 804 I B BK INDUCTION HOB
SMART FSM 804 I B BK INDUCTION HOB
Smart Induction Hob FSM 804 I B BK, Black, 77cm wide.
Features include: cooking zones, Frameless design, User interface: 7 segments, direct touch. 9 power levels + booster, Red digital display, Flush or standard installation.
information
ARTICLE NUMBER
108.0606.110
PRODUCT TYPE
Induction
EAN/UPC
7612985785280
TECHNOLOGY
Induction vitroceramic
FINISH
Glass
POWER LIMITATION
Yes
TYPE OF HEATING ZONE REAR LEFT
Rounded
MAX BOOSTER NOMINAL POWER
3000 W
OVAL ZONE
No
FLEXPRO ZONE
No
POWER LEVEL
9 + booster
NUMBER OF BOOSTER
4
UI TYPE
Touch control
TIMER
Yes
INSTALLATION TYPE HOB
Standard&flush
NUMBER OF BURNERS
2

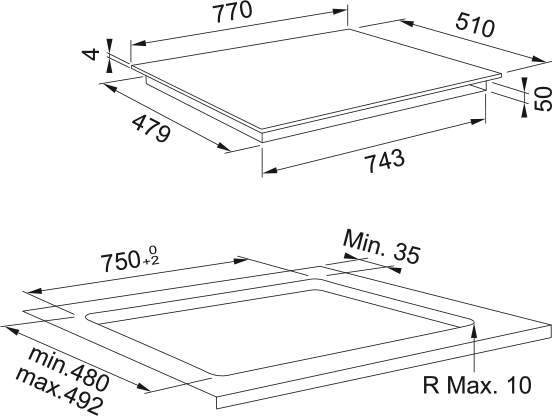

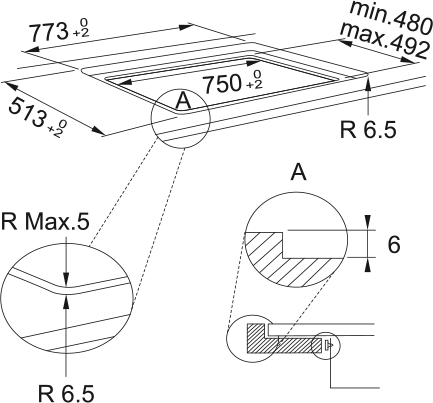

TECHNICAL DRAWING
DIMENSIONS - CUTOUT
- Cutout Depth : 490 mm
- Cutout width : 750 mm
WIDTH OVERALL
770 mm
COMMERCIAL DIMENSION
75x50 mm
PACKING DIMENSIONS
- Packaging Depth : 600 mm
- Packaging Width : 855 mm
FREQUENCY
50-60 HZ
BRIDGE ZONE
Yes
ARTICLE NUMBER
- Product brand : Franke
- Product family : Smart
- Model range : Smart
FLEXI ZONE:
No
SAFETY LOCK
Yes
USER INTERFACE
Direct touch multiple buttons
TYPE OF HEAT. ZONE FRONT LEFT
Rounded
ZONE
- B.power of h.zone front left(W) : 2100
- Diam. of h.zone front left(mm) : 180
- Power of h.zone front left (W) : 1800
- B.pow. of h.zone front right(W) : 1600
- Diam. of h.zone front right(mm) : 145
- Power of h.zone front right (W) : 1200
- B.power of h.zone rear left(W) : 2100
- Diam. of h.zone rear left(mm) : 180
