Elica Umbria Range Hood
UMBRIA RANGE HOOD
UMBRIA RANGE HOOD
Technology and performance at your home

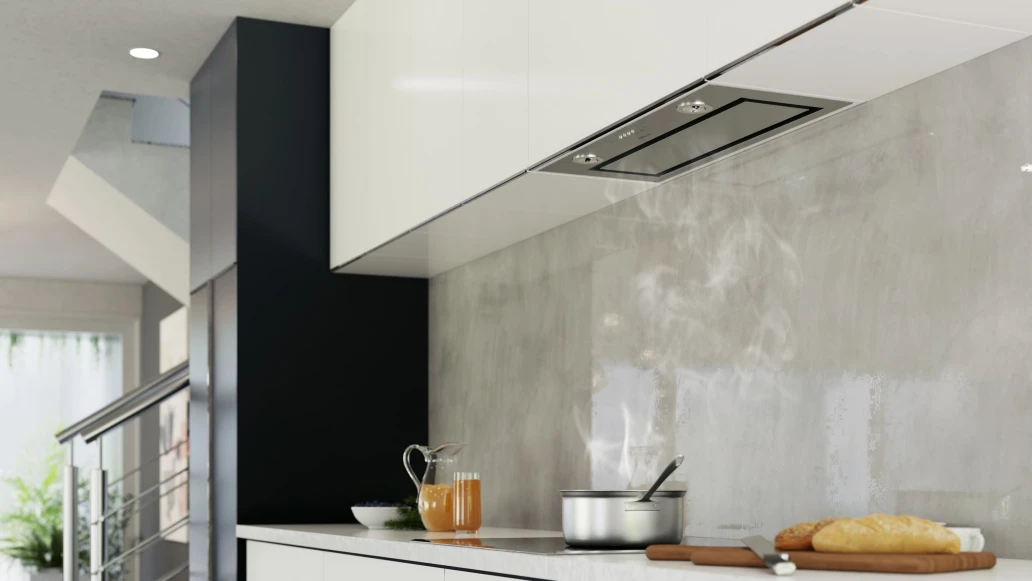

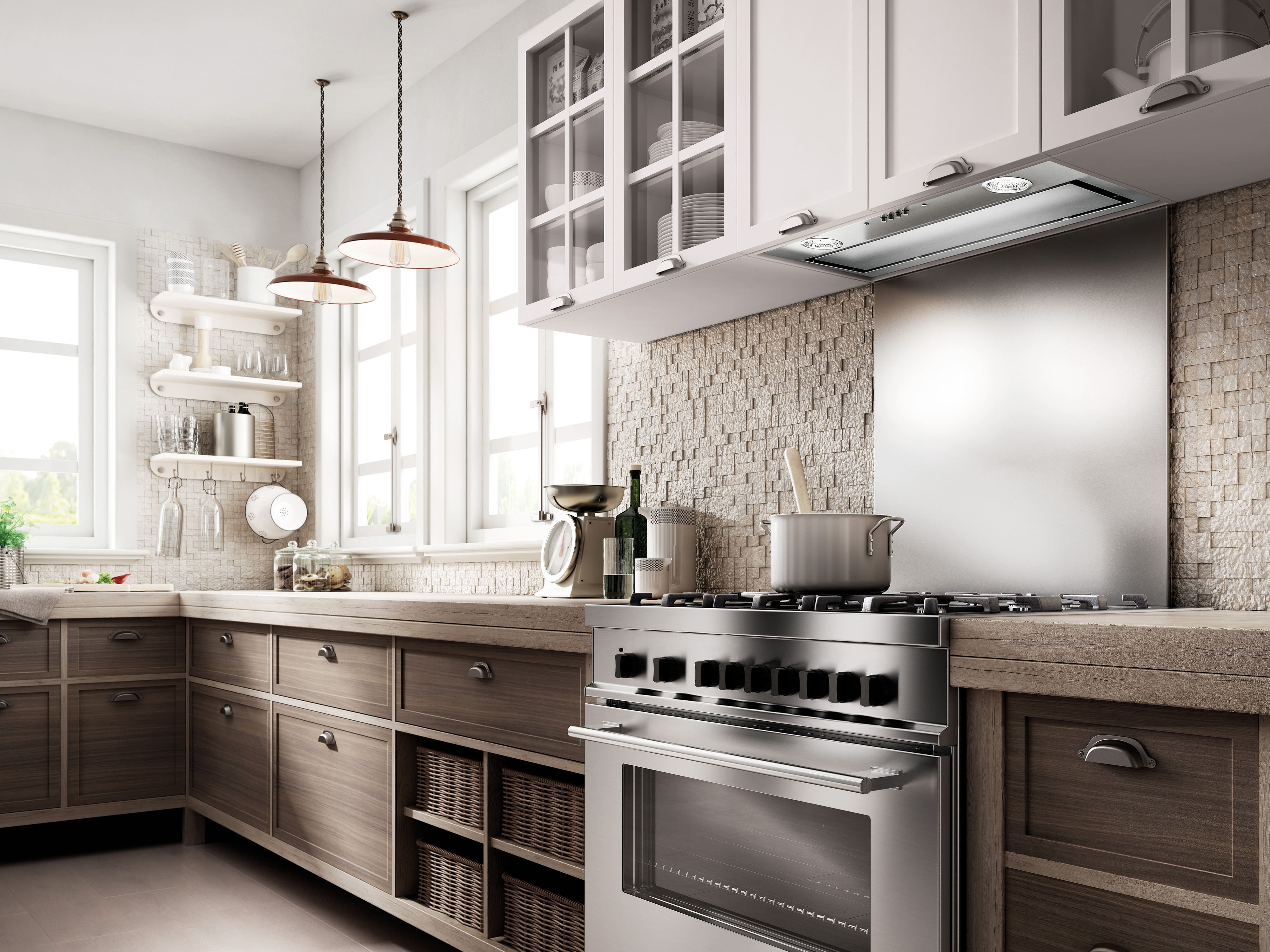

Umbria with 28” and 34” width models available and 11 3/4” depth enables it to be discreetly installed within standard 12” deep cabinetry.
Equipped with Perimeter Aspiration technology that helps to achieve Top Performance by delivering more powerful and efficient fume extraction, plus it reduces noise.
Umbria is designed for both ducted-out or recirculating installation. Now, featuring a snap-on easy installation mechanism and exhaust outlets located at both the top and rear for enhanced functionality.
FEATURES
LED LIGHT
Illuminate your culinary journey with LED brilliance.
An expected lifetime of over 20,000 hours represents the most remarkable advantage of LED light bulbs.
TOP PERFORMANCE
High fume capture, low noise – the perfect balance.
Excellent performance for models equipped with this plus. High fume capturing capacity with an average aspiration range of 600 CFM’s with low noise levels, 1.2 - 1.7 sones at working speed.
HUSH SYSTEM
Silent innovation, redefine tranquility.
An exclusive sound-deadening technology that effectively reduces sound levels by over 35%.
PERIMETER ASPIRATION
The extraction surface is now tucked away.
Distributed over the entire perimeter of the hood, the extraction system offers top efficiency. The extraction area is concealed by a panel rendering pure elegance to your hood.
INFORMATION
BRAND
Elica
PRODUCT TYPE
Range Hood
DUCT TRANSITION-34”/28”
- Round 6" (Top only)
- Round 6" (Top or Rear)
MODELS
- EUM628S1
- EUM634S1
AVAILABLE SIZE
- 28”
- 34”
INSTALLATION TYPE
Ducted or recirculating with kit
COLLECTION
Umbria
SERIES
Techne
WEIGHT-34”
- EUM634SS: 26,68lb
- EUM634S1: 26,67lb
WEIGHT-28”
24.69lb
ELECTRICAL
120 V/60 Hz
FILTERS
- Dishwasher-Safe
- Anodized Aluminum Mesh Filter + Perimeter Aspiration
LIGHTING
LED 2 x 2.1 ww 4000 KK
RECIRCULATING KIT
KIT02770 (2 Round)
PRODUCTION
Made in Mexico
BLOWER TYPE
600 CFM (3-speed)
ILLUMINATION
2 LED, 2.1W, 4000K
VENTING TYPE
Convertible with Kit
FINISHING
Stainless Steel
AIRFLOW
600CFM
CONTROLS
Stainless steel push buttons
NOISE(MIN-MAX SONES)
1.7-6.8 Sones

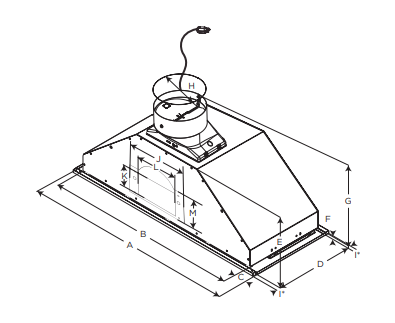

TECHNICAL DRAWINGS
TECHNICAL DRAWINGS

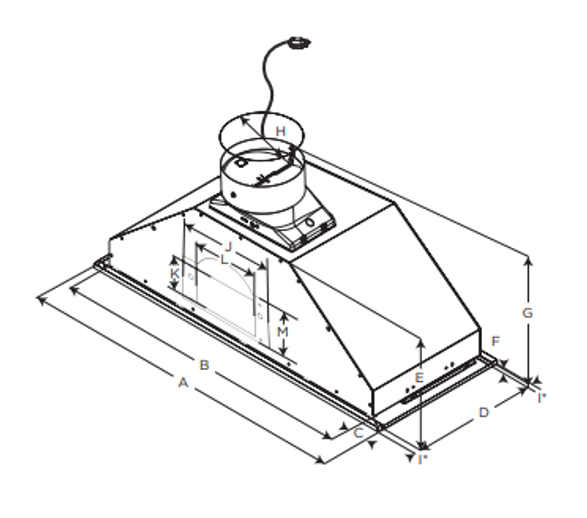

DIMENSIONS 1 (EUM628S1)
- A : 28 1/₄” (71.8 cm)
- B : 26” (66 cm)
- C : 1 ¹/₈” (2.9 cm)
- D : 10 3/4” (27.3 cm)
- E : 9 1/2” (24.2 cm)
- F : 3/₈” (.95 cm)
- G : 15 3/₄” (40 cm)
- H : 6” (15.2 cm)
- I : 1/₂” (1.2 cm)

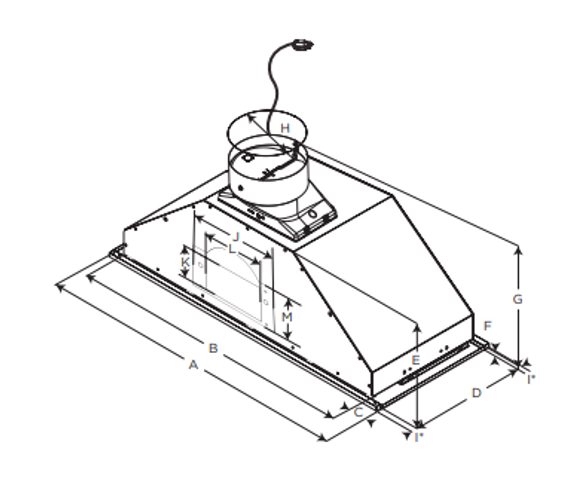

DIMENSIONS 2 (EUM634S1)
- A : 34 ¹/₄” (86.7 cm)
- B : 26” (66 cm)
- C : 4 1/₁₆” (10.3 cm)
- D : 10 3/4” (27.3 cm)
- E : 9 1/2” (24.2 cm)
- F : 3/₈” (.95 cm)
- G : 15 3/₄” (40 cm)
- H : 6” (15.2 cm)
- I : 1/₂” (1.2 cm)
