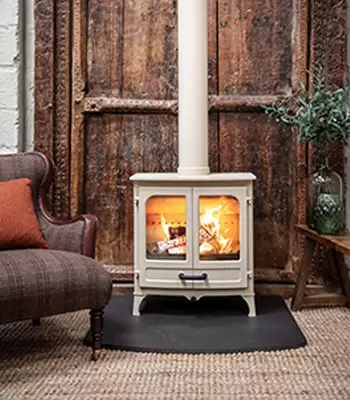

Charnwood The Island II Stove
THE ISLAND II STOVE
THE ISLAND II STOVE
This redesign of our classic twin door stove has a larger picture window and incorporates our Blu burning technology.
This stove burns with an efficiency of over 82% with extremely low smoke particle level of 14mg/m3 (the Ecodesign limit is 40mg/m3).
INFORMATION
BRAND
Charnwood
PRODUCT TYPE
Stove
COLLECTION
The Island II
AVAILABLE COLORS
10
MIN DISTANCE TO COMBUSTIBLES
- Side : 480 mm
- Rear : 500 mm
CO EMISSION
- 0.08% Wood
- 0.08% Solid Fuel
RATED OUTPUT
8kW to room (range 5-11kW
FLUE OUTLET
Top or Rear 150mm (6”) dia

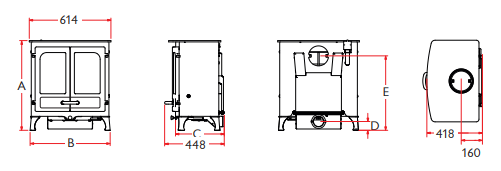

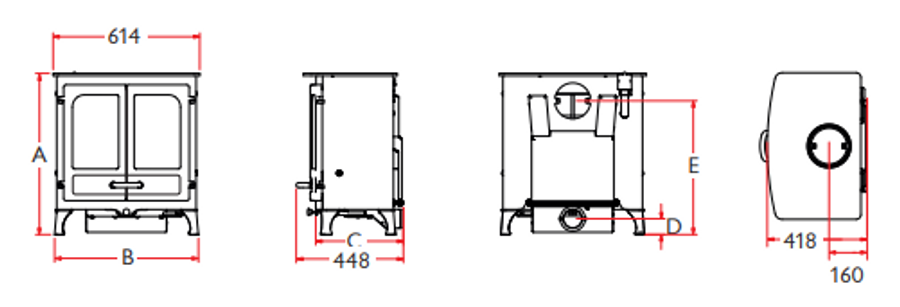

TECHNICAL DRAWINGS
WEIGHT
- Low legs : 133 Kg
- High legs : 134 Kg
- Store stand : 140 Kg
MIN DISTANCE TO COMBUSTIBLES (WITH HEATSHIELD)
- Side : 480 mm
- Rear : 170 mm
MAX LOG LENGTH
480mm (19”)
FLUE OUTLET
Top or Rear 150mm (6”) dia
NET EFFICIENCY
- 82% Wood
- 79% Solid Fuel
SMOKE PARTICLE EMISSION
- 14mg/m3 Wood
- 12mg/m3 Solid Fuel
FEATURES
-SIA Eco Design Ready -Cleanburn Airwash Technology -Quattroflow Air Management System -Converting Grate -Cool-to-touch for safe and easy reloading -Drop down throat plate enabling the chimney to be swept through the stove -Inverted flue collar for seamless flue connection -DEFRA exempt for burning wood in smoke control areas -Exceeds new Eco Design standards -Meets the UK building requirements for installation with a 12mm non-combustible hearth
MATERIALS
- Plate Steel
- Cast iron
- Fire bricks
- Ceramic glass
USE
Heating
ENVIRONMENT
Indoor
FINISHES
ALL FINISHES & OPTIONS
-Highleg -Store stand -Blue -Bronze -Brown -Green -Gunmetal -Pewter -Black -Almond
