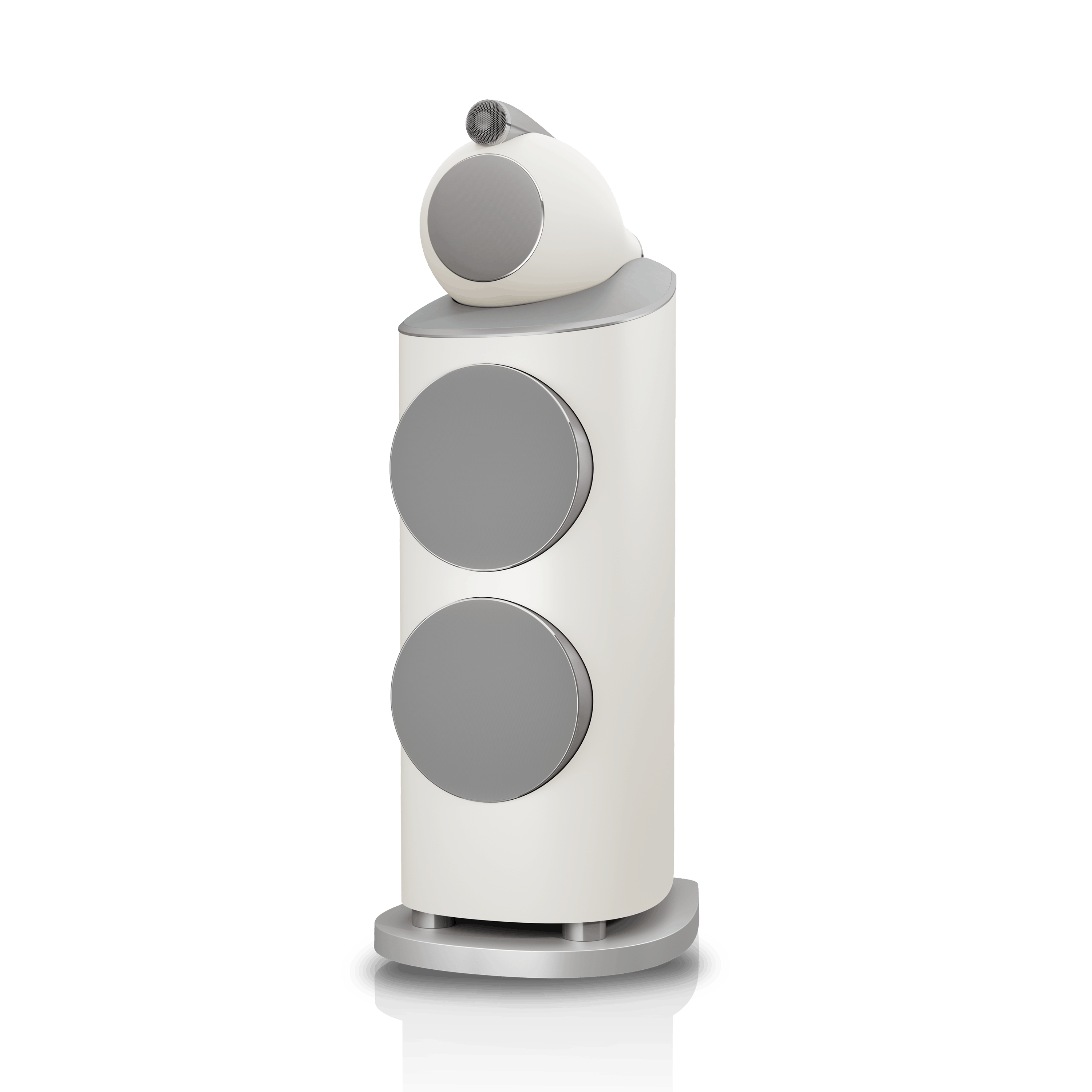

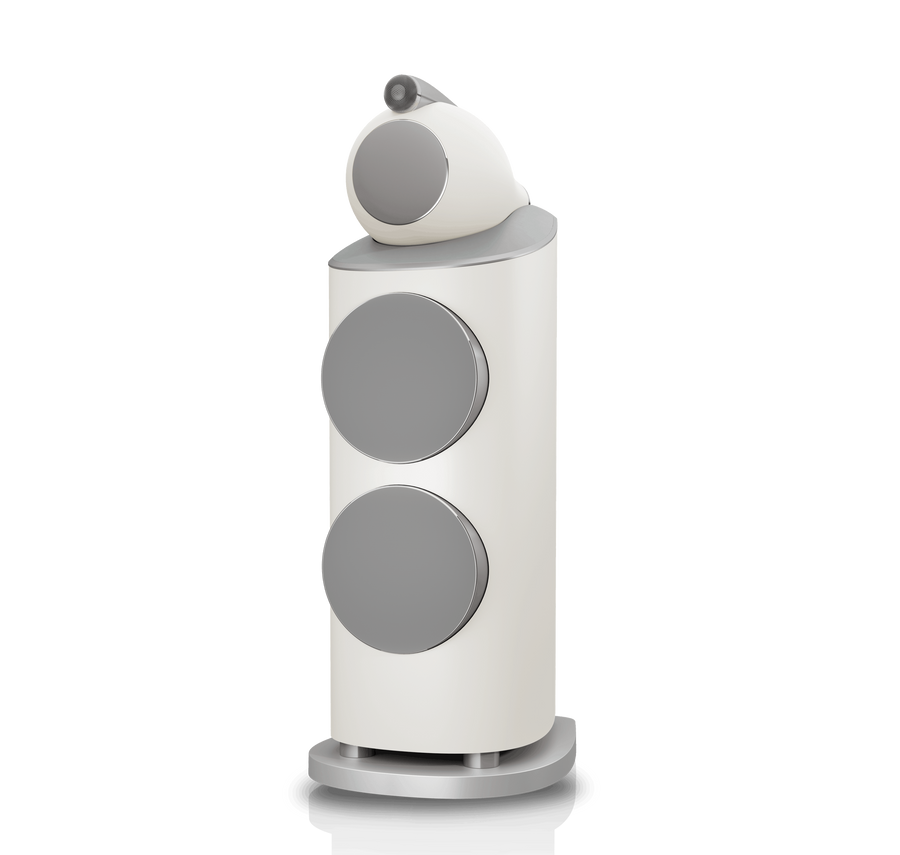

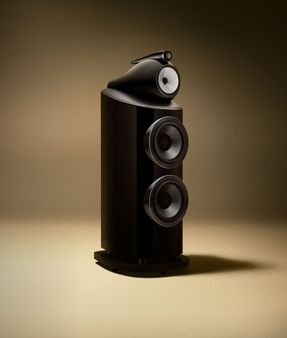

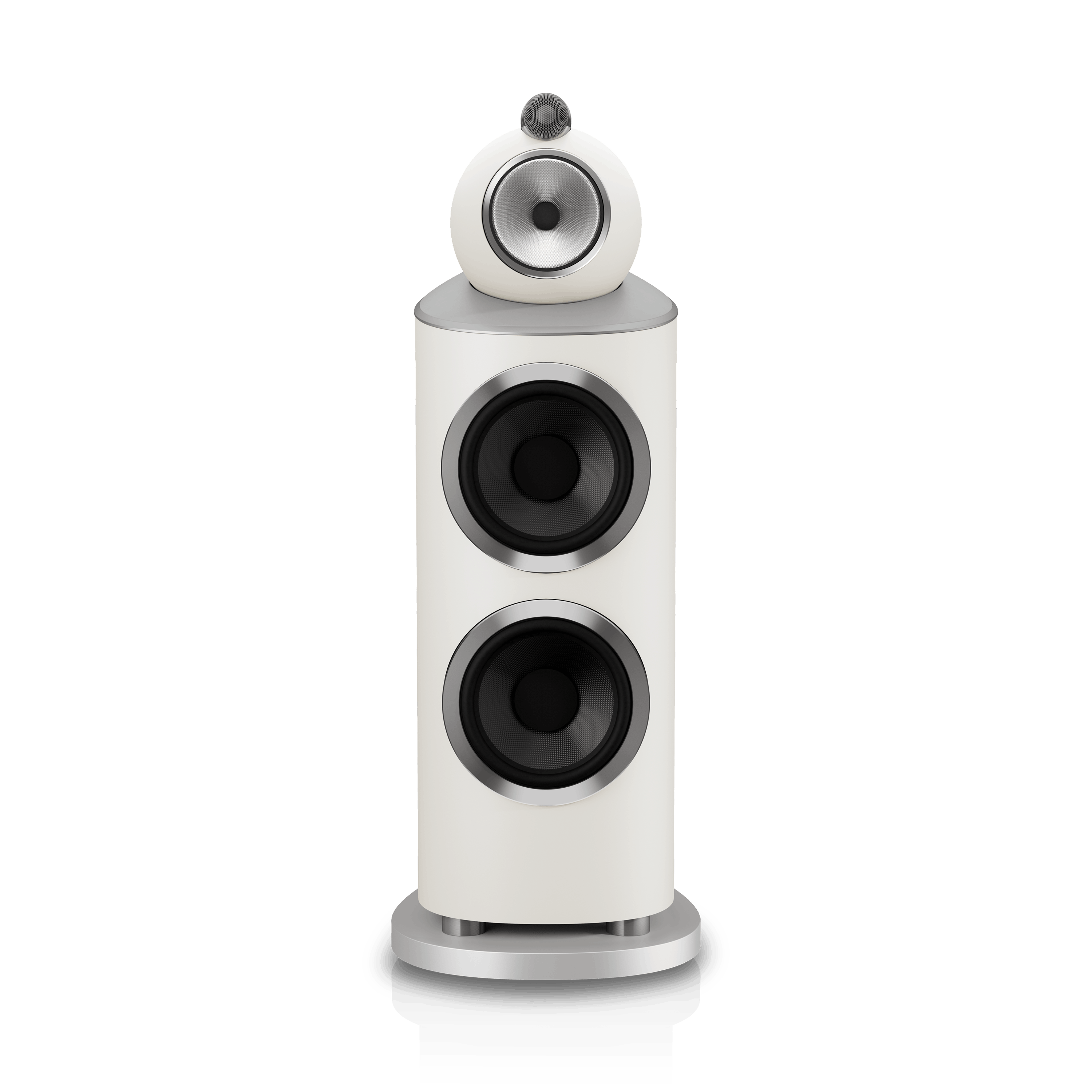

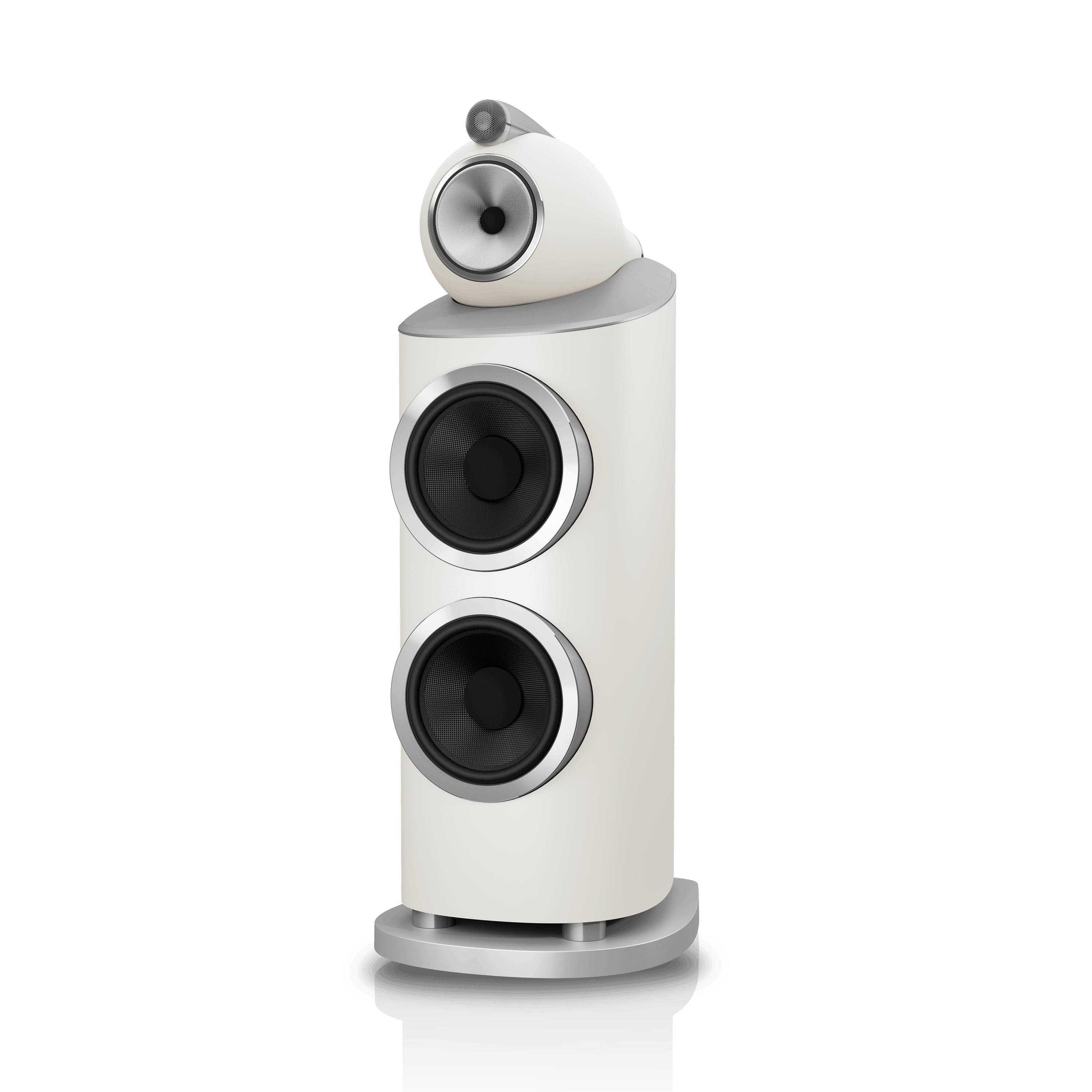

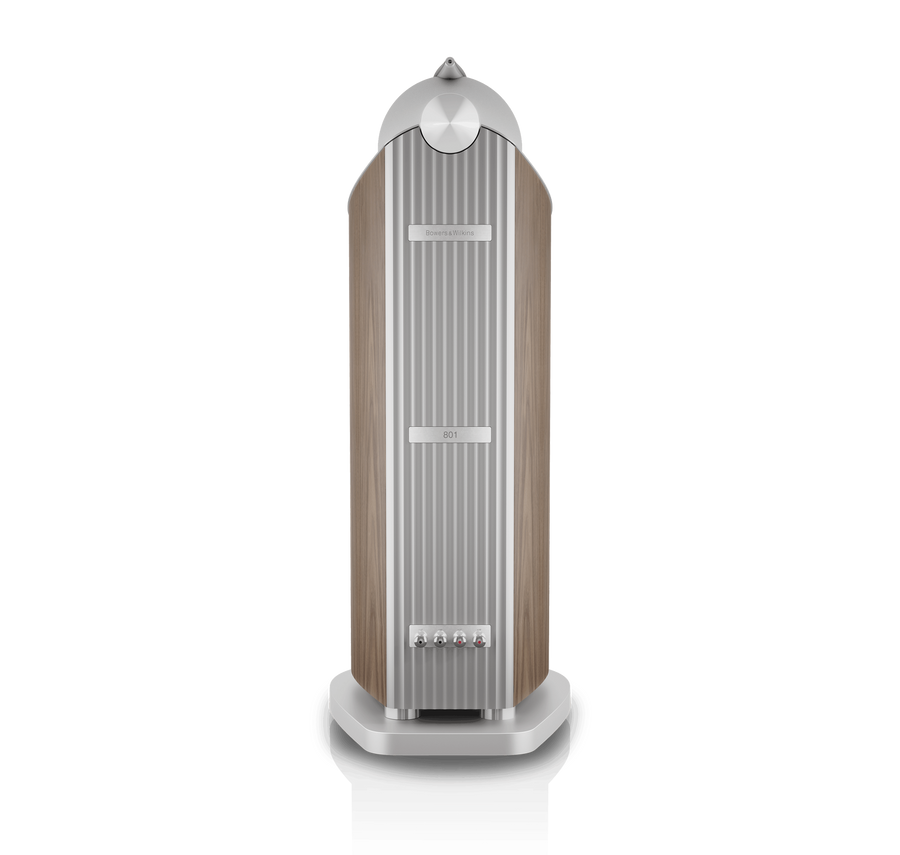

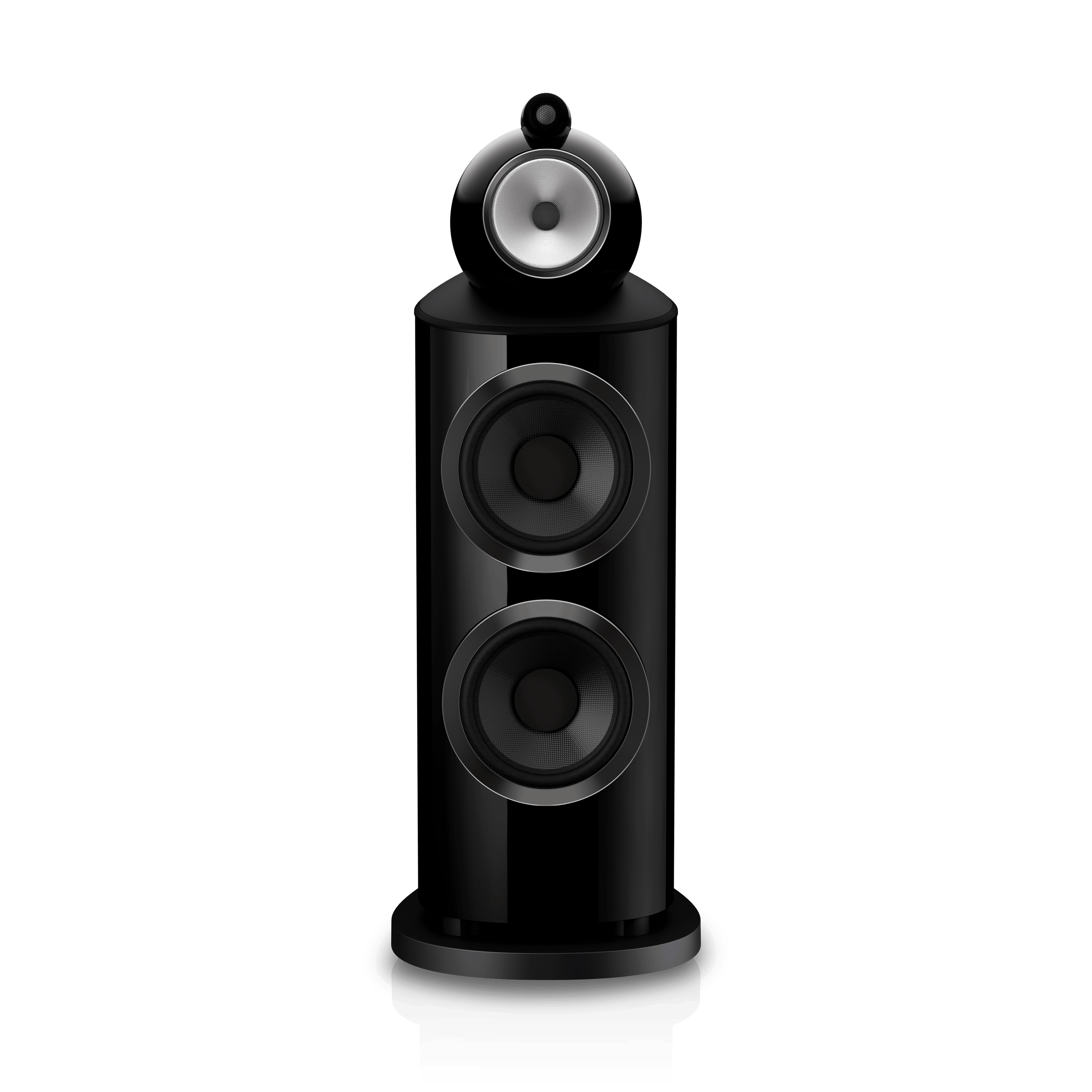

Bowers & Wilkins 801 D5 Loudspeaker
801 D5 LOUDSPEAKER
801 D5 LOUDSPEAKER
Reference floor-standing loudspeaker
The 801 D5 is an icon refined, the pinnacle of our performance.
Engineered for recording studios and discerning listeners alike, it uses our most advanced technologies to deliver reference-quality sound.
From its Diamond dome tweeter and optimised drive units to Space Frame Bracing and an upgraded plinth, its purposeful mix of evolution and innovation is housed in an elegantly crafted and beautifully finished cabinet, shaped by the science of sound.

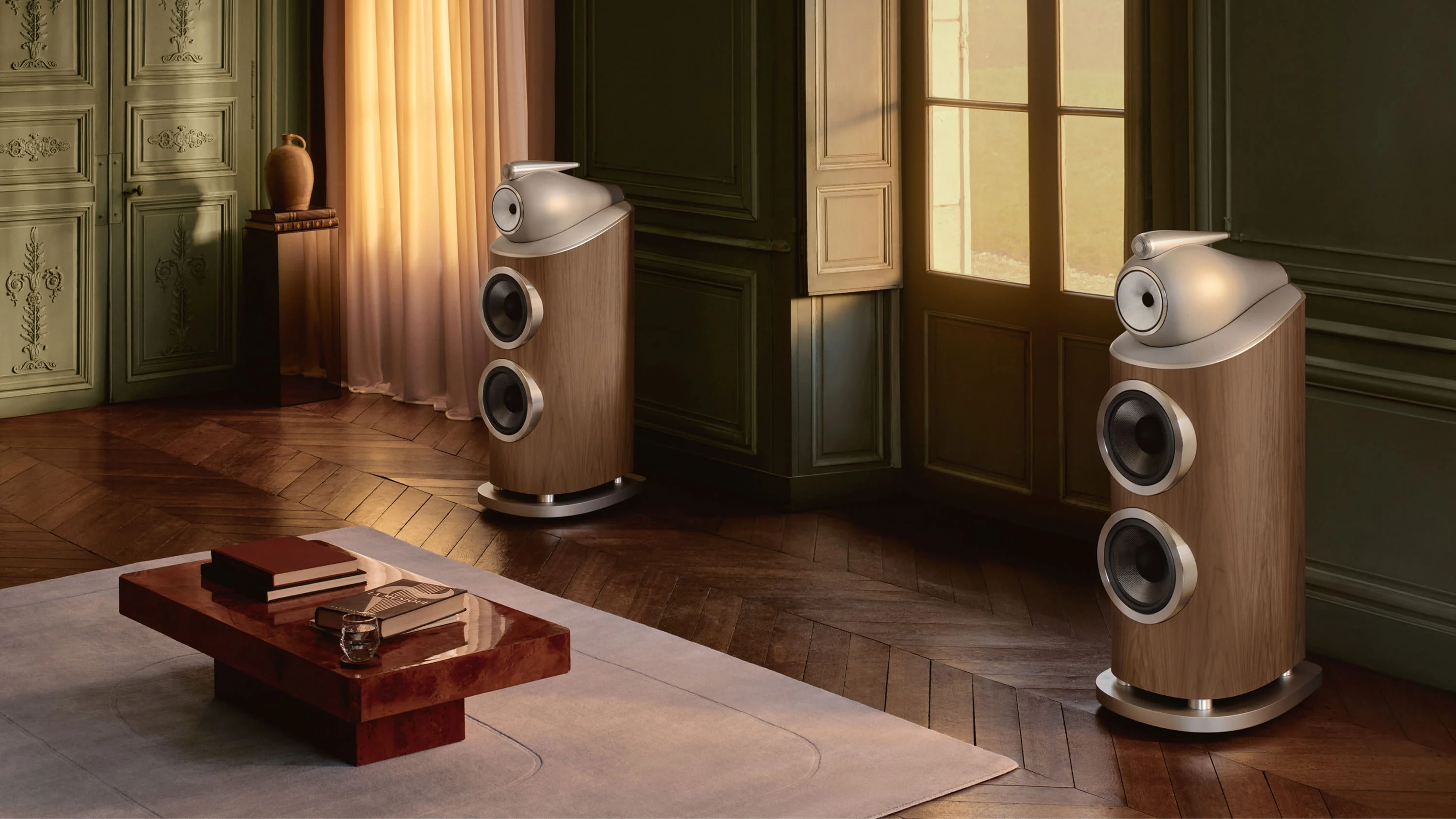

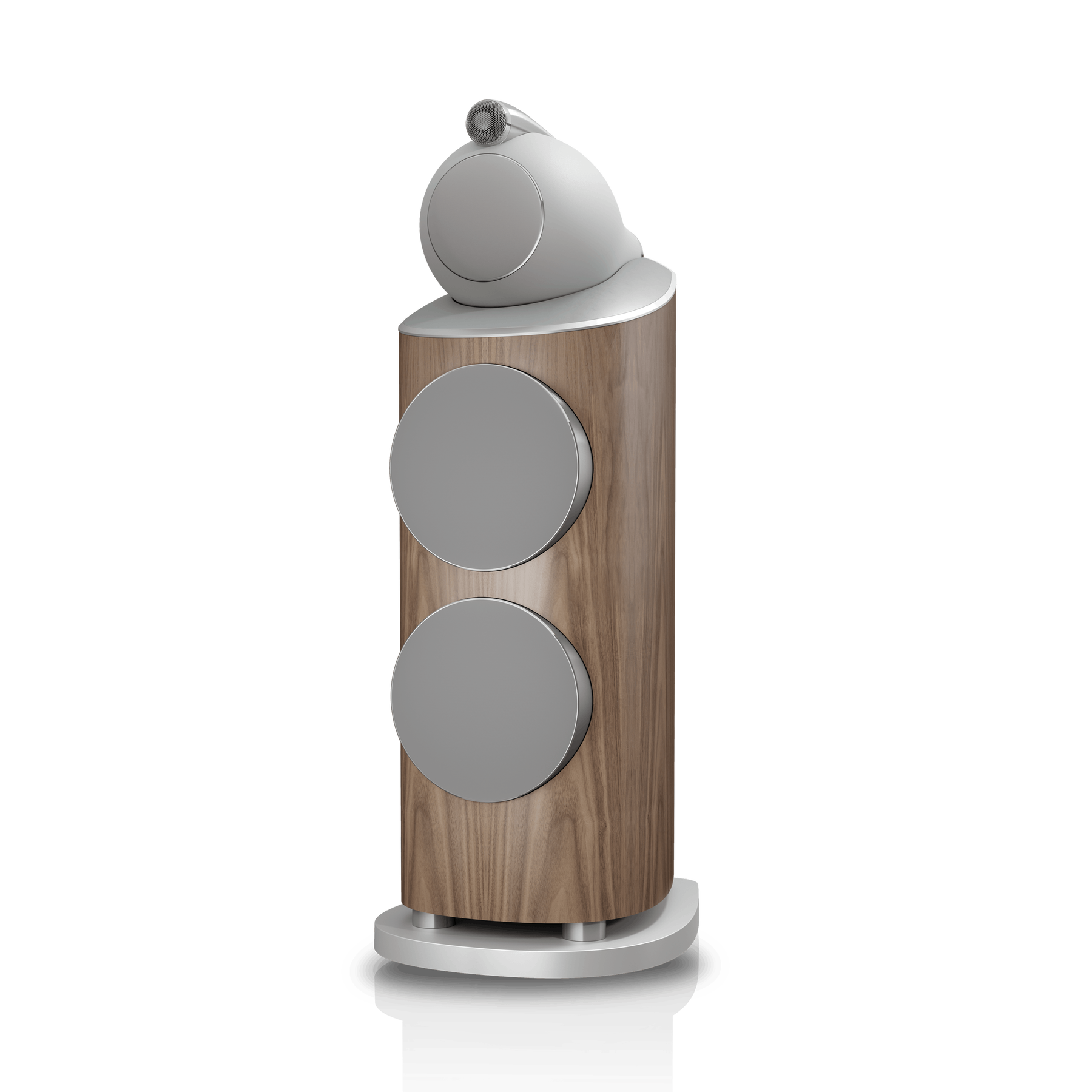

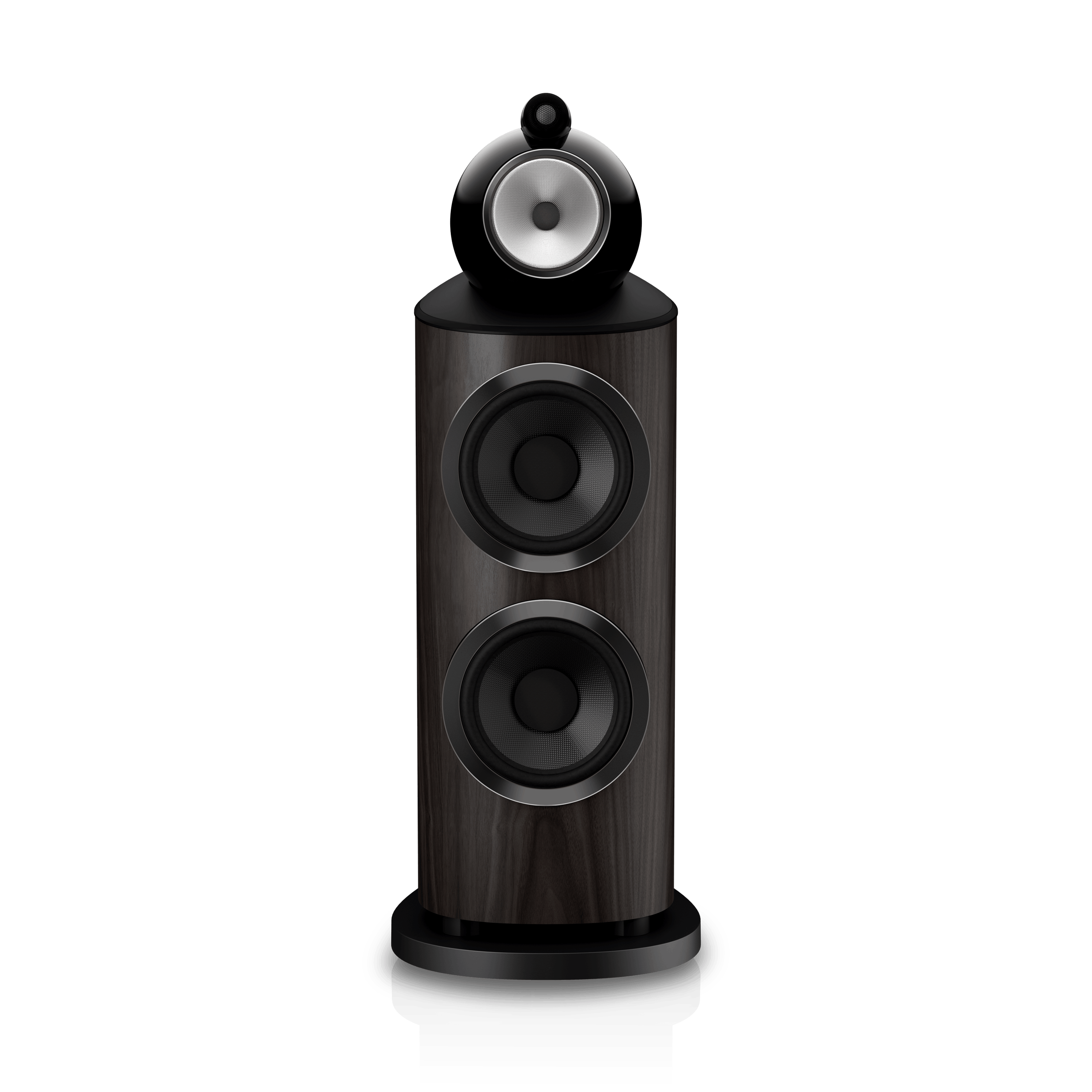

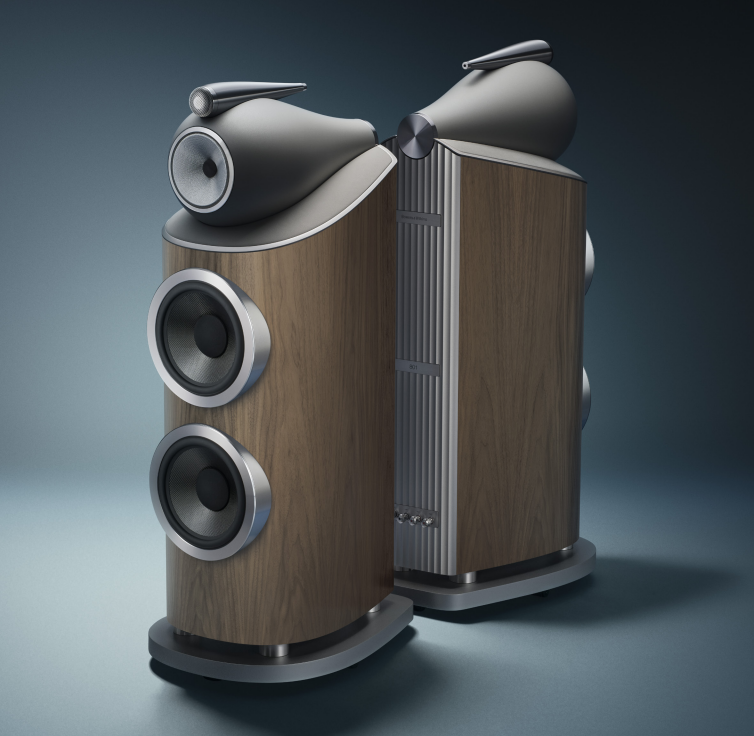

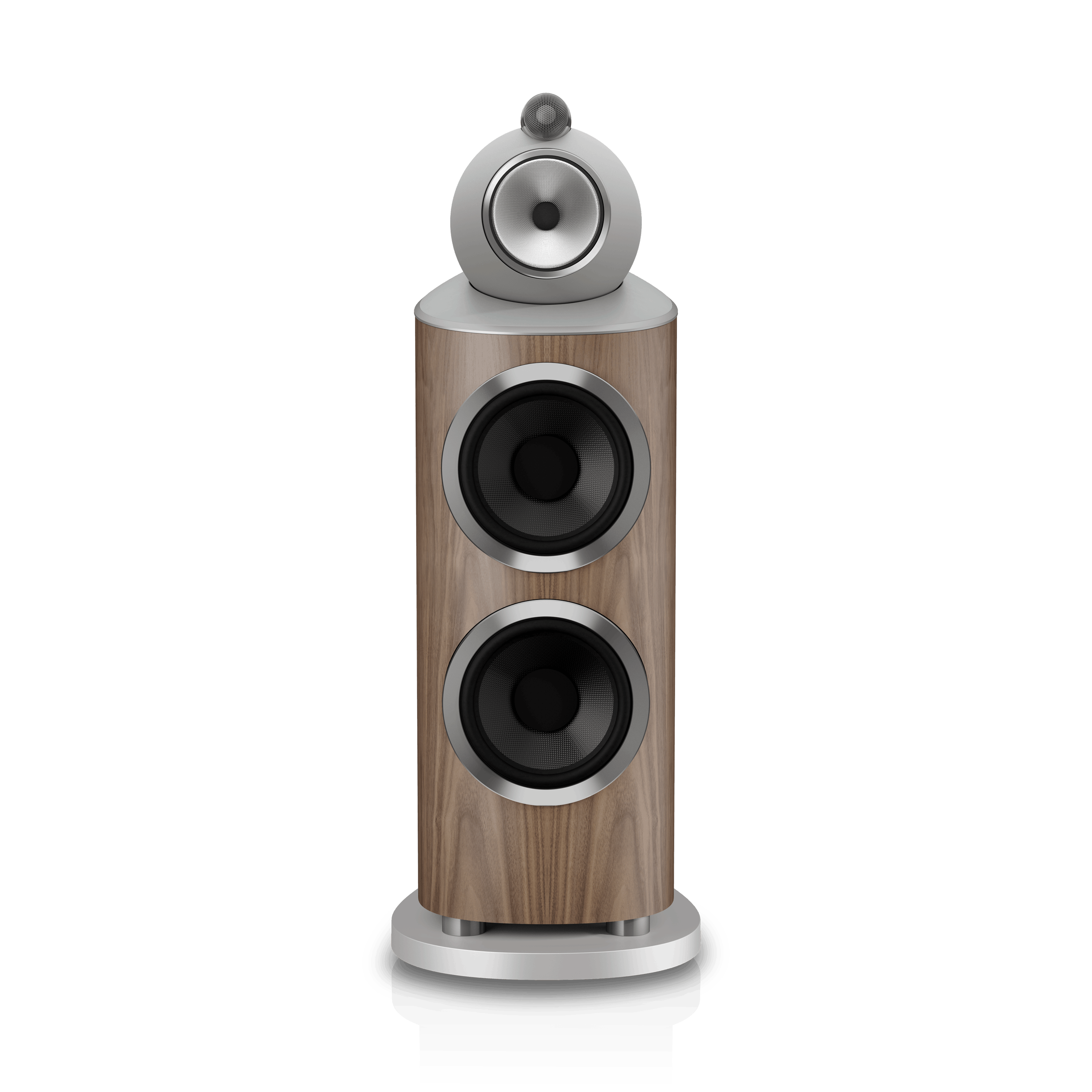

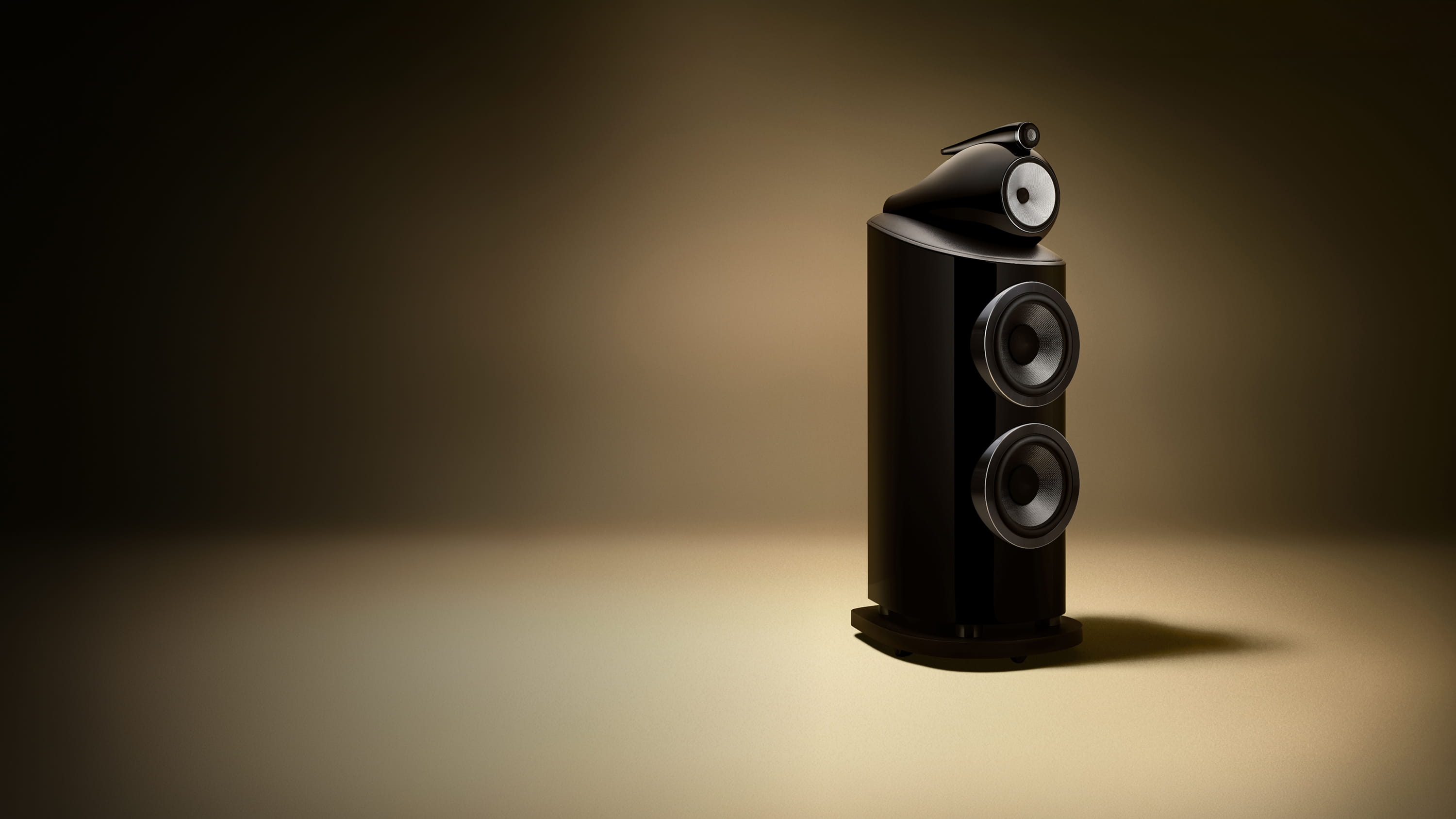

Available in Stealth Black, Warm White, Light Walnut, or Dark Walnut, with matching Leather by Connolly trim, it’s an icon of both performance and design. Born of our 60-year obsession with creating the perfect loudspeaker, 801 D5 delivers our most realistic and accurate listening experience yet.
FEATURES
ULTIMATE DRIVE UNIT TECHNOLOGY
Pairing our most advanced and innovative drive unit technology, the 801 D5 delivers our purest sound ever. The Diamond dome tweeter pushes break-up frequency to 70kHz, delivering exceptional clarity, precision and openness, and the ContinuumTM cone delivers voices and instruments with lifelike detail.
OPTIMISED FOR PURE PERFORMANCE

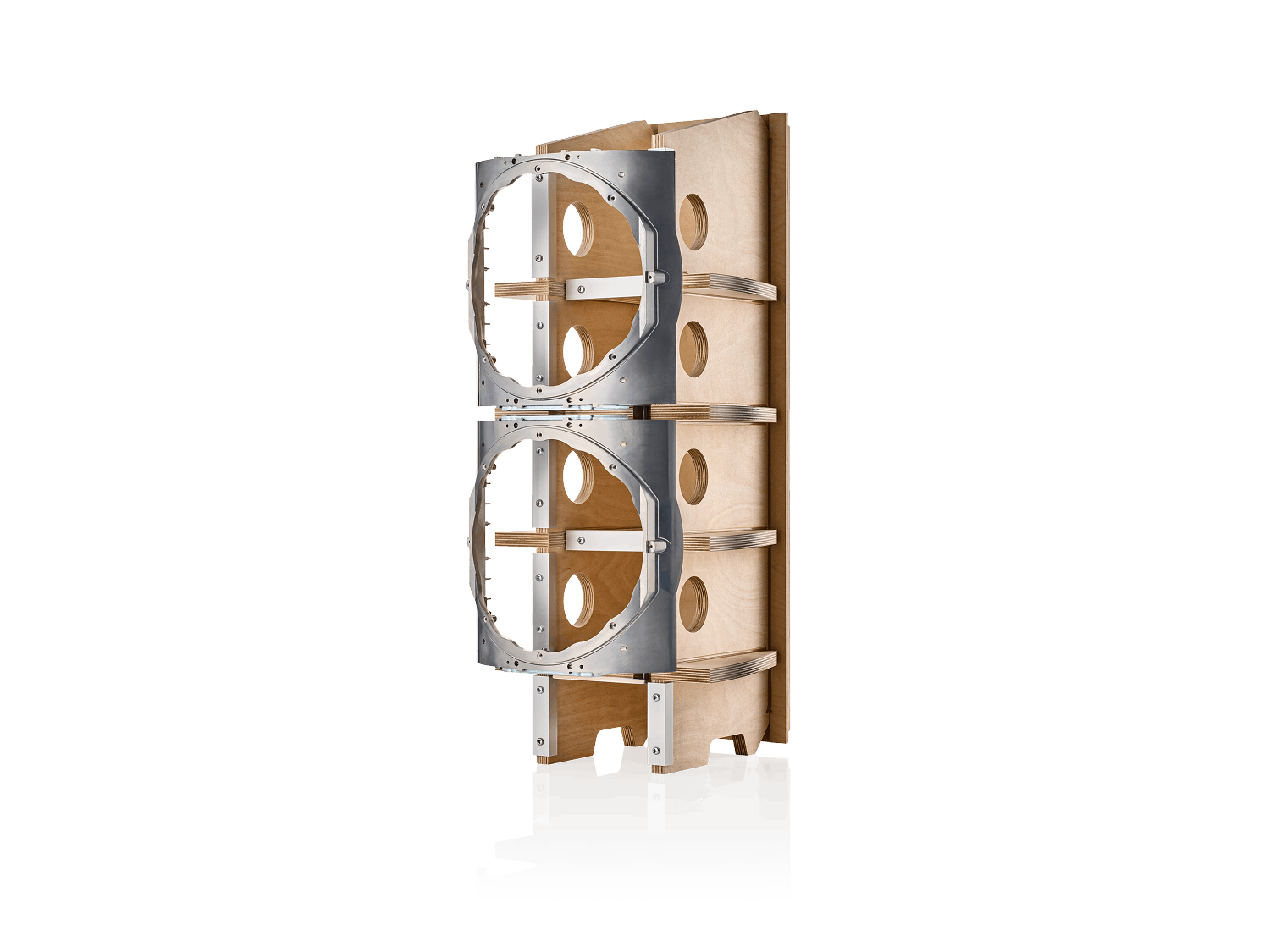

Every model in the new 800 Series Diamond range benefits from enhanced technology. An upgraded Matrix™ design reduces resonance and creates a more believable soundstage, while aluminium Space Frame Bracing and an all-new aluminium top section within the cabinet help deliver an even more spacious and immersive sound.
CRAFTED TO BE BETTER BY DESIGN

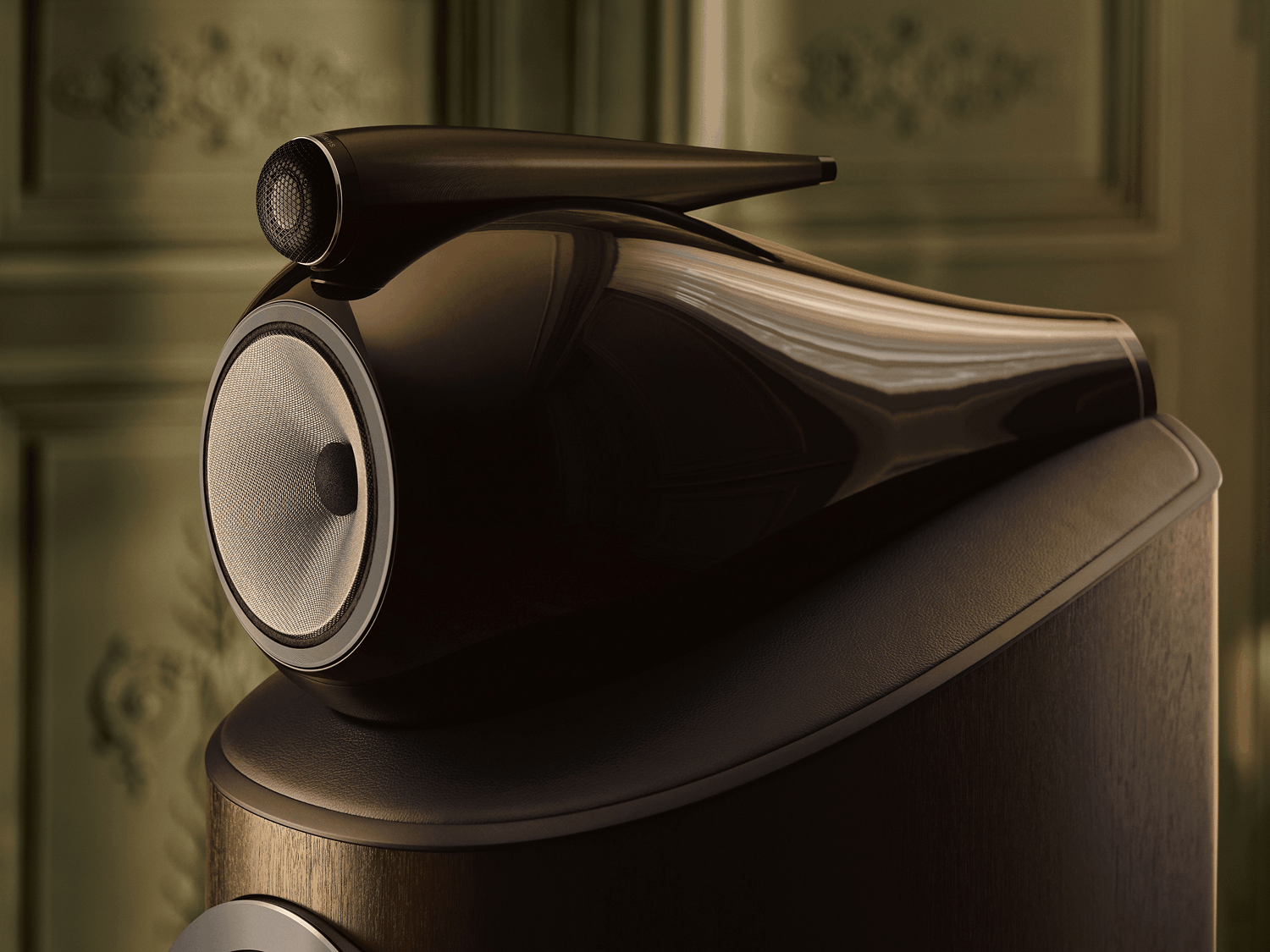

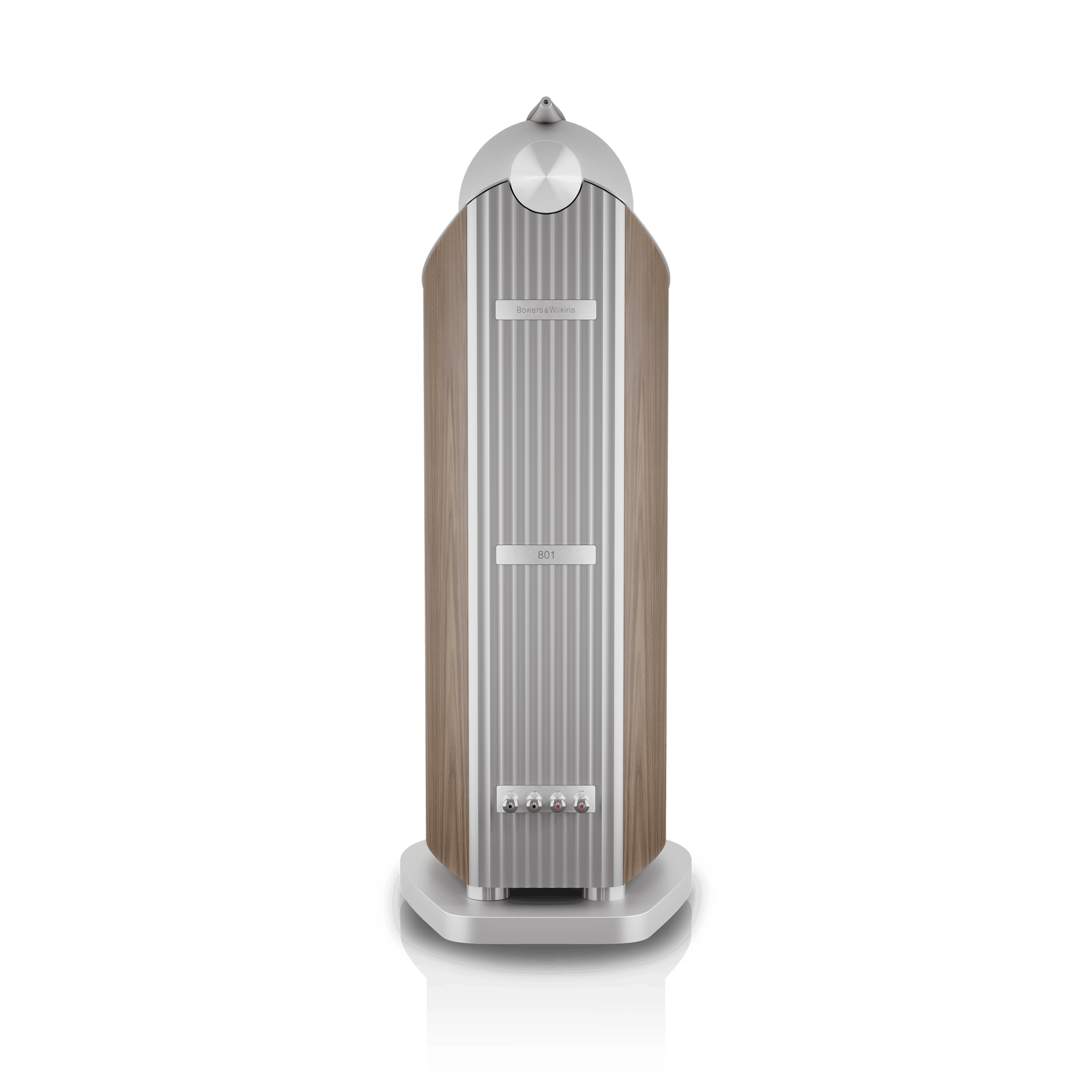

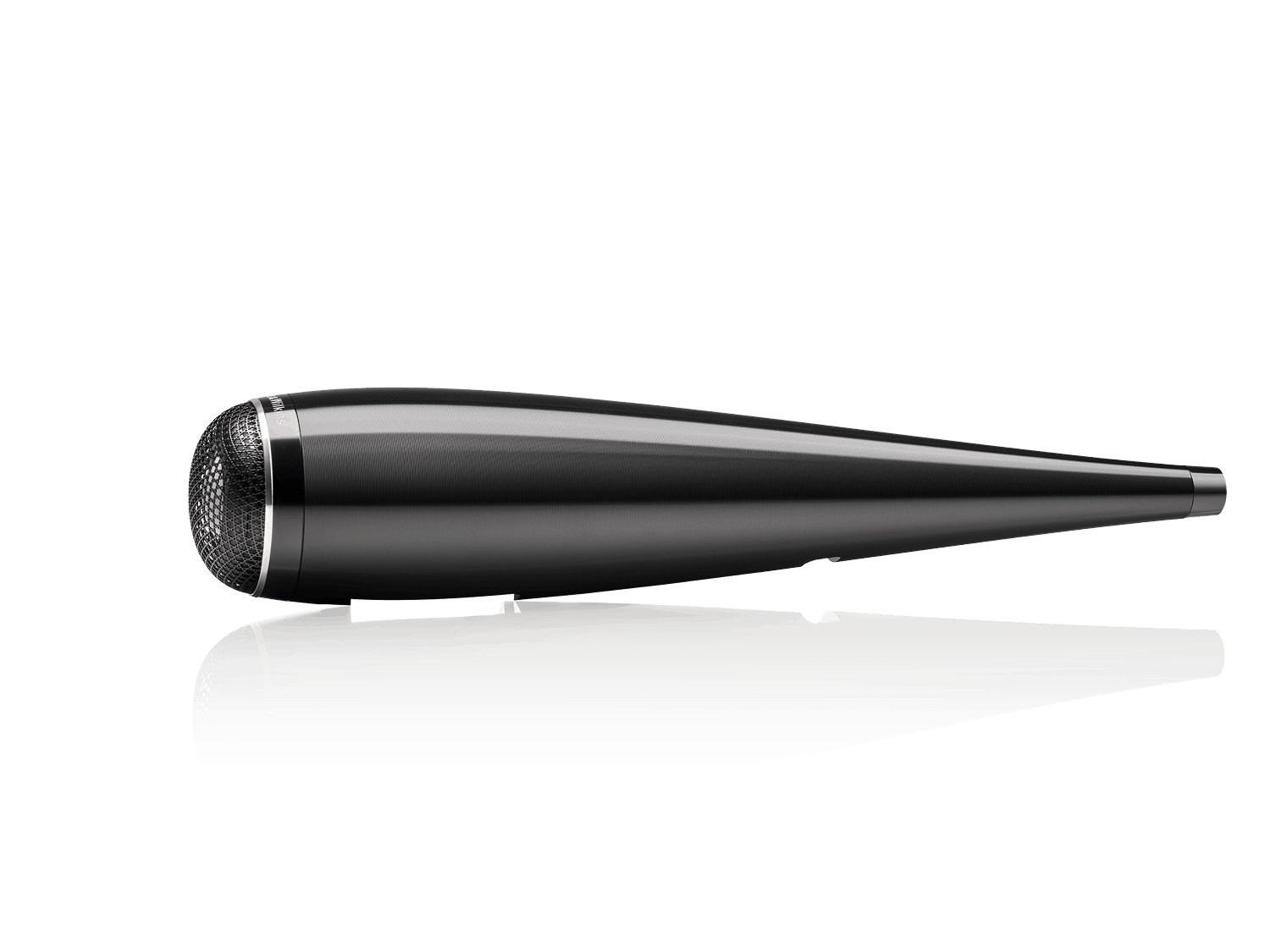

The 800 Series Diamond looks this way for a reason. Its shape is dictated by the science of sound. Our cabinets are formed from a single continuous curve, locked in place by a solid aluminium spine, so cabinet reflections are reduced. Complemented by the Tweeter-on-Top and Turbine Head, musical performance is always as precise as possible.
OTHERS REPLAY MUSIC, OURS MAKE MUSIC
Musicians record with it because they trust it. Engineers mix with it because it tells the truth. Listeners keep it for life because nothing else comes close. For generations, the 800 Series has been the loudspeaker of choice in the world’s most revered recording studios, helping create some of the greatest music and scores ever heard.
INFORMATION
GRILLE FINISHES
- Black (Stealth Black and Dark Walnut)
- Grey (Warm White and Light Walnut)
RECOMMENDED AMPLIFIER POWER
50W – 1000W into 8Ω on unclipped programme
BRAND
Bowers & Wilkins
PRODUCT TYPE
Standing loudspeaker
MAX RECOMMENDED CABLE IMPEDANCE
0.1Ω
NOMINAL IMPEDANCE
8Ω (minimum 3.0Ω)
SENSITIVITY
90dB
HARMONIC DISTORTION
- 2nd and 3rd harmonics (90dB, 1m on axis)
- <1% 30Hz – 20kHz
- <0.3% 100Hz – 8kHz
FREQUENCY RESPONSE
15Hz to 28kHz (+/-3dB)
FREQUENCY RANGE
-6dB 13Hz to 35kHz
DESCRIPTION
3-way vented-box system
NET WEIGHT
106.4kg (234.6lbs)
DRIVE UNITS
- 2x ø250mm (10in) Aerofoil™ bass
- 1x ø25mm (1in) Diamond dome high-frequency
- 1x ø150mm (6in) Continuum cone FST midrange
DIMENSIONS
- Height : 1221mm (48.1 in) including tweeter and plinth
- Width : 372mm (14.6 in) cabinet only, 447mm (17.6in) including plinth
- Depth : 556mm (21.9in) including grille and terminals, 597mm (23.5in) including plinth
TECHNICAL FEATURES
- Turbine Head
- Matrix™
- Flowport™
- Diamond dome tweeter
- Aerofoil™ base cones
- Biomimetic Suspension
- Anti-Resonance plug
- Continuum™ cone FST midrange
BODY
Solid body Tweeter-on-Top
DOWNLOAD
↓ Data Sheet
