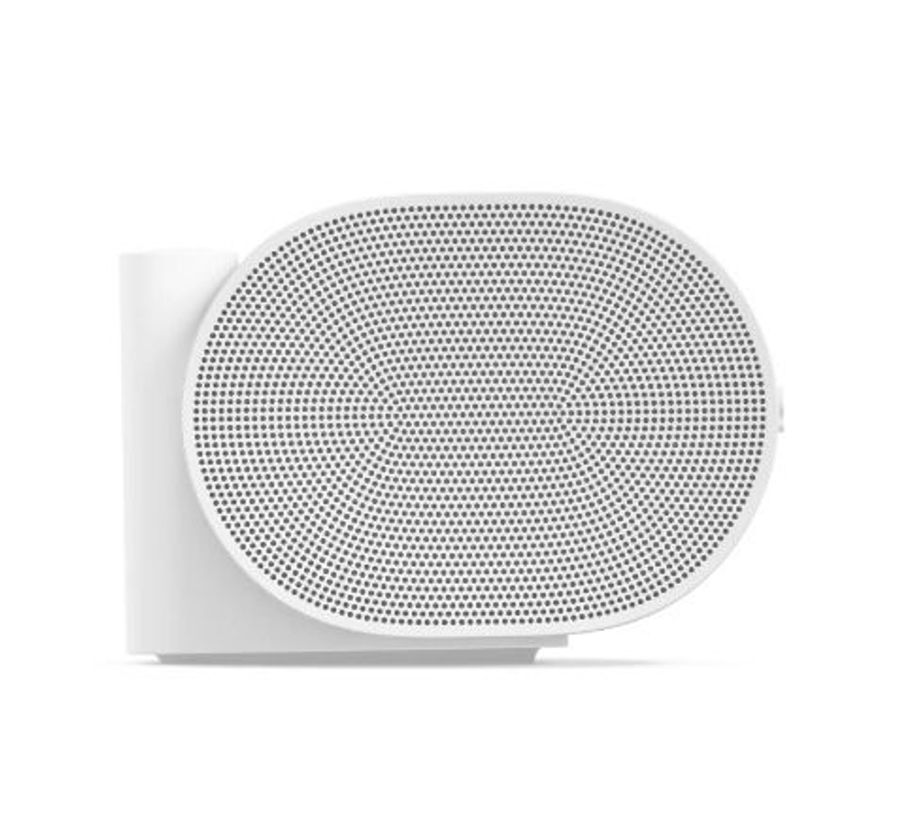

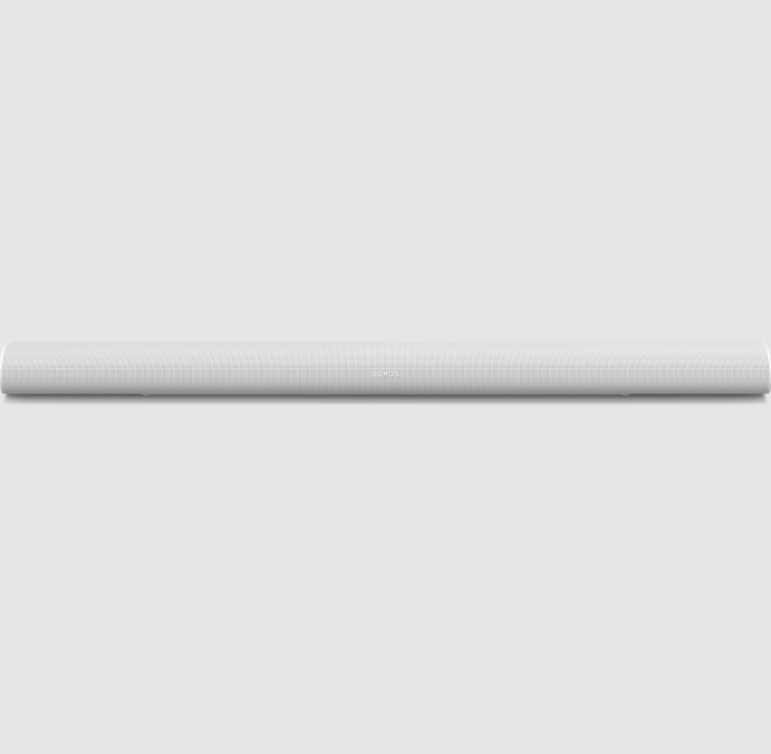

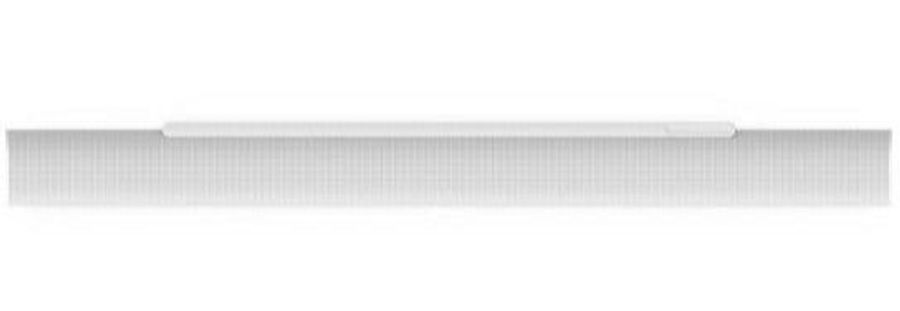

Sonos Arc Ultra Speaker
ARC ULTRA SPEAKER
ARC ULTRA SPEAKER
Featuring breakthrough Sound Motion™ technology for a more expansive soundstage, Arc Ultra brings your entertainment to life like no other soundbar.
Experience clearer dialogue, deeper bass, and more detailed sound that precisely surrounds you from every direction—all in an unbelievably sleek design. Dolby Atmos takes immersion to a whole new dimension, creating a 9.1.4 spatial audio experience.1

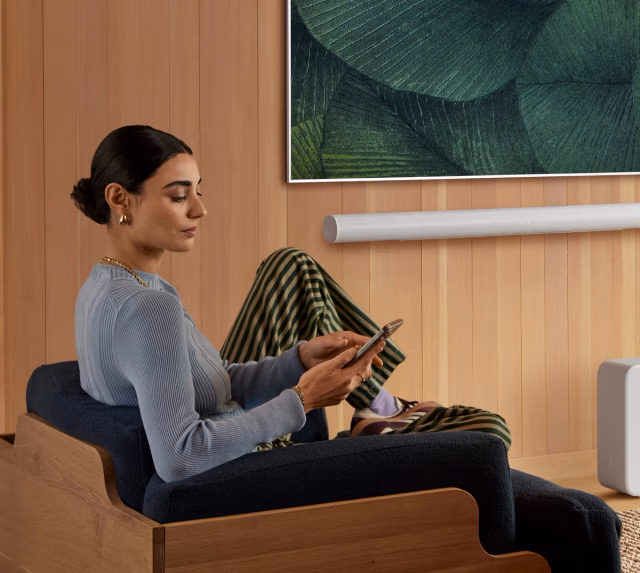

Speech Enhancement, powered by AI, detects the human voice to clarify dialogue, giving you greater control so you never miss a word. Quickly set up Arc Ultra with the included HDMI cable, and enjoy streamlined control with your TV remote.
You can also use the Sonos app, the touch controls on top of the soundbar, Sonos Voice Control, and Amazon Alexa. When your TV is off, stream music and more from all your favorite services using WiFi and Bluetooth.

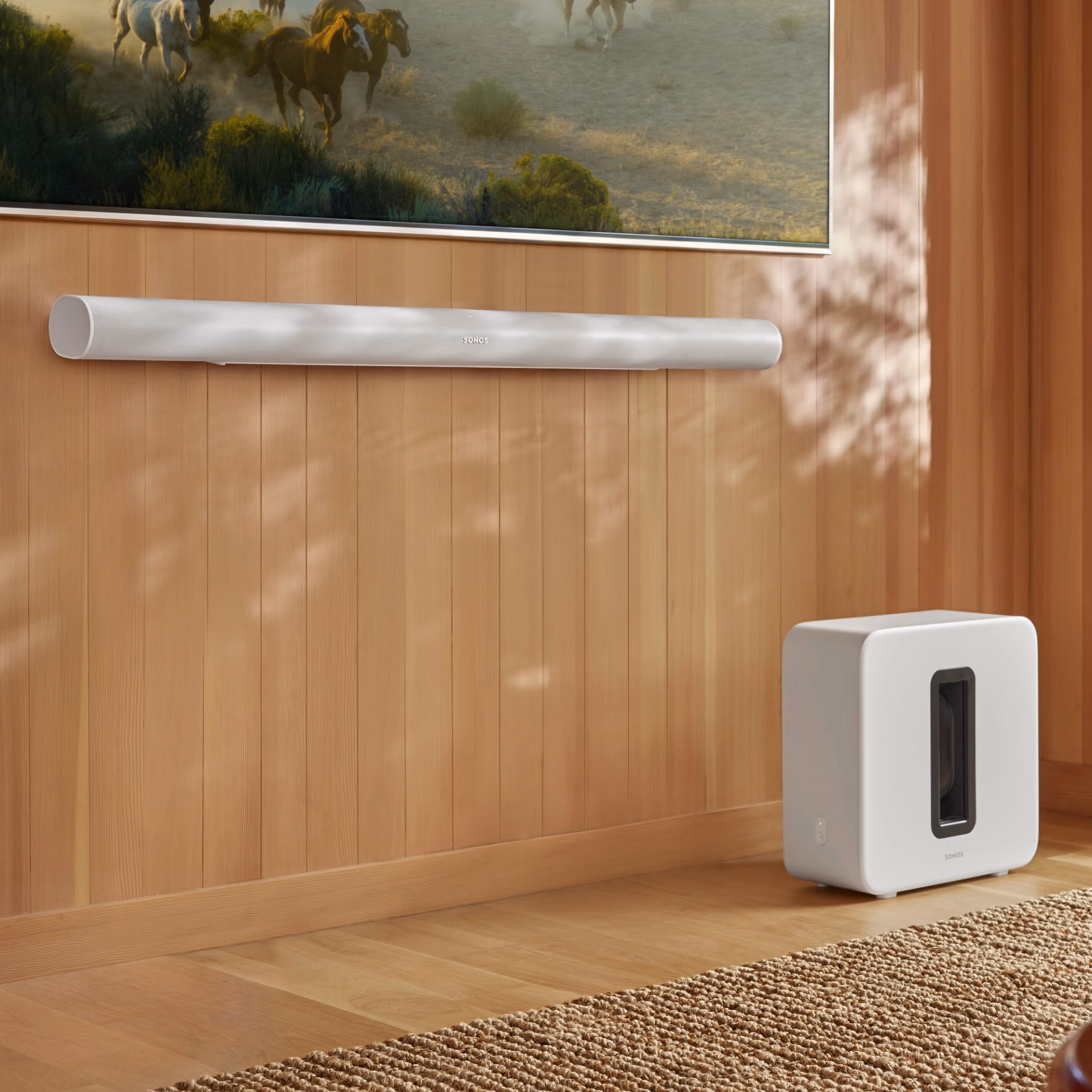

Add a Sonos Sub and Era 300 rear speakers for the ultimate Dolby Atmos surround sound experience. Listen all around your home when you add Sonos speakers to other rooms.
INFORMATION
BRAND
Sonos
PRODUCT TYPE
Speaker
APPLE AIRPLAY 2
Works with AirPlay 2 on Apple devices iOS 11.4 and higher on WiFi
BLUETOOTH BUTTON
Press to pair with a Bluetooth device.
REQUIREMENTS
Internet connection
Nearby electrical outlet
The latest generation of the Sonos app running on a compatible device
FINISH
Matte
WEIGHT
13.01 lbs (5.9 kg)
VOLTAGE
100-240V 50/60Hz
OPTICAL AUDIO ADAPTER
Sold separately
HDMI EARC
Connect to your TV's HDMI eARC/ARC port with the included HDMI cable.
LEDS
Lights on the product indicate connection, mute status, microphone activation, and errors.
BOX CONTENTS
- Sonos Arc Ultra
- Power Cable I (Length: 6 ft)
- HDMI Cable (Length: 4.9 ft)
- Documentation : Set Up Guide and legal/warranty information
WIFI
Compatible with WiFi 6. Connect to WiFi with any 802.11a/b/g/n/ac/ax 2.4 GHz/5 GHz broadcast-capable router.
VOICE
Works with Sonos voice control and Amazon alexa. Availability of services varies by language and country.
MOUNTING
M5 x 0.8mm thread pitch L6.5mm
SHIPPING & RETURN
Free shipping and 30-day returns
CONTROLS
Use the capacitive touch controls to play, pause, skip, replay, adjust the volume, turn off voice assistants, and group or ungroup Sonos products.

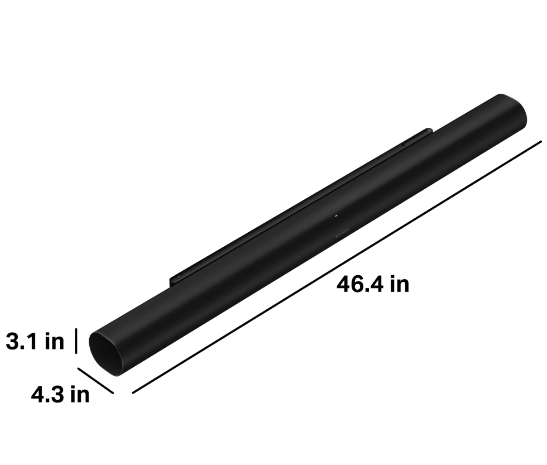

DIMENSIONS
- Height : 2.95 in (75 mm)
- Width : 46.38 in (1.178 mm)
- Depth : 4.35 in (110.6 mm)
AVAILABLE COLORS
2
CPU
- Quad Core
- 4xA55 1.9GHz
MIC SWITCH
Toggle off the switch on the back of the product to disconnect power to the mics.
TV COMPATIBILITY
Not compatible with CCFL-backlit TVs (manufactured 2004-2012)
COLORS
- White
- Black
AUDIO
TV AUDIO SWAP
Swap TV audio between the soundbar and Sonos headphones.
MIDWOOFERS
Six midwoofers ensure faithful playback of mid-range frequencies.
AMPLIFIERS
Fifteen Class-D digital amplifiers perfectly tuned to the unique acoustic architecture.
TRUEPLAY
This software measures the acoustics of the room then fine-tunes the EQ. Compatible with iOS and Android devices.
HOME THEATER AUDIO FORMATS
-Dolby Atmos,* Dolby Atmos via Dolby Digital Plus, Stereo PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD,* Dolby Atmos via Dolby TrueHD,* Multichannel PCM,* Dolby Multichannel PCM* and DTS Digital Surround.** -The Sonos app’s Now Playing screen displays the audio format being decoded.
SPEECH ENHANCEMENT
AI detects the human voice to make every word crystal-clear. With just a tap in the Sonos app, choose between four customizable levels for optimal audibility.
TWEETERS
Nine precisely angled silk-dome tweeters create crisp high frequencies and clear dialogue. Two of these fire upward, creating dedicated height channels for spatial audio.
MICROPHONES
The far-field microphone array uses advanced beamforming and multichannel echo cancellation for quick and accurate voice control and Trueplay tuning. Disconnect by toggling off the mic switch.
WOOFERS
Sound Motion, a four-motor, dual-membrane woofer, delivers exceptional bass in a revolutionary flat, compact design.
DOLBY ATMOS MUSIC
Requires compatible content.
ADJUSTABLE EQ
Use the Sonos app to adjust bass, treble, and loudness.
NIGHT SOUND
Turn this setting on in the Sonos app to reduce the intensity of loud sounds and increase the level of quieter sounds.
FEATURES
APPLE AIRPLAY 2
Stream from your Apple devices and ask Siri to play Apple Music.
TV REMOTE
Enjoy streamlined and clutter-free control with your existing TV remote.

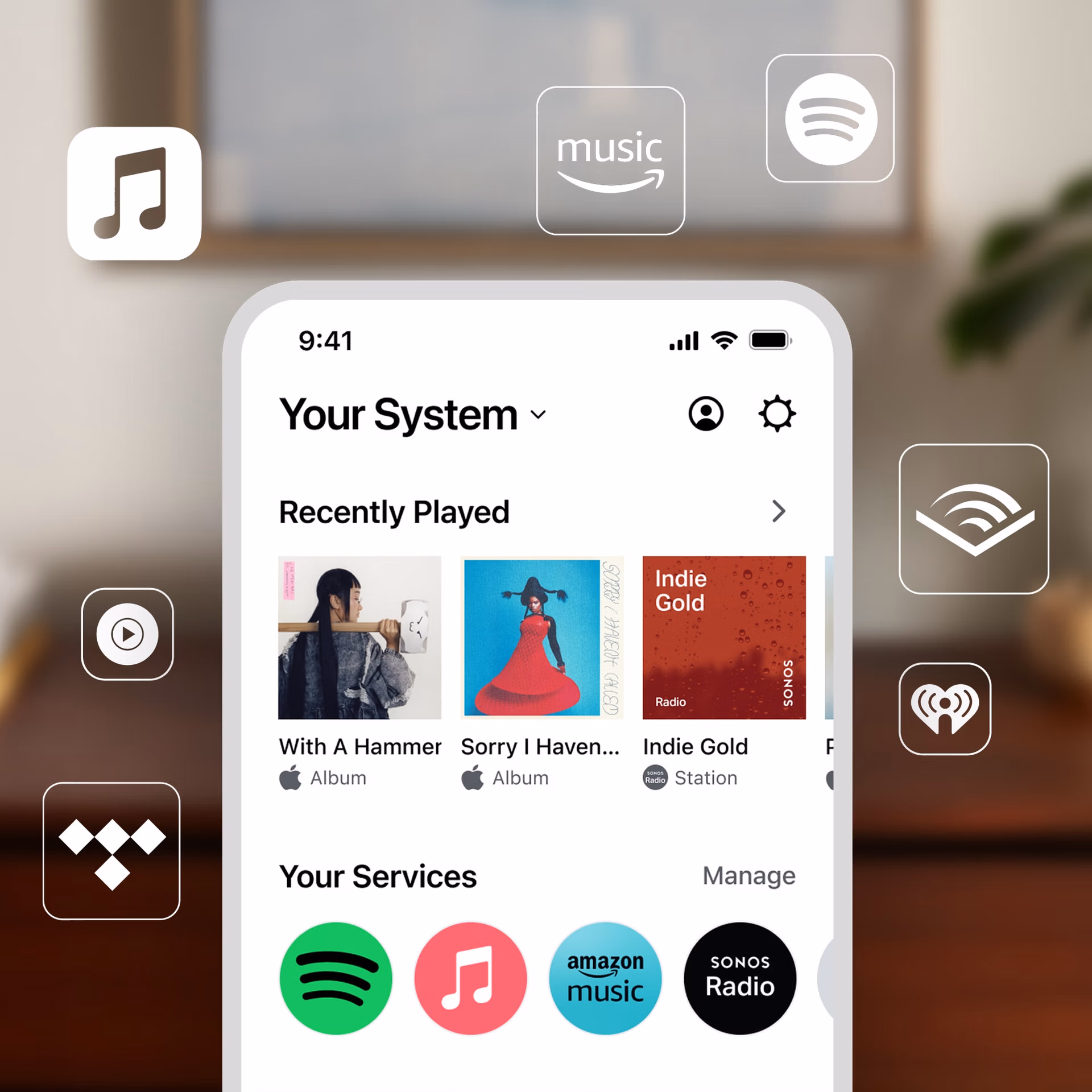

SONOS APP
Access all your content and settings in one place for seamless control.
SONOS VOICE CONTROL
Just say “Hey Sonos”. Play music and control your system with hands-free ease and unheard-of privacy.
AMAZON ALEXA
Use Alexa to set your Routines, control your smart home, access your calendar, shopping lists, and more.
TOUCH CONTROLS
Intuitive touch controls provide quick, screen-free control. Just tap or swipe to play, pause, adjust the volume, and group your Sonos speakers.
DETAIL

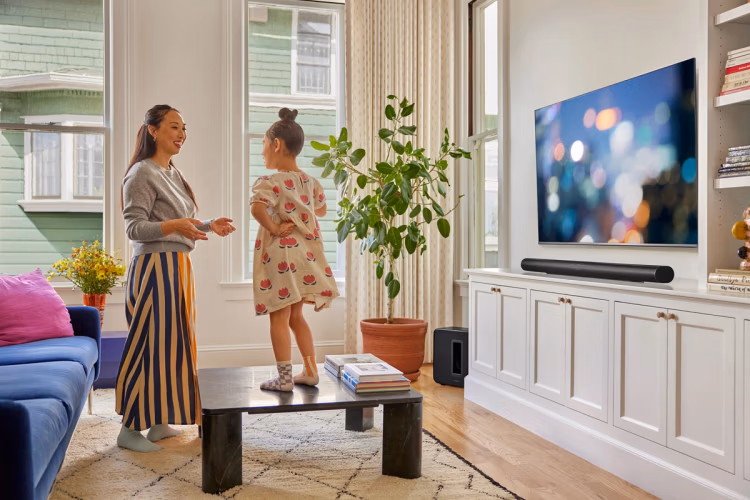

BEYOND IMMERSIVE

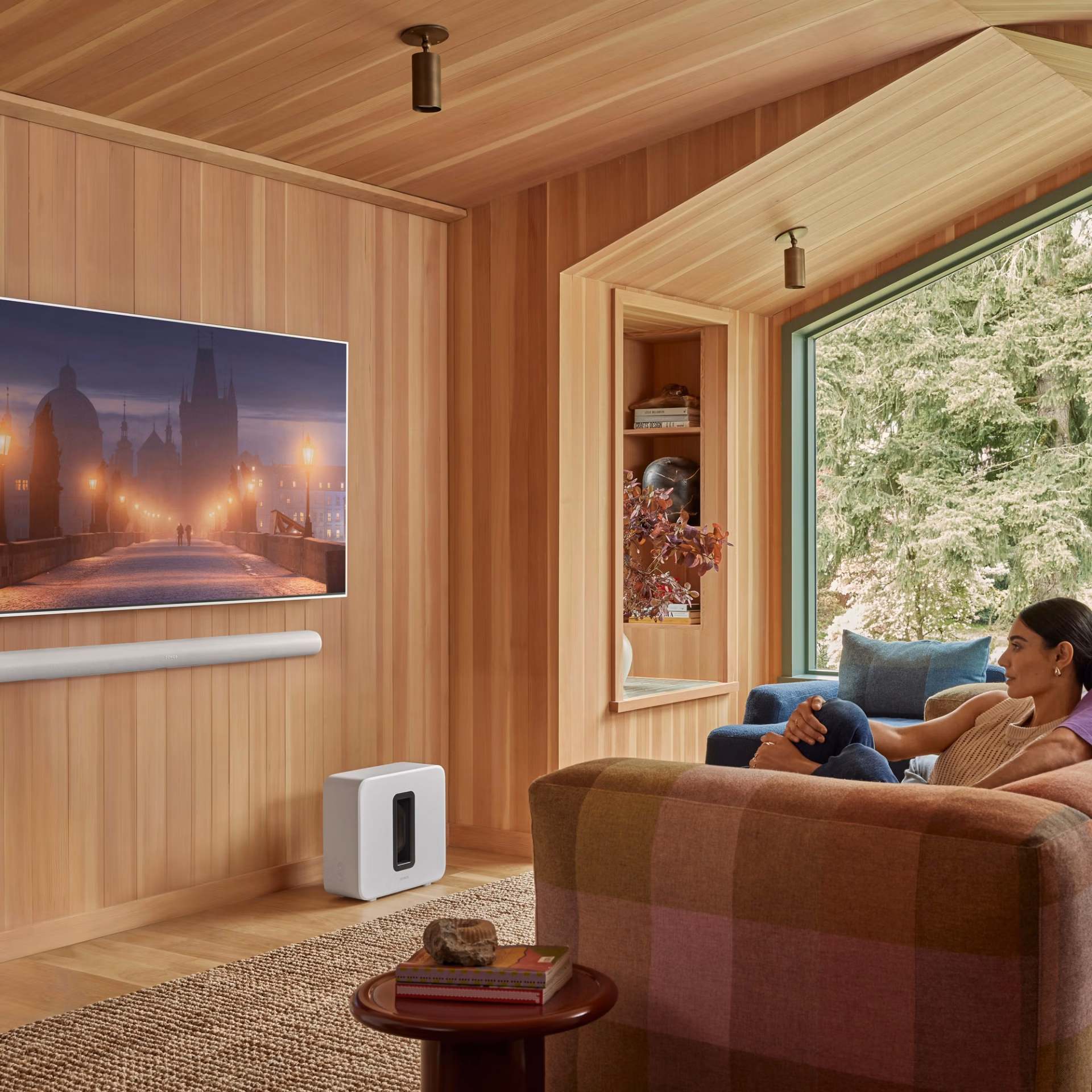

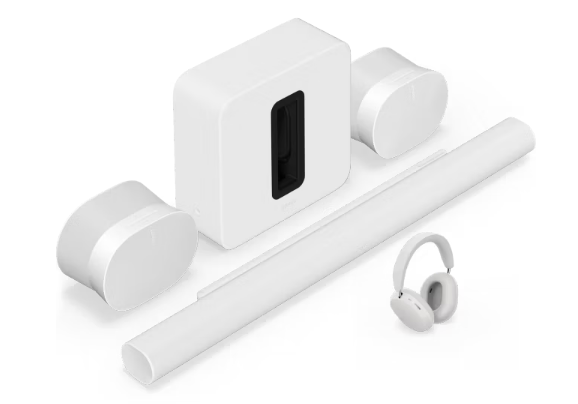

Pair Arc Ultra with a Sonos Sub and Era 300 rear speakers for the ultimate Dolby Atmos surround sound experience, with bass you can feel and jaw-dropping detail from every direction.2 Make the experience all your own with a pair of Sonos Ace headphones.

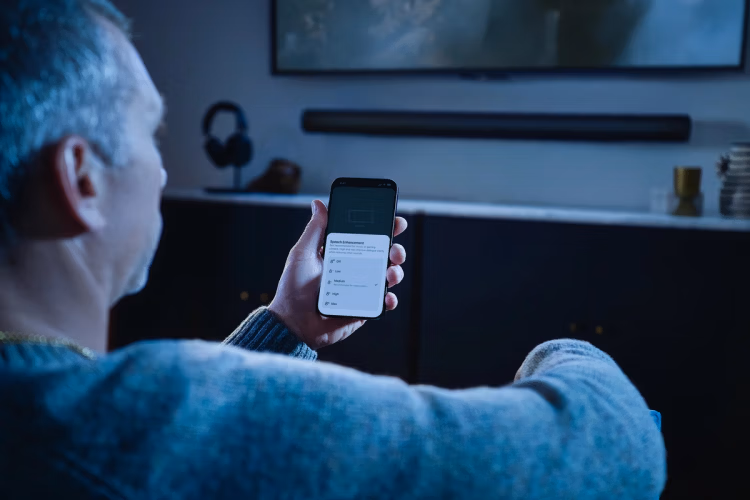

CRYSTAL-CLEAR DIALOGUE FOR EVERY LISTENER
Speech Enhancement with Arc Ultra uses AI to detect the human voice and clarify dialogue. With four customizable levels, you can ensure every listener hears every word with precision.
SOUND IN A WHOLE NEW DIMENSION

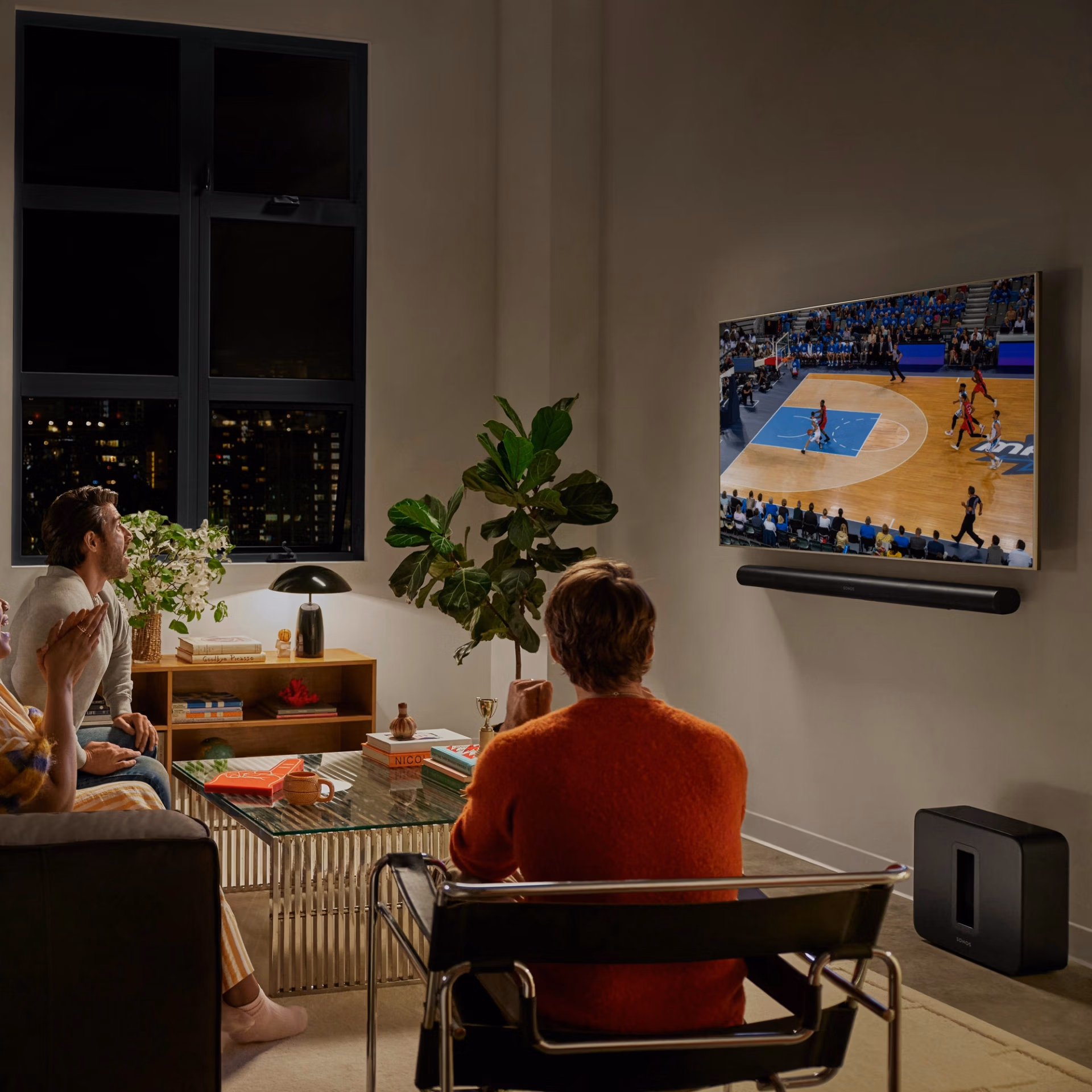

With Dolby Atmos, Arc Ultra brings sound to life with sensational definition and envelops you in a mind-blowing 9.1.4 spatial audio experience.

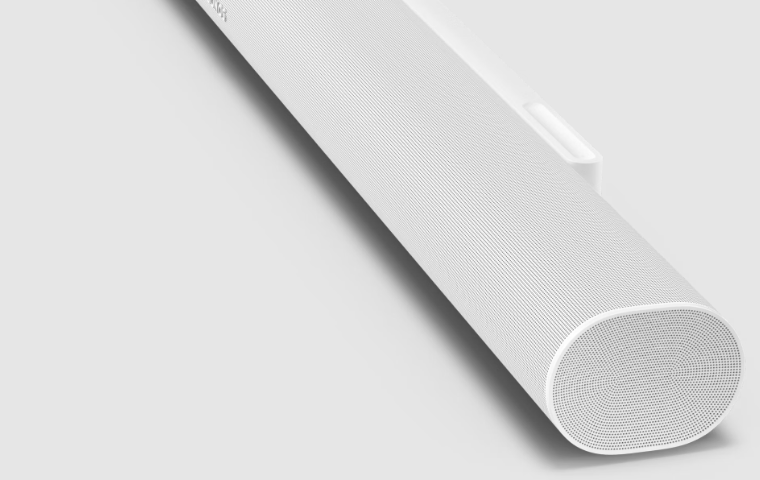

DESIGN WORTHY OF YOUR HOME

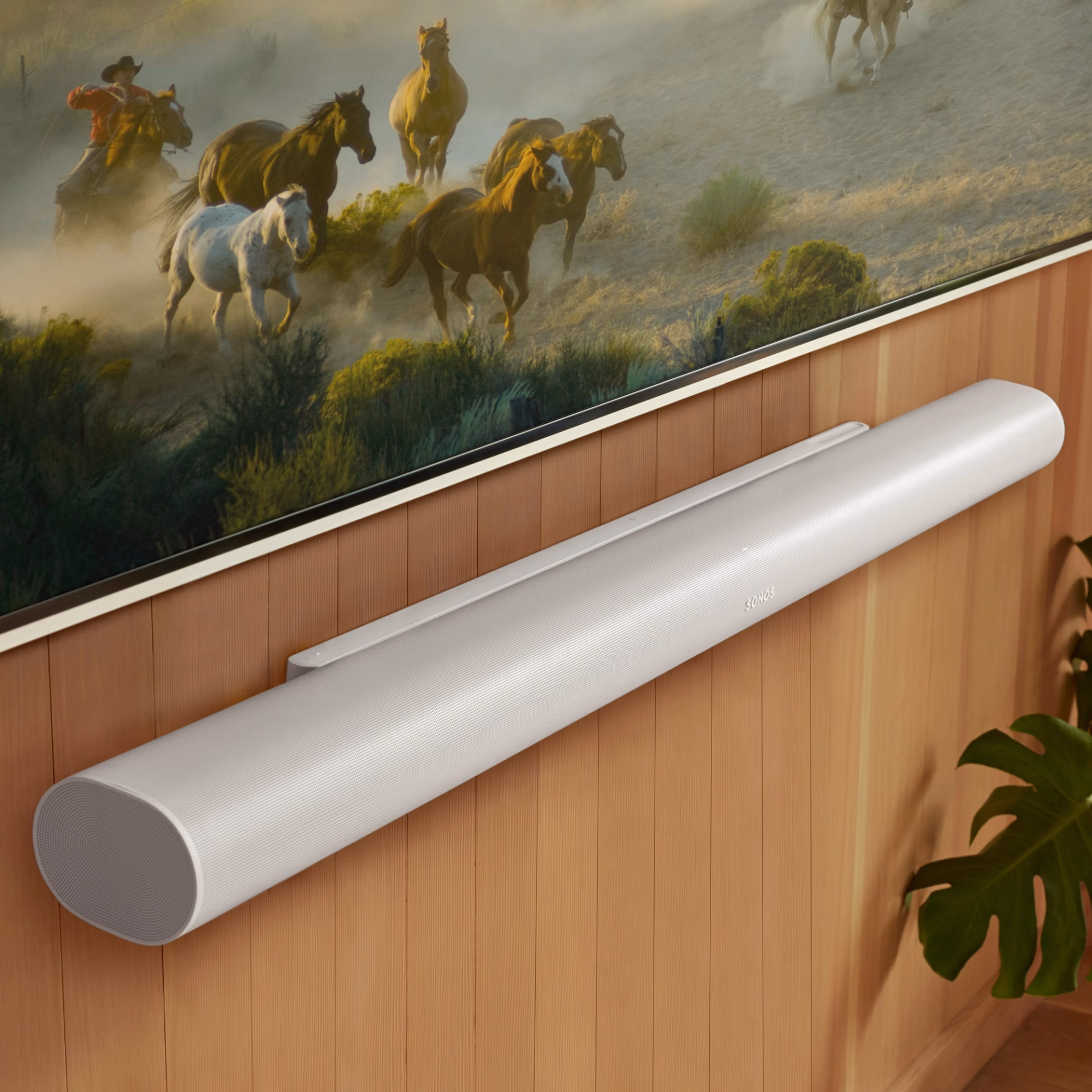

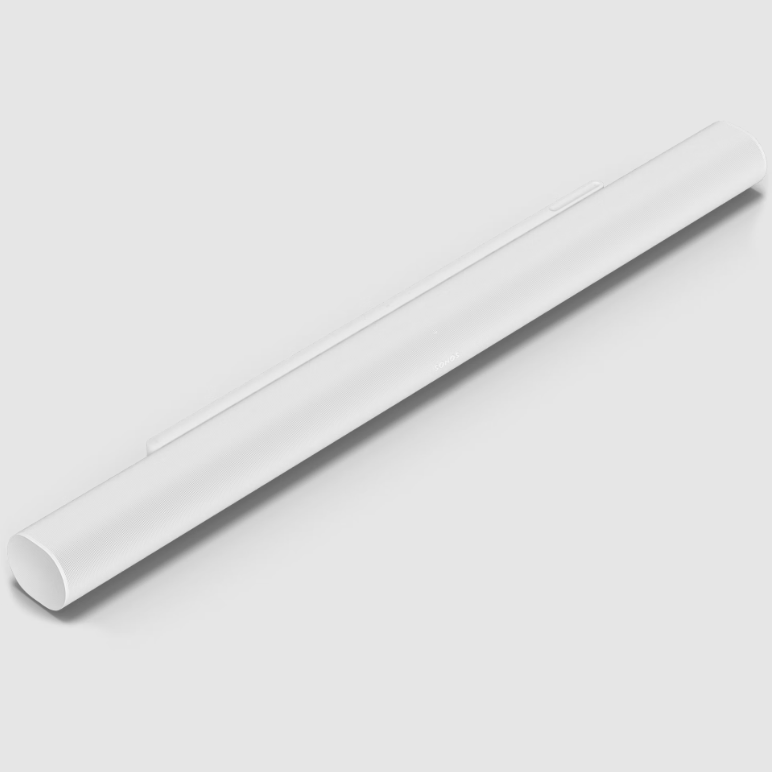

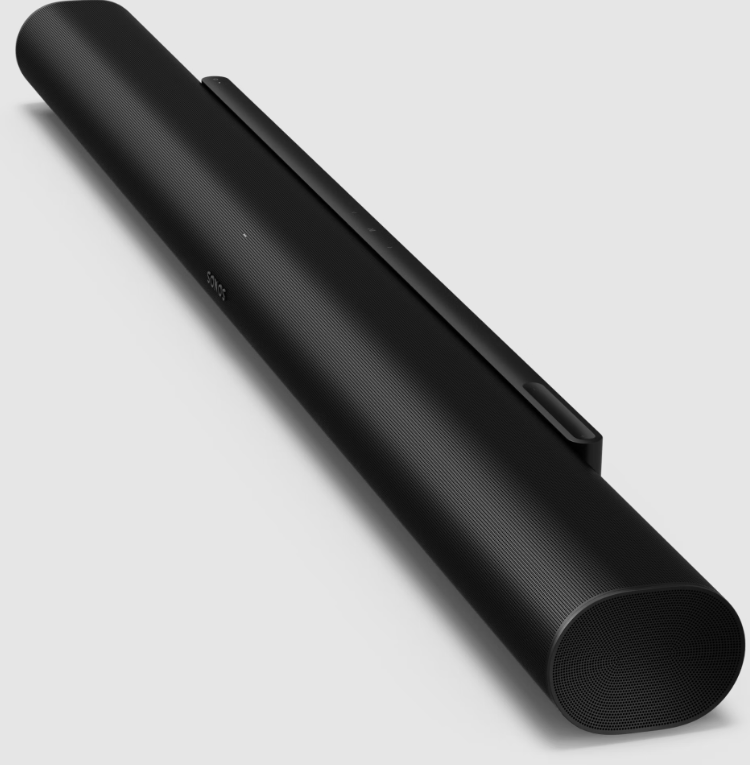

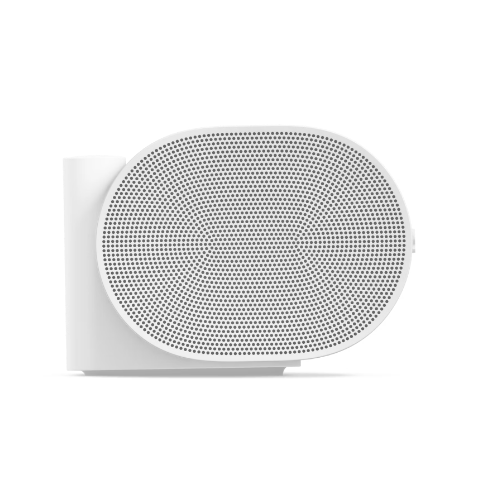

Distinctive curved shape. Low-profile design. Matte finish. Arc Ultra is thoughtfully crafted to look great in your home and keep the focus on your entertainment.
AN EXCLUSIVE ENTERTAINMENT EXPERIENCE
Instantly swap TV audio from Arc Ultra to Sonos Ace for private surround sound and sensational spatial audio with dynamic head tracking.3 Connect two Sonos Ace headphones at once to enjoy a movie with a companion or immerse yourself in couch co-op gaming.4
KEY TO NEXT-LEVEL IMMERSION
Sound Motion™ technology redefines what’s possible in audio performance. By integrating Sound Motion™ into Arc Ultra, we’re able to obtain a deeper, more powerful bass response in a smaller package. This innovation frees up space for additional tweeter and midrange drivers, delivering a more expansive and balanced soundstage, surpassing the previous generation of Arc.
BREEZE THROUGH SETUP
Get theater-quality sound in minutes. Simply plug in the power cable, connect your TV with the included HDMI cable, and open the Sonos app to complete setup.
PERFECTLY TUNED FOR THE ROOM
With just a few taps in the Sonos app, Trueplay™ optimizes the sound for the unique acoustics of the room and placement of the soundbar. Available for iOS and Android.
FILL YOUR HOME WITH MUSIC
Arc Ultra is more than a soundbar. It’s also our most powerful spatial audio speaker. When the TV is off, stream music and more with WiFi and Bluetooth. Listen all around your home with Sonos speakers in other rooms.
ENVIRONMENTALLY SOUND DESIGN
From increasing the energy efficiency of our products to eliminating plastic from our packaging, we're finding innovative ways to tone down our environmental impact.

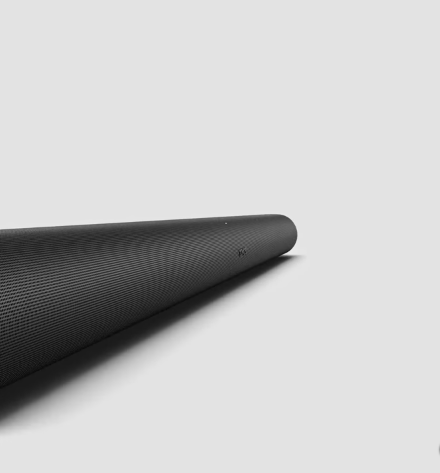

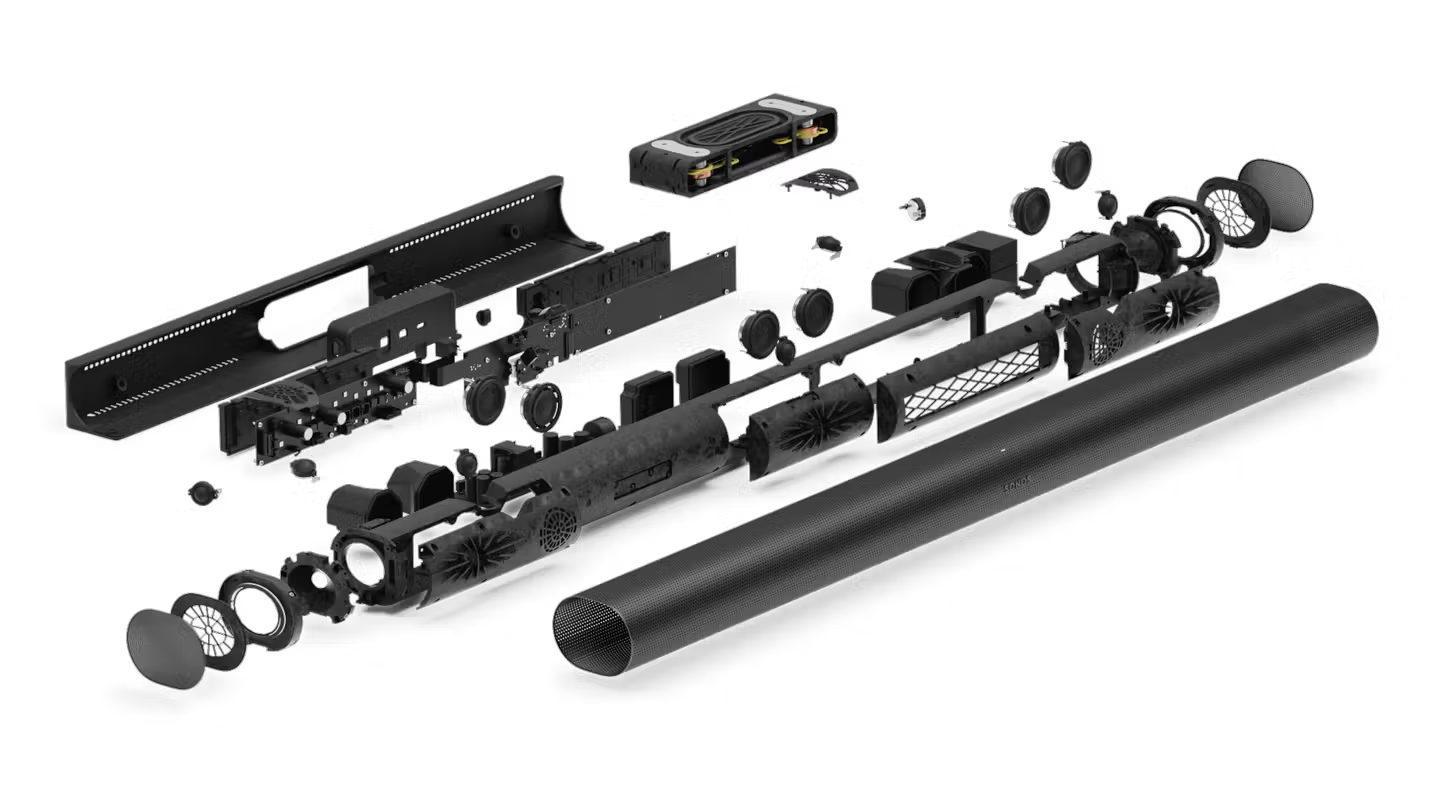

THE SOUNDBAR, REINVENTED
Arc Ultra is the sleekest and most powerful soundbar Sonos has ever created. With an all-new acoustic architecture powered by 14 Sonos-engineered drivers and advanced technologies like Sound Motion™, Arc Ultra fills every inch of the room and precisely places sounds all around you for an entertainment experience that feels out of this world.
- Sound Motion™ delivers deeper bass in a smaller package, creating space for extra tweeters and midrange drivers for a more expansive soundstage than the previous generation of Arc.
- A new speaker array maximizes center channel performance for crisp dialogue.
- Custom colinear waveguides accurately position sounds around the room.
- Upward-firing drivers reflect sound off the ceiling for an astonishingly realistic spatial audio experience.
- Side-firing drivers disperse audio from wall to wall to create a massive soundstage.
