Galvamet Blade Hoods
BLADE HOODS
BLADE HOODS
Version : Duct out
INFORMATION
BRAND
Galvamet
PRODUCT TYPE
Hoods
PRODUCTION
Made in Italy
COLLECTION
Blade
MODEL
- Blade 60/A-wht
- Blade 60/A-blk
- Blade 90/A-wht
- Blade 90/A-blk
INSTALLATION
Wall

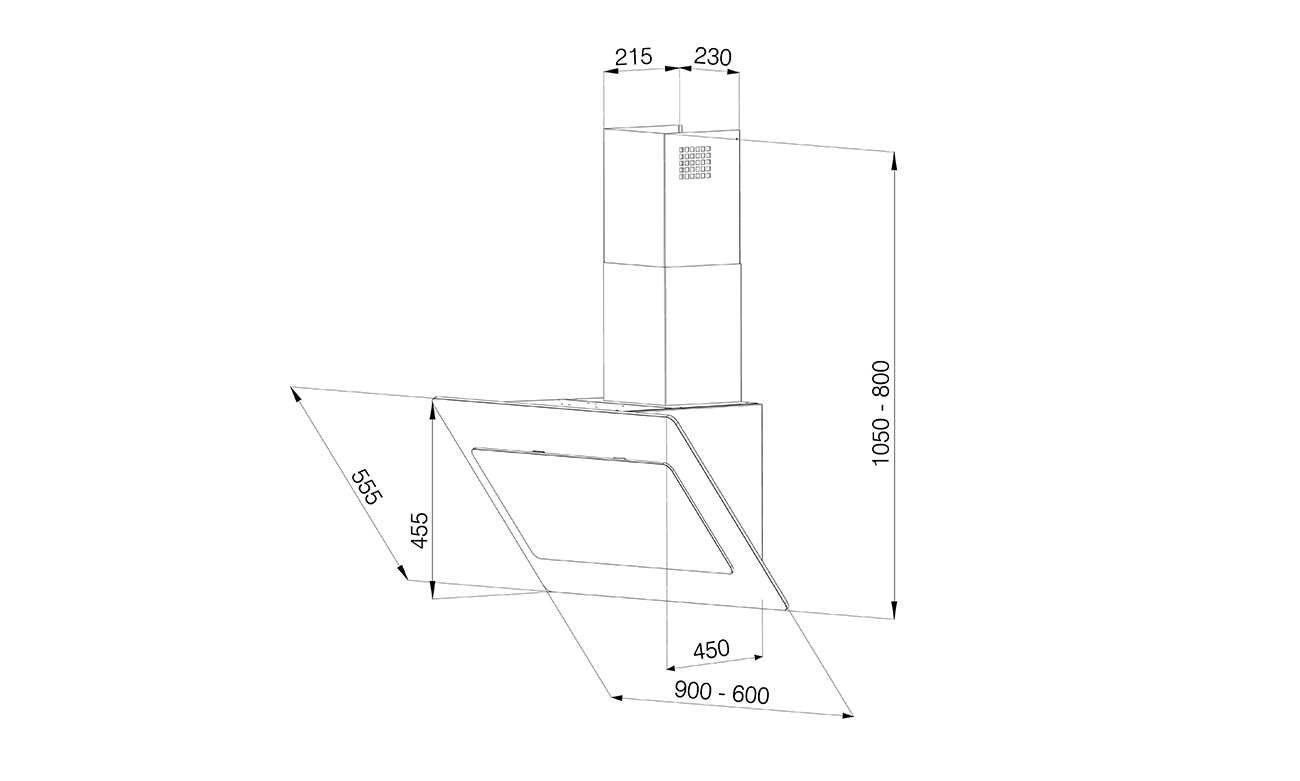

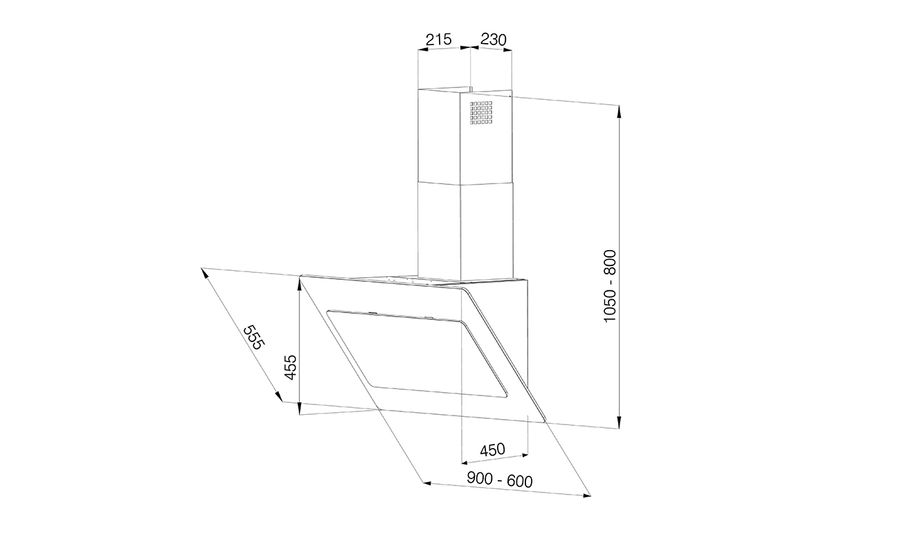

DIMENSION
60 – 90 cm
FINISHING
Inox + black or white hardened glass
MINIMUM DISTANCE FROM GAS HOB
47.5 cm.
CONTROLS
Touch screen 3S + B
LIGHTS
LED 2 x 1 W – 3000K
SOUND POWER
64 dB(A)
ENERGY CLASS
A
MAX AIRFLOW
754 m3/h
TOTAL ABSORPTION
277 W
ACCESSORIES
- Charcoal filter cod. 0051H01000
- One-way valve cod. 0051H02000
- Chimneys extension cod. 007BLD2090
DETAIL
24H COMFORT
This function allows for cleaning the air in your kitchen when the hob and cooker hood are not being used. Air extraction cycles are activated at programmed time intervals: 5 min ON – 25 min OFF. These timed cycles clean the air of any lingering odours as cigarette smoke, detergents and stagnant and stuffy smells. This function is easy to activate and deactivate when required or can be left on for a full 24 hour cycle after which it is automatically turned off.
ADJUSTABLE AND DELAYED SELF-SWITCHING OFF
This function allows you to programme delayed cooker hood shutdown which, in the shortest time possible, provides the right level of air purity in your kitchen.
LIGHT INDICATOR FOR GREASE FILTER MAINTENANCE
The cooker hood automatically informs you when the metal grease filter designed for trapping grease in the air requires cleaning. It is of utmost importance to clean these filters to ensure cooker hood components are protected and to prevent bad odours caused by a build-up of grease
PERIMETER EXTRACTION
This consists of a mechanical system that literally forces, pushes, the cooking fumes extracted along a slit that runs along the perimeter of the cooker hood. This system increases extraction performance whilst reducing cooker hood noise emission. Design and appearance are also improved as the grease filters are no longer visible.
LIGHT INDICATOR FOR CHARCOAL FILTER SUBSTITUTION
The cooker hood automatically informs you when the active carbon filter requires replacing. This filter is designed to absorb odours produced when cooking. It is of utmost importance to replace these filters regularly as they lose their efficiency and odour trapping performance.
