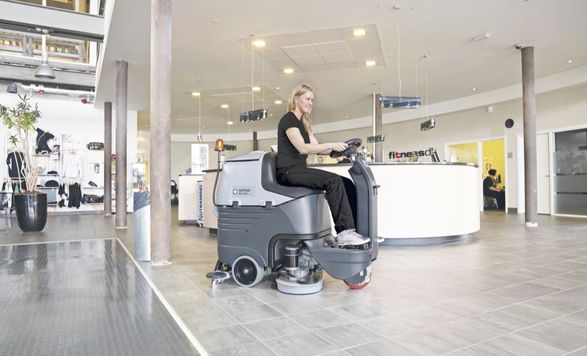

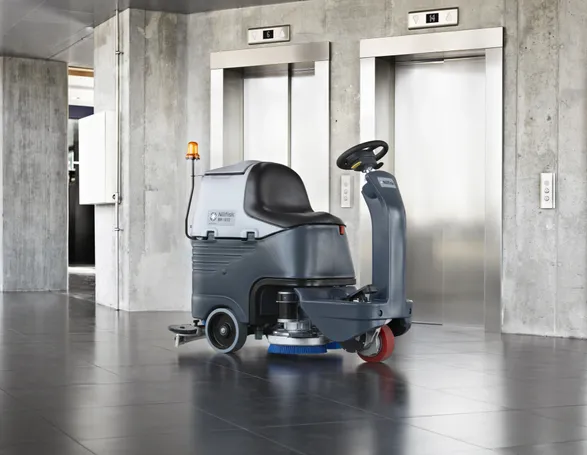

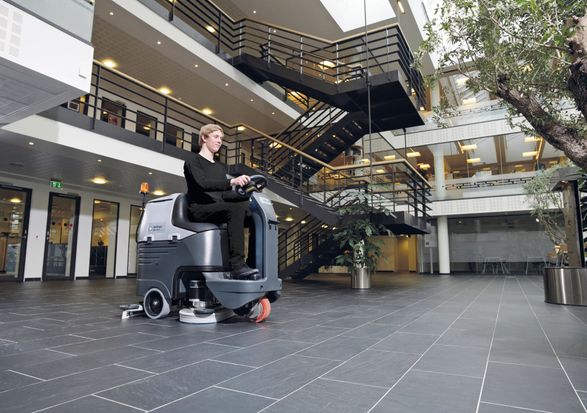

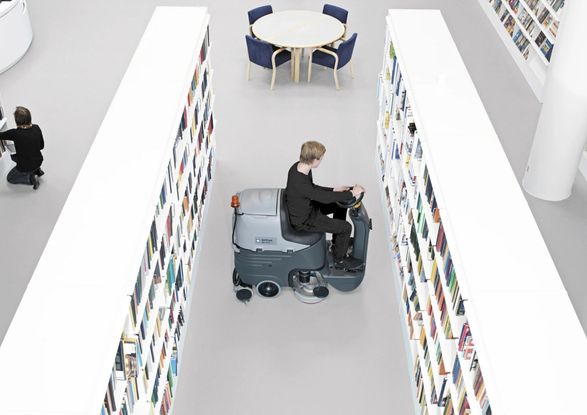

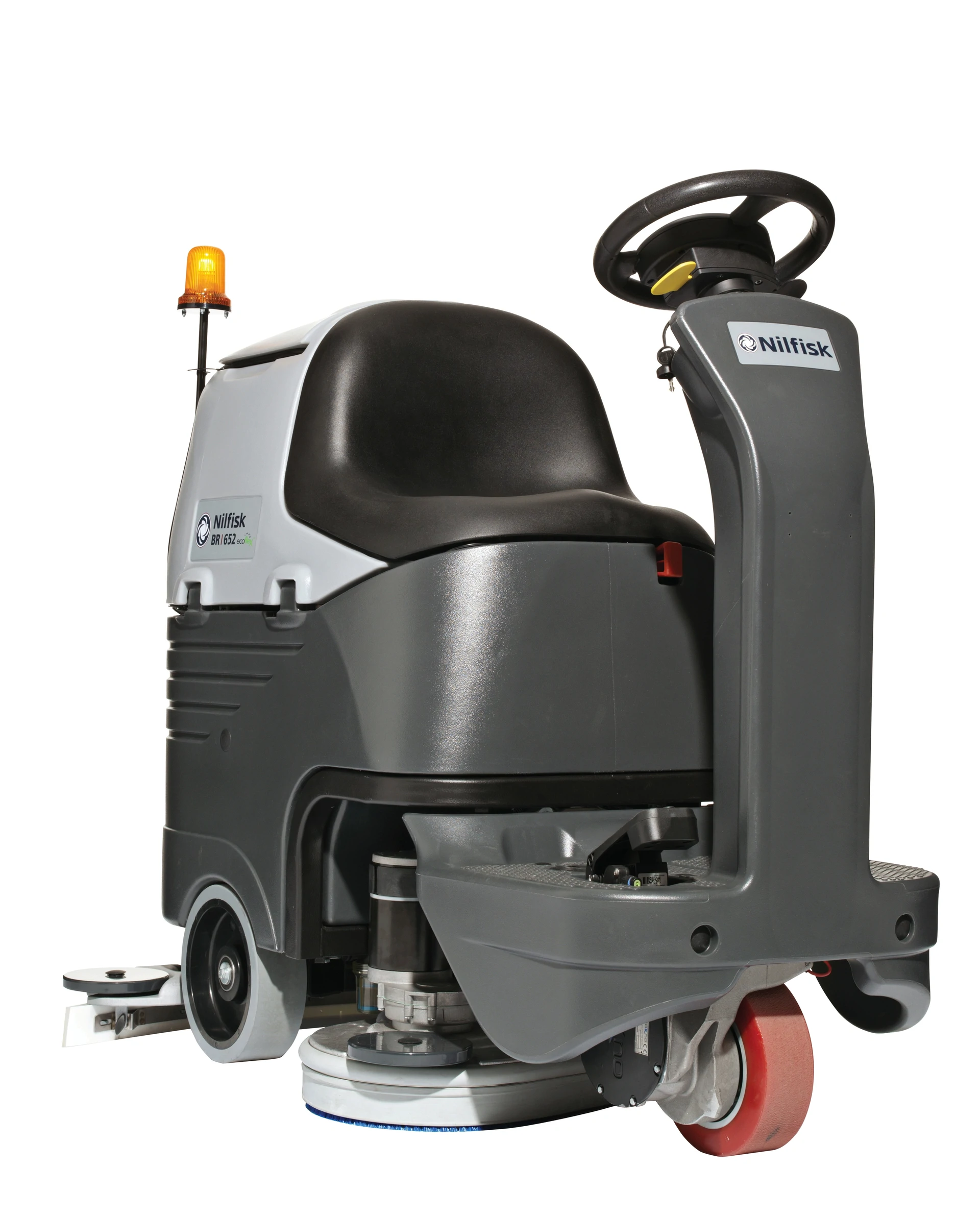

Nilfisk Scrubber Br 652 Stand-on/Ride-on Scrubber Dryers
SCRUBBER BR 652 STAND-ON/RIDE-ON SCRUBBER DRYERS
SCRUBBER BR 652 STAND-ON/RIDE-ON SCRUBBER DRYERS
With the BR652/752 series everything can be done just moving the steering wheel; as the machine turns, so too does the deck.
Together with the “intelligent” squeegee - which perfectly covers the scrubbing track without leaving traces - the Nilfisk concept delivers superb cleaning performance. This solution is so efficient that side skirts are no longer needed
INFORMATION
BRAND
Nilfisk
PRODUCTION
Stand-on/Ride-on Scrubber Dryers
PRODUCT NUMBER
9087260020
IP PROTECTION CLASS
IPX3
INSULATION CLASS
III
CLEANING
Low noise mode makes daytime cleaning and cleaning of noise sensitive areas viable
DESIGN
Super compact design makes cleaning of restricted space areas fast and easy
CONTROL
Patented automatic speed control that significantly increases operator safety
MAX. RUNNING TIME
3.5 h
MAX. SPEED (KM/H)
6 km/h
VOLTAGE (V)
24 v
BRUSH MOTOR
400 w
RATED POWER
1500 w
FUNCTIONS
Ergonomic steering wheel concept with all working functions fully integrated
PERFORMANCE
Ecoflex™ system minimises the environmental impact without compromising performance
AIRFLOW (L/SEC.)
26.1
VACUUM MOTOR POWER
420 w
VACUUM (KPA)
14.2 kPa
GROSS WEIGHT (GVW)
446 kg
NET WEIGHT
175 kg
FEATURES
- Sliding deck concept; maximum comfort and performance, minimum efforts and maintenance
- Squeegee concept; a stable and reliable squeegee for the best pick up performance
BATTERY COMPARTMENT SIZE
- Width : 540 mm
- Height : 300 mm
- Length : 380 mm
SCRUBBING WIDTH
660 mm
MIN. TURN-AROUND AISLE WIDTH
150 cm
MAX. CLIMBING RATE (%)
2 %
DIMENSIONS
- Width : 670 mm
- Height : 1200 mm
- Length : 1360 mm
WATER FLOW (L/M)
1/3
SOLUTION/RECOVERY TANK (L)
80/80
SOUND PRESSURE LEVEL AT 1.5 M (DB(A) ISO 3744)
60 (57)
BRUSH QUANTITY AND TYPE
2 Disc
BRUSH SPEED (RPM)
230
REVOLUTIONARY DECK SYSTEM GIVING YOU SUPERB PERFORMANCE
With the BR652/752 series everything can be done just moving the steering wheel; as the machine turns, so too does the deck. Together with the “intelligent” squeegee - which perfectly covers the scrubbing track without leaving traces - the Nilfisk concept delivers superb cleaning performance. This solution is so efficient that side skirts are no longer needed.
SQUEEGEE WIDTH
890 mm
BRUSH/PAD DIAMETER
330/330 mm
BRUSH PRESSURE
30/48 kg
NCLUDED ACCESSORIES
- Tray Debris Kit
- Splash guard deck 650mm/26
- Blades squeegee 890mm 35 pu kit
PRODUCTION
Made in Denmark
USE
Floor-cleaning solutions
