Bezzera Matrix Coffee Marker
MATRIX COFFEE MARKER
MATRIX COFFEE MARKER
The Matrix model represents innovation in the world of semi-automatic espresso coffee machines.
INFORMATION
COFFEE HEATING ELEMENT
800 W
BRAND
Bezzera
PRODUCT TYPE
Coffee Maker
BACK SIDE LED
No
COLOR
Stainless Steel
DIMENSIONS
- Height : 420 mm
- Depth : 470 mm
- Width : 310 mm
NET WEIGHT (MATRIX DE 32,2)
33 kg
GROSS WEIGHT (MATRIX DE 36,2)
37 kg
COFFEE BOILER
0.45 (lt)
SERVICE BOILER
1 (lt)
TANK
4 (lt)

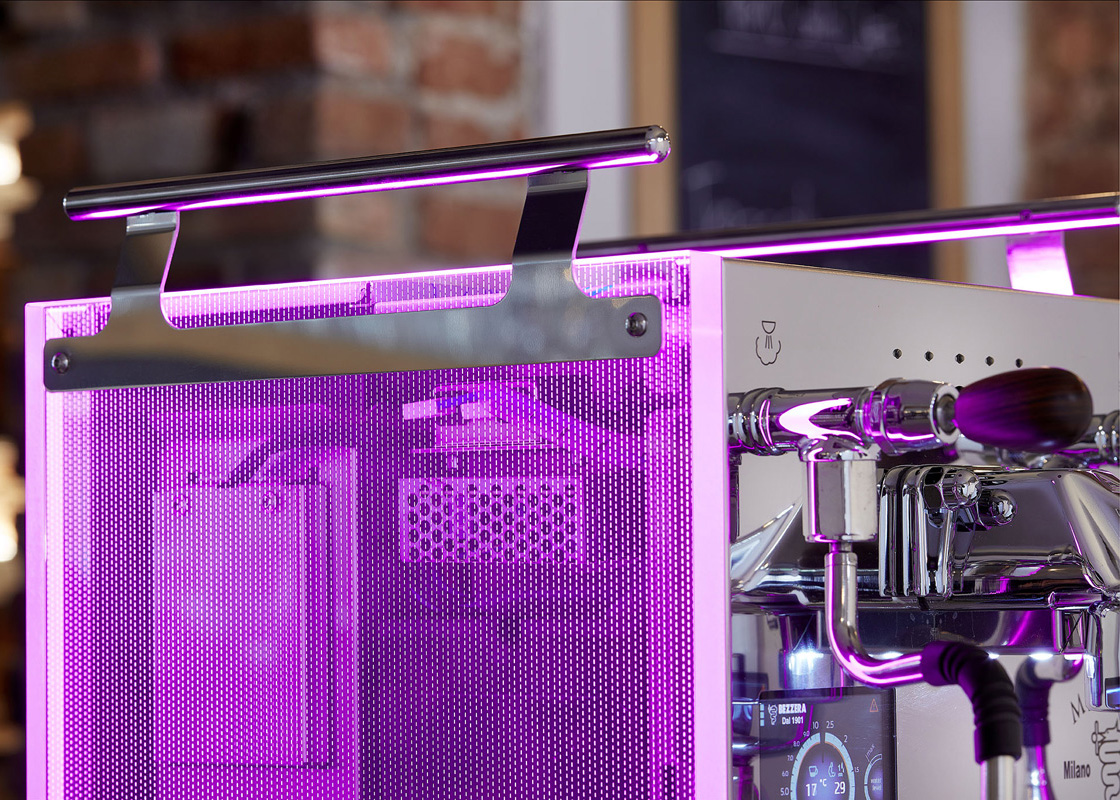

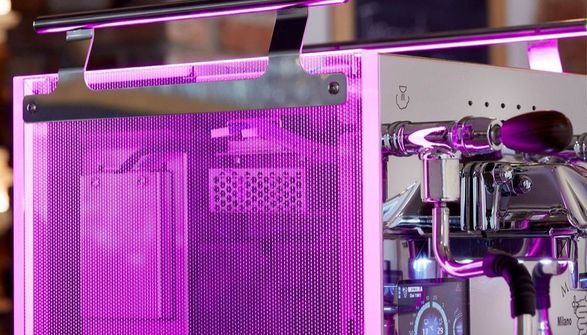

BODY RGB LED
Yes
LOAD CONNECTION
G 1/8''
POWER SUPPLY (V~/HZ)
- 110 - 120 / 50-60
- 220 - 240 / 50-60
DOWNLOADS
↓ Data Sheet
↓ Spare Parts
DISPLAY
3.5
USE
Cooking
MAIN FEATURES
- Settable pre-infusion
- Automatic daily on/off setting
- Automatic Backflush program
- Frame and body in AISI 304 (14301)
- Calibration Intensity and RGB LED colour
- Selection of supply from the water mains or from the tank
MATRIX MN - 2 PID THERMOSTATS

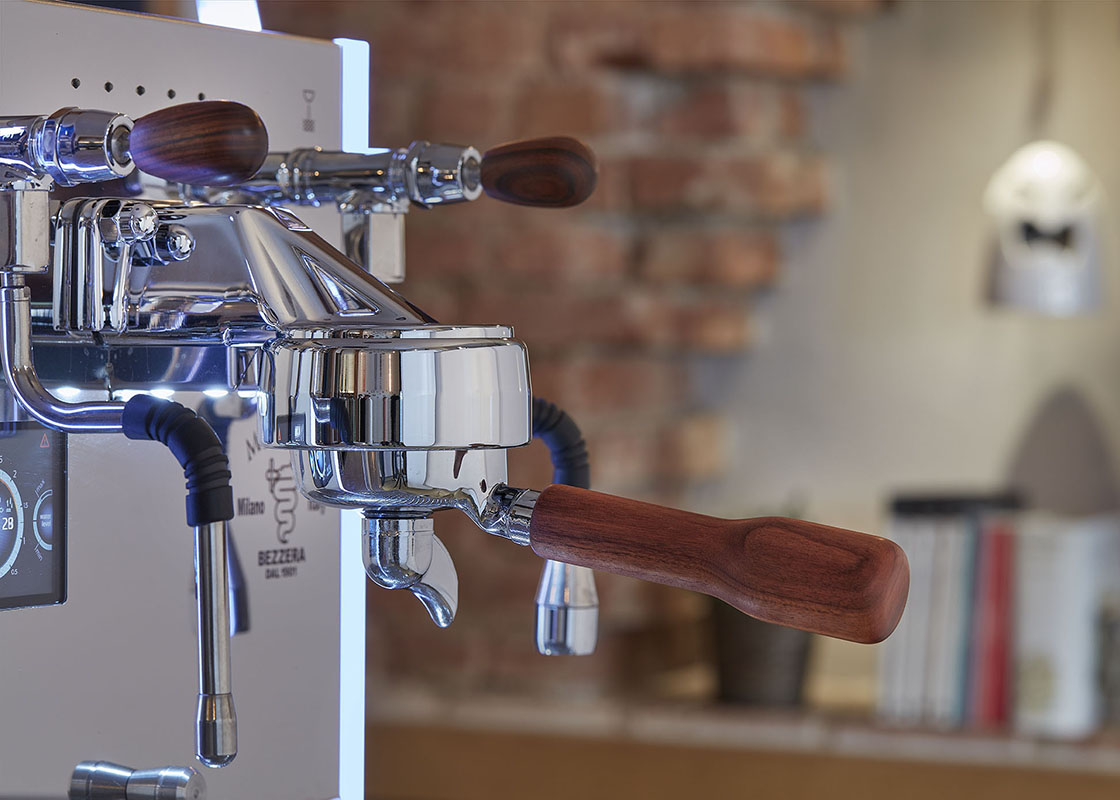

- It works with the traditional manual lever unit: dispensing of the coffee begins by pushing of the lever upwards and stops by lowering it once the desired quantity has been dispensed into the cup.
- The unit is heated by the thermosiphonic circulation system with water coming from a small water heater dedicated to extraction of the coffee. The temperature is controlled by a PID thermostat which ensures optimum thermal stability in the range from 88 to 96°C.
COLLECTION
Matrix
PRODUCTION
Made in Italy
TECHNOLOGY

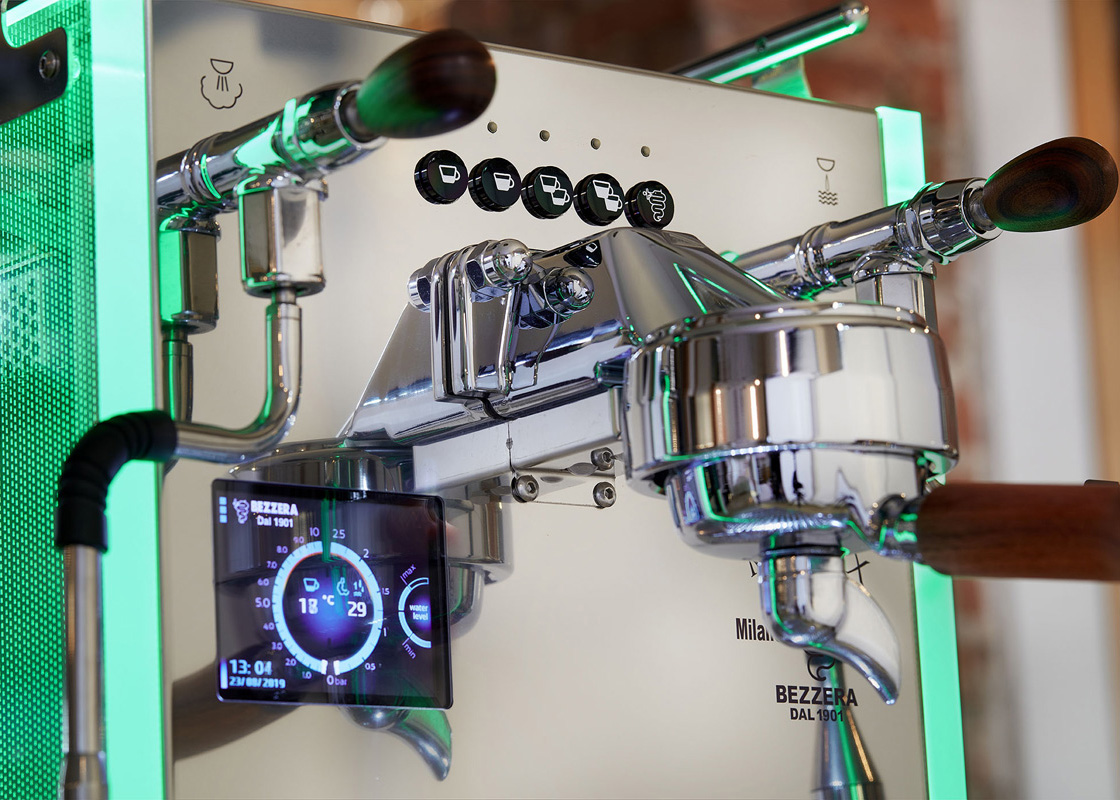

It combines traditional "LEVER" technology with sophisticated software and electronics that allow, through a 3.5" touch display, according to the style of the environment, also available in the DE version with 3 thermostats and volumetric dispensing.
WATER FILTER
Water filter alarm and maintenance cycles & Water heater priority setting
DRAIN CONNECTION
10 mm
SERVICE HEATING ELEMENT
1200 W
MATRIX DE - 3 PID THERMOSTATS
-The unit is heated by an electrical resistance which is activated by a PID thermostat that keeps a constant temperature. -The second PID thermostat allows adjusting of the water temperaturein the water heater dedicated to coffee extraction, which ensures optimum thermal stability in the range from 88 to 96°C. -The steam/water circuit is connected to an independent water heater driven by a PID thermostat that also allows maximising of the vaporisation power in the case of intensive use.
-The DE version is fitted with volumetric coffee dispensing managed by microprocessor with 4 doses that are directly programmable from the keyboard; the fifth button activates the continuous dispensing operation. -In both versions the hydraulic system powered by a rotary pump can use a 4-litre internal water tank or be connected to the water supply.
