Jaga Avs Unit Heater
AVS UNIT HEATER
AVS UNIT HEATER
Warm Power, Cutting-edge Design
Discreet slim-line design with flat front panel and stylish aluminium grille. It radiates quality!.
INFORMATION
BRAND
Jaga
PRODUCT TYPE
Heater
MANUFACTURER
- Jaga EC unit heater AVS® Jaga
- Mini EC unit heater AVS®
CASING
- The casing is made of 1.25 mm thick galvanised steel plate, installed in such a way that screws and rivets are concealed
. - The casing is lacquered in the colour sandblast grey 001. Other colours on demand. The coating is a lightly structured and scratch resistant epoxy-polyester powder, sprayed electrostatically and baked at a temperature of 200 °C, thickness of +/- 125 µ. UV resistant due to ASTM G53.
PRODUCTION
Made in Belgium
POWER
Warm Power

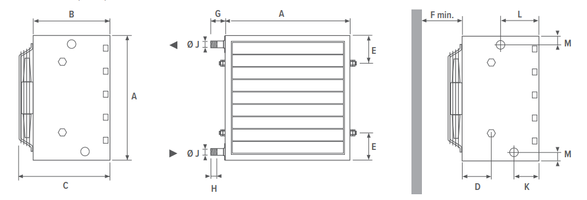

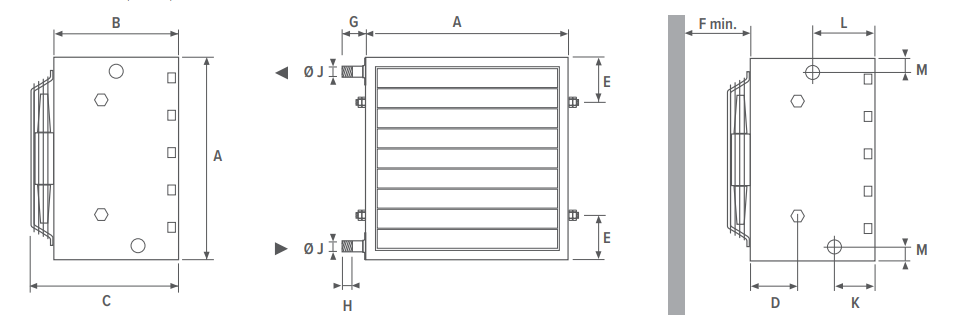

TECHNICAL DRAWING
HEATING CAPACITY

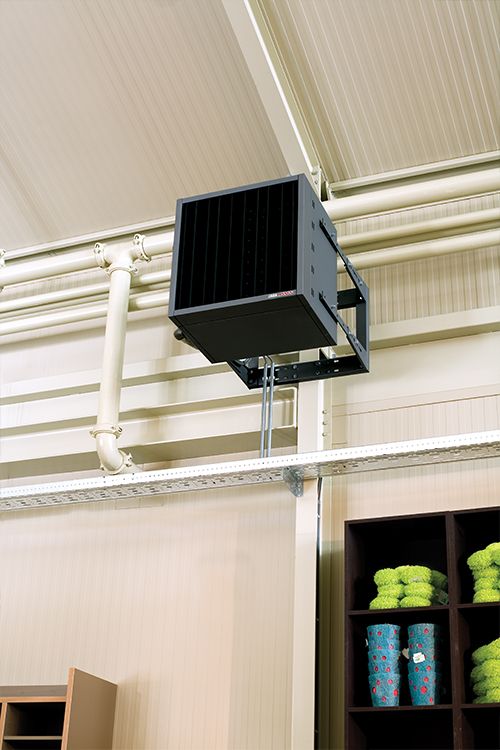

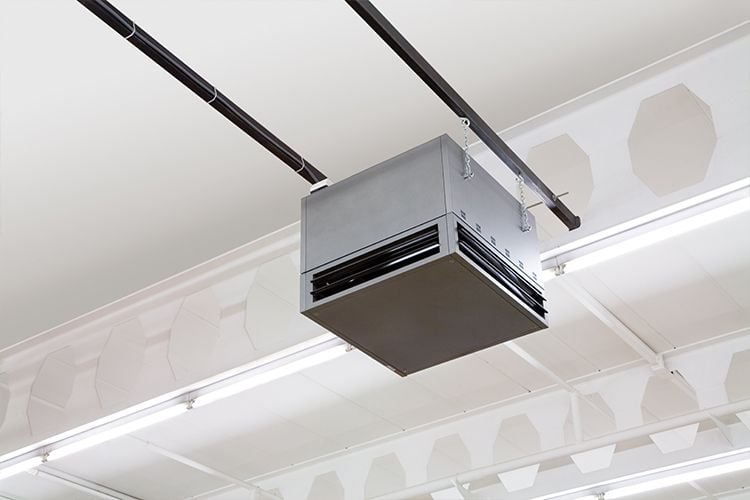

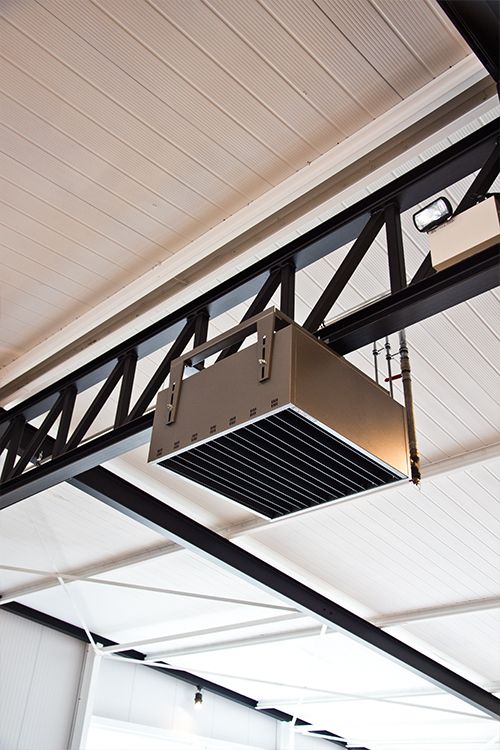

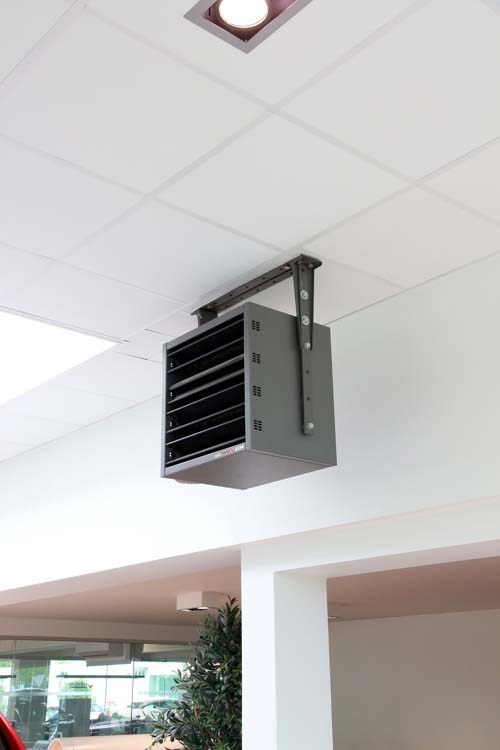

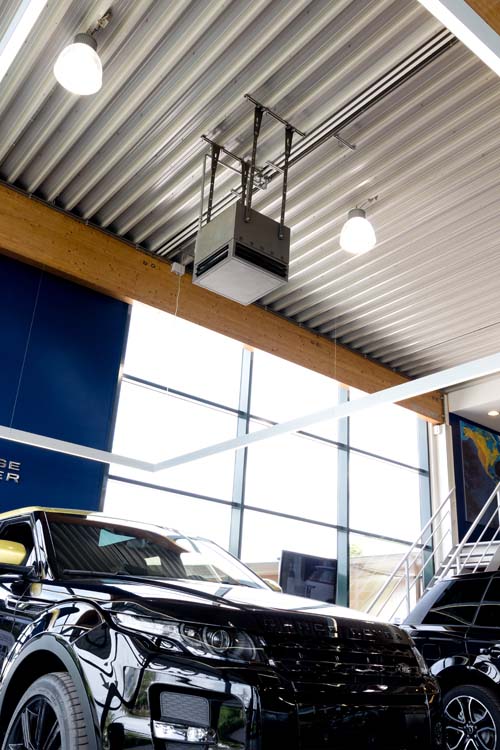

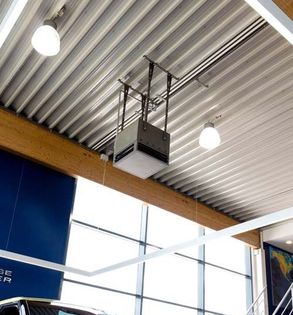

For smaller spaces, offices or shops there is a Mini version of the unit heater with a heating capacity of 4.5 to 9.6 kW. The unit heater can be used for assembly against a wall, against the ceiling or on a metal truss by using strong brackets (see options). The unit heater can be used with 100% ambient air, with 100% outside air or with mixed air.
EXHAUST GRILLE
- Modular AVS® version (optional)
- The unit heater is supplied with exhaust louvres set in Air Venturi position
- The horizontally built-in air exhaust grille is made of satin-black coated, slightly coved, aluminium slats.
. - With the shape and positioning of the louvres, the adjustable Air Venturi System (AVS®) ensures the direct mixture of the heated air with the ambient air
- As a result the space is heated quicker and the warm air is forced downwards instead of remaining at the high level.
DETAIL
- By using the latest EC motors, up to 32% less electricity consumption.
- The Air Venturi System efficiently blends heated air with the ambient air.
- Faster heating, better temperature distribution, lower energy consumption.
COLLECTION
AVS
HEIGHT AND WIDTH
41 / 53 / 65 / 77 / 89 cm
DOWNLOADS
↓ Manual
↓ Brochure
↓ Product Description
HEAT EXCHANGER
- Deliverable in five sizes of heat exchangers: with two or three rows of pipes.
- A maximum temperature of 90°C. The heat exchanger is not suitable for the use of steam as a heat conductor
- The heat exchanger consists of fins of pure aluminium pressed on mechanically extended pure red copper pipes. These pipes are connected to two steel collectors for left same end connection (1” for type 000, 100 and 200 / 11/2” for type 300 and 400). Air vent 1/8” and drain plug 1/2” are included.
PRESSURE TEST
25 bar
WORKING PRESSURE
11 bar with a maximum temperature

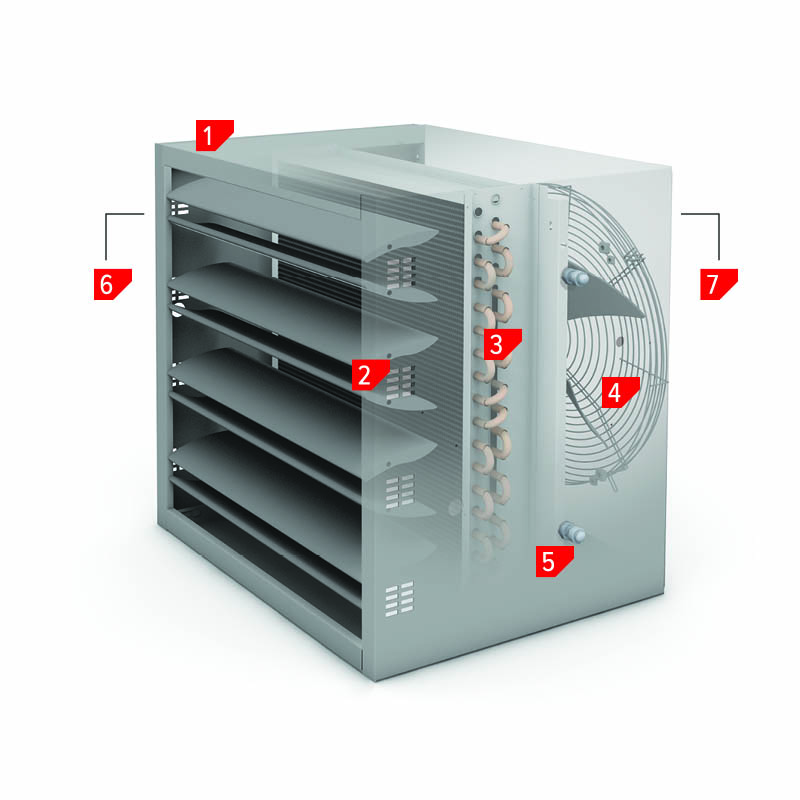

COMPOSITION
- 1. Casing
- 2. Jaga AVS® System
- 3. Heat exchanger
- 4. EC fans
- 5. Mounting screws
- 6. Hydronic connection
- 7. Electrical connection
APPEALING FINISH
A totally new construction without any visible screws or rivets. A high quality sandblasted grey lacquered (001) scratch resistant and dirt repellent finish. Aerodynamic exhaust made of satin black lacquered aluminium.
OPTIONS
FAN(EN) WITH EC MOTOR
The EC motor is an EBM-Papst external motor integrated in one piece with a 1-10 VDC motor and a reduced noise level synthetic HyBlade® ventilator in one piece. Internal thermal contacts are provided to protect the motor: for type 000 and 100 an internal automatic safeguard, for type 200, 300 and 400 an external safeguard should be provided.
These contacts can be connected to a Jaga safety switch fixed on the side of the casing. These thermal contacts can also be connected to a speed regulator. EC motor: 230 V single-phase, 1-10 VDC. Insulation Class B. Degree of protection: IP 54
AIR INLET OPTIONS
- Shutter box 180°, open/ center/ close, controlled by 230 V servo motor.
- Shutter box 90°, open/ center/ close, controlled by 230 V servo motor.
- Roof rain protection cowling piece for connection on wall channel box
- Roof rain protection cowling piece for connection on extension channel
- Filter box with a filter element, self-extinguishable in accordance to DIN 53438-1. Heat resistant up to 100 °C. (efficiency: Ashrae-tissue 90%. Complies to classification G4 in accordance DIN EN 779.)
- Wall channel box
- 2-sided air inlet box
- Extension box • extention channel
- Automatic closing flaps for the outside air grille
- Air inlet mouth piece for wall channel box with grille
MODULERENDE AVS® UITVOERING
-With the modulating AVS-version the exhaust louvres are linked in - Pairs and connected with a servomotor. This motor produces a continuous back and forth movement of the adjustable louvres. The air turbulation thus created provides an even better temperature distribution. The movement angle may be easily adjusted from 0 to 90°. The modulating operation is integrated into the equipment and therefore can not be delivered as an accessory. -The Mini Fan Heater (Type 021/031) not available in the modulating version.
