galvamet START 80 glossy black
START 80 GLOSSY BLACK
START 80 GLOSSY BLACK
The essence of venting hobs
A venting hob, designed to deliver reliable performance, clean design, and all the practicality of Galvamet technology.
INFORMATION
BRAND
Galvamet
PRODUCT TYPE
Induction Hob
PRODUCTION
Made in Italy
COLLECTION
Start
POWER LEVELS
9+Booster
ZONE
- Zone 1 : 190 x 210mm / 2,3 (3,0) kW
- Zone 2 : 190 x 210 mm / 2,3 (3,0) kW
- Zone 3 : 190 x 210 mm / 2,2 (2,6) kW
- Zone 4 : 190 x 210 mm / 2,2 (2,6) kW
DIMENSIONS
80x52cm
COOKING ZONES
4
TOTAL ABSORPTION
Adjustable (1,5/2,8/3,3/4,5/5,7/7,4) kW
CODE
Cod. 0ESTR080A665000 – START 80/A GLOSSY BLACK
CONTROLS
Slider
BRIDGE ZONES
2
USE
Kitchen
FINISHING
Glossy Black Glass Ceramic
SOUND POWER
65 dB(A) at maximum speed
CONTROLS
Slider
MAX AIRFLOW
650 m3/h
TOTAL ABSORPTION
180 W
ACCESSORIES
- Cod. 005PRC030204 – Plasma filtering kit
- Cod. 005LV03014 – Long Life odour filter 335 × 156
- Cod. 005PRC050001 – Ducting kit for plinth-mounted filtering installation H6
- Cod. 005PRC050002 – Ducting kit for plinth-mounted filtering installation H10
SPEED NUMBER
9+Booster
ENERGY CLASS
A+

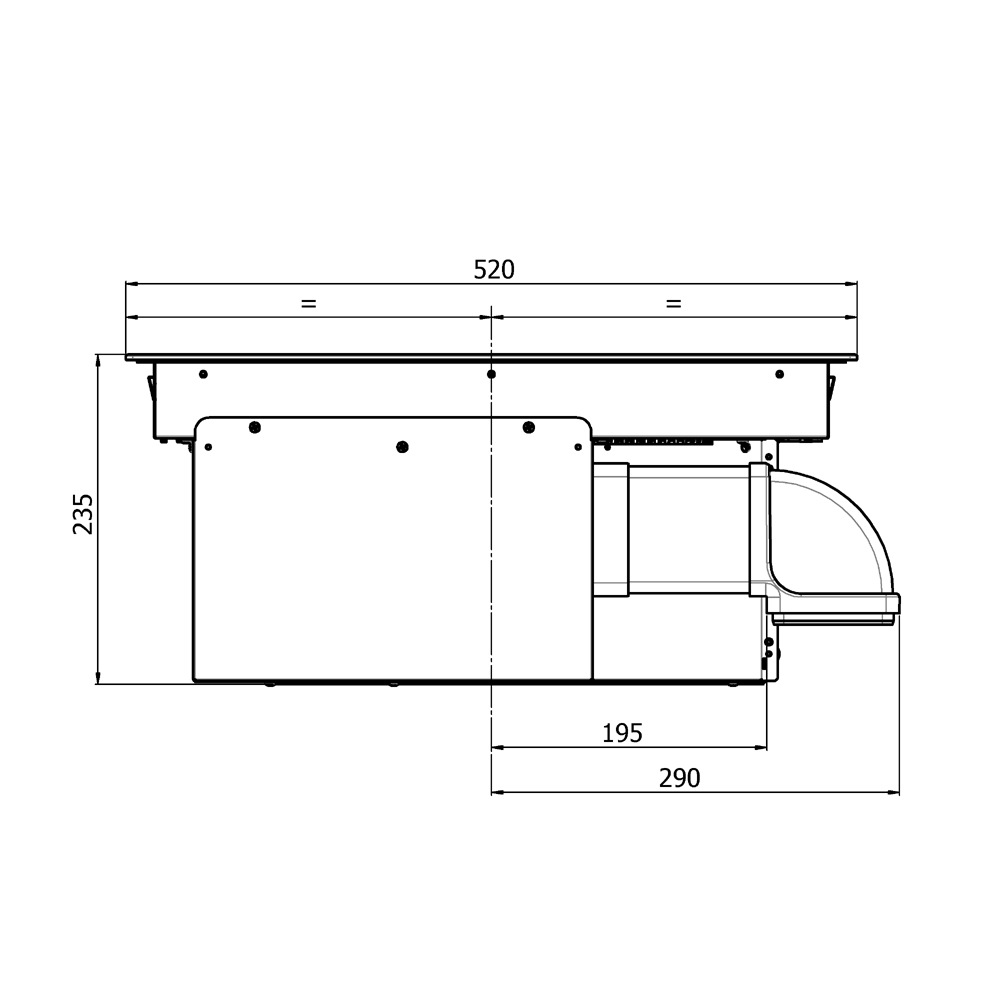

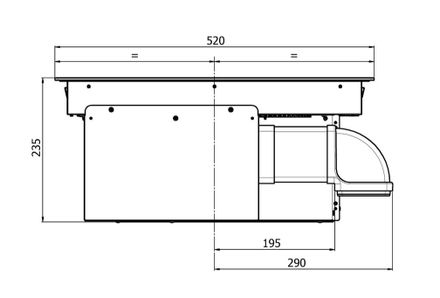

TECHNICAL DRAWINGS
TECHNICAL DRAWINGS

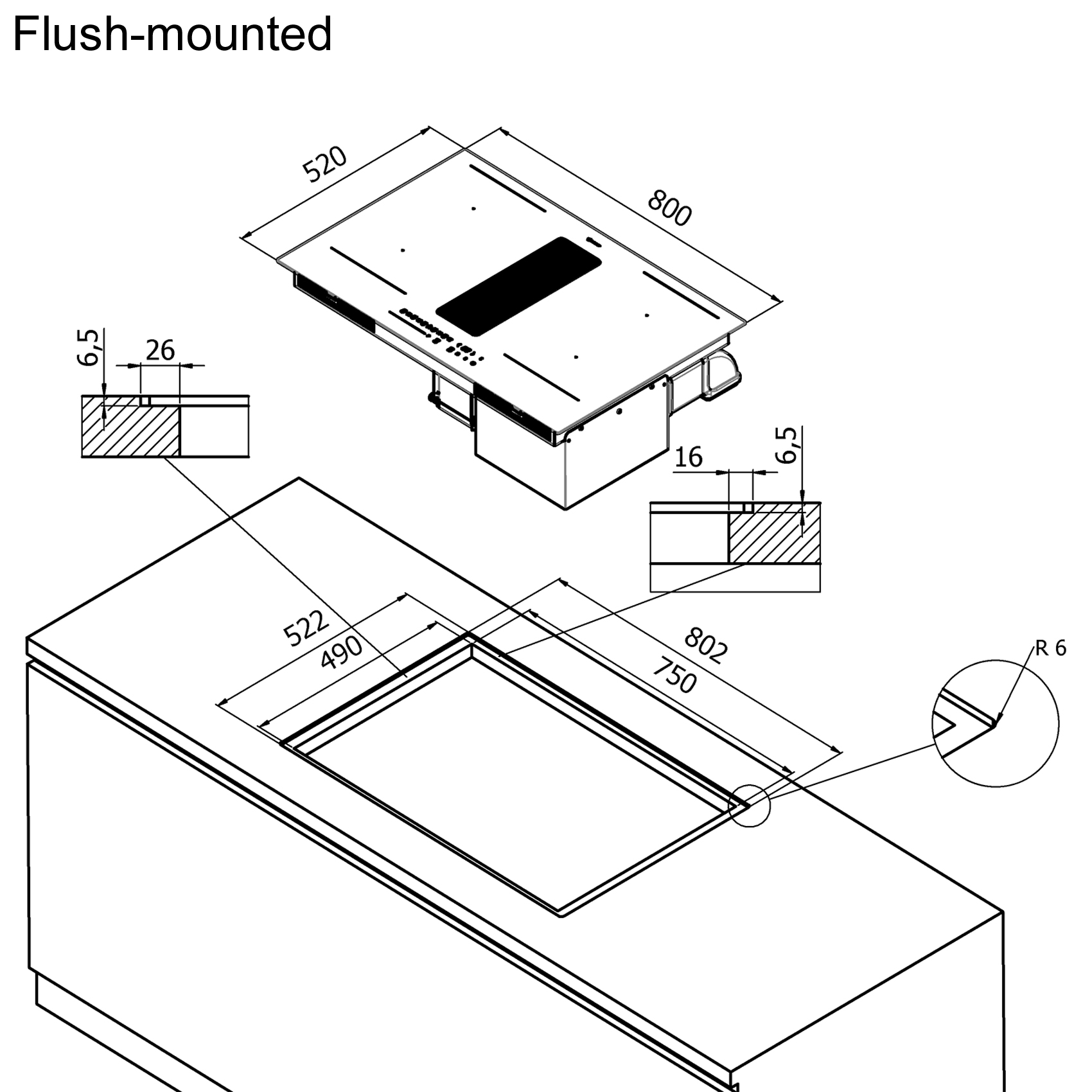

- Flush Mounted

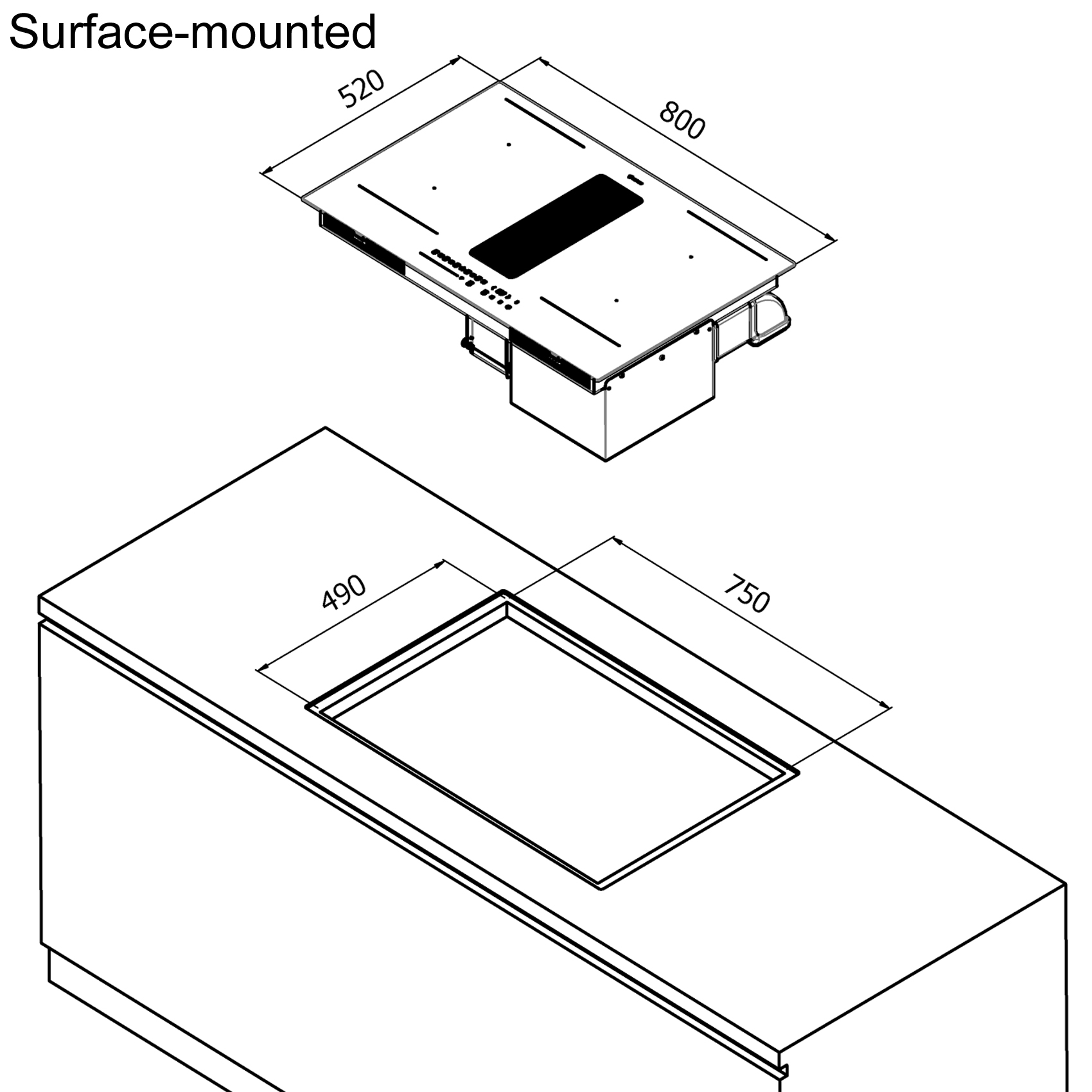

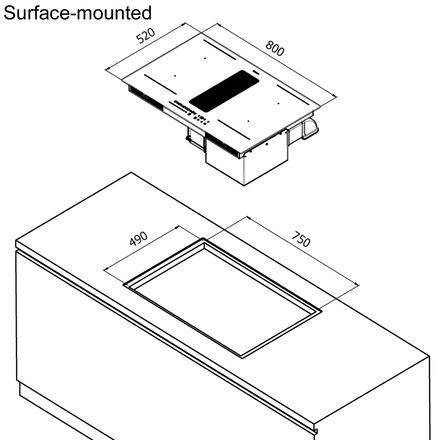

- Surface Mounted
EXTRA ASPIRATION SYSTEM
INSTALLATION
It is possible to install the induction hob non-flush or flush uninterrupted on the top (filotop).
RESIDUAL WATER
Drain Valve.
LIGHT INDICATOR FOR LONG LIFE ODOUR FILTER REGENERATION
The long life odour filter captures cooking fumes and eliminates unwanted smells, ensuring clean air in your kitchen. Unlike standard charcoal filters, it does not need frequent replacement, as it can be regenerated every 2–3 months, depending on usage. The filter cartridge is easily removable from the top after taking off the grille.
ADJUSTABLE AND DELAYED SELF-SWITCHING OFF
This function allows you to programme delayed cooker hood shutdown which, in the shortest time possible, provides the right level of air purity in your kitchen.
ADAPTABILITY AND DESIGN FREEDOM
The system can be adapted to any type of space thanks to the possibility of air outlet towards the floor or towards the wall (plug&play).
GREASE FILTER MAINTENANCE WARNING
Automatic warning to the user of the need to clean the metal filter that captures the grease. Correct cleaning of these filters guarantees the protection of the internal components of the hood and prevents the spread of bad odors generated by the fats captured over time.
AUTOMATIC OPERATION
With this function, the hood will switch on at the most suitable speed, adapting the suction capacity to the maximum cooking level used in the cooking zones. When the cooking zones are switched off, the hood adapts its suction speed, progressively decreasing it, eliminating odors and residual vapors.
DUC OUT/RECYCLING
With a simple filtering kit (optional) the hood can be transformed from duct out (with pipes) to recycling (without pipes). The kit features long life technology (regenerable in the oven) and guarantees approximately 80% odor elimination. A filtering kit with plasma technology is also available (optional) to ensure maximum elimination of odors (up to 95%), viruses spores bacteria (up to 99,9%) from the air.
THE METAL GREASE FILTER
Filter and grease collection tray are easily removable and reinserted from above after removing the grille. They are dishwasher safe.
PLUS INDUCTION HOB
RESIDUAL HEAT INDICATOR
A safety system that signals the presence of heat on the surface after use. The “H” symbol warns that the area is still hot, helping to prevent accidental contact and ensuring total peace of mind in the kitchen.
CHILD LOCK
A safety function that temporarily disables the controls, preventing accidental changes and ensuring maximum peace of mind during everyday use.
TIMER
Allows precise setting of the cooking duration for each zone. When the selected time ends, the zone automatically switches off, ensuring perfect results without the need for constant supervision.
PAN DETECTION
The technology automatically recognizes the presence and size of the pan, activating the cooking zone only when necessary. An intelligent system that optimizes efficiency and ensures maximum safety.
OVERHEAT PROTECTION
An intelligent safety system that constantly monitors the temperature and automatically intervenes in case of overheating, ensuring reliability and long-lasting performance of the cooktop.
PAUSE AND RESUME FUNCTION
Allows you to temporarily pause cooking and later resume with the same settings. A practical solution that offers maximum freedom and control, even during the most dynamic cooking phases.
OPERATING TIME LIMITER
Each cooking zone is controlled by an automatic system that stops heat output after a maximum usage time, ensuring safety and protection even in case of accidental oversight.
