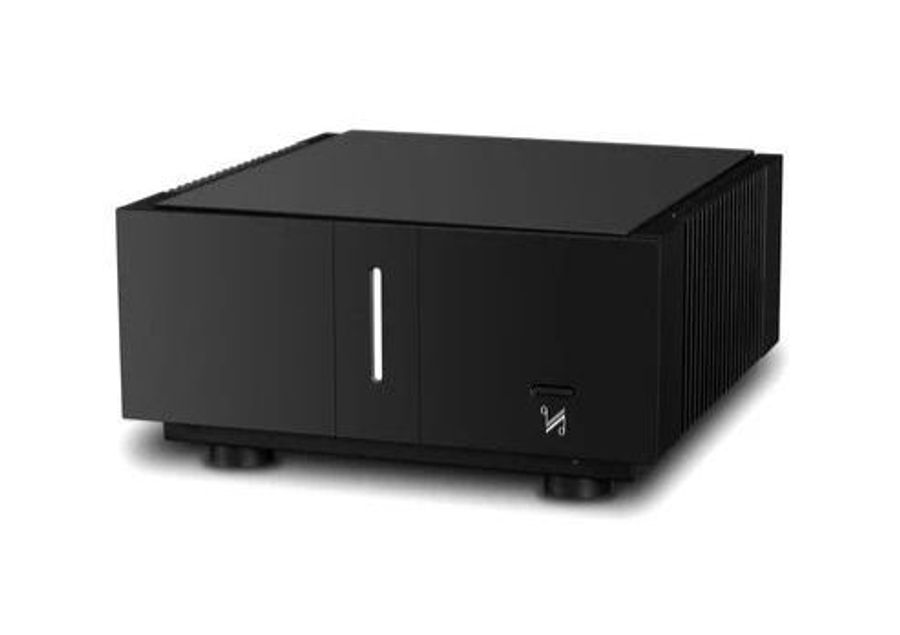

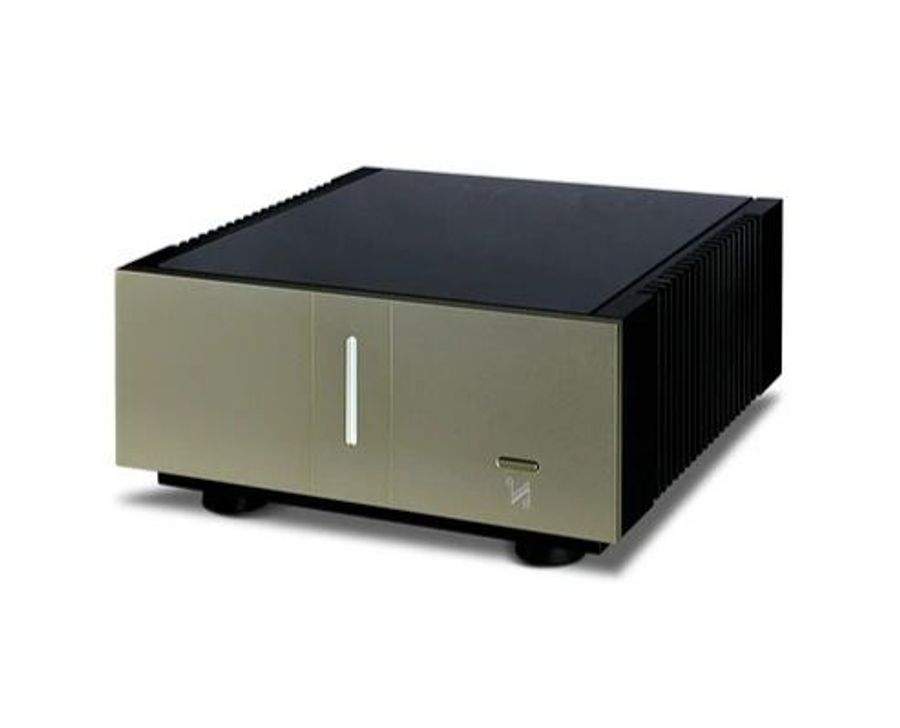

quad Artera Stereo Power Amplifier
ARTERA STEREO POWER AMPLIFIER
ARTERA STEREO POWER AMPLIFIER
From the transformer to the input terminals, each section of the Artera has been engineered from the ground up to ensure power, musicality and stability.
INFORMATION
BRAND
Quad
PRODUCT TYPE
Amplifier
RATED OUTPUT POWER
140W 8 ohm (<1% THD,1kHz)
GENERAL DESCRIPTION
Power Amplifier
TOTAL HARMONIC DISTORTION
- <0.003% (100W, 1kHz)
- <0.03% (100W, 20Hz-20kHz)
MODEL
Artera Stereo
AVAILABLE COLORS
3
TECHNOLOGY
The artera stereo produces 140 watts rms per channel – ample power for driving first-class loudspeakers, unfaltering even under high dynamic and transient conditions thanks to the patented current dumping technology. Special attention has also been paid to the newly developed balanced xlr inputs. The robust connections are yet another string to the artera stereo’s bow, with an incomparable signal to noise ratio.
INPUTS
2 x XLR, RCA
INPUT SENSITIVITY
980mV(RCA line in)
ENVIRONMENT
Indoor
SIGNAL TO NOISE RATION(S/N)
115dB (A weighted, ref. 140W)
MAXIMUM POWER CONSUMPTION
750W
OUTPUTS
Speaker A+B
STANDBY POWER CONSUMPTION
<0.5W
INPUT IMPEDANCE
- 10kohm (Balanced)
- 15kohm (Unbalanced)
FREQUENCY RESPONSE
- -0.5dB (20Hz-20kHz, ref. 1kHz)
- -3dB (20Hz-70kHz, ref. 1kHz)
DIMENSIONS 1
- Width : 320 mm
- Height : 158 mm
- Depth : 338 mm
NET WEIGHT
15kg
COLLECTION
Artera
DOWNLOADS
↓ Manual
↓ Brochure
FINISHES
DETAIL
POTENT POWER
This compact yet potent power amp sports the latest iteration of QUAD’s famous Current Dumping topology, first introduced in the legendary QUAD 405 – one of the most lauded British audio components of all time and still the only amp design to have earned a Queen’s Award for Technological Achievement.
CURRENT DUMPING
Current Dumping is essentially a method of marrying the superior sonic purity of Class A amplification with the greater efficiency of Class AB.
An extremely high-quality, low-power Class A amplifier provides the signal quality, while a high-power current dumping section delivers the muscle to keep the speakers under control. These two amp circuits are combined via a precision network to perfectly impose the finesse of the Class A output onto the power of the current dumper. The result is a relatively compact and cool-running power amp capable of delivering a captivating combination of dynamic power, vice-like grip and sumptuous sonic detail.
STEREO’S POWER
The Artera Stereo’s power output is conservatively rated at 140W per channel into eight ohms and 250W into four ohms, ensuring any speakers – including QUAD’s classic ESL electrostatic designs – can be driven with ease.
Connectivity options comprise single-ended RCA and balanced XLR inputs, a 12V trigger input and high-quality speaker binding posts. Simple, solid and classy on the outside and devilishly clever within, the Artera Stereo maintains QUAD’s traditional place at the forefront of modern amplifier design
