Codelocks CL5000 Netcode® Panic Access Kit Electronic Locks
CL5000 NETCODE® PANIC ACCESS KIT ELECTRONIC LOCKS
CL5000 NETCODE® PANIC ACCESS KIT ELECTRONIC LOCKS
Heavy duty front plate only. Install with new or existing panic equipment.
The CL5000 NetCode® Panic Access Kit provides temporary, time-sensitive codes, an evolution of a time-tested classic CL5000.
Front plate only. Install with new or existing panic equipment. The follower on the panic equipment must return to square to align with follower on the lock. Now available in Solid Black finish.
Codelocks proudly presents the CL5000 NetCode® Range. With the original CL5000 having stood strong since its launch in 2004, the CL5000 NetCode® Panic Access Kit is an evolution of a time-tested classic.
INFORMATION
BRAND
Codelocks
PRODUCT TYPE
Door Lock
CODELOCKS
Enjoy the flexibility and convenience of remote access, granting entry from afar via the Codelocks Connect Portal.
HANDED
Non Handed - Locks will fit doors hung on the left or right
LOW BATTERY WARNING
Red LED will flash on opening to indicate low battery
BUTTONS
3 x 4
CODE CHANGE METHOD
Keypad (On Door)
DOOR THICKNESS
35mm - 60mm (1 3⁄8" - 2 3⁄8")
KEYED ALIKE
Available
KEYPAD
Individual stainless steel buttons

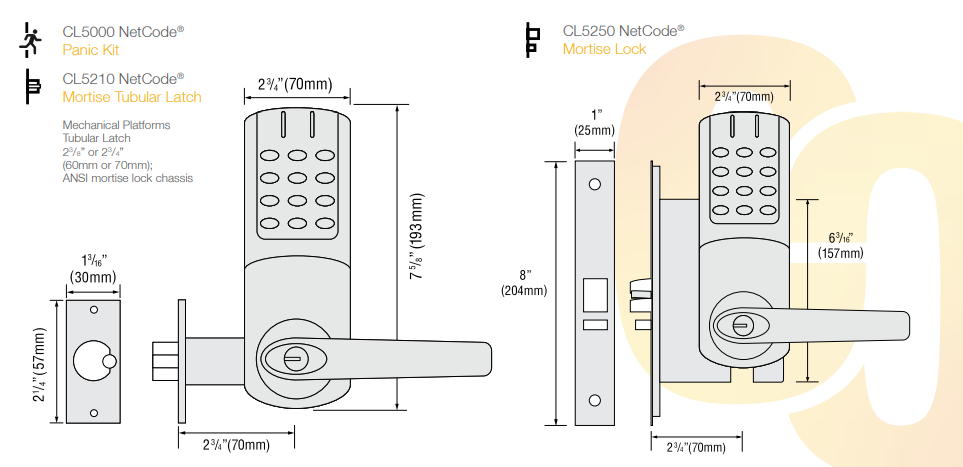

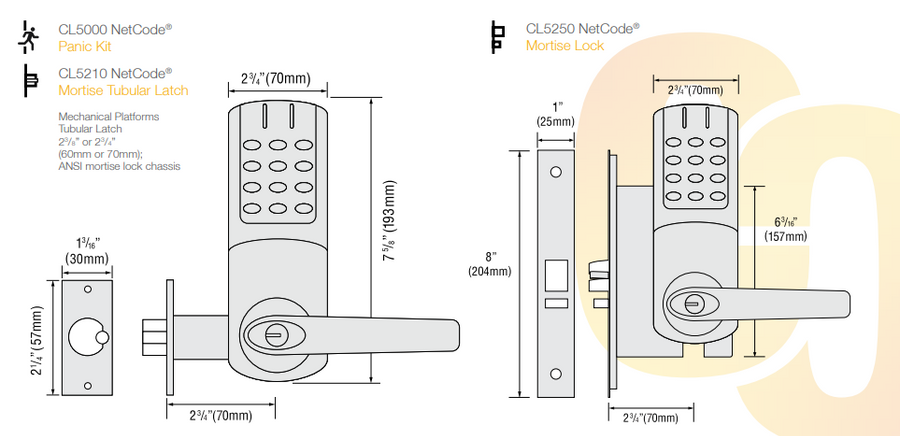

TECHNICAL DROWING
OPERATIONS
Up to 200,000 per set of 4 x AA batteries
LOCK MATERIAL
Zinc Alloy
ORIENTATION
Vertical
MEMORY
Stores up to 80 User Codes
POWER
4x AA
APPLICATIONS
Ideally suited to a wide range of applications.
TECHNOLOGY
Beyond the technology, the lock's core strengths - its solid build, ease of installation and operation, key override and low maintanence - remain steadfast. Powered by batteries, its operation is hassle-free, eliminating complex wiring. Customers can be confident that whilst offering enhanced NetCode® capabilities, the reliability and durability of the well-known CL5000 that made it a bestseller is retained.
CODES
User Codes 4, 5 or 6 digits long
FINISH
Brushed Steel, Black
COLOR
- Black
- Brushed Steel
KEY FEATURES
- NetCode® technology
- Up to 80 User Codes
- Battery level check
- 4, 5 or 6 digit User Codes
- Heavy duty suited to high traffic

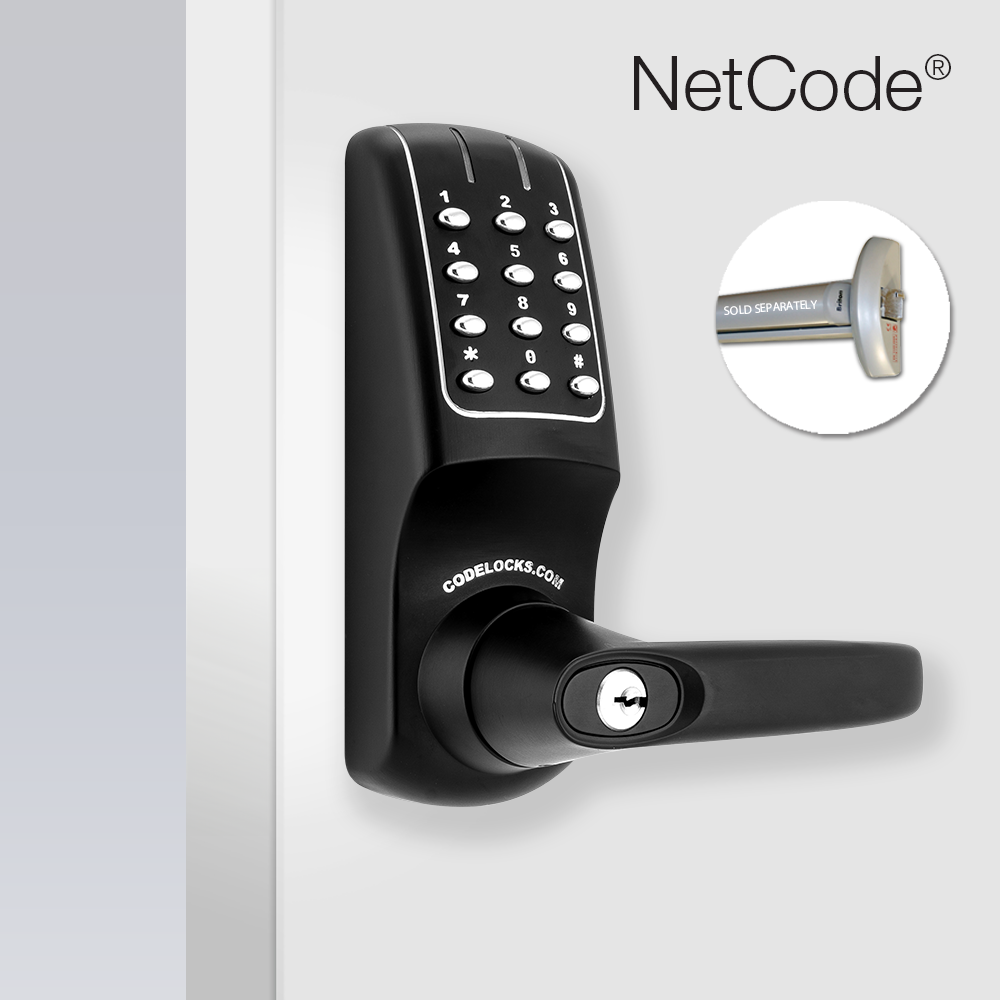

- Now available in Solid Black finish
- Two year guarantee1
- 3 types of NetCodes
- Easy to install and operate
- 8 digit Master and Sub-Master Code
- Code Free Mode (Passage Function)
PANIC HARDWARE BY CODELOCKS
Panic Hardware
SUITABLE FOR
- Internal
- External
DOWNLOADS
↓ Data Sheet
↓ NetCode® Brochure
↓ Installation Template
↓ Panic Kit Installation Instructions
↓ Installation Instructions
↓ Getting Started Guide
DETAIL
WHAT IS CODELOCKS NETCODE® TECHNOLOGY?
Since it's launch in 2014, Codelocks NetCode® Technology has grown rapidly in functionality and versatility, developing a global reputation for bringing control and convenience to many applications. Working in harmony with our Codelocks and KitLock locking solutions, using NetCodes for flexible, temporary access enables business owners to reduce overhead costs and facilitate consumer self-service whilst simultaneoustly increasing staff productivity and profits.
ENABLING NETCODE
To enable NetCode® function, the lock requires initialisation via the Codelocks Connect Portal. Visit codelocksconnect.net and complete the following steps:
- Sign in or create a Codelocks Connect Portal account
- Add your lock and follow the initialisation steps
CLEAN
- Application lead time 3 to 5 working days.
- Clean by Codelocks is an optional finish which can be applied to any of our Codelocks products. Clean by Codelocks features an ISO certified* photocatalytic coating which, when applied to our locks, offers enhanced protection against viruses, bacteria, germs and other environmental toxins.
- The coating utilises a process called photocatalytic oxidation, which means that the coating converts harmful bacteria and germs into a non-toxic compound, resulting in a clean and hygienic surface. The clear coating combats SARS-CoV-2 coronavirus (COVID-19) and can reduce bacterial growth by 99.96%2, providing an additional measure of protection over sanitisation.
