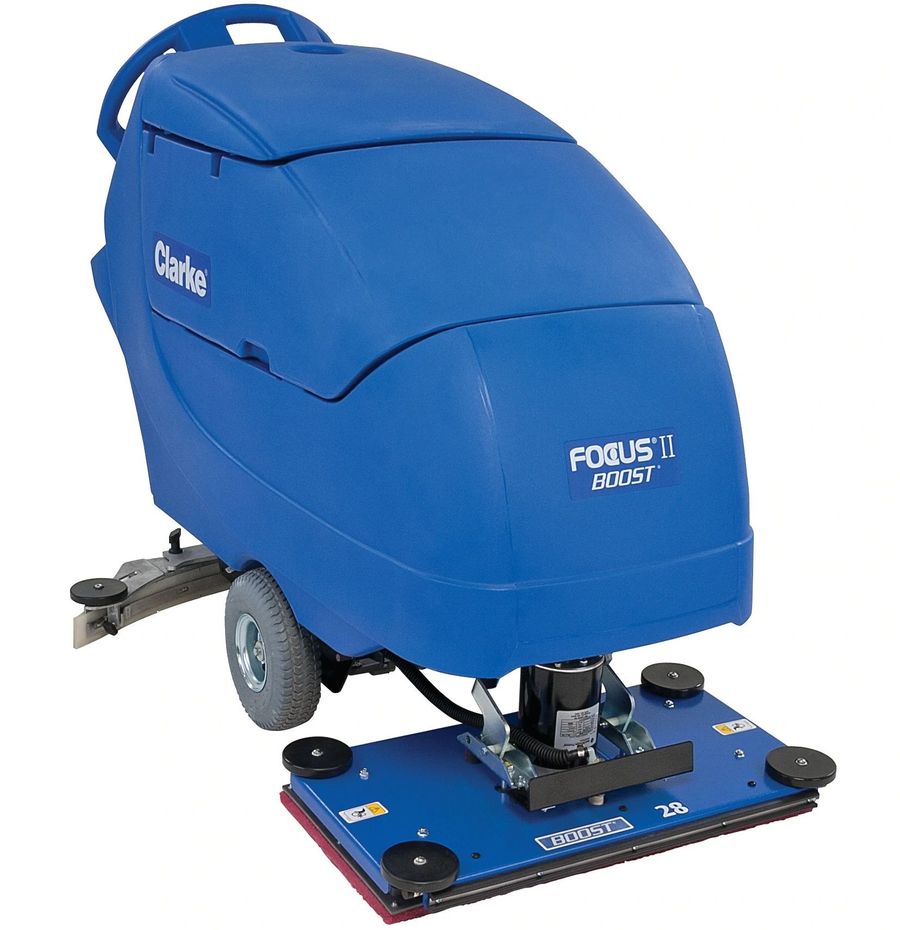

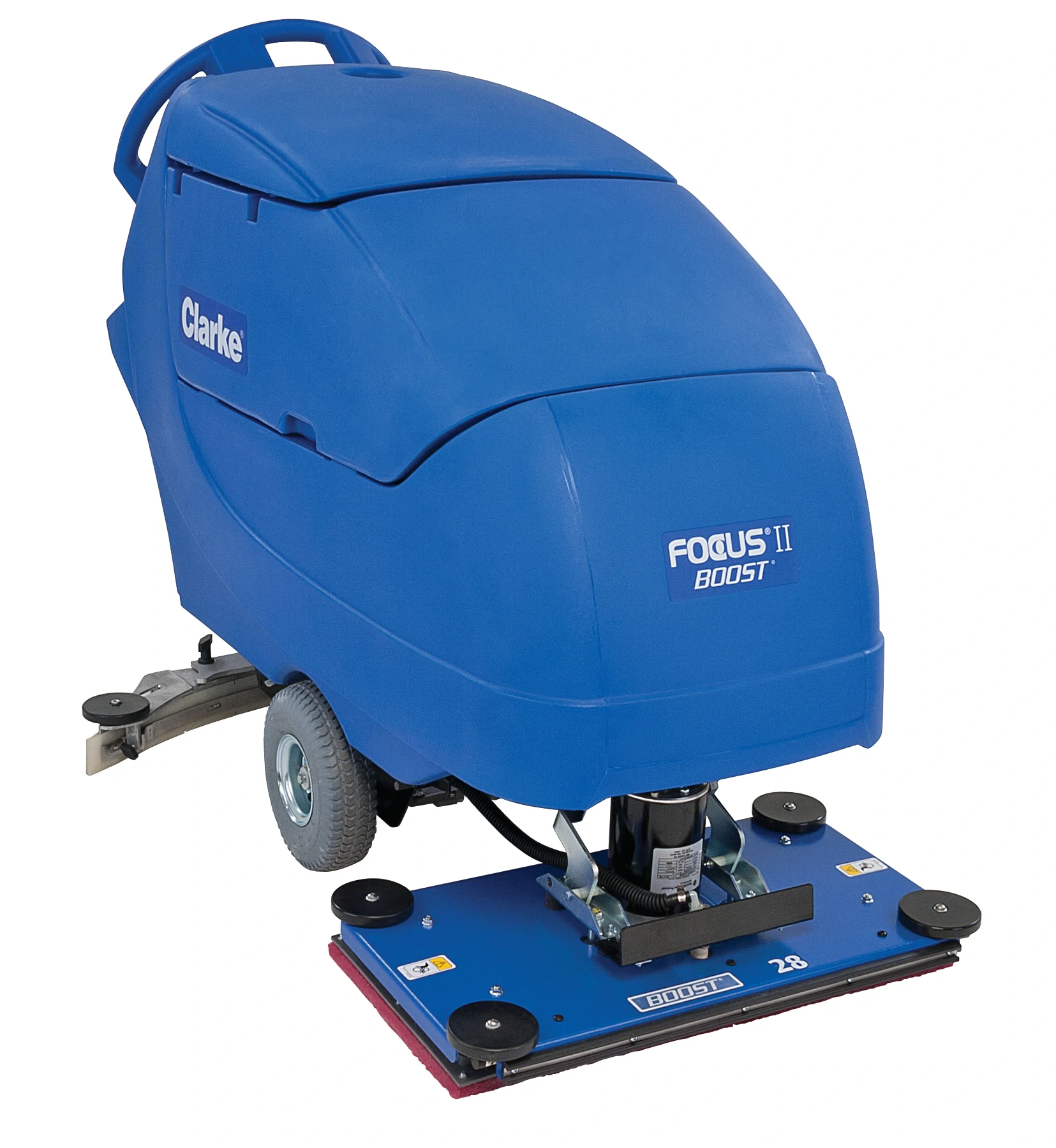

Nilfisk Focus II Boost28 312AGM Scrubber Dryers
FOCUS II BOOST28 312AGM SCRUBBER DRYERS
FOCUS II BOOST28 312AGM SCRUBBER DRYERS
Large walk-behind scrubber dryers

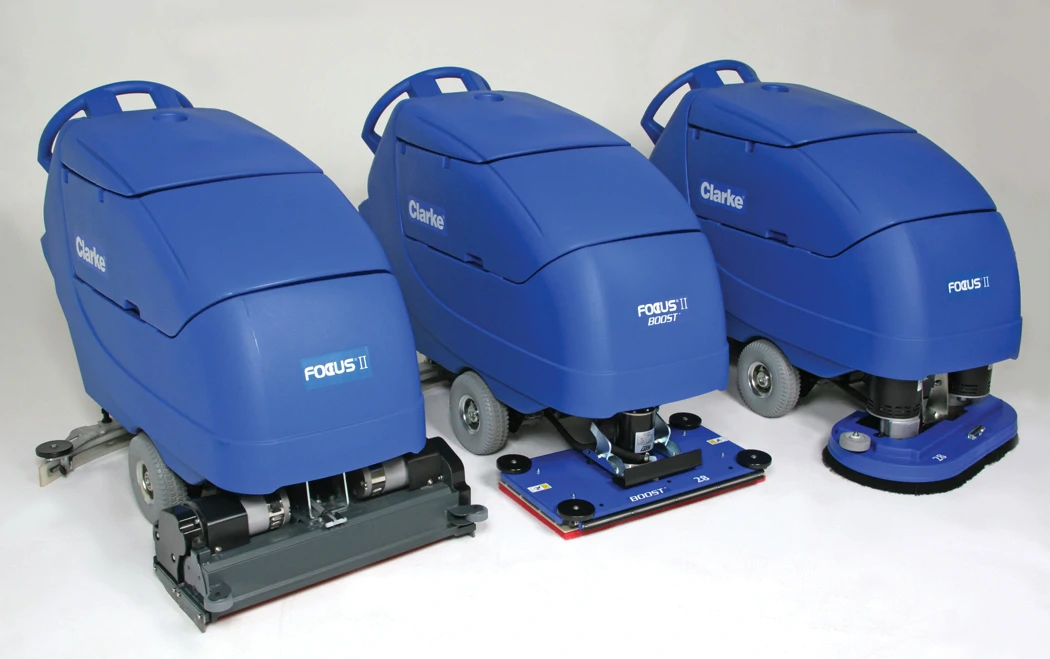

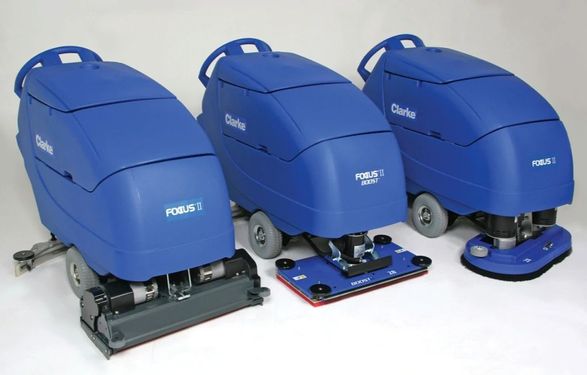

The Focus® II Mid Size scrubbers are powerful and responsive machines that are great for many applications! Popular models include the Focus II Boost 32, Focus II Disc 26 and other full-featured 28” to 34” rotary and cylindrical systems.
INFORMATION
SQUEEGEE
Easy to adjust squeegee with front/back urethane blades
BRAND
Nilfisk
PRODUCTION
Large walk-behind scrubber dryers
BATTERY POWER (V)
24 V, (4) 6 V batteries, 242 Ah, 310 Ah wet or 312 Ah maint-free (AGM)
VACUUM MOTOR POWER
0.75 hp (550 W) 3 stage tangential discharge
BATTERY CHARGER
Onboard, 24 V, 25 amp
PRODUCT NUMBER
05374A
SOUND LEVEL
63 dB A
AGENCY APPROVAL
UL 583
DIMENSIONS
- Width : 29 in
- Height : 44 in
- Length : 60.5 in
SOLUTION FLOW
- Normal mode : 0.12 gal/min (0.45 L/min)
- Full range : 0.0-0.65 gal/min (0.0-2.5 L/min)
SOLUTION/RECOVERY TANK CAPACITY
23 gal (87 L) each tank / Rear fill with bucket or hose

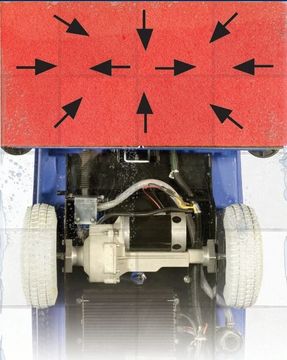

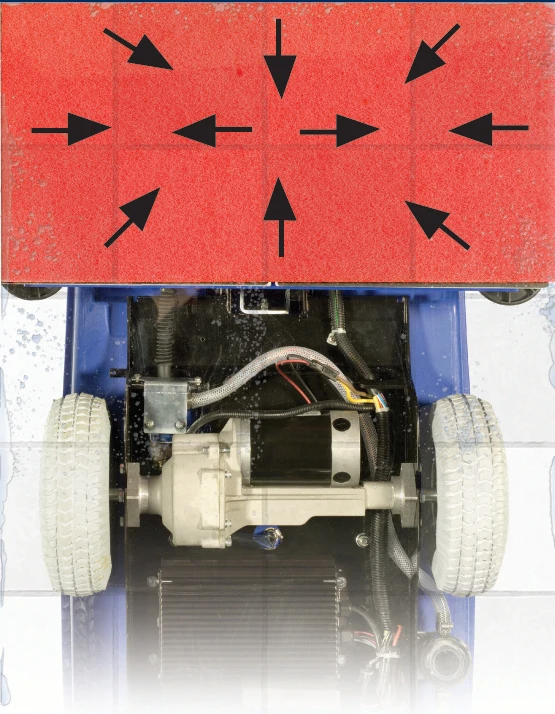

PAD/BRUSH SIZE
14 x 28 in (35.6 x 71 cm)
BRUSH PRESSURE
65 lb (29.5 kg) & 125 lb (56.7 kg)
SQUEEGEE WIDTH
35 in (89 cm)
BRUSH MOTOR POWER
3/4 hp (0.56 kW) 2,250 RPM
CLEANING GRADE
6 degree incline
SPEED (FORWARD/REVERSE)
- Forward : 0-260 ft/min (0-4.8 km/hour)
- Reverse : 0-174 ft/min (0-3.2 km/hour)
CASTERS
(2) 3.94 in (10 cm) Polyurethane
SQUEEGEE MATERIAL
Urethane front and rear blade
TECHNICAL DROWING
WHEELS
(2) 10.24 x 3.35 in (260 x 85 mm) Light gray, non-marking, foam filled
MIXING SYSTEM
Optional on-board Chemical Mixing System
CONTROLS
One-touch scrubbing controls
QUIETEST SCRUBBER IN THE INDUSTRY
The Focus® II Mid Size scrubbers are powerful and responsive machines that are great for many applications! Popular models include the Focus II Boost 32, Focus II Disc 26 and other full-featured 28” to 34” rotary and cylindrical systems.
FEATURES
- Larger tank capacity
- Easy to maneuver
- On-board battery charger
- 24 Volt battery choices, wet or AGM
- Quietest scrubber in the industry
- Clarke Green Certified Equipment

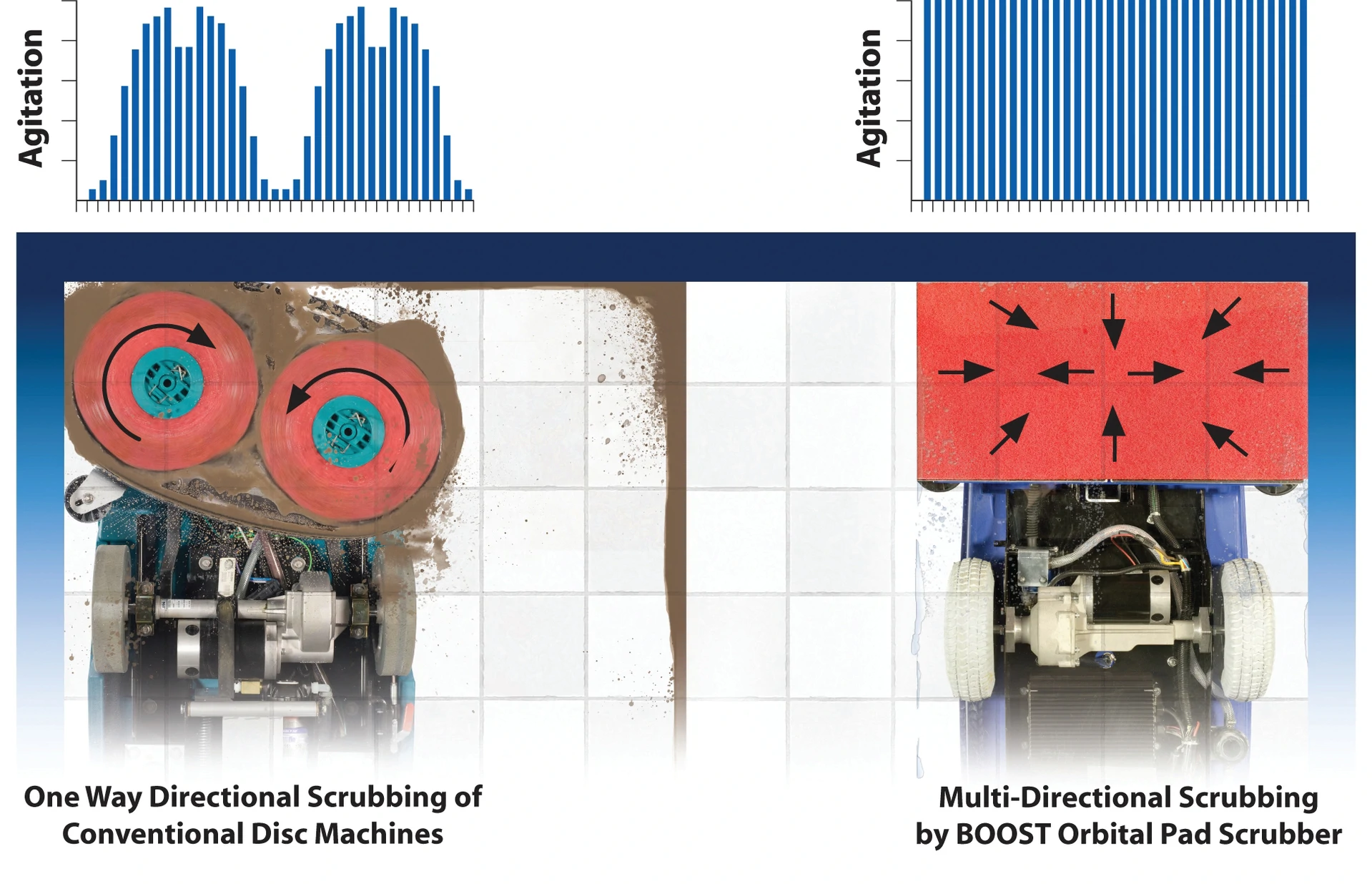

- Two BOOST models that can strip floors - chemical-free!
WARRANTY
- Polydur® Body - 8 Years
- Parts - 3 Years
- Labor - 1 Year
- Battery 18 months pro-rated (1st 90 days unconditional)
