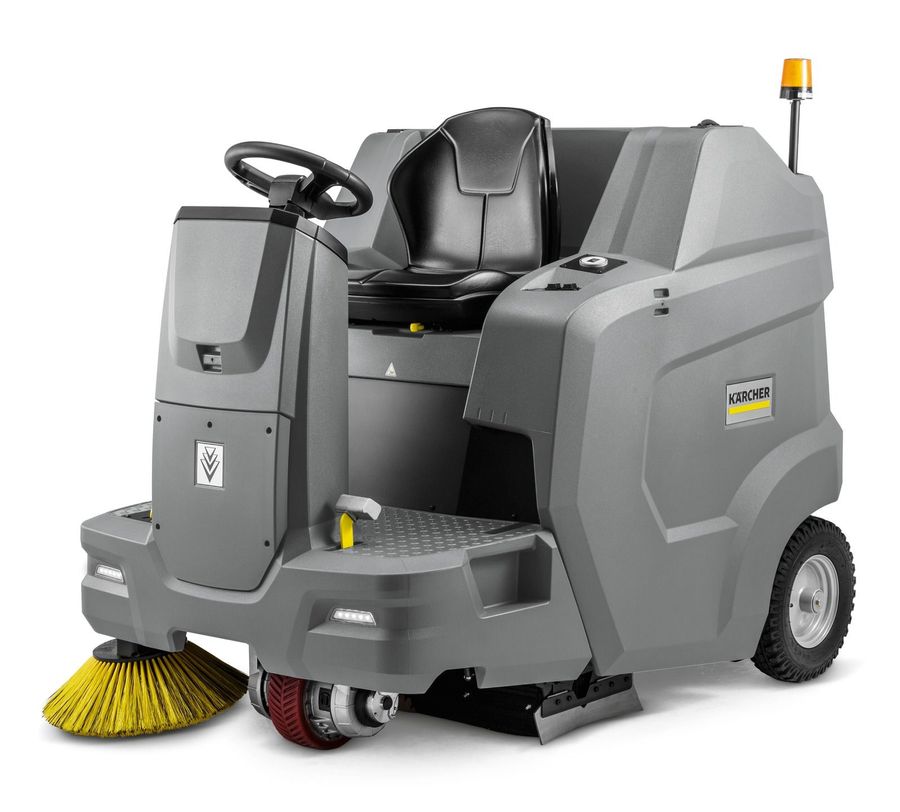

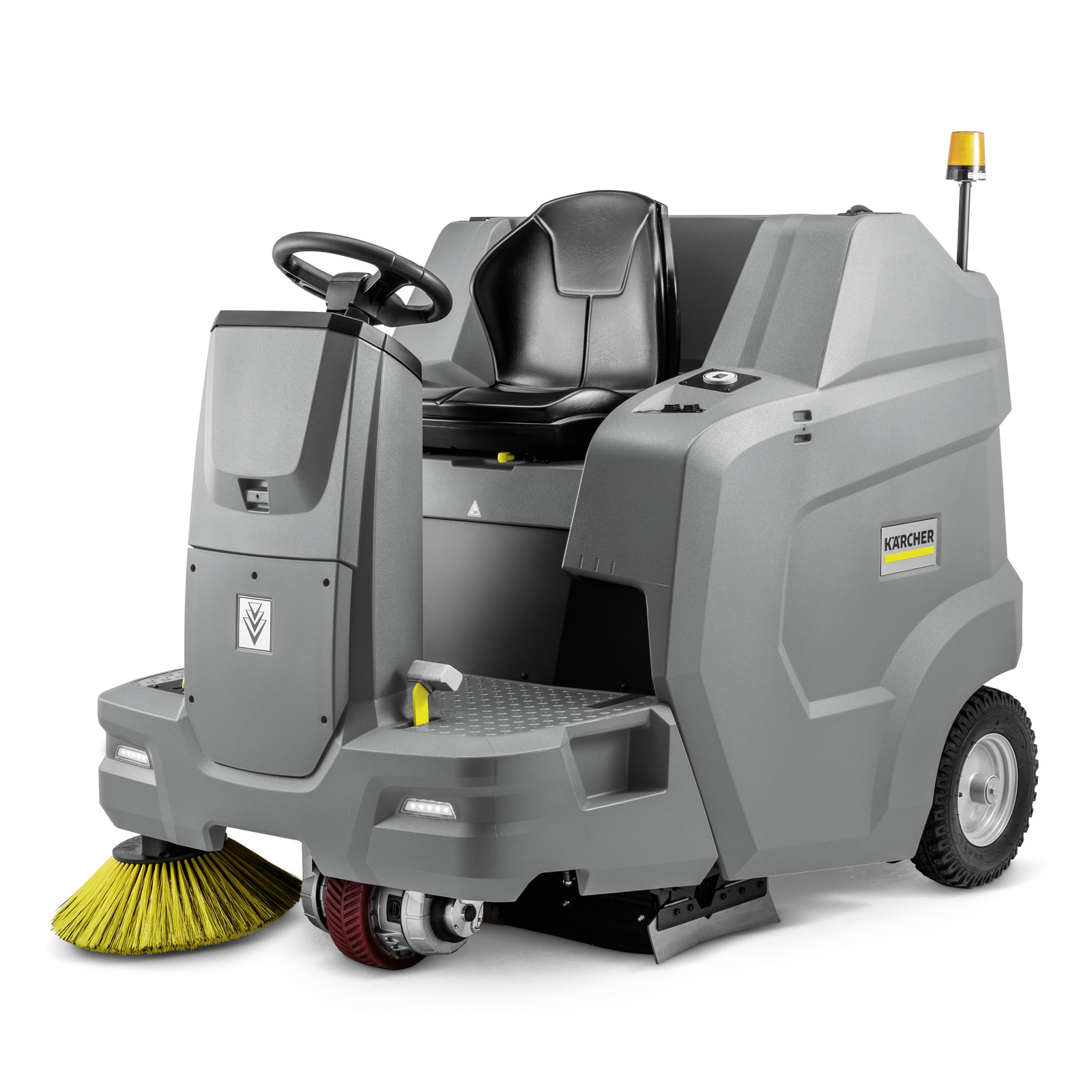

Kärcher Vacuum Sweeper Km 100/120 R Bp Pack Li+fc
VACUUM SWEEPER KM 100/120 R BP PACK LI+FC
VACUUM SWEEPER KM 100/120 R BP PACK LI+FC
Designed for dusty interiors: the zero-emissions KM 100/120 R Bp Pack ride-on sweeper with a powerful 180 Ah lithium-ion battery, quick charger and hydraulic high container emptying.

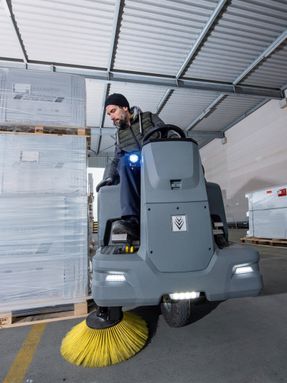

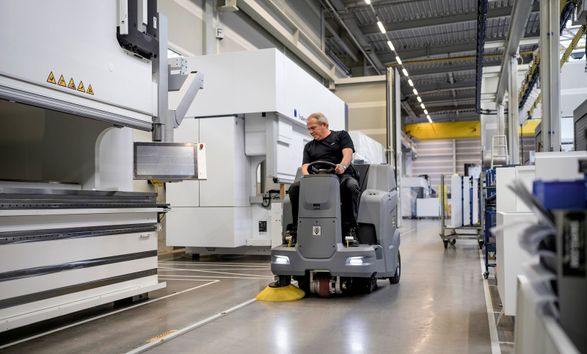

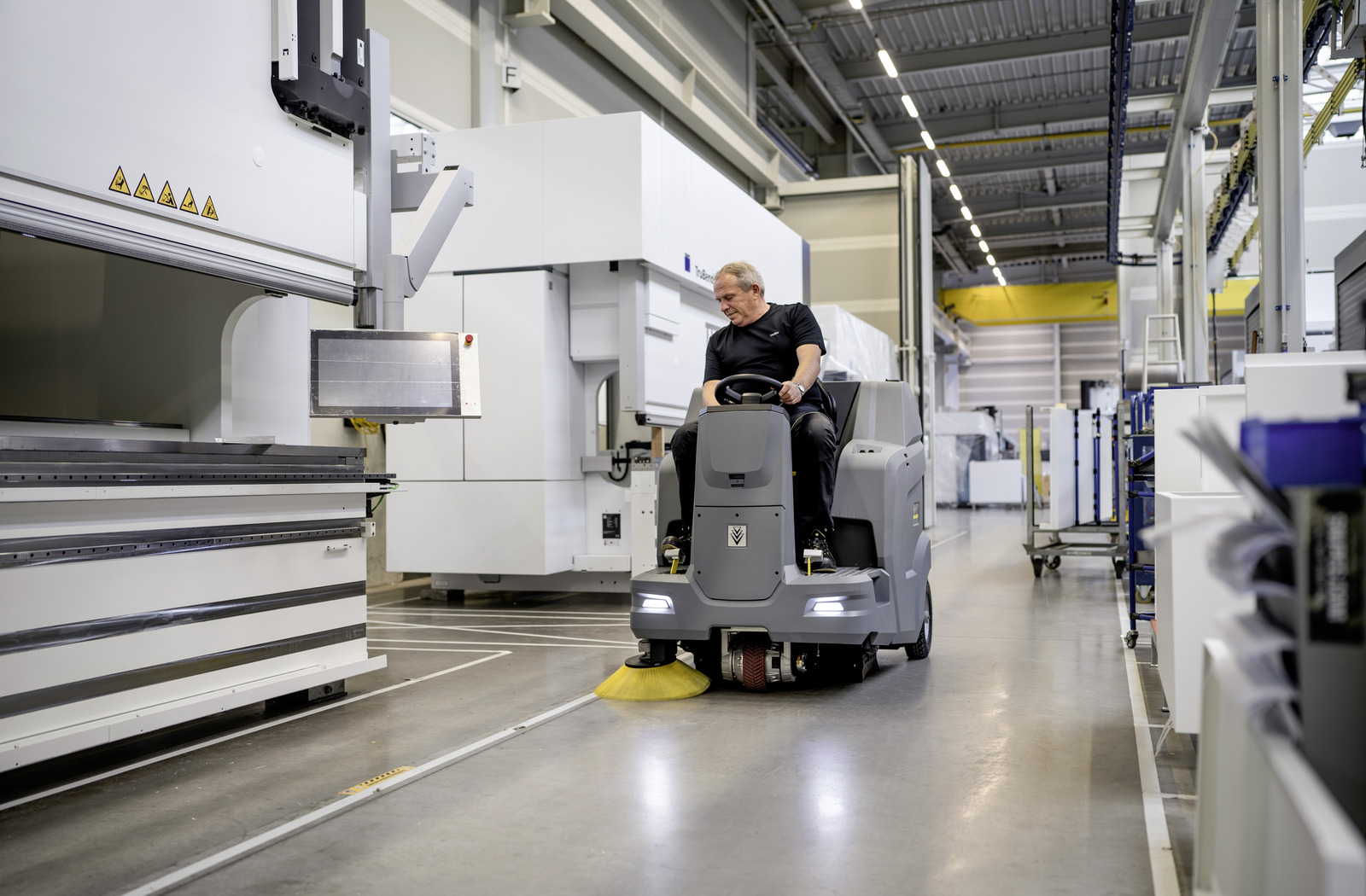

The KM 100/120 R Li-Ion is an mid-size ride-on vacuum sweeper. Its battery-powered design makes it particularly suitable for indoor use. The 180 Ah lithium-ion battery delivers enough energy for 4 hours of varied cleaning tasks.
The remaining battery capacity can be read off the display at any time. The machine delivers excellent sweeping results thanks to the floating roller brush, even at its top working speed of 6 km/h. The side brushes can fold away to protect furniture and the machine itself.

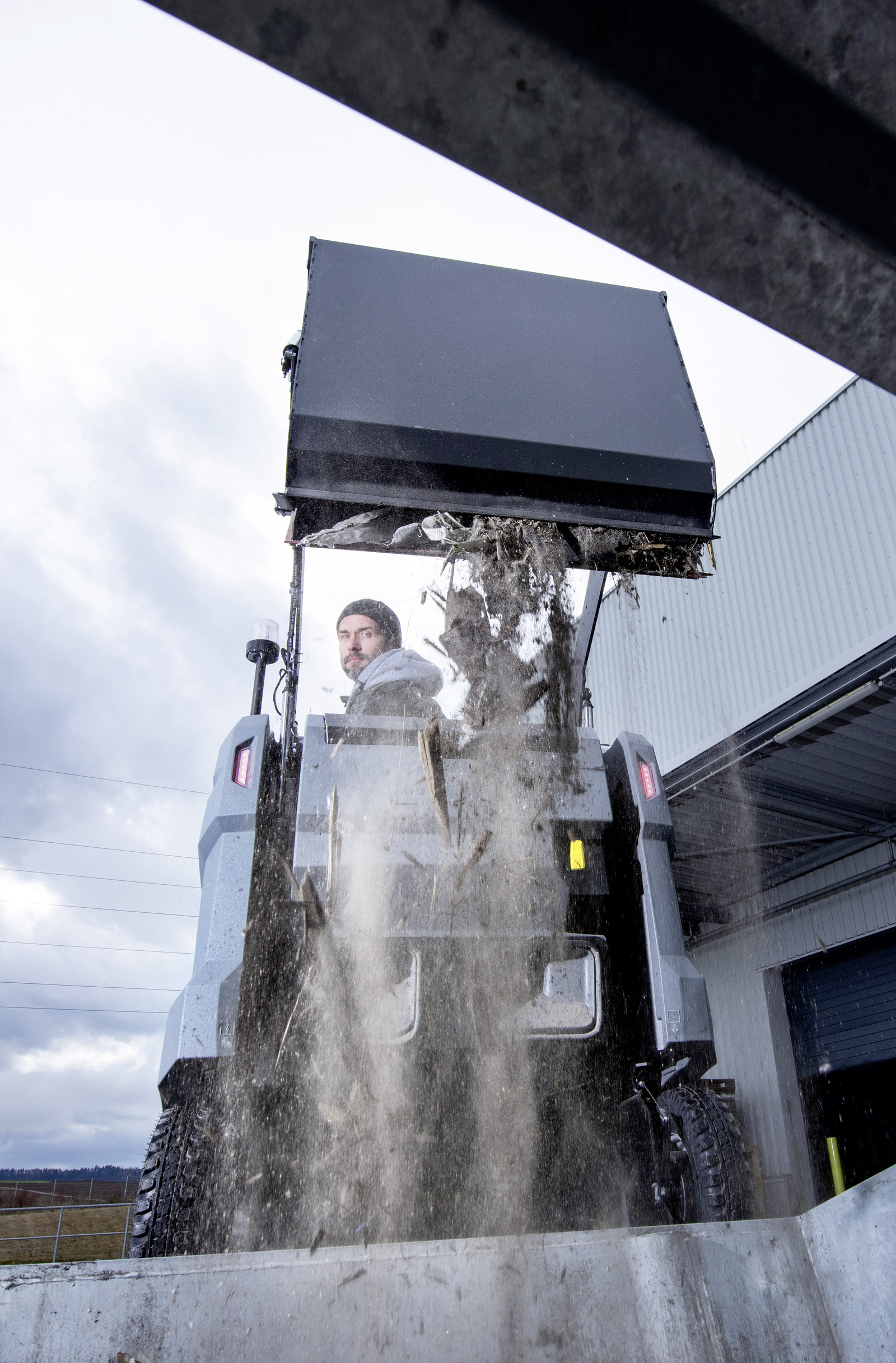

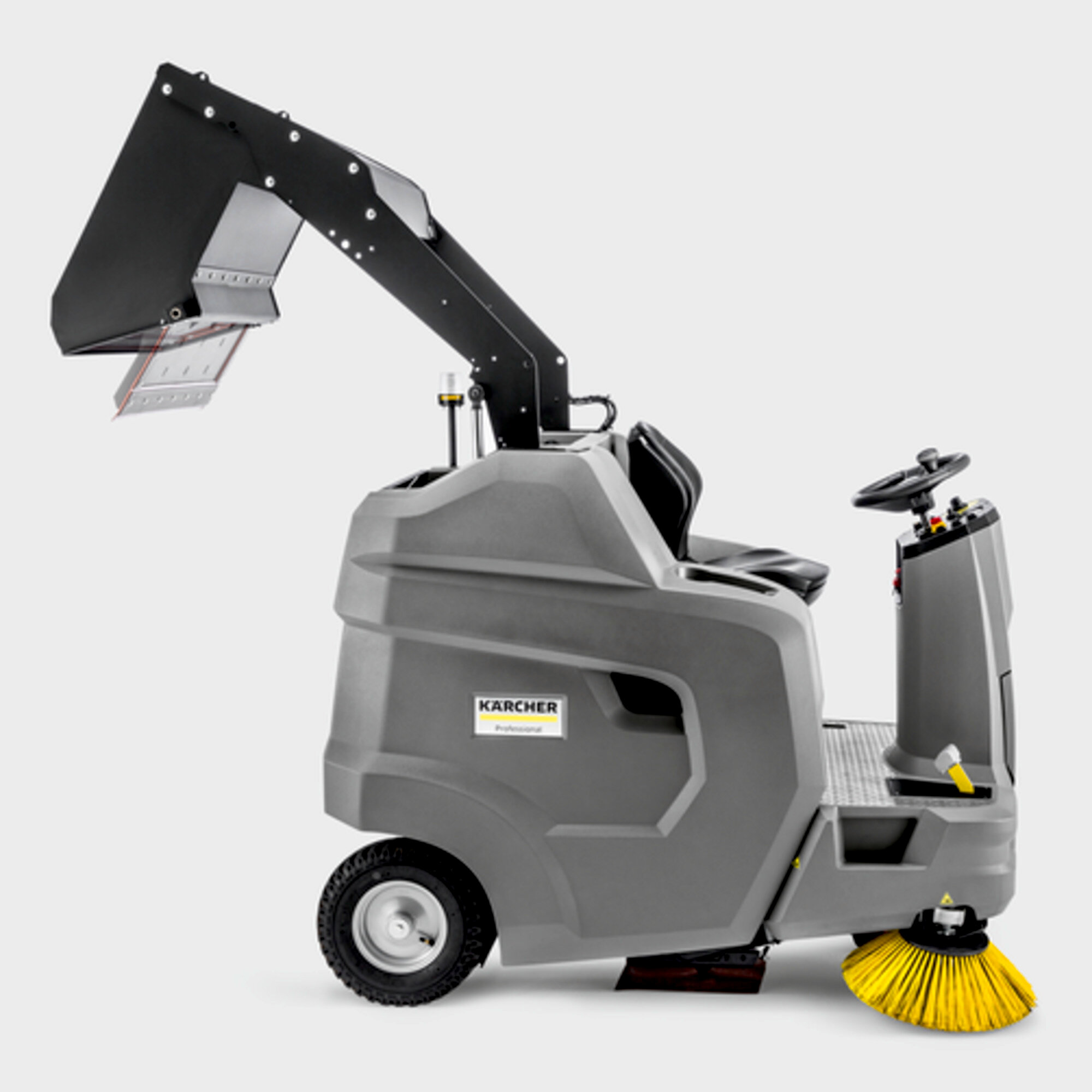

The large waste container can be hydraulically lifted up to 1.52 metres for disposing of the dirt into various types of containers. The tried-and-tested round filter system incorporating a large filter area and automatic filter cleaning prevents dust from being whipped up during the sweeping process.

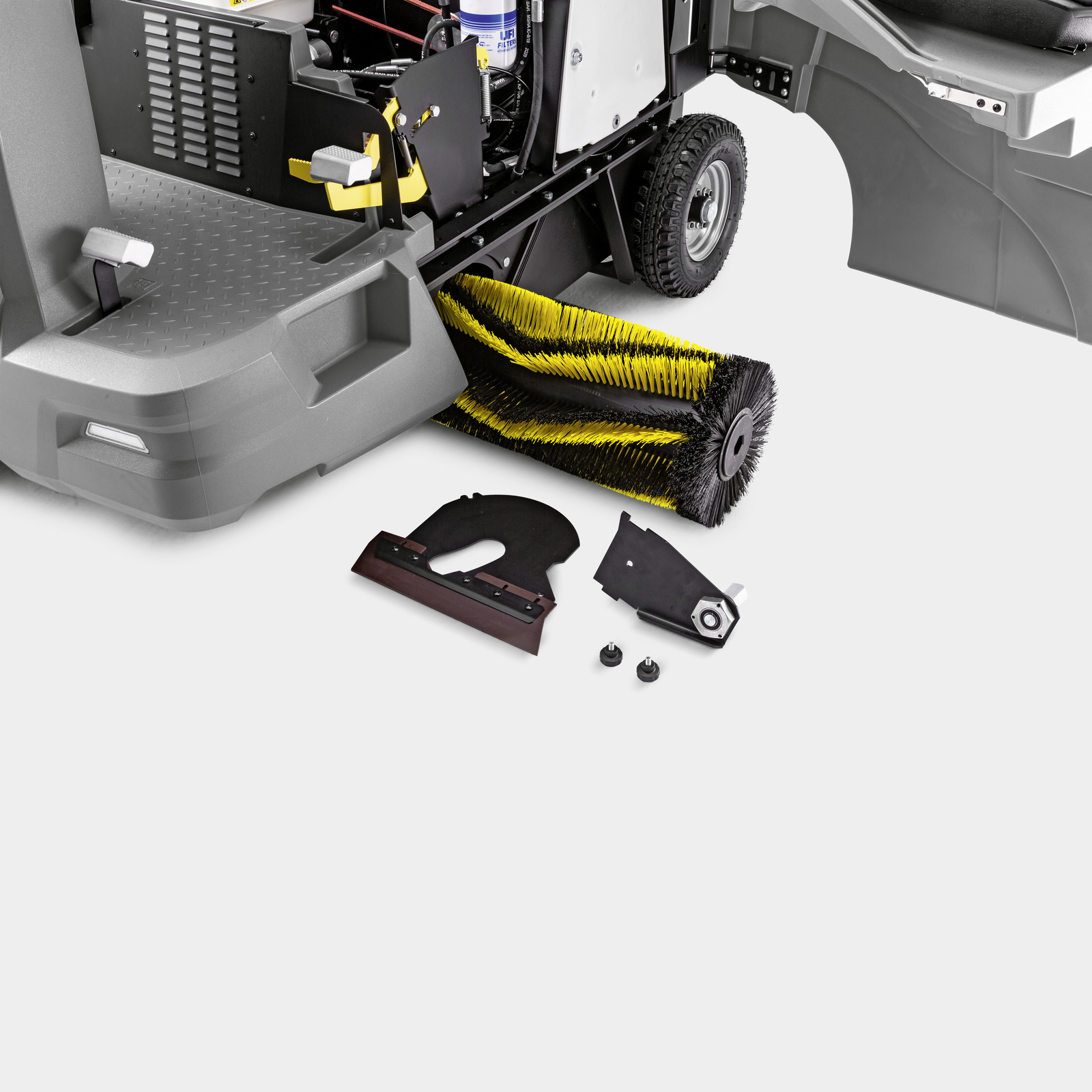

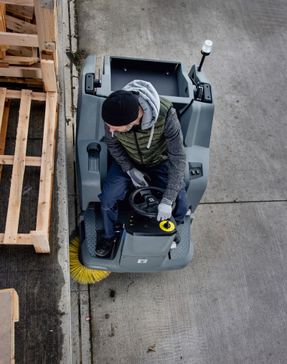

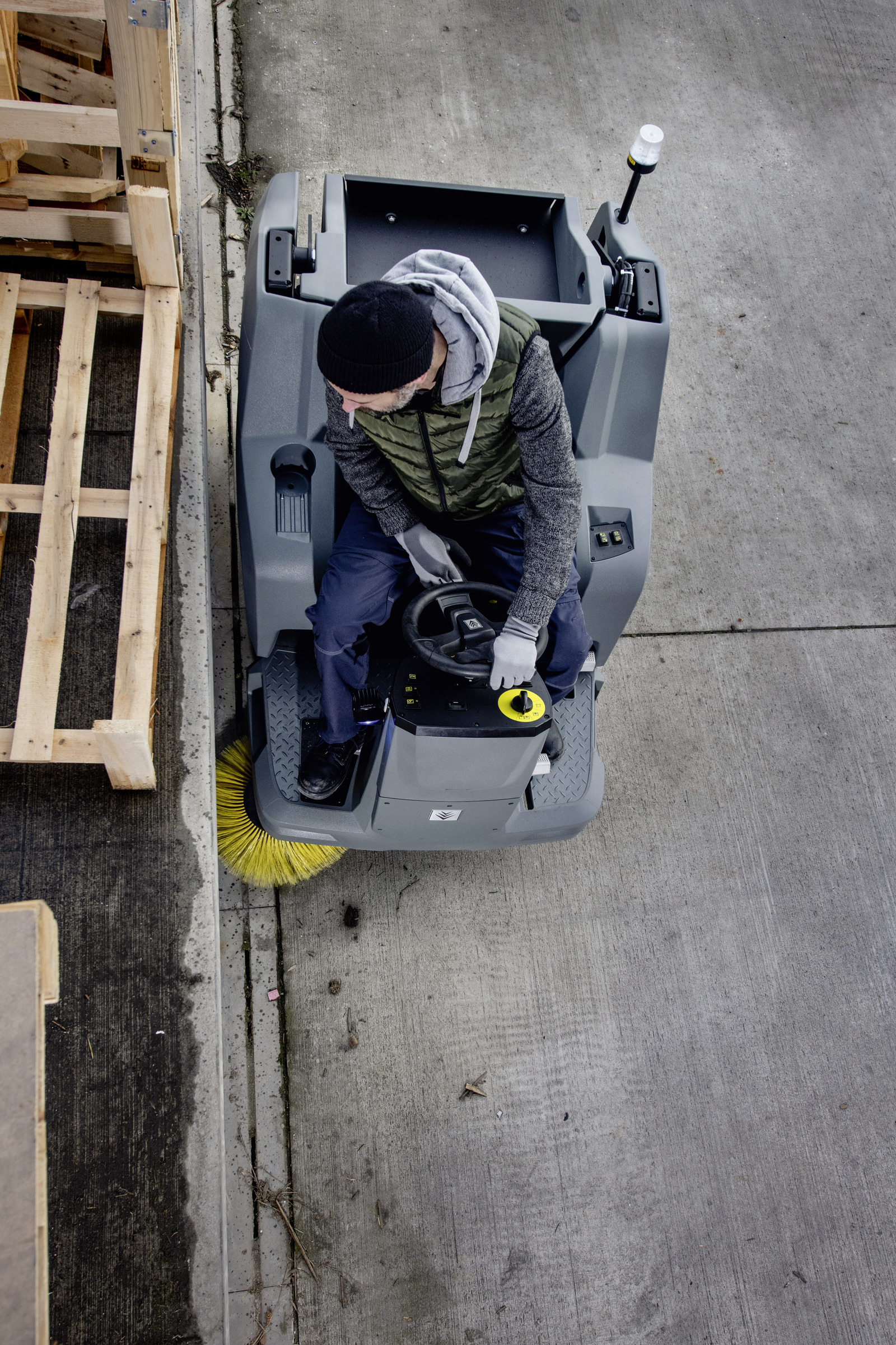

The driver's seat can be adjusted to suit the operator, so that they always have a clear view of the side brush and the working area. All control elements are clearly arranged and easy to reach. The maintenance-relevant parts are also readily accessible, with no tools required to remove the filter or sweeper roller. The scope of delivery includes lithium-ion battery and battery charger.
FEATURES
HIGH PRODUCTIVITY
Excellent sweeping result thanks to floating roller brush system. Large waste container capacity (120 l) for long, uninterrupted use. Industrial design and proven components for few machine downtimes.
CONVENIENT AND SAFE OPERATION
High level of driving comfort and hydraulic high container emptying up to a height of 152 cm. Simple operation and clear and ergonomic arrangement of control elements. Logical connection of functions to prevent operating errors.

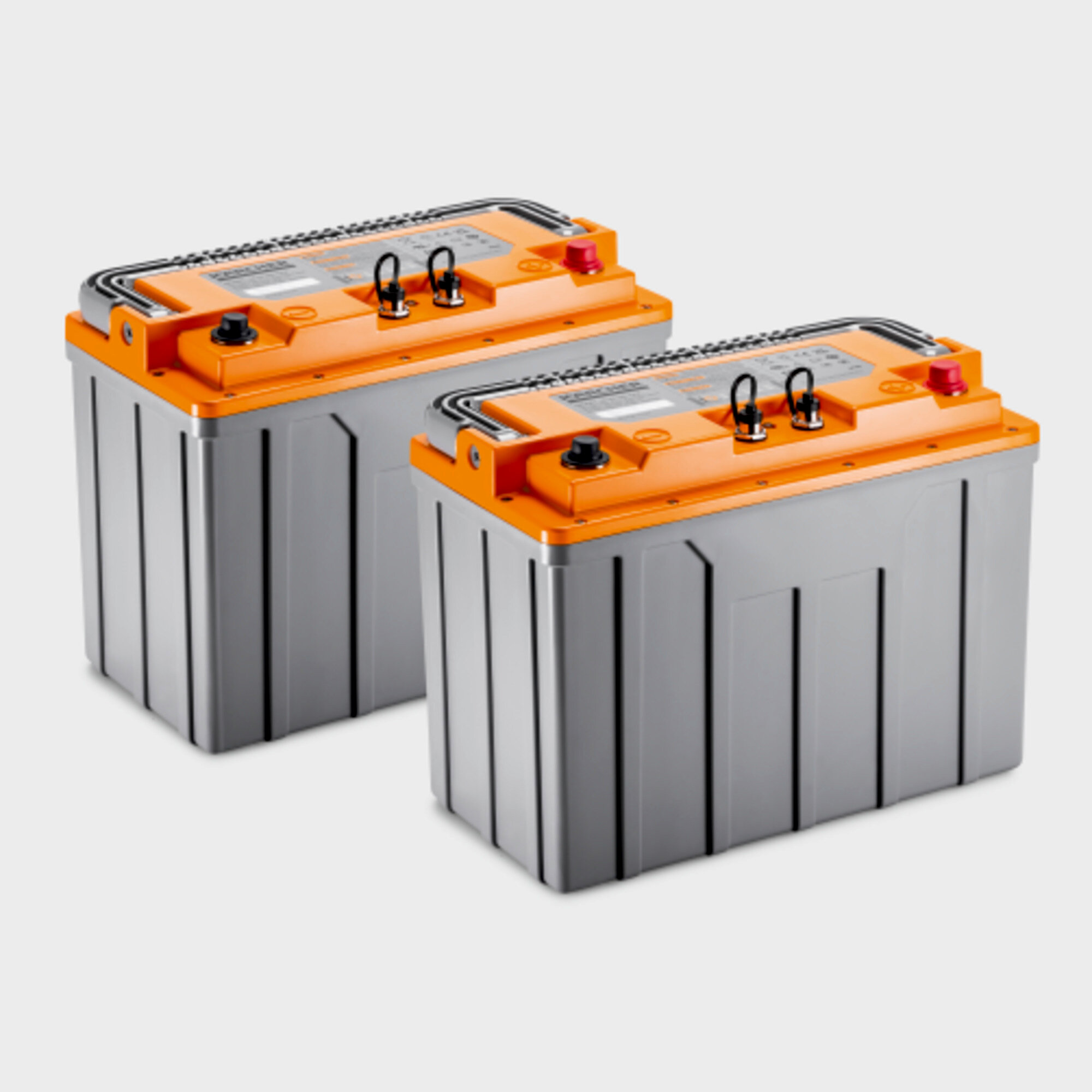

LITHIUM-ION BATTERIES
Quick charger to fully charge the battery in just 2 hours. Maintenance-free battery system without refilling with water. Long operating times and high productivity thanks to fast and interim charging.
INFORMATION
PRODUCTION
Made in Germany
BATTERY CAPACITY
180 Ah
BRAND
Kärcher
PRODUCT TYPE
Vacuum Sweeper
DRIVE TYPE
Electric
DRIVE – POWER
24 V
MAX. AREA PERFORMANCE WITH 2 SIDE BRUSHES
7620 M²/h
WORKING WIDTH (MM)
730
MAX. AREA PERFORMANCE
6000 M²/h
WORKING WIDTH WITH 1 SIDE BRUSH (MM)
1000
WORKING WIDTH WITH 2 SIDE BRUSHES (MM)
1270
DIMENSIONS
- Length : 1807 mm
- Width : 1224 mm
- Height : 1500 mm
WEIGHT (WITH ACCESSORIES)
548 kg
WEIGHT INCL. PACKAGING
550.1 kg
FILTER AREA
6 m²
USE
Cleaning
SERVICE-FRIENDLY DESIGN WITH EASILY ACCESSIBLE COMPONENTS FOR SHORT MAINTENANCE TIMES AND RELIABLE SYSTEM AVAILABILITY
- All important components are easy to check and replace with no tools required.
- Smart hood concept for very easy access to all machine components.
SCOPE OF SUPPLY
- Polyester round filter
- Wheels, pneumatic
BATTERY VOLTAGE
25.6 V
BATTERY RUN TIME
max. 3 h
WASTE CONTAINER
120 l
TRACTION DRIVE
DC motor
USE

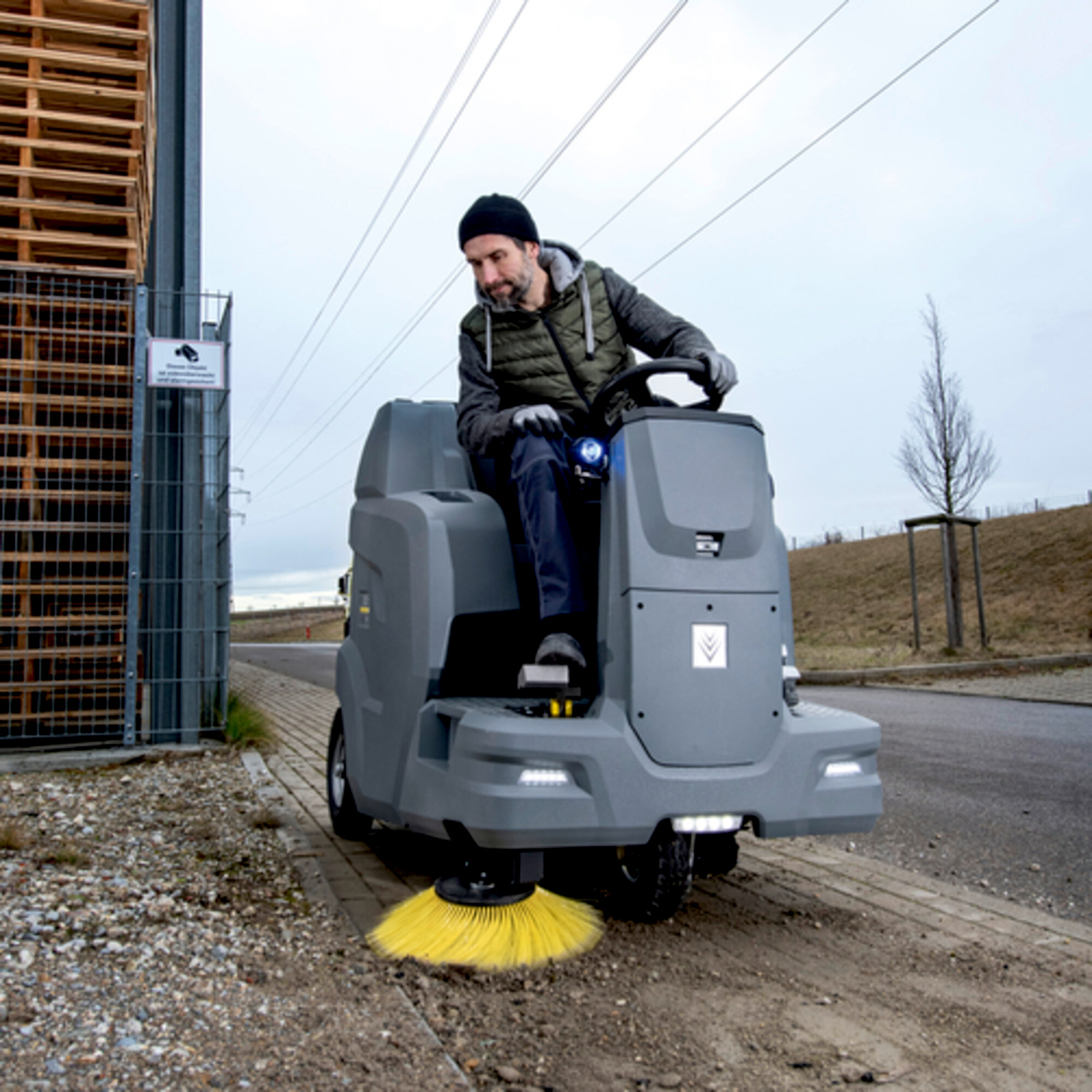

Outdoor & Indoor use
EQUIPMENT
- Power steering
- Traction drive, reverse
- Manual filter cleaning
- Hydr. high dump
- Elapsed time counter
- Automatic filter cleaning
- Sweeping function, can be switched off
- Main sweeper roller, floating
- Suction volume regulation
- Coarse dirt flap & Suction
- Overhead sweeping principle
- Traction drive, forwards
- Side brush, automatically swings out
OPERATION
Easy
WARRANTY
5 Years

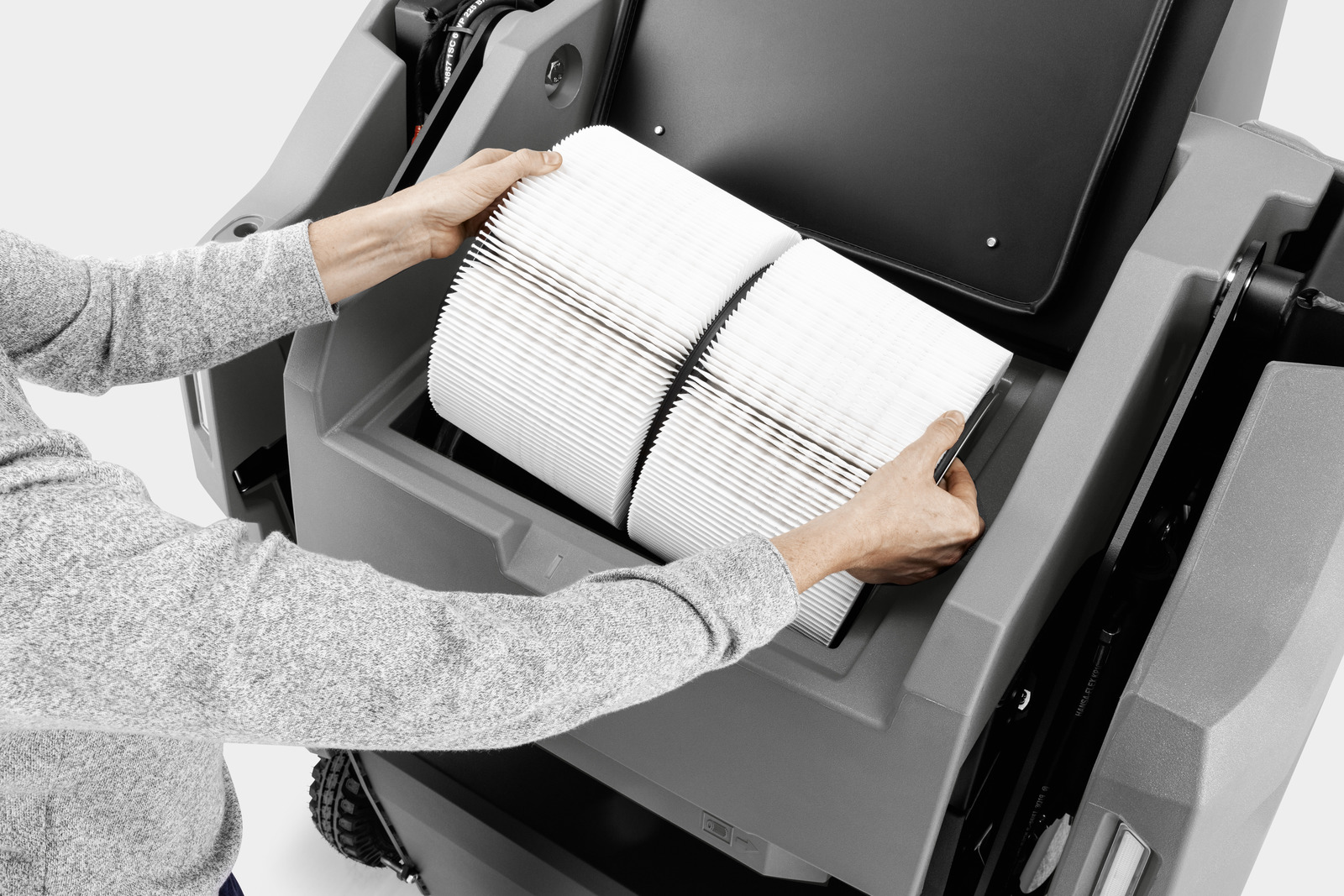

LARGE FILTER AREA WITH AUTOMATIC FILTER CLEANING SYSTEM
- Automatic filter cleaning in five-minute intervals and after switching off.
- Efficient filter cleaning of the 6 m² filter area doubles the service life.
- Virtually dust-free, continuous sweeping regardless of the volume of dirt.
APPLICATION AREAS
- For rapid maintenance cleaning in car parks
- Also suitable for workshops, schools.

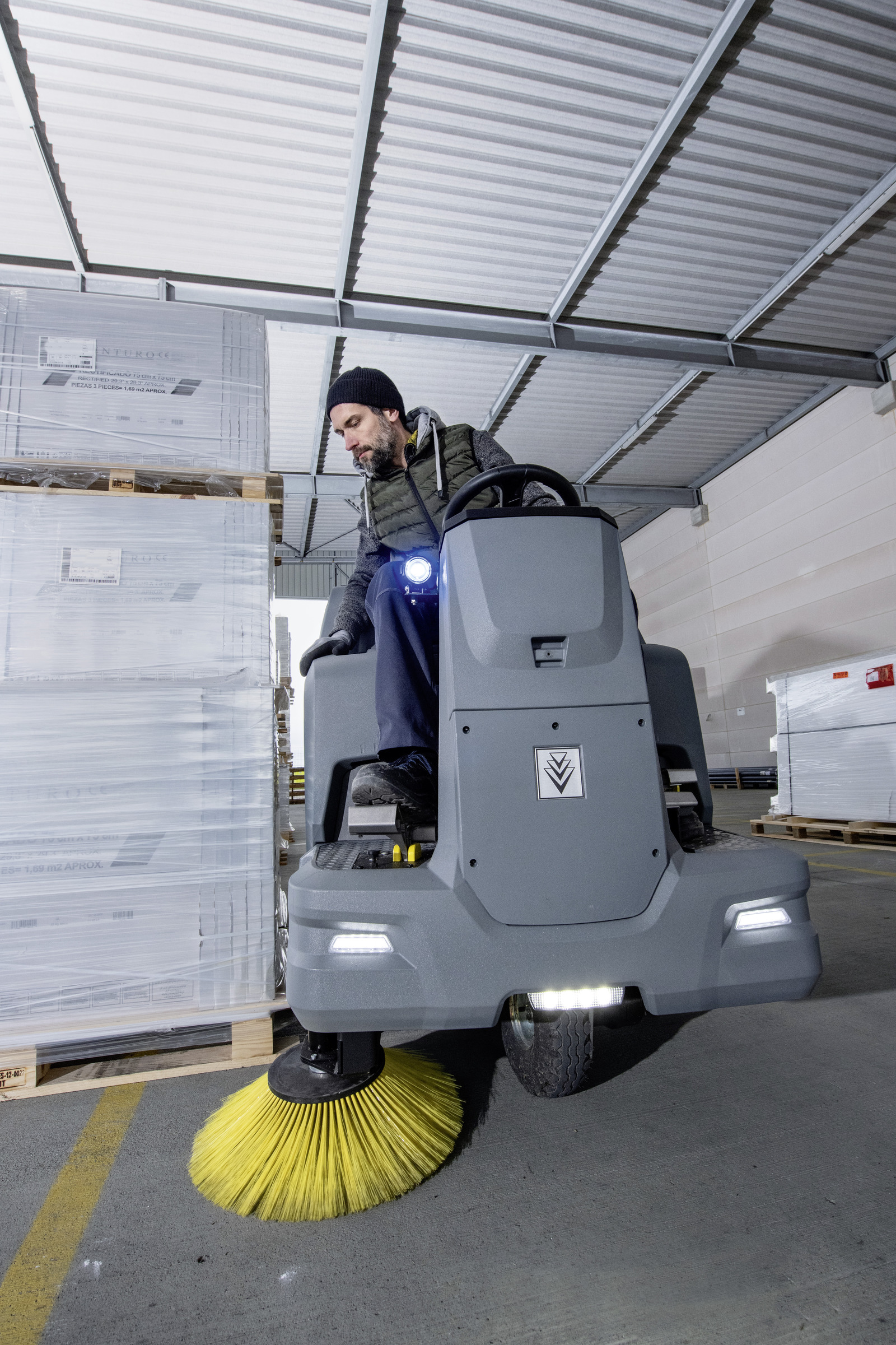

- Also ideally suited to logistics operations, for example to clean warehouses.
