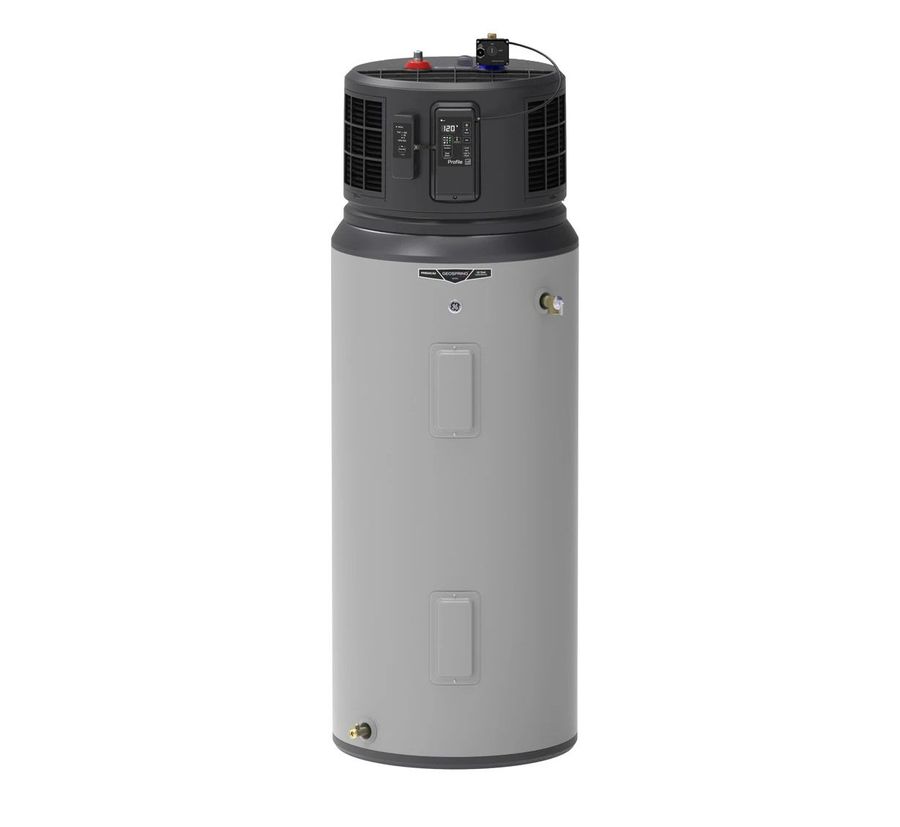

GE PROFILE™ GEOSPRING™ SMART HYBRID HEAT PUMP WATER HEATER

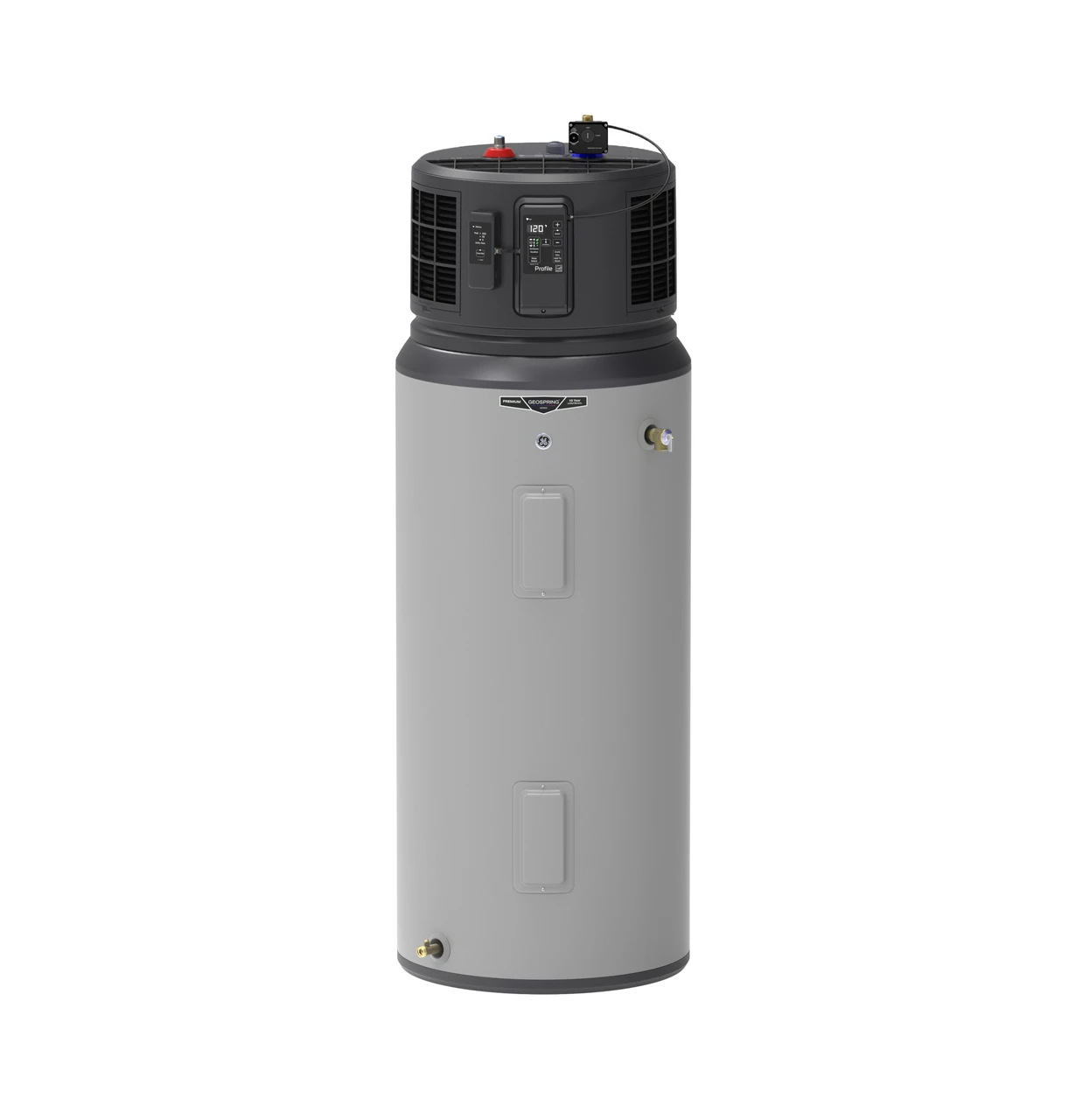

GE PROFILE™ GEOSPRING™ SMART HYBRID HEAT PUMP WATER HEATER 80-GALLON - 240V
Model #:PH80S10BNY
INFORMATION
BRAND
Geappliances
PRODUCT TYPE
Electric Heat Pump
TEMPERATURE SETTING
- 100-140° F Range
- Factory Default 120° F
ELECTRICAL CONSUMPTION
- Lower Element : 3600W
- Upper Element : 5500W
DIAGNOSTIC FEEDBACK
- Filter
- Lock
- Standard Electric
UNIT CAPACITY
80 Gallons
DRAIN VALVE
Left Side
CONTROL TYPE
- LED
- Electronic
- Service Diagnostics Integrated
CONNECTION SIZES - HOT WATER OUTLET (MNPT)
3/4"
CONNECTION SIZES - WATER INLET (MNPT)
3/4"
FUEL TYPE
Electric
WIFI CONNECT
Built-In
DRAIN VALVE TYPE
Brass
SENSOR
Leak Sensor Included
DIMENSIONS (PRODUCT)
- Diameter : 27 in
- Height (to top of unit) : 75 in
- Height (to top of water inlet/outlet connections) : 76.375 in
DIMENSIONS (OVERALL)
- Width : 27 in
- Depth : 27 in
- Height : 76.375 in
NET WEIGHT
331 lb
SHIPPING WEIGHT
360 lb
OPERATING SOUND LEVEL
As low as 41 dBA per NEEA Advanced Water Heating Specification 8.1
ANODE ROD
- Sensing
- Magnesium
CONNECTED CAPABILITIES
- Google Home
- Amazon Alexa
RENEWABLE AIR FILTER
Top of Unit
DEMAND RESPONSE CAPABLE
Yes
HERTZ
60
VOLTS/HERTZ
240V; 60Hz
OPERATING MODES
- Heat Pump
- Standard Electric
- High Demand/Boost
- Hybrid (Default Mode)
ENERGY CONSUMPTION
1102 kWh/year
VOLTAGE (MAX)
240 V
FIRST HOUR RATE (FHR)
101 Gallons
ELECTRICAL CIRCUIT REQUIRED
240/208VAC 30A, 60Hz
SENSING ANODE ROD
Smart water heater protection. Our exclusive anode rod sensing technology alerts you when it’s time for replacement, extending your water heater’s life and optimizing its performance for years to come.
HOMEOWNER SAVINGS
Unlock savings with up to $550* on annual energy bills. Plus, qualify for up to $900 in EnergyStar and local utility rebates. (*GE Standard Electric GE50S10BAM vs GE Profile PH50S10BPY Heat Pump Water Heater)
COLOR APPEARANCE
Gray
INSTALLATION
Free-Standing
WATER CONNECTION LOCATION
Top
TEMP & PRESSURE RELIEF VALVE
Right Side
DOWNLOADS
↓ Quick specs
↓ Energy guide
↓ Specification guide
↓ Use & care manual
↓ Installation instructions
WARRANTY
- Labor Warranty : Limited 1-year entire appliance
- Parts Warranty : Limited 10-year tank and parts
FEATURES

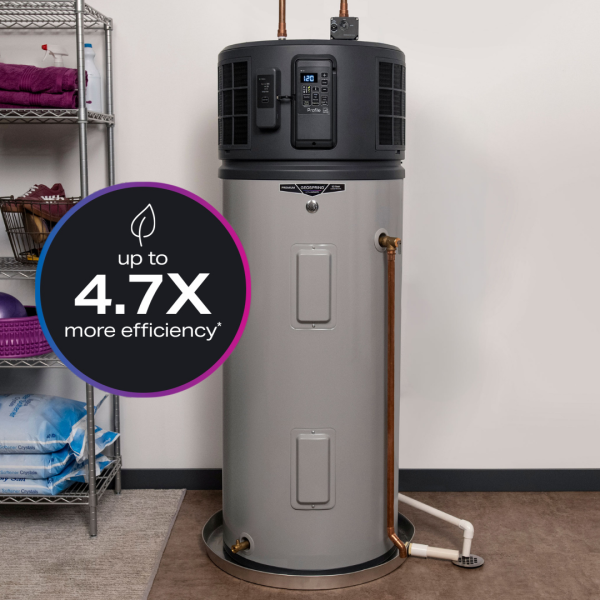

UP TO 4.7X MORE ENERGY EFFICIENCY
Turn air into hot water power. Our heat pump water heater converts ambient air into water-heating energy, delivering up to 4.7x more efficiency than standard models—heat pump water heater performance that exceeds ENERGY STAR® requirements.
TOTAL CONTROL WITH SMARTHQ™
Stay connected, anytime, anywhere. Built-in WiFi and the SmartHQ™ app let you monitor, control, and adjust your smart heat pump water heater from the palm of your hand. Enjoy alerts, usage tracking, and access to the latest features—all from one app.
FLEXIBLE & EASY INSTALLATION
GEOSPRING™ heat pump water heaters install easily with 240V models that operate on a 30A dedicated circuit for enhanced efficiency and performance. Integrated pocket handles and pre-installed wire connectors simplify setup.

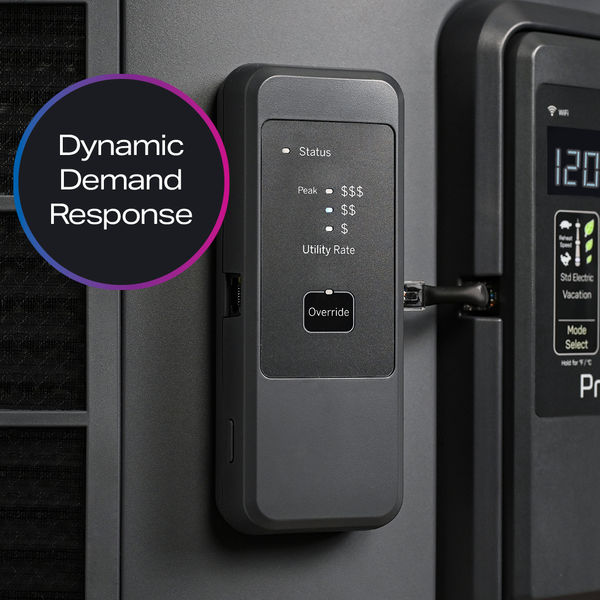

DYNAMIC DEMAND RESPONSE
Lower energy bills made simple. GEOSPRING™ water heaters are EcoPort Certified with built-in demand response capabilities to optimize home energy usage when rates are the lowest. Stay ahead of fluctuating energy costs.

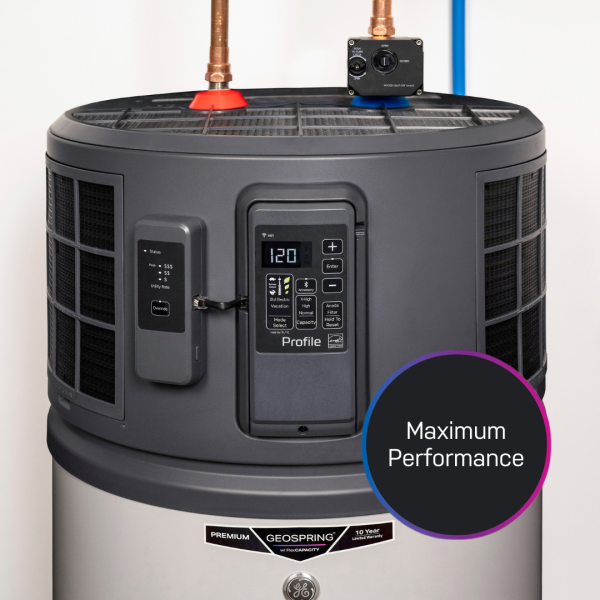

MAXIMUM PERFORMANCE
Hot water when you need it most. GEOSPRING™ heat pump water heaters deliver 101 gallons of hot water in the first hour of operation*. Built for homes with high water demands, they ensure maximum efficiency and performance you can trust. (*Measured through DOE First Hour Rating)
10 YEAR LIMITED WARRANTY
Built to last, guaranteed. Enjoy long-term peace of mind with our limited 10-year tanks and parts limited warranty. Dependable performance backed by our commitment to quality and durability.

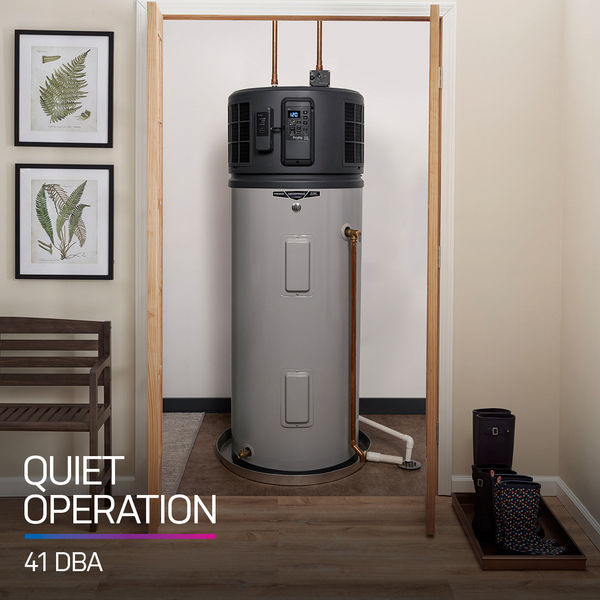

QUIET OPERATION
Whisper-quiet comfort. GEOSPRING™ heat pump water heaters operate as low as 41 dBA*, ensuring a peaceful home environment. Experience the tranquility of a quiet heat pump water heater without sacrificing performance. (*Per NEEA Advanced Water Heating Specification 8.1.)

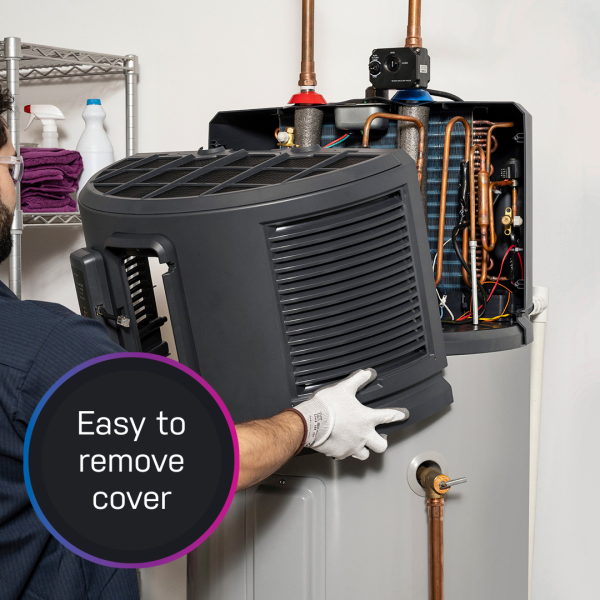

EASY TO SERVICE
Built for sustainability. Unlike most competitors, our heat pump water heaters are designed to be serviceable, reducing waste and landfill impact. Enjoy low maintenance and long-lasting performance for a greener home.
VARIABLE SPEED COMPRESSOR
Adapts to your home. GEOSPRING™ heat pump water heaters feature a variable speed compressor that adjusts speed based on environmental conditions. Enjoy consistent hot water, even in colder climates, with enhanced energy efficiency.
HOUSEHOLD SIZE
Our water heaters supply ample hot water for households of up to 8 people. It’s the best hot water heater for large family needs, ensuring comfort and convenience every day.
WIRELESS LEAK DETECTION WITH AUTOMATIC WATER SHUTOFF
Our exclusive wireless water sensor detects leaks and sends instant alerts via the SmartHQ™ app. Place in your home, ensuring automatic water shutoff in case of emergency—no strings (or wires) attached.
FIVE OPERATION MODES
Hot water your way. Choose from five operational settings: Heat Pump , Hybrid, High Demand, Electric, and Vacation modes. Enjoy personalized water heating with flexible operation modes designed for maximum comfort and efficiency.
