CL500 PANIC ACCESS KIT
CL500 PANIC ACCESS KIT
Heavy duty mechanical locks with large full size lever handles, allowing use as the primary lock on doors.

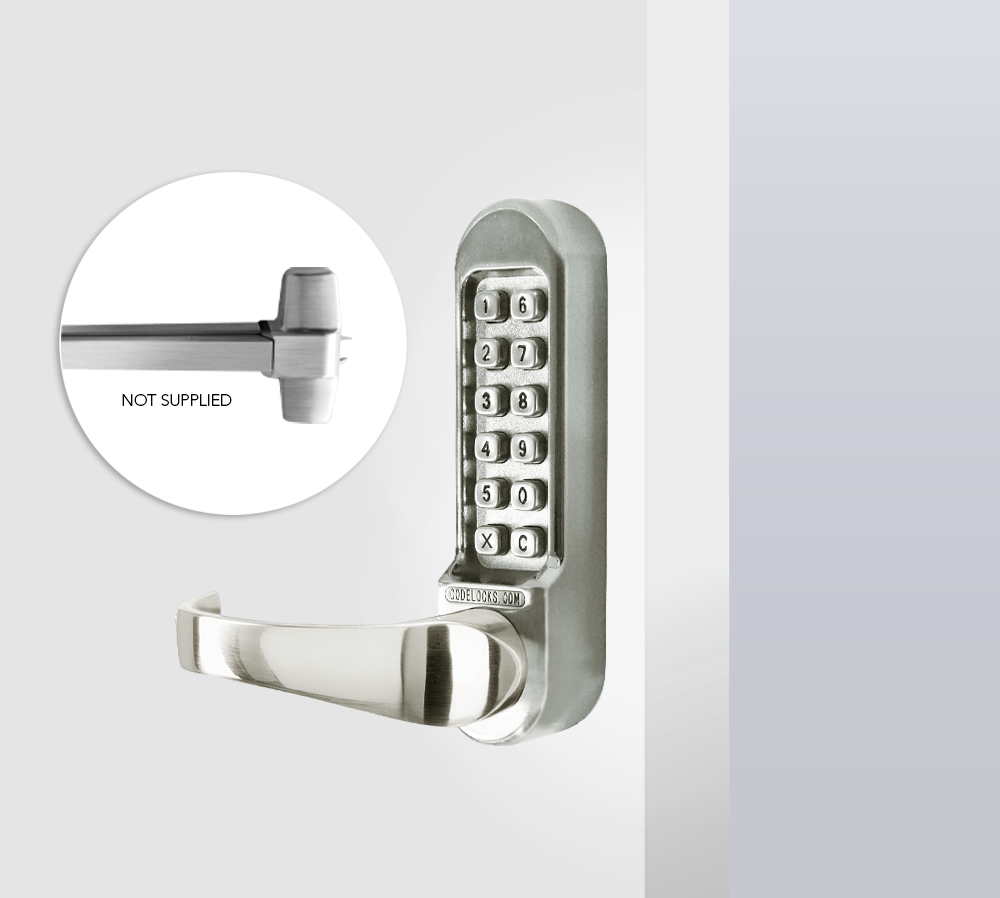

An extra long spindle is provided to work with most single point panic pads or bars. The outside lever will retract the latch freely until disabled.
INFORMATION
BRAND
Codelocks
PRODUCT TYPE
Door Lock
COLLECTION
CL500
PRODUCTION
Made in UK
SUITABLE FOR
- Internal
- External
BUTTONS
2 x 6
USER TYPES
Code
SPINDLE
Two part 5⁄16" (8mm) spring loaded spindle
KEYPAD
12 stainless steel buttons
DOOR THICKNESS
35mm - 60mm (1 3⁄8" - 2 3⁄8")
CODES
Single code storage - 2,047 non sequential combinations available
HANDED
Non Handed - Locks will fit doors hung on the left or right
LATCH TYPE
Mortice Lock (Sash)
DOWNLOAD
↓ Cl500 Brochure
FINISH
- Stainless Steel
- Polished Brass
PANIC HARDWARE BY CODELOCKS
Panic Hardware

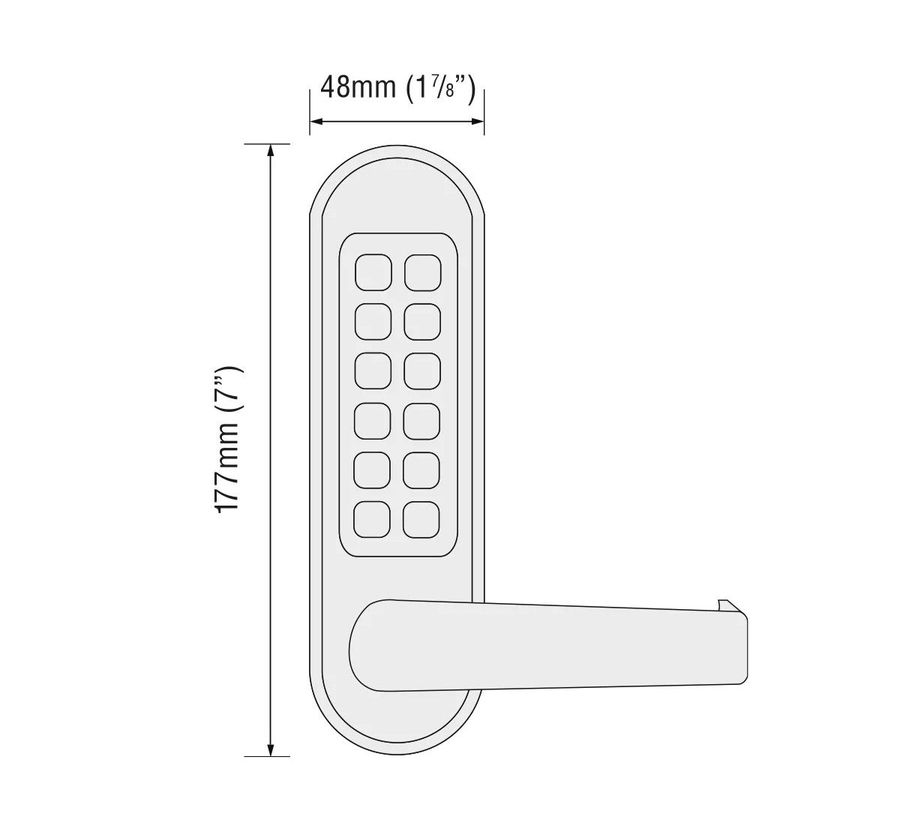

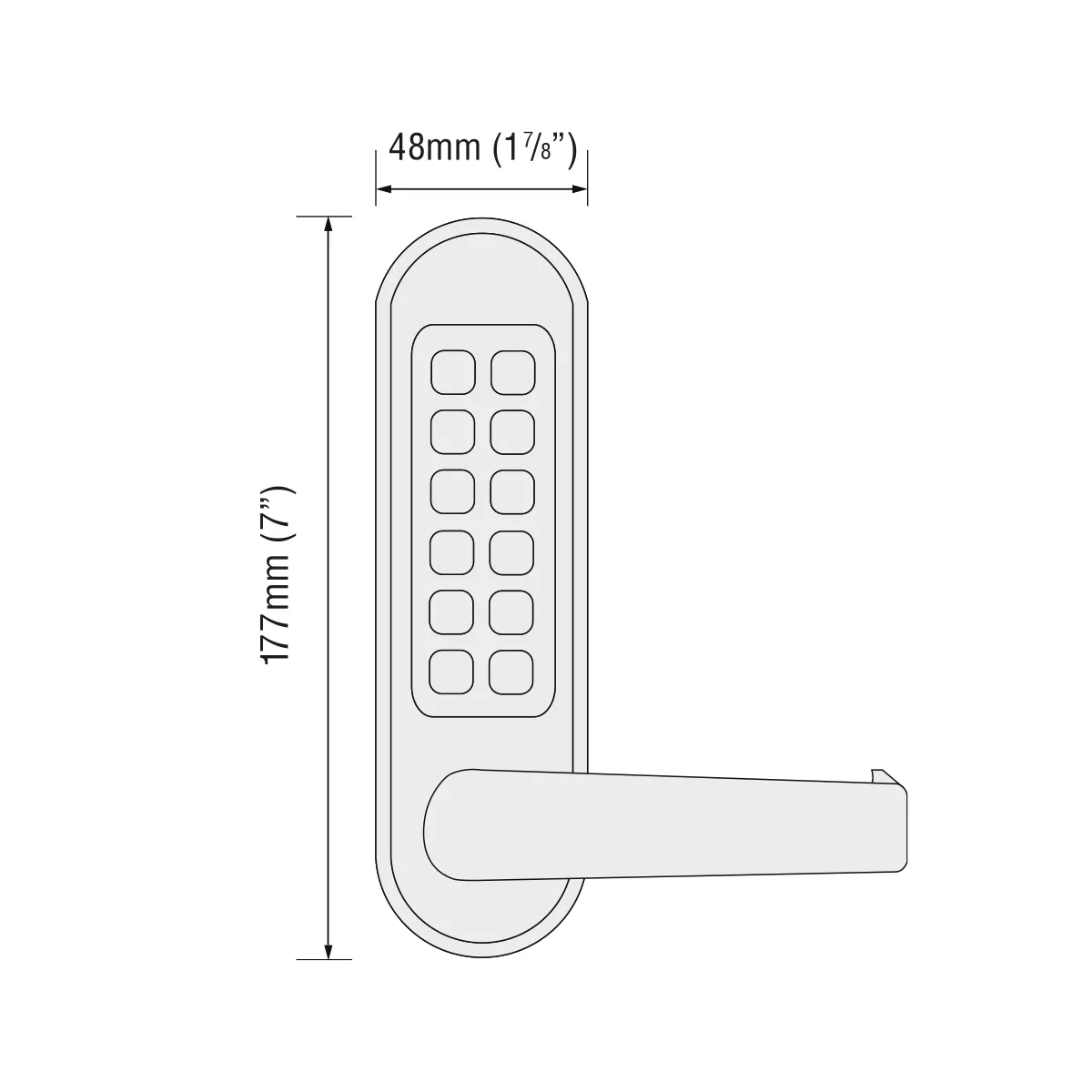

LOCK DIMENSIONS
7" (177mm) x 1 7⁄8" (48mm)
ORIENTATION
Vertical
LOCK MATERIAL
Zinc Alloy
CLEANING
Clean by codelocks is an optional finish which can be applied to any of our codelocks products. Clean by codelocks features an ISO certified* photocatalytic coating which, when applied to our locks, offers enhanced protection against viruses, bacteria, germs and other environmental toxins.
The coating utilises a process called photocatalytic oxidation, which means that the coating converts harmful bacteria and germs into a non-toxic compound, resulting in a clean and hygienic surface. The clear coating combats sars-cov-2 coronavirus (covid-19) and can reduce bacterial growth by 99.96%*, providing an additional measure of protection over sanitisation.
INSTALL
Easily
CODE CHANGE METHOD
Tumblers (Off Door)
KEY FEATURES
- Neoprene seals included
- Code Free access option
- Suitable for internal and external use
- Tumbler alignment for easy code change
- Large full size lever handles with return to door
- Available in stainless steel or polished brass finish
- Large three coil lever return spring suitable for high traffic use
CODE FREE OPTION
Yes
APPLICATION LEAD TIME
3 to 5 working days.
USE
Doors
SIZE
Large
