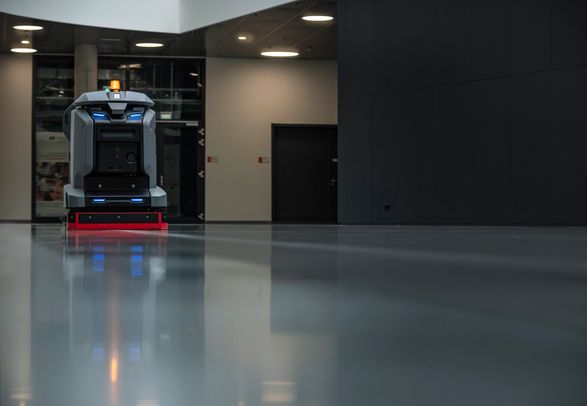

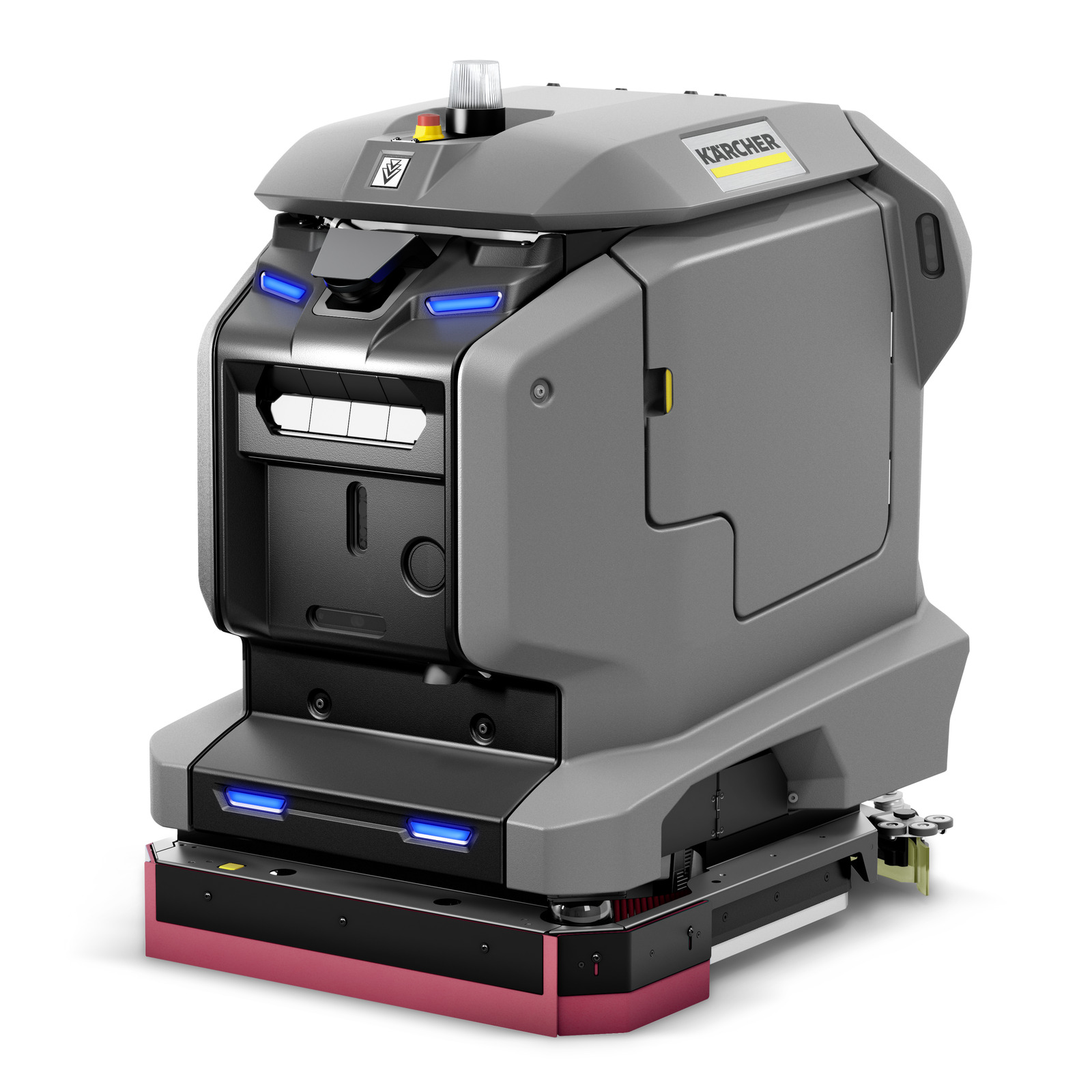

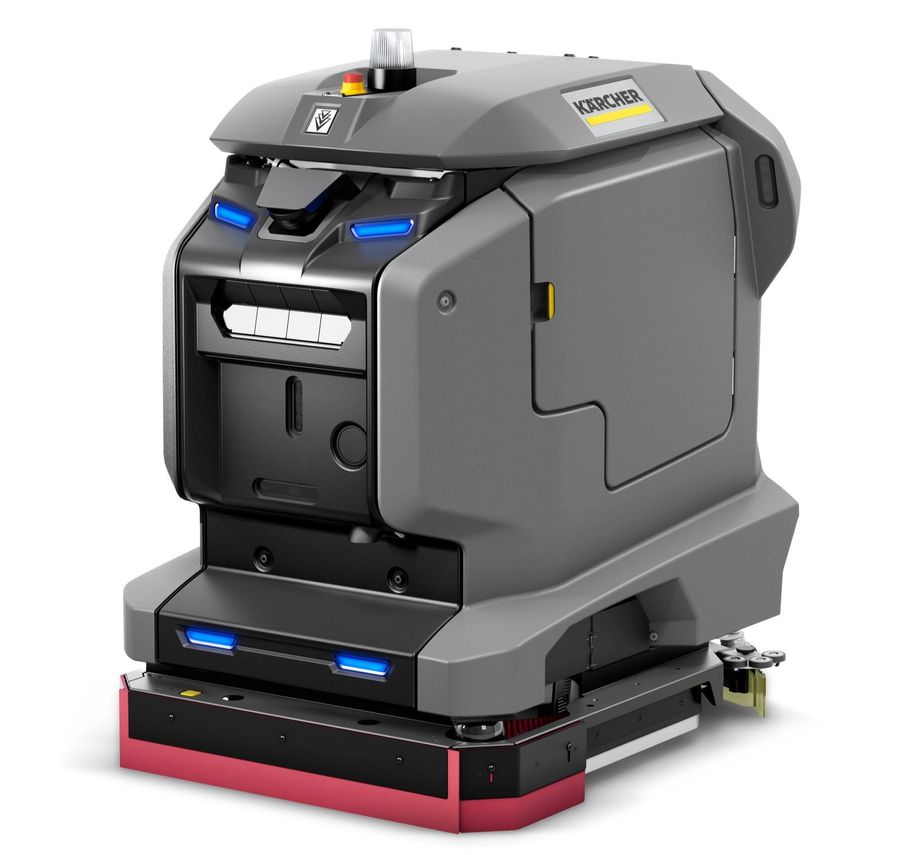

Efficient, time-saving, simple, safe, flexible – and fully autonomous on request: the KIRA BD 50 scrubber dryer robot for economical floor cleaning in medium to large areas.

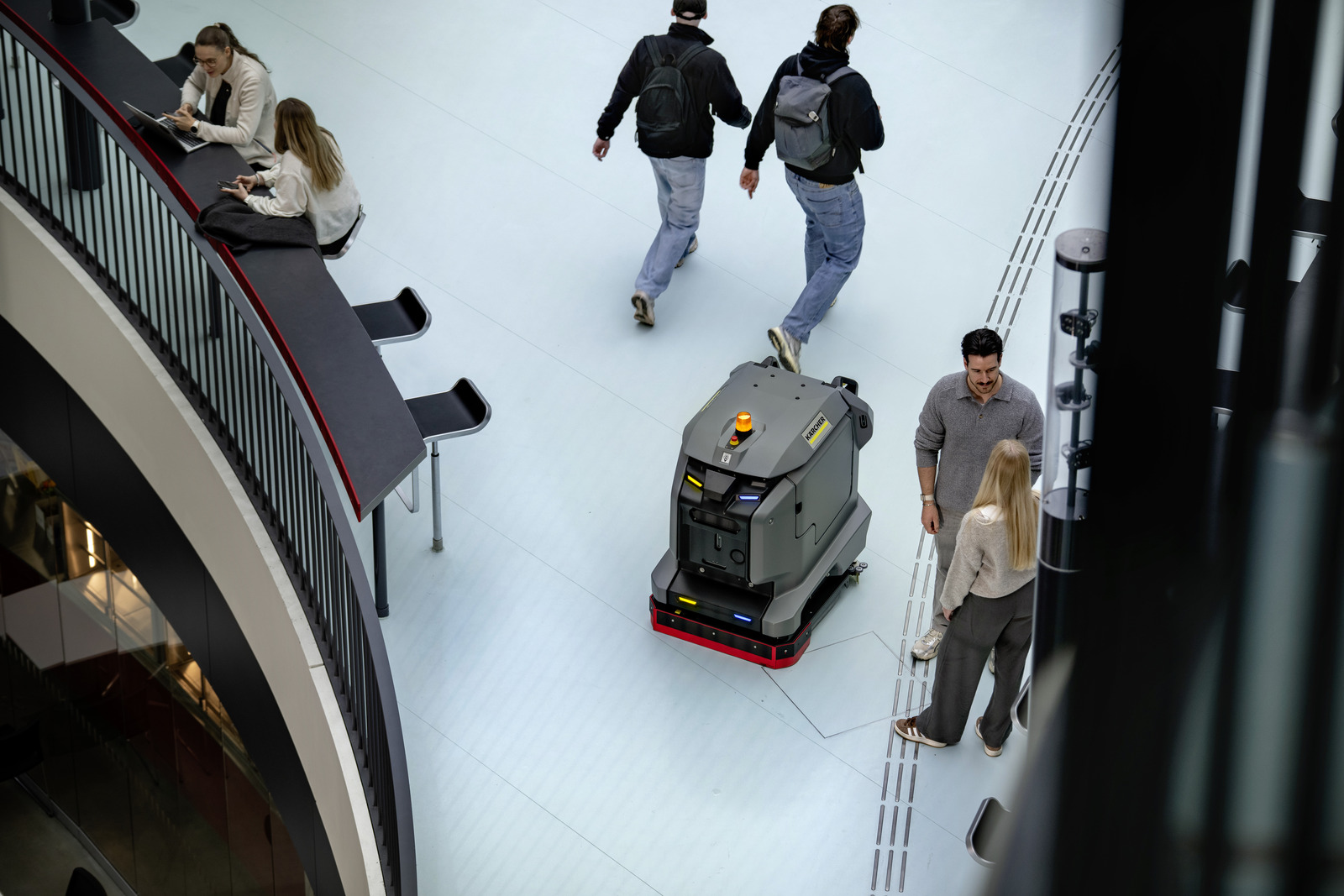

The Kärcher KIRA BD 50 cleaning robot is a practical addition to any cleaning team. Intelligent, autonomous and equipped with the functionality of a scrubber dryer, it efficiently cleans floors in medium to large areas with consistently high quality. This relieves the burden on cleaning staff, who can then devote themselves to more demanding tasks.
FEATURES

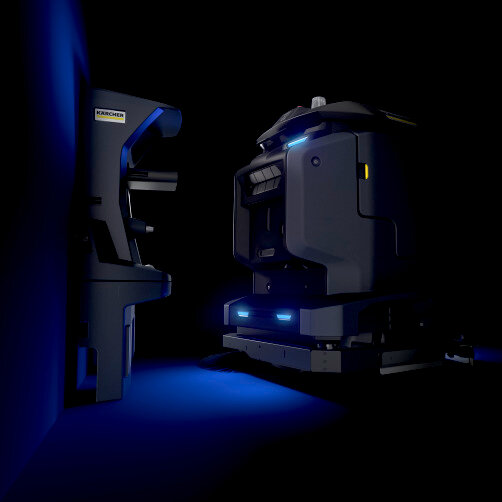

DOCKING STATION (OPTIONAL)
Enables fully autonomous operation. Resources can be autonomously topped up by a robot (refilling the fresh water, draining the dirty water, rinsing the tank, charging the battery). Optional accessory, the robot can also be operated without the docking station.

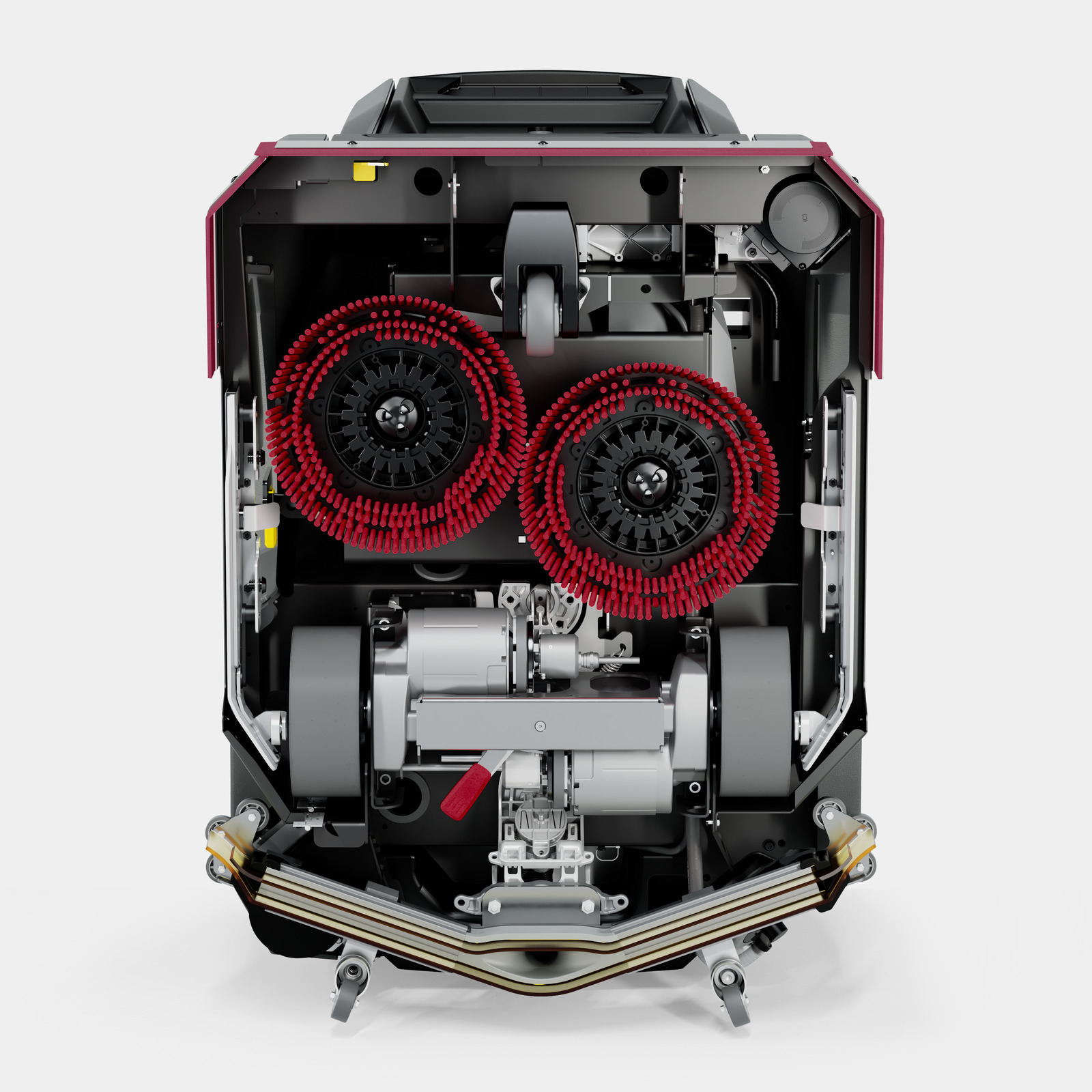

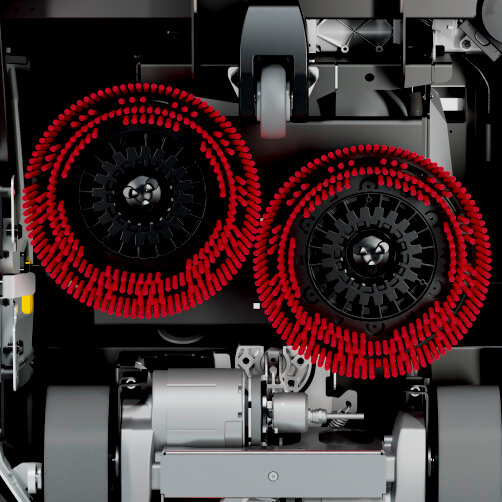

PROVEN DISC BRUSH ENGINEERING
Extra powerful yet gentle cleaning on smooth and delicate surfaces. Low brush wear. Wide selection of different brushes and pads to choose from, including diamond pads that can be used to achieve/maintain a glossy finish.

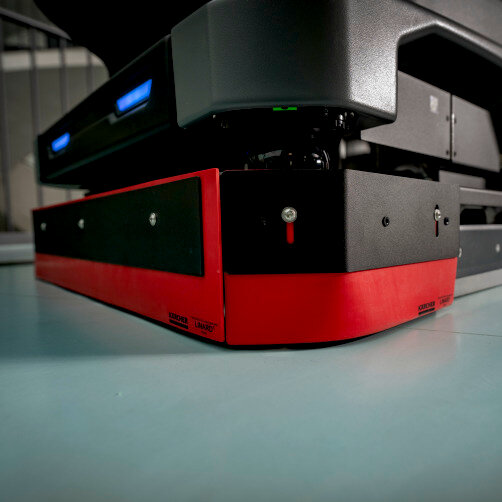

COARSE DIRT SCRAPER
Prevents coarse dirt from entering the machine. Protects the disc brushes from coarse dirt particles. Prevents blockage of the squeegee.
INFORMATION
EASY OPERATION
- Step-by-step user guidance for easy, intuitive operation.
- Simple to set up and easy to use the robot without expert knowledge.
- Clearly organised, safe control of all device functions via the touch display.
BRAND
Kaercher
PRODUCT TYPE
Cleaning Robots
SAFETY-CERTIFIED

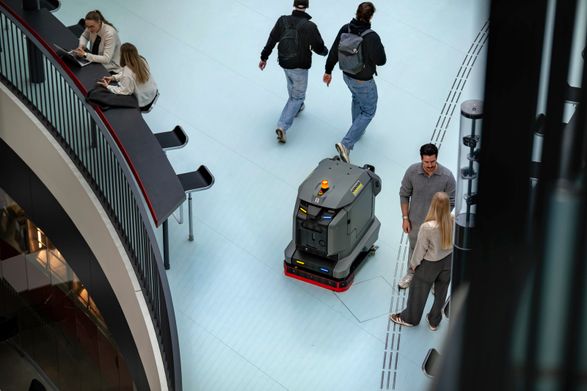

- Suitable for operation in high-traffic areas.
- Safety-certified in accordance with IEC 63327.
- Safe and contactless detection of obstacles, falls and people.
DRIVE TYPE
Battery
RATED INPUT POWER (W)
1600 w
TRACTION MOTOR POWER (W)
560 w
ROBUST AND RELIABLE NAVIGATION
- Intelligent free travel manoeuvres in the event of blockages.
- Safe avoidance of collisions and obstacle guide.
- High-performance sensors with 360° detection of the environment and lateral monitoring.
ORDER NUMBER
1.533-050.0
TURBINE CAPACITY (W)
630 w
QUICK TEACHING IN OF AUTONOMOUS ROUTES
- Intuitive teaching in of cleaning routes.
- Smart Fill function for autonomous route planning of large open spaces.
- Teach & Repeat function for manual teaching in of precise routes in cramped spaces.
INTUITIVE ROUTE EDITING
- Creation of interlinked cleaning routes.
- All cleaning parameters can be easily adjusted after route creation.
- Add no-go zones, speed filters, no-clean zones, horn zones and interaction zones.
WORKING WIDTH, BRUSHES (MM)
600 mm
BRUSH SPEED (RPM)
150
THEORETICAL AREA PERFORMANCE, AUTONOMOUS (M²/H)
Max. 2578
BRUSH CONTACT PRESSURE (G/CM²)
20
MOTOR RATING OF BRUSH MOTOR (W)
900 w
WEB PORTAL
- Sends notifications and status messages to mobile devices
- Includes cleaning reports, notifications, device status and more
- Remote access to detailed information via Kärcher Equipment Management.
FRESH/DIRTY WATER TANK (L)
55 / 55
WORKING WIDTH, VACUUMING (MM)
750 mm
SWEEPER DRAWER VOLUME (L)
2

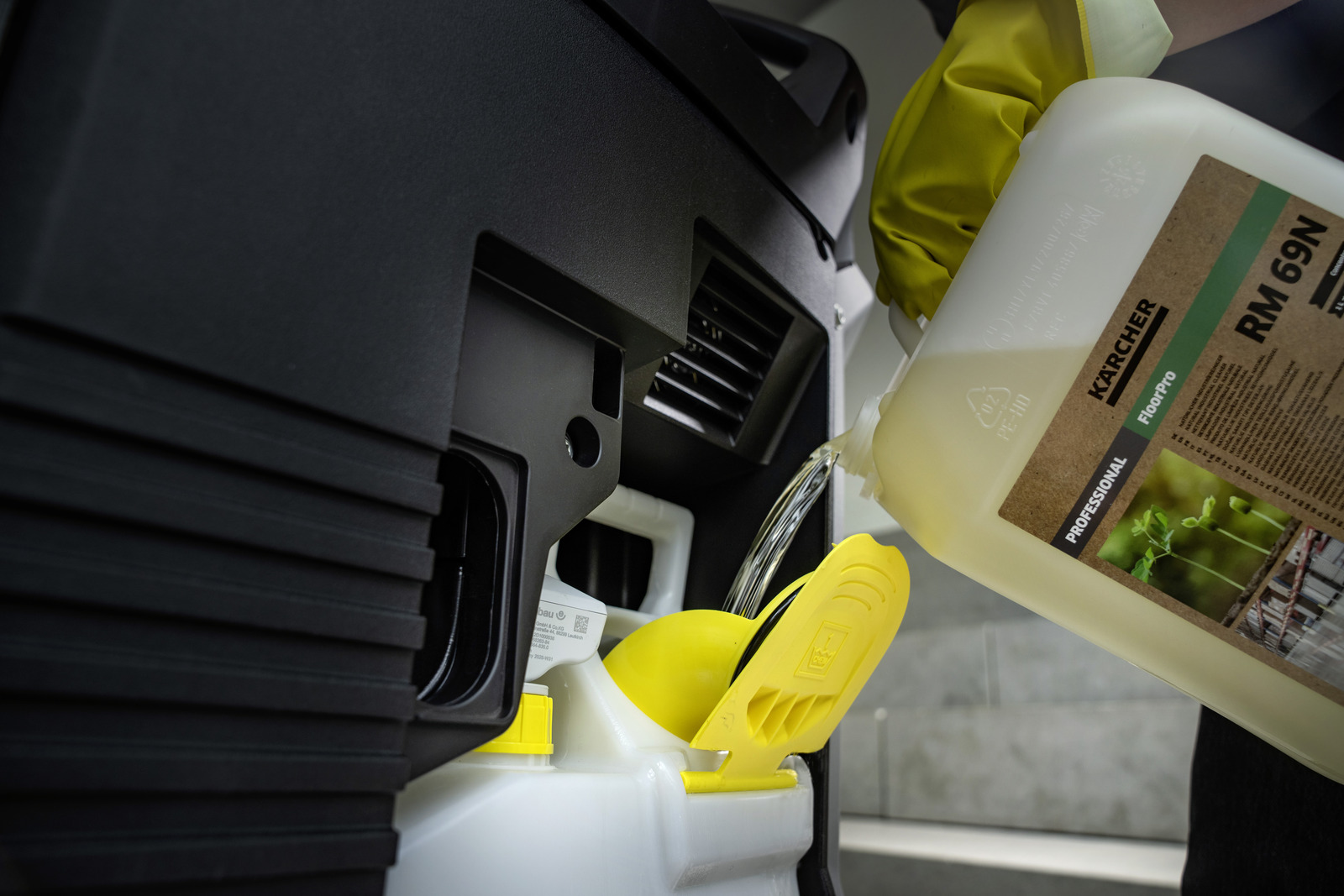

DETERGENT TANK (L)
5
VOLTAGE (V)
24 v
NUMBER OF BATTERIES
2
AREA PERFORMANCE PER TANK FILLING (M²)
Approx. 1830
BATTERY TYPE
Li-Ion
BATTERY VOLTAGE/CAPACITY (V/AH)
24 / 180
BATTERY RUN TIME (H)
Approx. 4
BATTERY CHARGING TIME (H)
Max. 5,8
SOUND PRESSURE LEVEL (DB(A))
69
AUTONOMOUS SPEED (KM/H)
Max. 4,3
CLIMBING ABILITY (%)
Max. 12
SCOPE OF SUPPLY
- Flashing beacon
- Squeegee included
- Disc brush : 2 Piece(s)
- Battery and battery charger
APPLICATION AREAS

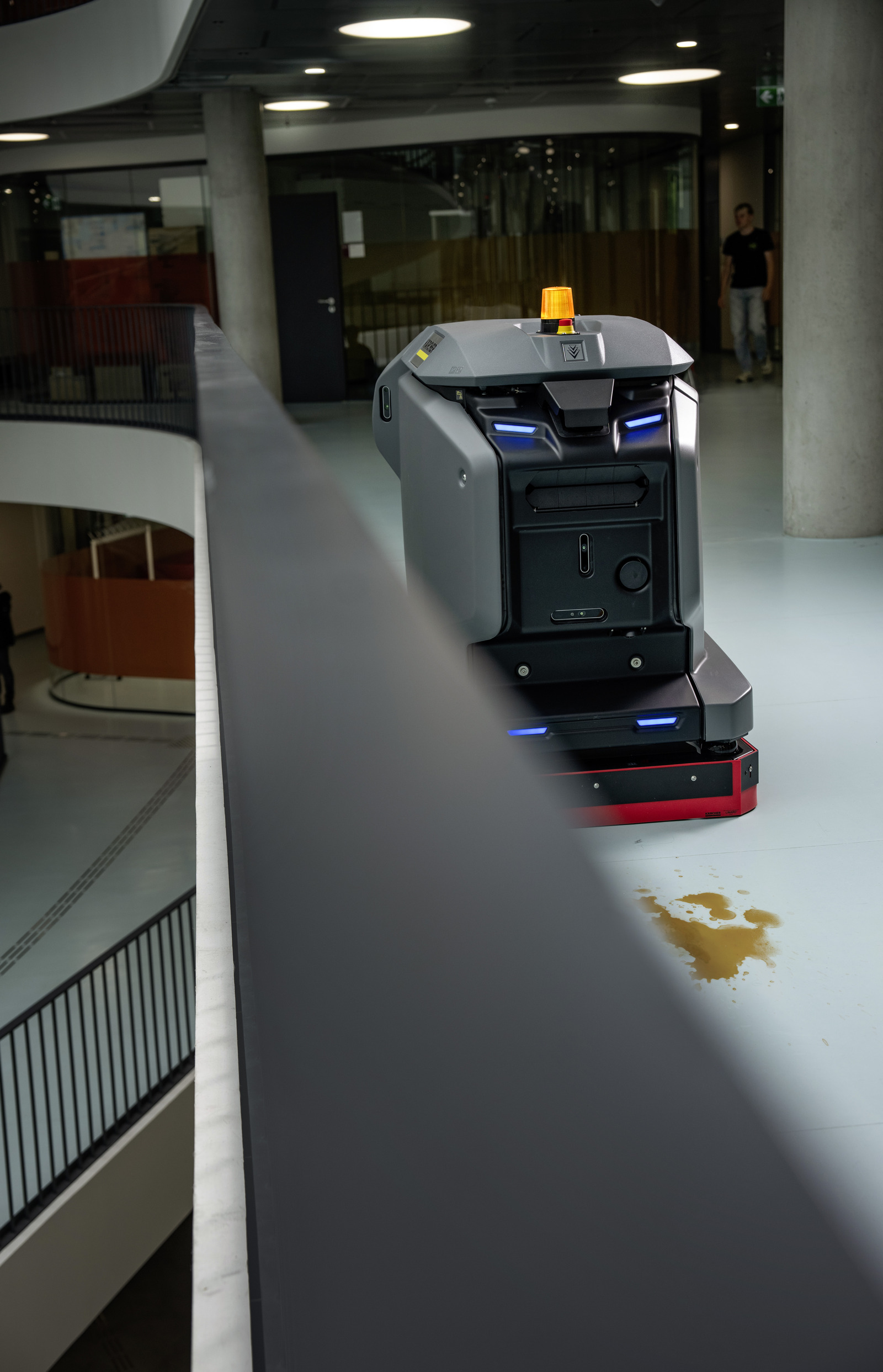

- Suitable for use in public spaces
- Medium to large areas with sensitive, smooth and glossy surfaces
- Can be used where space is limited as well as in open spaces
- Ideal in retail, healthcare settings and public facilities
- Can be used in transport, industry and building cleaning
AUTONOMOUS CLEARANCE WIDTH (M)
Min. 0,9
SOFTWARE UPDATES AVAILABLE UNTIL
2033-01-01
DIMENSION
- Length : 1100 mm
- Height : 1200 mm
- Width : 750 mm
WEIGHT (WITH ACCESSORIES)
236,3 kg
WEIGHT INCL. PACKAGING
250,2 kg
UNLADEN WEIGHT
236 kg
AUTONOMOUS AISLE TURNING WIDTH (M)
1,5
PRODUCTION
Made in Germany
BENEFITS
Intuitive user guidance with a large touch display allows the robot to be set up quickly, without the need for any expert knowledge. The optional docking station facilitates fully autonomous working, including filling with fresh water, emptying dirty water, rinsing the tank and charging the long-lasting lithium iron phosphate battery.
A disc brush head is the ideal solution for quiet maintenance cleaning on smooth floors. Powerful sensors and software ensure reliable navigation, safe collision avoidance and obstacle avoidance. For the purposes of documentation and monitoring, the KIRA BD 50 sends status messages to mobile devices and creates detailed cleaning reports in the corresponding web portal.
EQUIPMENT
- DOSE
- Schedule function

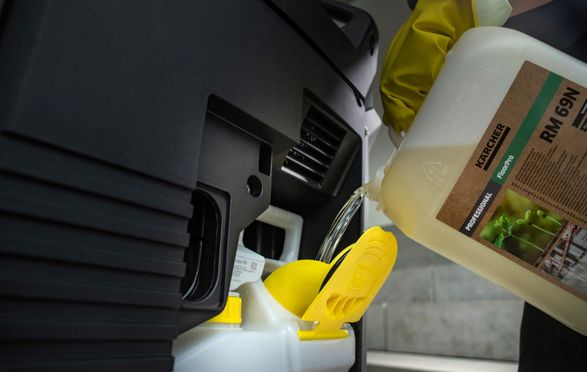

- Detergent dosing unit
- Docking-enabled
- Creation of cleaning reports
- Type of suction lips: oil-proof
- With speed-dependent water dosing
- Large, high-definition touch display
- Roller shutter control prepared
- Auto Fill
- Ramp mode
- With manual drive mode
- Autonomous cleaning
- High-performance sensors
- Obstacle and crash detection
- Autonomous swerving upon meeting obstacles
- Safety certified for public areas
- Notifications on mobile devices
- Communication interface: VDA 5050
- Kärcher colour and operating concept
- Electrical and mechanical float switch
- Underpressure sensor for detecting blockages
- Detection of empty detergent tank
- Coloured lights to display the robot's behaviour and operating status
