Kratki Wood Burning Steel Stove Kratki Rollo 7 Kw Ø 150
KRATKI WOOD BURNING STEEL STOVE KRATKI ROLLO 7 KW Ø 150
KRATKI WOOD BURNING STEEL STOVE KRATKI ROLLO 7 KW Ø 150
The ROLLO stove uses a triple system of combustion chamber aeration. The primary air, which facilitates lighting of the wood, is supplied under the grate.
Secondary air, ensuring ecological combustion, is supplied through holes in the rear wall of the stove. The air curtain efficiently supplies air directly to the glass through a system of ducts located on the sides of the stove.
In this way, the gases produced during wood combustion are post-combusted, further reducing the emission of harmful CO into the atmosphere.
The stove is equipped with a deflector which provides a natural convection channel for the flue gas flow, improving the flue gas flow and intensifying heat exchange. As a result, the stove burns fuel more efficiently, makes better use of energy and reduces harmful emissions into the atmosphere.
ADVANTAGES
HEAT-RESISTANT GLASS
Renowned manufacturer SCHOTT ROBAX, glass with a temperature resistance of up to 600°C,
PERFORATED HANDLE
Causes it to cool down naturally. Oval-shaped handle with perforations that allow a secure grip and prevent excessive heat build-up.
TERMOTEC LINING
This is a heat-accumulating material that increases the temperature in the firebox. It ensures more efficient combustion and longer temperature retention. As a result, when the fireplace is extinguished, the heat is still transferred to the room in which it is located for a long time. Choice of white or black colour.
CAST IRON GRATE
Ensures even and efficient combustion of wood, leading to better fuel utilisation and increased heat output.
STEEL ASH PAN
The ash pan is positioned below the combustion chamber and access to it is easy as it does not require the removal of the grate, which makes it easy to empty the ash collecting in it. The entire cleaning process of the stove is fast, convenient and comfortable.
ADJUSTMENT OF AIR SUPPLY
It is based on an intuitive and simple mechanism that allows you to easily control the amount of air supplied to the stove. Pulling out the slide opens the air supply, while fully retracting it cuts it off. Clear markings translate into trouble-free and convenient use.
PUSH-TO-OPEN MECHANISM
The chamber under the firebox is equipped with a push-to-open mechanism. The mechanism makes it possible to open the door by gently pressing it, without using conventional handles or grips. It provides̨ convenience of use and an aesthetically pleasing appearance.
MATERIAL OF CONSTRUCTION
The use of high-quality steel in the body and front of the ROLLO stove ensures not only resistance to high temperatures, but also stability of the construction. The top plate of the stove is made of 5 mm thick steel. This is particularly important for safety, as well as the long-term use of the stove.
INFORMATION
BUILT-IN AIR INTAKE
Via external spigot (can be connected from the rear as well as from the bottom) with a diameter of fi 100
EFFICIENT HEATING
The triple air circulation contributes to a highly efficient combustion process.
BRAND
Kratki
PRODUCT TYPE
Stove
HEAT OUTPUT FOR SPACE HEATING (KW)
7 Kw
CO EMISSION (AT 13% O2) ≤ GIVEN IN %
0.044 %
CERTIFICATIONS / COMPLIANCE
Ecodesign, Designed for recuperation, BImSchV 2
SKU
- White : Rollo
- Black : Rollo/Black
EEI
106
ENERGY CLASS
A+
SEASONAL ENERGY EFFICIENCY
70 %
CO EMISSION (MG/M3)
555 mg/m3
EAN
- Black : 5903751193425
- White : 590375118248
NUMBER OF PIECES IN A PACKAGE.
2
EQUIPMENT
- Air intake - built in
- Ashpan
- Combustion chamber lining
POWER
- Nominal power : 7 kW
- Heating power range : 4 - 10 kW
POLLEN EMISSION (MG/M3)
19 mg/m3
OGC EMISSION (MG/M3)
63 mg/m3
NOX EMISSION (MG/M3)
103 mg/m3
FLUE GAS MASS FLOW (G/S)
6.2 g/s
DIAMETER OF THE FLUE GAS OUTLET
150
FUEL TYPE
Seasoned deciduous wood (humidity ≤20%)
PHYSICAL PARAMETERS
- Width : 52.6 cm
- Depth : 40.2 cm
- Height : 97.6 cm
LENGTH
- Optimal log length : 250 mm
- Max billet length : 35 cm
WEIGHT
105 kg
AIR INTAKE DIAMETER
100 mm
THERMAL EFFICIENCY
80.1 %
FLUE GAS TEMPERATURE
269 °C

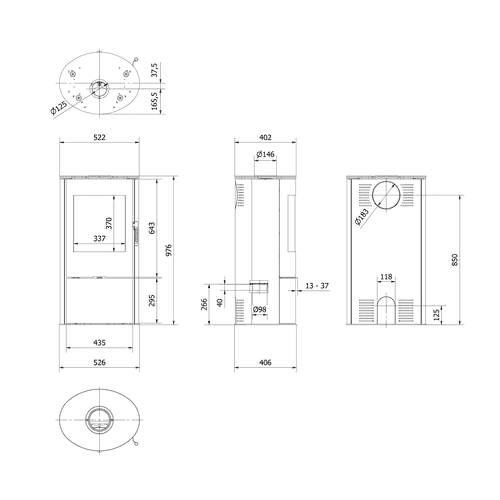

TECHNICAL DRAWING
ROLLO STEEL STOVE - HEATS FROM 40 M² TO 100 M²
The ROLLO steel stove combines functionality and universal design, making it an attractive element in interior design. The ROLLO stove creates a cosy atmosphere in the home thanks to the possibility of freely watching the flames. It easily adapts to different interior styles, from modern to rustic. This flexibility allows the stove to be integrated into various design concepts.
FRONT
Steel front with ceramic glass
ADDITIONAL CLOSING
Yes
DOOR OPENING
Left
BASE MATERIAL
Steel
COLOR LINING
- White
- Black
