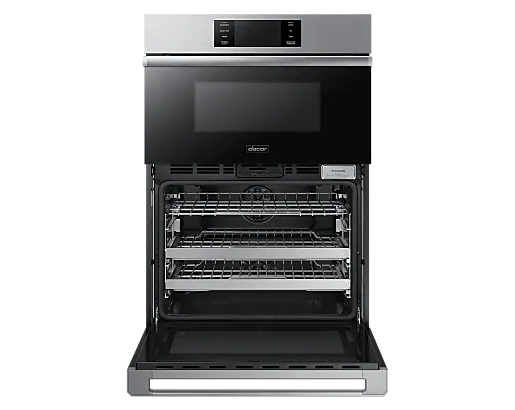

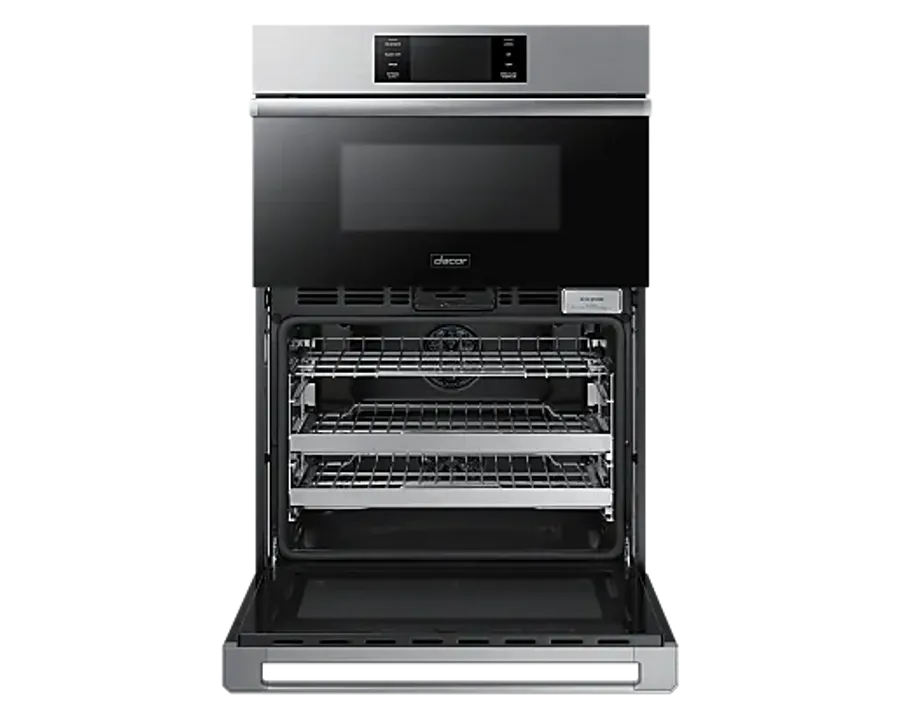

Dacor 30-Inch Combination Wall Oven with Steam
30-INCH COMBINATION WALL OVEN WITH STEAM
30-INCH COMBINATION WALL OVEN WITH STEAM
Contemporary Style / Silver Stainless
The most versatile culinary tool in the kitchen. Multi-functional speed in the upper oven combines the power of a microwave and convection technology to enable searing, broiling and even air frying.
INFORMATION
BRAND
Dacor
PRODUCT TYPE
Wall Oven
MODEL NO.
- DOC30M977DS/DA - Silver Stainless
- DOC30M977DM/DA - Graphite Stainless

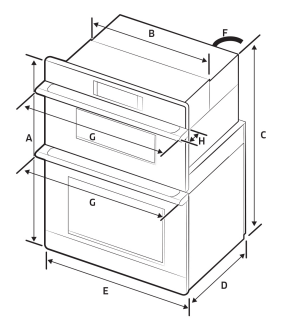

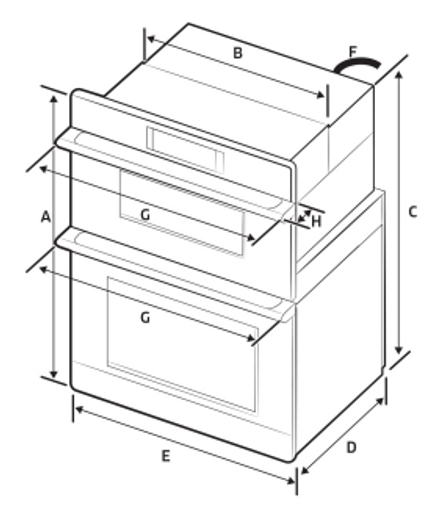

PRODUCT DIMENSIONS
- A - (In/Cm) : 43 3/8 / 110.2
- B - (In/Cm) : 28 1/2 / 72.4
- C - (In/Cm) : 42 / 106.7
- D - (In/Cm) : 23 1/8 / 58.7
- E - (In/Cm) : 29 3/4 / 75.6
- F - (In/Cm) : 67 / 170
- G - (In/Cm) : 30 / 76.2
- H - (In/Cm) : 2 1/4 / 5.6
NET WEIGHT
303 lbs
SHIPPING WEIGHT
333 lbs
WARRANTY
Full Coverage : 2 Years

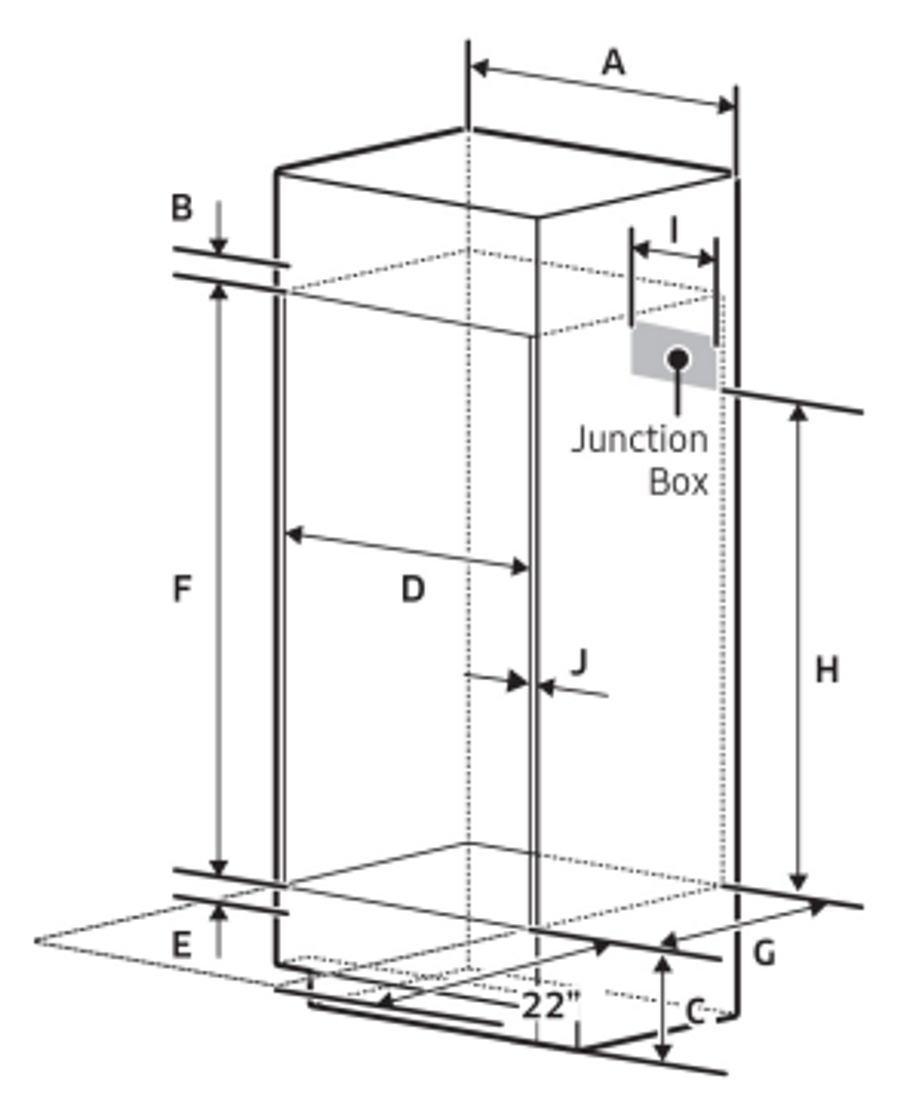

INSTALLATION CUTOUT DIMENSIONS (STANDARD)
- A - (In/Cm) : 30 / 76.2
- B - (In/Cm) : min. 1 3/16 / 3
- C - (In/Cm) : 12 / 30.5
- D - (In/Cm) : min. 28 5/8 / 72.7 - max. 28 3/4 / 73
- E - (In/Cm) : min. 1 / 2.5 - max. 1 1/4 / 3.2
- F - (In/Cm) : 42 1/4 / 107.3
- G - (In/Cm) : min. 23 1/2 / 59.7
- H - (In/Cm) : min. 30 1/2 / 77.5
- I - (In/Cm) : max. 9 1/2 / 24.1 - junction Box
- J - (In/Cm) : min. 11/16 / 1.75 - wooden cabinet thickness
BENEFITS
- Healthy fry
- Self-clean oven
- SoftShut™ hinges
- Steam-Assist oven
- Convection speed oven
- Chef Mode guided cooking
- Digital temperature probe
- BrightVue™ LED & Halogen lighting
- Dual Four-Part Pure Convection system
- 7-inch LCD control panel with SmartThings Wi-Fi connectivity
INSTALLATION CUTOUT DIMENSIONS (FLUSH)
- A - (In/Cm) : min. 30 3/16 / 76.7 - max. 30 5/16 / 77
- B - (In/Cm) : min. 1 3/16 / 3
- C - (In/Cm) : 12 / 30.5
- D - (In/Cm) : min. 1 / 2.5 - max. 1 1/4 / 3.2
- E - (In/Cm) : 43 11/16 / 110.9
- F - (In/Cm) : min. 24 13/16 / 63
- G - (In/Cm) : min. 30 1/2 / 77.5
- H - (In/Cm) : max. 9 1/2 / 24.1 - junction box
- I - (In/Cm) : min. 11/16 / 1.75 - wooden cabinet thickness
INTERIOR CAPACITY
- Upper (Speed Oven) : 1.9 ft.³
- Lower (Steam Oven) : 4.8 ft.³
FINISHES
- Silver Stainless
- Graphite Stainless
BATTERY
Lithium-Ion (Not included in products manufactured after June 2026)
CONTROLS
- Clock : Yes
- Delay Start : Yes
- Child Lock : Yes
- Kitchen Timer : Yes
- Sabbath Mode : Yes
- Wi-fi + Smartthings : Yes
- Chef Mode Guided Cooking : Yes
- Control Type : 7” motorized LCD touchscreen
MICROWAVE OVEN
- Lighting : White
- Convection : Yes
- Speed Broil : Yes
- Microwave Power : 950W
- Speed Convection Sear : Yes
- Microwave Capacity (Cu. Ft.) : 1.9
ENVIRONMENT
Indoor
COLLECTION
Combination
STEAM OVEN
- Temperature Probe : Yes
- Oven Capacity (Cu. Ft.) : 4.8
- Convection : Four-Part Pure
- Steam : Steam-Assist (lower)
- Convection Element : 2 x 1.300W
- Bake Element : 3.000W - 8 pass
- Broil Element : 4.400W - 10 pass
- Softshut™ : Yes
- Instantheat™ (No Preheat) : Yes
- Lighting : BrightVue™ - LED & Halogen
- Self-clean : Self-clean, GreenClean™
MOUNTING
Wall
ELECTRICAL REQUIREMENTS
240/208V, 60 Hz, 40A
FEATURES

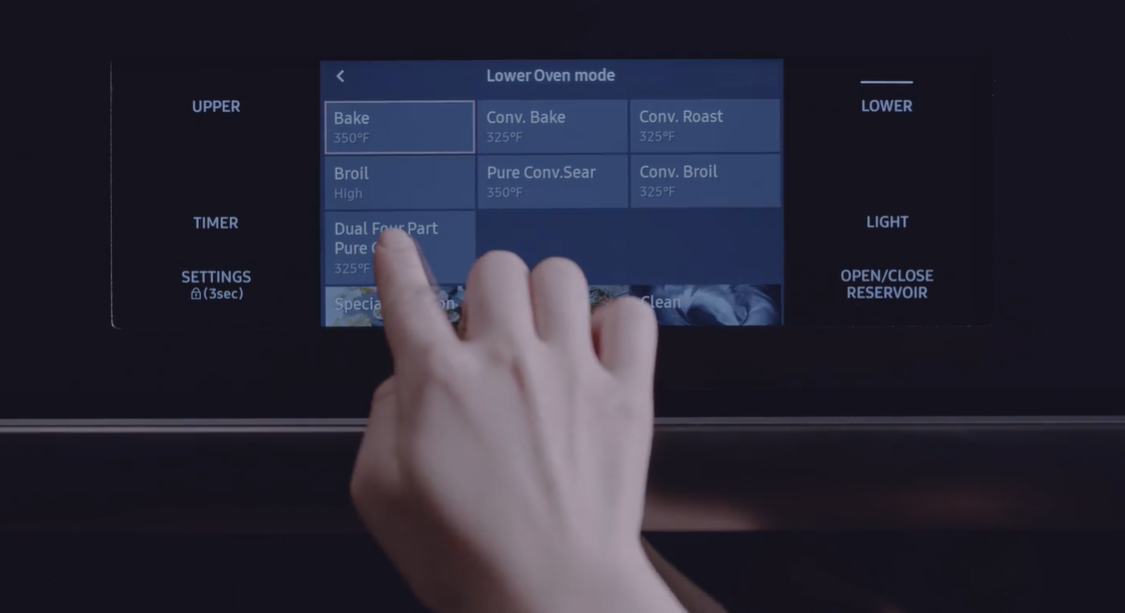

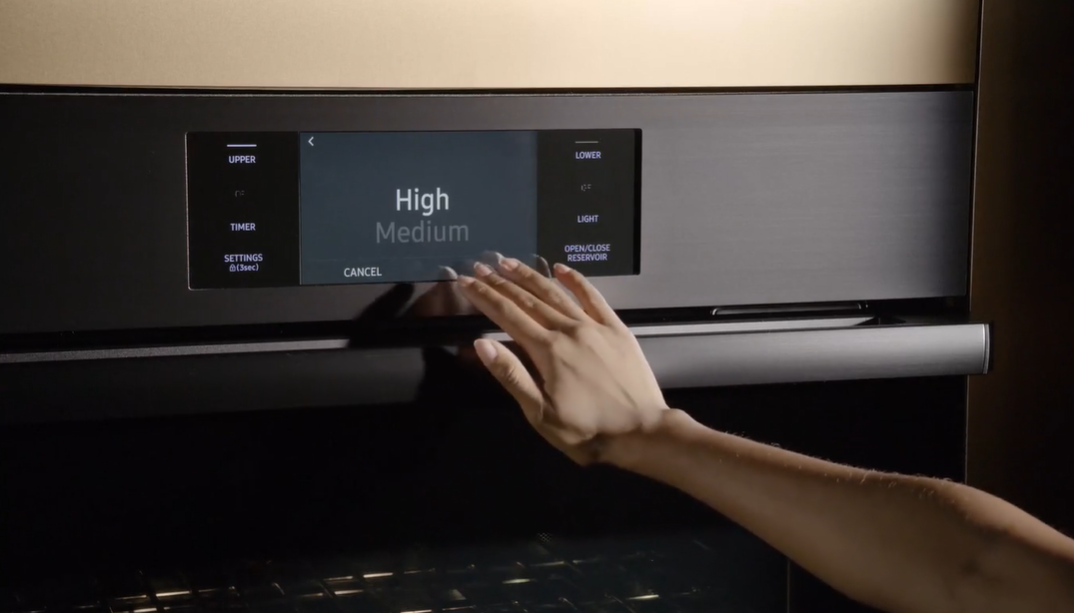

WI-FI-ENABLED 7 INCH LCD CONTROL PANEL
Automatically tilting, 7inch smooth touch glass panel provides a full-touch culinary command center for pre-programmed settings and step-by-step recipes.

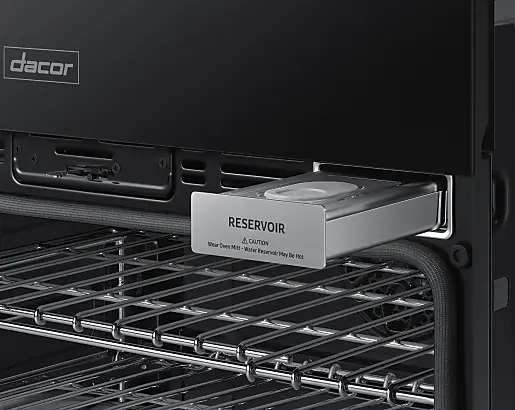

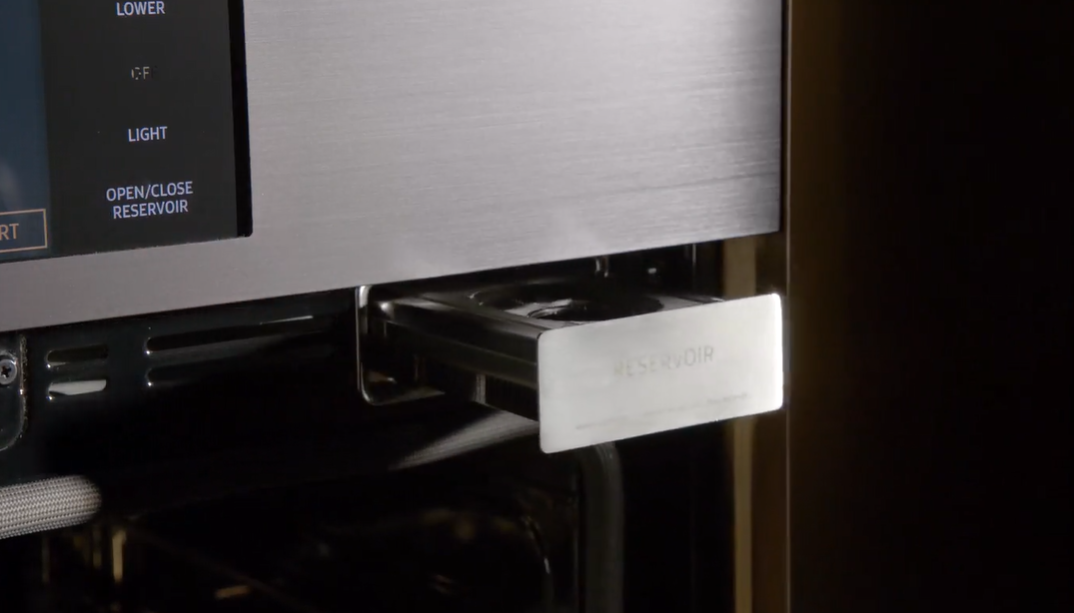

STEAM ASSIST OVEN
For meats that are juicy on the inside, yet brown and crispy on the outside. Bake artisan bread with a light, fluffy center with a flaky crust.

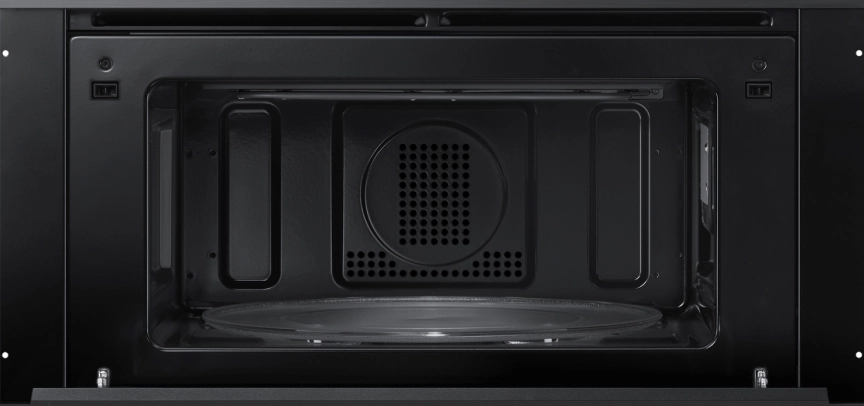

CONVECTION SPEED OVEN VERSATILITY
A suite of advanced, pre-programmed cooking modes such as speed-convection and healthy fry.

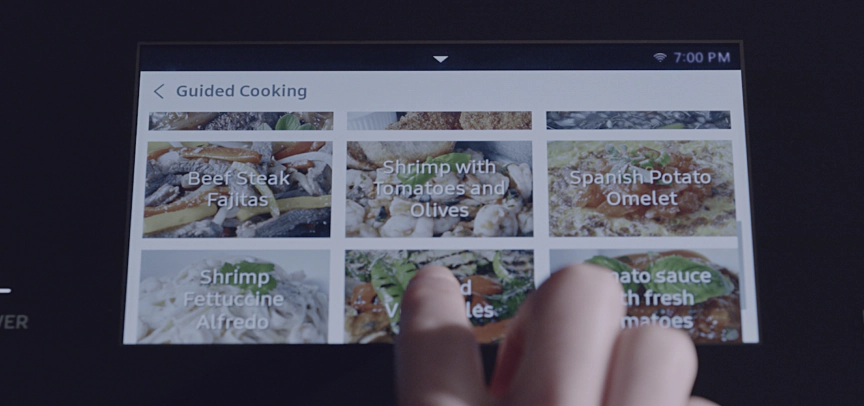

CHEF MODE
Receive expert cooking advice straight from the 7inch screen, guiding the user on the optimum rack setting, temperatures and timing.

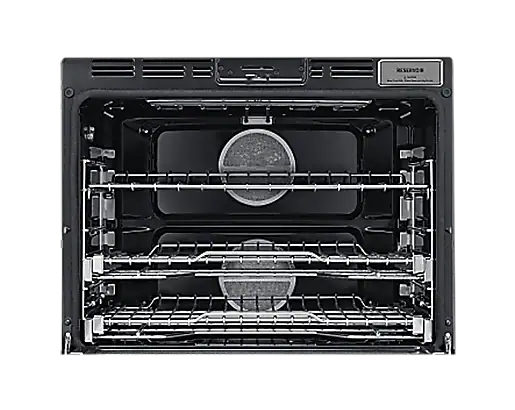

DUAL FOUR-PART PURE CONVECTION
Superior consistency and zero flavor transfer with Dual Four-Part Pure Convection. Reduce cooking time by distributing heat evenly across the entire oven.

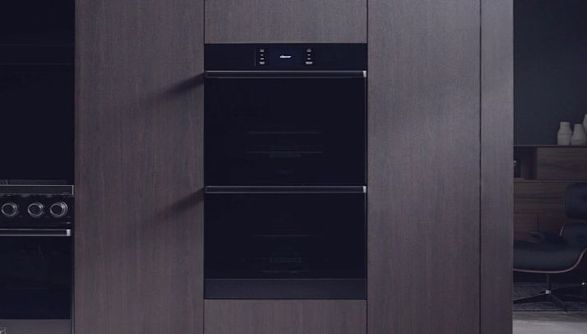

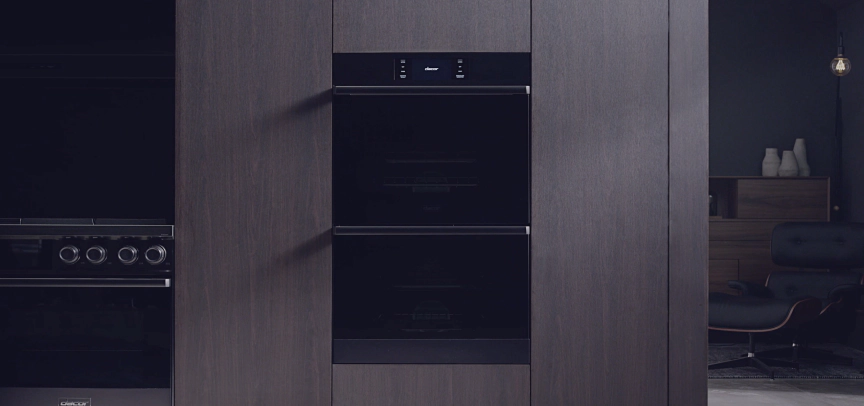

TRUE FLUSH INTEGRATION
Complete the look for the modern kitchen with clean, minimal lines and a true flush install.

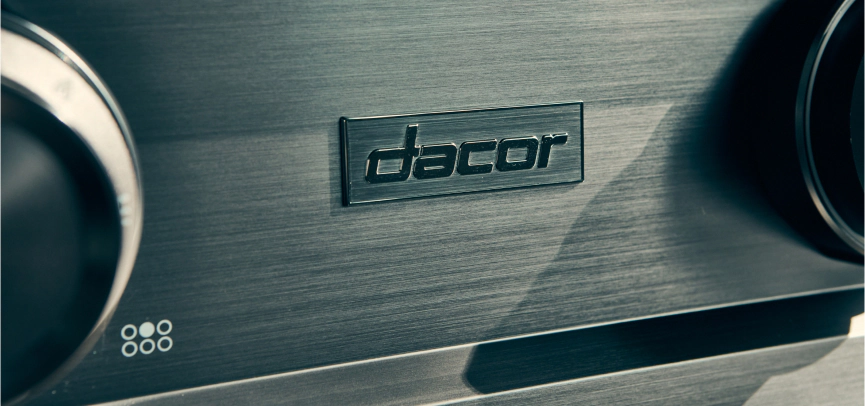

LUXURIOUS FINISHES
Dacor exclusive Graphite and Silver Stainless Steel finishes bring beauty and style to match any kitchen design or concept.
SMARTTHINGS INTEGRATION
Seamlessly integrate into the SmartThings connected platform, providing an exceptional foundation for an ever growing ecosystem of smart connectivity. Preheat, check the oven temperature, the cooking status and remaining time, all from the comfort of your smartphone.
