Elica Ratio 604 Plus Hob
RATIO 604 PLUS HOB
RATIO 604 PLUS HOB
Design Fabrizio Crisà

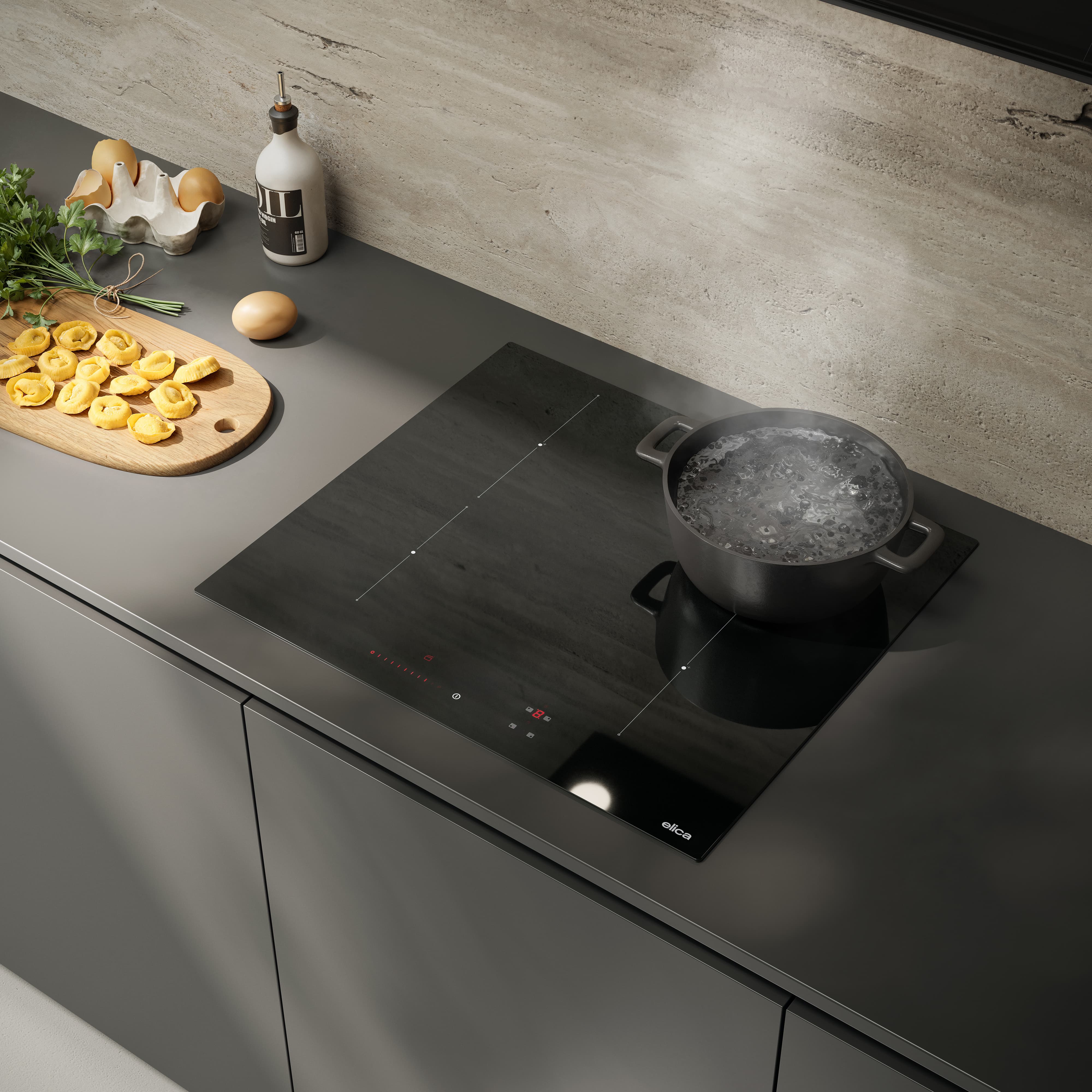

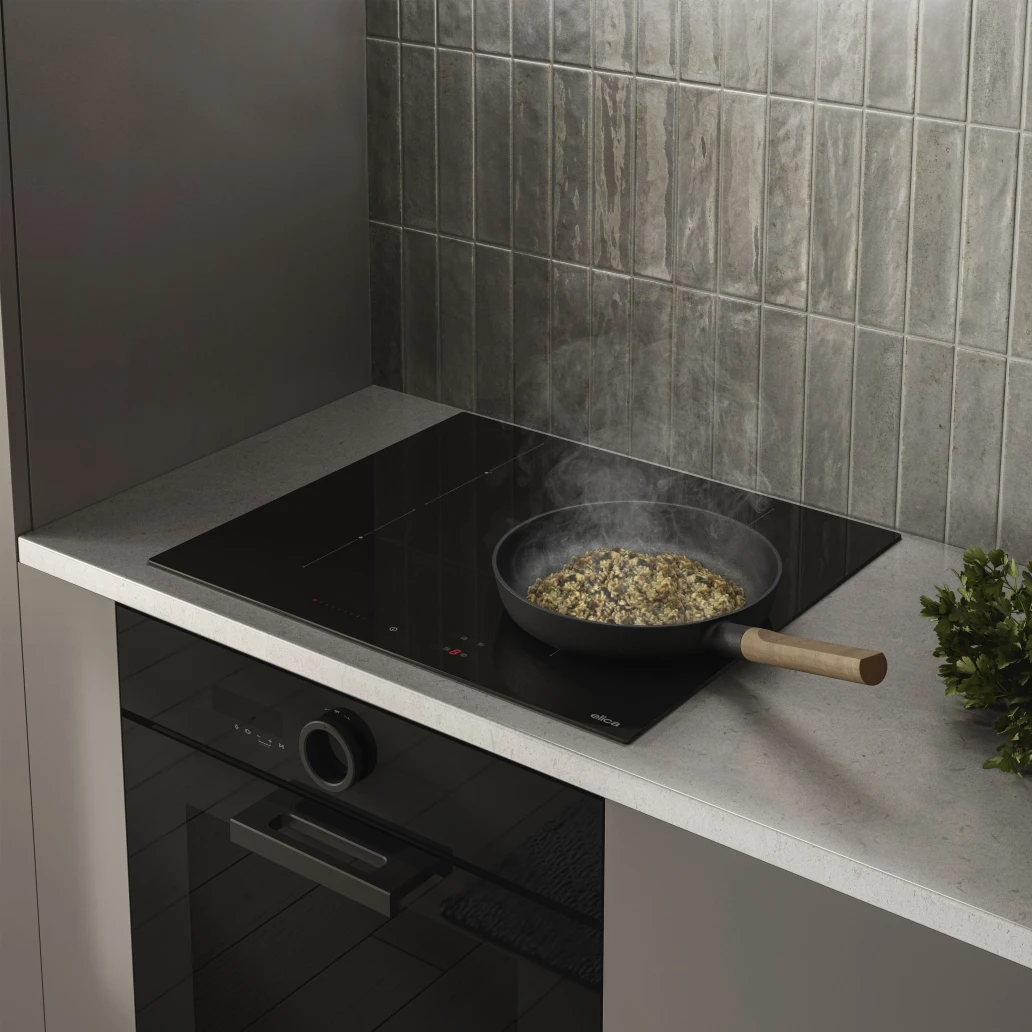

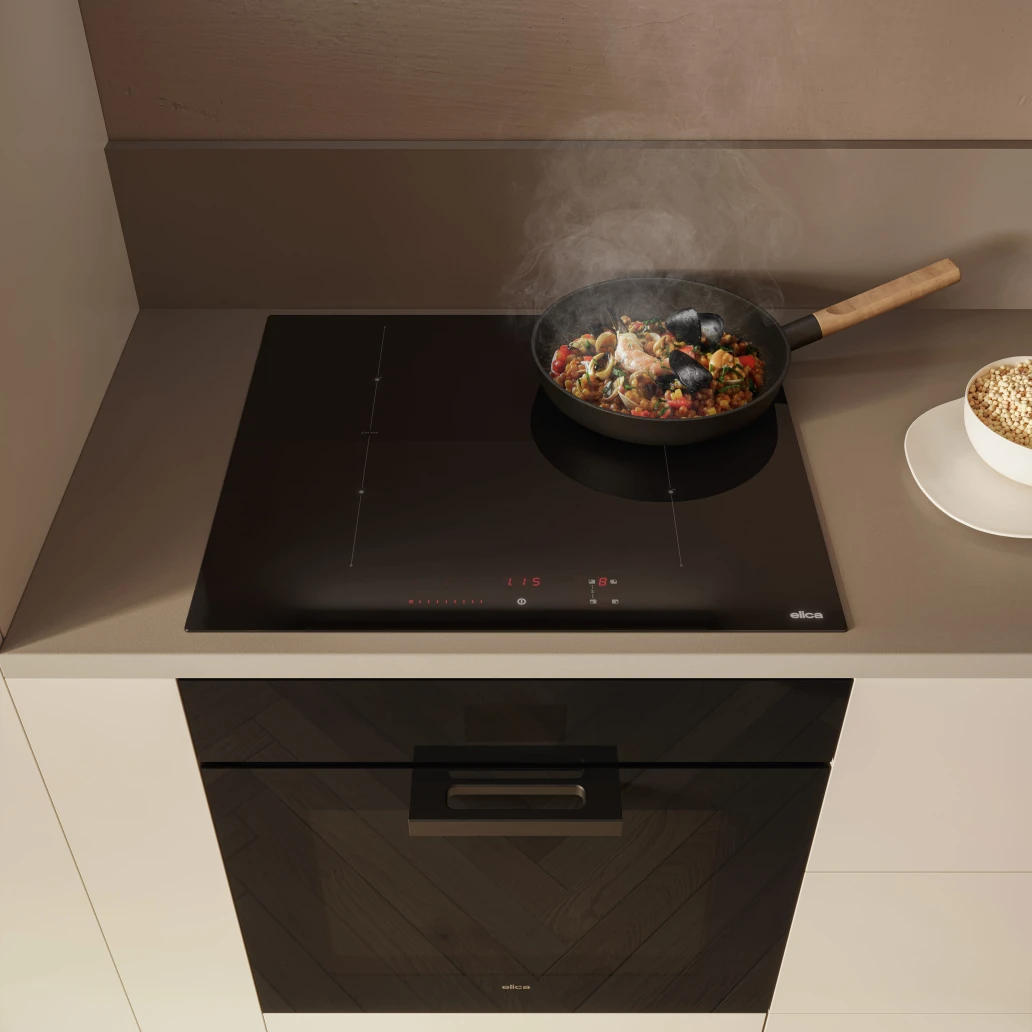

A 60 cm induction hob boasting a starkly minimalist look.
Total black glass, subtle serigraphs, slider control. And high-performance cooking functions.
FEATURES
CHILD LOCK
Children always safe and protected. This function prevents accidental activation of the cooking zones or the extraction. Total peace of mind.
WARMING
Slow and steady. Designed for slow heating, this function is perfect for warming milk and broth, preparing creams and sauces without overheating them, and keeping ready-to-eat foods warm.
STOP&GO
Everything stops, everything starts again. Need to move away from the kitchen while you are cooking? Just by a gesture, put all the functions activated on standby. All you need to do is just press a key to start them again with previous settings.
TIMER
You set the time, and it starts the countdown. When the time is up, it will automatically turn off the cooking zone and sound an alarm. Using the touch controls, you can also set separate timers for multiple zones at the same time.
BRIDGE ZONE
Having problems with oval-shaped or bigger-sized pots? This function transforms two cooking zones into a bigger size one, ensuring you the same power level and constant temperature for a homogeneous cooking
INFORMATION
DESIGN
This compact hob is designed for cooking with different sized pots and delivers exceptional ergonomics.
BRAND
Elica
PRODUCT TYPE
Hob
WEIGHT
10.8 kg
FINISHING
Black glass
CONTROLS
9P+B slider touch control
VOLTAGE
220-240V / 380-415V 2N

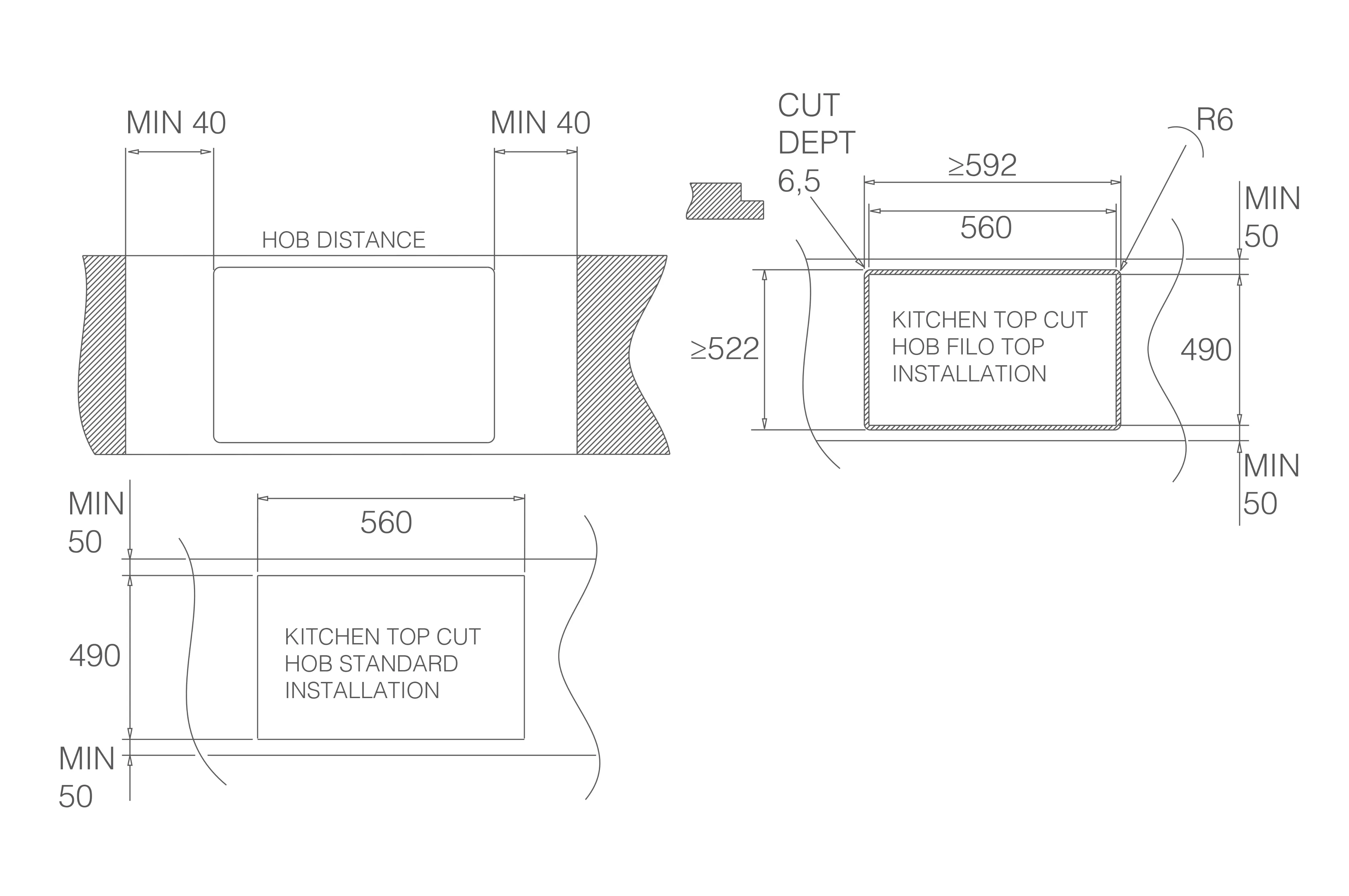

CUT OUT
56x49 cm
TOTAL ABSORPTION
7.2 kW
POWER LIMITATION
3,1kW - 4,5kW
NUMBER OF BRIDGE ZONES
1 - SX
FRONT LEFT COOKING ZONE
OCTA 21x19,1 cm - 1,65/1,85 kW
RIGHT FRONT COOKING ZONE
Ø 20 cm - 2,3/3 kW
REAR LEFT COOKING ZONE
OCTA 21x19,1 cm - 2,1/3 kW

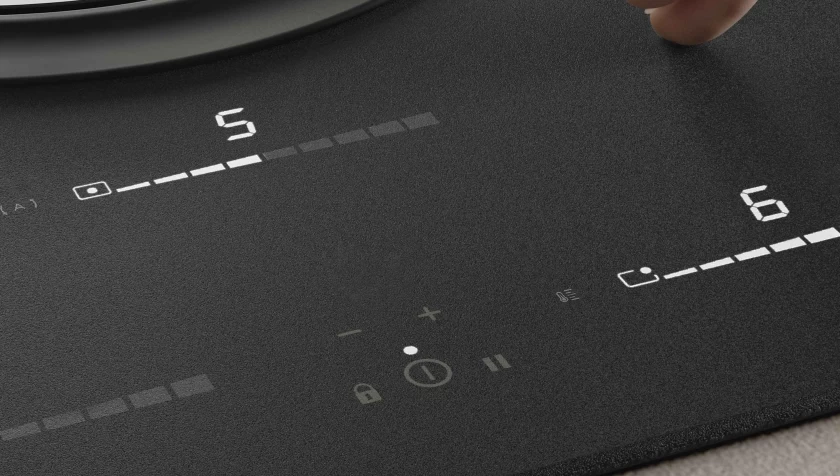

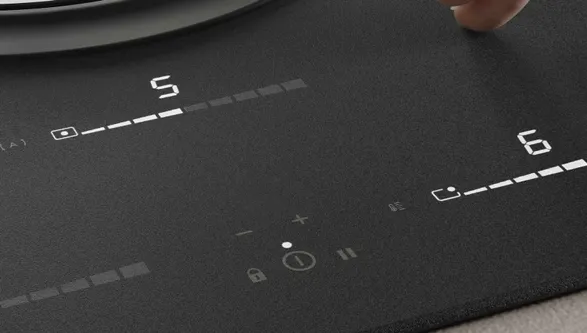

EASY CONTROL
The cooking zones are controlled via a touch slider interface. Automatic modes, the Bridge function and Stop&Go to pause cooking are always available with a simple touch. Power levels, timers and all active functions are displayed through dedicated indicators.
ESSENTIAL LINES AND ERGONOMIC DESIGN.
The user-friendly touch slider control enables you to easily manage the hob and adjust all functions. These functions include slow cooking, warming milk and broth, preparing custards and sauces without overheating, and keeping dishes warm.
REAR RIGHT COOKING ZONE
Ø 16 cm - 1,2/1,4 kW
PRODUCT CODE
PRF0183903
DESIGNER
Elica Design Center
COLLECTION
Ratio 604 Plus
FUNCTION
It includes a function to bridge two cooking zones, ensuring uniform power and temperature, even when using larger cookware.
DOWNLOADS
↓ Technical data sheet
↓ Web Books

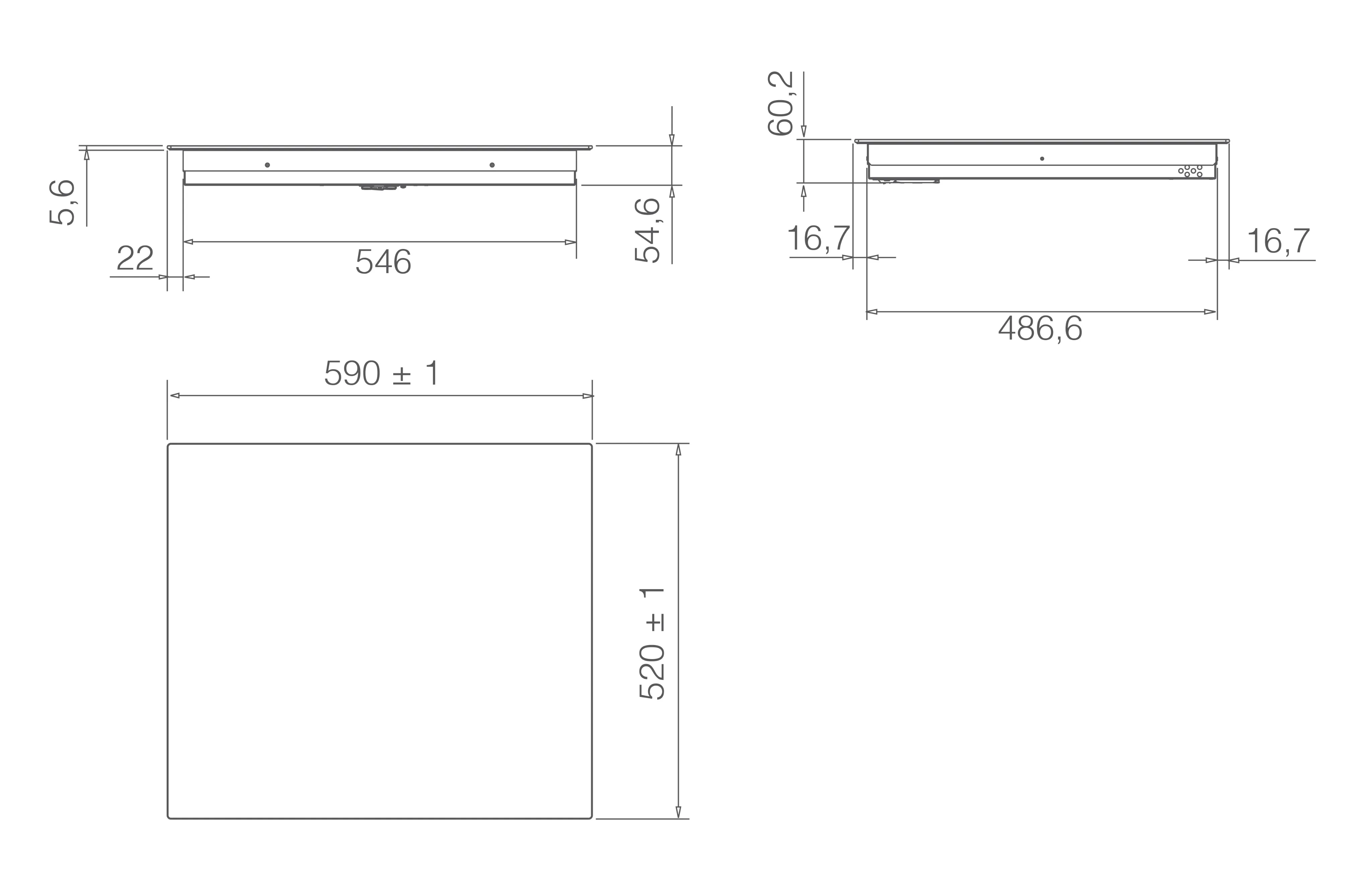

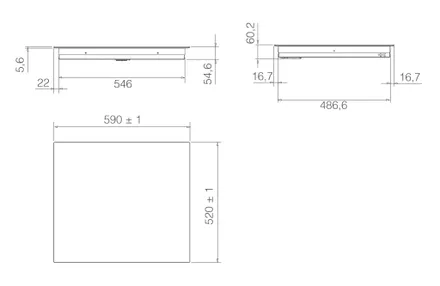

TECHNICAL DRAWINGS
