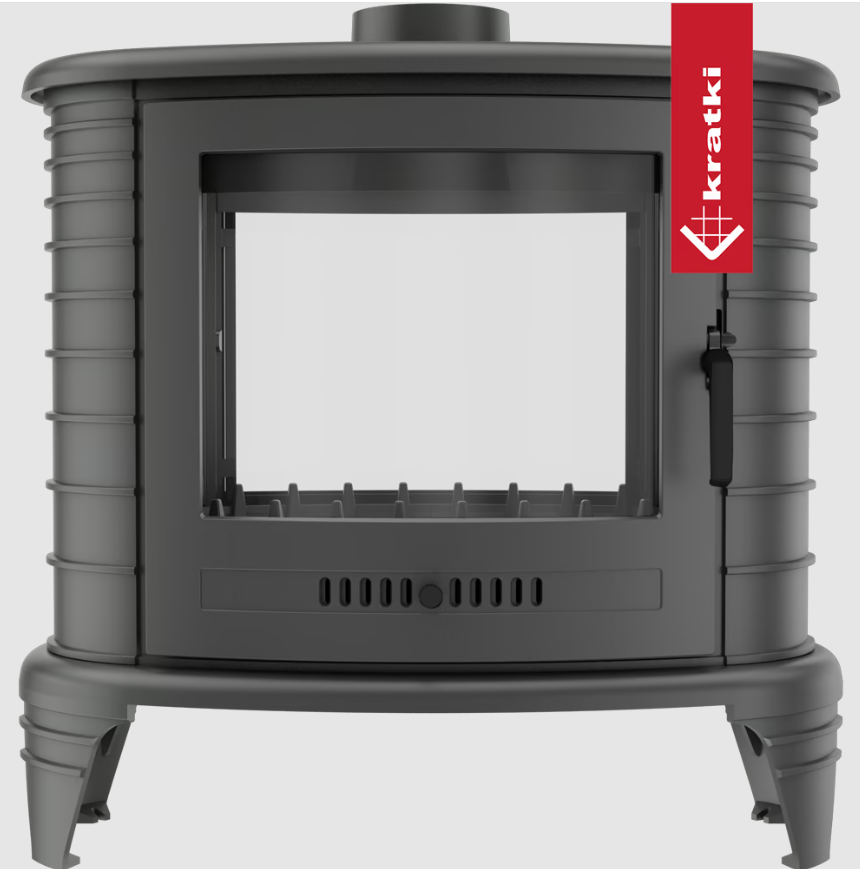

Kratki Wood Burning Cast Iron Stove Tunnel Kratki K8 Ø 130 9 Kw
WOOD BURNING CAST IRON STOVE TUNNEL KRATKI K8 Ø 130 9 KW
WOOD BURNING CAST IRON STOVE TUNNEL KRATKI K8 Ø 130 9 KW
INFORMATION
MAXIMUM USE OF ENERGY
- Combustion of fuel particles thanks to the deflector, which extends the exhaust gas path.
- Maximum use of heat and trouble-free operation thanks to the walls of the device made of high-quality cast iron with a thickness of 8 mm.
BRAND
Kratki
PRODUCT TYPE
Stove
EAN
5901350041130
WEIGHT
124 kg
PHYSICAL PARAMETERS
- Width : 66.6 cm
- Depth : 38.2 cm
- Height : 62.6 cm
FUEL TYPE
Seasoned deciduous wood (humidity ≤20%)
SKU
KOZA/K8/T
CERTIFICATIONS / COMPLIANCE
Ecodesign
EQUIPMENT
Ashpan
ENERGY CLASS
A
POWER
- Nominal power : 9.9 kW
- Heating power range : 5.0 - 11.0 kW
LENGTH
- Optimal log length : 300 mm
- Max billet length : 35 cm
EEI
99
THERMAL EFFICIENCY
75.2 %
FLUE GAS TEMPERATURE
284 °C
BASE MATERIAL
Cast iron
HEAT OUTPUT FOR SPACE HEATING (KW)
9.9 Kw
COLOR
Black
ADDITIONAL CLOSING
No
VERSION
Tunnel
DOOR OPENING
Left
DIAMETER OF THE FLUE GAS OUTLET
130
SAFETY AT THE HIGHEST LEVEL
- Decorative fence helps to maintain tidiness and protects against falling out of wood.
- The Classic front of the stove is equipped with heat-resistant ceramics that can withstand temperatures up to 660°C.
CONVENIENT TO USE

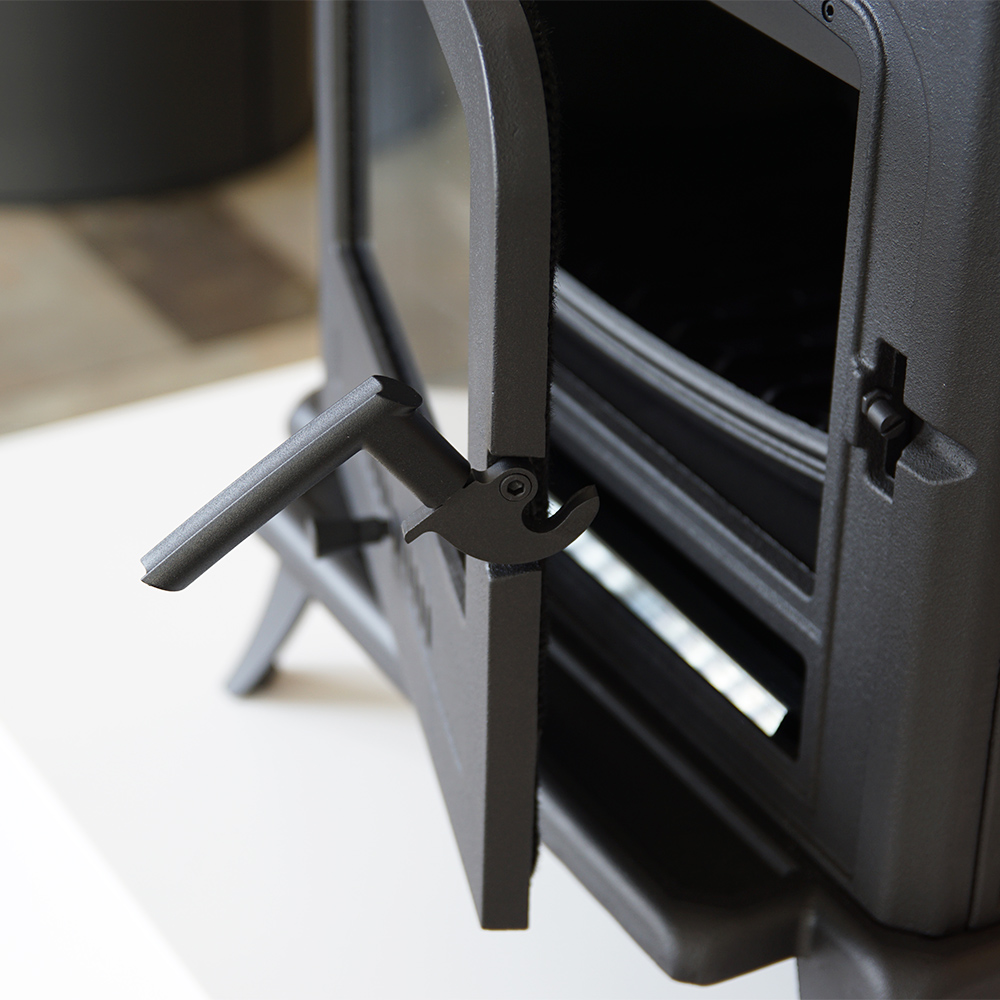

- The cold handle system allows for disassembly when the stove is in use.
- Reduced soot deposition through a system of pure glass (air curtain).
- Ash drawer/ashtray, where burnt wood remains are gathered and grated for easy ash removal.
- The possibility of different assembly, thanks to the adjustable flue gas outlet from the back or top of the stove.
OPTIONAL EQUIPMENT
None
SEASONAL ENERGY EFFICIENCY
65 %
CO EMISSION (MG/M3)
1815 mg/m3
NOX EMISSION (MG/M3)
145 mg/m3
CO EMISSION (AT 13% O2) ≤ GIVEN IN %
0.146 %
TECHNICAL DRAWING
FLUE GAS MASS FLOW (G/S)
10.9 g/s
POLLEN EMISSION (MG/M3)
23 mg/m3
OGC EMISSION (MG/M3)
15 mg/m3
