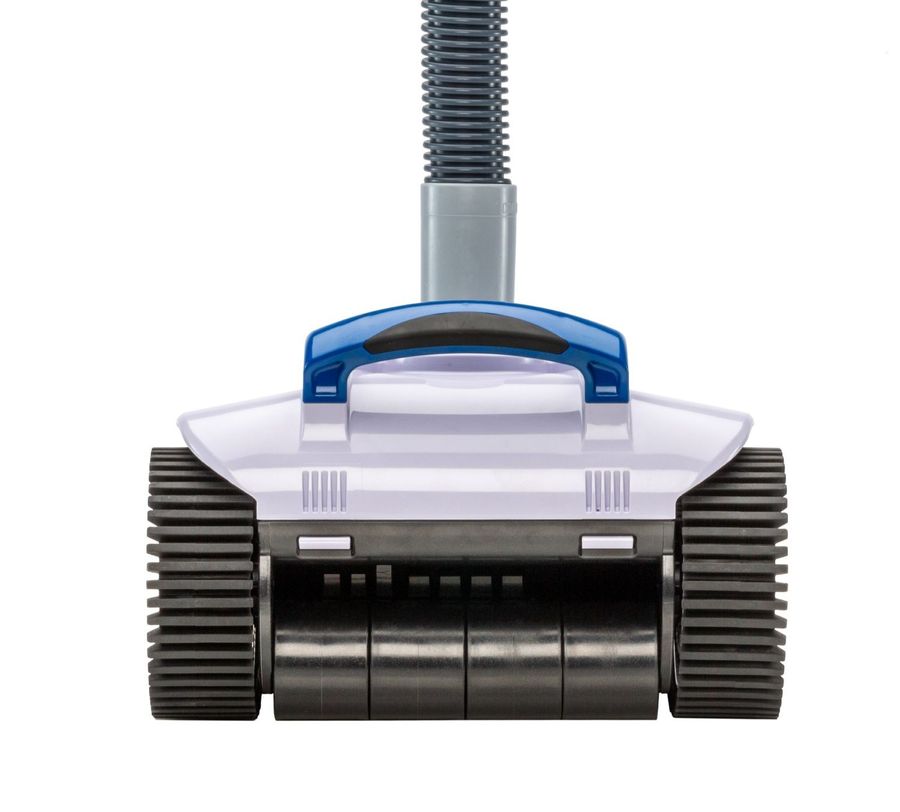

Hayward TracVac Suction Cleaner (Open Line)
TRACVAC SUCTION CLEANER (OPEN LINE)
TRACVAC SUCTION CLEANER (OPEN LINE)
SKU : W3HSCTRACCU

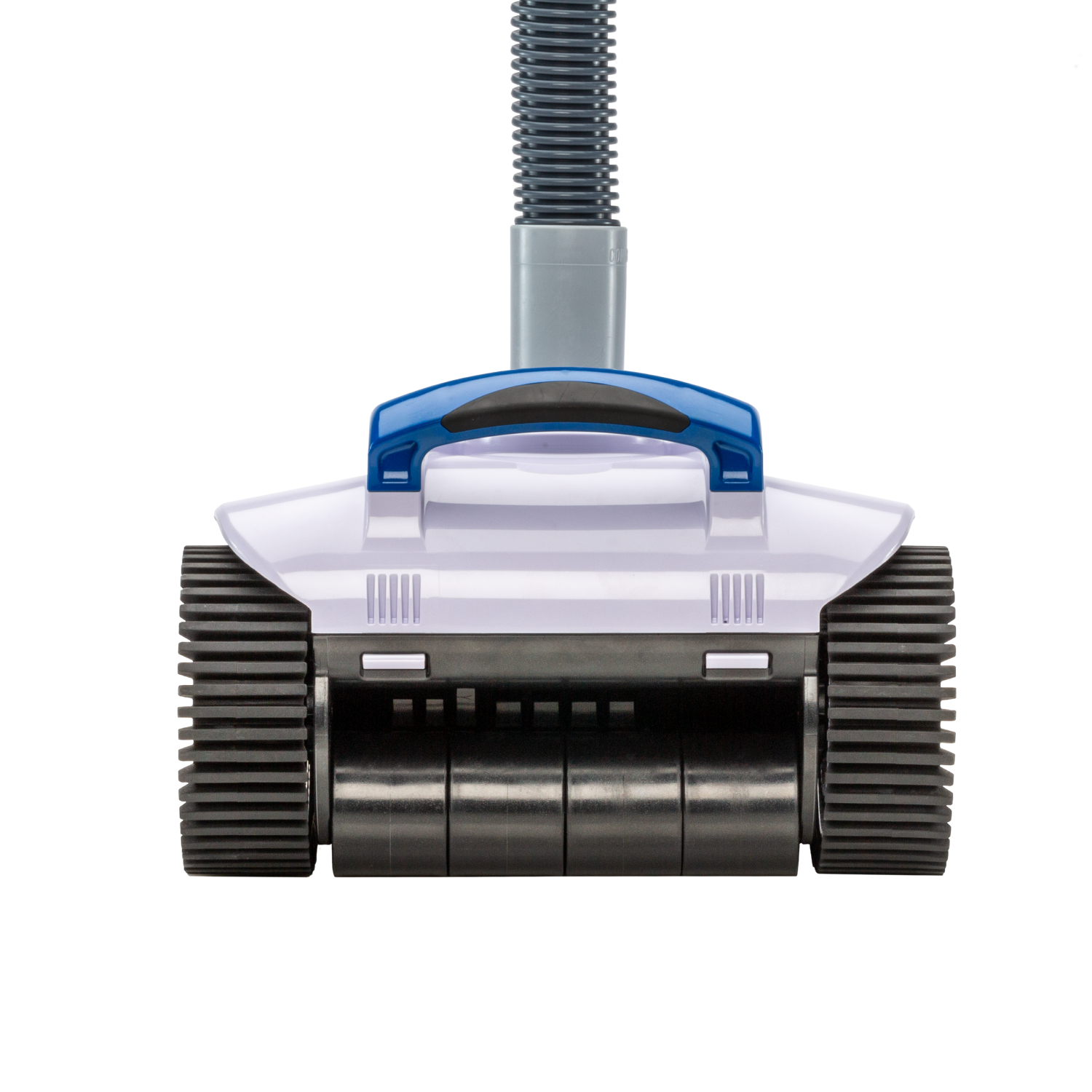

The Hayward TracVac™ is an in-ground, suction cleaner designed for maximum clean with minimal effort.
INFORMATION
BRAND
Hayward
PRODUCT TYPE
Pool Cleaner
GTIN
610377419093
CHANNEL
Open Line
TRACTION SYSTEM
4-Wheel Drive
WARRANTY
- Parts : 2-year
- Labor : 1-year
QUANTITY
1
SHIPPING WEIGHT
18.58 lb
SHIPPING DIMENSIONS
- Height : 11.94 in
- Length : 40.44 in
- Width : 13.56 in

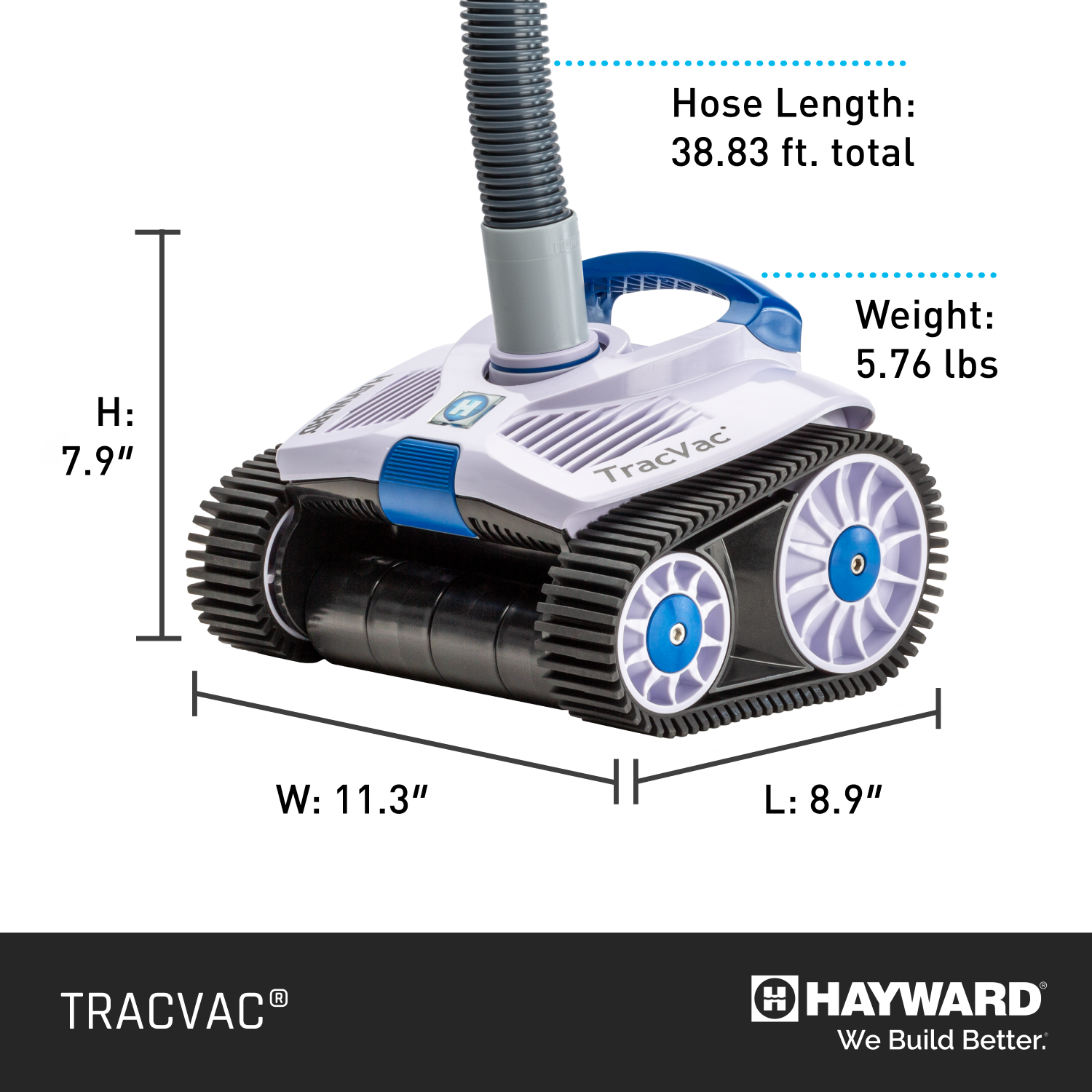

DIMENSIONS
- Length : 8.9 in
- Width : 11.3 in
- Height : 7.9 in
USE
Cleaning
COLOR
White
COMPACT POWER WITH SUPERIOR MANEUVERABILITY

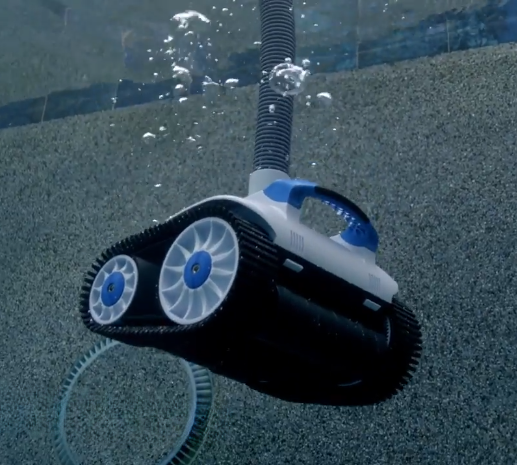

The use of tracks provides improved operational efficiencies which allow the TracVac to overcome obstacles better than standard wheeled options. Don’t be fooled, this cleaner is small but mighty. Its modest size allows the TracVac to navigate any pool surface with speed and agility and light-weight construction makes it easy to handle.
POOL TYPE
In Ground
MASTER CARTON QTY
1

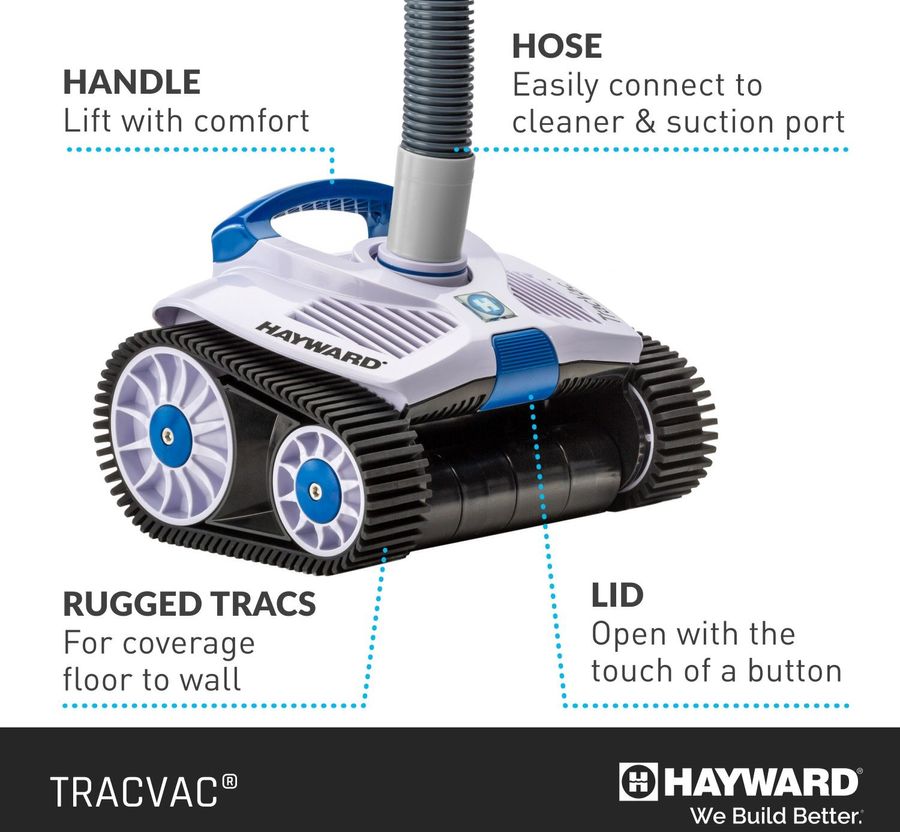

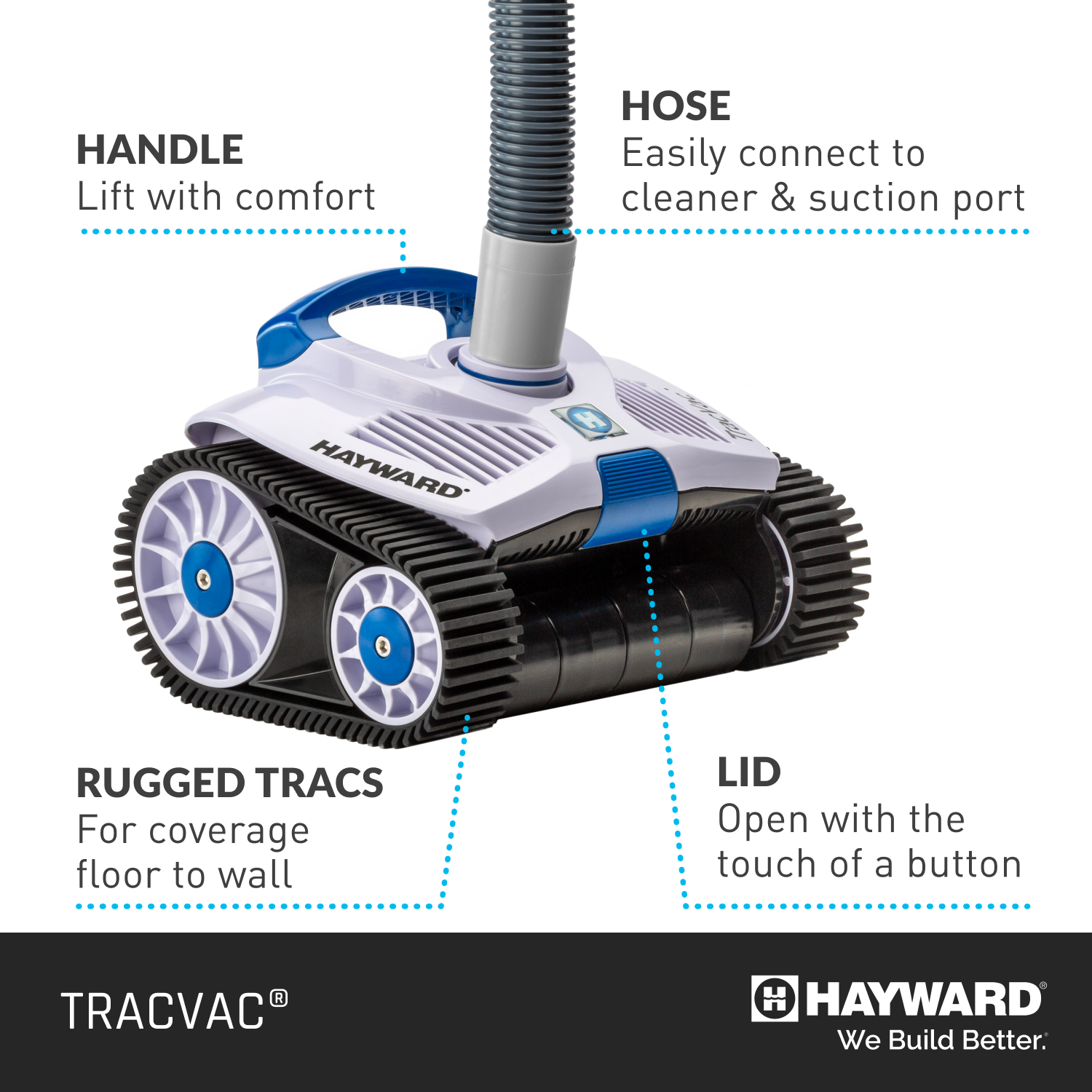

FEATURES & BENEFITS
- Tough, Yet Reliable: Long-lasting drive-train allows for limited service
- Pool Size: Guarantees a thorough cleaning experience for pools up to 20 x 40 ft
- Inground Pool Cleaner: TracVac suction pool cleaner is suitable for inground pools with various finishes, including concrete (gunite), fiberglass, vinyl, and tile
- Ease of Use: Using the water flow from your filtration system, the TracVac attaches to either a dedicated suction port or skimmer and is powered by your pool pump
- Powerful Performance: Designed with rugged tracks to effortlessly maneuver over drains, ensuring comprehensive coverage from the floor to the wall and accessing hard-to-reach areas

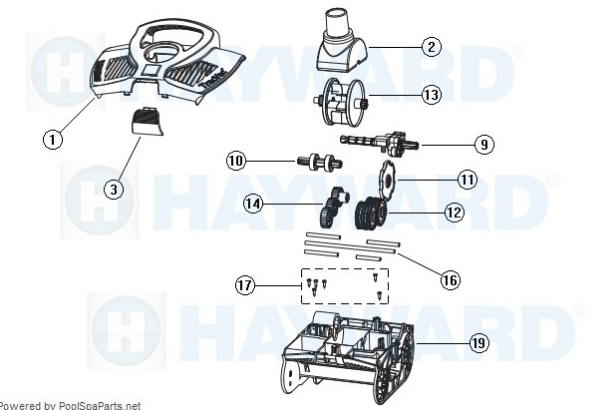

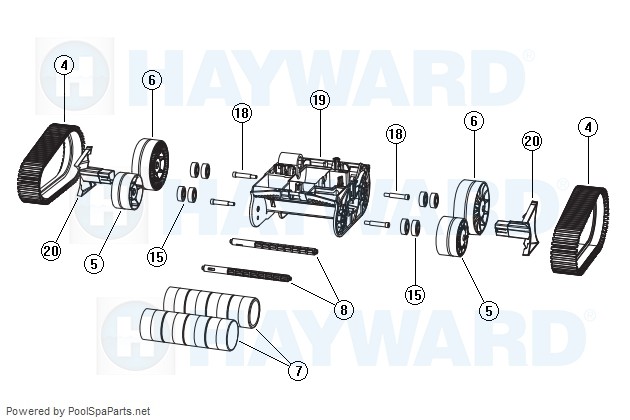

TECHNICAL DRAWINGS
TECHNICAL DRAWINGS
- 1. Top Cover Kit (Top Cover including Handle and Balancing Weig
- 2. Turbine Cover Swivel Kit (Turbine Cover/Swivel)
- 3. Buckle/Latch Kit
- 4. Track Kit (Set of 2)
- 5. Front Small Wheel Kit - Includes bearings and mushroom inser
- 6. Rear Large Wheel Kit - Includes bearings and mushroom insert
- 7. Roller Kit (Set of 4 rollers)
- 8. Roller Bar Kit (Set of 2)
- 9. Left Drive Kit (Long Drive Shaft and Bearing Housing)
- 10. Right Drive Kit (Short Drive Shaft and 2 bearings)
- 11. Cam Reduction Gear Kit (5 Reduction Gears and SS Shaft)
- 12. Cam Reduction Gear Kit (5 Reduction Gears and SS Shaft)
- 13. Turbine Kit (Just the Turbine)
- 14. Drive gear Kit (3x Drive Side Gears)
- 15. Bearing Kit (Set of 8)
- 16. SS Shaft Kit (5x)
- 17. SS Screw Kit (6x Internal SS Shaft Screws)
- 18. Wheel Screw Kit (4x SS Screws for the Wheels)
- 19. Chassis Kit (Chassis with Balancing Weights and Latch Spring
- 20. Side Covers (2x), Left-Right
