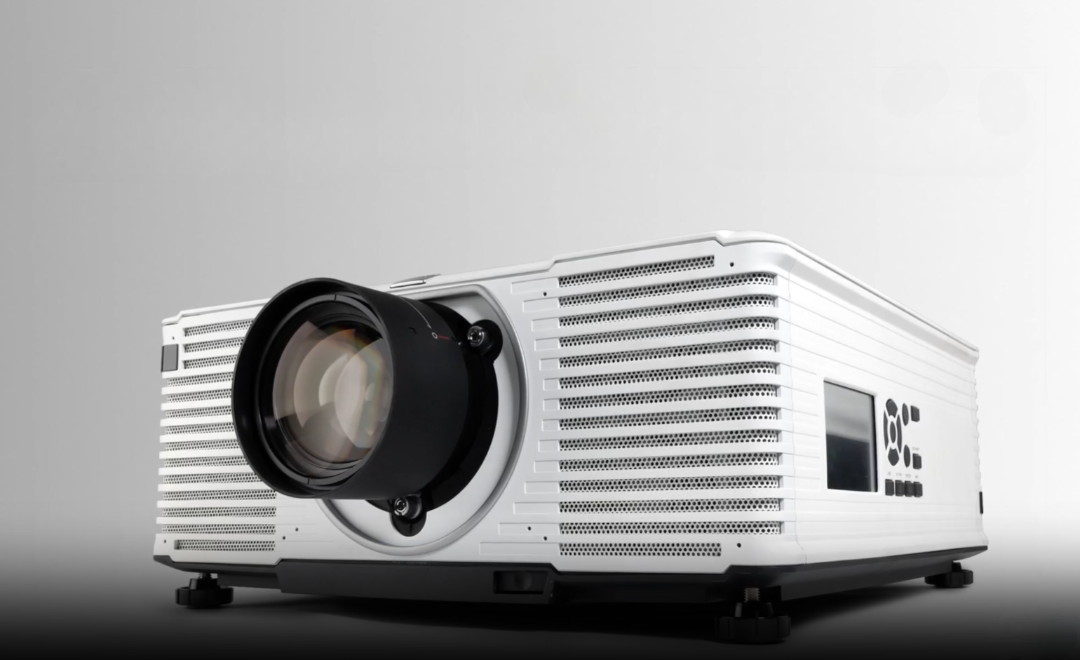

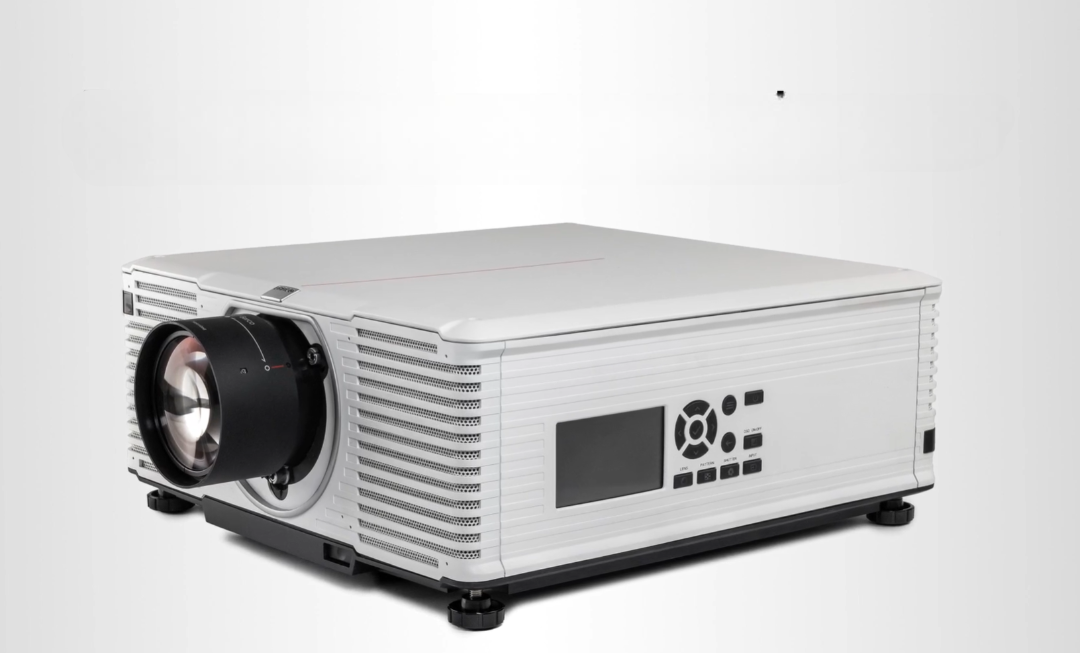

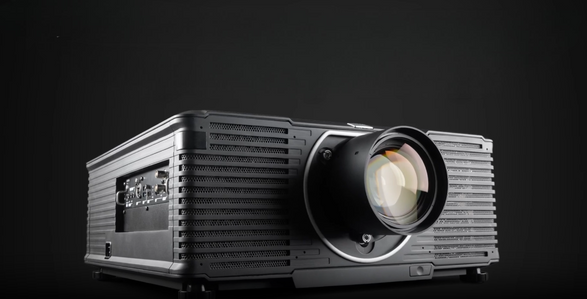

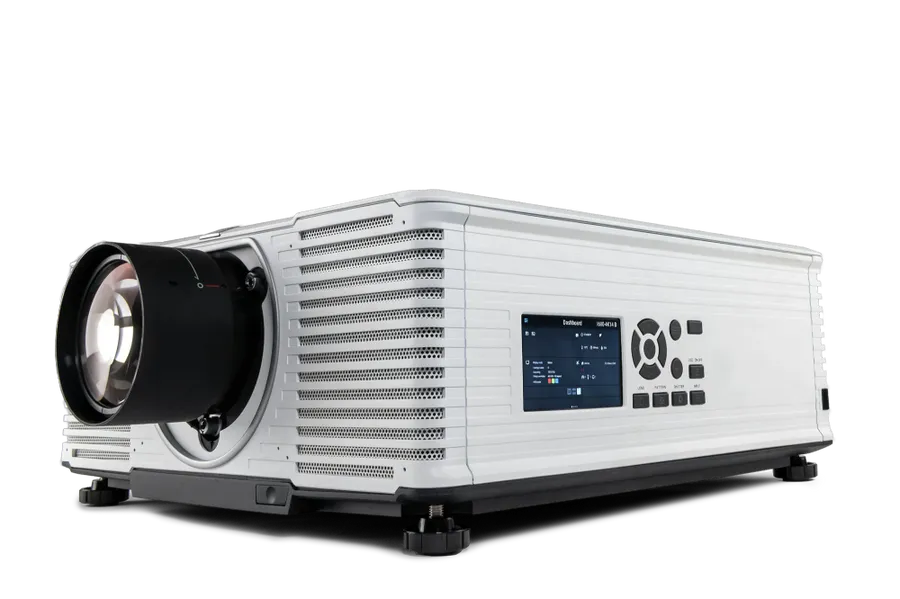

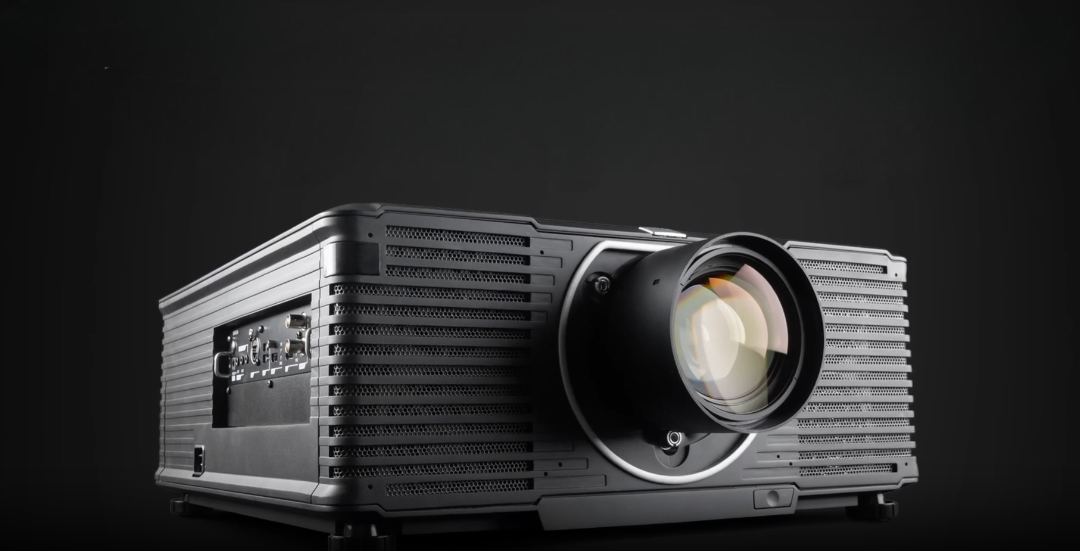

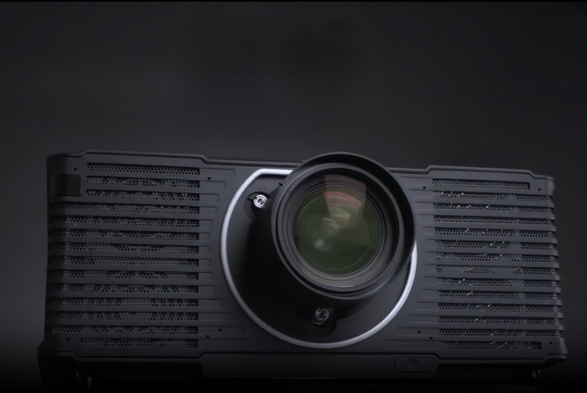

Barco I600‑4K15 Projector
I600‑4K15 PROJECTOR
I600‑4K15 PROJECTOR

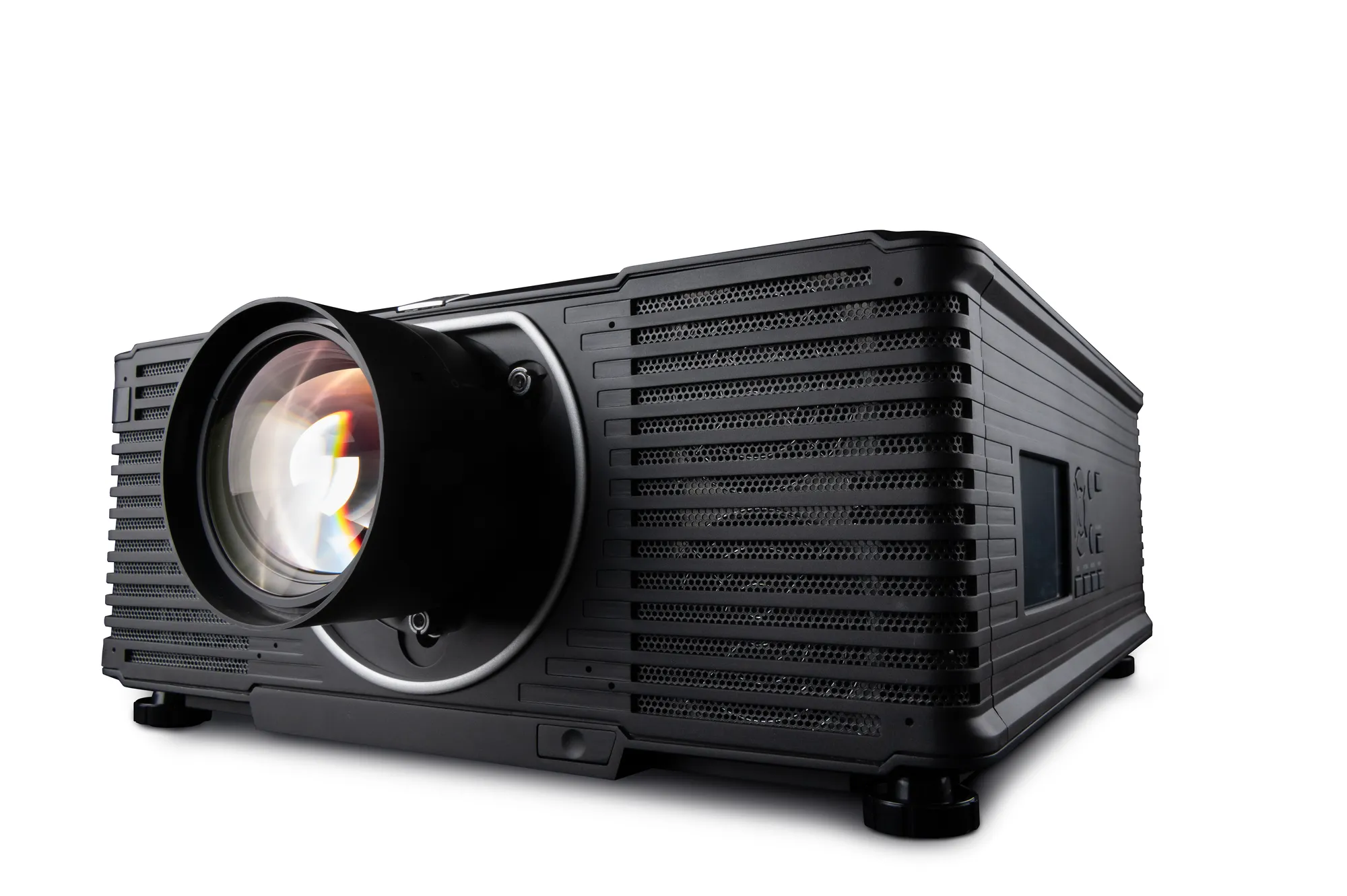

The I600-4K15 is a light-weight high-resolution projector with 4K UHD image quality and 14,000 lm brightness.
With its focus on long-lasting image quality, multichannel compatibility and its compact size, this single-chip projection platform is your perfect pick, fit for a wide range of applications requiring high-quality content.
INFORMATION
BRAND
Barco
PRODUCT TYPE
Projector
RESOLUTION
- 3840 x 2400 (4K UHD)
- 1920 x 1200 (native)
CONTRAST RATIO
- Full field 1.600:1
- Barco DynaBlack® 20.000:1
TECHNOLOGY
0.8" HEP DMD™
IR FOR NVG
No
PROJECTOR TYPE
4K UHD 1-chip DLP digital projector
LIGHT SOURCE
Blue laser phosphor with inorganic phosphor wheel
LIGHT SOURCE LIFETIME
20.000hrs (long life mode 30.000hrs)
BRIGHTNESS
14000 ISO lumen
BRIGHTNESS UNIFORMITY
>90%
ASPECT RATIO
16:10 Native
COLOR SPACE
REC 709
ORIENTATION
360° rotation no restrictions
3D
Active stereoscopic 3D / Passive stereo compatible
SEALED DLP™ CORE
Yes
PROCESSING
Pulse electronics
24/7 OPERATION
Yes
COLOR CORRECTION
P7 RealColor™
CERTIFICATIONS
Compliant with UL: UL 62368-1, EN IEC 62368-1, and GB 4943.1;vComplies with FCC rules & regulations: Part 15 Class A and CE EN55022 Class A, GB/T 9254.1 A级 and GB 17625.1;cRoHS;
OPTICAL LENS SHIFT
- Vertical up to 110% depending on lens
- Horizontal up to 30% depending on lens
COLOR

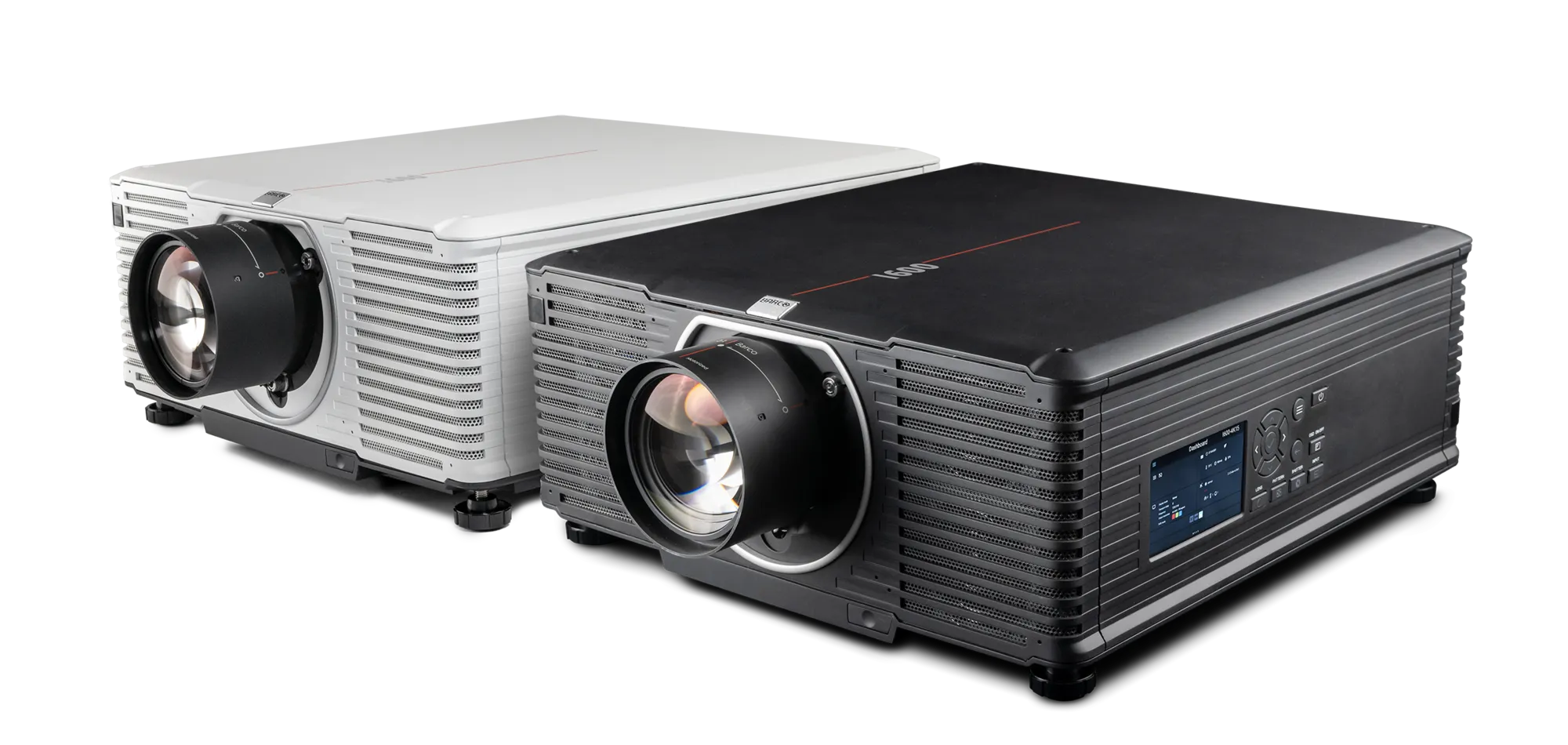

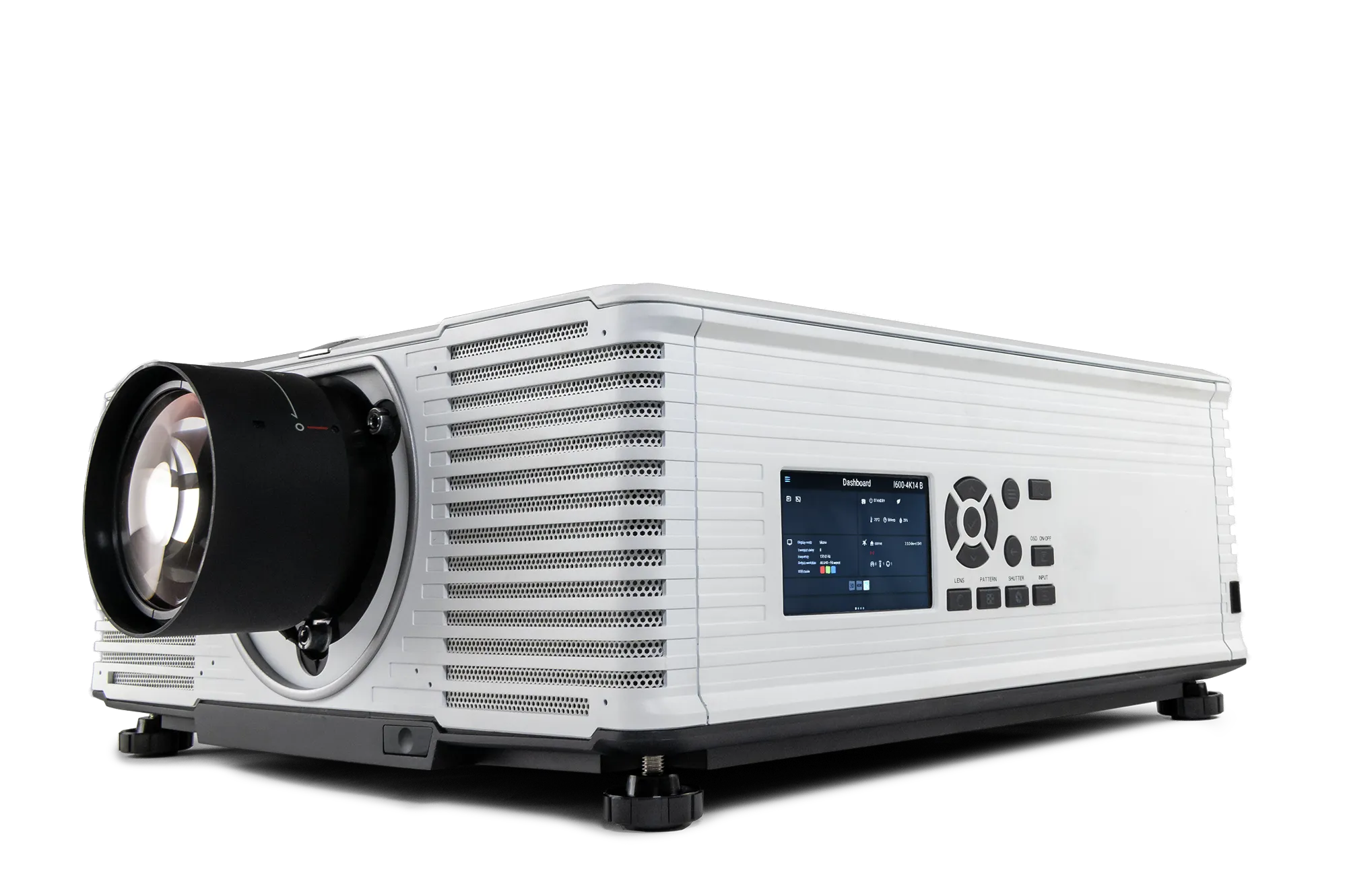

Black Or White
IMAGE PROCESSING
Embedded warp & blend
KEYSTONE CORRECTION
Yes
PICTURE-BY-PICTURE
Two sources simultaneously *

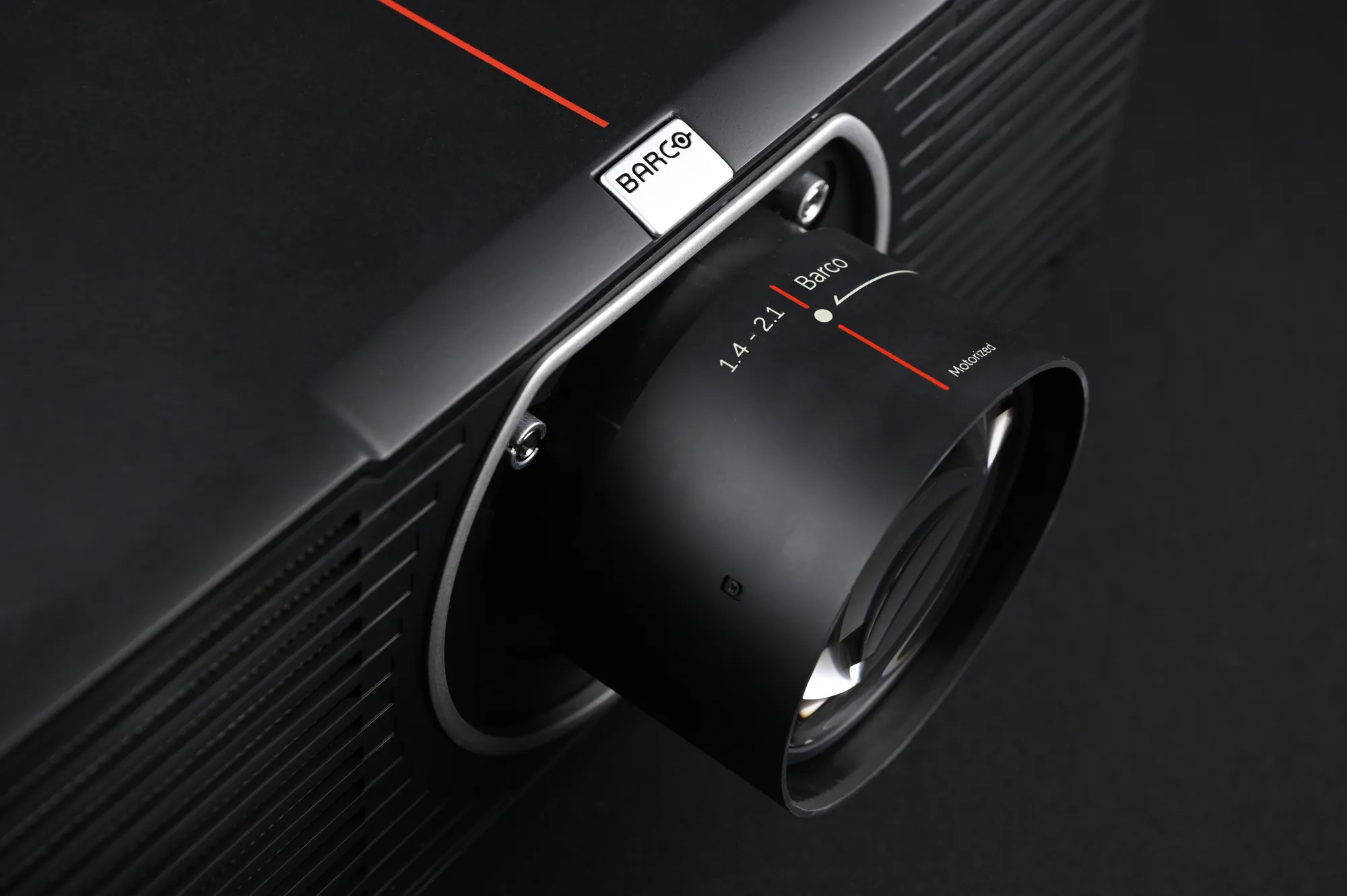

LENS TYPE
ILD
THROW RATIO
From 0.37 to 7.4
PRIME LENSES
N/A
LENS RANGE
ILD lenses - 0.37:1 / 0.5:1 / 0.65-0.8:1 / 0.8-1.0:1 / 1.0-1.4:1 / 1.4-2.1:1 / 2.1-4.0:1 / 4.0-7.4:1
INPUT COLOR DEPTH
Up to 36 bpp
CONTROL
IR RJ45
POWER REQUIREMENTS
- 100-240V
- 14A
- 50/60Hz
SOFTWARE TOOLS
Projector Toolset + Android app + iOS app + IMS
WEB BROWSER
Yes
POWER CONSUMPTION
1200W Typical

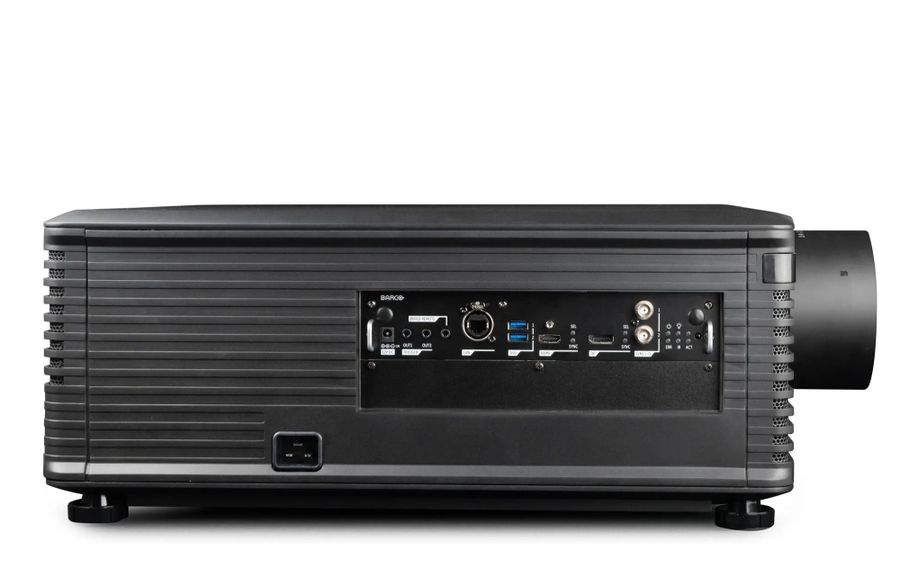

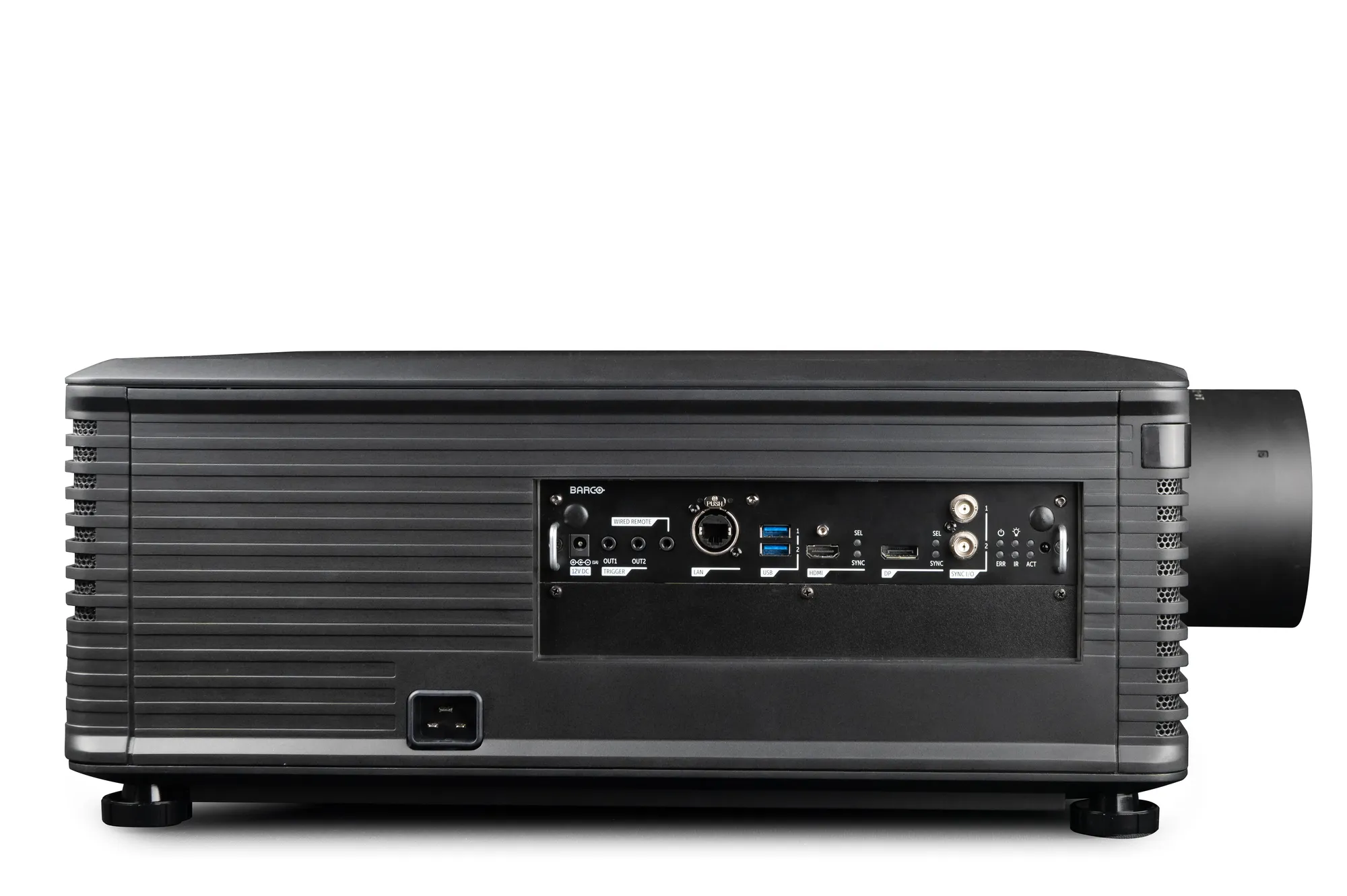

INPUTS
- HDMI™2.1 (HDCP2.2)
- DP1.4
- RJ45 Ethernet
- USB(5v)
- 12V out
- BNC 3D sync in-out
DMX 512
Optional
HOUSING
Plastic cover
WARRANTY
- Limited 3 years on parts and labor
- Extendable up to 5 years
- Service: single swap of projector
TAA COMPLIANCY
Optional
NETWORK CONNECTION
10/100/1000 Mbit, Wifi** (through optional dongle)
USER INTERFACE
LCD touch local keypath remote control wired remote control
BLEND
Horizontal and vertical edge blending
STANDBY POWER
< 0.5W
DISSIPATION BTU
4095 BTU/h
STANDARD ACCESSORIES
- Power cord
- Wireless remote control
DIMENSIONS WITH FEET
- Width : 522 mm (20.5 in)
- Length : 494 mm (19.4 in)
- Height : 198 mm (7.8 in)
WEIGHT
Without lens : 23.7 kg (52.3 lbs|)
STORAGE HUMIDITY
10 - 90% RH (non-condensed)
NOISE LEVEL
40dB(A)
OPERATING TEMPERATURE
5°-40°C / 41°-104°F (sea level)
OPERATING HUMIDITY
10% - 80% RH (non-condensed)
STORAGE TEMPERATURE
-20 to 60 °C
SUPPORT
Supported when using of the optional 4x1.2 DP input board
PROJECTOR FEATURES
CLO (CONSTANT LIGHT OUTPUT)
Yes
DOWNLOAD
↓ Spec Sheet
14,000 ISO LUMEN, 4K UHD, SINGLE-CHIP LASER PHOSPHOR PROJECTOR
- Next-gen Barco Pulse electronics
- DynaBlack® contrast enhancement
- Most compact & lightweight design in its category
- Premium 4K UHD image quality thanks to SuperShift®
- Smooth integration in single- and multi-channel set-ups
DETAIL
TECHNOLOGY
Running on the next generation Barco Pulse electronics and our unique Barco SuperShift® technology, the I600 makes for smoother images and sharper pixels at the lowest latency.
The laser phosphor light source ensures exceptional color fidelity and image uniformity. Thanks to an internally developed smart algorithm, DynaBlack® enhances the I600 projector contrast ratio up to 20.000:1! With superlative black levels the quality of your content enhances incredibly and the contrast in dark images really stands out
Having an optional input slot, a black or white chassis, a full range of peripherals, and a large fleet of swappable ILD lenses with variable ratios from 0.37 UST to 7.4:1 long-throw at hand, the I600 platform is tailored to match all your single and multi-channel installation needs.
What’s more, the single-chip projector is fully integrated in Barco’s Pulse ecosystem which includes various software tools such as Pulse Prospector, Pulse Mobile App, Pulse toolset and Insights Management Suite to enable easier projector control on-site and in the cloud. In addition, I600 owners can benefit from the Barco swap-based service model and global support.
