Codelocks CL510 & CL515 Marine Tubular Latch Back to Back
CL510 & CL515 MARINE TUBULAR LATCH BACK TO BACK
CL510 & CL515 MARINE TUBULAR LATCH BACK TO BACK
Marine by Codelocks heavy duty mechanical locks with two coded plates providing coded access in both directions.
The Marine by Codelocks range features a selection of locks that have been specially enhanced to withstand harsh outdoor environments and coastal applications.
INFORMATION
BRAND
Codelocks
PRODUCT TYPE
Door Lock
BUTTONS
2 x 6
CODE CHANGE METHOD
Tumblers (Off Door)
CODES
Single code storage - 2,047 non sequential combinations available
COLLECTION
Marine
DOOR THICKNESS
35mm - 60mm (1 3⁄8" - 2 3⁄8")
FINISH
Black
KEYPAD
12 stainless steel buttons
MARINE-GRADE CODED LOCK – DURABLE FINISH & SECURE DUAL-SIDED ACCESS
Reliable and durable, the marine grade black finish has proven to be resistant against moisture and salt spray, following rigorous salt spray testing for up to 1000 hours*.Medium duty tubular latch. Two coded plates for installation on both sides of the door. Provides coded access in both directions. The outside lever will retract the latch freely until disabled.
LATCH TYPE
- 60mm Mortice Latch
- 70mm Mortice Latch
LOCK MATERIAL
Zinc Alloy

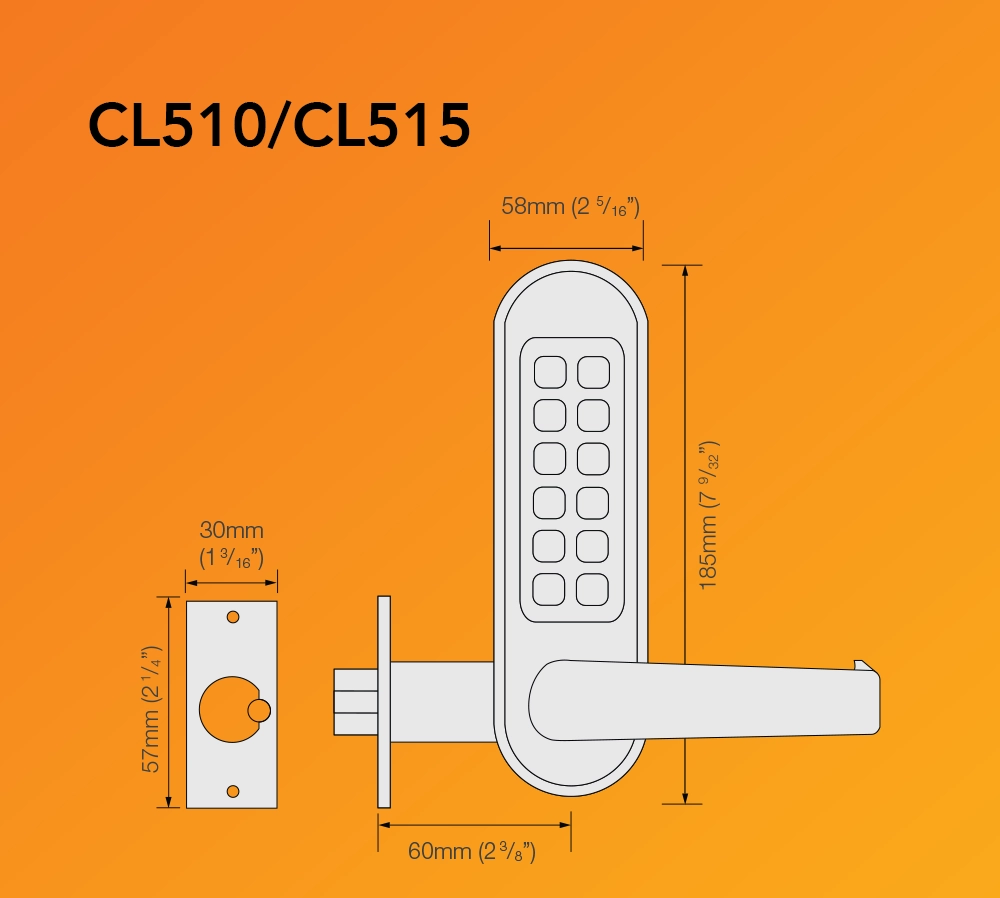

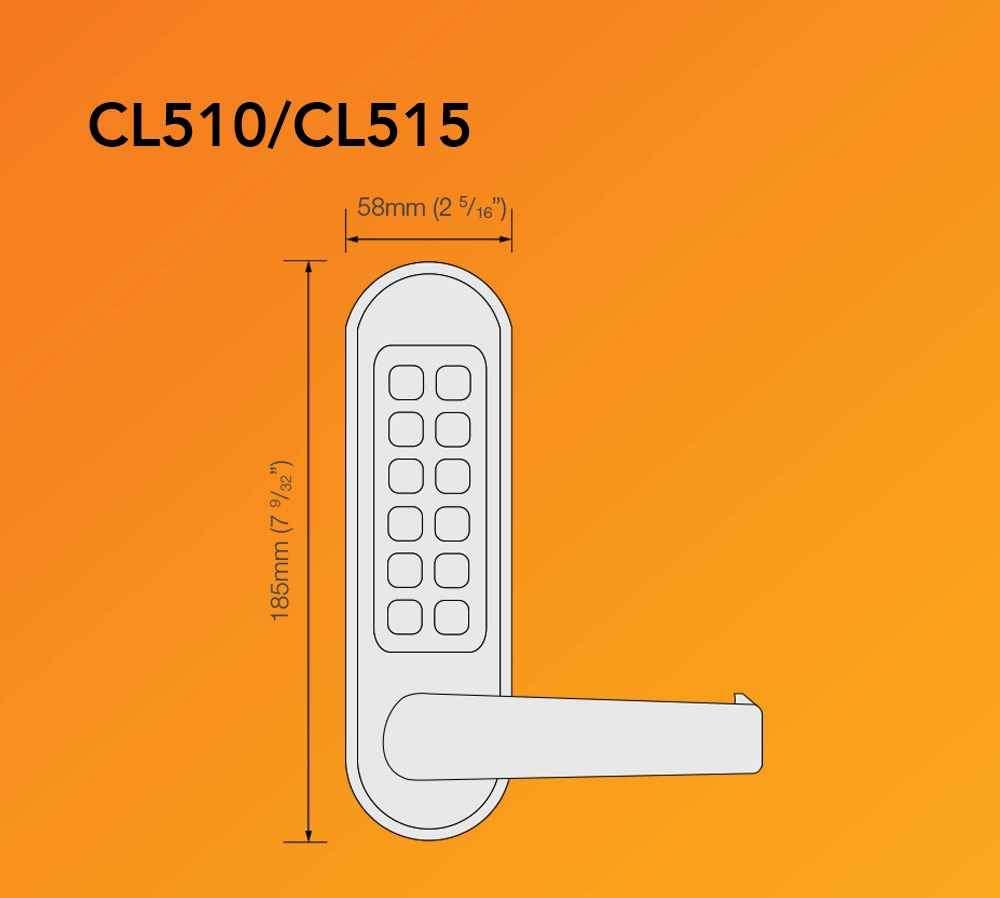

LOCK DIMENSIONS
7" (177mm) x 1 7⁄8" (48mm)
HANDED
Non Handed - Locks will fit doors hung on the left or right
KEY FEATURES
-Salt spray tested 1000 hours* -Durable marine grade black finish -Specially enhanced finish for harsh environments -Large full size lever handles with return to door -Suitable for internal and external use -Tumbler alignment for easy code change -Large three coil lever return spring suitable for high traffic use -Neoprene seals included -Suitable for wooden doors between 13⁄8" and 23⁄8" thick.
ORIENTATION
Vertical
SPINDLE
Two part 5⁄16" (8mm) spring loaded spindle
GURANTEE
They’re the same tough, convenient, easy-to-use locks with a finish to match. Key benefits such as the limited lifetime guarantee** are still applicable to the Marine by Codelocks range, not to mention the renowned Codelocks technical support available via phone, email or our support site.
SUITABLE FOR
- Internal
- External
USER TYPES
Code
APPLICATION LEAD TIME
3 to 5 working days
CLEAN
Clean by Codelocks is an optional finish which can be applied to any of our Codelocks products.
Clean by Codelocks features an ISO certified* photocatalytic coating which, when applied to our locks, offers enhanced protection against viruses, bacteria, germs and other environmental toxins. The coating utilises a process called photocatalytic oxidation, which means that the coating converts harmful bacteria and germs into a non-toxic compound, resulting in a clean and hygienic surface. The clear coating combats SARS-CoV-2 coronavirus (COVID-19) and can reduce bacterial growth by 99.96%*, providing an additional measure of protection over sanitisation.
